Custom Colt M4A1 assault rifle

Custom Colt M4A1 assault rifle Low-poly 3D model

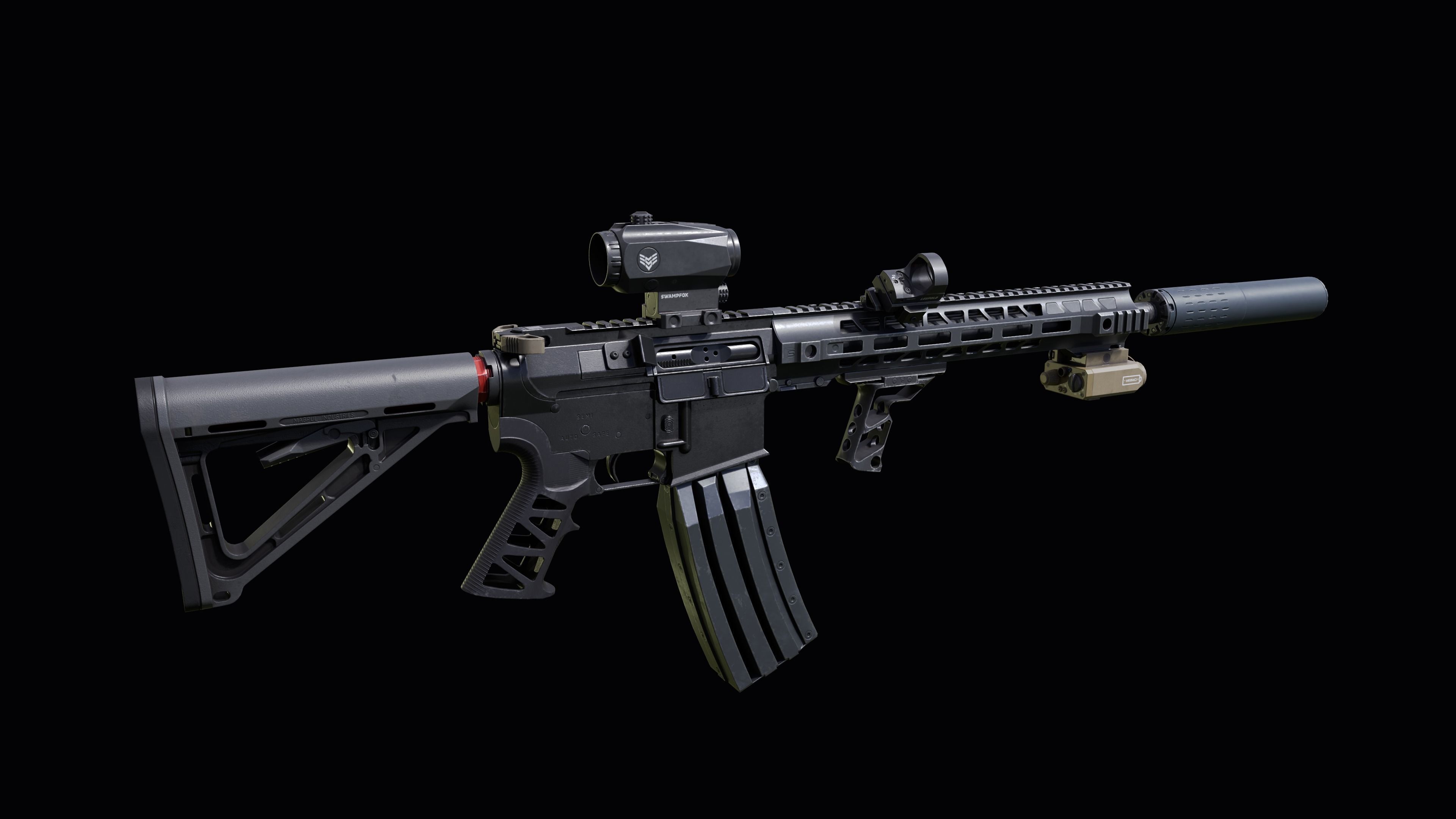

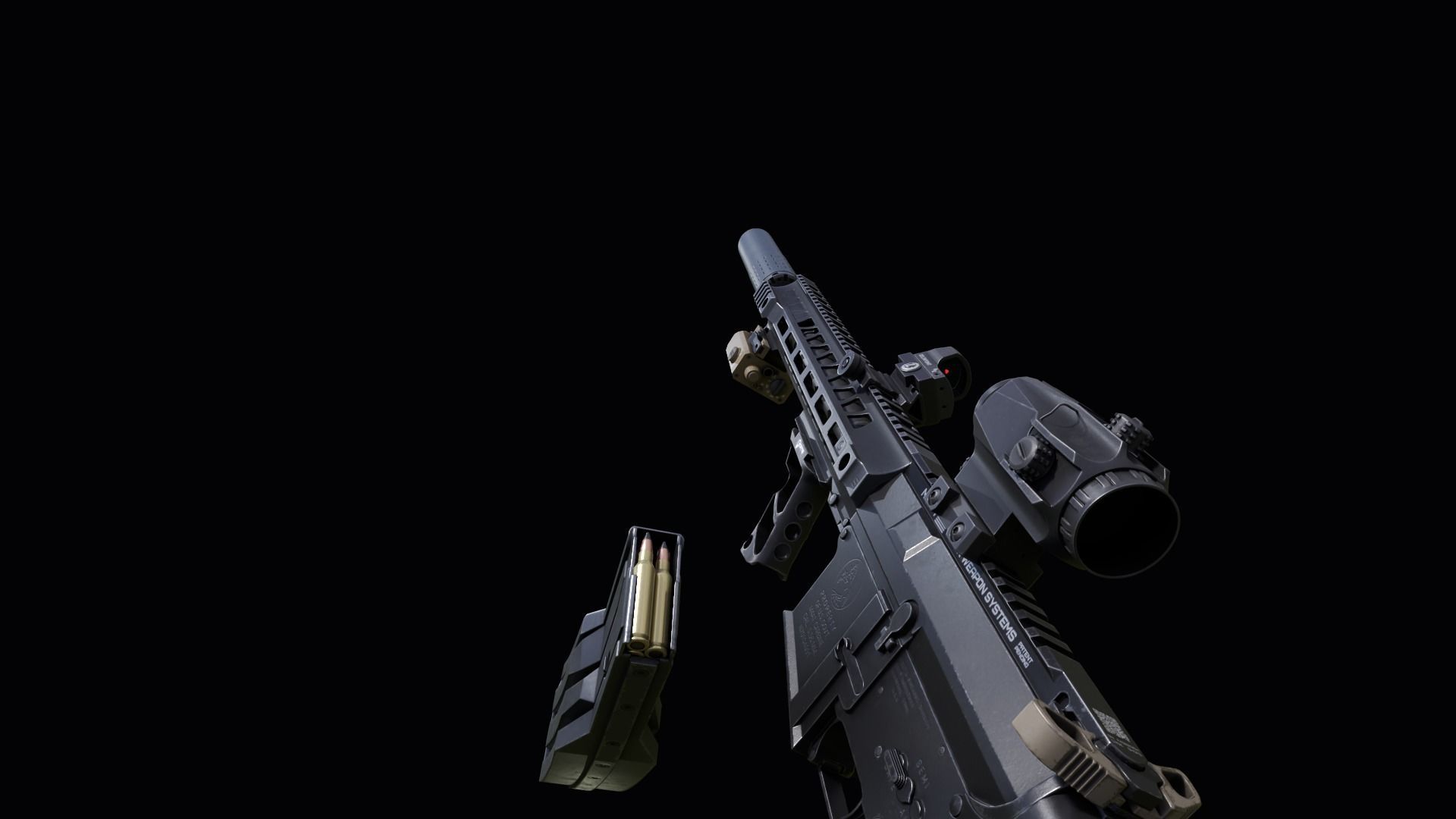

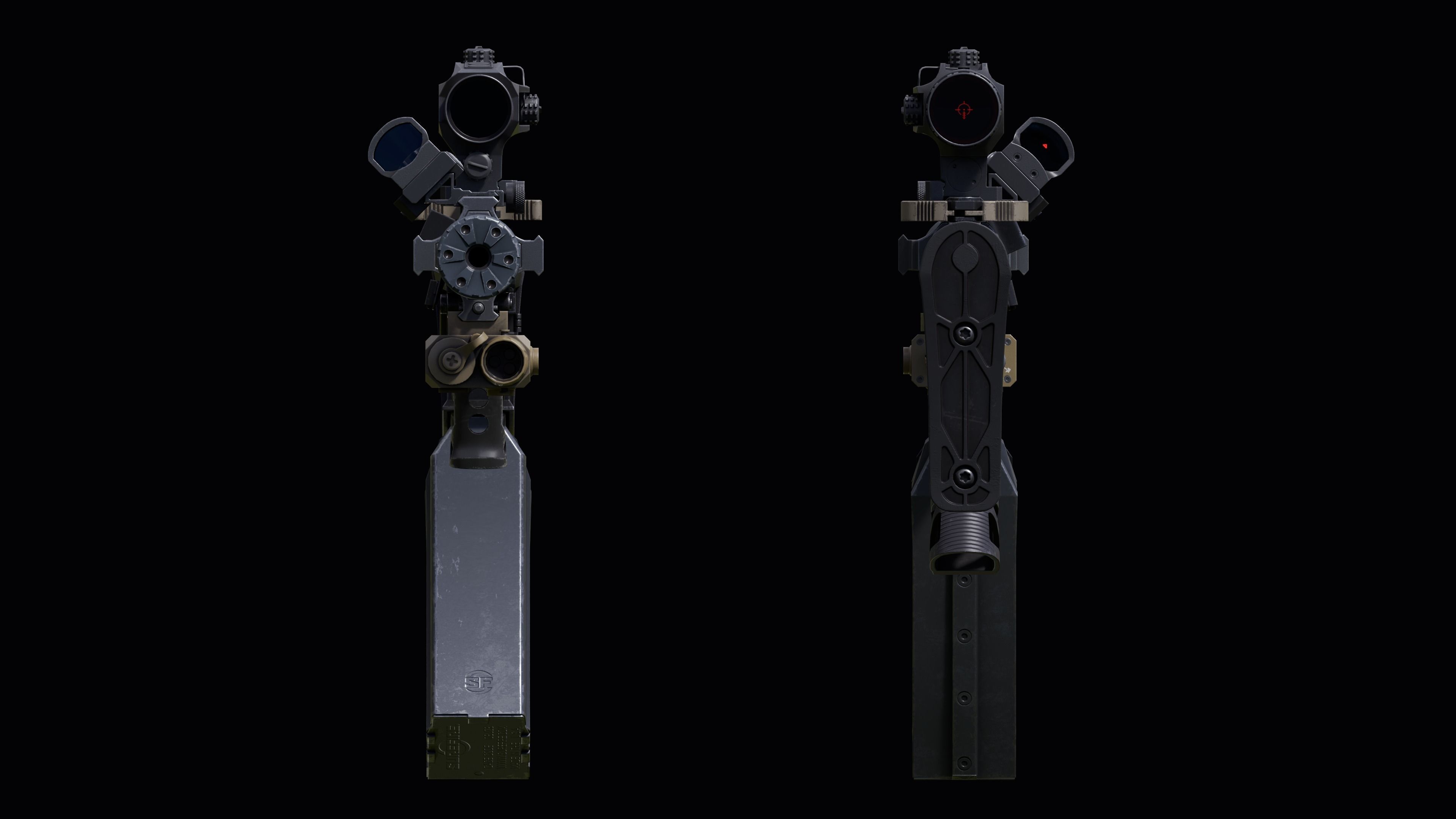

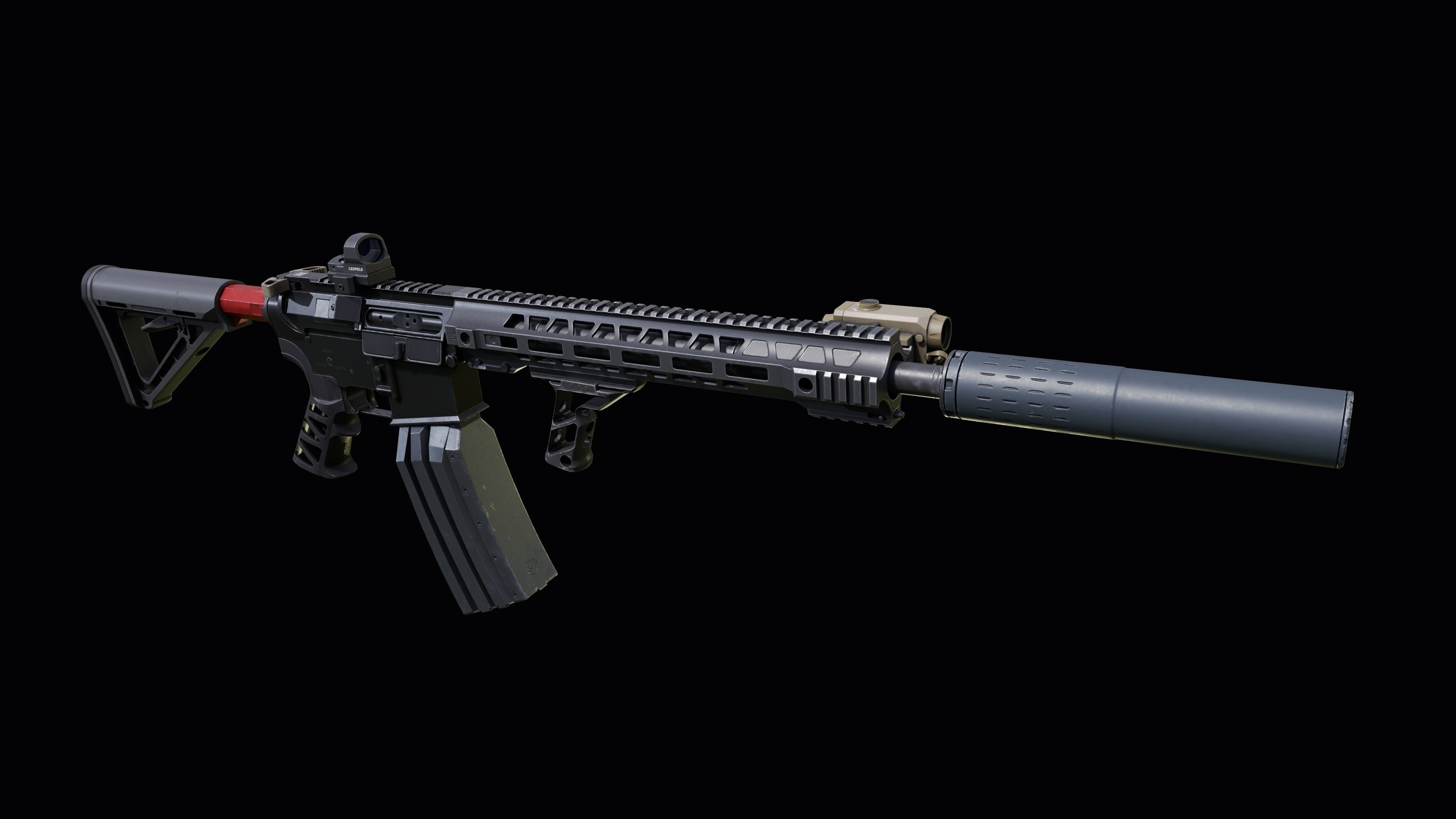

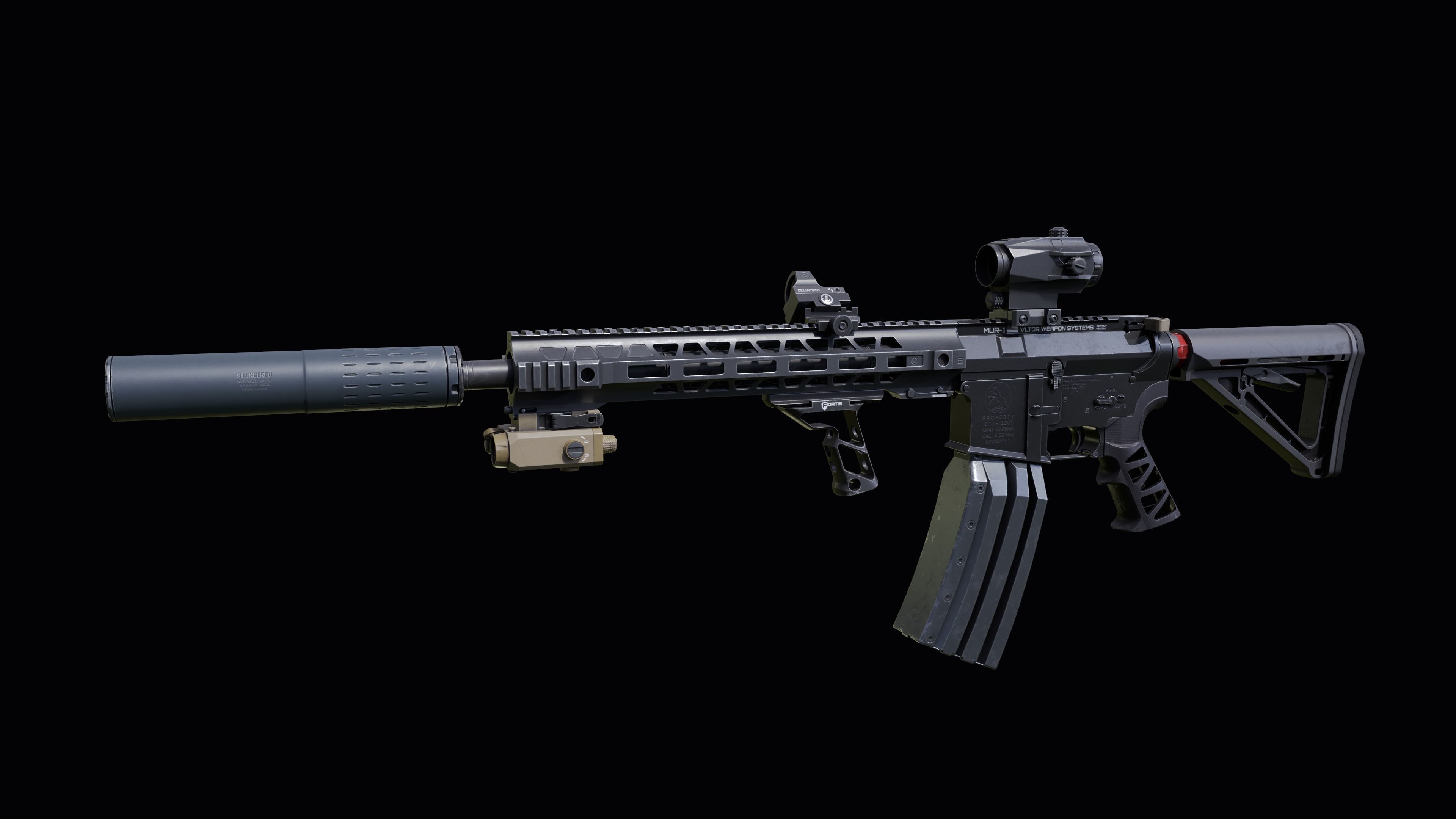

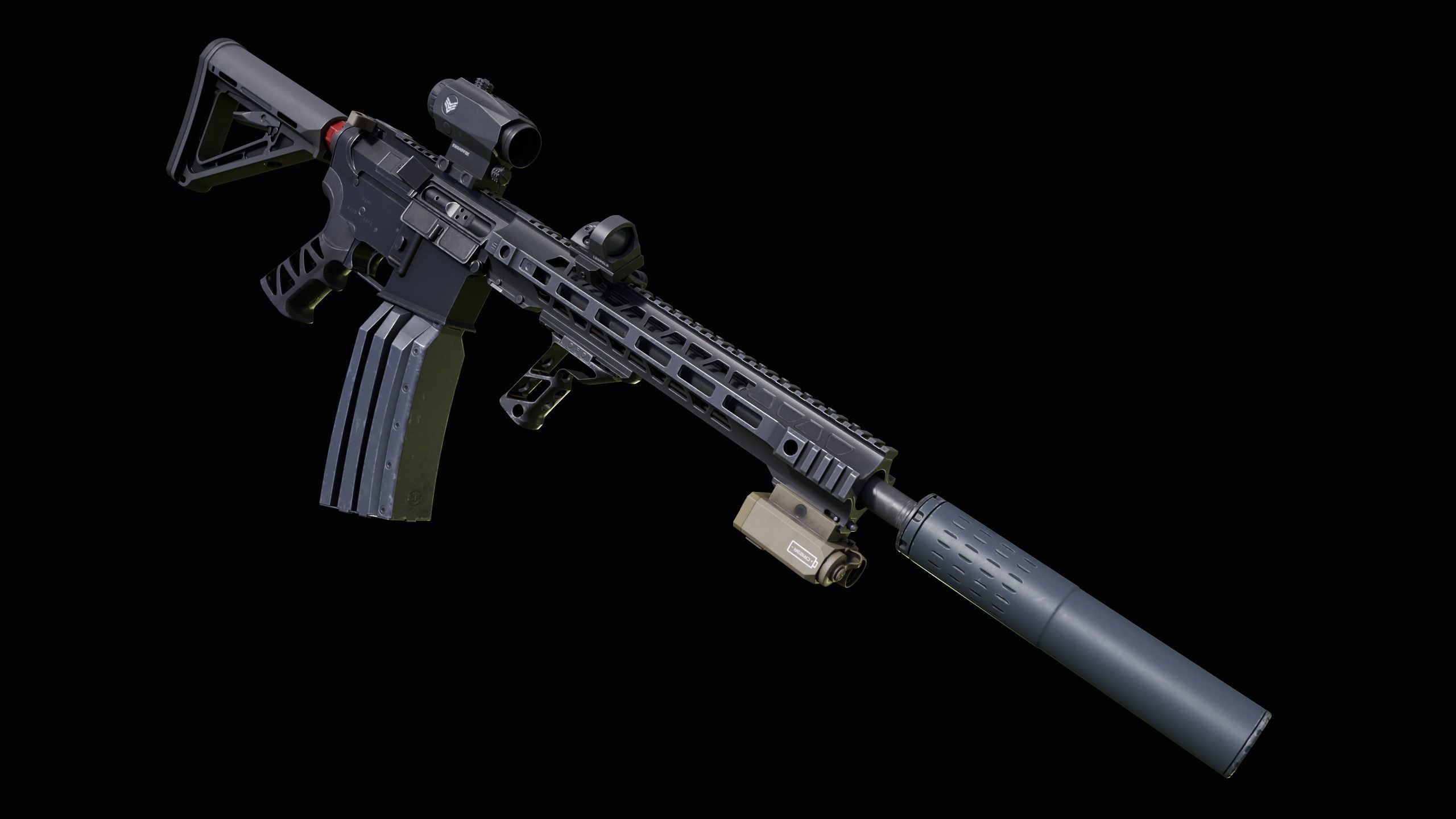

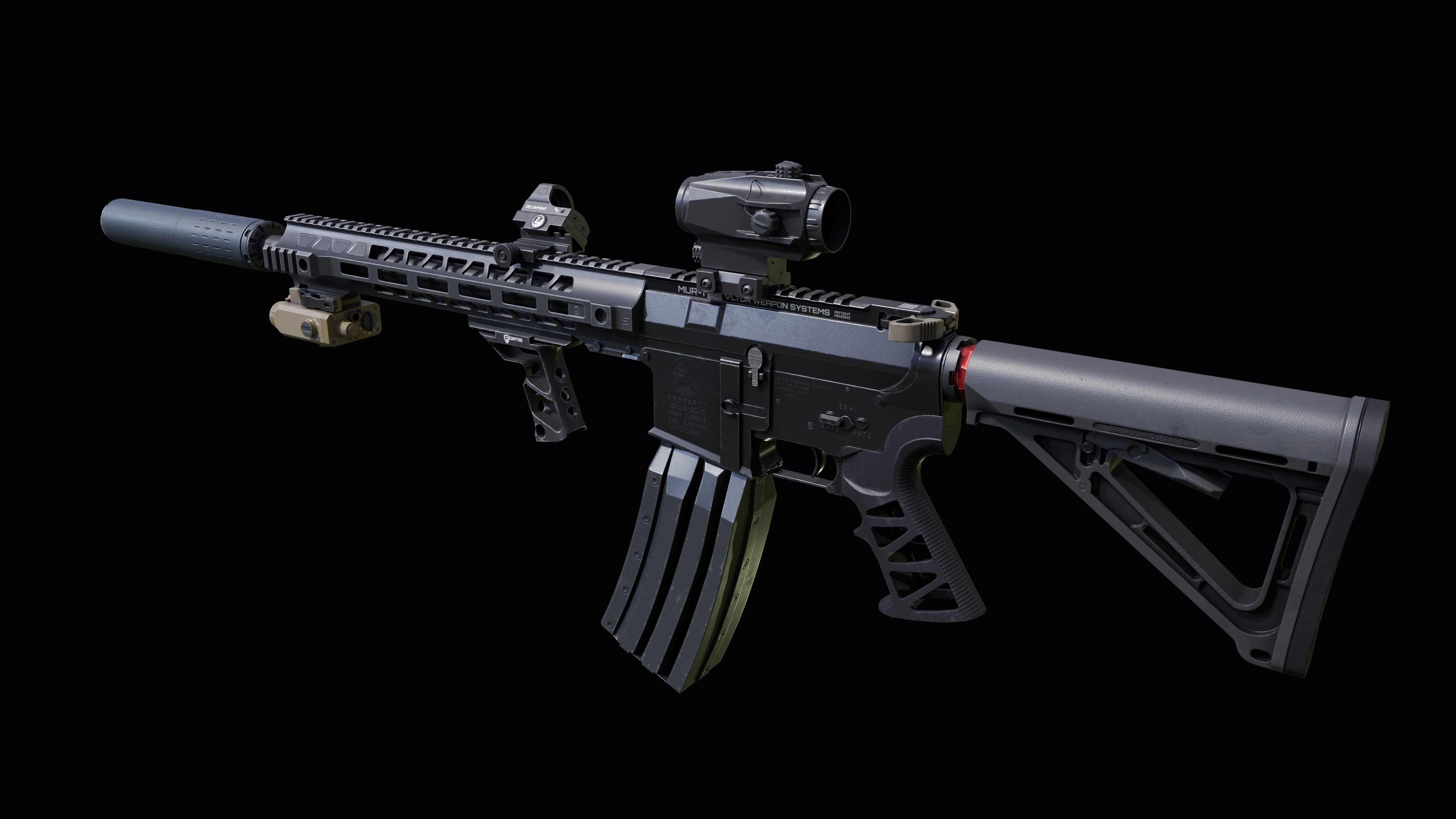

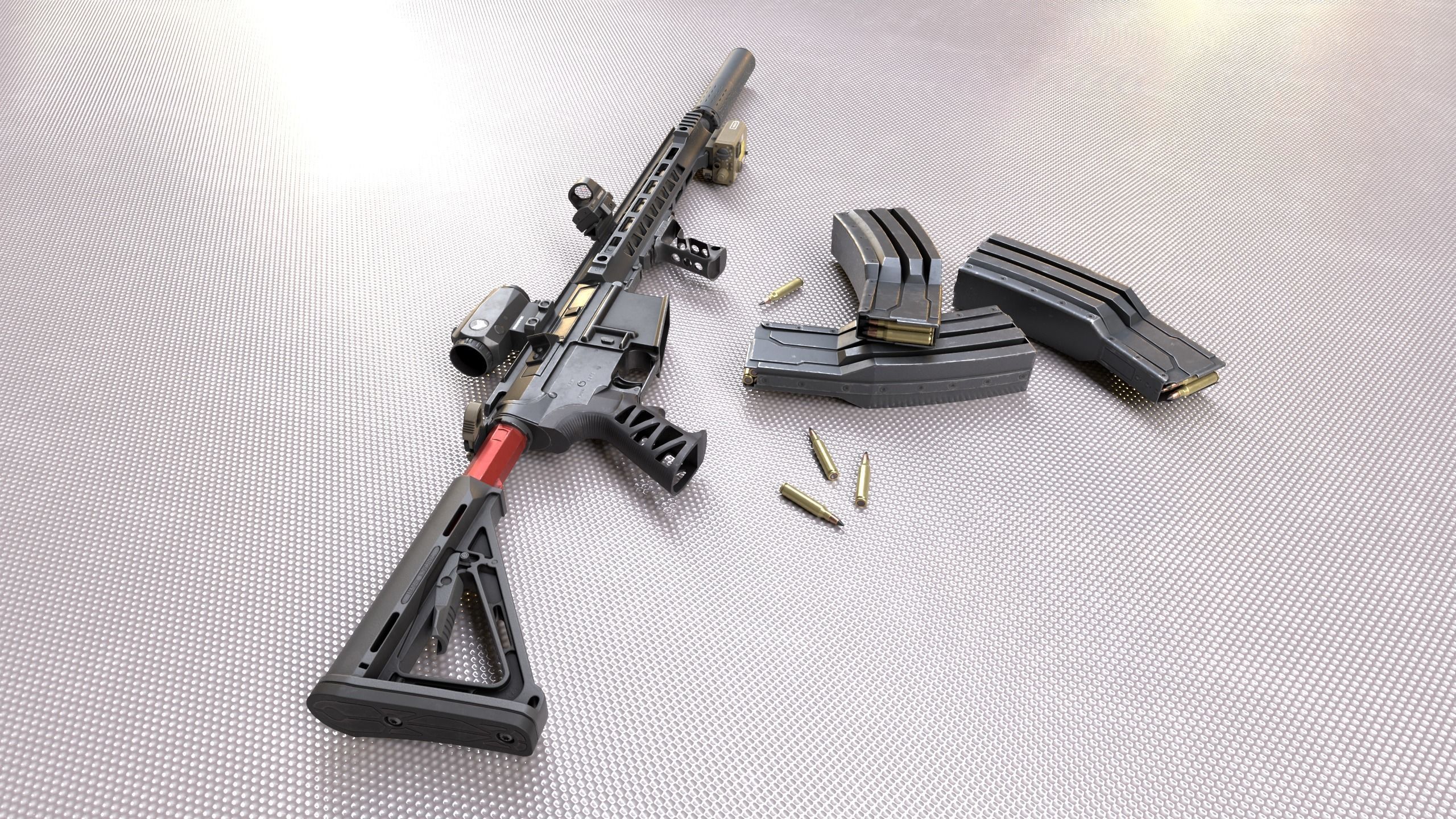

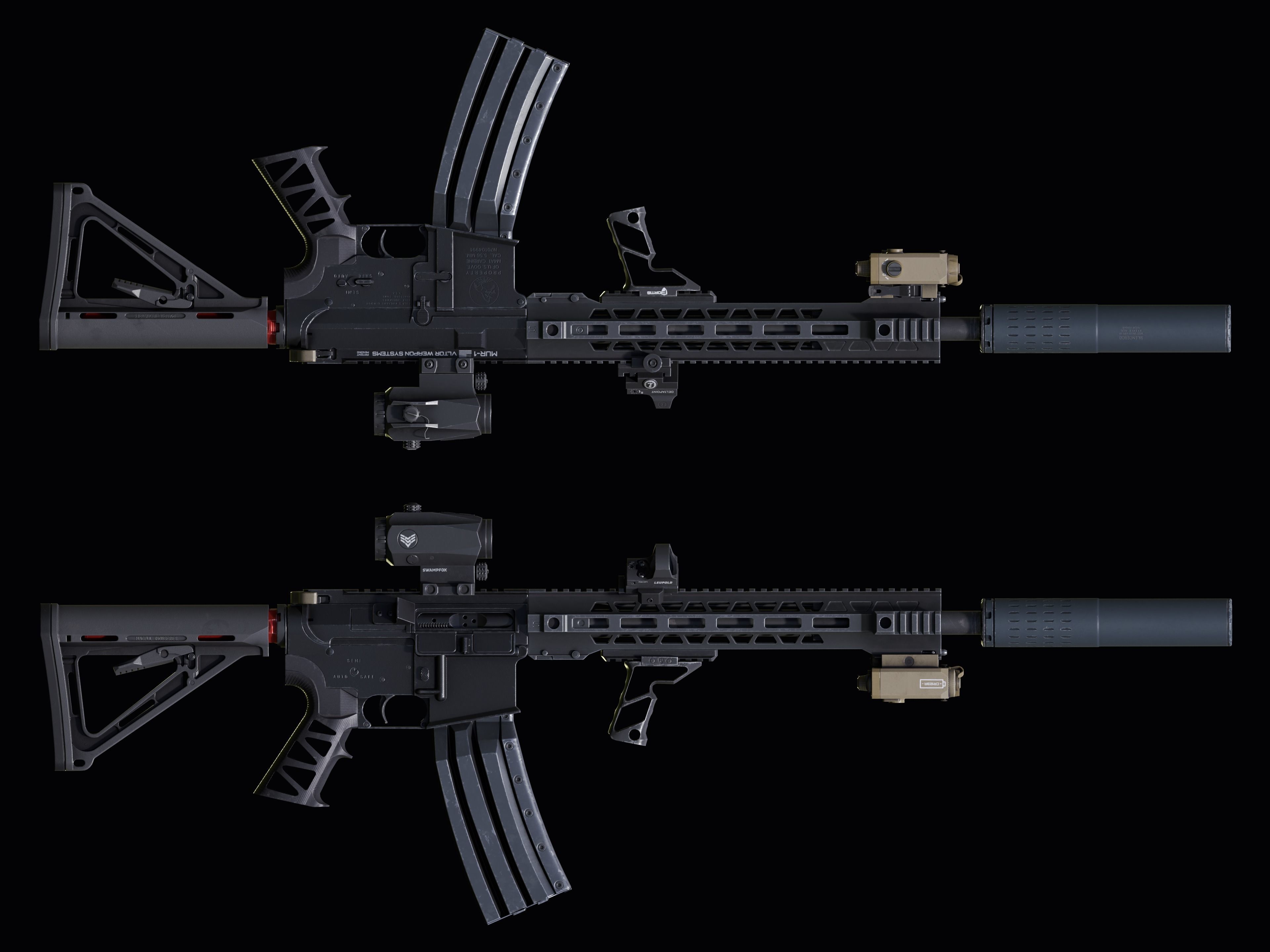

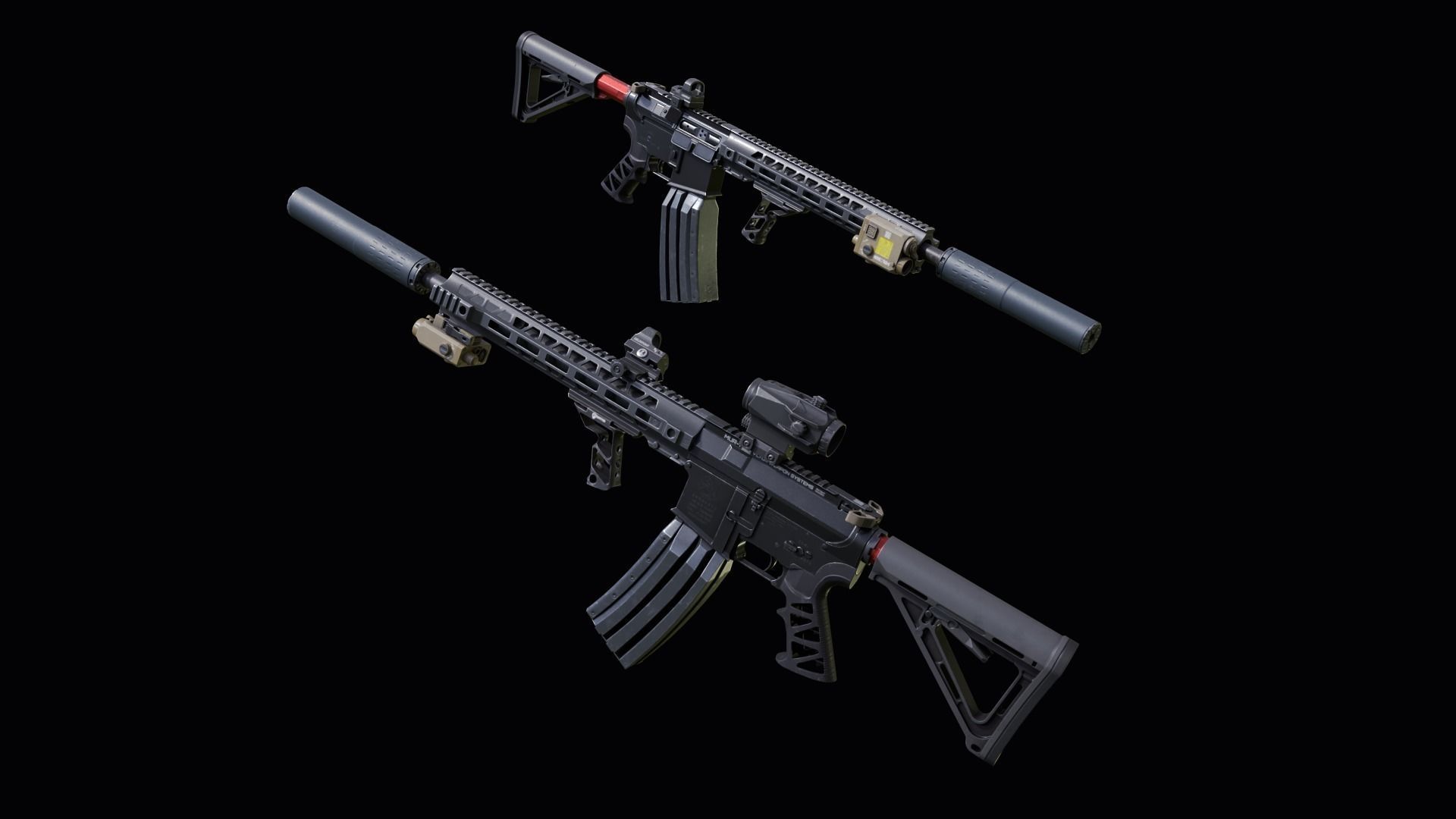

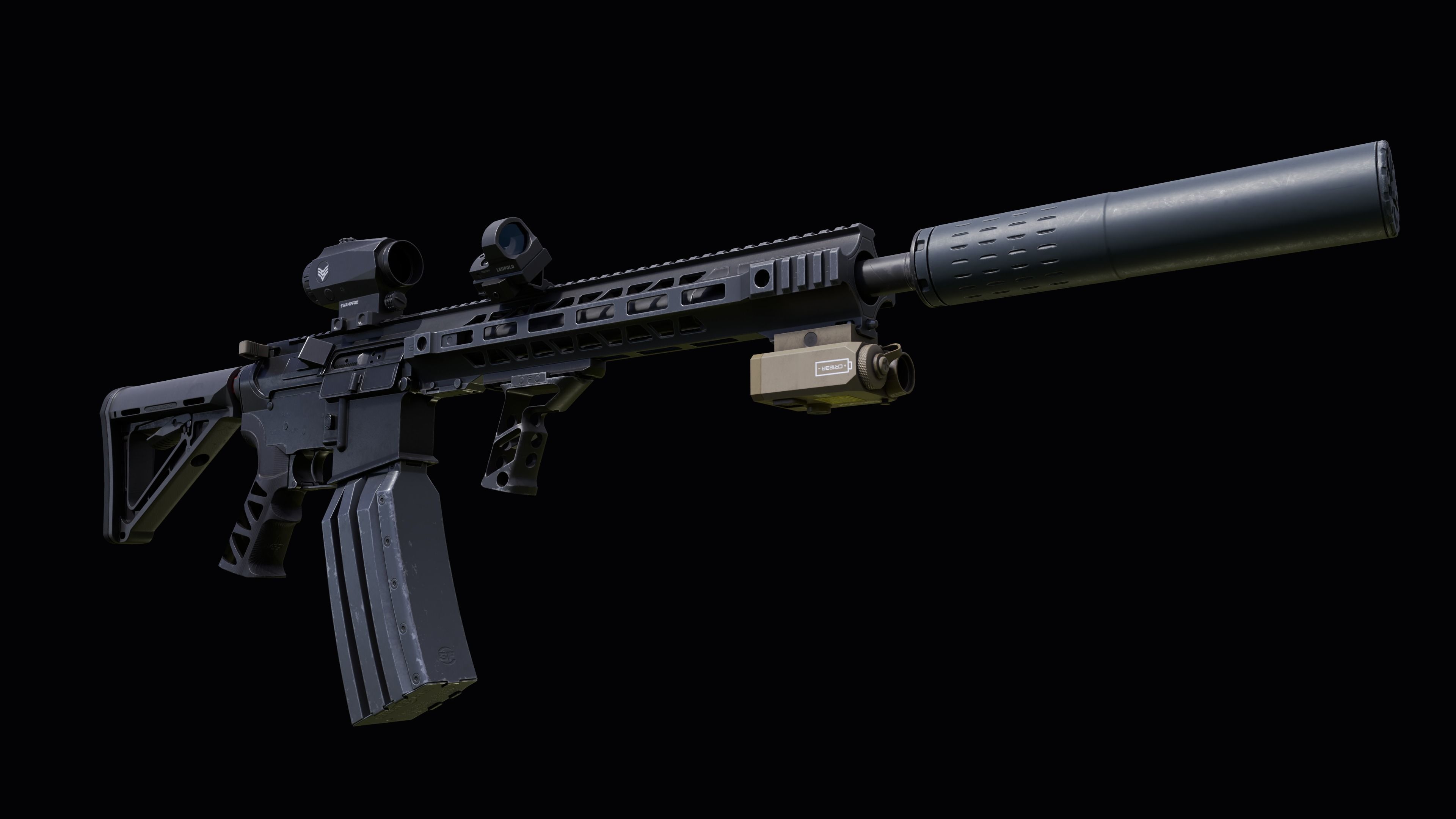

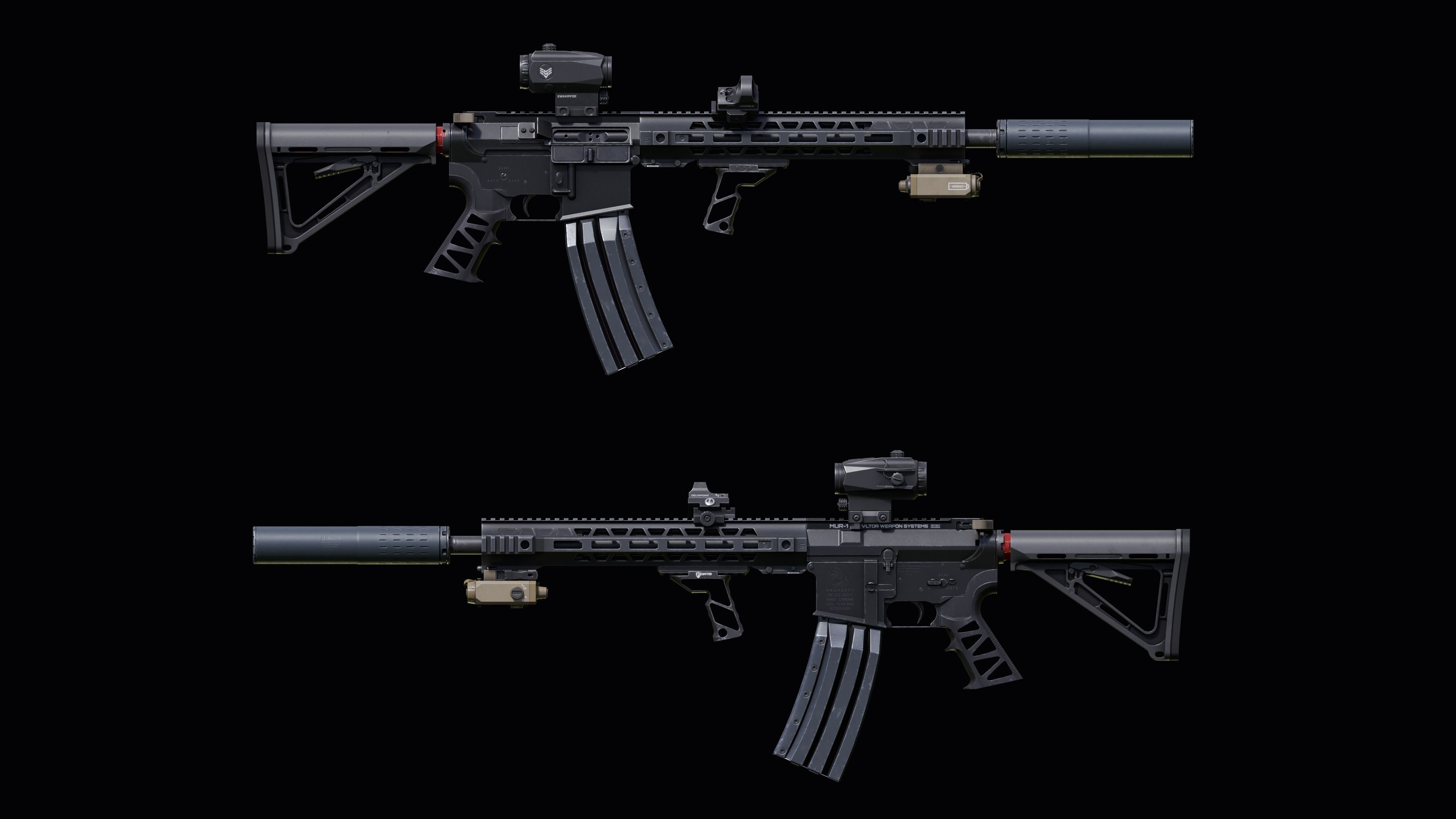

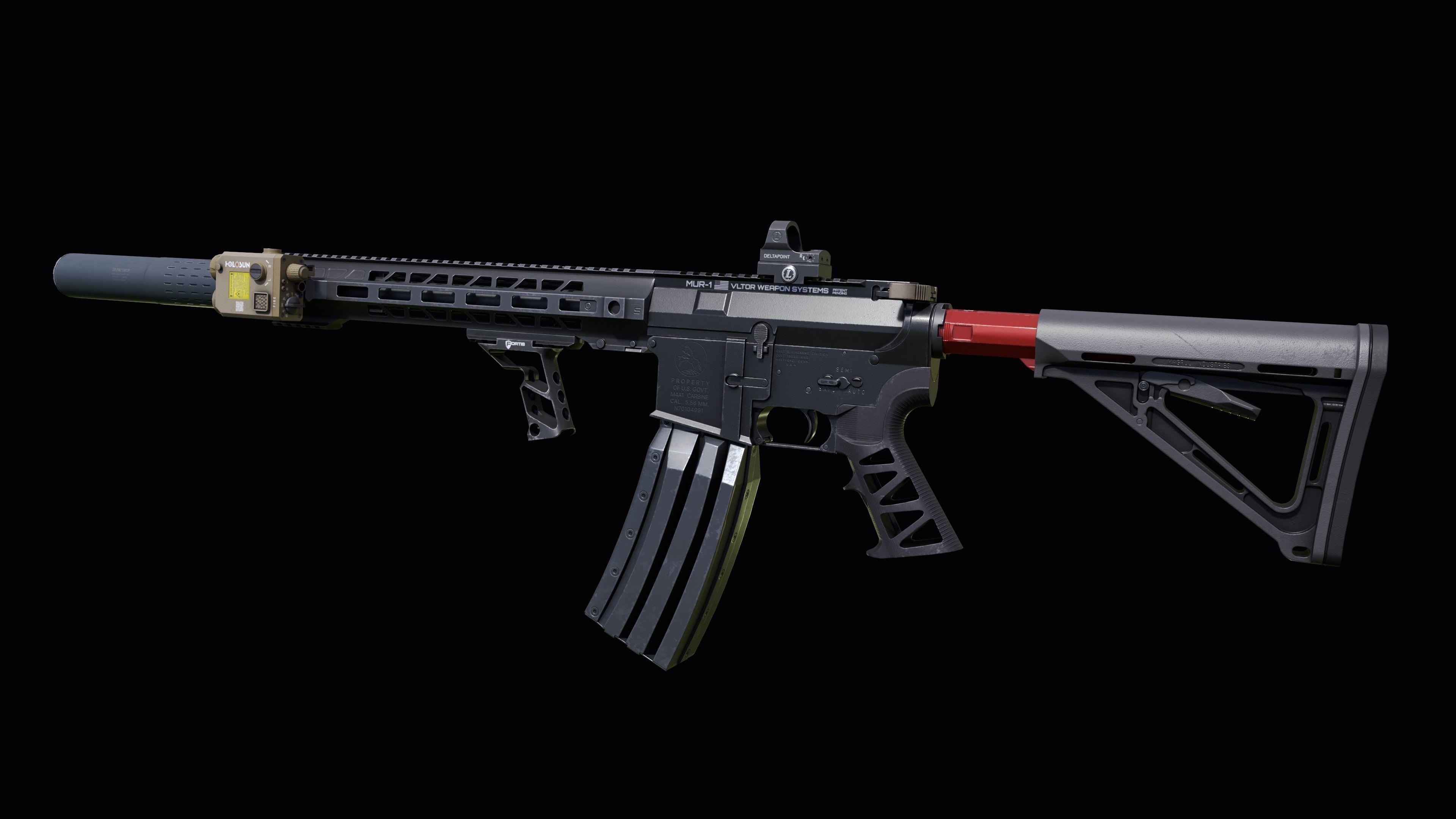

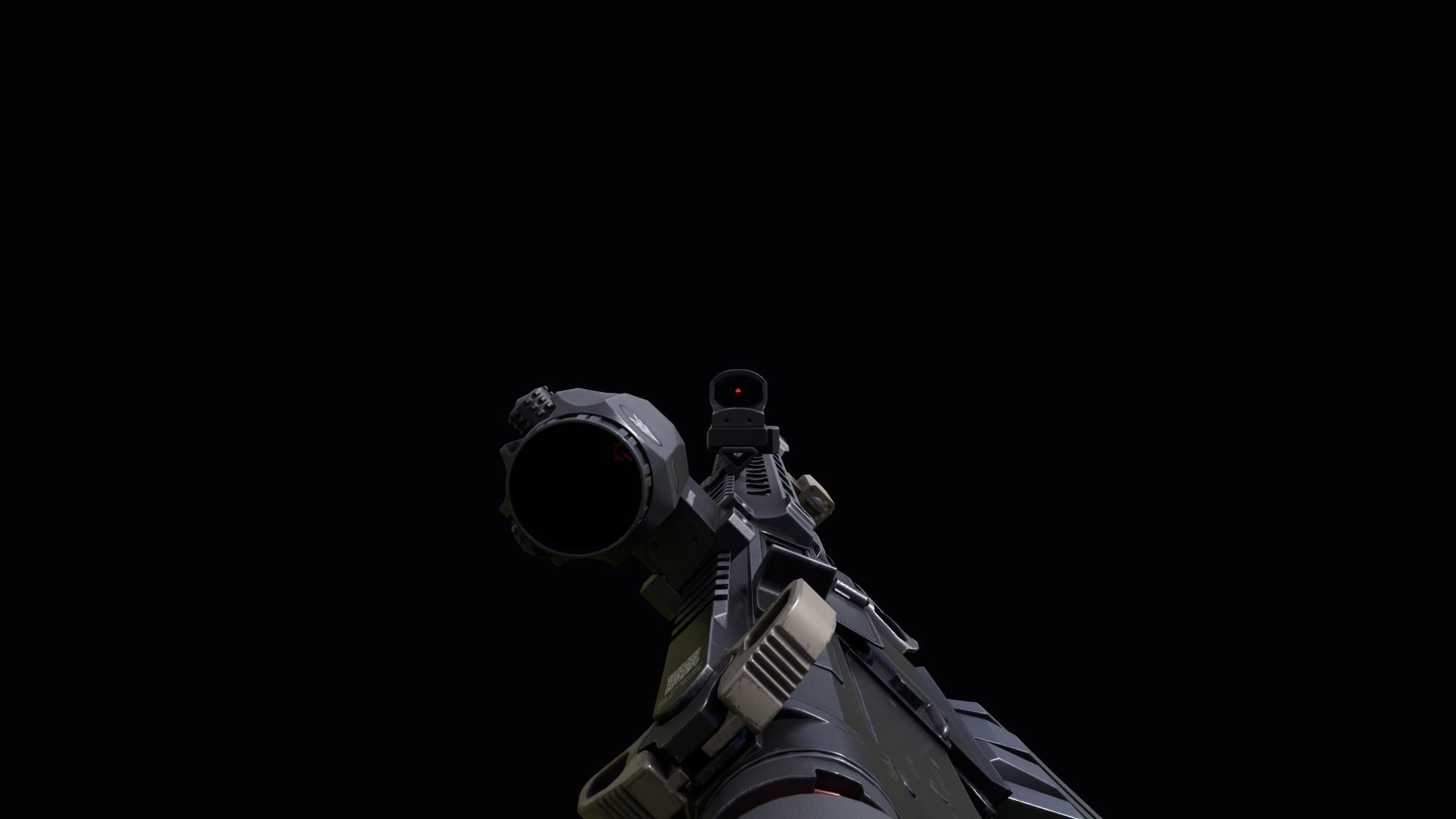

The low-poly qualitative model Customized M4A1 assault rifle, created as close as possible to the original with exact dimensions. The model has high-quality PBR textures in 4k, also including textures for Unity and UE5 game engines. I create my models as realistic as possible. You won't see the magazine shaft , barrel, chamber or bolt , covered by the texture or geometry. If you even need to see the rifling in the barrel or any other small details of the weapon. Then this model is exactly for your project. Maximum manifold geometry in model. Open (non-manifold) geometry is only present in rare cases,but you will never see it even with any weapon animation and other manipulations. Game ready M4A1 Carbine for PBR game engines, renderers, first Person Shooters, VR games, and your other projects.


  • This model is not intended for 3d printing!

  • Originally created in Blender 3.1.2

  • Preview rendered with Marmoset Toolbag 4!

  • High resolution textures 4k exported out of Substance Painter for PBR MetallRoughness, Unreal Engine, and Unity.

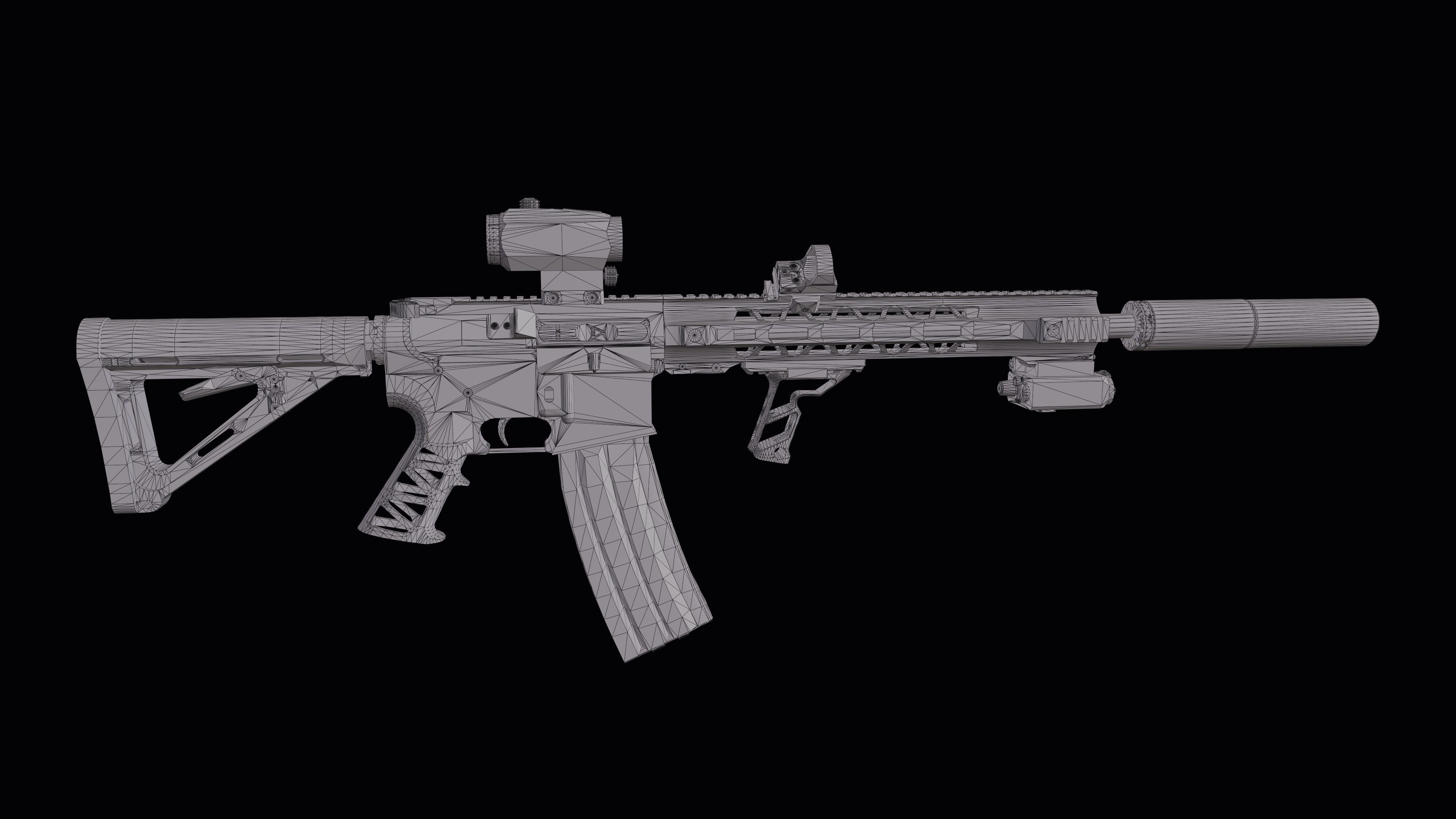

  • Geometry is fully triangulated to ensure best shading.

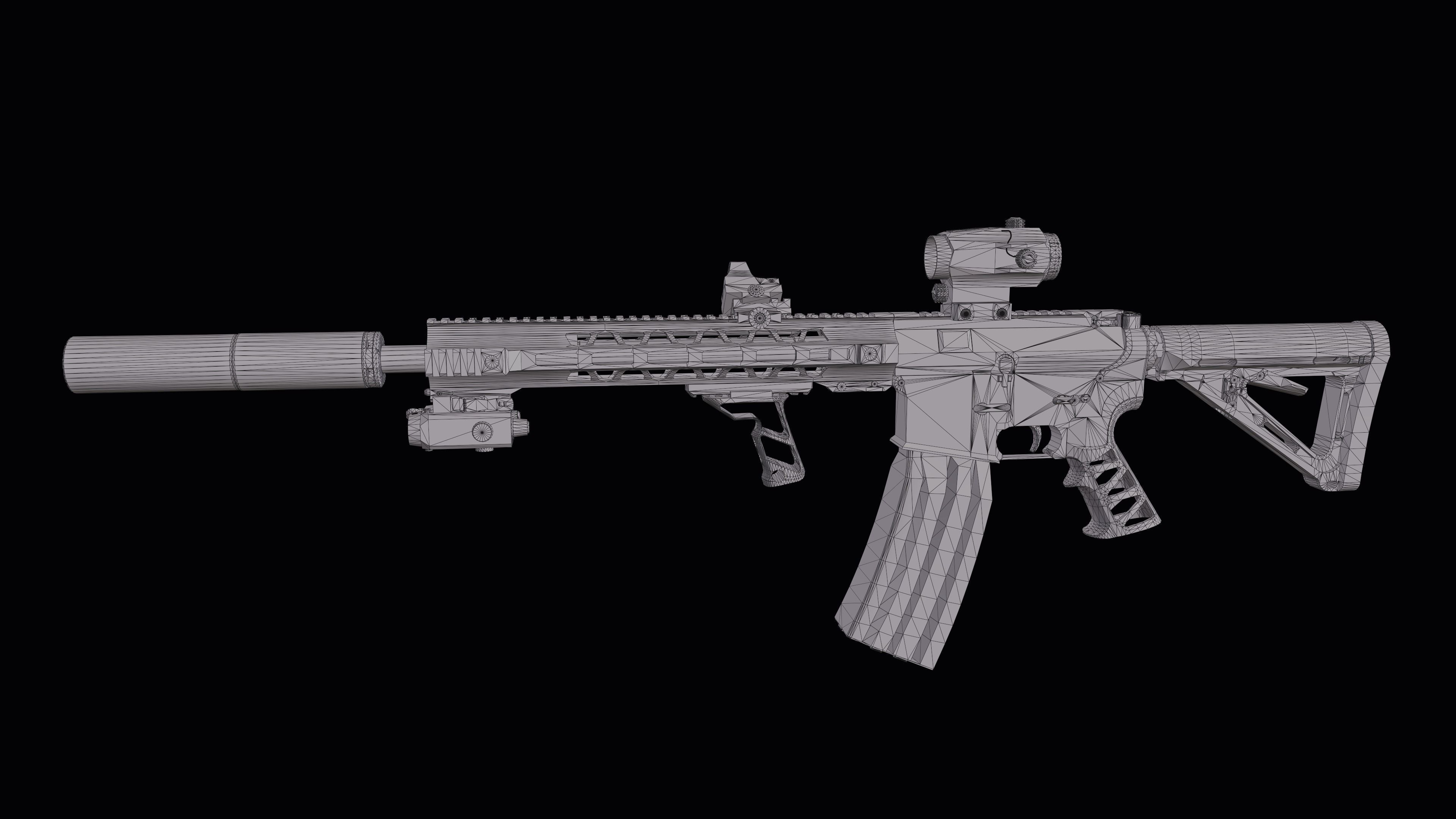

  • Optimized and clean topology.

  • The whole model (including one bullet) has tris 44 957 and 22 635 verts.

  • Model is built in real scale (Europe cm).

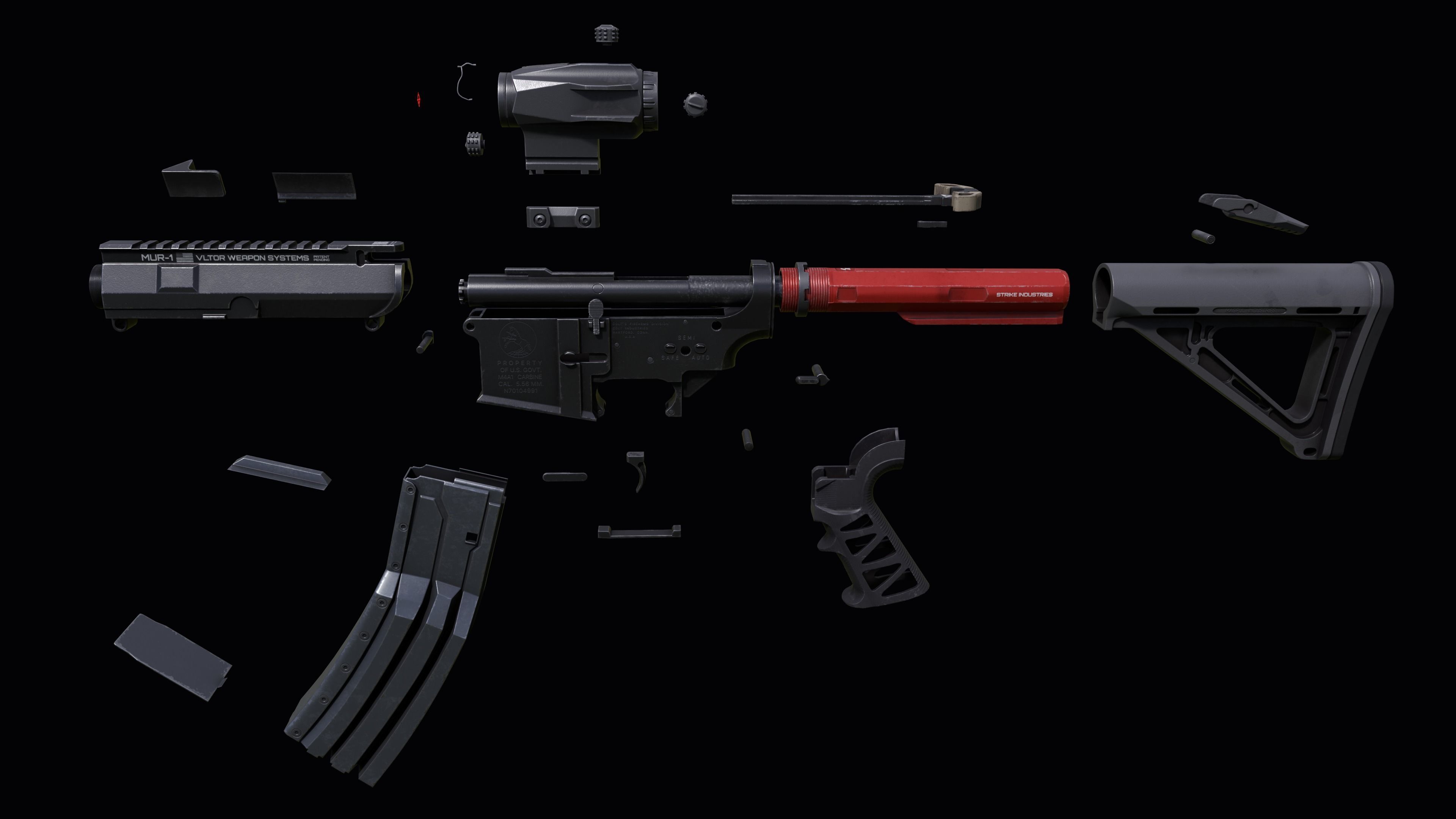

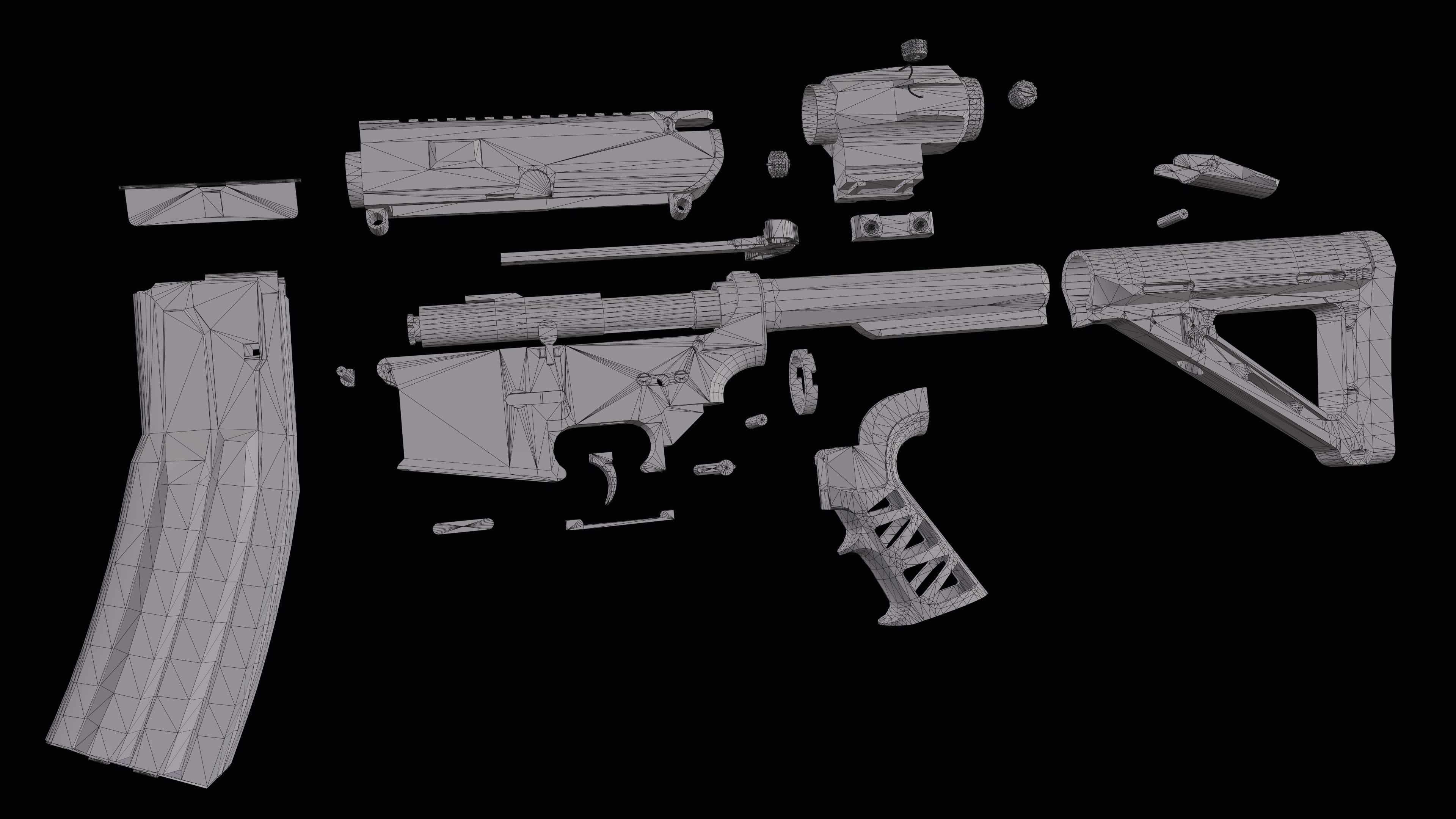

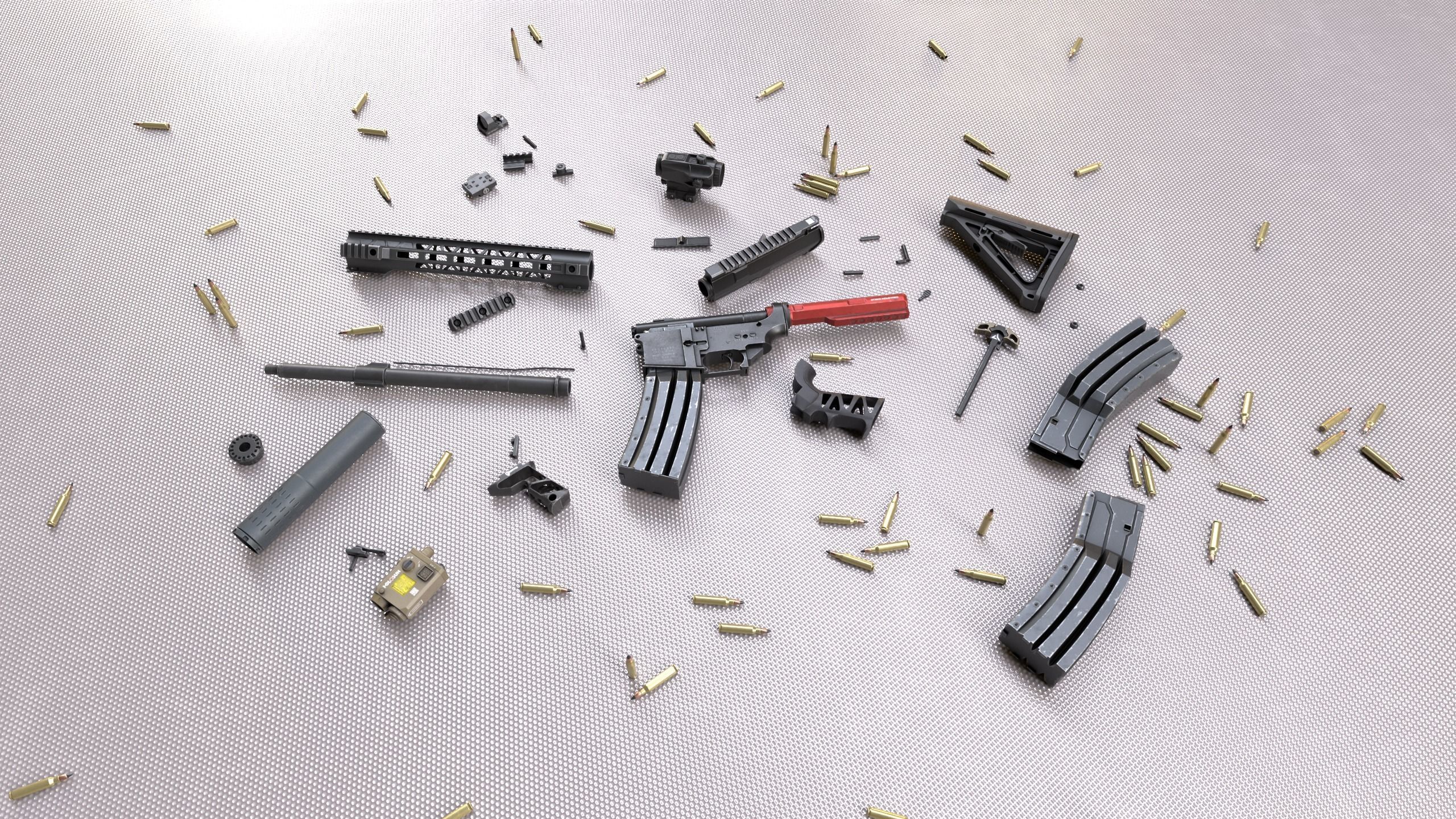

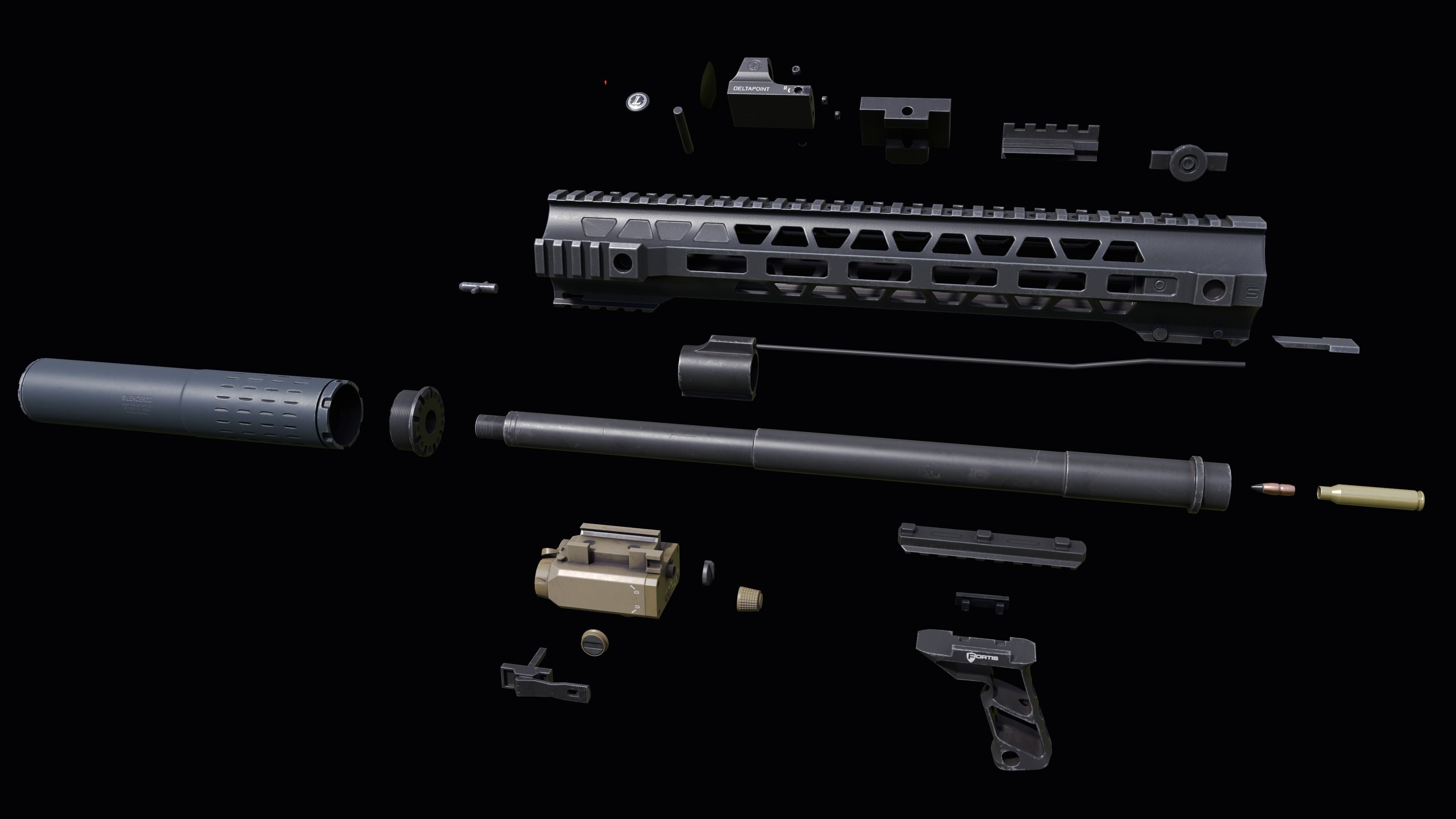

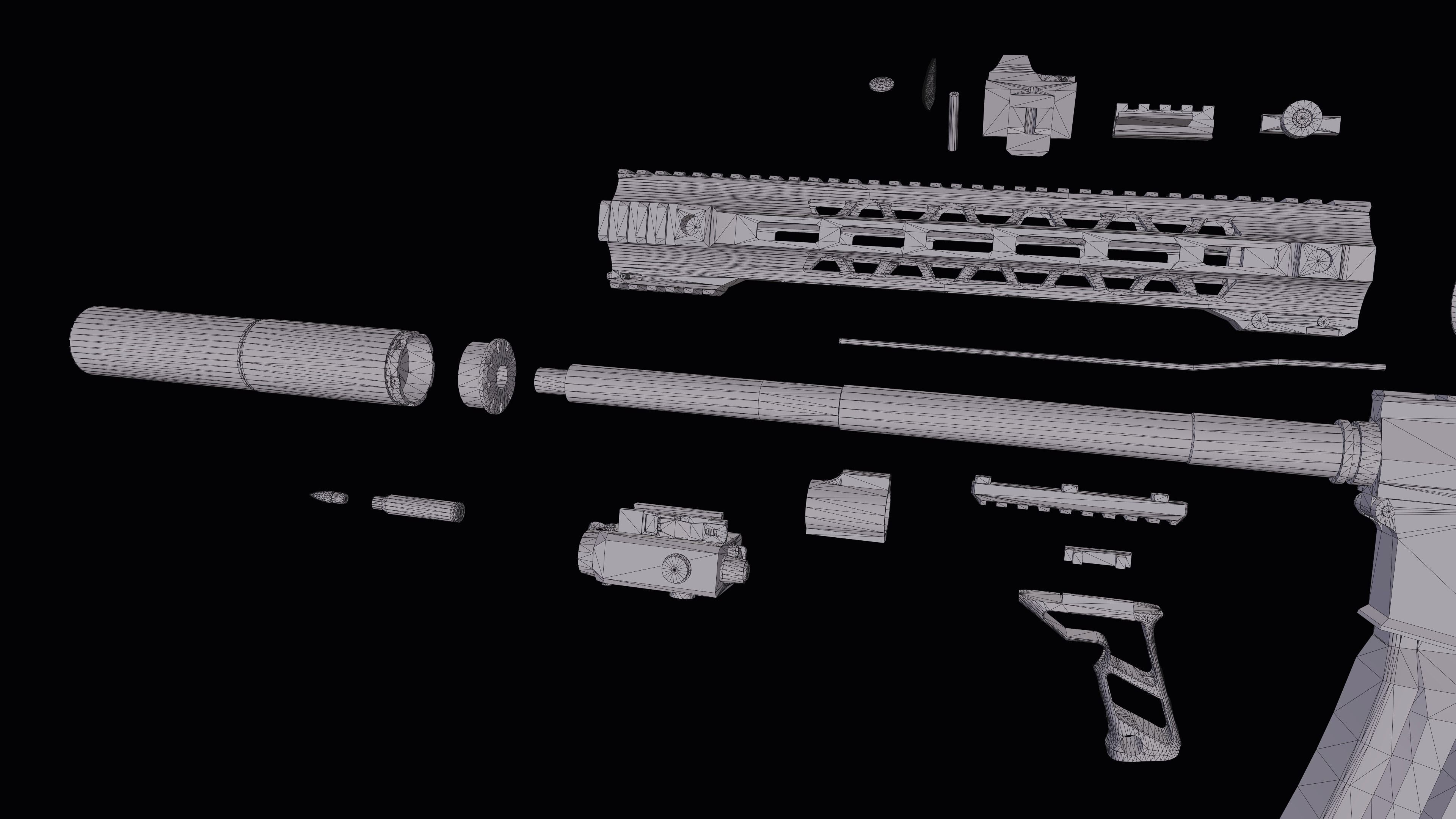

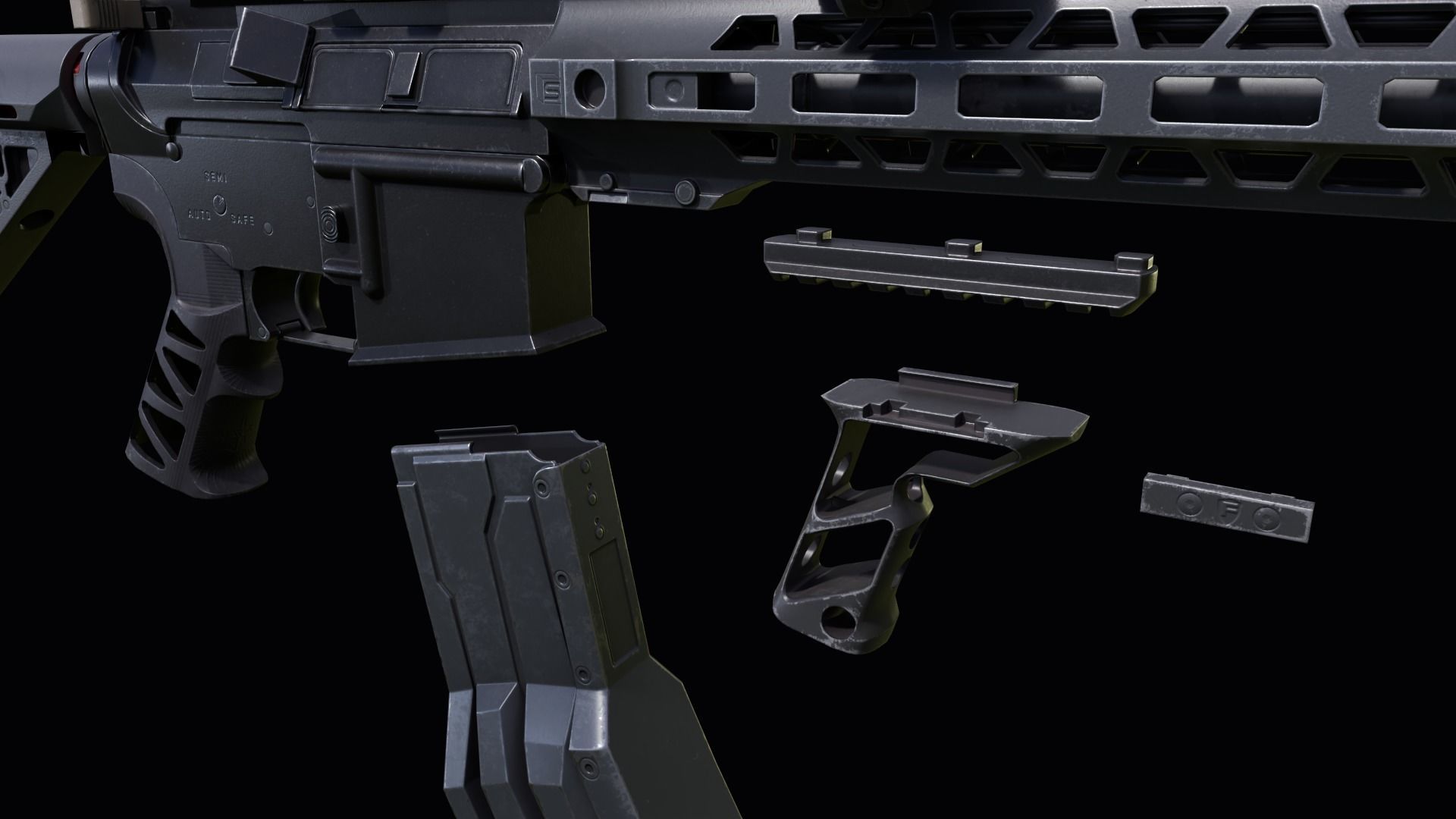

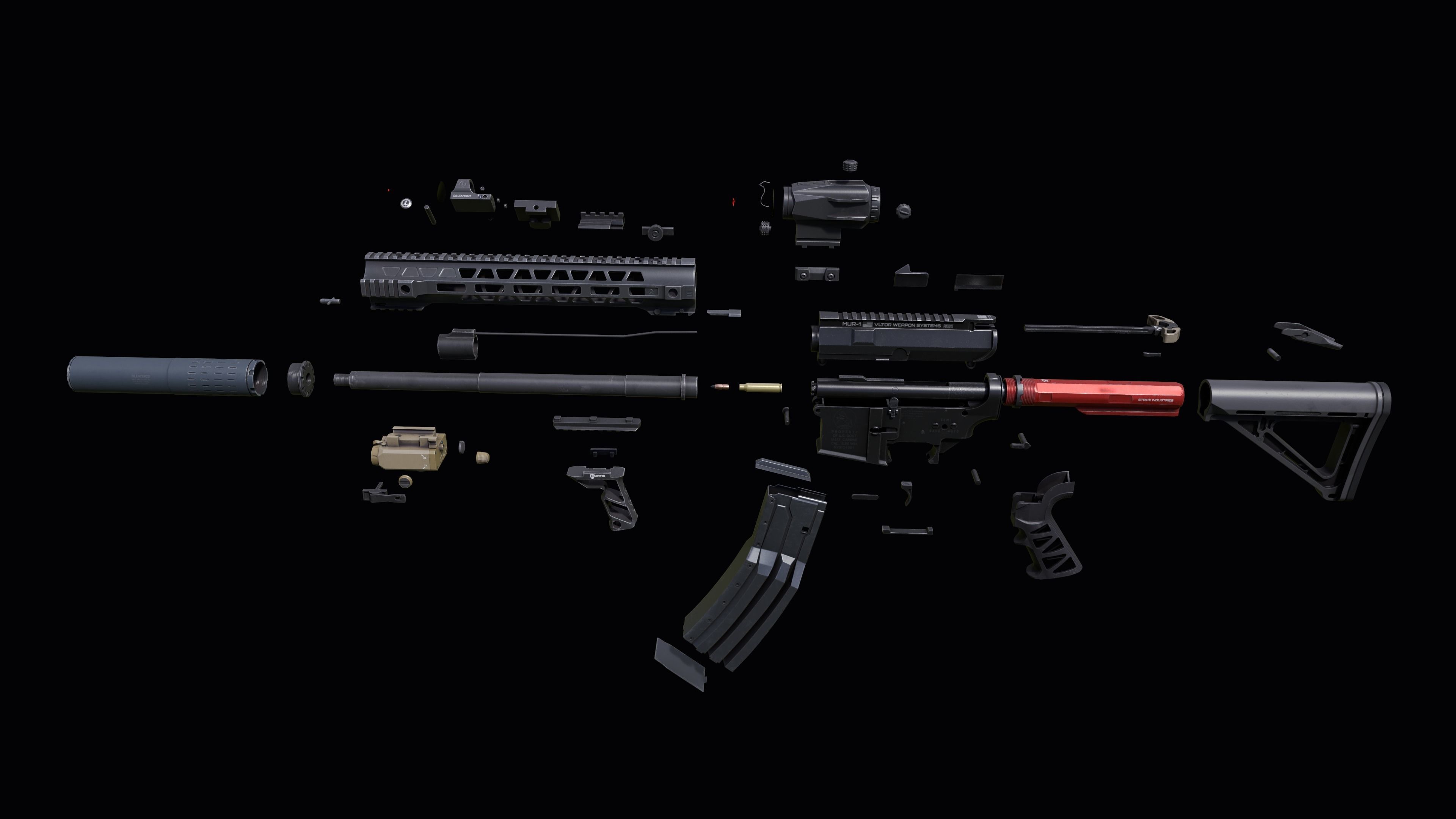

  • 75 separate parts ready for rigged and animation.

  • All objects, textures and materials named appropriately.

  • The model has a full UV unrapping.

  • Model unwrapping made on only 2 texture atlases (4096х4096) and additional sets for scope lenses (512х512), and reticle (256x256)

  • Overlapping is using only in appropriate parts (sides of the Handguards, stock, grips, etc.) and not noticeable.

  • Texel Density: 64-65 pixels/cm (for 4K)

Parts info:

All parts of the model have correct names. There are 75 separate parts in this model ready for rig and animation. Total value of tris - 44 957, verts - 22 635.

  • Lower Reciever: M4A1 standart (Colt's industries). Tris: 3888, Verts: 1970

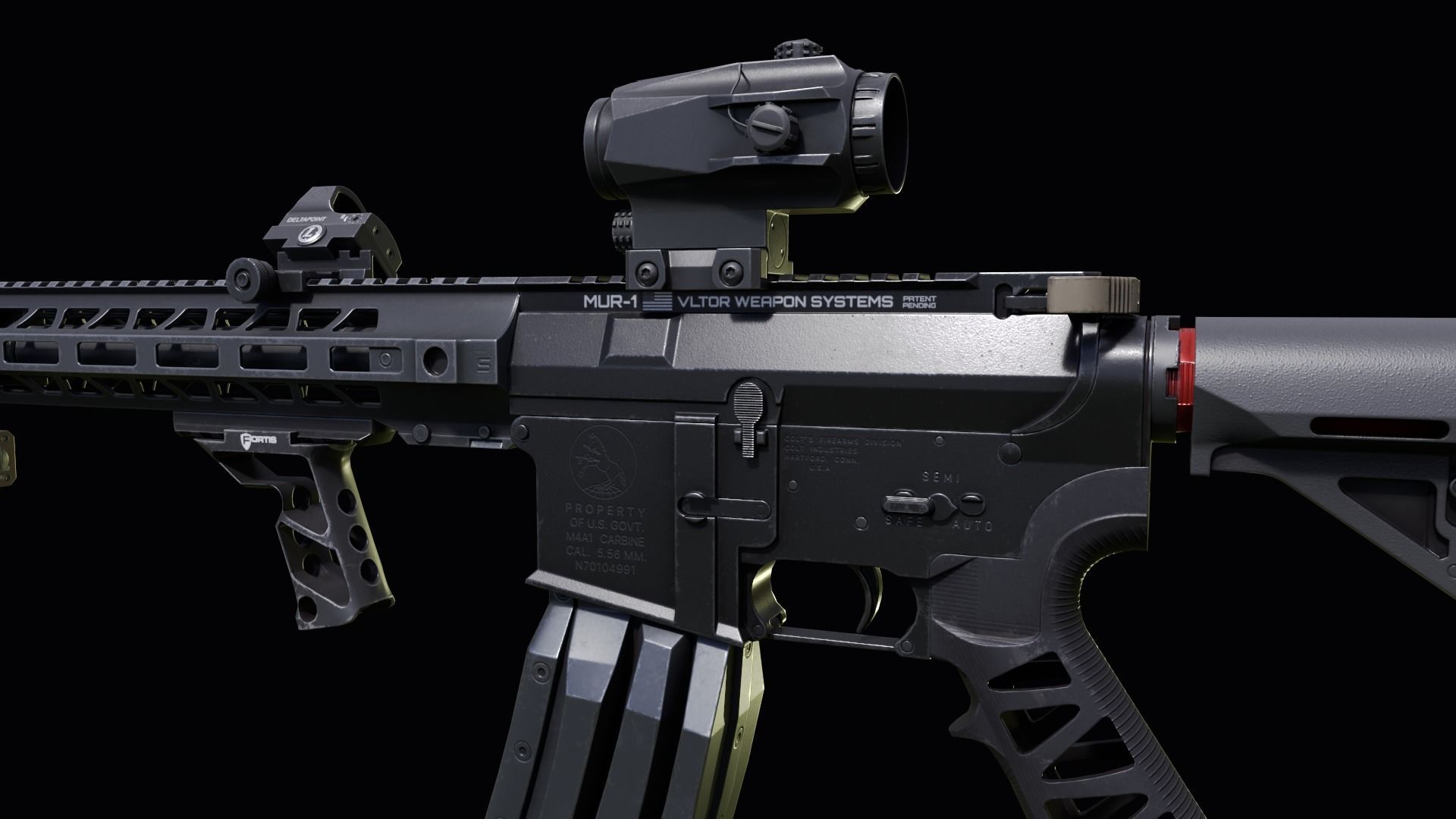

  • Upper Reciever: Vltor MUR-1S. Tris: 2764, Verts: 1398

  • Magazine: SureFire MAG5-60 STANAG. Tris: 1510, Verts: 775

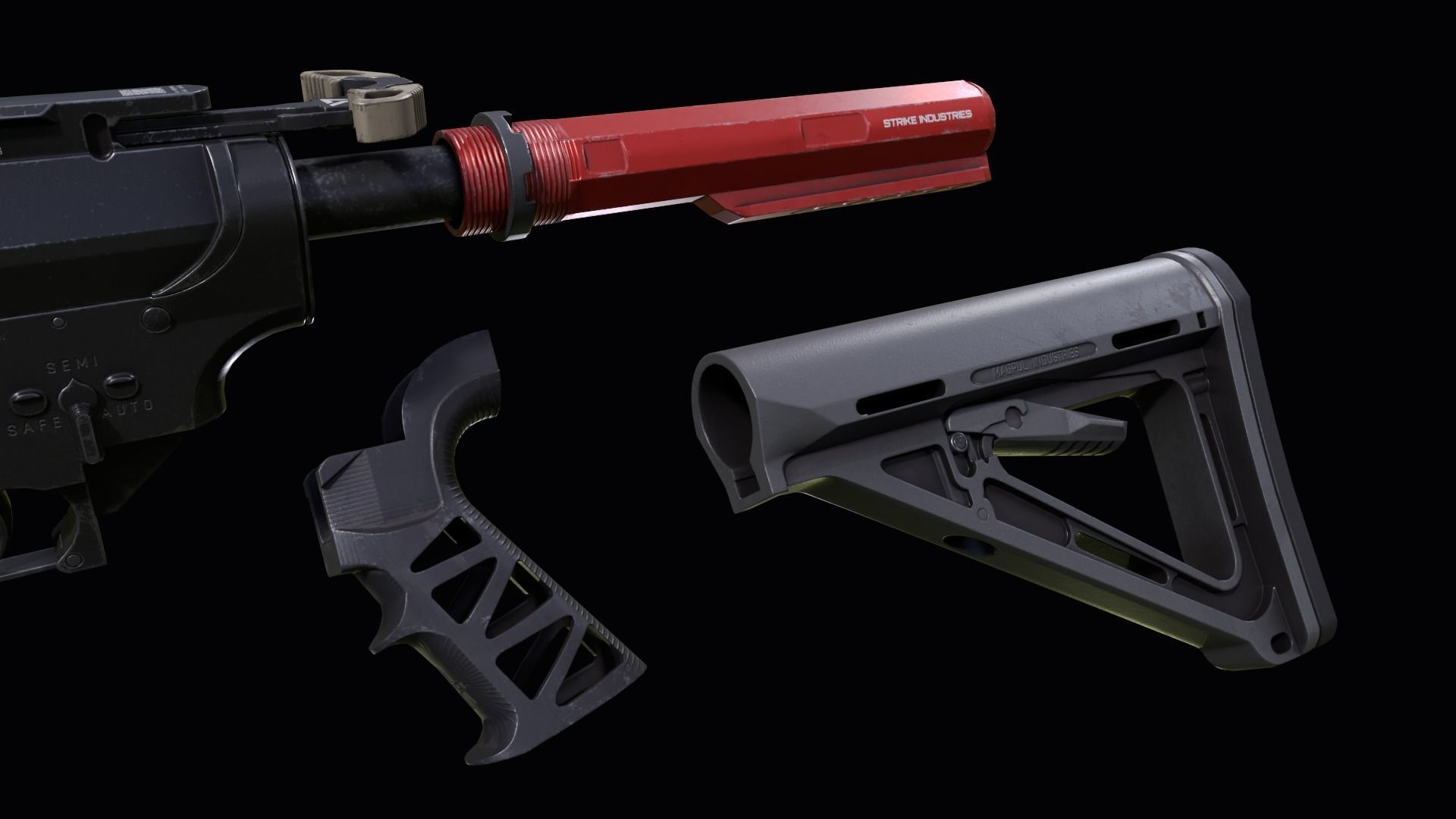

  • Pistol grip: Naroh Arms GRAL-S. Tris: 2646, Verts: 1305

  • Carbine stock: Magpul MOE Carbine. Tris: 4564, Verts: 2290

  • Buffer tube: Strike Industries Advanced Receiver Extension. Tris: 458, Verts: 231

  • Charging handle: Radian Weapons Raptor. Tris: 1318, Verts: 663

  • Handguards and Picatinny Rail Sections: SAI QD Rail and Magpul M-LOK 4.1 inch. Tris: 8630, Verts: 4175

  • Barrel: 406mm barrel for AR-15. Tris: 544, Verts: 272

  • Gas Block: Daniel Defense MK12. Tris: 274, Verts: 145

  • Vertical Grip: Fortis Shift. Tris: 2544, Verts: 1254

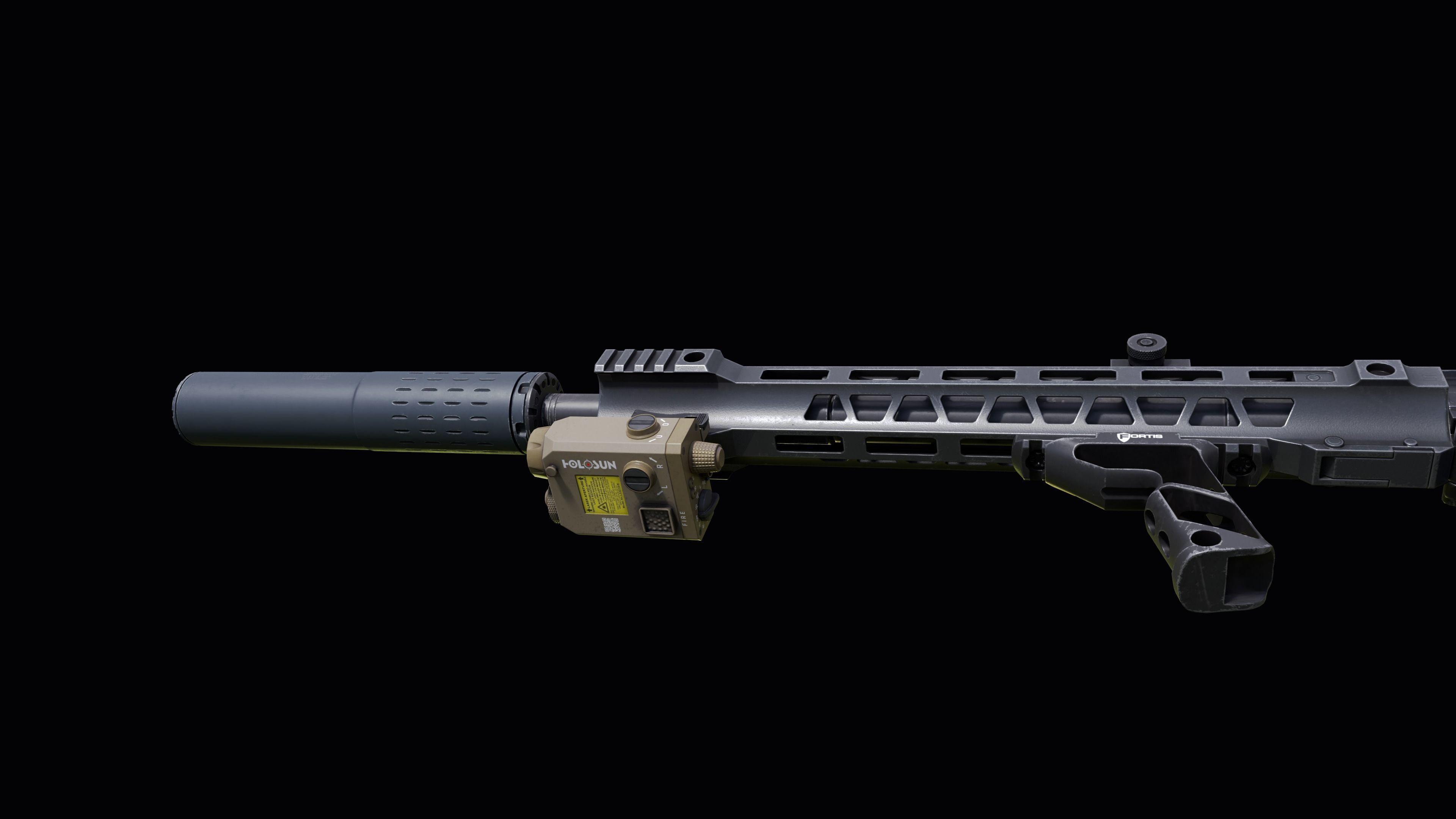

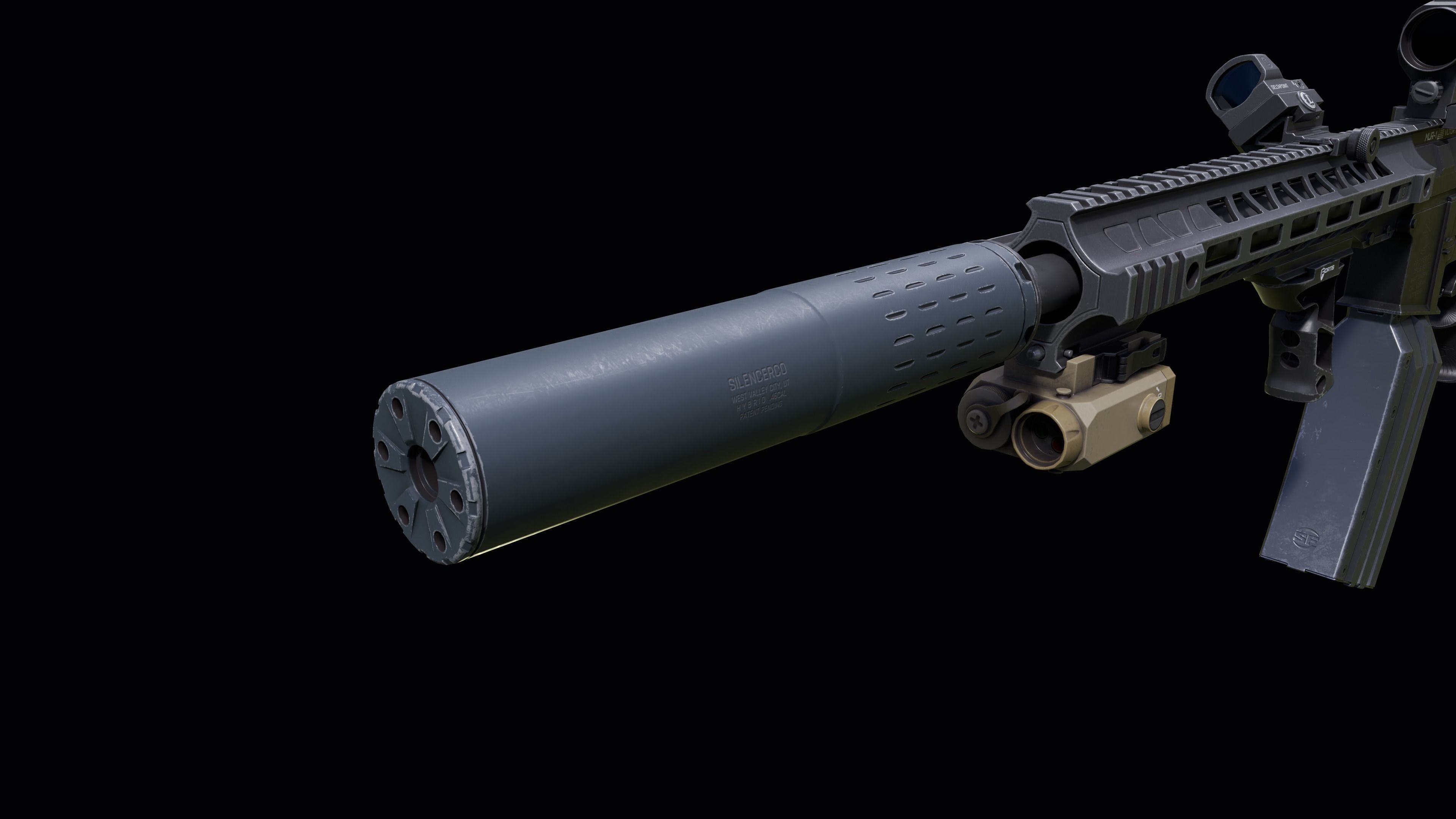

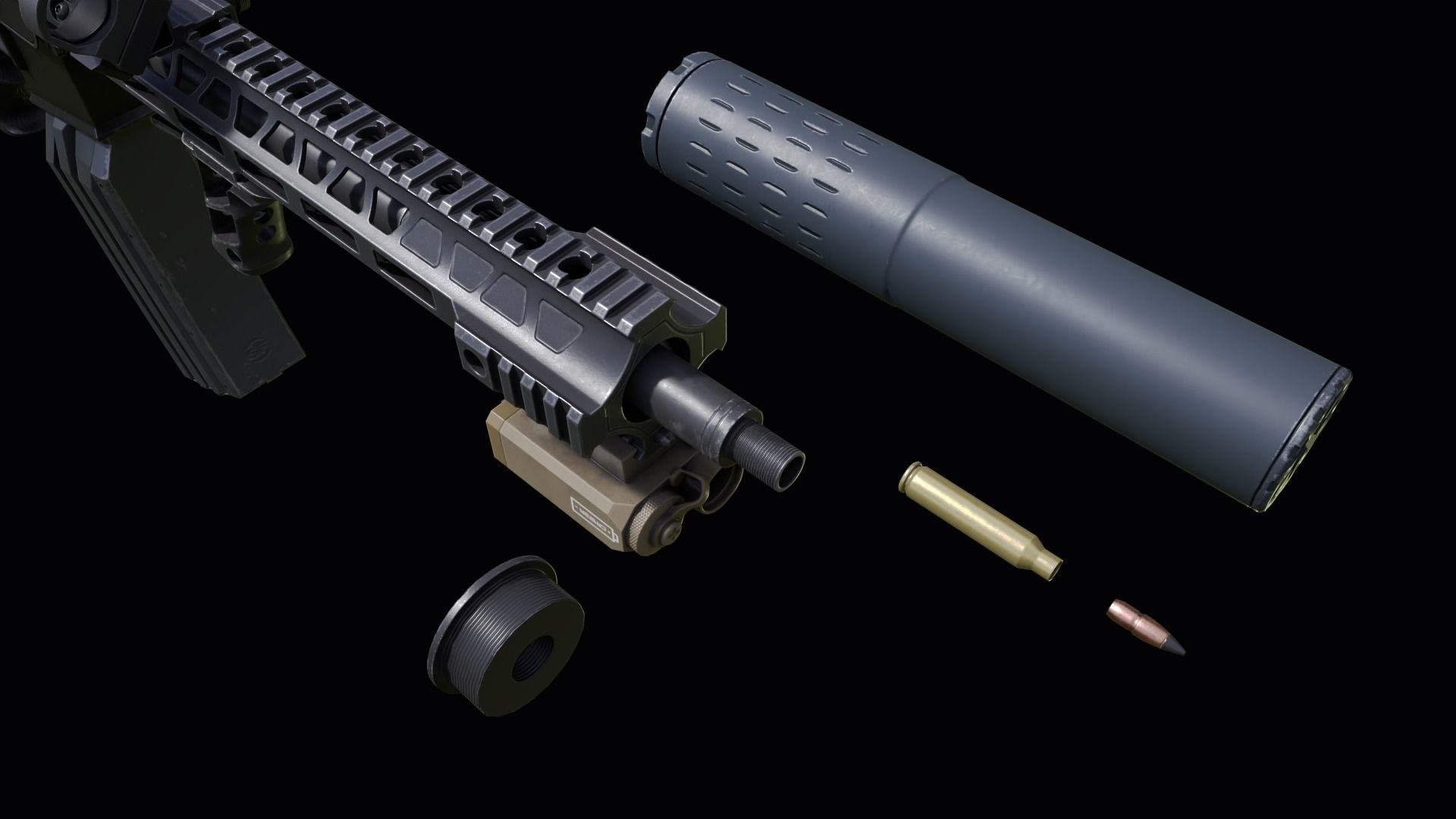

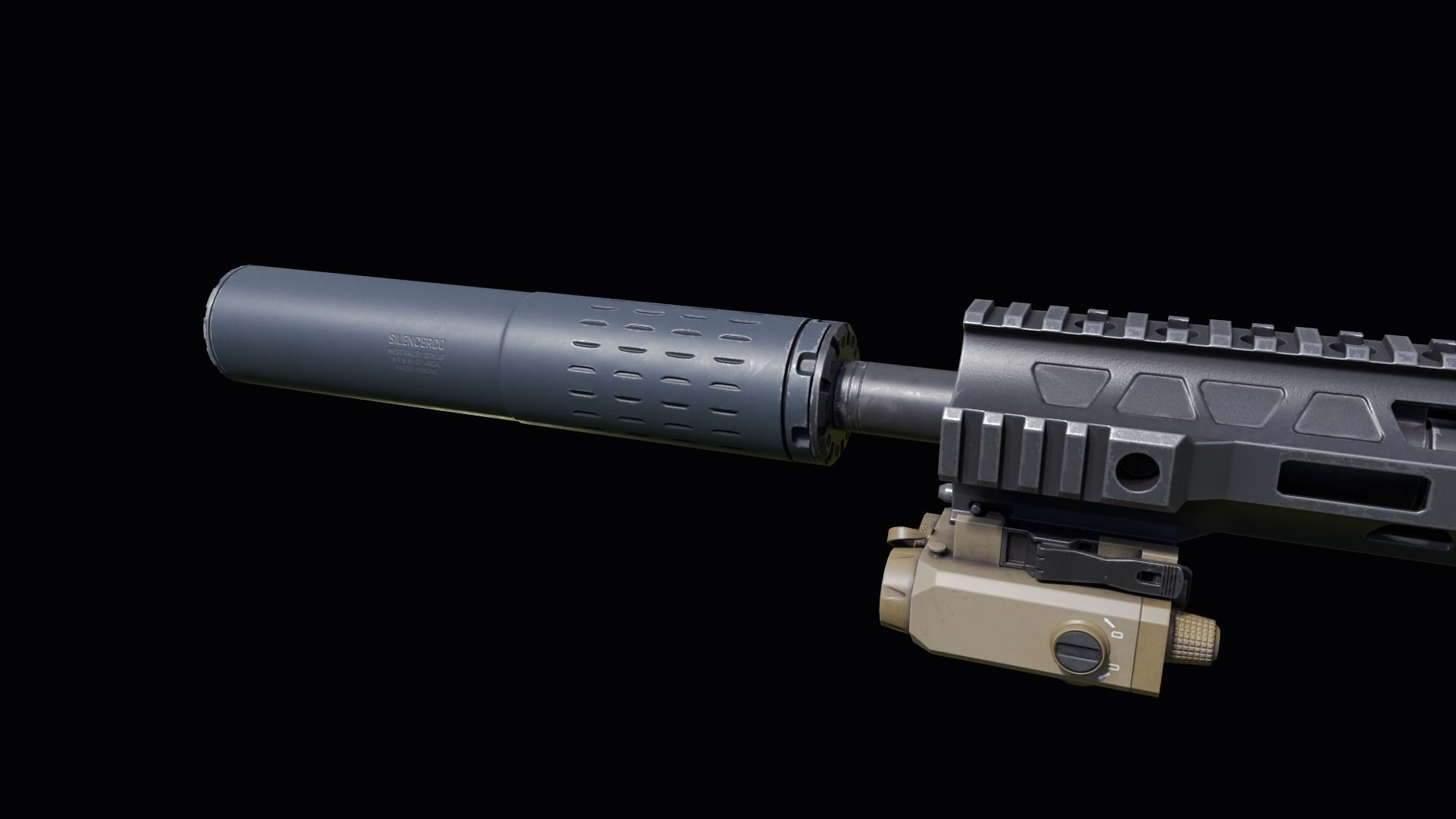

  • Suppressor and adapter: SilencerCo Hybrid 46 and SilencerCo Bravo Direct Thread Mount. Tris: 2006, Verts: 1003

  • Tactical device: HOLOSUN LS321 G/R. Tris: 2540, Verts: 1315

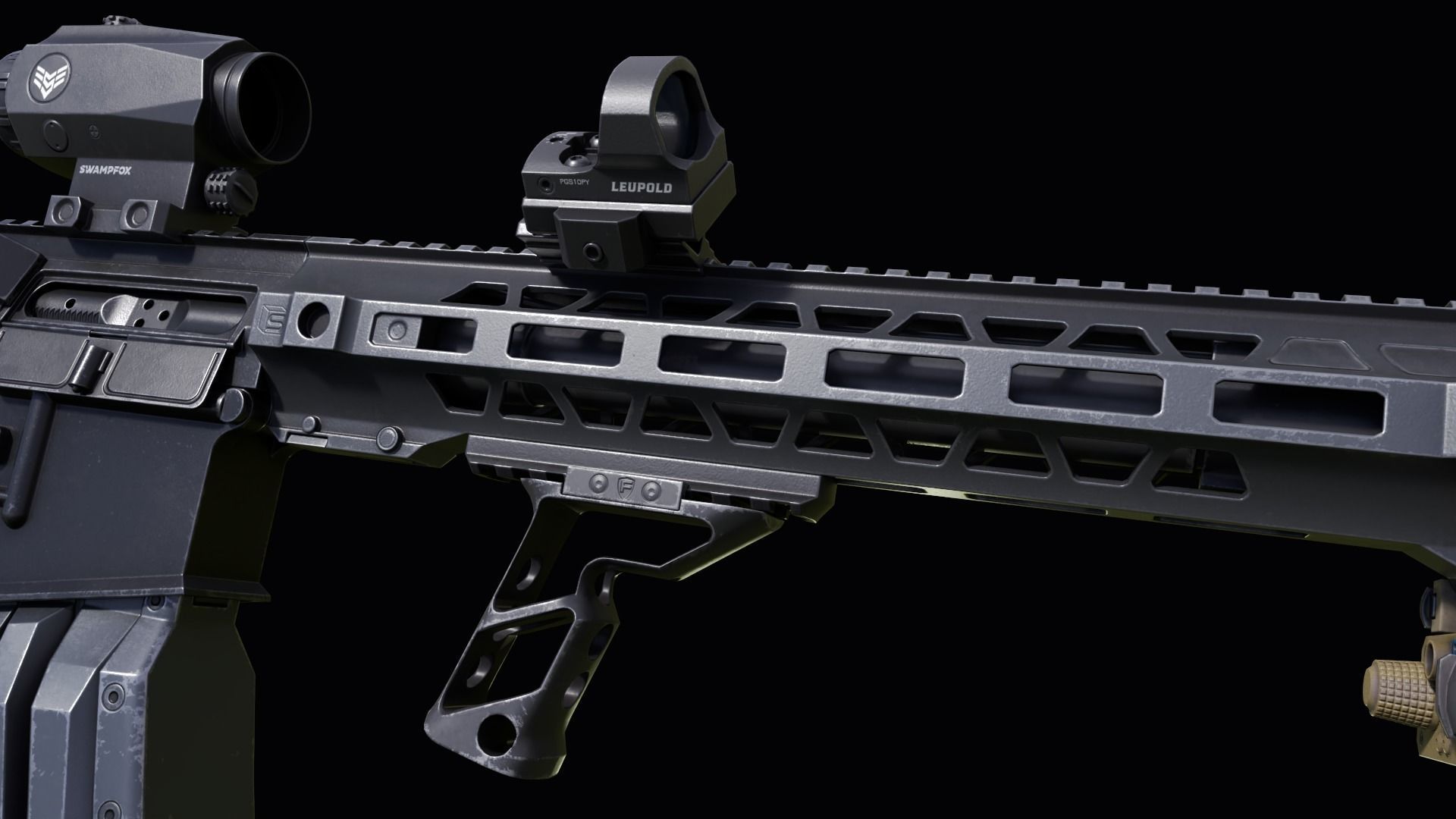

  • Reflector sight and 45 degree offset mount: Leupold DeltaPoint and NcStar MPR45. Tris: 3416, Verts: 1765

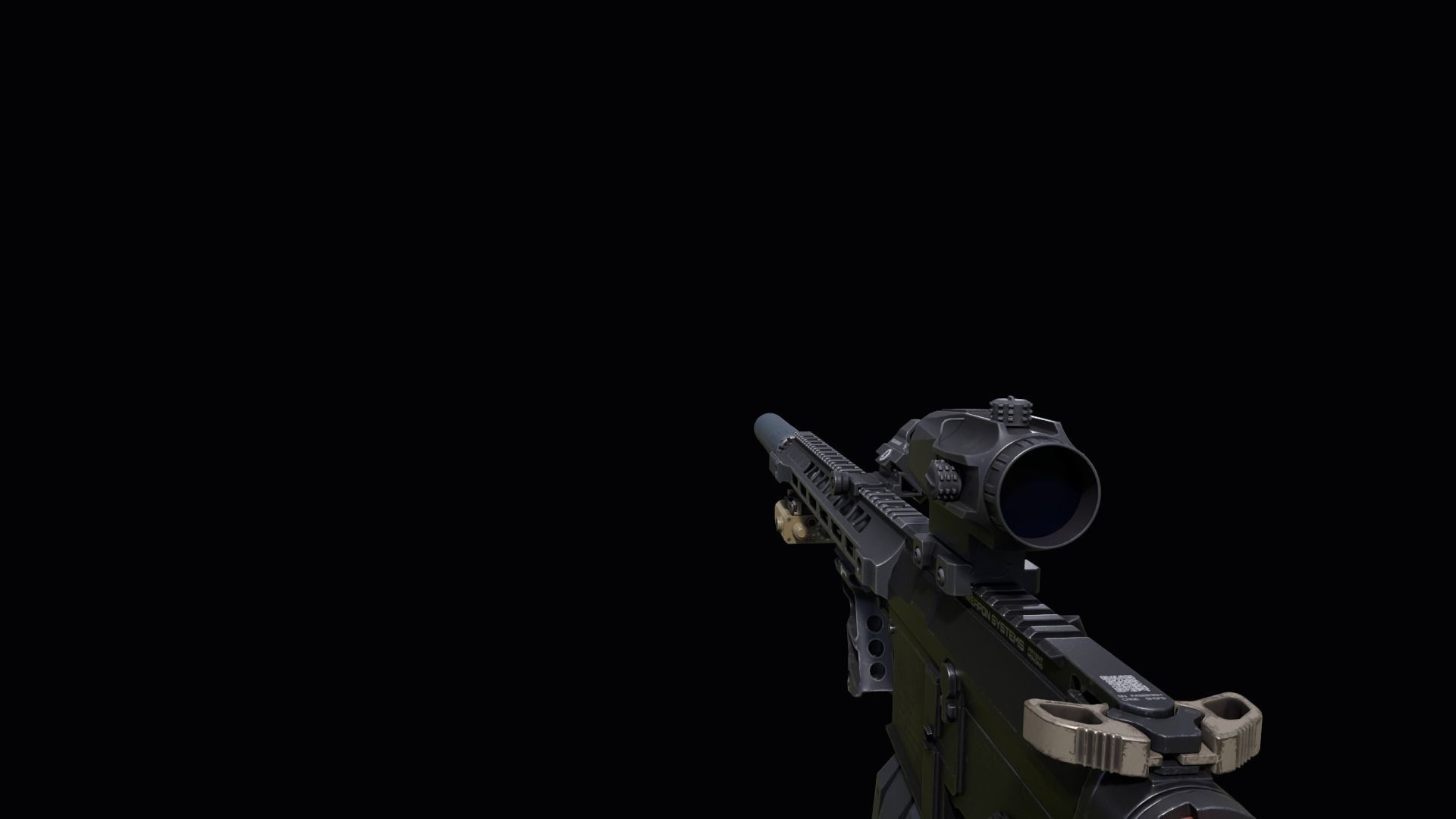

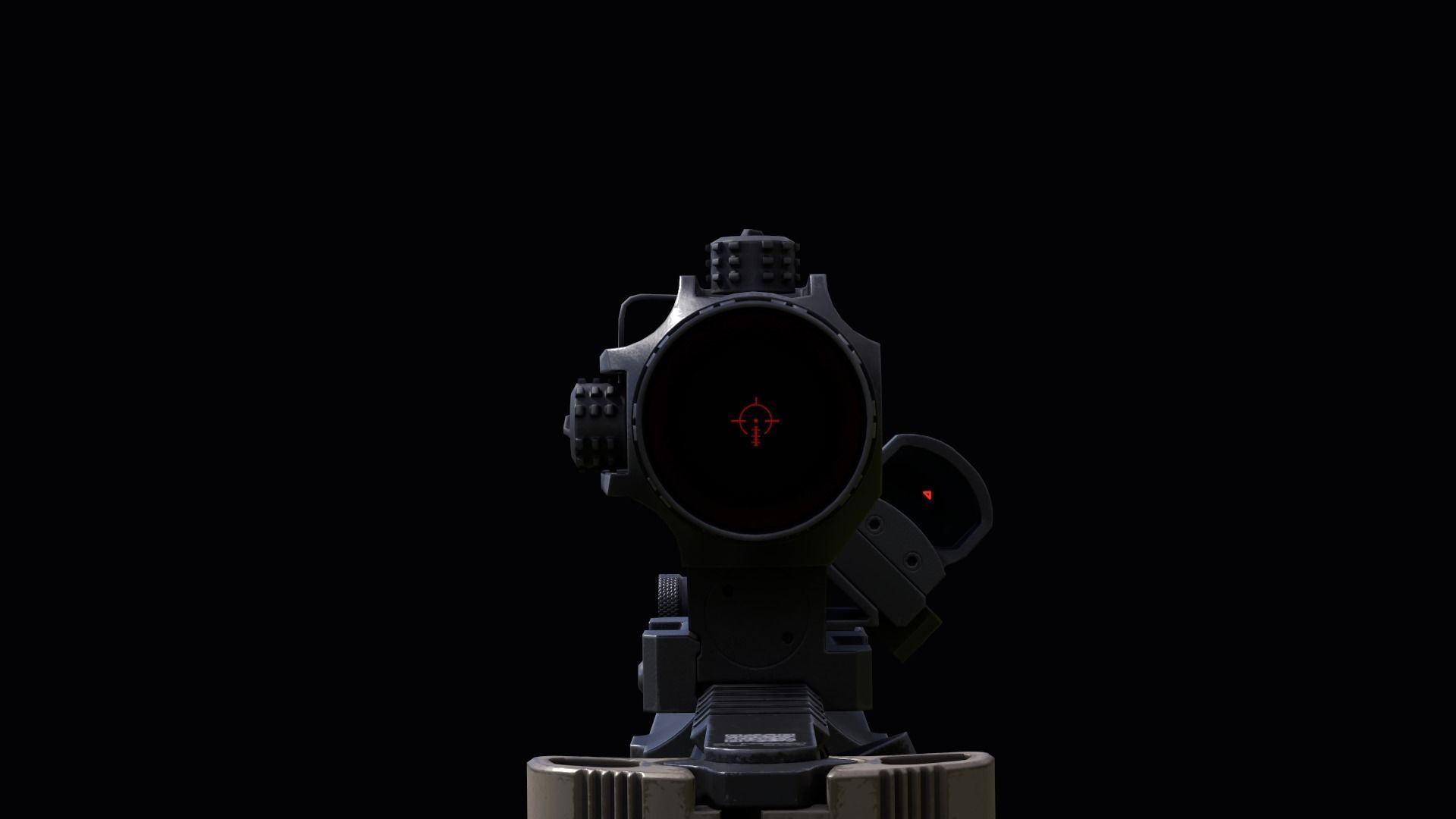

  • Assault scope: SwampFox Trihawk Prism Scope 3x30. Tris: 6193, Verts: 3204

  • Ammo: 5.56x45mm M855A1. Tris: 960, Verts: 484

Textures and UV mapping info:

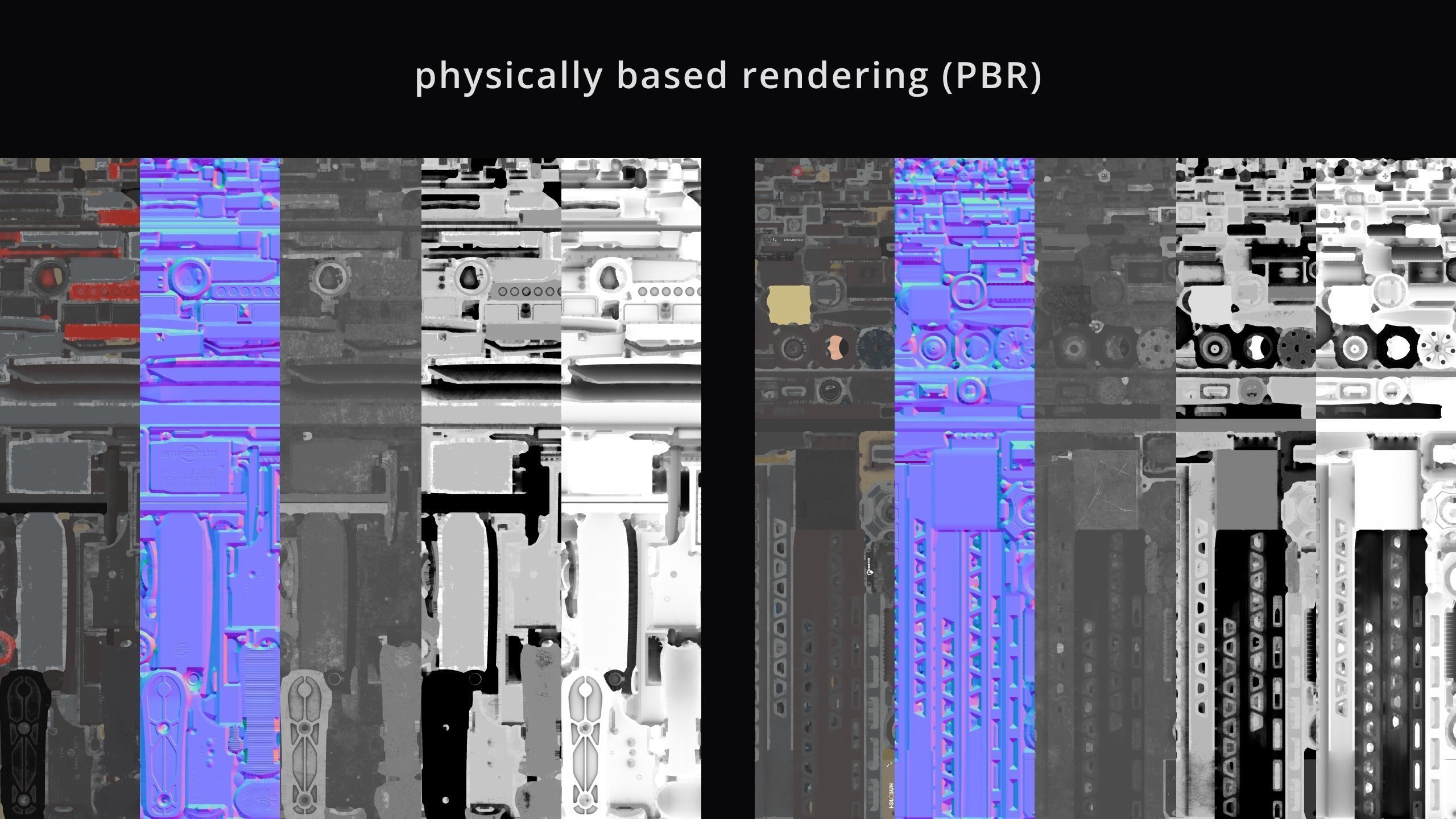

High resolution textures made for physically based rendering (PBR) shader system exported out of Substance Painter(7.1.1) as such required texture maps as:

  • Albedo(base color), NormalMap (OpenGL and DirectX), Roughness, Metalness, Ambient Occlusion, Opacity (for alpha reticle in scope), emissive (for reticle in scope) - .png / 8bit (normal - 16bit)

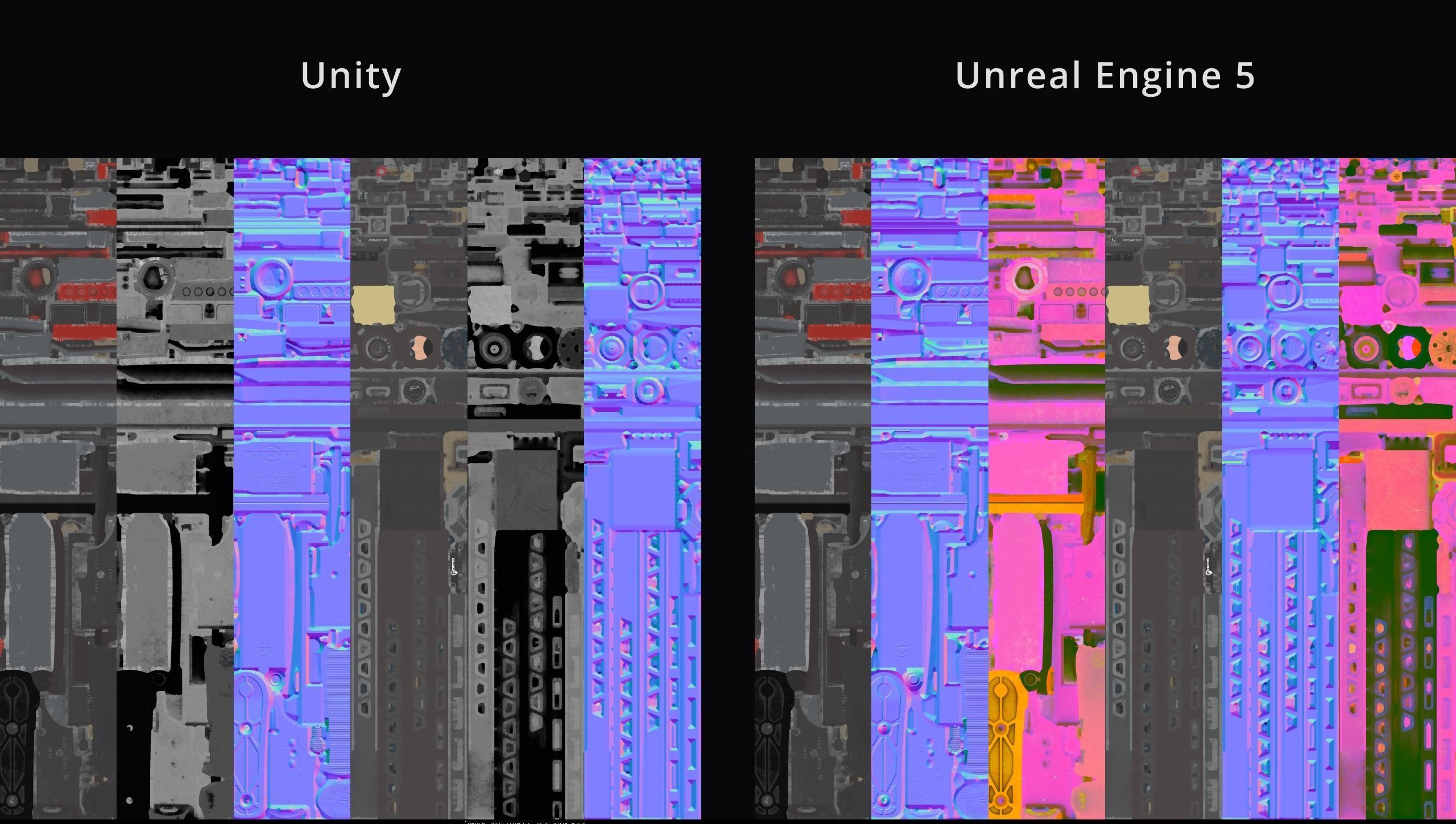

  • Unreal Engine (BaseColor, OcclusionRougnessMetall, Normal) - .png / 8bit

  • Unity (AlbedoTransparency, MetallicSmoothness, Normal) - .png / 8bit

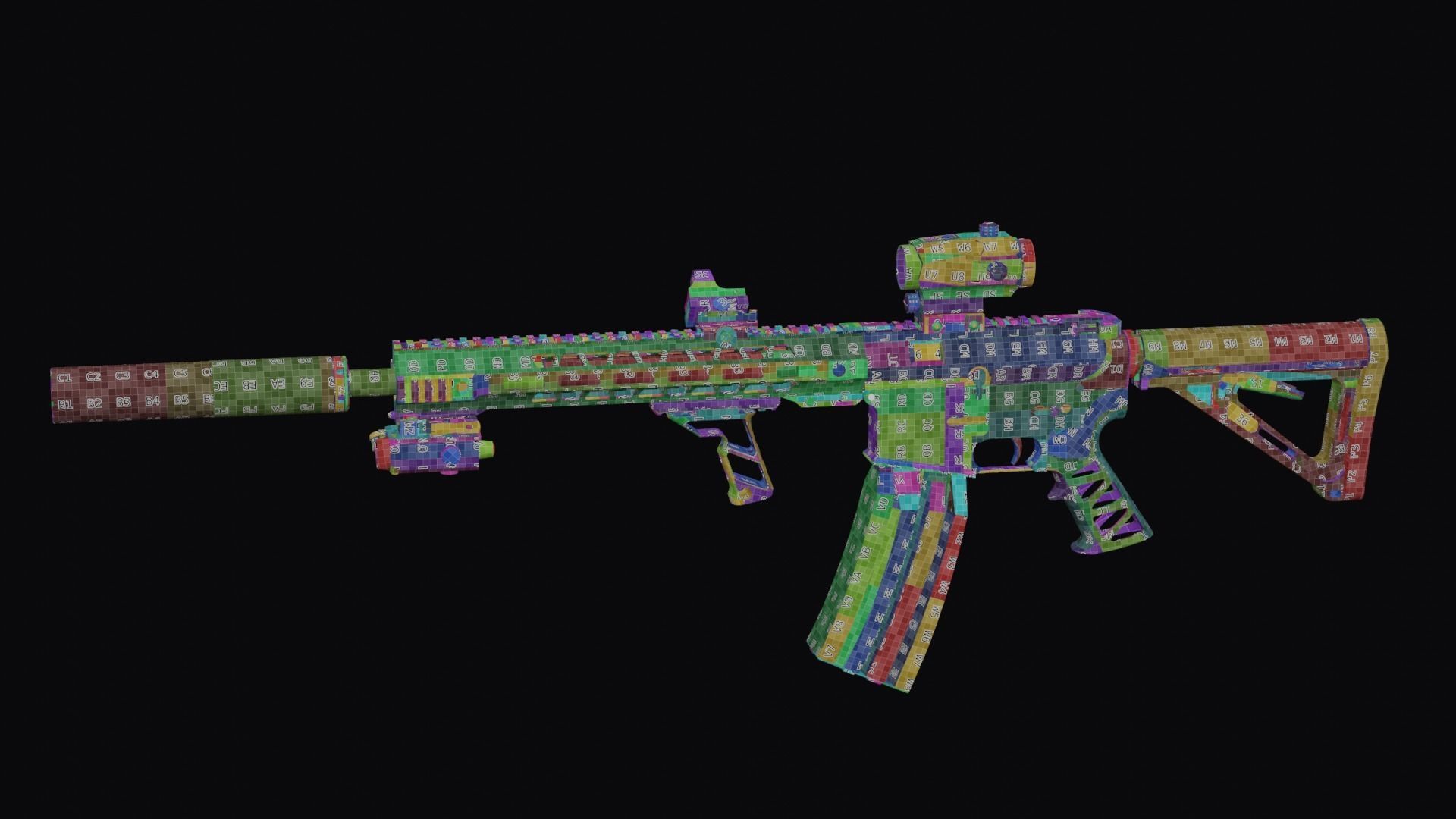

Model unwrapping made on only 2 texture atlases. For better use of UV space, some inconspicuous parts that are on the other side, repeated small details have been unwrapped by overlapping (sides of the Handguards, stock, grips, etc.) Also Scale of inner unnoticeable parts decreased in UV space. That does not affect the quality of the textures and the general appearance of the model. The value of Texel Density: 64-65 pixels/cm (with 4k)!

  • M4A1_1 - 4096x4096

  • M4A1_2 - 4096x4096

  • Lense_Reticle - 256x256

Additionally, there are sets of textures without logos and engravings.

After importing the model and the textures into the target engine you have to follow the official engine documentation on how to set the material up!

All content of this model is packed into .rar archives, names of textures, formats, materials, etc. have the correct names. Folders and archives have very easy to understand names.Also for your comfort there are Readme files in every archive with the description of what this archive contains.

zioandreez 2022-12-19 09:47:11 UTC
Are the parts printable with a 3d printer?
aa2021 2022-12-09 06:05:53 UTC
This is great !
Item rating
1 0
Custom Colt M4A1 assault rifle
Royalty Free License
Custom Colt M4A1 assault rifle
Royalty Free License
Response 80% in 0.7h
3D Modeling
Low-poly Modeling
UV mapping
PBR modeling

3D Model formats

Format limitations
  • Blender 3.1.2 (.blend)1.21 MB
  • Autodesk 3ds Max 2022 (.max)1.51 MB
  • Autodesk FBX (.fbx)7.93 MB
  • OBJ (.obj, .mtl)936 KB
  • Autodesk Maya 2022 (.ma, .mb)3.7 MB
  • Textures 768 MB

3D Model details

  • Publish date2022-10-27
  • Model ID#4077077
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 44,957
  • Vertices 22,635
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Mixed
  • Plugins used
  • Ready for 3D Printing
