Borchardt C93

Borchardt C93 3D model

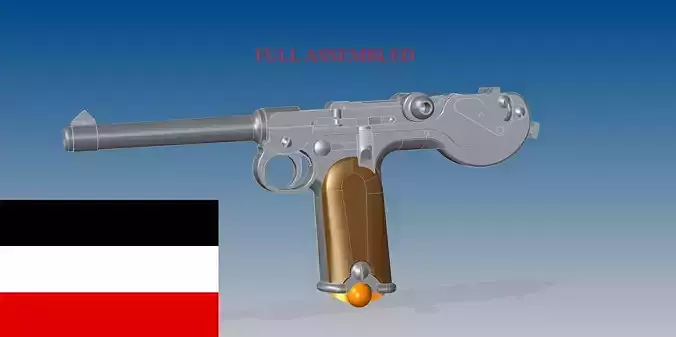

Full assembled model of German pistol and its 7,65x25mm bullet.

Model is good for weapon mechanic animation, games , for visual education.

For more information contact me here all_world_weapons@mail.ru

The Borchardt C93 is a semi-automatic pistol designed by Hugo Borchardt in 1893. The design is based upon the Maxim gun (toggle bolt) model. Borchardt developed the high-velocity, bottlenecked 7.65×25mm Borchardt cartridge for the C93. His assistant at the time, Georg Luger, also claimed to have influenced its design. Machine tool manufacturer Ludwig Loewe & Company of Berlin, Germany, produced the C93 in anticipation of military orders. With about 1,100 manufactured by Loewe and nearly 2,000 more produced by Deutsche Waffen- und Munitionsfabriken. The Borchardt C93 was the first mass-produced semi-automatic pistol.

The pistol used a toggle lock system, which meant that when the gun fired, a two-piece arm rose and flexed as the gun recoiled, thus allowing the breech to unlock and release the empty cartridge case. DWM employed Georg Luger to promote the Borchardt pistol in military and commercial channels. The pistol was tested by the U.S. Navy as early as 1894 and later by the U.S. Army. Although it was accurate and its rate of fire was rapid, the Borchardt pistol was expensive to produce and unwieldy to handle due to its almost vertical grip and distribution of weight. Furthermore, its recoil was unexpectedly powerful. These criticisms were noted in the Swiss Army field tests. However, Borchardt refused to make any changes to his original design. DWM then appointed Georg Luger to make the requested improvements to the pistol. Luger took the Borchardt design, using the shorter 7.65×21mm Parabellum cartridge, which allowed him to incorporate a shorter stroke of the toggle mechanism and a narrower, angular grip. Luger's design eventually became the Luger Parabellum pistol. The cartridge used in the Borchardt C93 Pistol was the basis for the primary cartridge used in the Mauser C96 pistol (7.63×25mm Mauser); they have the same dimensions, but the 7.63 mm Mauser generally had a more powerful powder charge (contemporary loading data indicated it took approximately 20% more powder than the Borchardt) and is considered to be too strong to be used in a Borchardt C93. Nonetheless, cartridge boxes from some manufacturers were marked For Borchardt and Mauser Automatic Pistols. The Borchardt C93 was manufactured and sold solely in its proprietary caliber, the 7.65×25mm Borchardt. Some test models were made in 7.65×21mm Parabellum and 9×18mm Borchardt, an experimental bottlenecked cartridge developed in 1902.

Item rating
0 0
Borchardt C93
$40.00

Royalty Free License
Borchardt C93
$40.00

Royalty Free License
Available in these collections
Response 96% in 0.7h
3D Modeling
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • OBJ (.obj, .mtl) (2 files)3.33 MB
  • IGES (.ige, .igs, .iges)25.3 MB
  • STEP (.stp)5.96 MB
  • Autodesk FBX (.fbx)1.21 MB

3D Model details

  • Publish date2021-12-18
  • Model ID#3406526
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices -
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
