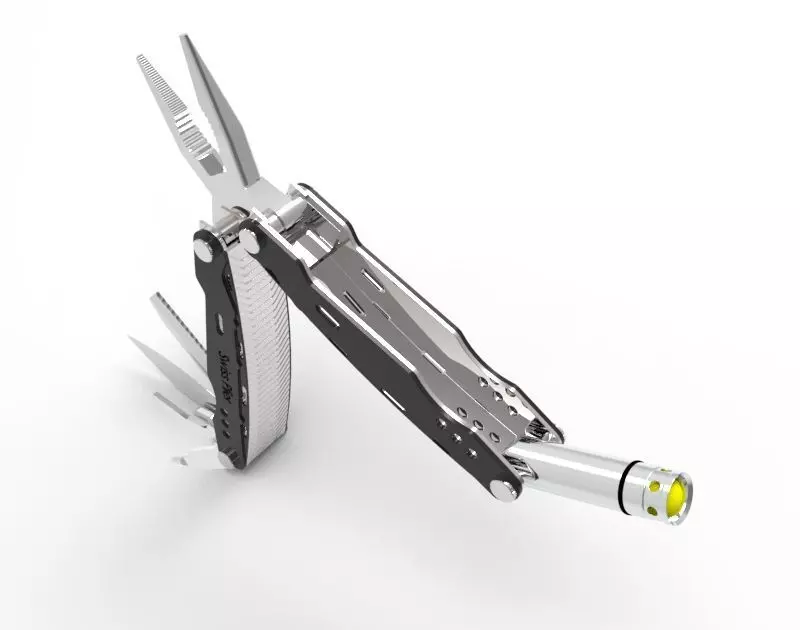

Swiss Plier 3D model

This project is done with SOLIDWORKS software. The Swiss Plier in this project consists of 28 individual parts which are explained alongside their quantity and materials:

=======================================

2- LED Flashlight (Material - Brushed Aluminium)

============================

3- Left Arm Cover (Quantity - 2 Parts / Material - Black Low Gloss Plastic)

============================

4- Right Arm Cover (Quantity - 2 Parts / Material - Black Low Gloss Plastic)

============================

5- Left Arm (Material - Polished Steel)

============================

6- Right Arm (Material - Polished Steel)

============================

7- Left Plier (Material - Satin Finish Stainless Steel)

============================

8- Right Plier (Material - Satin Finish Stainless Steel)

============================

9- Rivet (Quantity - 4 Parts / Material - Satin Finish Stainless Steel)

============================

10- Sawn Blade (Material - Brushed Steel)

============================

11- Screwdriver (Material - Brushed Steel)

============================

12- Support (Quantity - 2 Parts / Material - Polished Steel)

============================

13- Uncoiler (Material - Brushed Steel)

============================

14- Washer (Quantity - 9 Parts / Material - Polished Steel)

============================

Formats of the files consist of: (.sldprt), (.sldasm), (.stp), (.stl), (.igs), (.amf), (.obj), (.mtl) & (.pdf). The model is then rendered in Keyshot 10 software with the relevent materials and the relevent file for executing changes has also been uploaded. All of the individual parts are designed with the part design section and assembled together in the end by using the assembly section of the software. The materials chosen for the parts, are based of the usual materials which are generally used for manufacturing this product in the industry.
