More Information About 3D Model :

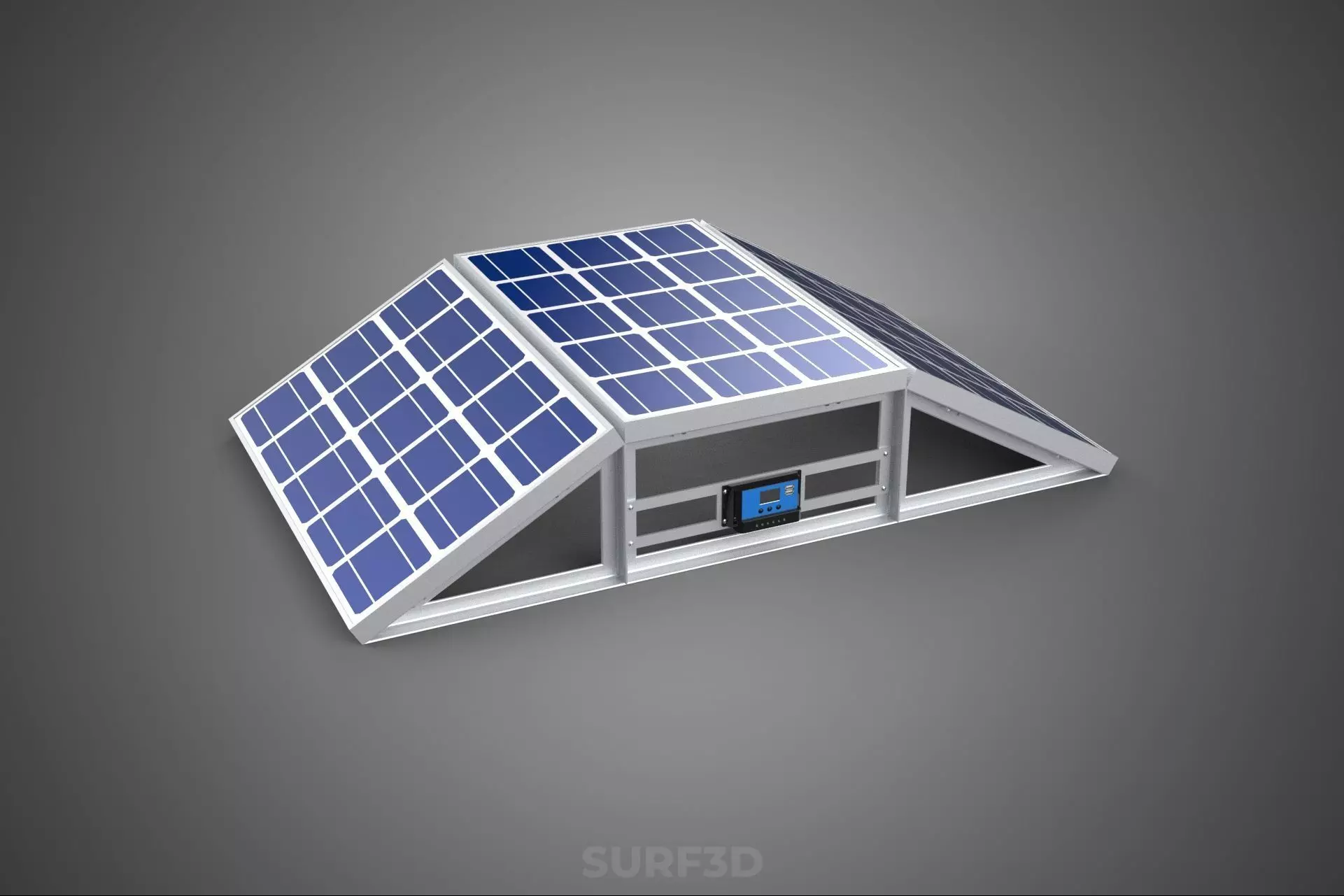

A compact roof array solar cell panel modular system with an integrated charge controller regulator represents a highly specialized and integrated photovoltaic (PV) power generation solution designed for efficient, scalable, and simplified installation, particularly in residential, commercial, or remote applications where space and ease of deployment are critical. This system combines several core components into a cohesive unit, optimizing the conversion of solar energy into usable electrical power, often for battery storage.
Core Components and Their Functions:
- Compact Solar Cell Panel: The foundational element consists of an assembly of photovoltaic (PV) cells, typically monocrystalline or polycrystalline silicon, which convert solar radiation into direct current (DC) electricity through the photovoltaic effect. The compact designation implies a design optimized for a smaller footprint, reduced weight, and often enhanced power density per unit area. This can be achieved through advanced cell technologies, frameless designs, or streamlined encapsulation methods, facilitating easier handling, transport, and less obtrusive roof integration.
- Modular Design: The term modular signifies that the system is composed of standardized, interchangeable units that can be easily connected in parallel or series to achieve a desired total power output. This modularity offers significant advantages:
- Scalability: Users can start with a smaller system and expand its capacity over time by adding more modules.
- Flexibility: It allows for custom configurations to fit various roof dimensions and energy requirements.
- Ease of Installation: Standardized connections (e.g., MC4 connectors) and mounting hardware simplify the wiring and physical setup process.
- Maintenance: Individual modules can be replaced or serviced without affecting the entire array.
- Roof Array Integration: This system is specifically engineered for deployment as an array on building rooftops. Design considerations include aerodynamic stability, structural load minimization, aesthetic integration with building architecture, and robust weatherproofing to withstand diverse environmental conditions (wind, snow, rain, UV radiation). Mounting systems are often designed to be lightweight and non-penetrating or minimally penetrating to preserve roof integrity, while ensuring optimal tilt and azimuth angles for maximum solar energy harvesting.
- Integrated Charge Controller Regulator: A critical component for systems connected to battery banks, the charge controller (or regulator) manages the flow of electricity from the solar panels to the batteries and often to the load. Its primary functions include:
- Overcharge Protection: Prevents batteries from being overcharged, which can lead to damage, reduced lifespan, or even catastrophic failure.
- Deep Discharge Protection: Disconnects the load when battery voltage drops below a safe threshold, protecting batteries from irreversible damage due to excessive discharge.
- Optimized Charging: Employs algorithms such as Pulse Width Modulation (PWM) or Maximum Power Point Tracking (MPPT) to maximize charging efficiency, ensuring that the batteries receive the optimal current and voltage from the solar panels under varying conditions. MPPT controllers, in particular, can significantly improve energy yield by dynamically adjusting to the panel's maximum power point.
- Load Management: Some controllers can manage DC loads directly, providing low-voltage disconnects and timers.
Operational Principle:
Solar panels convert sunlight into DC electricity. This DC power is then routed to the integrated charge controller. The controller monitors the battery's state of charge and the solar panel's output, regulating the current and voltage to safely and efficiently charge the connected battery bank. If direct DC loads are present, the controller may also manage their power supply, ensuring battery protection. For AC loads, an additional inverter would be required, typically connected to the battery bank.
Advantages and Applications:
This type of integrated system offers numerous advantages:
- Simplified System Design: By integrating the charge controller, the complexity of system design and wiring is significantly reduced, making it ideal for DIY installations or rapid deployment.
- Enhanced Reliability: Fewer external components mean fewer points of failure.
- Space Efficiency: Compact design and roof integration maximize available space.
- Energy Independence: Suitable for off-grid cabins, recreational vehicles (RVs), marine applications, remote monitoring stations, and small residential grid-tied or hybrid systems.
- Cost-Effectiveness: Reduced installation time and material costs can lead to a lower overall system expenditure.
Conclusion:
The compact roof array solar cell panel modular system with an integrated charge controller regulator represents a sophisticated and user-friendly approach to distributed solar power generation. Its integrated nature, combined with compactness and modularity, makes it a highly efficient, adaptable, and increasingly popular solution for sustainable energy needs across a wide range of applications.
KEYWORDS: Solar Panel, Photovoltaic (PV), Compact, Roof Array, Modular, Charge Controller, Regulator, Renewable Energy, Off-grid, Battery Storage, Energy Independence, DC Power, MPPT, PWM, Scalable, Installation, Residential Solar, Commercial Solar, Remote Power, Solar Energy System, Photovoltaic Array, Distributed Generation, System Integration, Energy Efficiency, Sustainable Power, Green Energy, Grid-tie Ready, Self-contained, Load Management, Panel Mount.
