High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

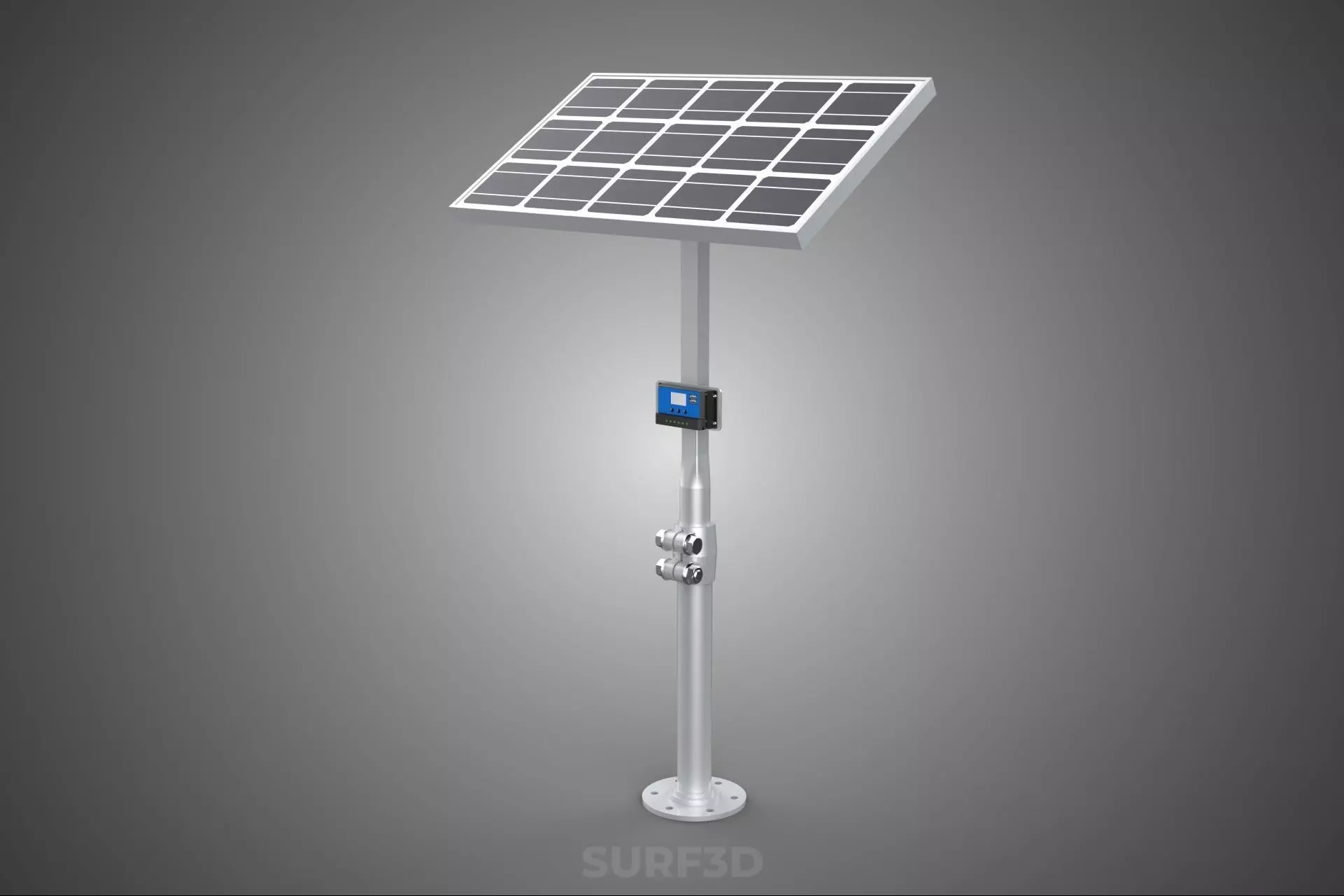

A Mounted Pole Stand Solar Cell Panel Controller Charge Regulator system represents a fully integrated, self-contained power generation and management unit designed for off-grid or remote applications. It comprises a photovoltaic (PV) module, a charge controller, and a robust pole-mounted stand, functioning synergistically to harvest solar energy, regulate its flow, and protect connected battery banks or loads. This system is engineered for autonomous operation, providing reliable electrical power where grid connectivity is impractical or unavailable.
Components Overview:
- Solar Cell Panel (Photovoltaic Module): This is the primary energy harvesting component, converting sunlight directly into direct current (DC) electricity via the photovoltaic effect. Panels typically consist of multiple interconnected solar cells encased in a protective, weather-resistant frame. Common types include monocrystalline (high efficiency, compact), polycrystalline (cost-effective, good performance), and less commonly, thin-film (flexible, lower efficiency, better in low light). The panel's power output is rated in watts (W) under standard test conditions (STC). The size and number of panels are determined by the system's power demand and local solar irradiance.
- Charge Controller (Regulator): Essential for battery-based solar systems, the charge controller manages the power flow from the solar panel to the battery bank and/or direct DC loads. Its primary functions include:
- Overcharge Protection: Prevents batteries from being overcharged, which can lead to degradation, gassing, and reduced lifespan. It achieves this by reducing or stopping the charging current once the battery reaches its full capacity voltage.
- Deep Discharge Prevention (Low Voltage Disconnect - LVD): Disconnects loads when battery voltage drops below a critical threshold, protecting batteries from irreversible damage that can occur from excessive discharge. It automatically reconnects the load once the battery is sufficiently recharged.
- Load Management: May include features for timed load control, dusk-to-dawn lighting operation, and programmable set points for voltage thresholds.
- Maximum Power Point Tracking (MPPT) or Pulse Width Modulation (PWM): MPPT controllers dynamically adjust the operating point of the solar panel to extract the maximum possible power under varying sunlight conditions (e.g., temperature changes, partial shading), significantly improving energy yield, especially in larger systems. PWM controllers are simpler and more cost-effective, maintaining a constant voltage output to the battery through a series of short pulses, suitable for smaller systems where the panel and battery voltages are closely matched.
- Mounting System (Pole Stand): This structural component provides the physical support and precise orientation for the solar panel and often houses the charge controller and battery enclosure (though batteries are frequently buried or housed separately). Pole stands are engineered for durability, resisting environmental factors like wind, snow, and seismic activity. Key design considerations include:
- Material: Typically constructed from galvanized steel or aluminum for superior corrosion resistance and structural integrity.
- Height and Stability: Designed to elevate the panel above ground-level obstructions (e.g., vegetation, snow accumulation) and ensure structural stability against environmental forces.
- Adjustability: Many pole stands allow for manual adjustment of the tilt angle (elevation) and azimuth (horizontal orientation) of the solar panel. This adaptability is crucial for optimizing solar capture throughout different seasons or for specific geographical latitudes, maximizing the system's energy yield.
Operational Principle:
During daylight hours, the solar cell panel converts solar irradiance into DC electricity. This unregulated DC power is fed into the charge controller. The controller continuously monitors the battery's state of charge, the solar panel's output, and the demands of connected loads. If the battery requires charging, the controller regulates the voltage and current to safely replenish the battery bank, preventing overcharge. Concurrently, if loads are drawing power, the controller manages the current delivery from either the solar panel directly or the battery bank, ensuring the battery is not excessively discharged by disconnecting loads if the voltage drops too low. The pole stand ensures the panel is optimally positioned to receive maximum sunlight, facilitating efficient energy conversion.
Applications:
These integrated systems are widely deployed in various off-grid and remote applications, including:
- Telecommunications: Powering remote sensors, cellular repeaters, radio equipment, and meteorological stations.
- Rural Electrification: Providing electricity to homes, clinics, schools, and community centers in areas without grid access.
- Security Systems: Powering surveillance cameras, alarm systems, and perimeter lighting in remote or critical infrastructure locations.
- Environmental Monitoring: Supplying power to weather stations, hydrological sensors, air quality monitoring devices, and seismic monitoring equipment.
- Traffic Management: Powering road signs, emergency call boxes, railway signaling, and remote traffic counters.
- Recreational and Marine: Providing auxiliary power for remote cabins, recreational vehicles (RVs), and marine vessels.
Advantages:
- Self-Contained and Autonomous: Operates independently of the electrical grid, ideal for remote and inaccessible locations.
- Ease of Installation: Pre-engineered components simplify deployment, often requiring less extensive civil works compared to complex ground-mounted or rooftop systems.
- Durability and Weather Resistance: Designed to withstand harsh environmental conditions, including extreme temperatures, high winds, and corrosive atmospheres.
