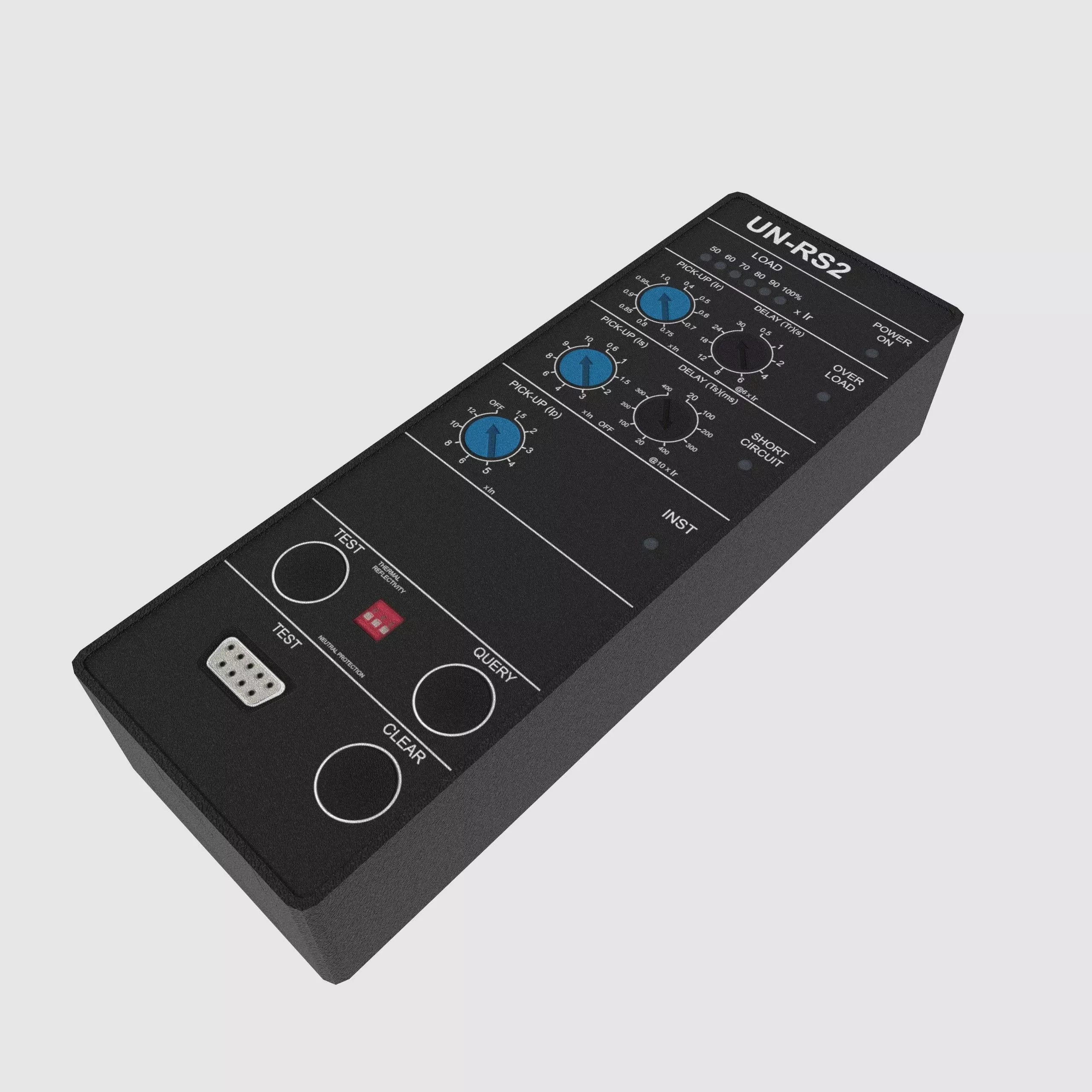

*Description*A highly detailed Air Circuit Breaker (ACB) Protection Relay System modeled after the UN-RS2 control unit. This 3D model accurately represents the electrical relay module used in industrial power distribution systems for overload protection, short-circuit sensing, and operational monitoring.

The model includes fully detailed dials, switches, labels, indicator LEDs, and I/O ports — ideal for technical visualizations, electrical training simulations, VR/AR, engineering demos, and industrial environment scenes. Designed with real-world scale and optimized PBR textures for maximum realism.

Features

Realistic Air Circuit Breaker (ACB) relay module

Detailed front panel with:

Load & pick-up (long-time, short-time, instantaneous) dials

Delay & trip adjustment knobs

Indicator LEDs (Power, Overload, Short Circuit)

Test & Clear push buttons

Query button

RS-type communication port

Clear printed markings and calibration labels

High-resolution PBR materials

Clean topology and fully optimized model

Suitable for VR/AR and real-time applications

UV-unwrapped with non-overlapping islands

Categories

3D Models - Electronics - Industrial Electronics

3D Models - Industrial - Electrical Equipment

3D Models - Engineering - Power Distribution

3D Models - Game Assets - Props

Technical Details

Formats: FBX, OBJ, BLEND

Textures: PBR (Base Color, Metallic, Normal) - 2K

Materials: Metal, Plastic, Label Print

UVs: Clean, non-overlapping

Polycount: Optimized for real-time

Rigged: No

Animated: No

Scale: Real-world unit dimensions

Compatibility: Blender, Maya, 3ds Max, Cinema 4D, Unity, Unreal Engine
