DESCRIPTION

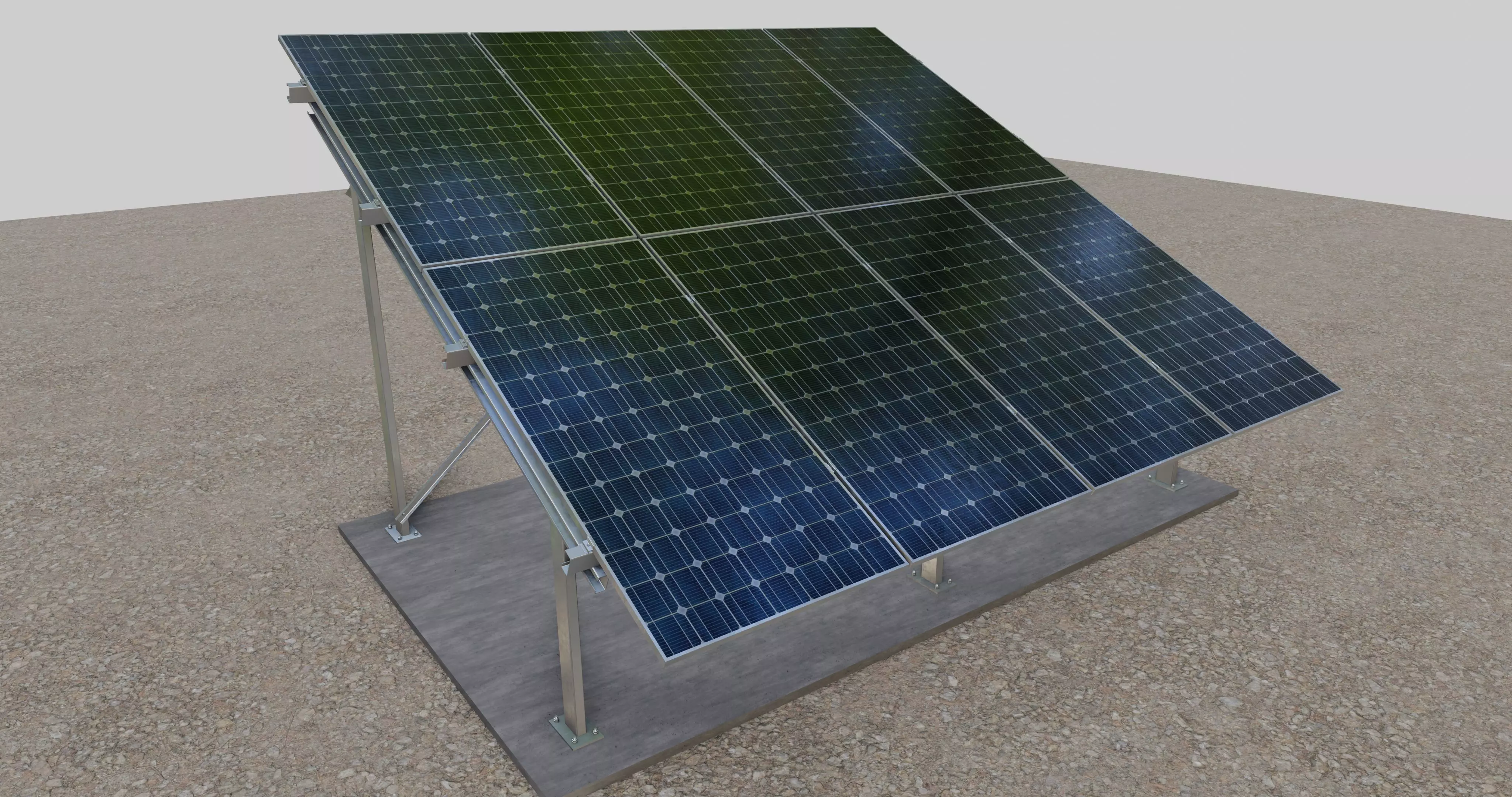

Solar Panel Steel Construction Type 3

2x4 Vertical Panel Layout

Ground Connection Type; With Anchor Plate

Foundation Dimensions : 3000mm x 5000mm x 500mm

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 4,4 kWp power in 1 hour

The system consists of 3 axles and the distance between each axle is 2200 mm.

Distance between two columns 2300 mm.

Horizantal angle of panel 25°

The closest distance of the panels to the floor 600 mm.

Profile Section;

Column : C Profile C120x50x25-4mmBeam : C Profile C100x50x20-3mmPurlin : C Profile C90x50x20x-2mmDiagonal : U Profile U50x30-2mm

Prepared With BLENDER Version 2.93.5

Polygons : 74776

Vertices : 88926

Objects : 124
