Solar Panel Steel Construction Type 10 3D model

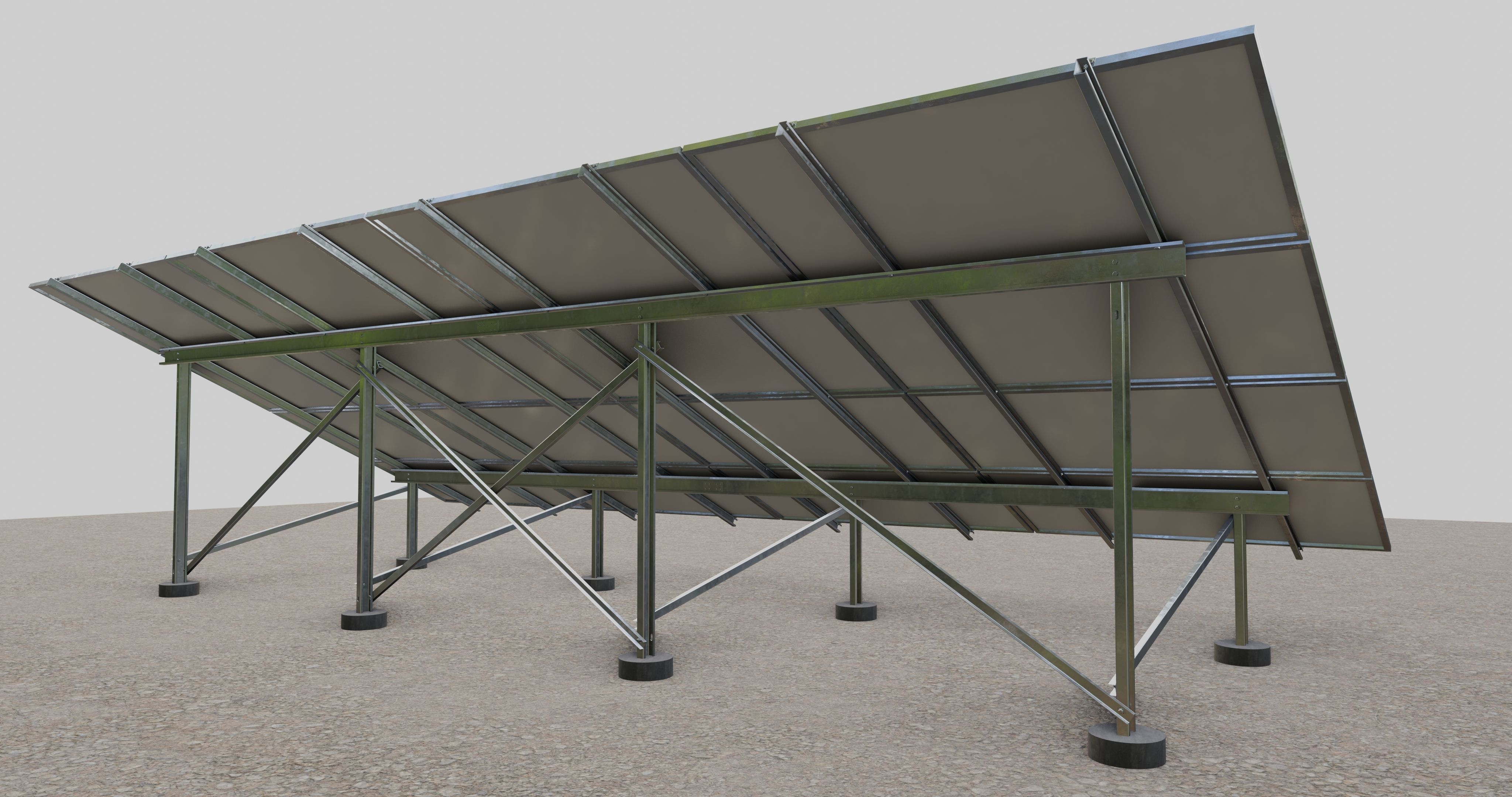

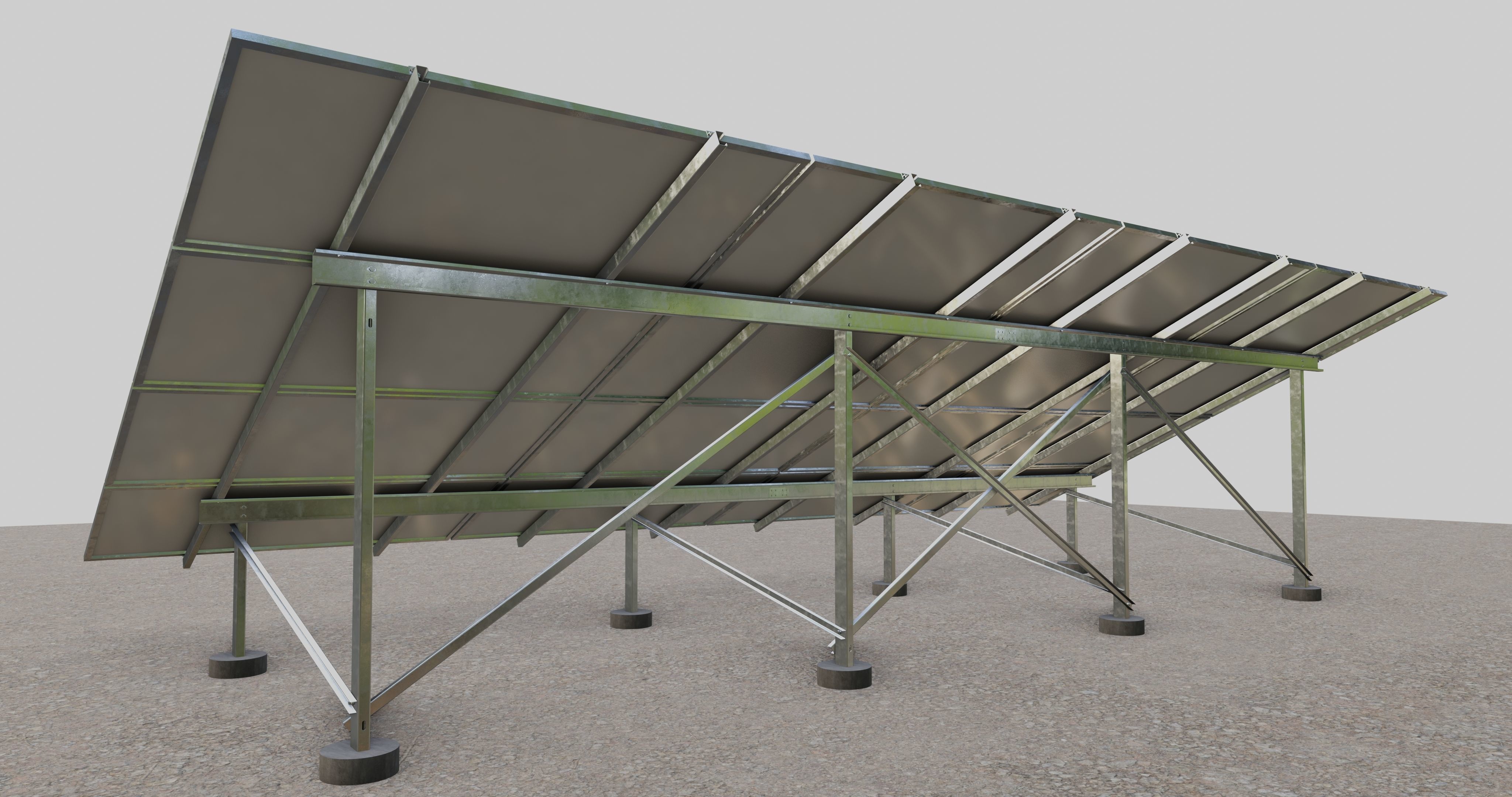

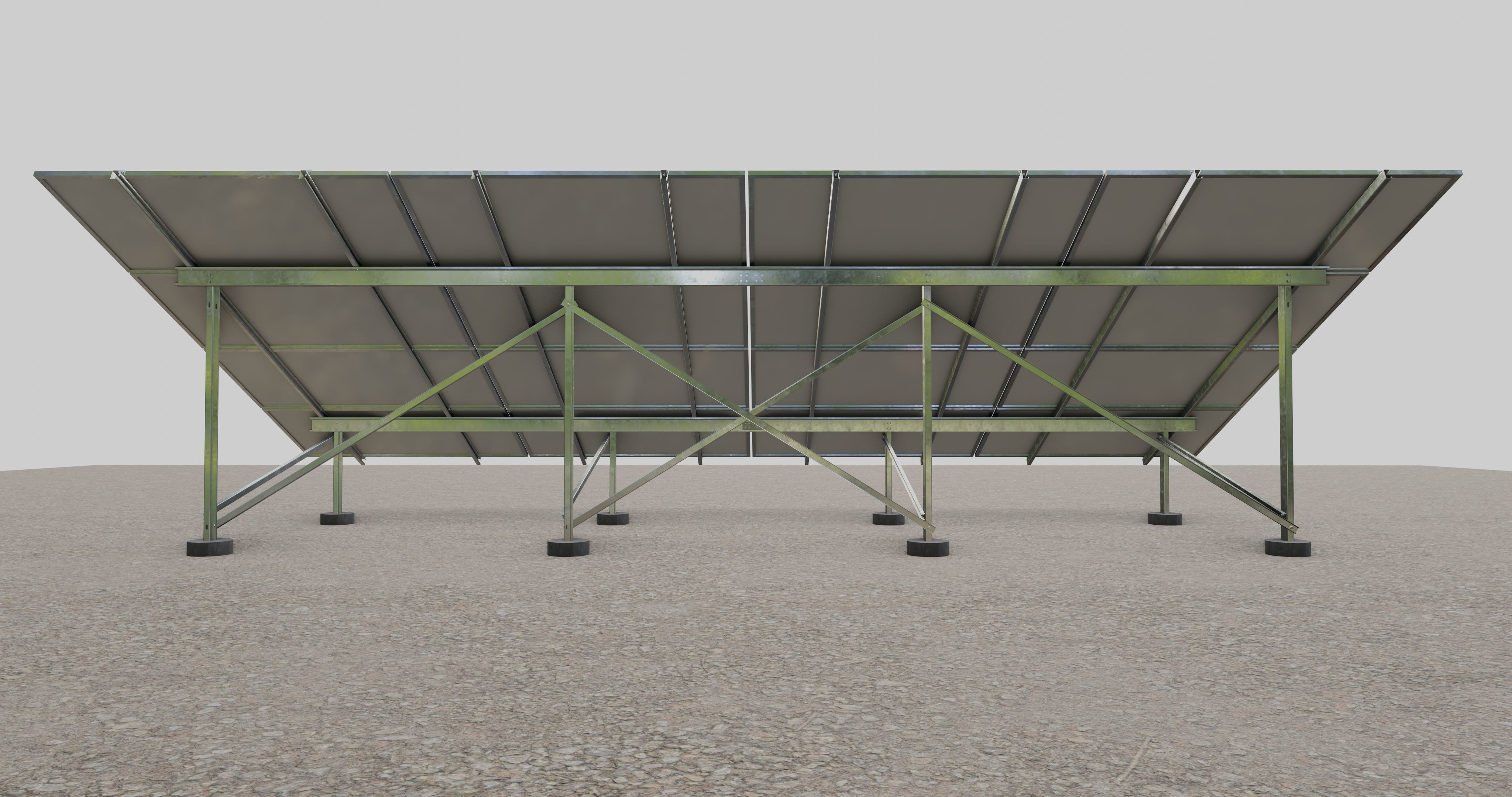

Solar Panel Steel Construction Type 10

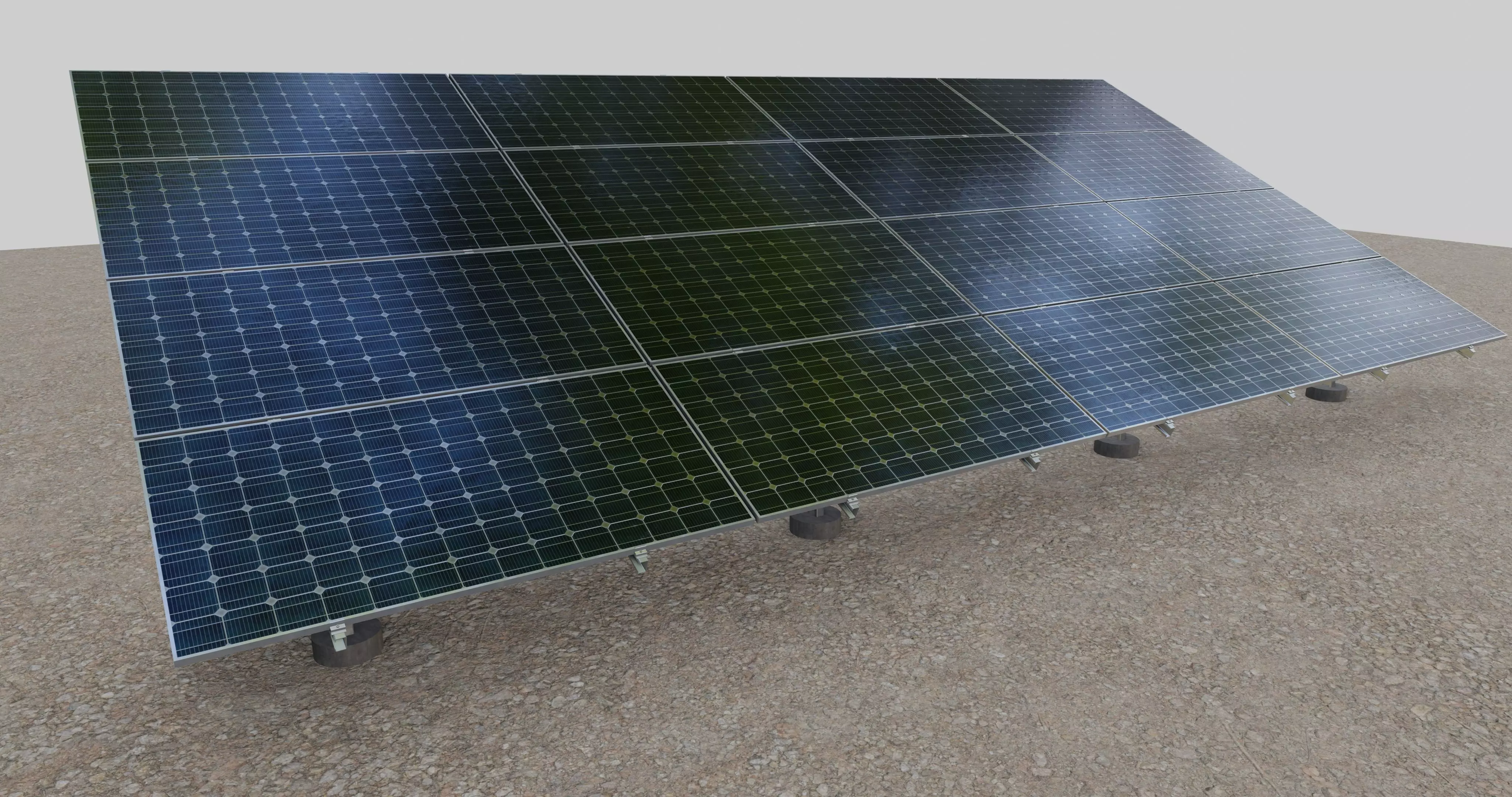

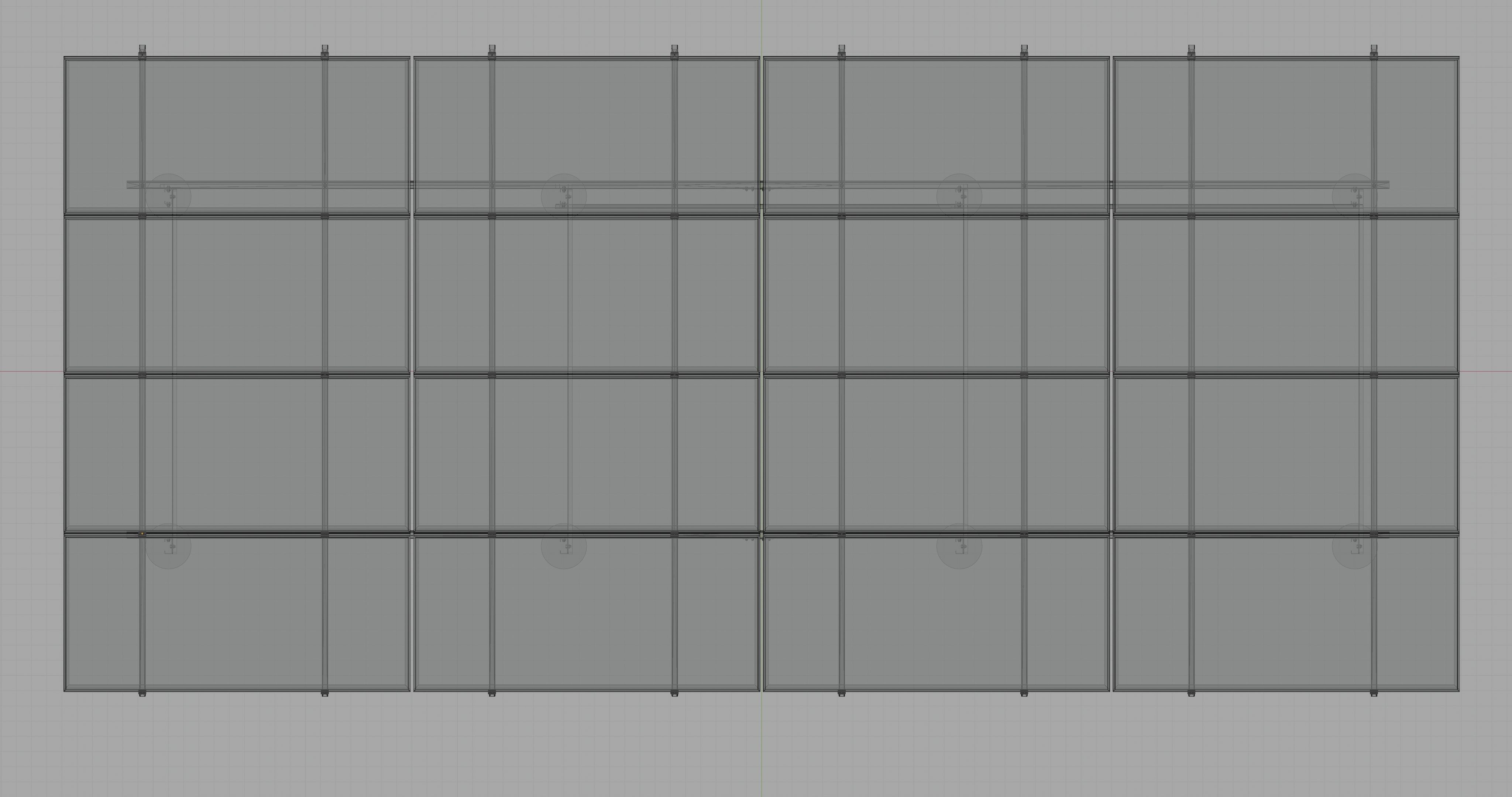

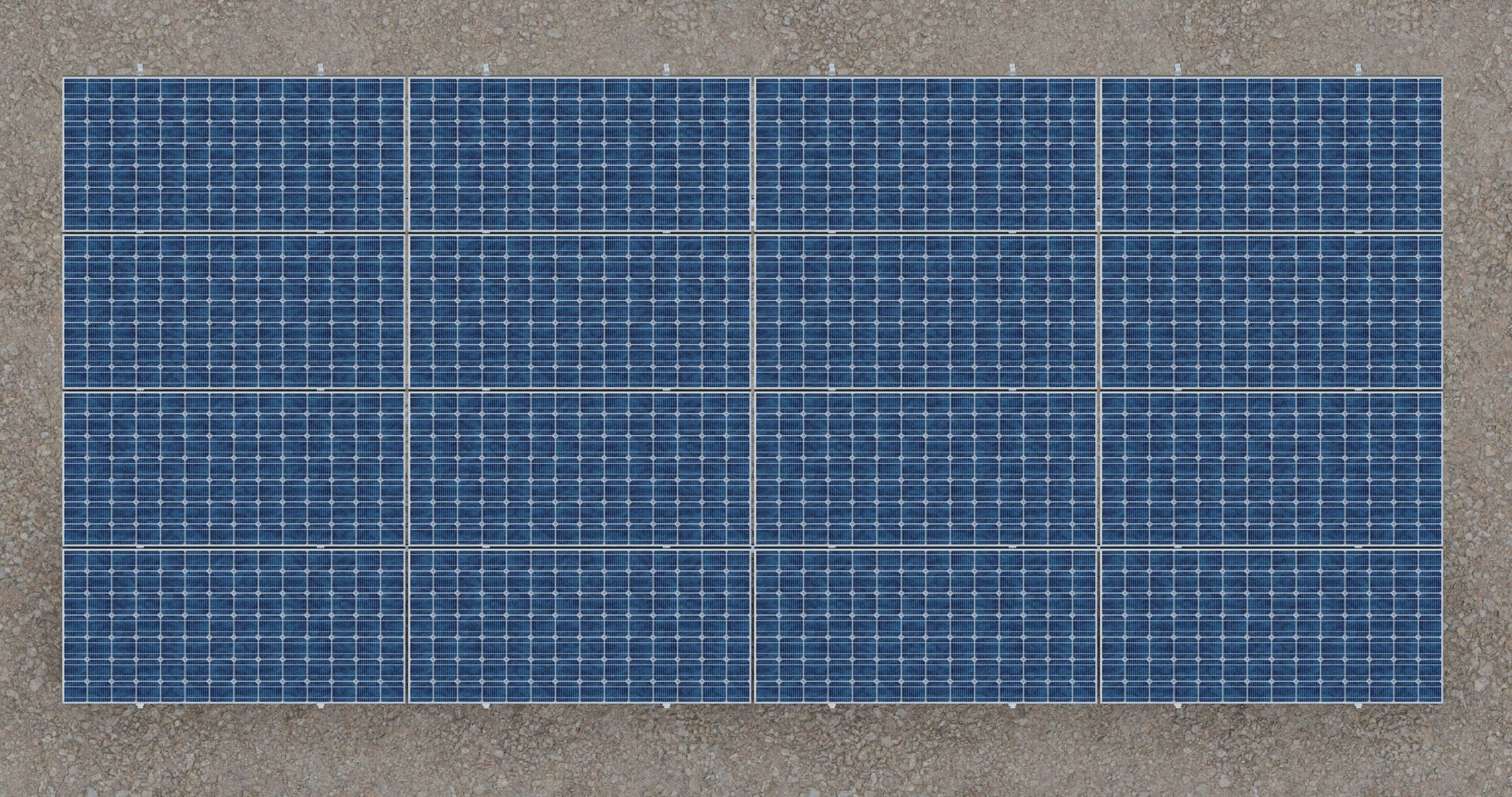

4x4 Horizontal Panel Layout

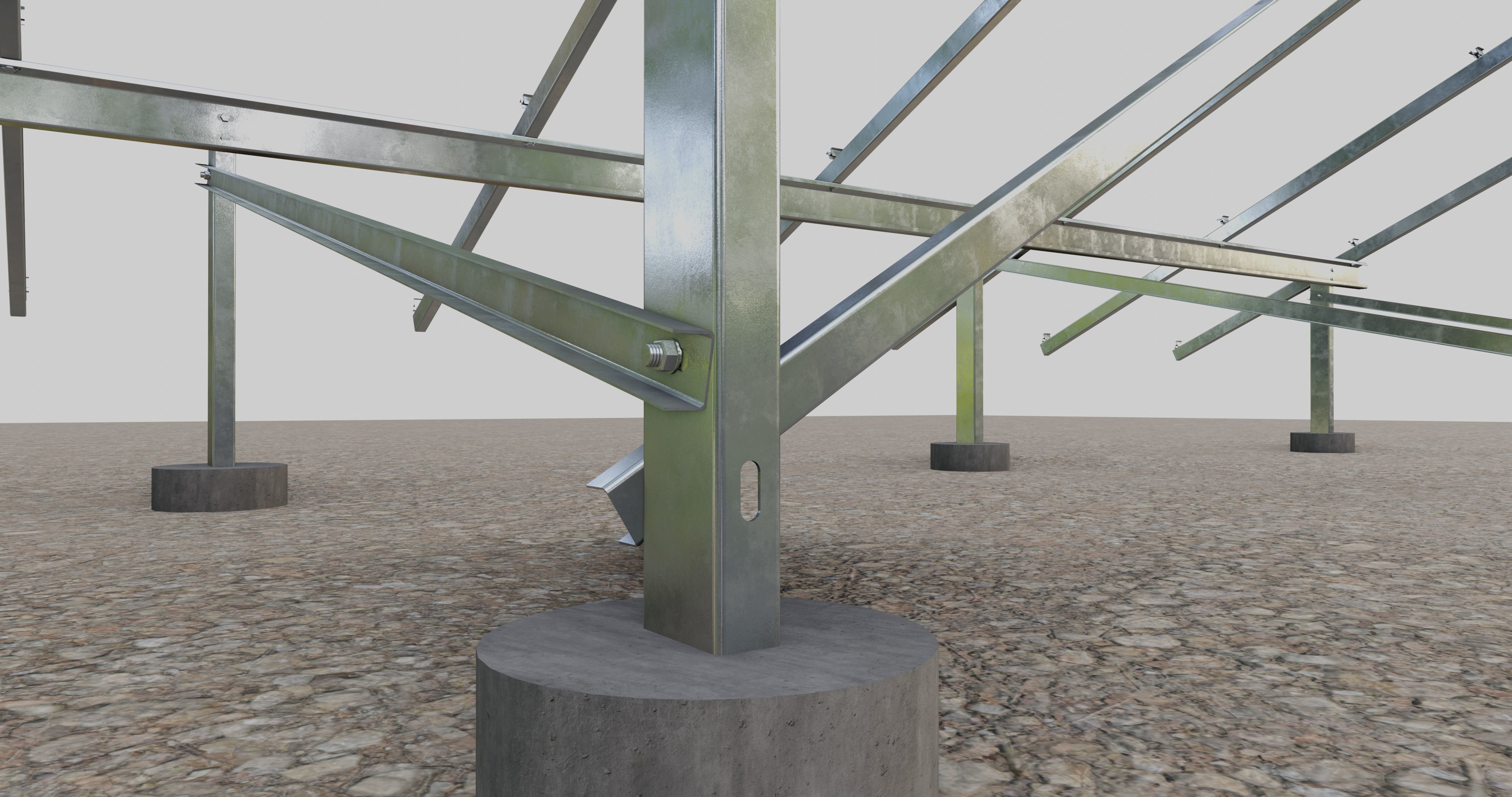

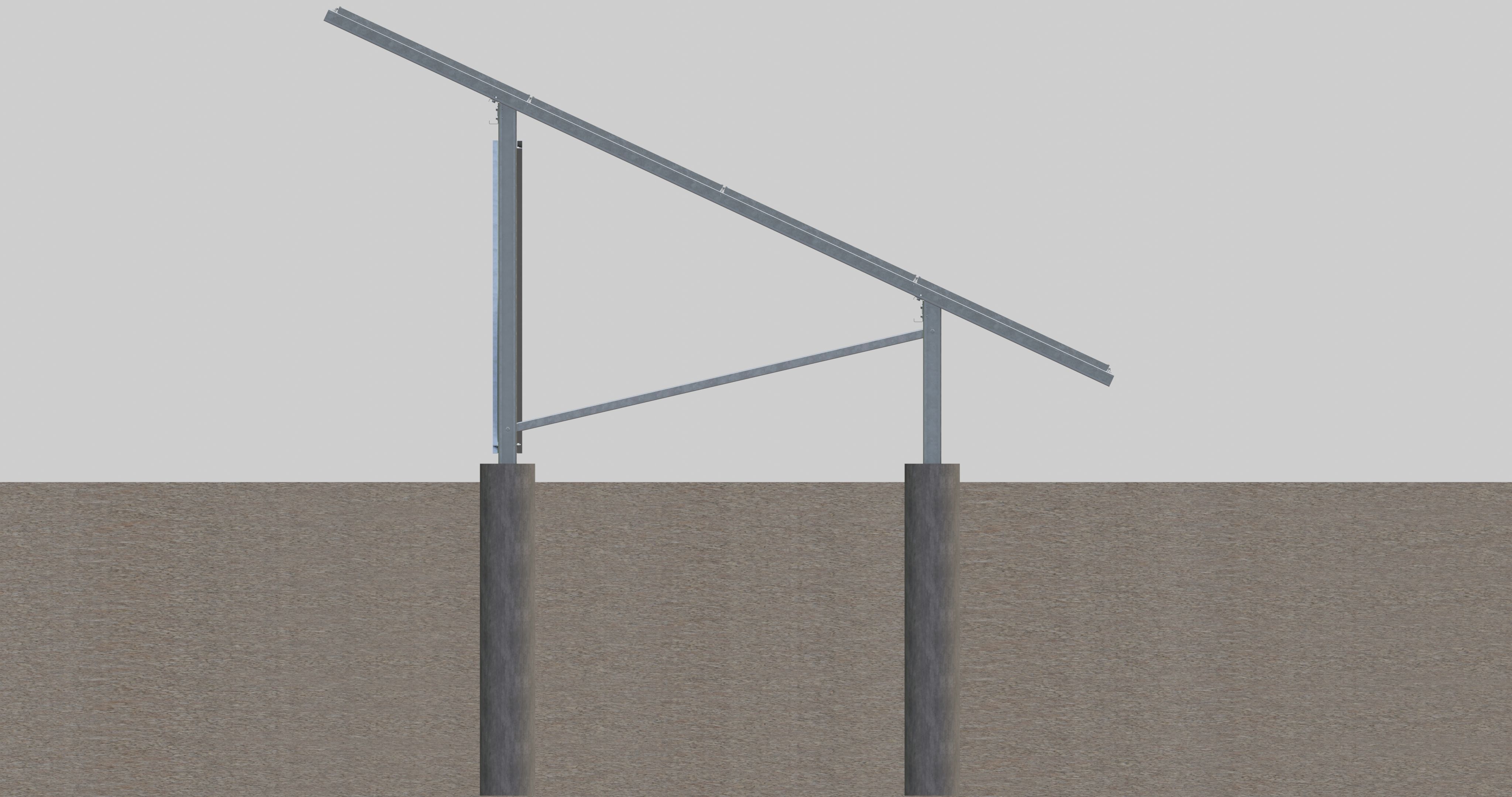

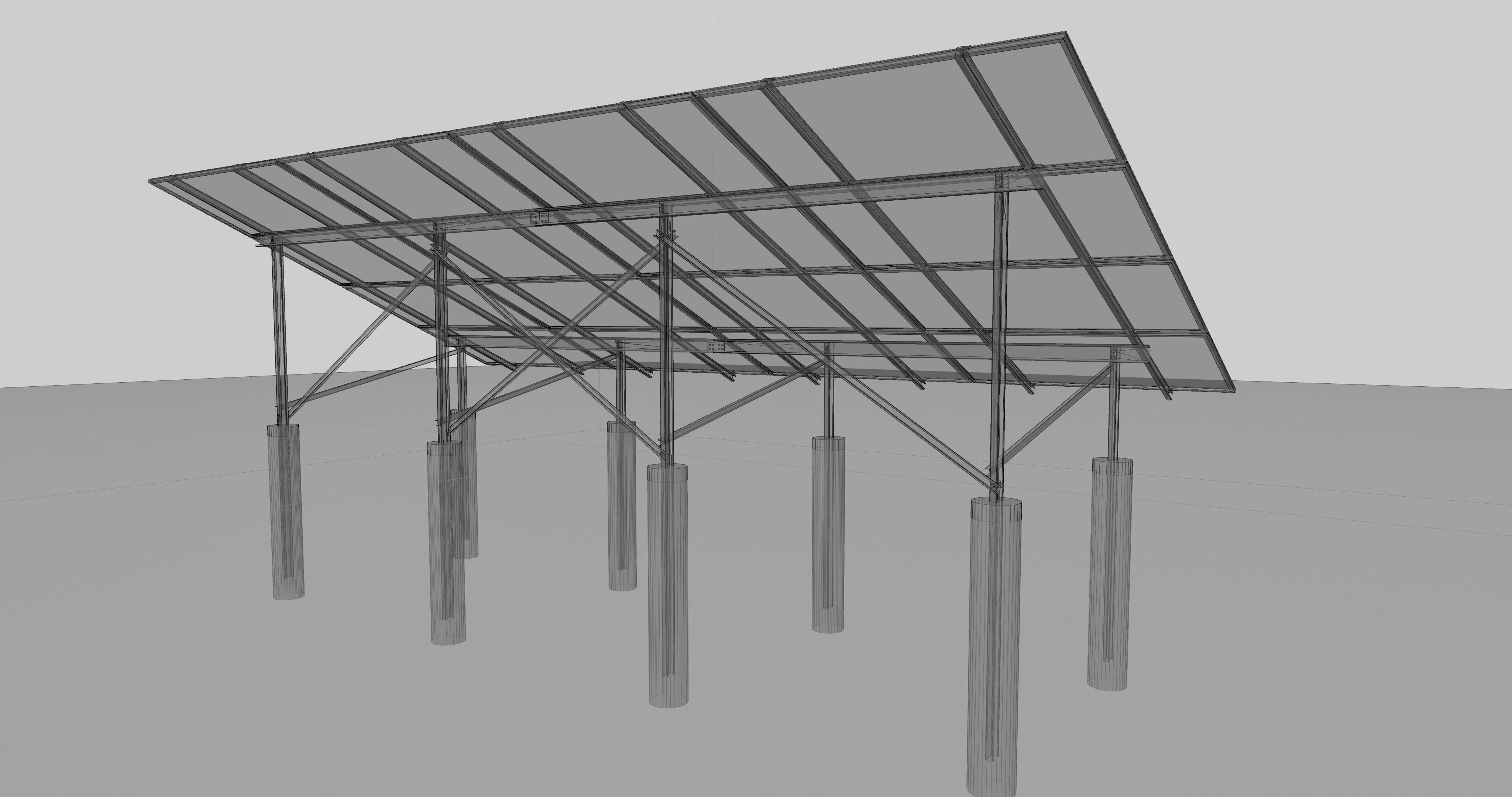

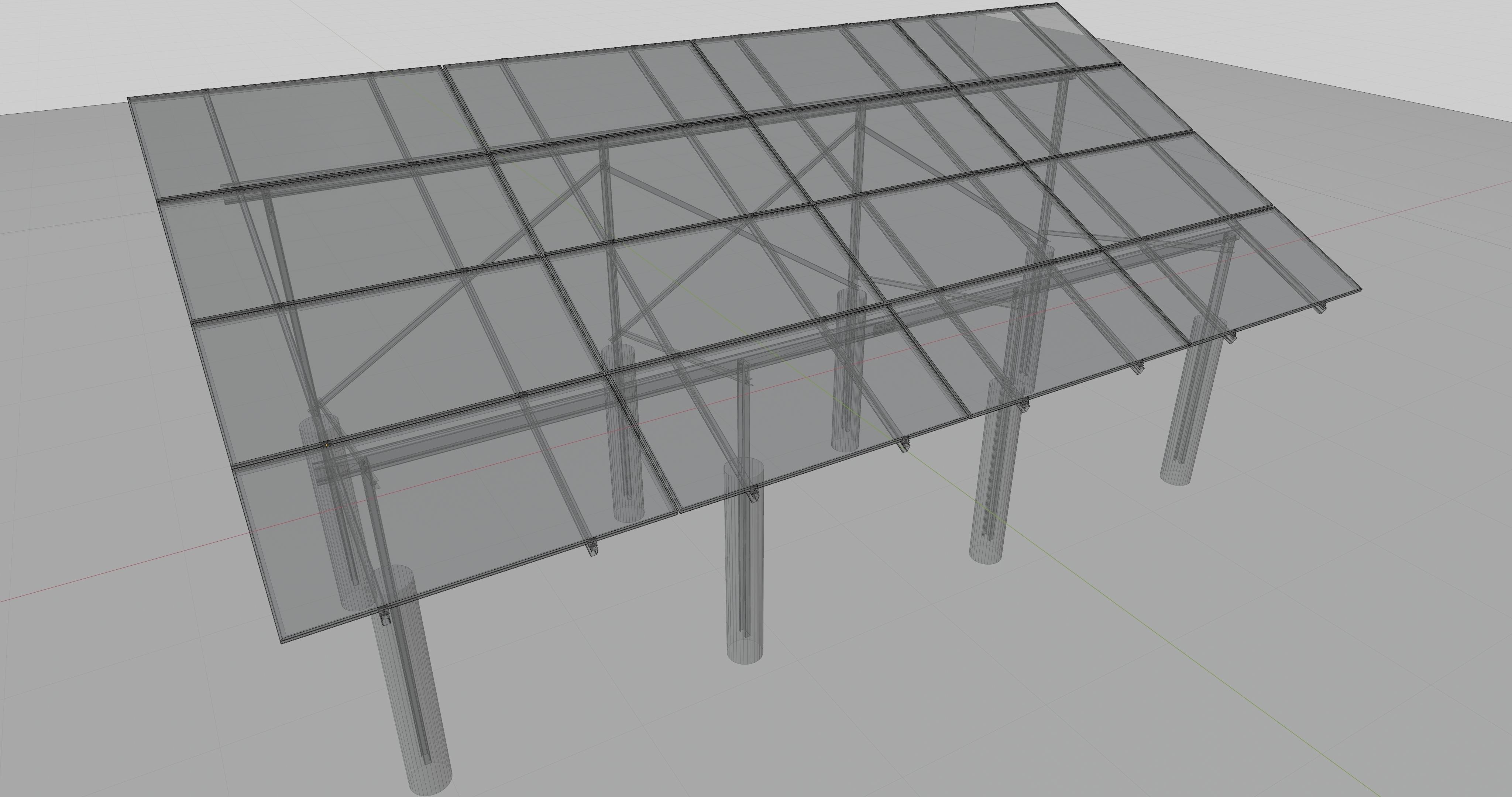

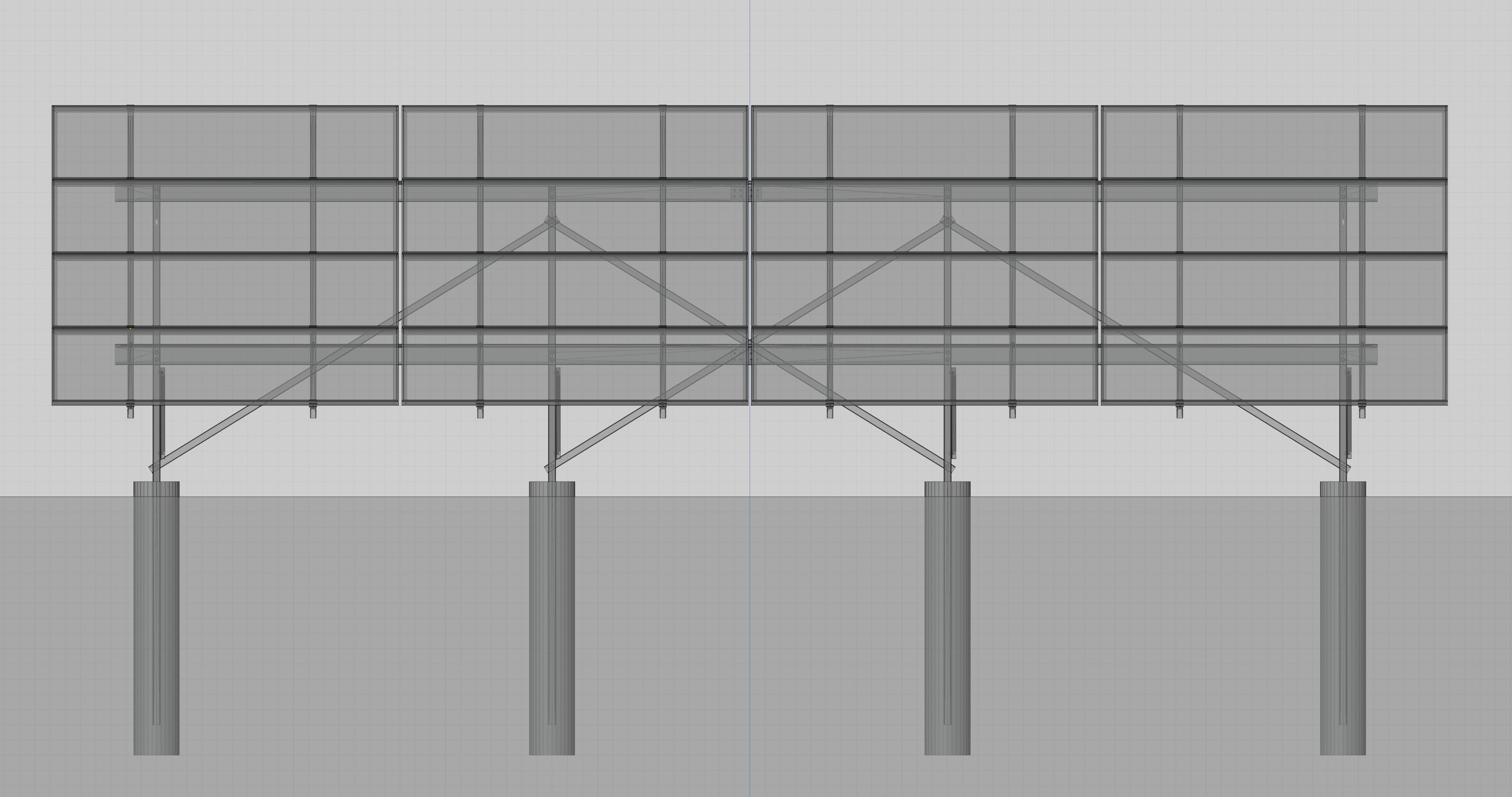

Ground Connection Type; With Concrete Friction Pile

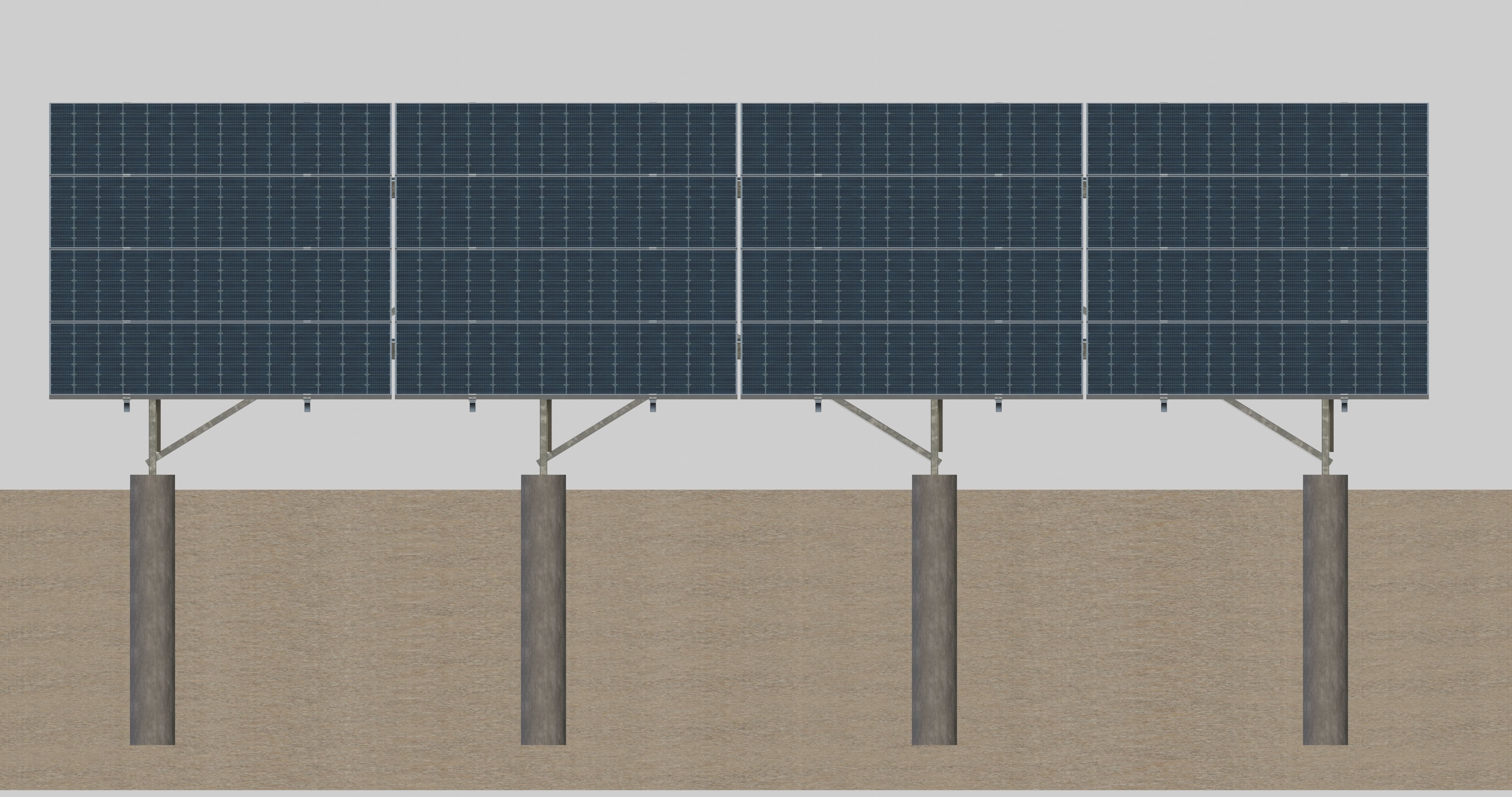

Distance of Columns Below Ground 1500 mm.

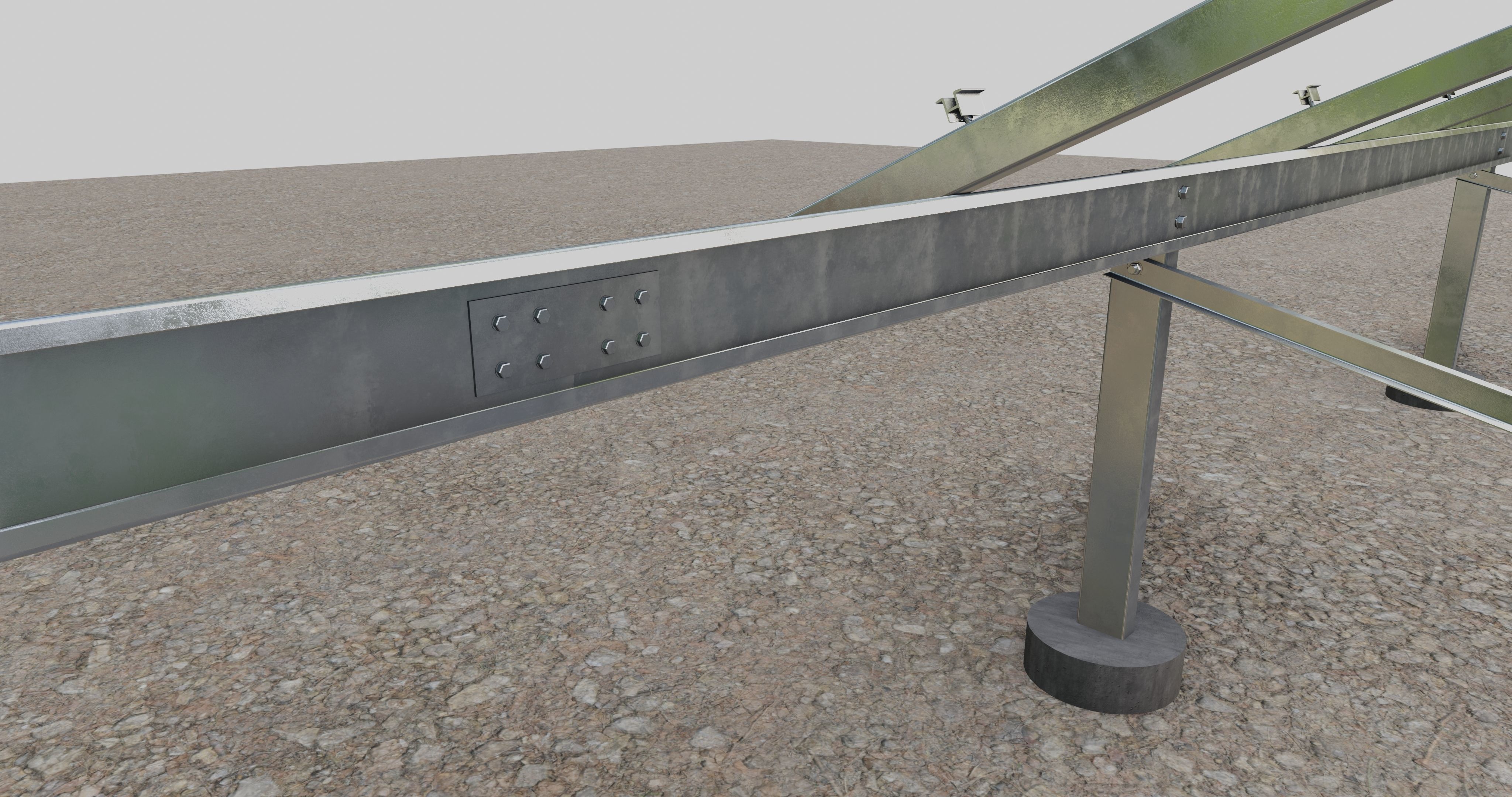

Concrete Friction Pile Dimensions : Ø300 mm H= 1700 mm

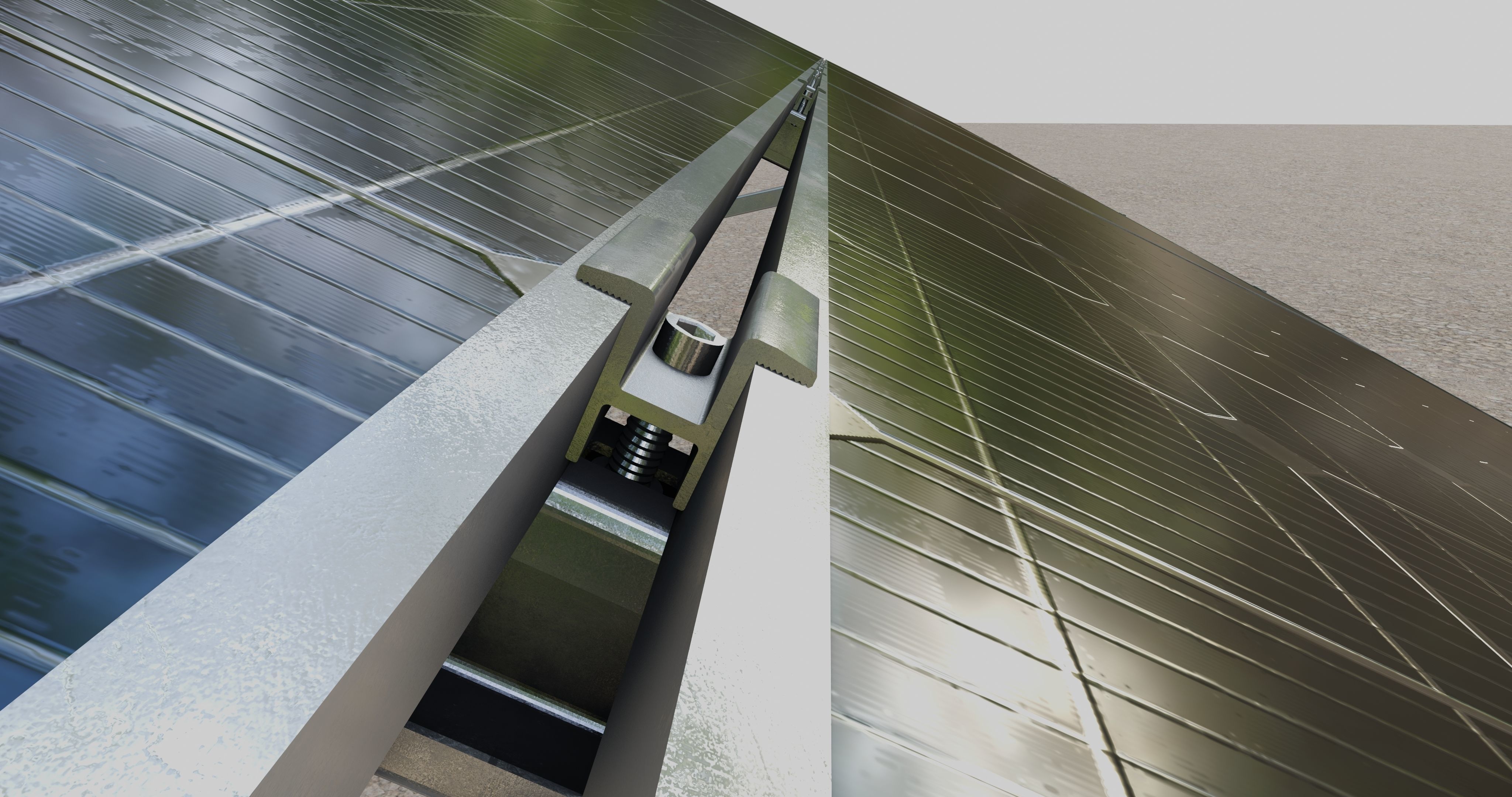

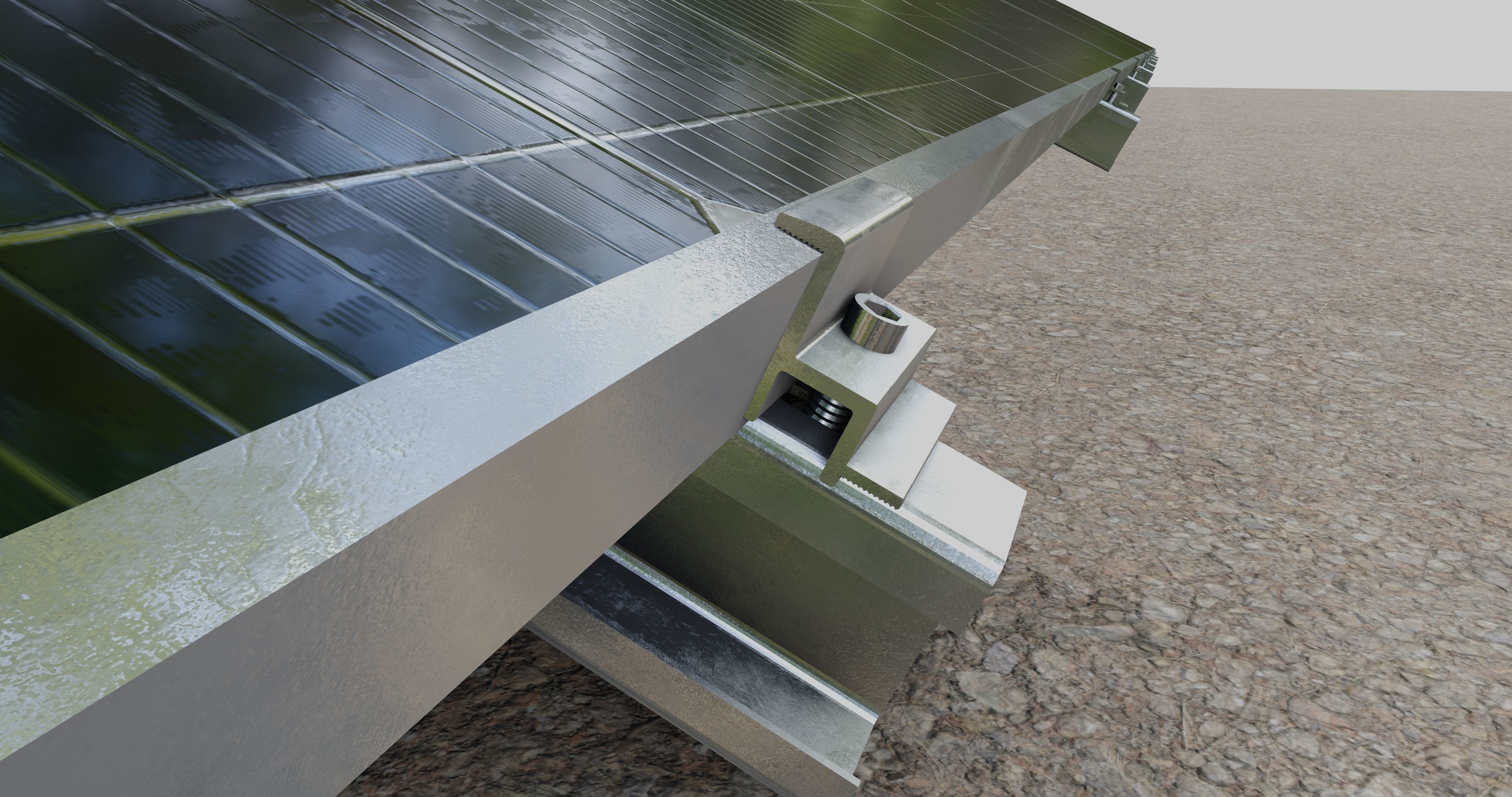

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 8,8 kWp power in 1 hour

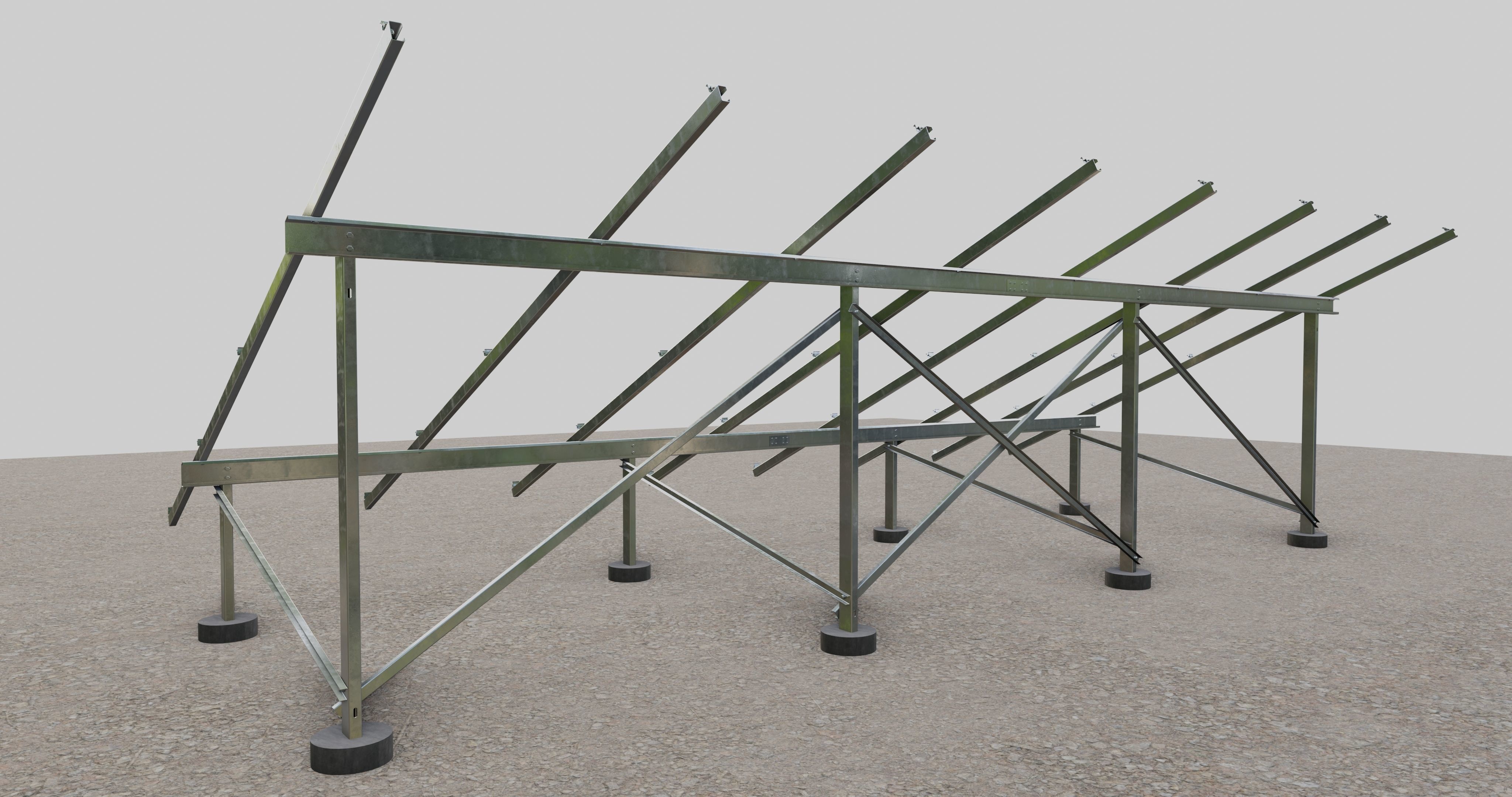

The system consists of 4 axles and the distance between each axle is 2600 mm.

Distance between two columns 2300 mm.

Horizantal angle of panel 25°

The closest distance of the panels to the floor 600 mm.

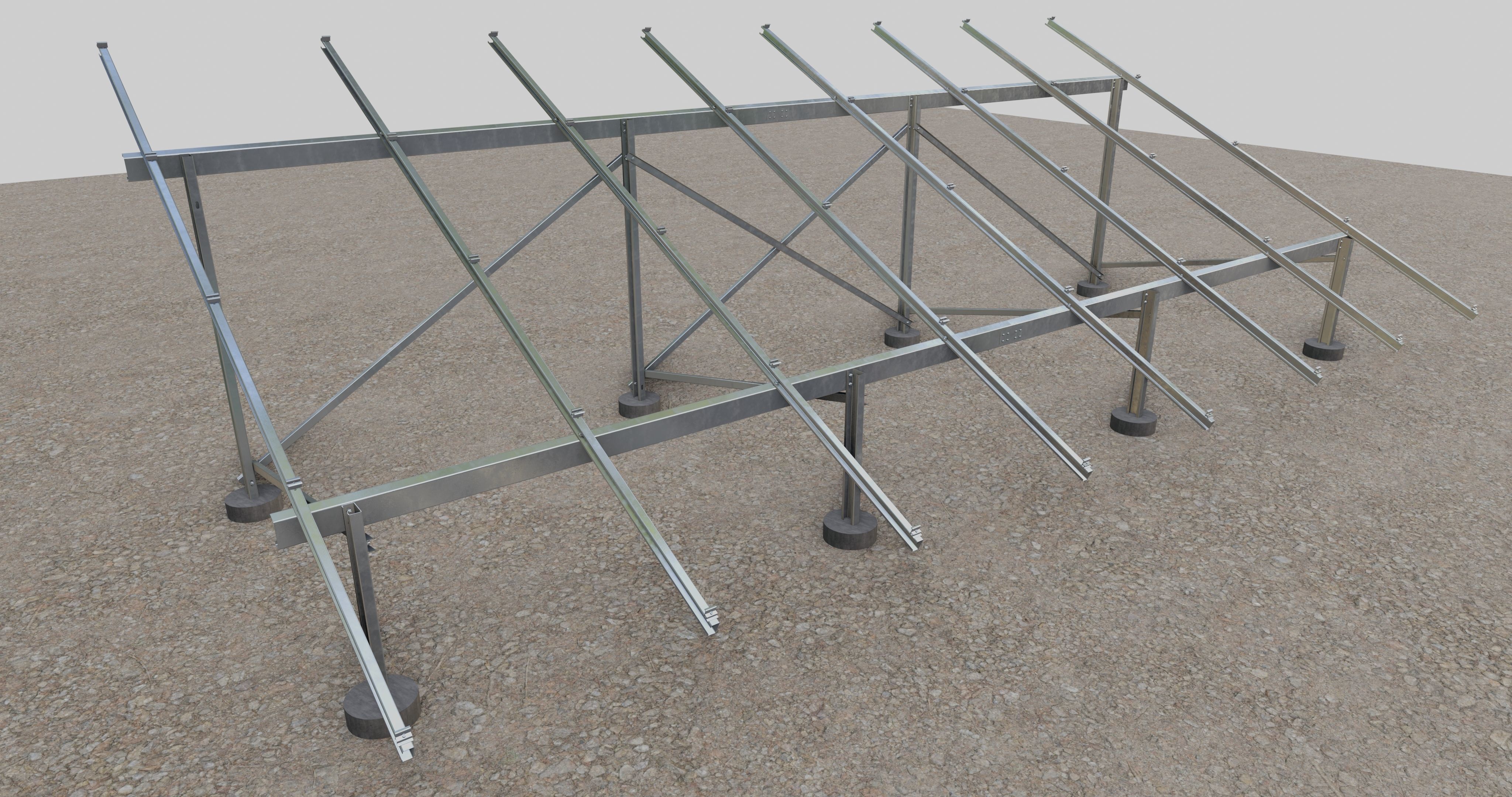

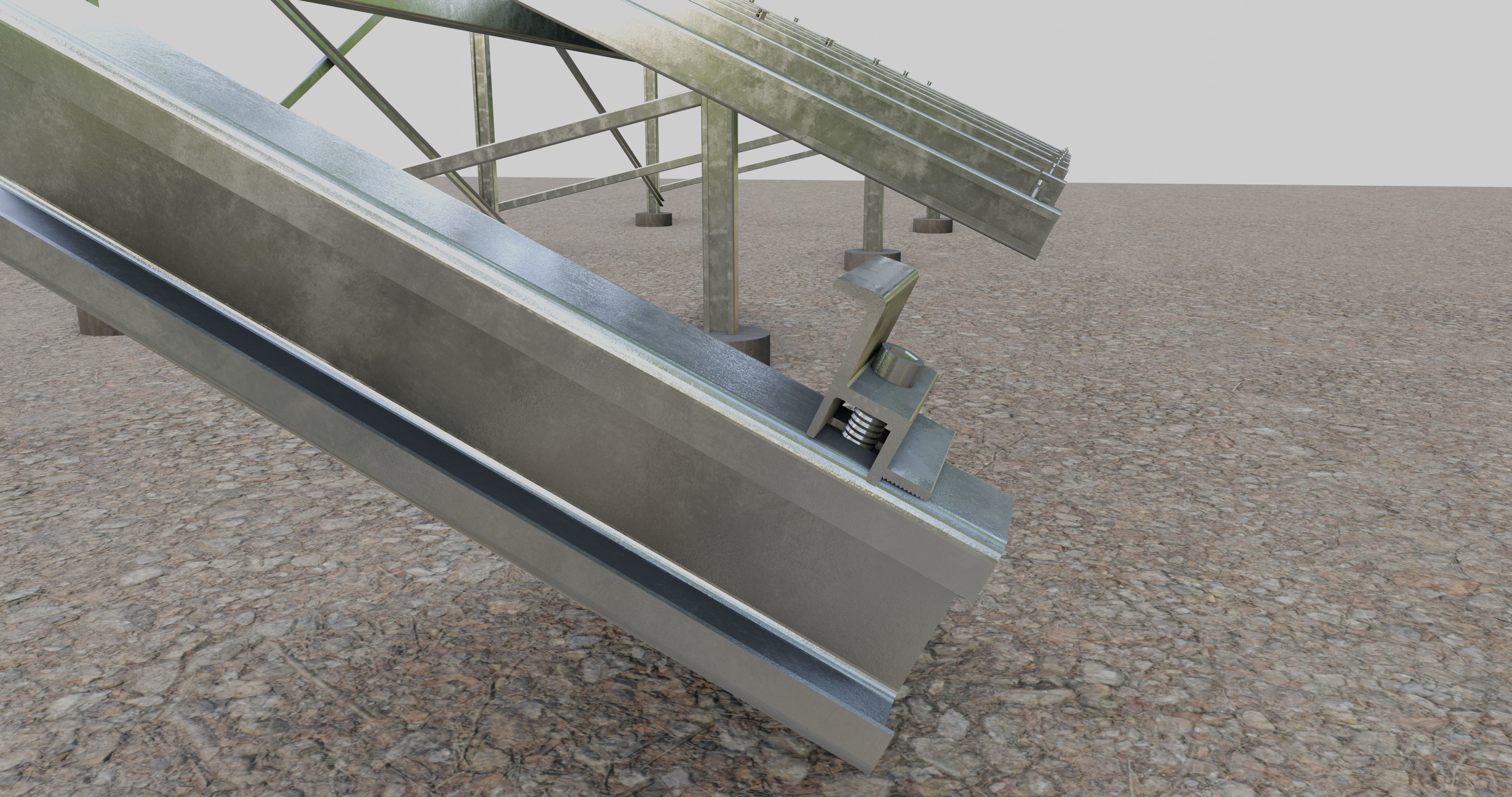

Profile Section;

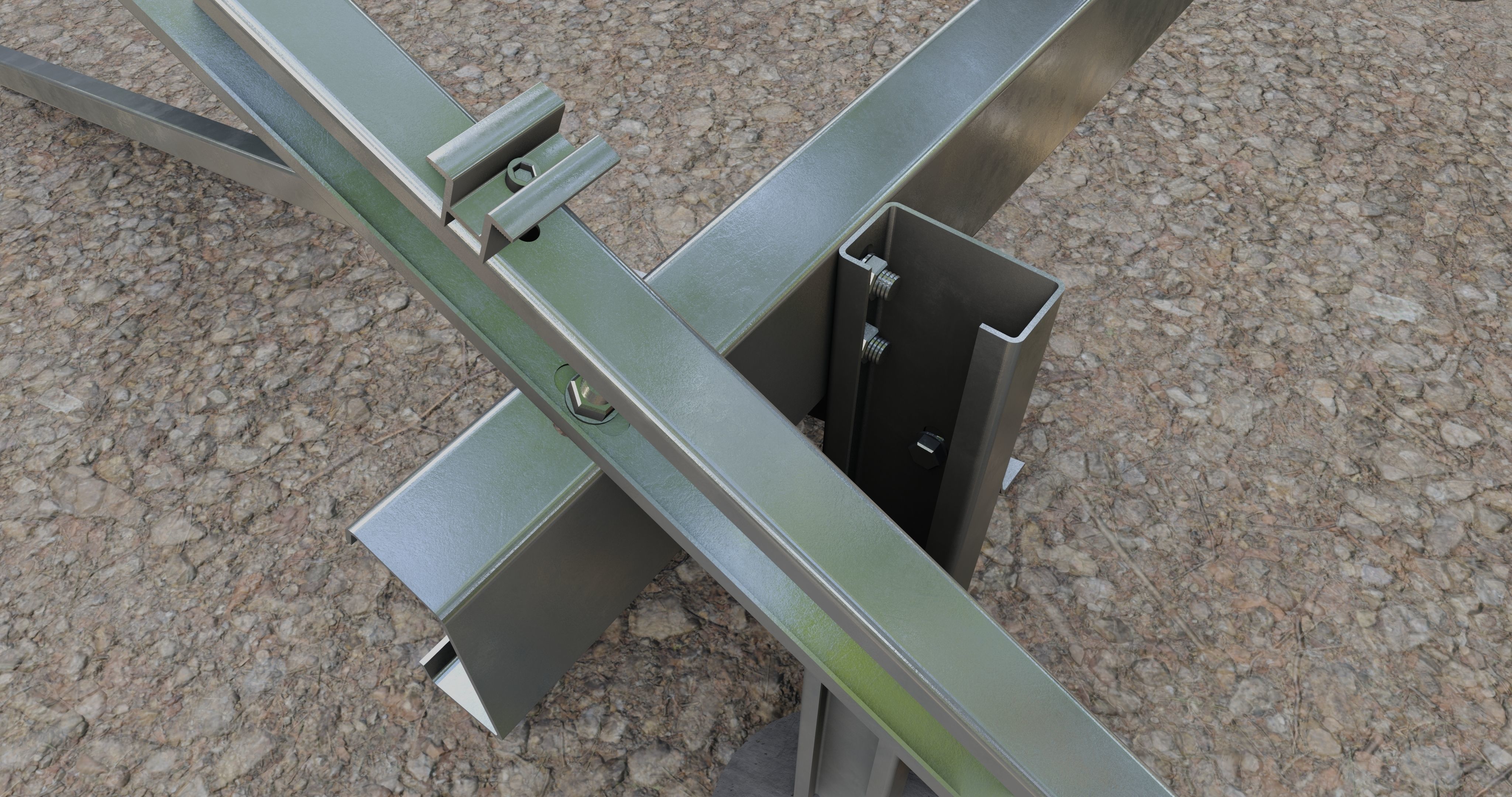

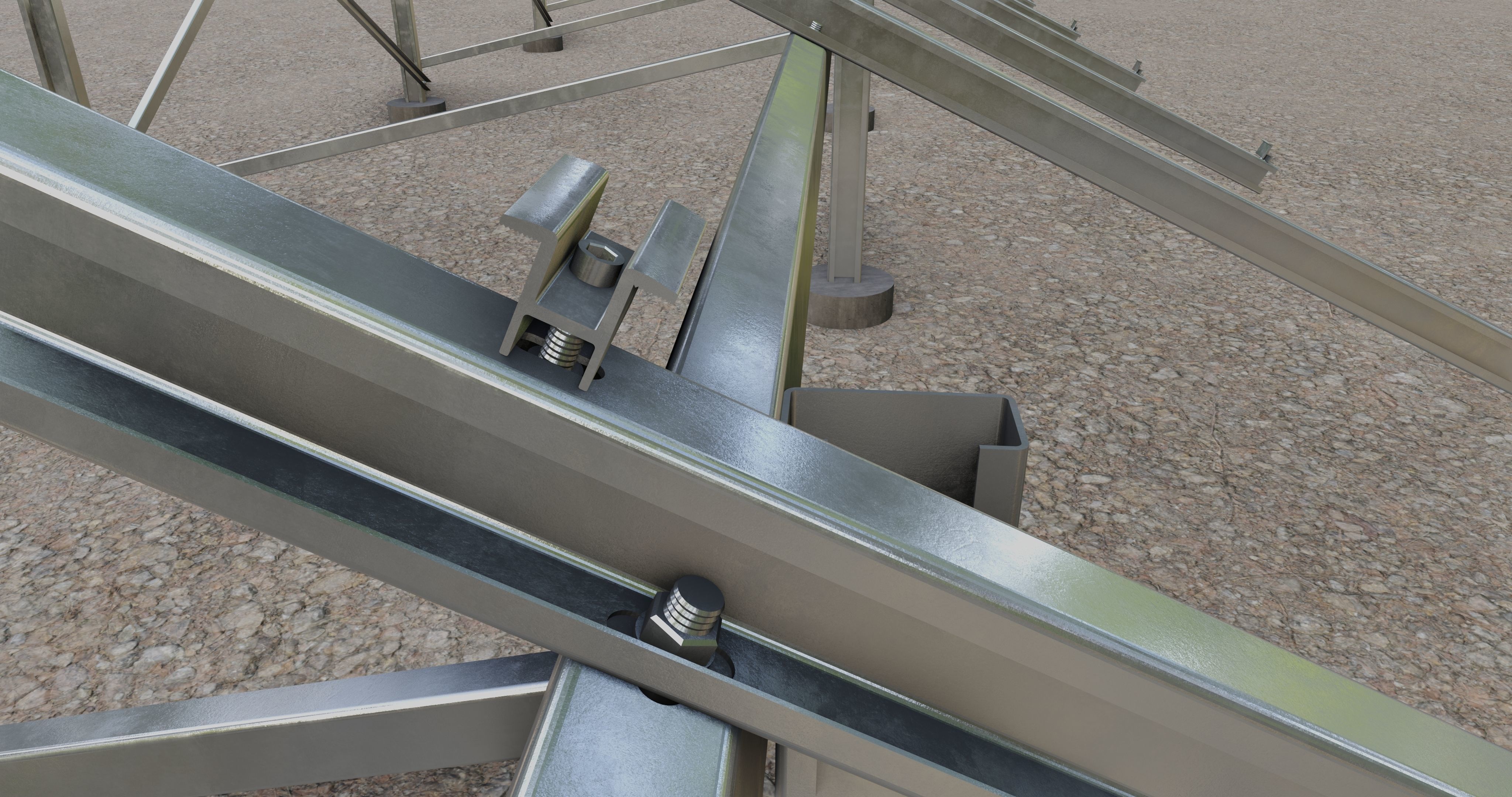

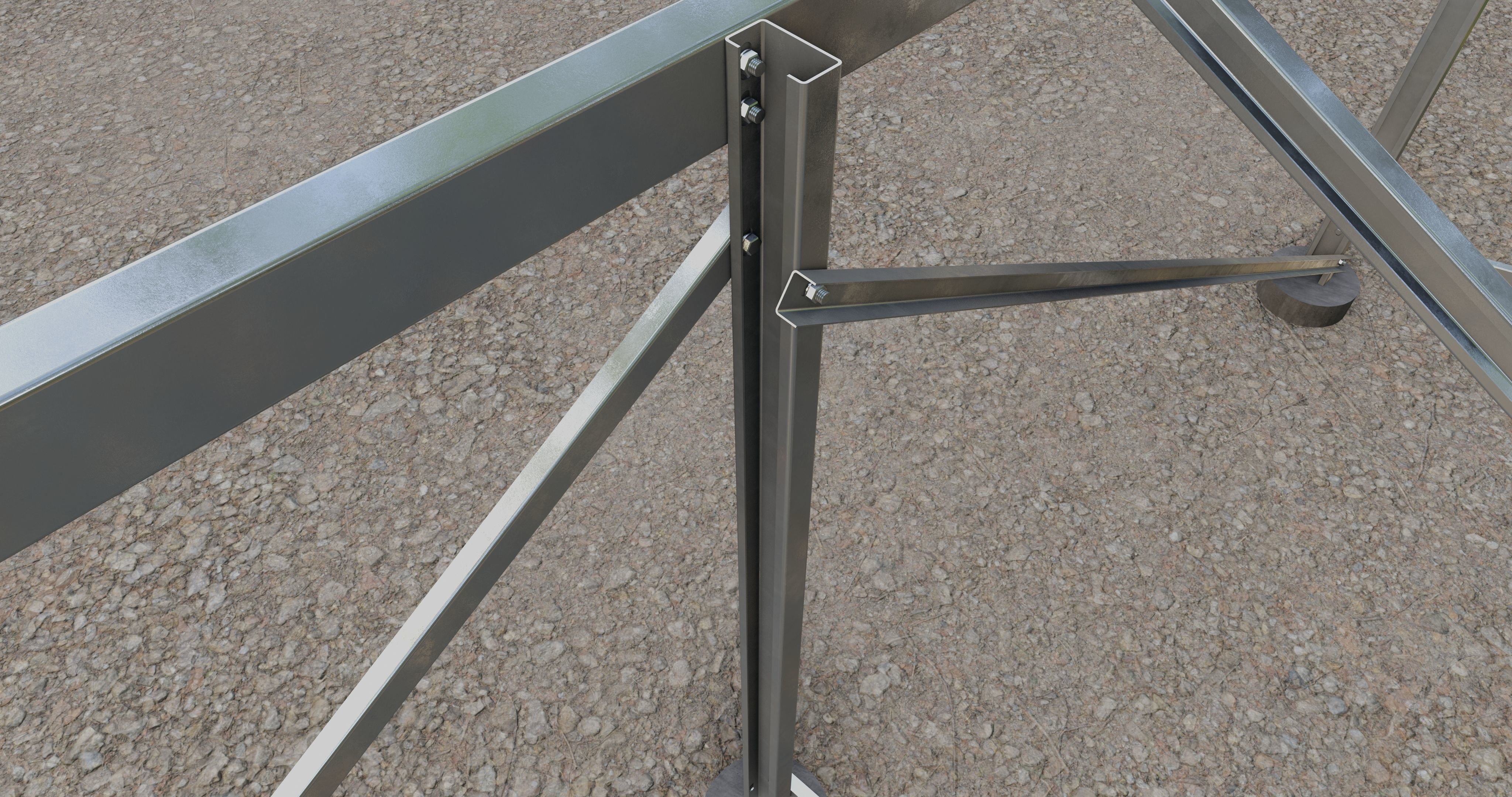

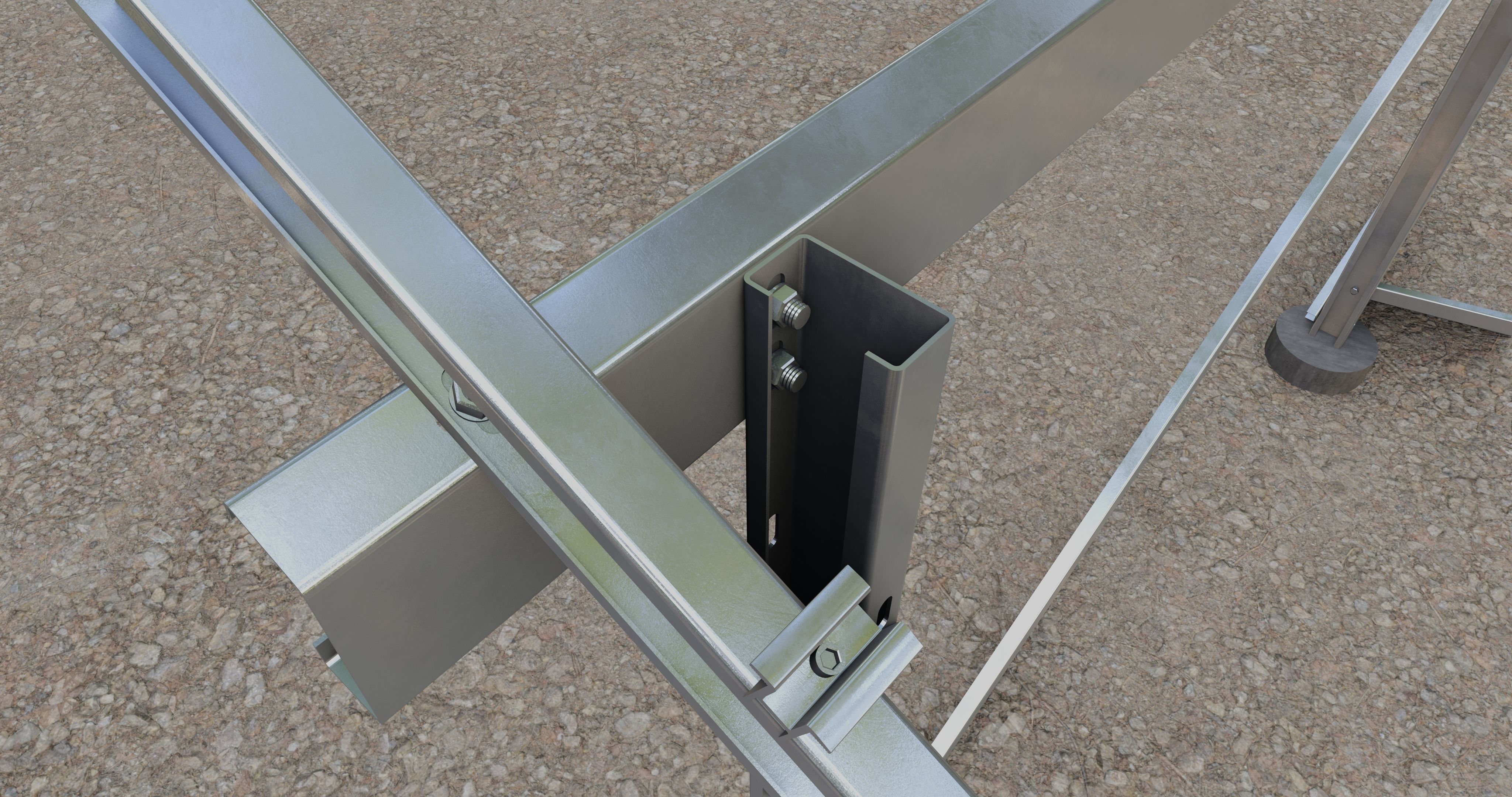

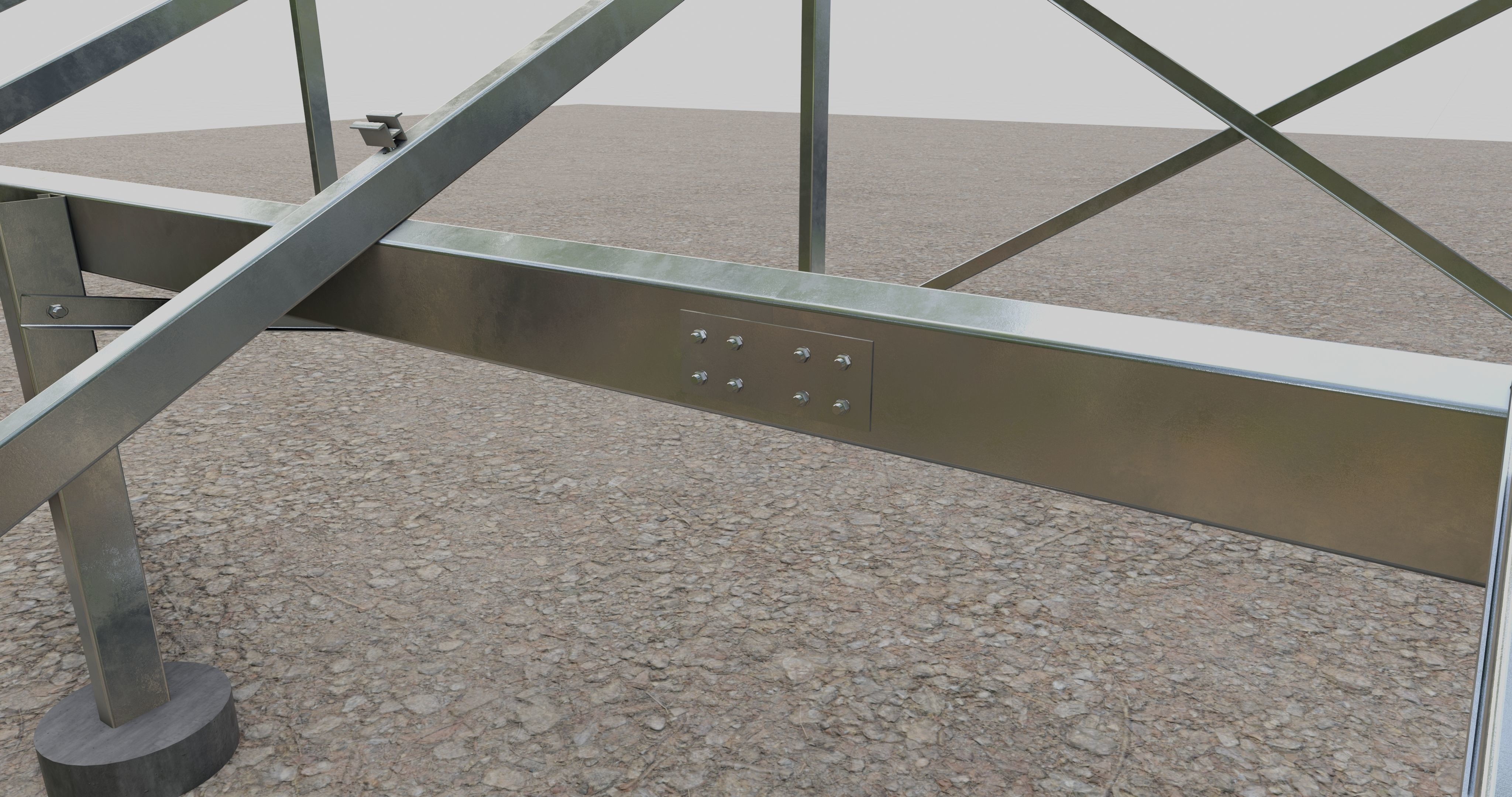

Column : C Profile C100x50x20-3mmBeam : C Profile CE120x50x20_25°-3mmPurlin : C Profile C70x40x15x-2mmDiagonal : U Profile U50x30-2mm

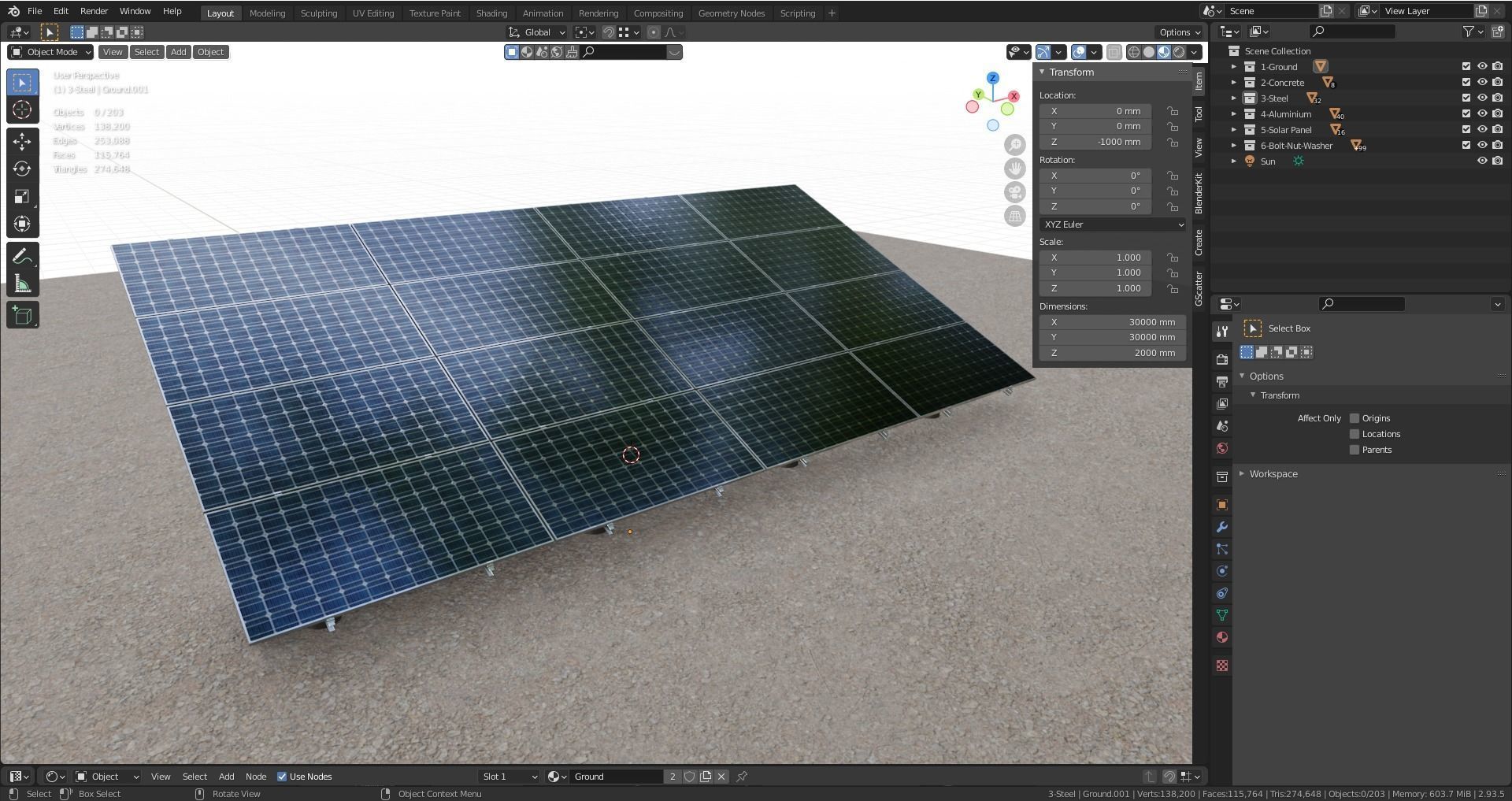

Prepared With BLENDER Version 2.93.5

Polygons : 115764

Vertices : 138200

Objects : 203
