Floating Pier - Revit Specialty Equipment Family Low-poly 3D model

Please find 4 parametric Revit families with preset types and materials.

List of the families included:

• DGA_Equipment_Betongponton_R21.rfa - the parametric family of a concrete pontoon, no preset types
• DGA_Equipment_WM_BOM_Enkel_R21_Element.rfa - the parametric family of a WM BOM Enkel, 5 preset types
• DGA_Equipment_WM_BOM_Gangbar_Element_R21.rfa - the parametric family of a WM BOM Gangbar, 9 preset types
• DGA_Equipment_Betongponton_R21_Connector.rfa - the simple family of a connector, no preset types

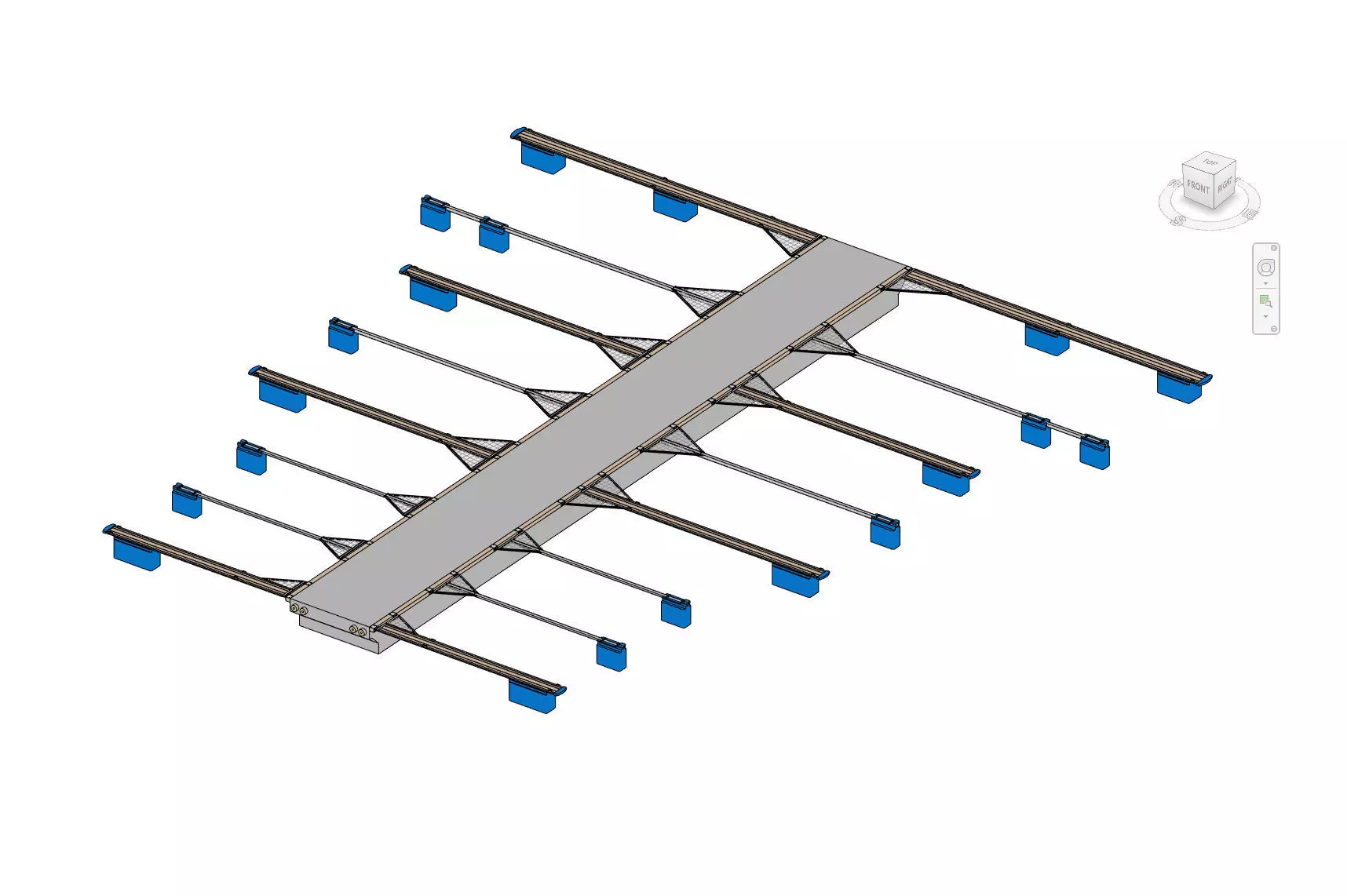

Also, I have created a simple project in Revit 2021 to illustrate how all families can be used together (the 3d view of the cover image).

You can find the information for all elements by the link below https://rixobryggan.se/bryggtillbehor/y-bommar/

As well, you can find the fbx export of the Revit project and use this format outside the Revit.

Language: English Metric Units
