3D Weldneck Flange RF ASME B16-5 150lb up to 2500lb 3D model
thumbnail
DESCRIPTION

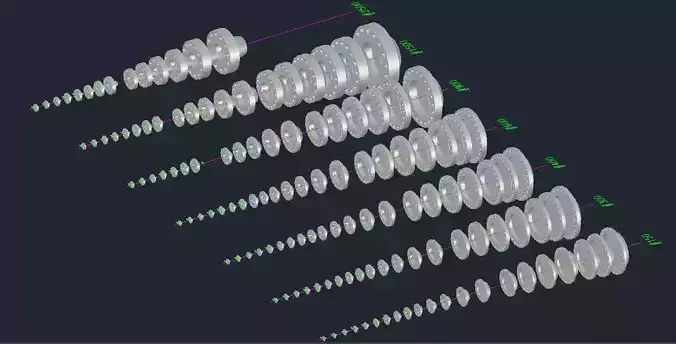

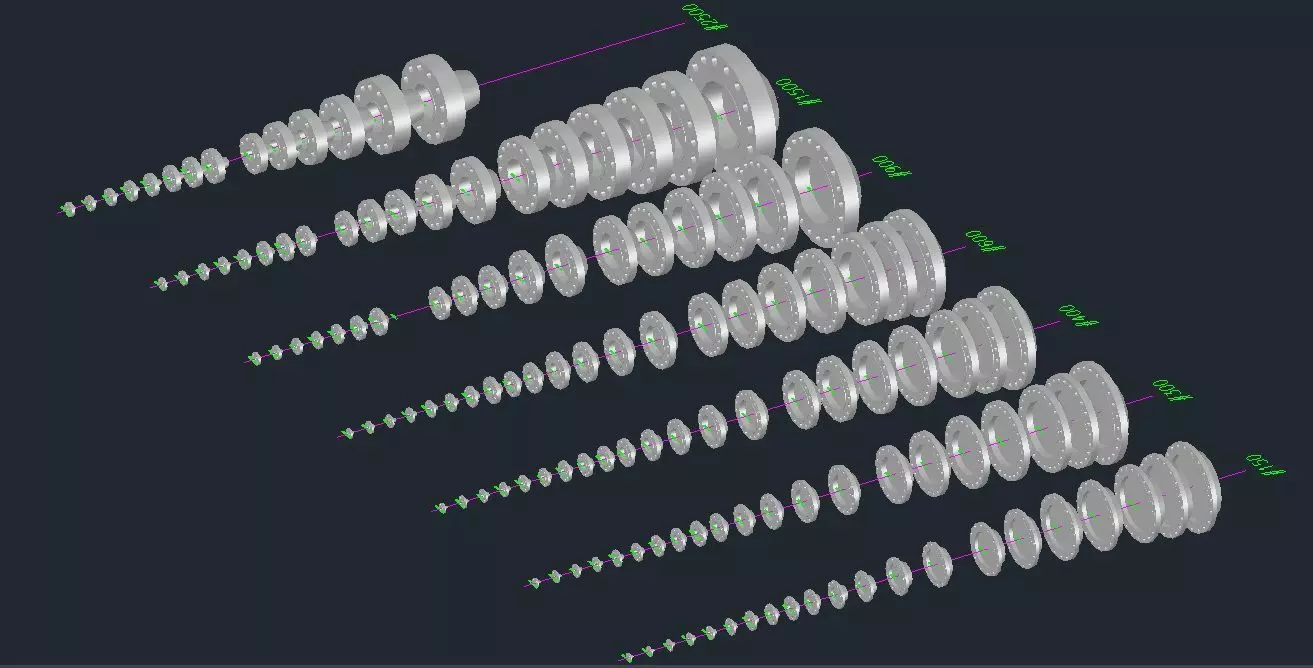

3D Weldneck Flange RF ASME B16.5Accurate Weldneck Flange RF as per ASME B16.5 2017. Complete with accurate bolt hole size, PCD, and number of hole. All flange size included from #150; #300; #400; #600; #900; #1500; #2500.Low polygon model so it can be used for Autocad Plant 3D template or any other 3D Plant Design software.If you have any question or inquiries feel free to contact me.

filetype : .dwg

Related Tagsautocadflangemechanicalconstructionplantasmepipingfittingvalvepipeplumbingindustrialotherfitting cad
