Automatic tray stacking feeding machine 3D model

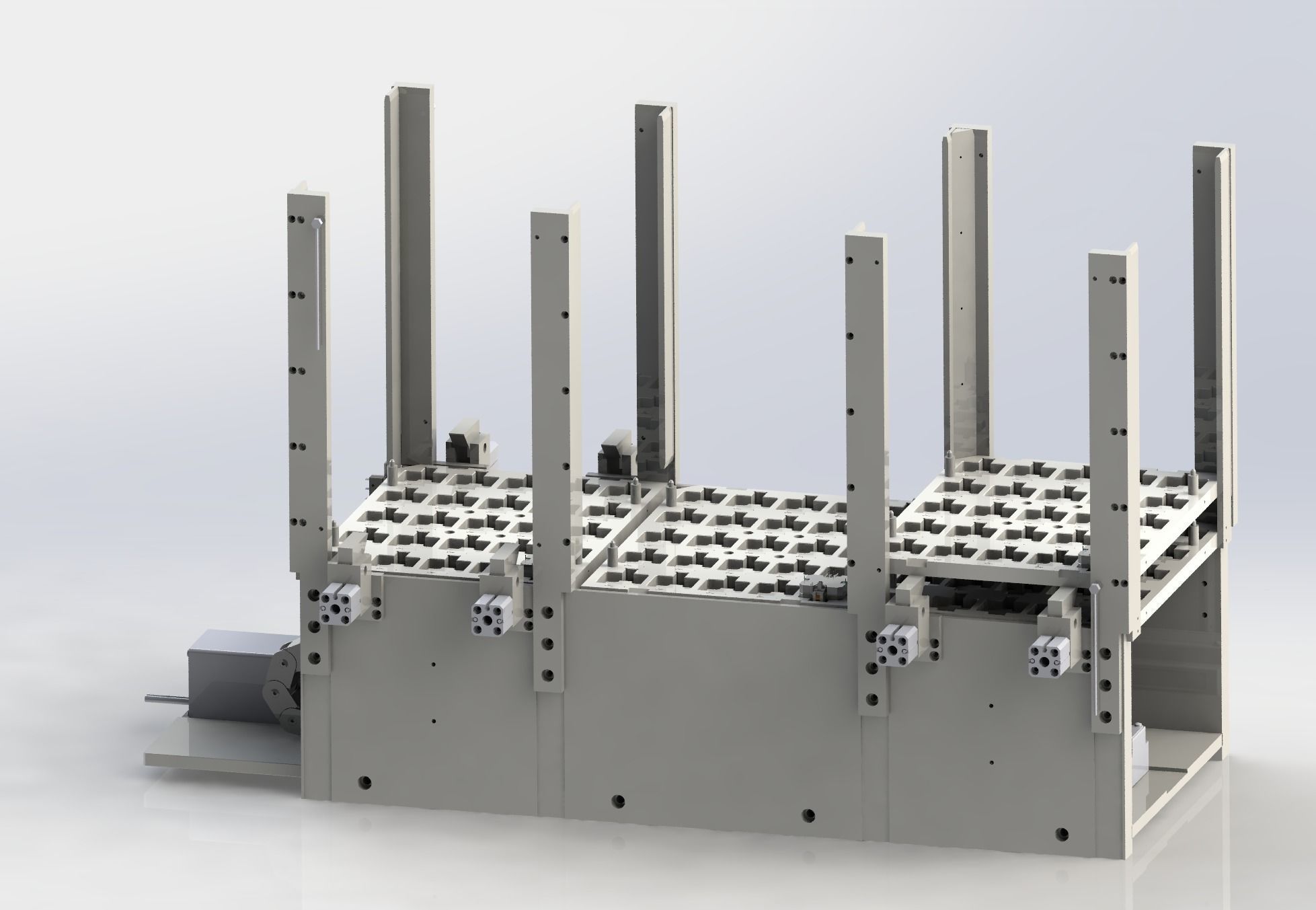

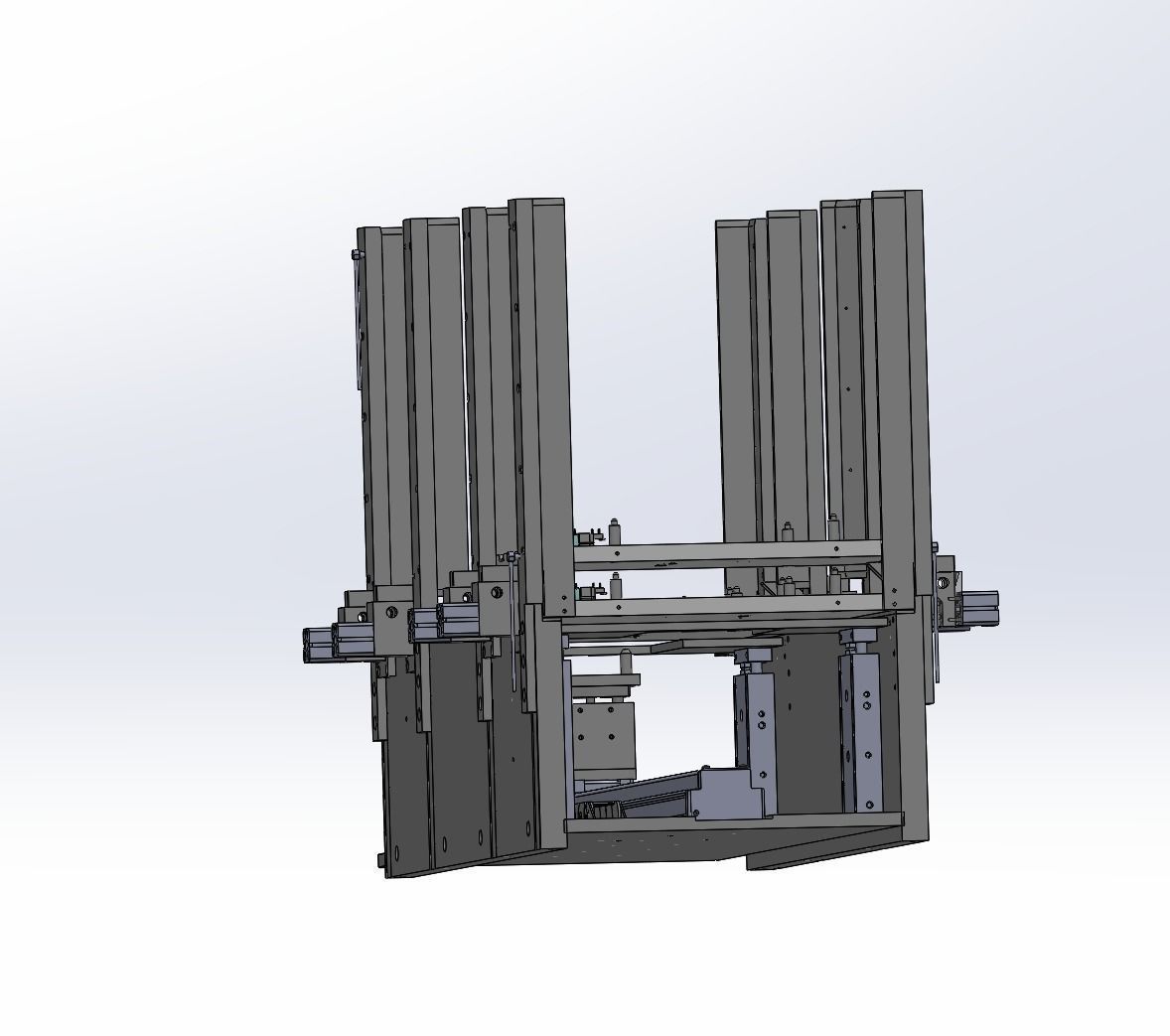

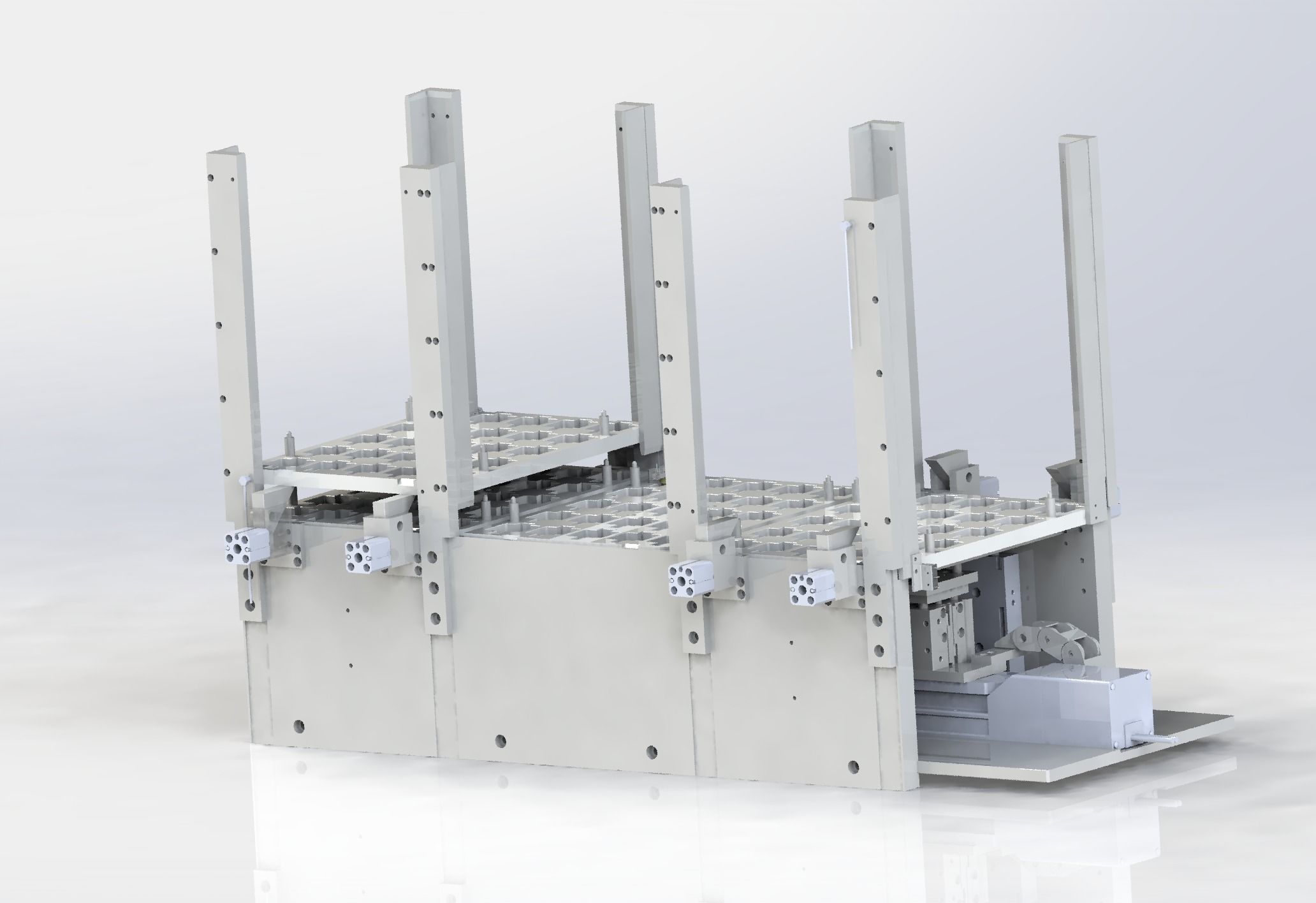

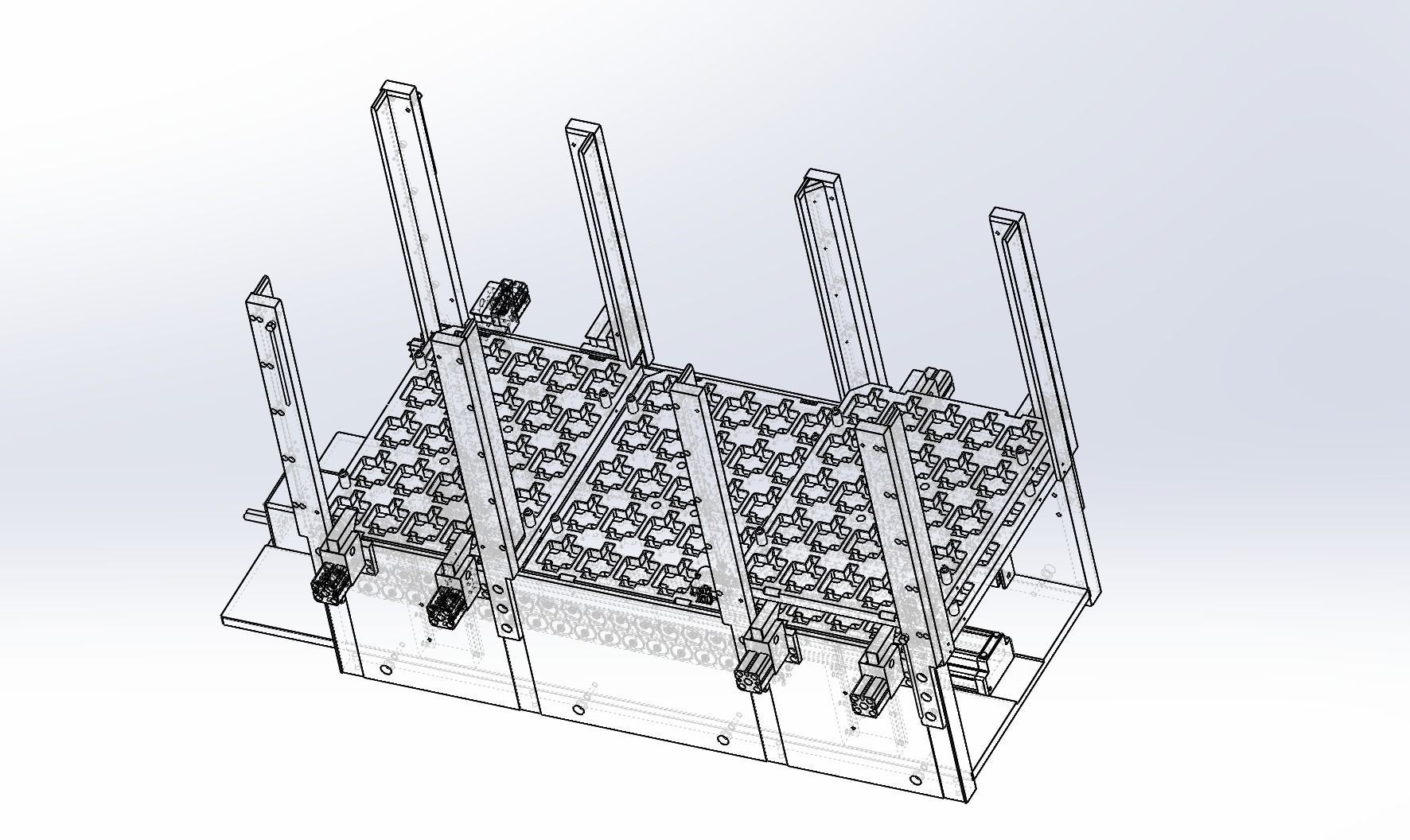

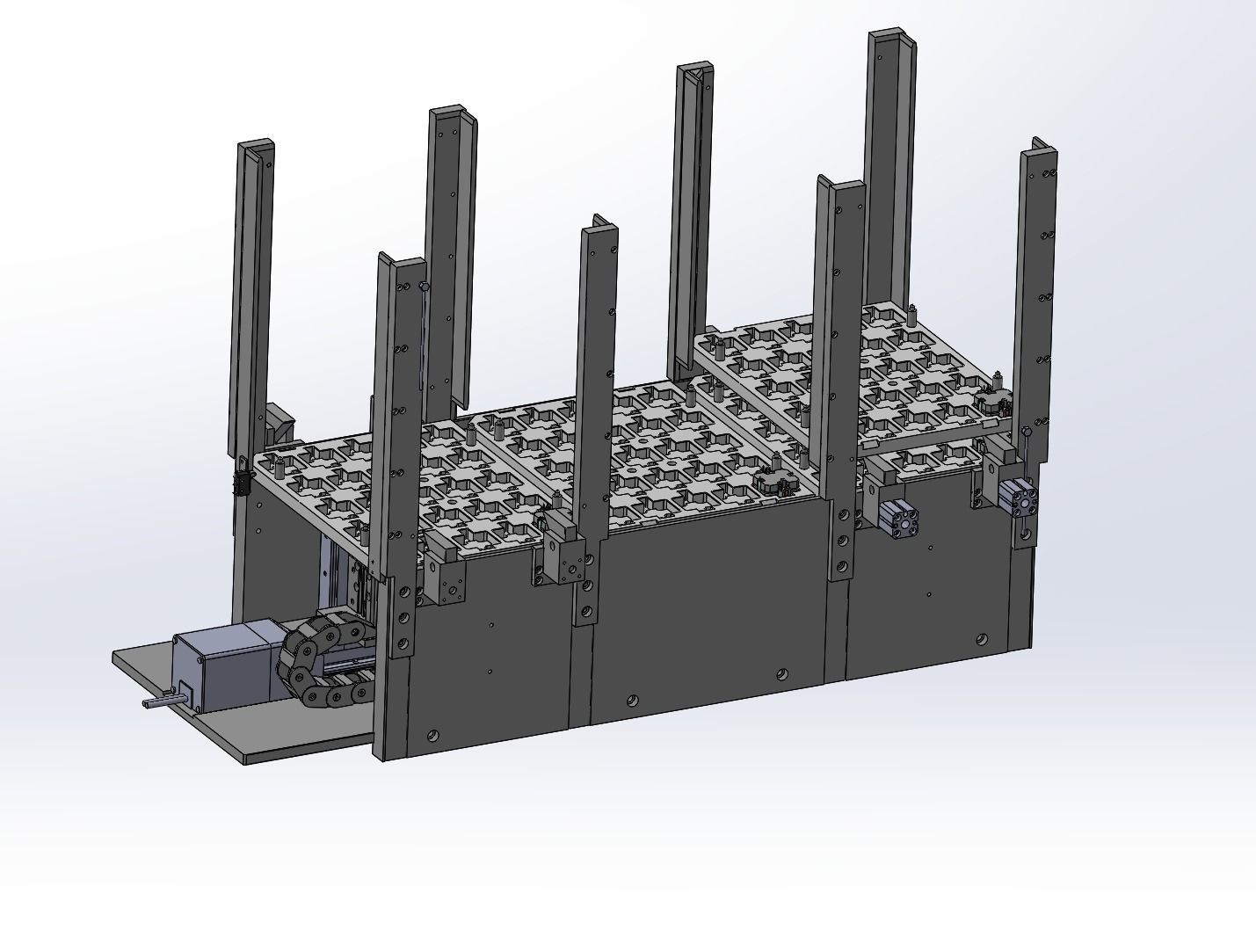

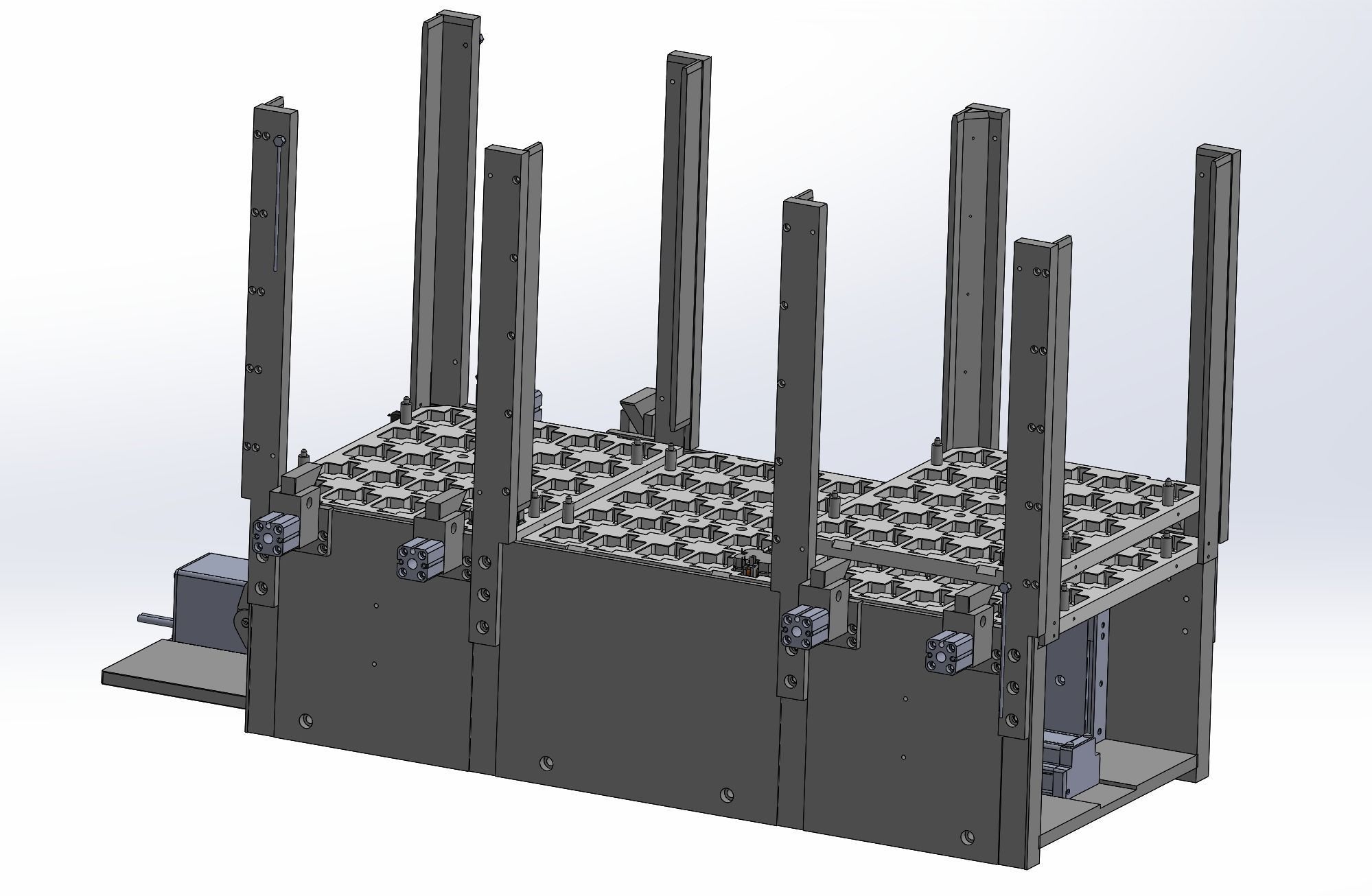

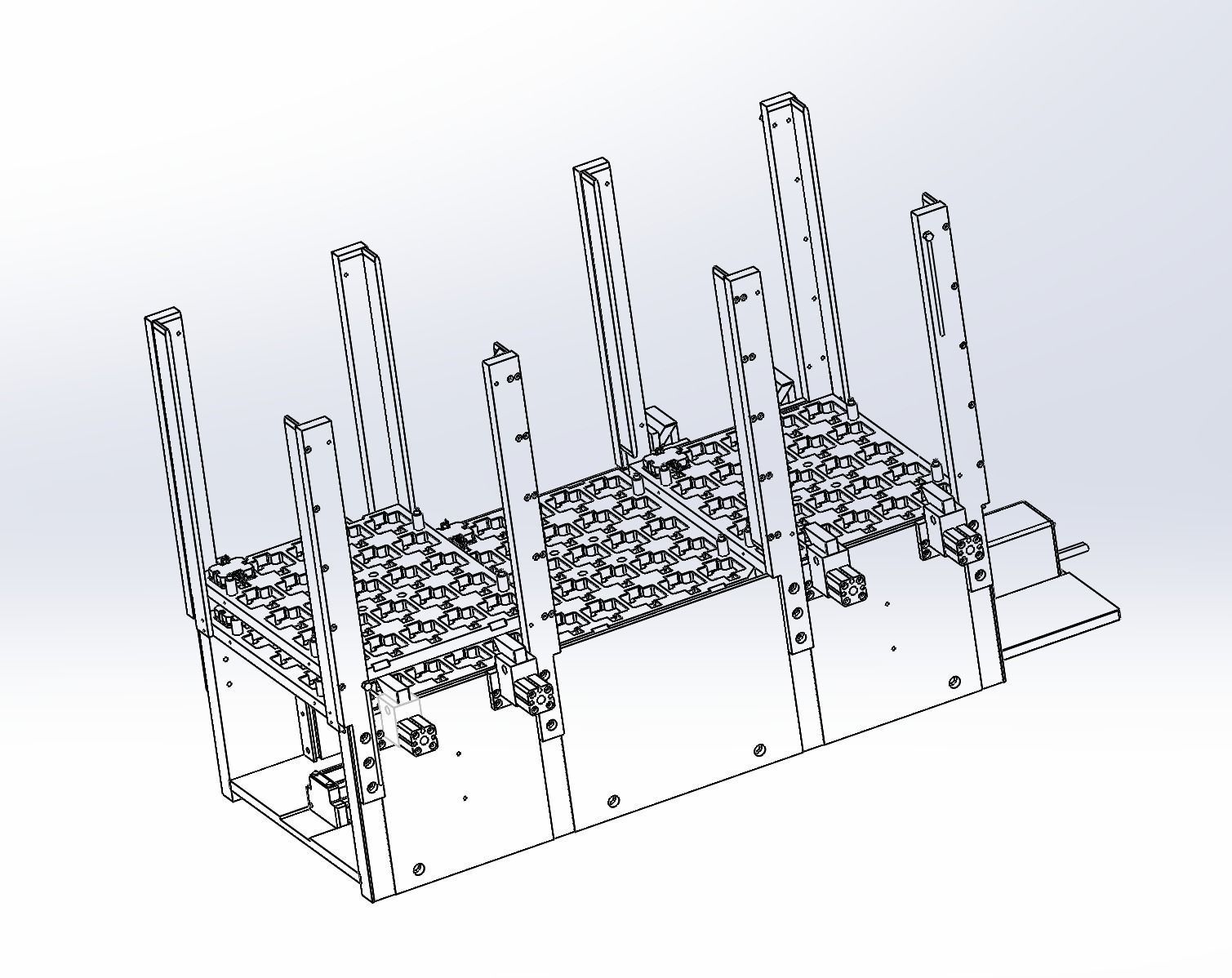

The tray loading mechanism is composed of several sets of cylinders. The tray mechainsm is used for automatic stacking and discharging. The mechanism uses a simple cylinder structure to realize automatic loading and unloading, which is very ingenious

mechanism include

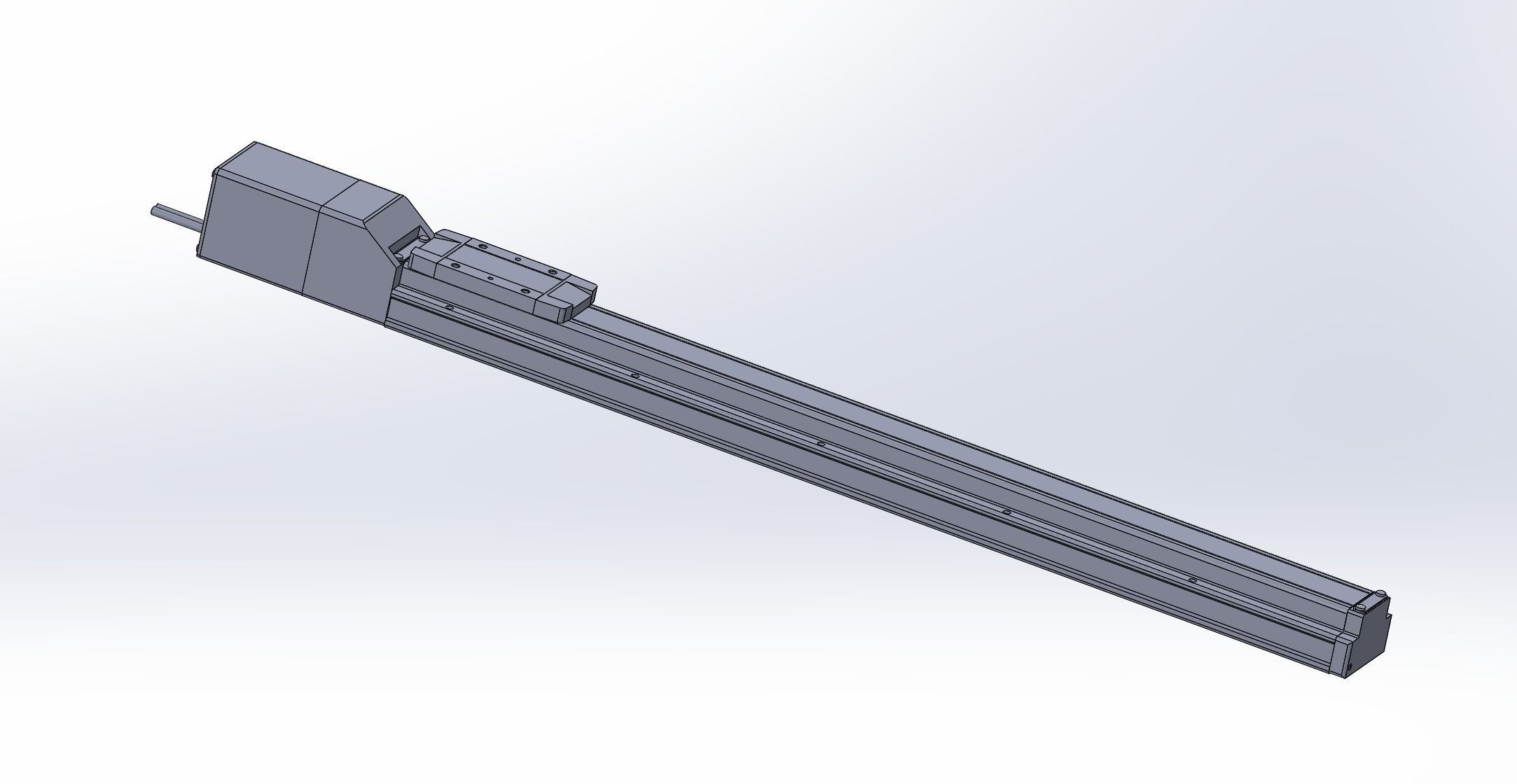

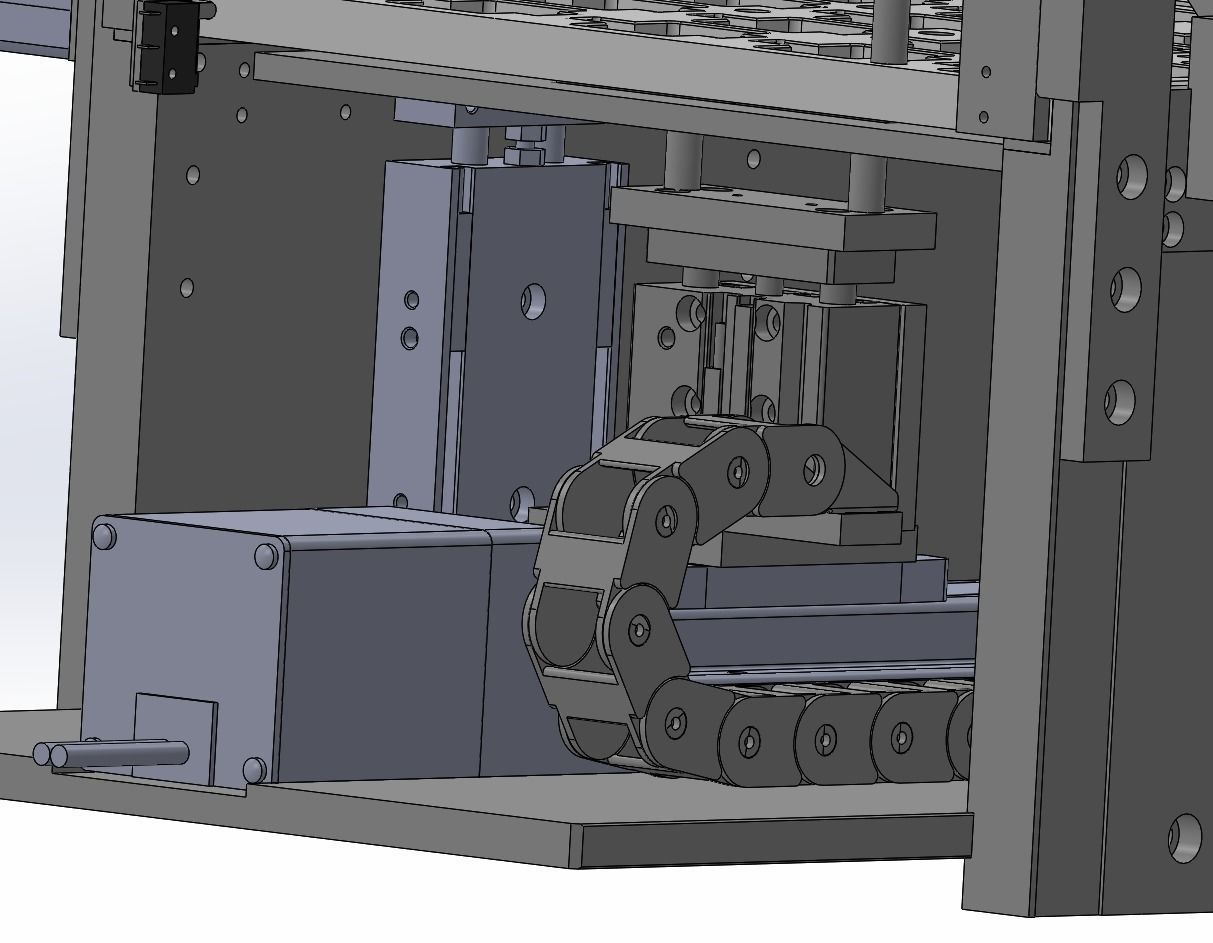

1. Cylinder transverse moving platform

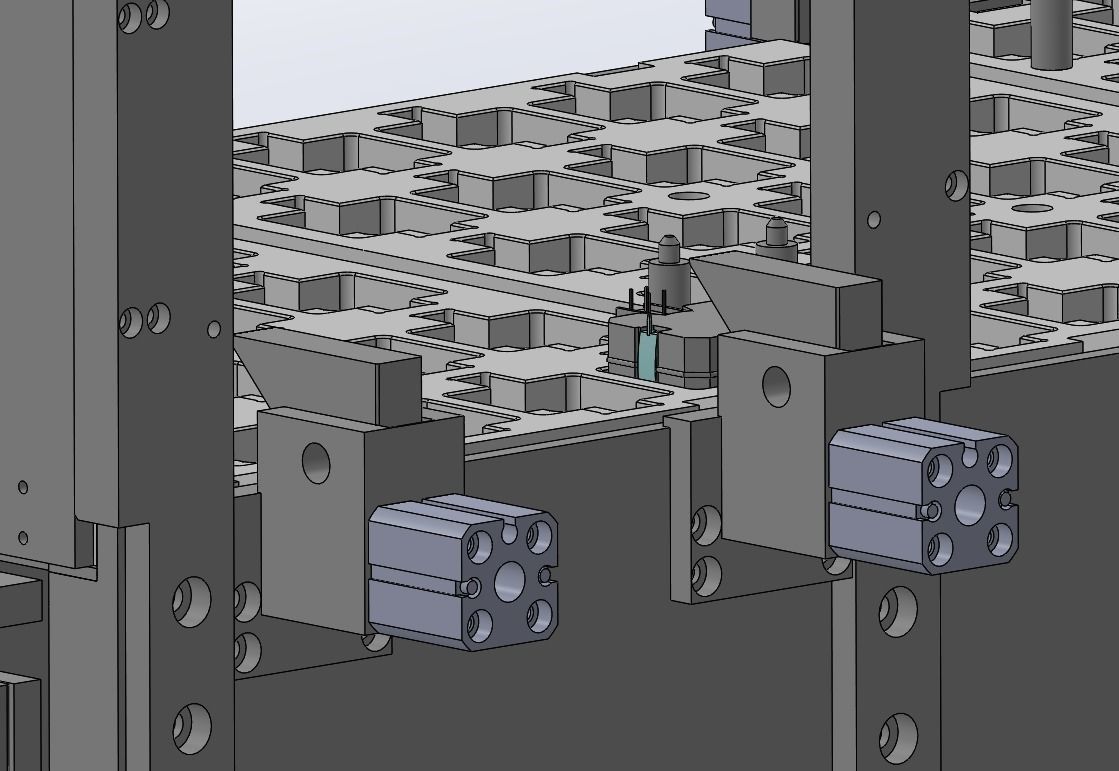

2. Cylinder stacking mechanism

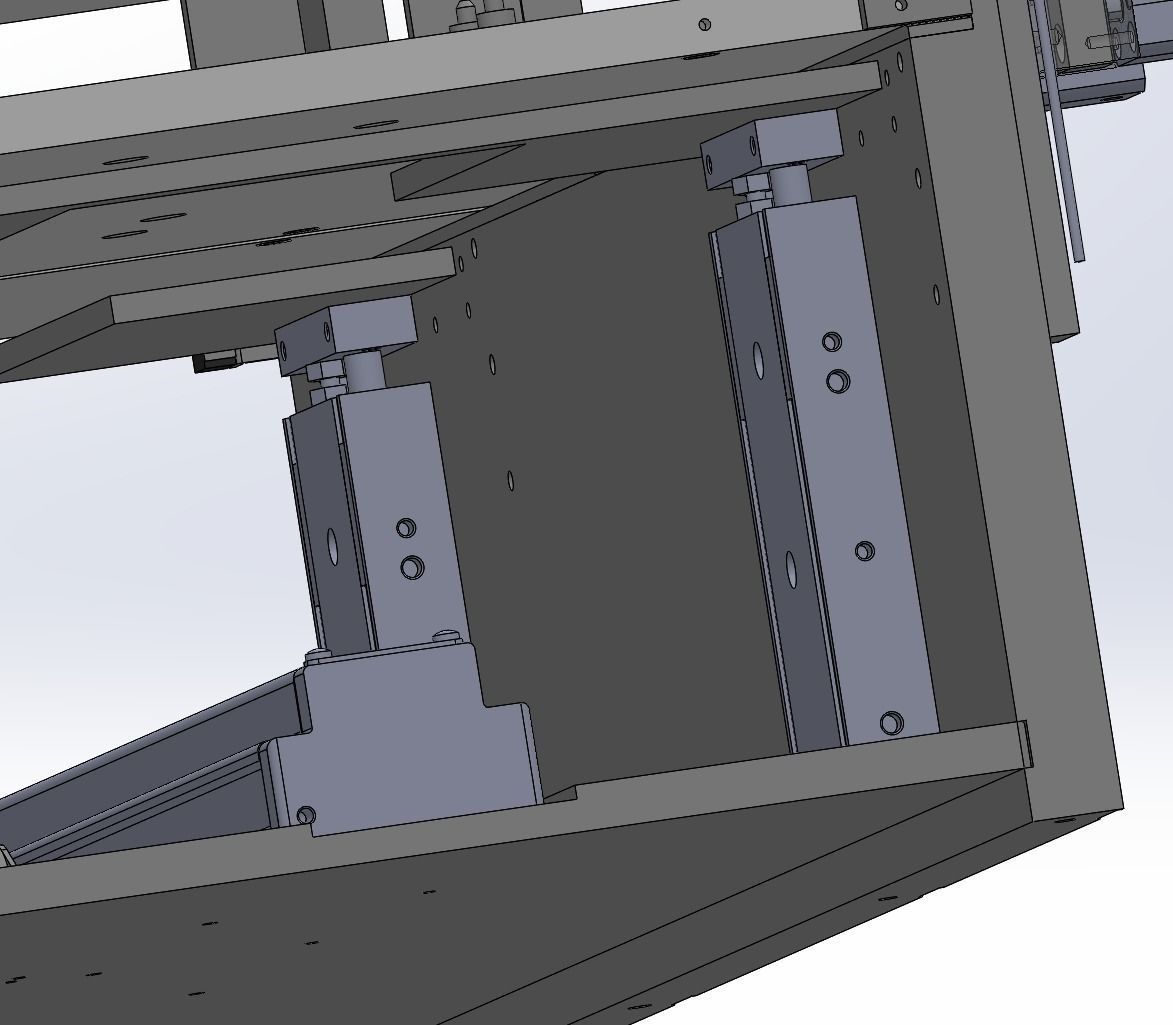

3. Cylinder sticking mechanism


Files format contains

-solidworks 2017








- and other formats


If you like,you can buy for you to get this models or if you have any questions also you can email to me.

Designed with SolidWorks 2017, render with PhotoView 360
