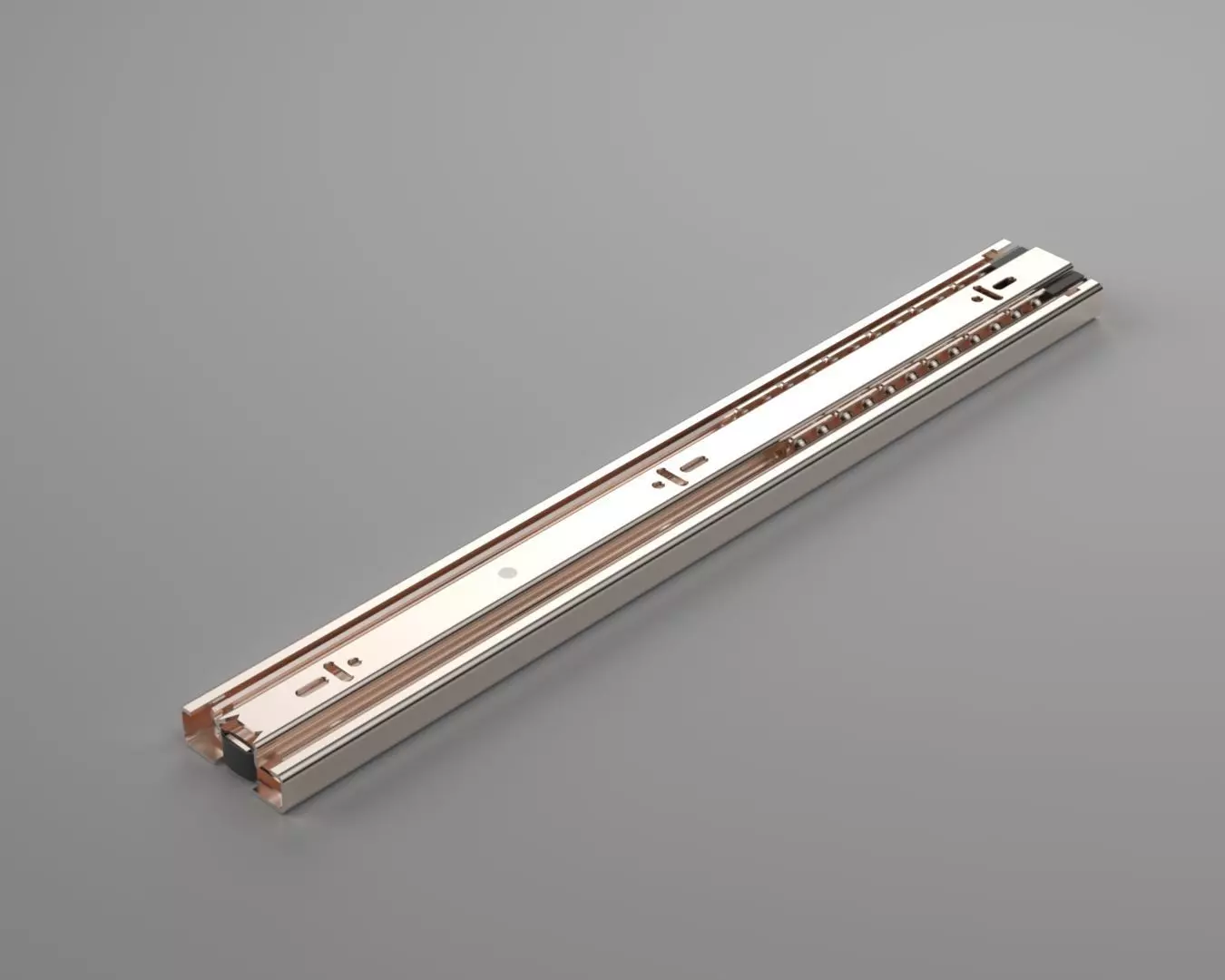

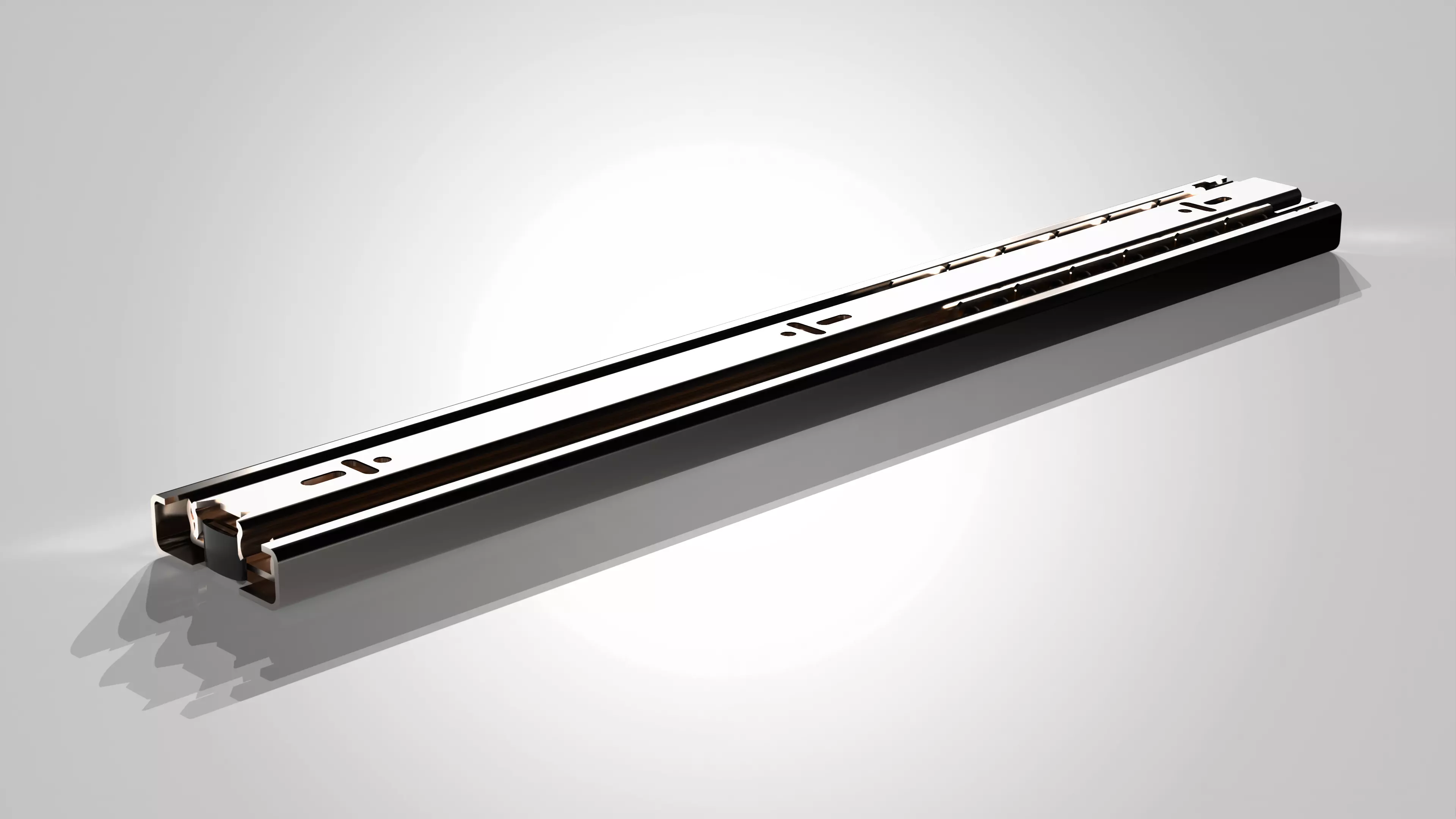

A professionally built 3D CAD model of telescopic drawer slides designed for industrial and furniture hardware applications. The assembly includes all functional components: outer rail, intermediate rail, inner rail, ball‑bearing cages, stops, and mounting features. Geometry is clean, accurate, and suitable for both technical and visual use cases.
This model is created with engineering precision and exported in multiple formats to ensure compatibility with most CAD and 3D software. All parts are clearly separated and named, allowing easy modification, animation, or integration into larger assemblies. Ideal for designers, engineers, and manufacturers who require a realistic and dimensionally correct slide mechanism.
Technical Details
Fully modeled telescopic slide assembly
Clean topology with no self‑intersections
Realistic mechanical structure with internal components
Organized part hierarchy and naming
Neutral materials for fast rendering setup
Includes shaded, orthographic, and wireframe preview images
Use Cases
Mechanical design and engineering
Furniture hardware visualization
Industrial product rendering
Assembly animations
Technical documentation and manuals
Included Formats
Native CAD file
STEP (.step)
IGES (.iges)
OBJ/FBX (if needed for rendering workflows)
High‑resolution preview images
Additional Information
This model is optimized for visualization and design workflows. Dimensions follow realistic proportions but are not intended as manufacturing drawings.
