DESCRIPTION

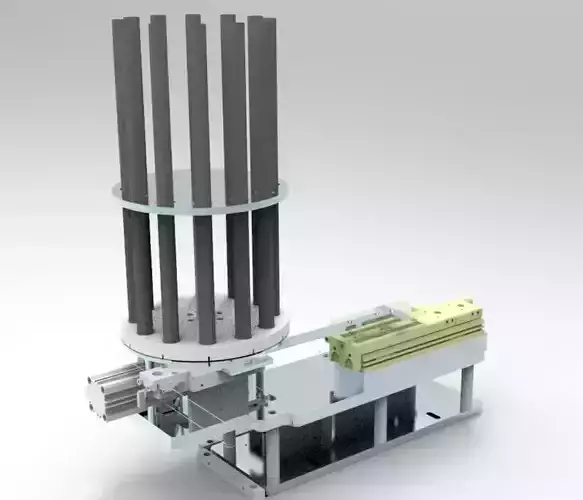

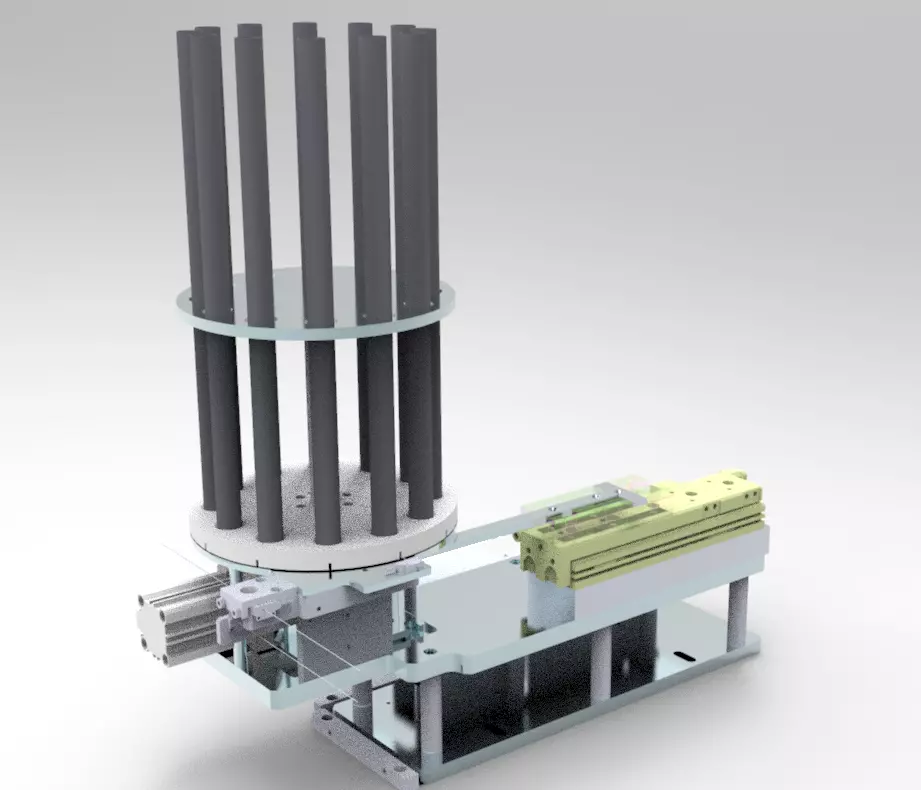

Pneumatic division rotary feeding mechanism (bearing), the mechanism through the pneumatic divider feeding, through the footwall of the clearance position, in the process of rotation, through the bearing to stack weight class materials and turn the bottom materials stripped away, into the cavity, to achieve the function of automatic loading, it can be made into a cylindrical materials plate can be multiple feeding, classic structure, the design process to use for referenceMechanism include

  1. Pneumatic separator mechanism
  2. Rotary rotary disc sorting mechanism
  3. Cylinder push rod pushing mechanism

Files format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax

- and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.If you have any questions about the details and design of the model, you can email me at any time, and I will give you all the answers as soon as possible.This is especially true after the purchase.

Designed with SolidWorks 2017;vray with keyshot
