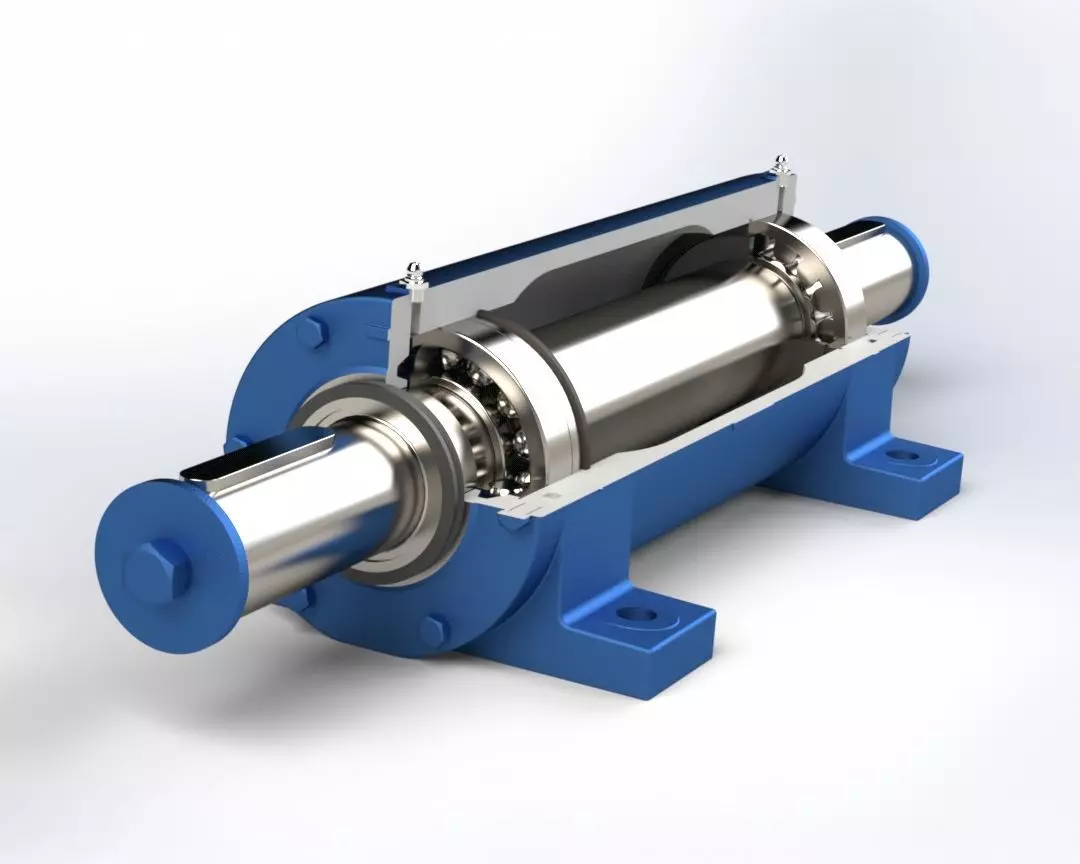

PDP 220 – Two-Bearing Housing (PDP Series)

This 3D model represents the PDP 220 two-bearing housing, developed based on publicly available technical references from the SKF PDP series documentation.The model has been recreated with a high level of geometric and dimensional accuracy, reflecting the overall structure, proportions, and assembly layout of the real mechanical component as closely as the source data allows. All major elements of the housing are modeled as part of a complete assembly.

Designed as a true-scale mechanical assembly, not a printable partIntended for use in:

• Mechanical design and visualization
• Engineering presentations
• CAD reference and technical illustration
• Training and simulation projects

If you need the complete library of SKF two-bearing housings, or if you’re looking to create a custom library for your own work, feel free to contact me.Email: machcalc@gmail.com
