High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

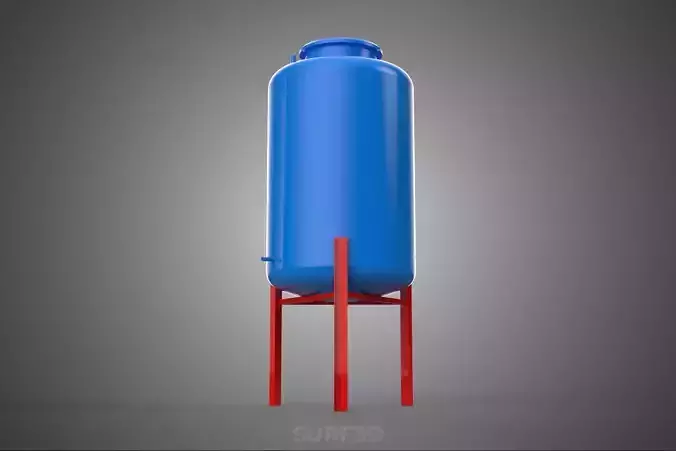

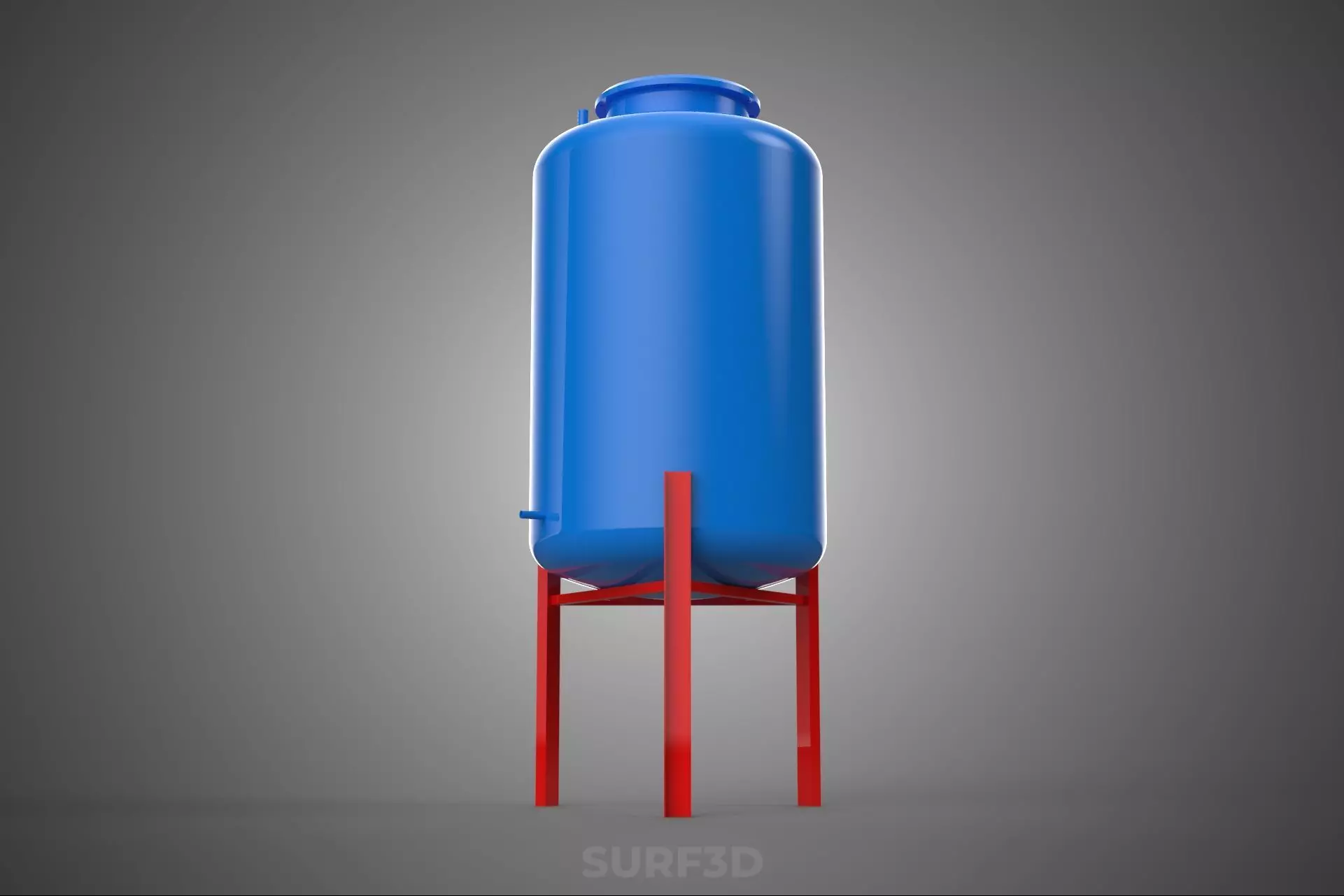

An elevated blue water storage tank, supported by a red metal stand and structural frame, constitutes a vital piece of infrastructure designed for the controlled storage and gravity-fed distribution of water. This specific configuration is characterized by its prominent visual features: a blue-hued storage vessel mounted atop a distinctly red metal support system, signifying both function and often, municipal or industrial identity. The primary function of such an assembly is to maintain consistent water pressure within a distribution network, provide reserve capacity for peak demand or emergencies, and enable energy-efficient water delivery through hydrostatic head.
The central component is the water storage tank, distinguished by its blue exterior finish. This coloration may be chosen for aesthetic integration, brand identity, or, in specific material instances, to confer UV resistance. Large-scale elevated tanks are predominantly constructed from welded steel, though reinforced concrete and fiberglass are also utilized for particular applications and capacities. Typically cylindrical, spheroidal, or hydropillar in form, the tank is engineered to hold a significant volume of water, ranging from tens of thousands to several million liters. Internally, it features essential components such as inlet and outlet piping for controlled water flow, an overflow mechanism to prevent overfilling, and vents to facilitate air exchange during operational cycles. External elements often include access hatches, ladders for inspection and maintenance, and level indicators to monitor water volume and ensure operational efficiency.
Supporting this substantial water vessel is a robust red metal stand and structural frame. Constructed primarily from high-strength steel, which may be galvanized, painted, or both, for comprehensive corrosion protection, the support structure is meticulously engineered to withstand immense static loads from the filled tank, as well as dynamic forces such as high wind loads, seismic activity, and thermal expansion/contraction. Common structural configurations include multi-column lattice frameworks, pedestal designs (a single large central column), or multi-leg arrangements, each selected based on structural requirements, aesthetic considerations, and economic viability. The red coloration of the metal stand often serves a dual purpose: it can enhance visibility for safety or as a landmark, and it provides a critical layer of protective coating against environmental elements, in addition to potential brand association or municipal identification. The entire elevated assembly is anchored to a substantial, carefully engineered concrete foundation, ensuring stability and preventing settlement.
The fundamental operational principle of an elevated water storage system relies on hydrostatic pressure. By positioning the water at a significant height above the consumption points, gravity naturally provides the necessary pressure for water distribution throughout the connected network. This design minimizes or eliminates the continuous need for high-energy pumping, thereby conserving energy. Furthermore, the elevated reservoir offers a critical reserve of water, ensuring supply during periods of high demand, power outages, system failures, or emergencies such as fire suppression, where immediate access to large volumes of pressurized water is paramount. Applications span municipal water supply systems, industrial process water provision, agricultural irrigation, and specialized fire protection systems.
The engineering and design of such a structure demand meticulous consideration of structural mechanics, hydraulics, and materials science. Factors such as wind uplift, seismic forces, material fatigue, and various forms of corrosion (e.g., atmospheric, galvanic, microbial) must be thoroughly addressed during the design phase. Regular inspection and comprehensive maintenance protocols, including repainting the tank and structural frame, internal tank cleaning, structural integrity assessments, and water quality monitoring, are essential to ensure the long-term reliability, safety, and operational efficacy of the installation.
