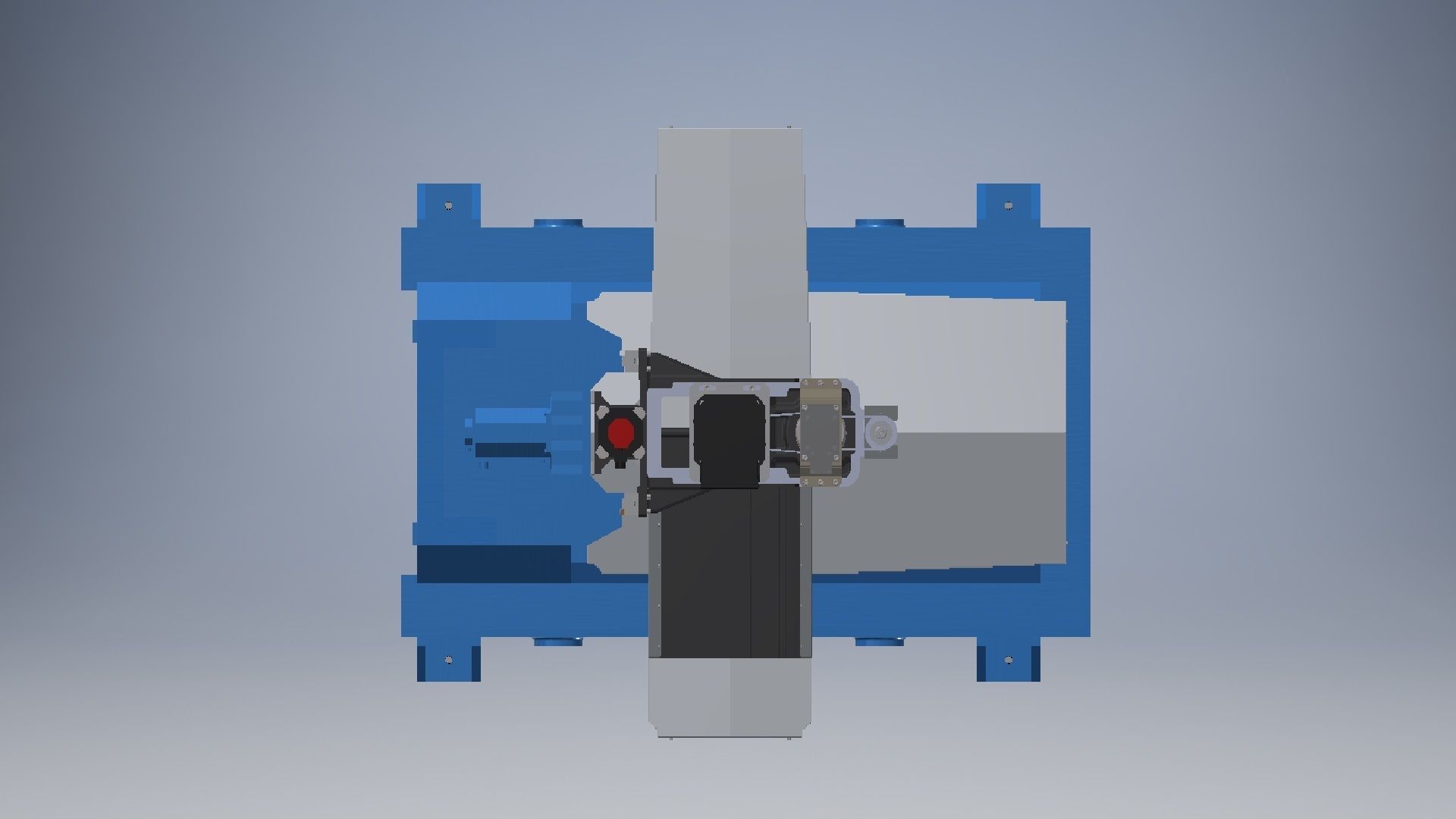

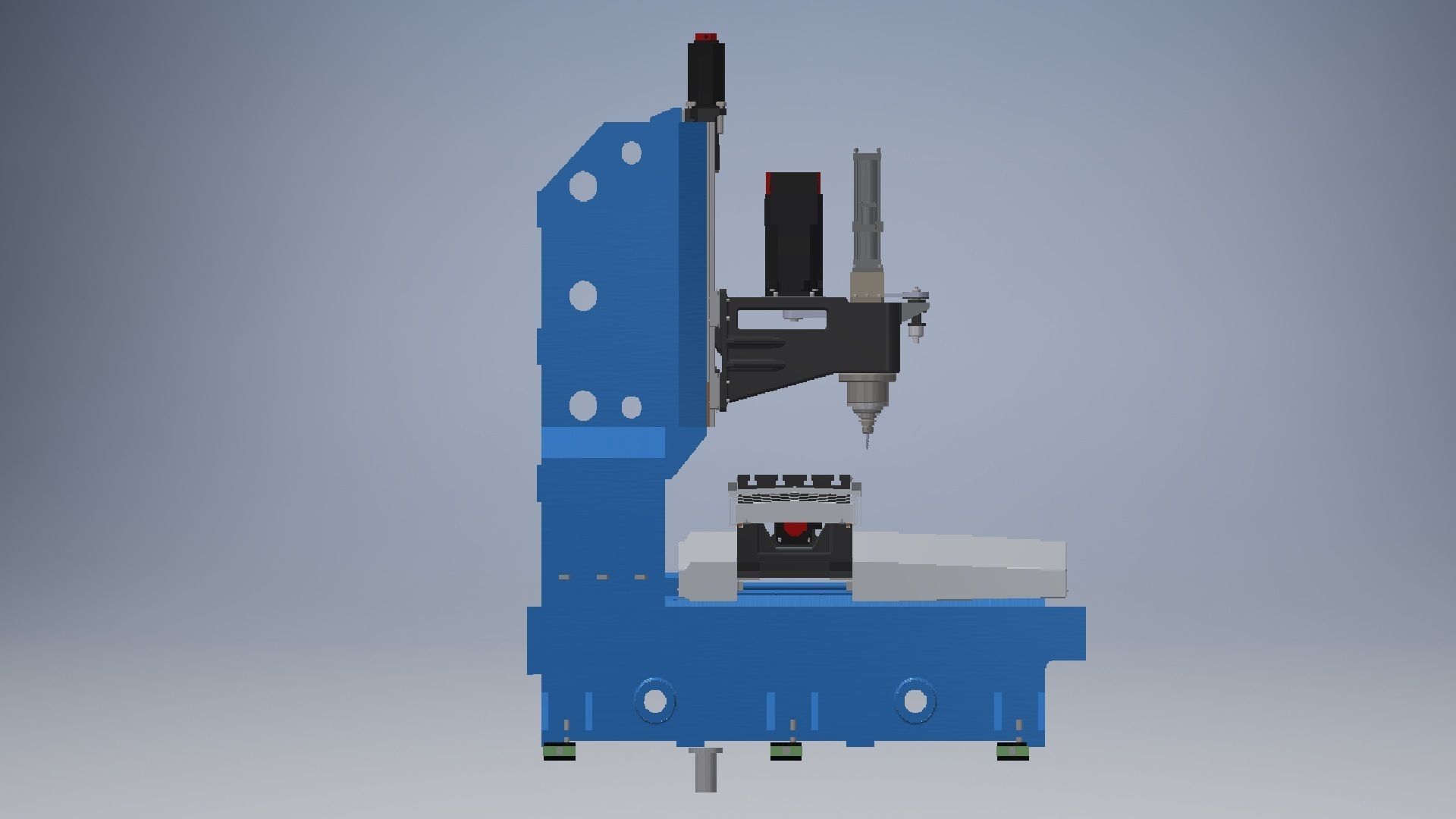

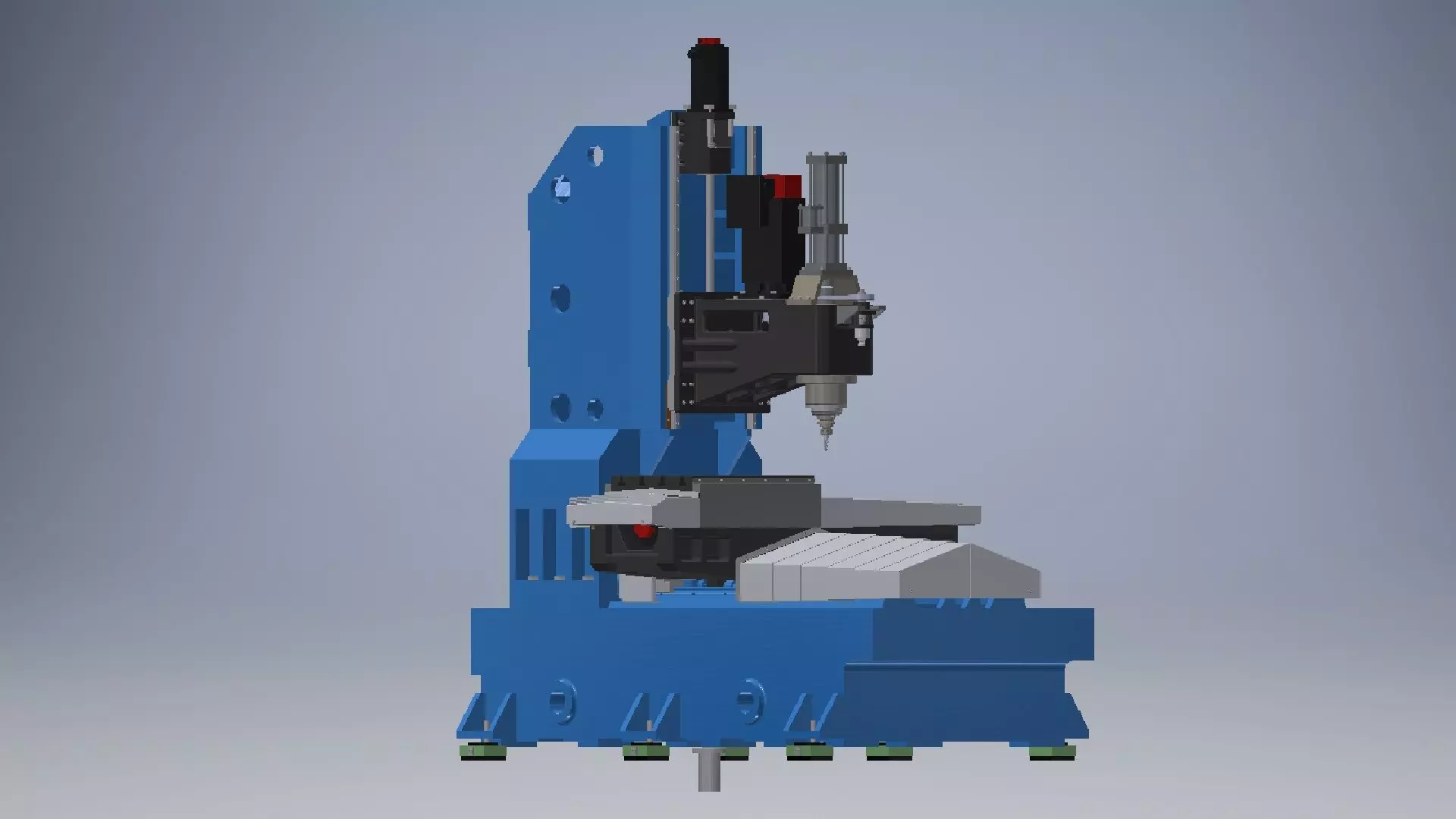

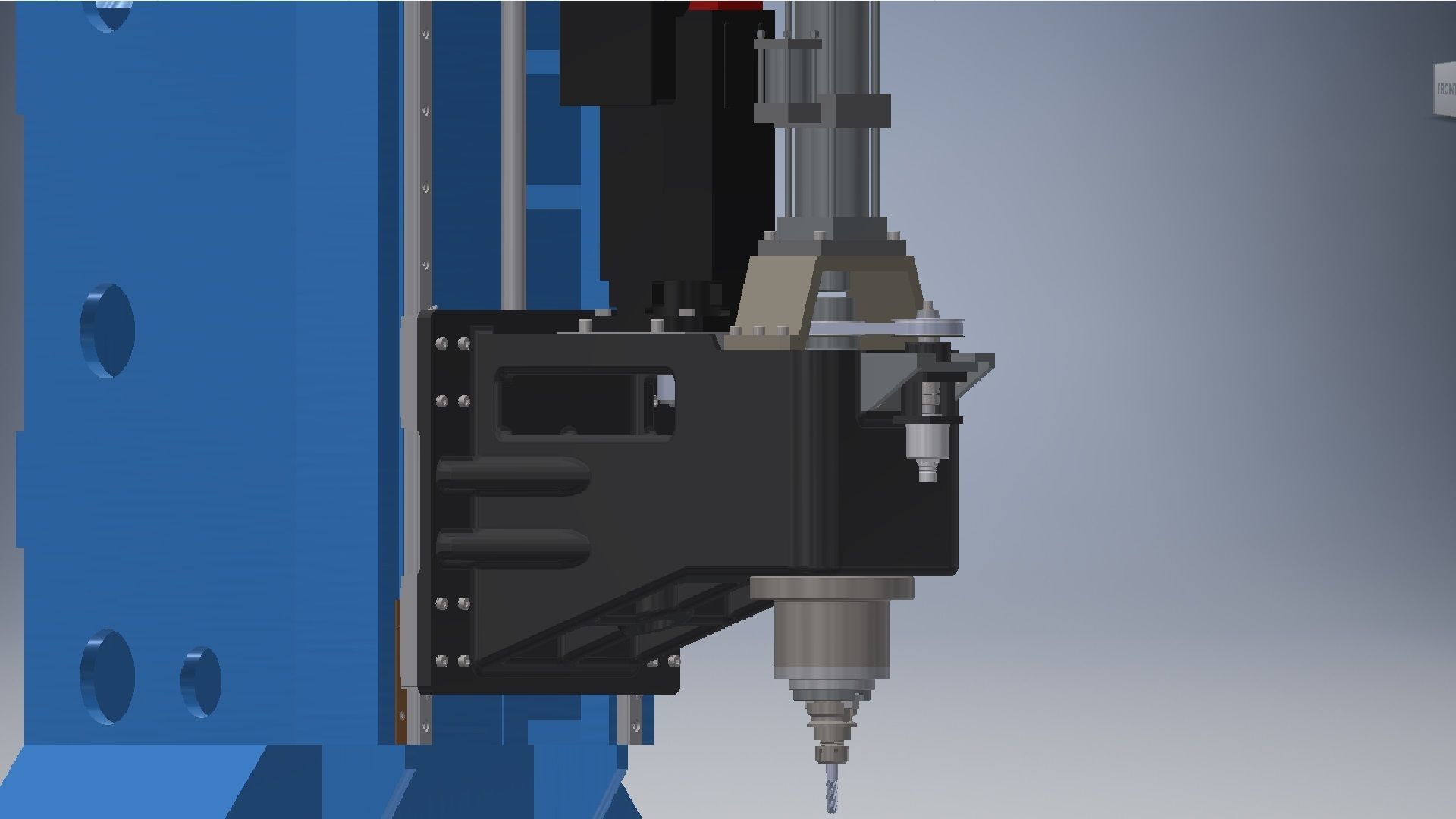

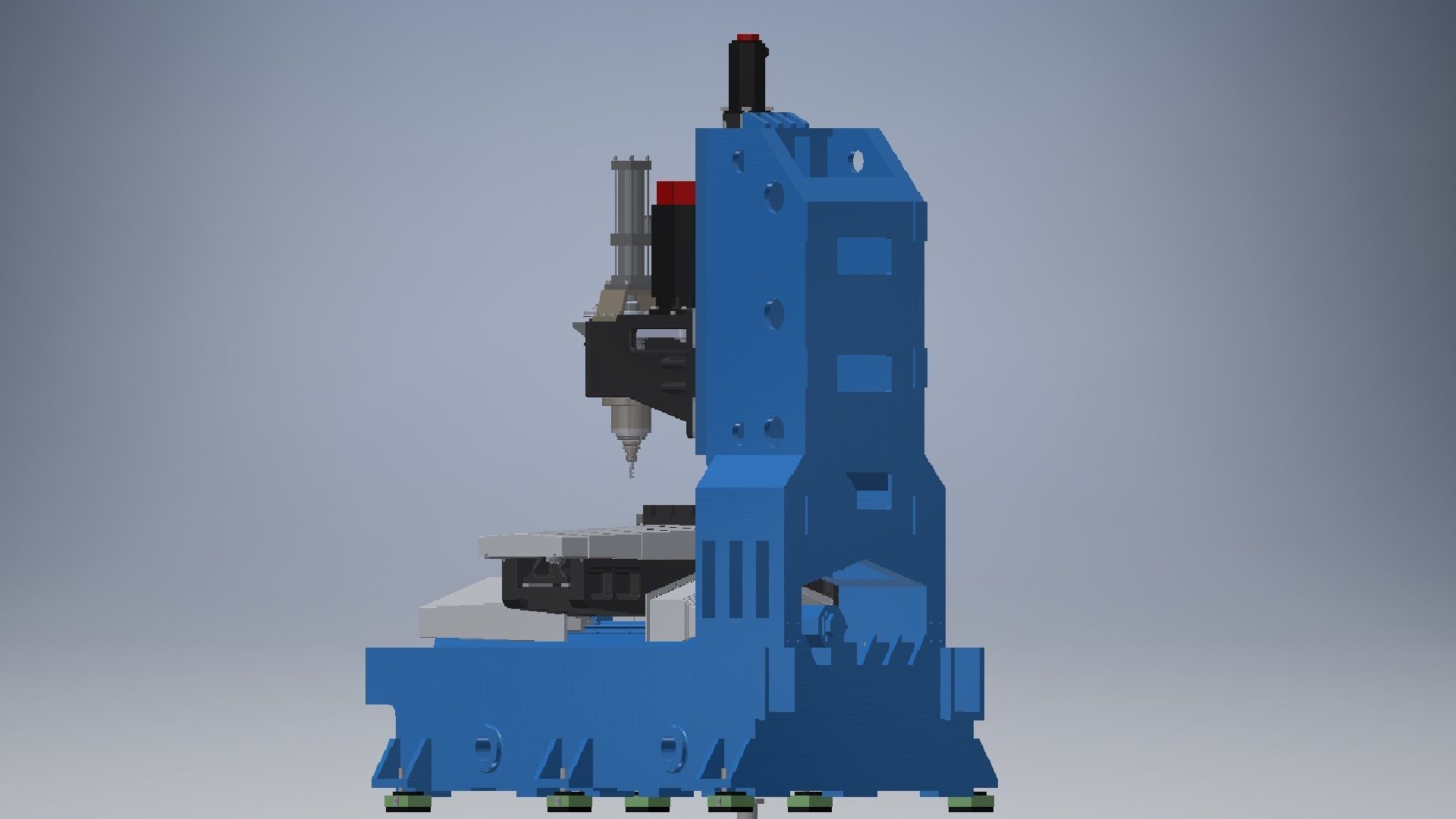

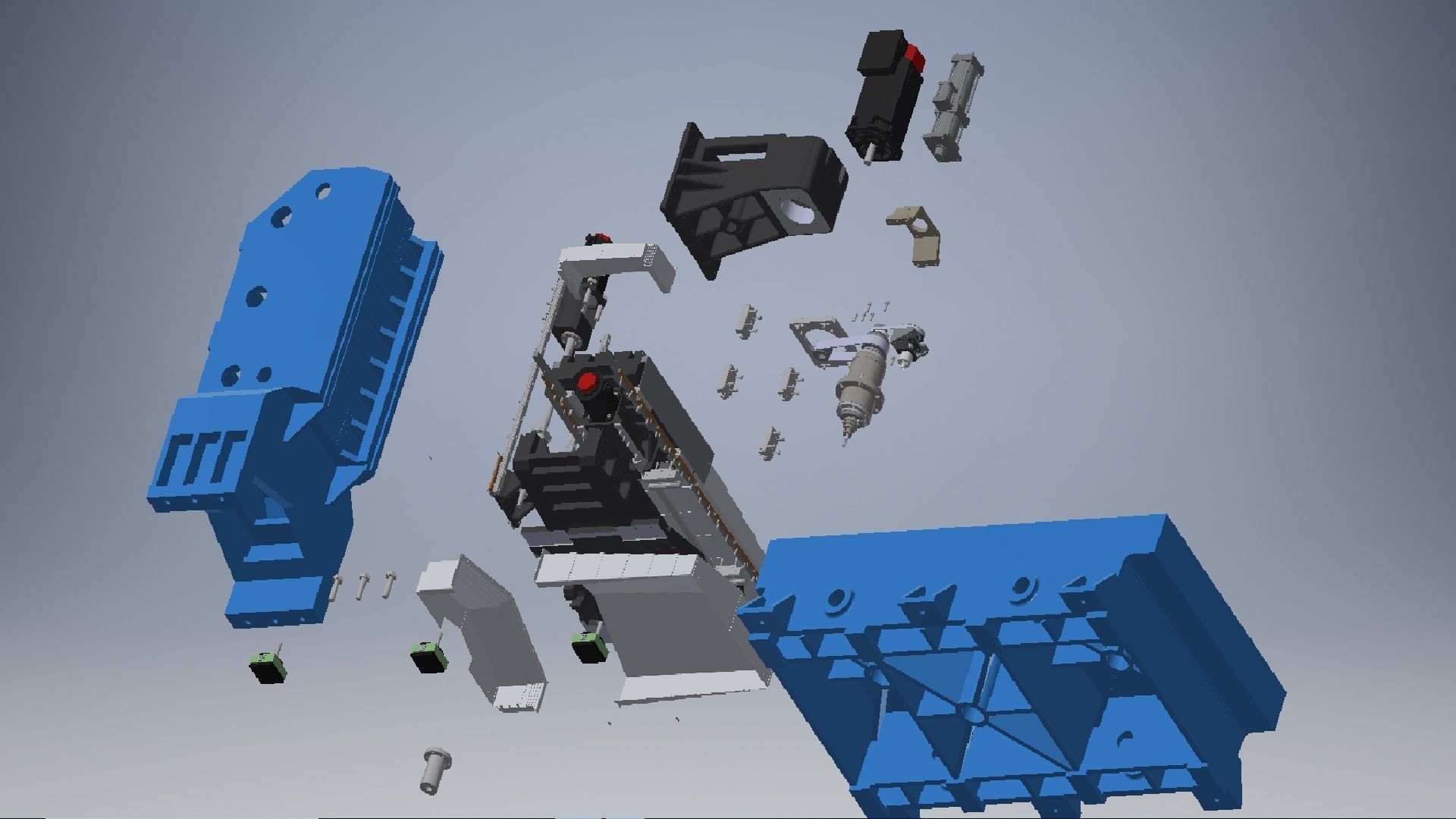

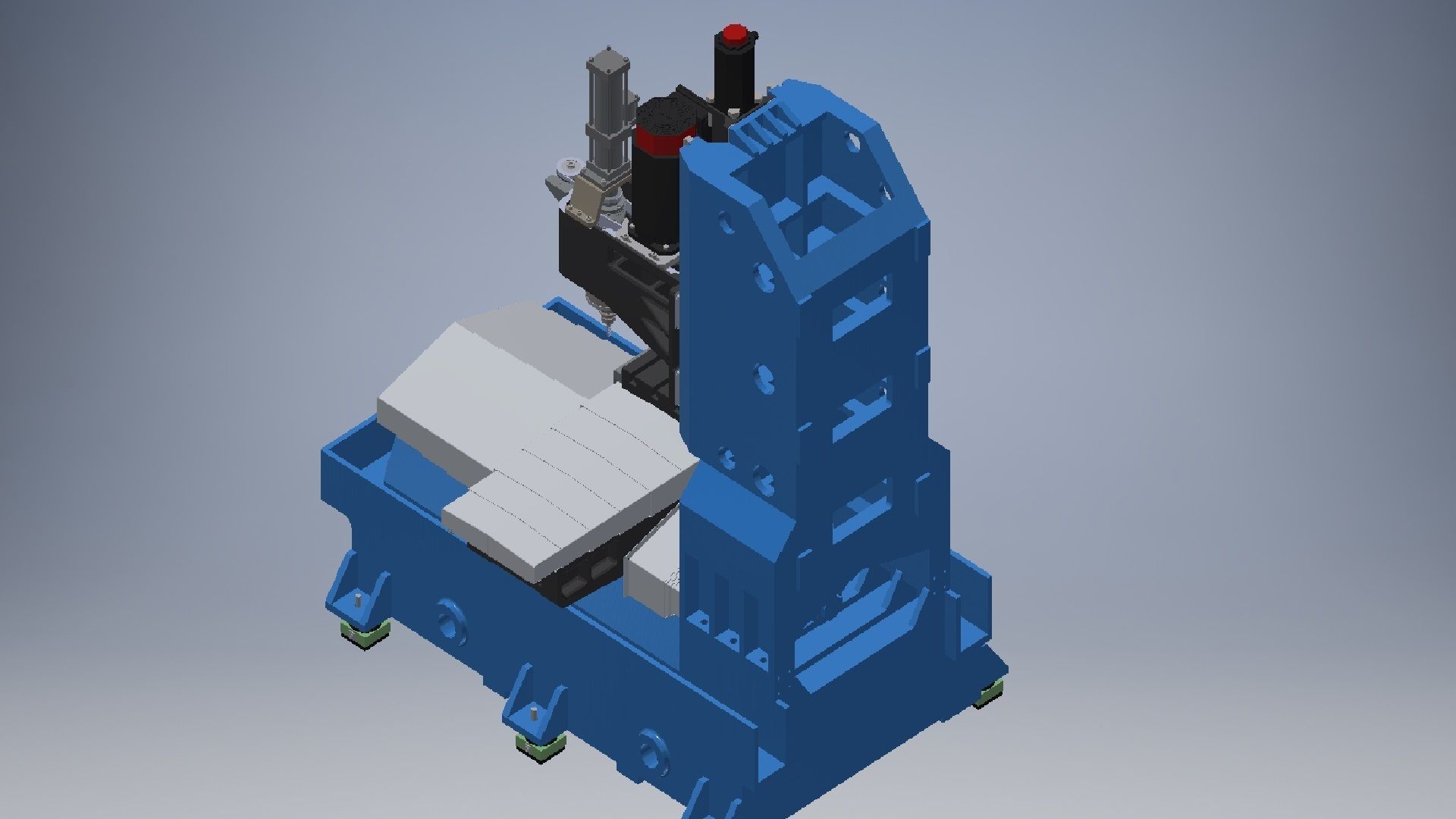

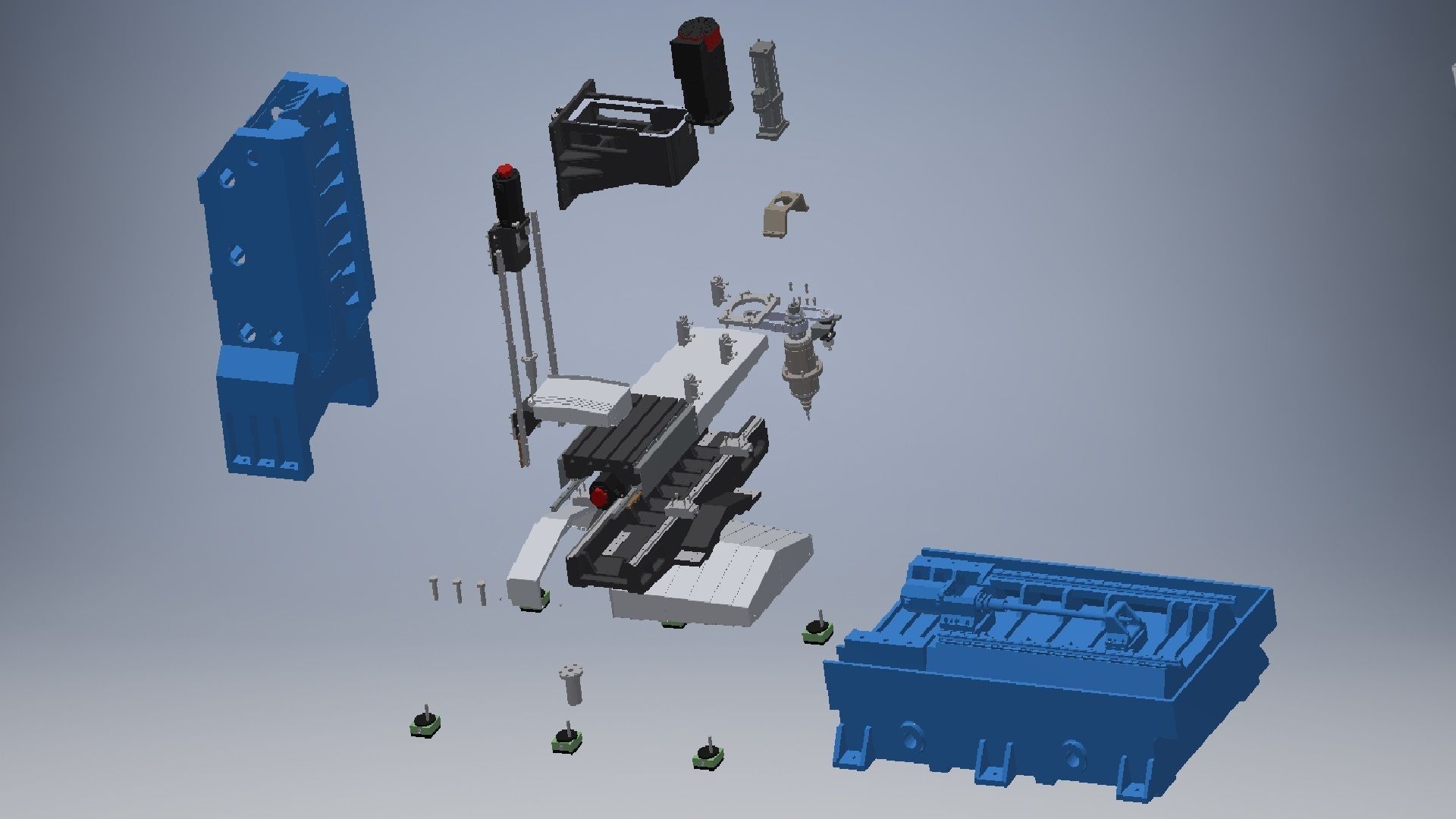

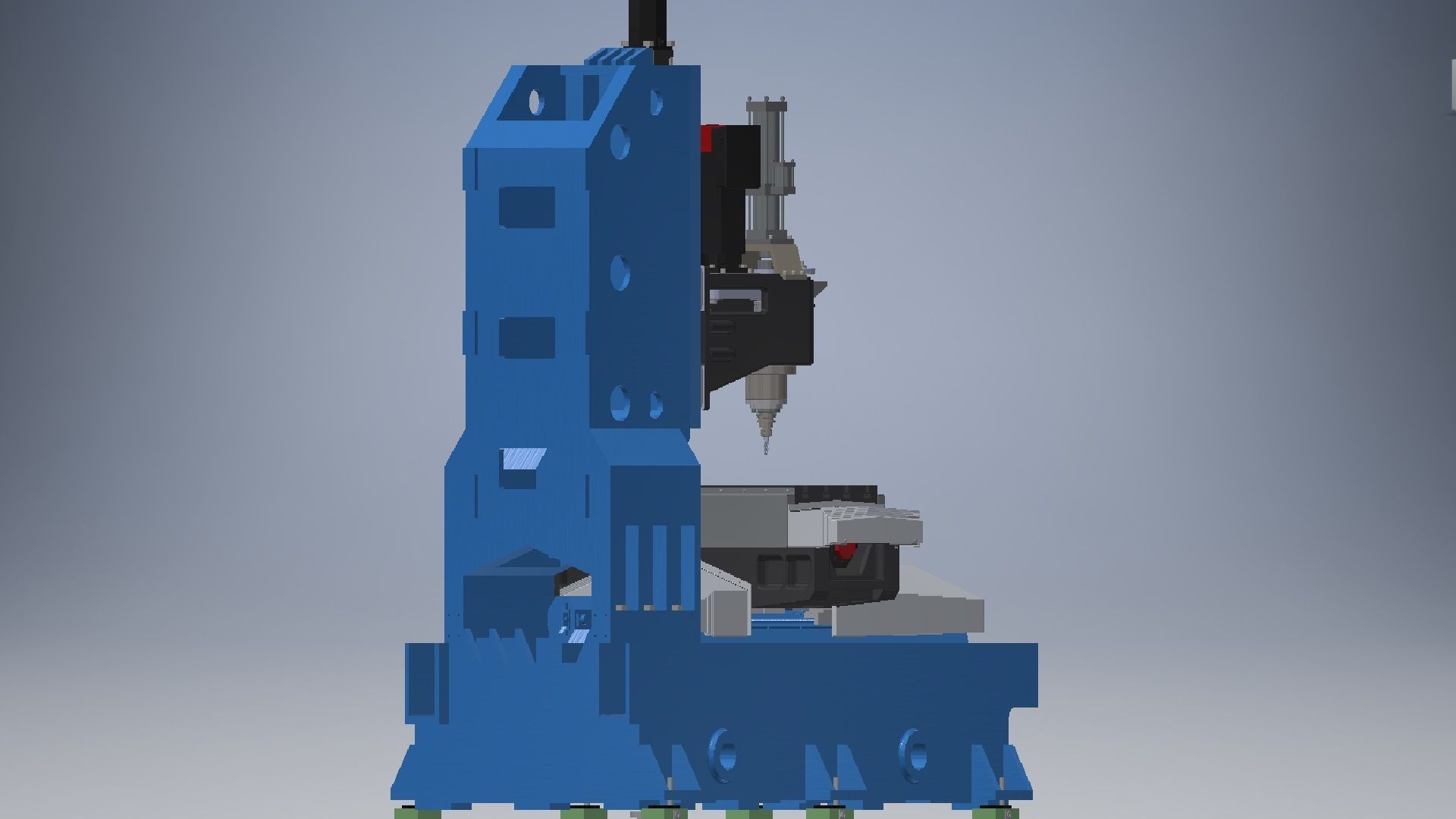

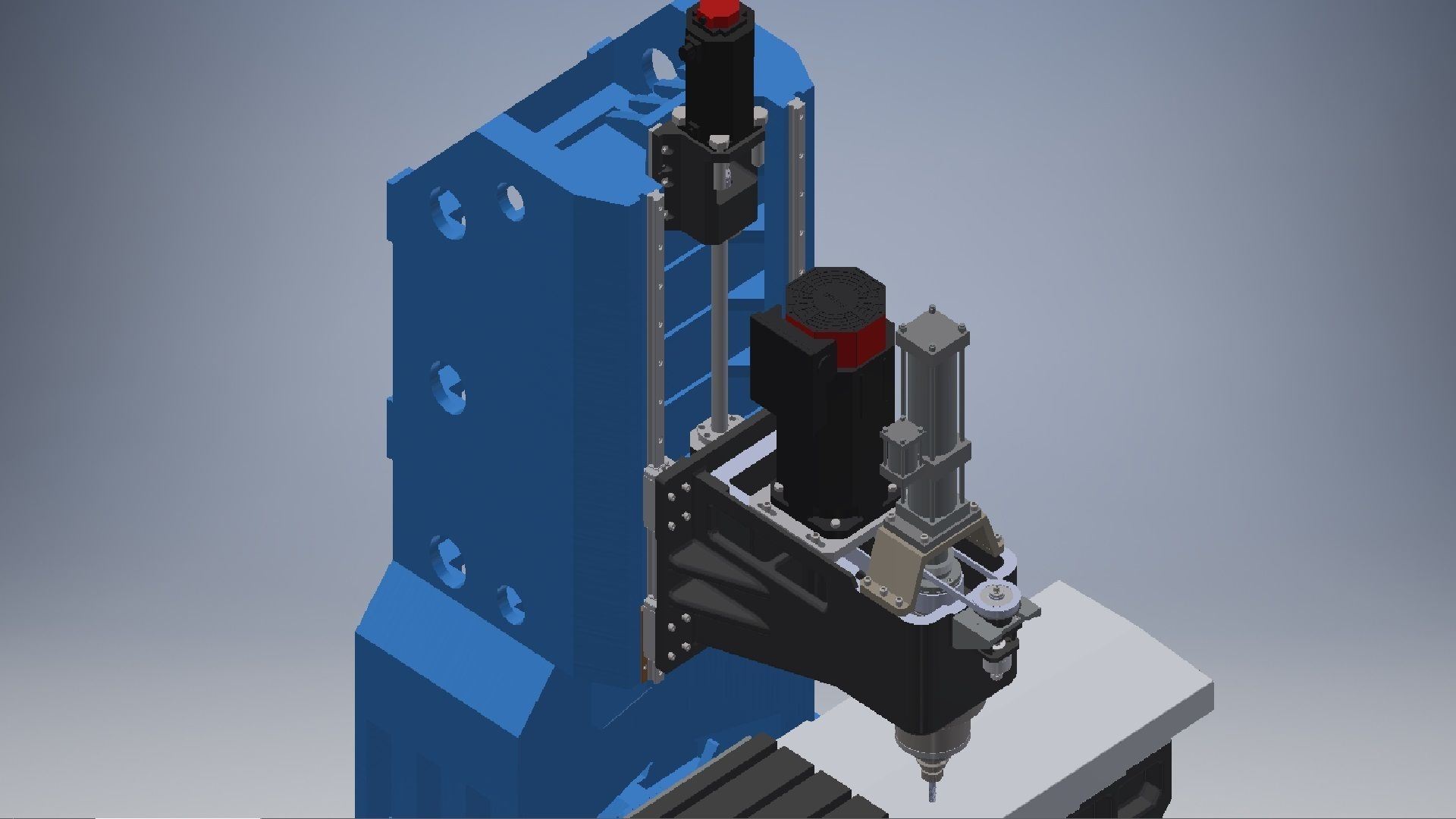

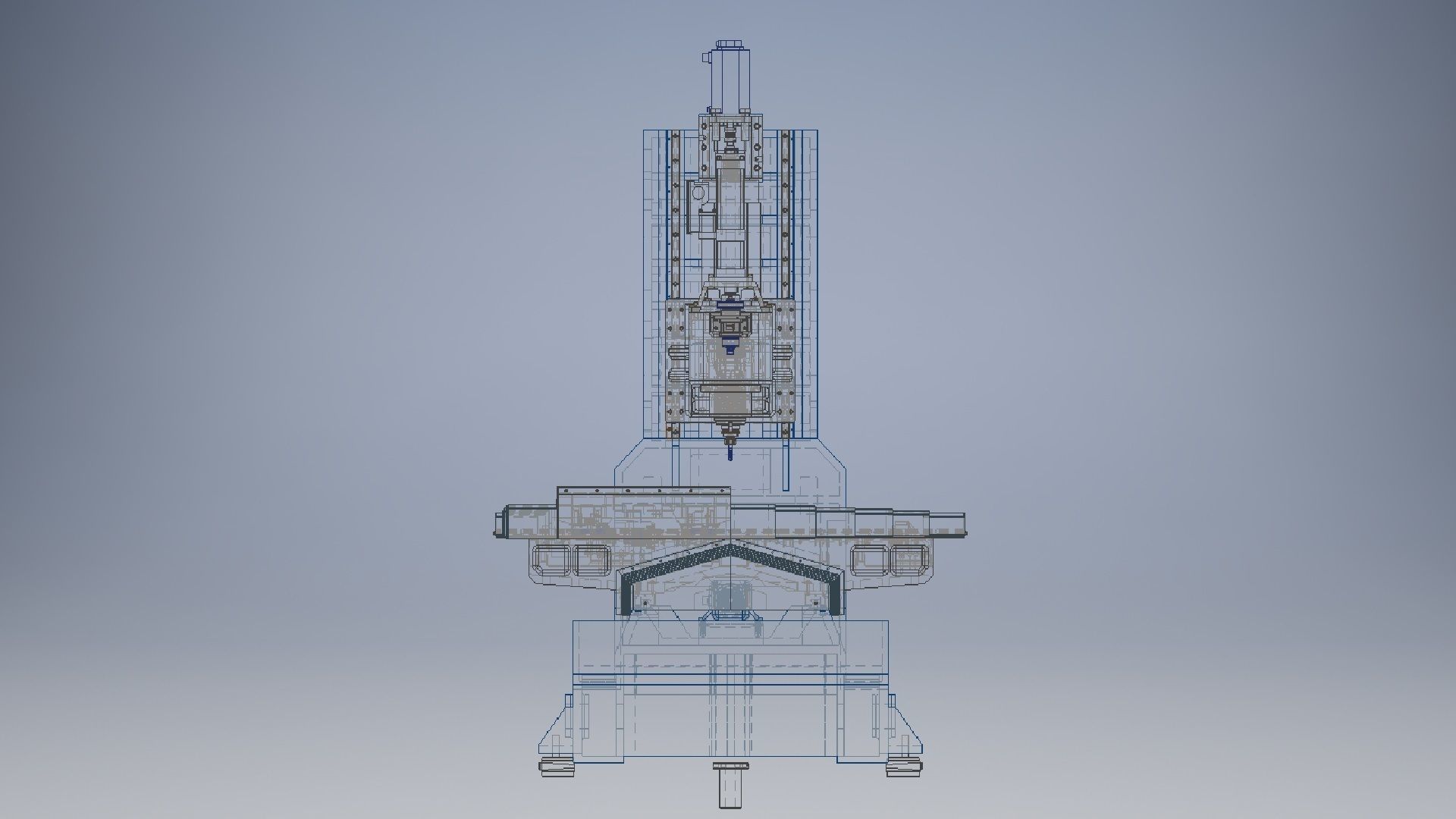

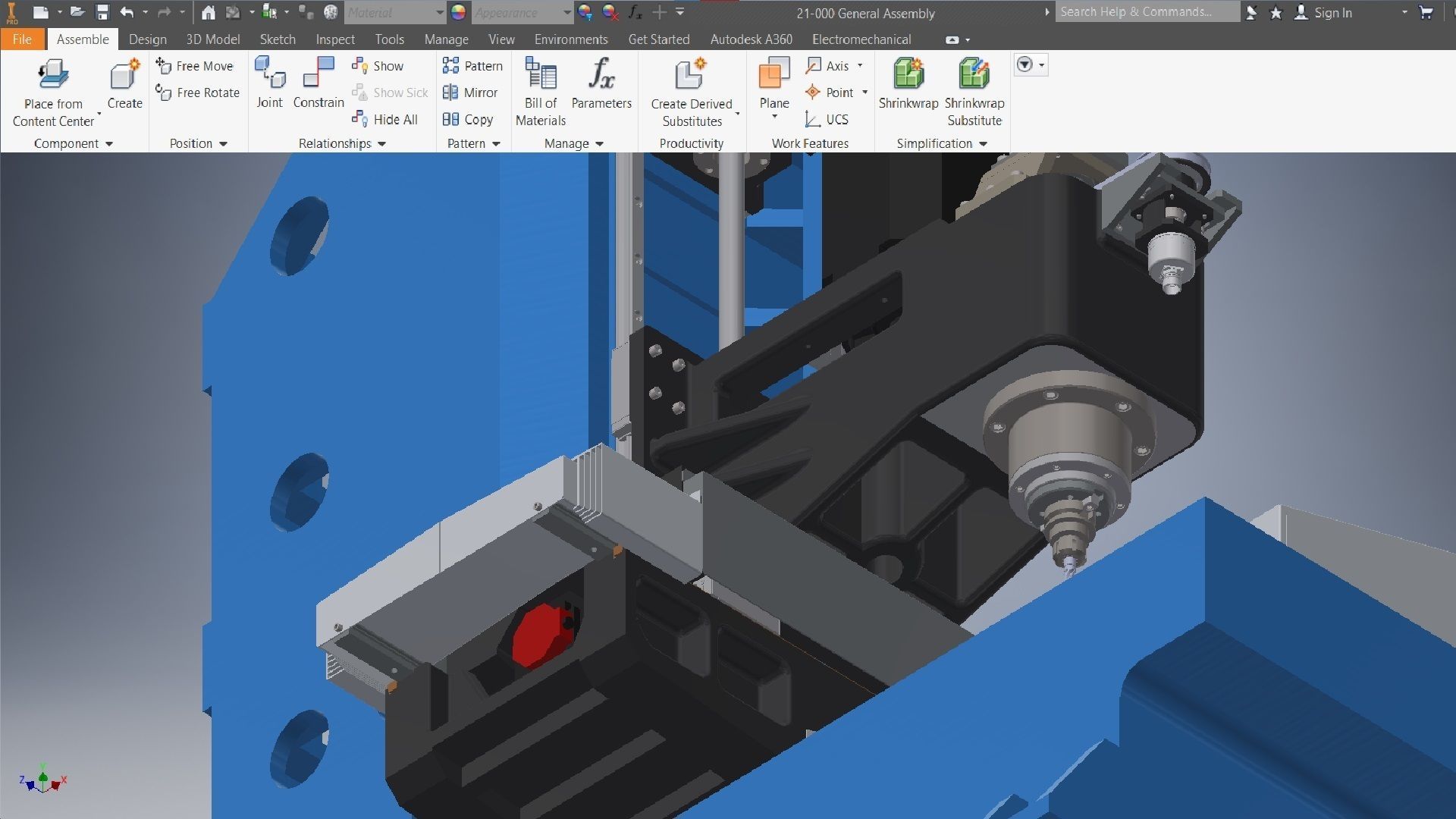

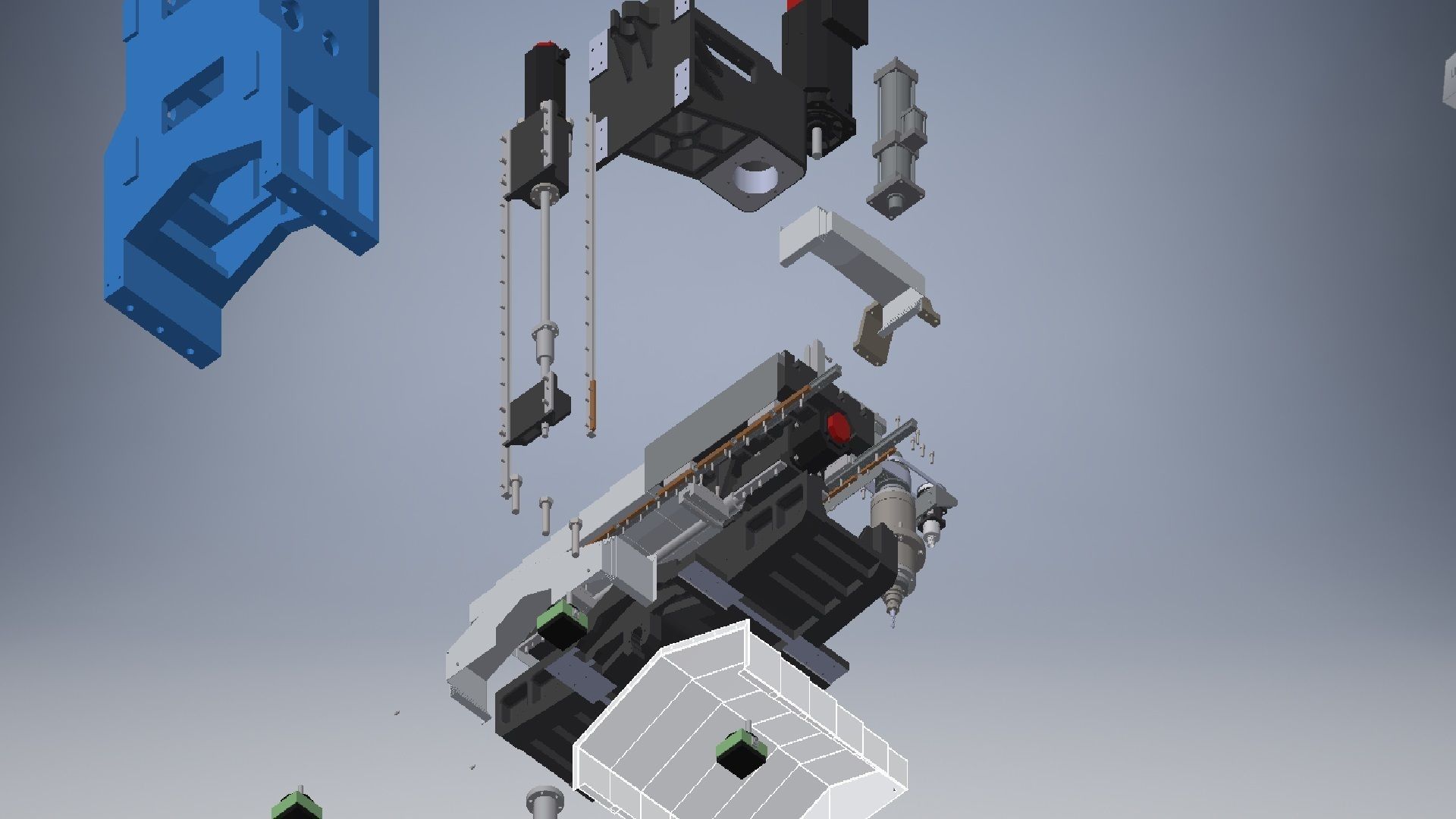

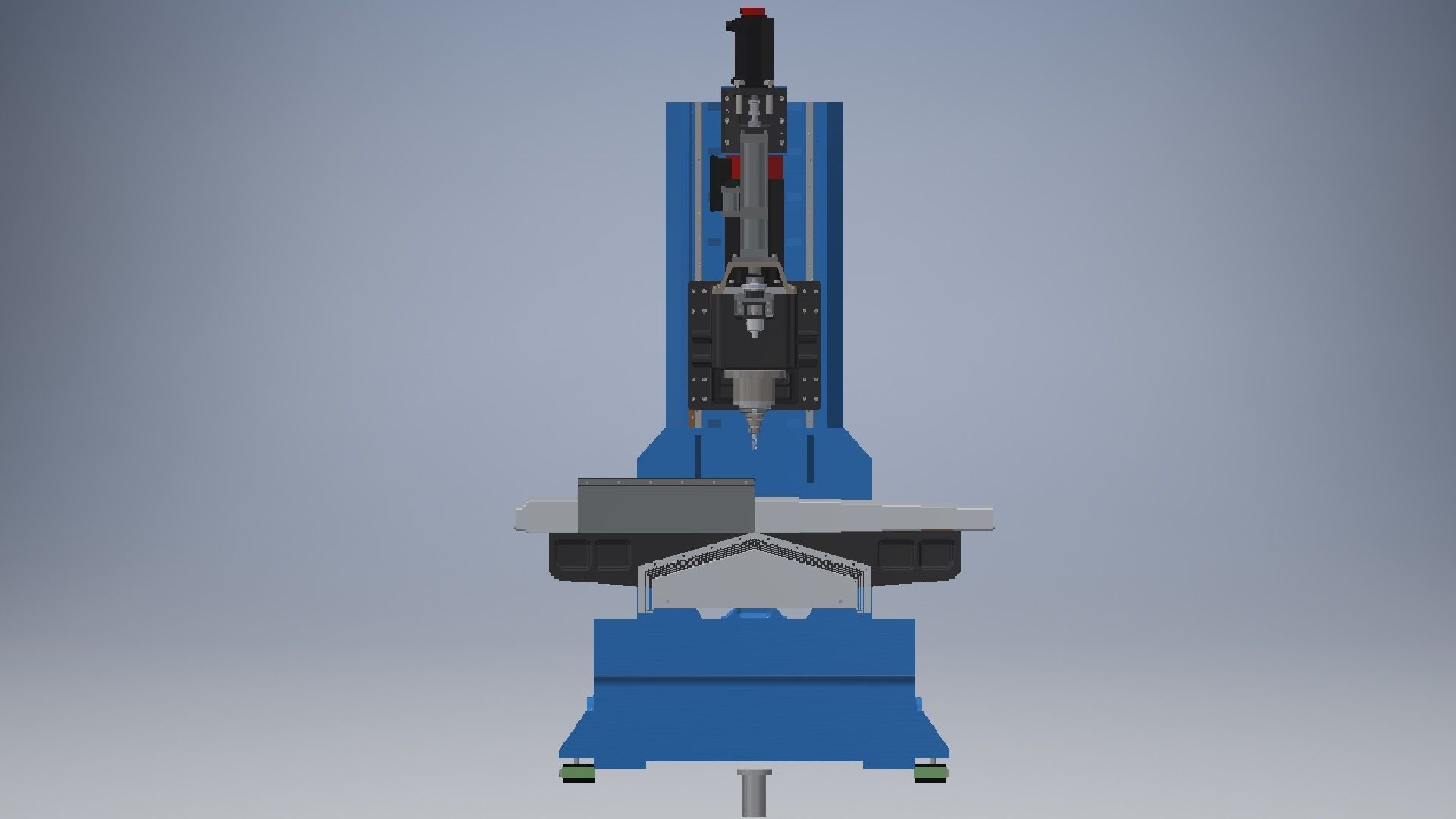

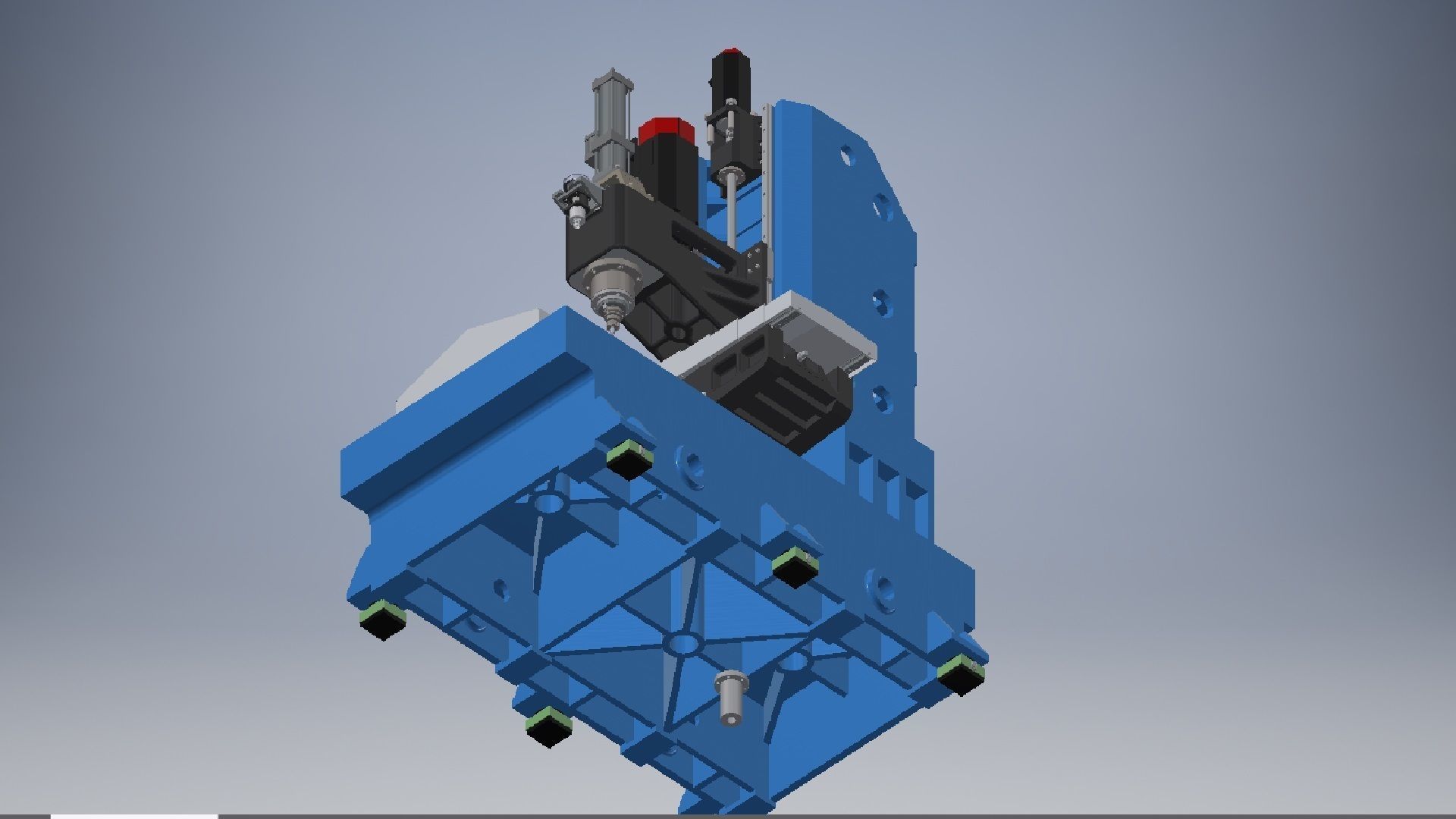

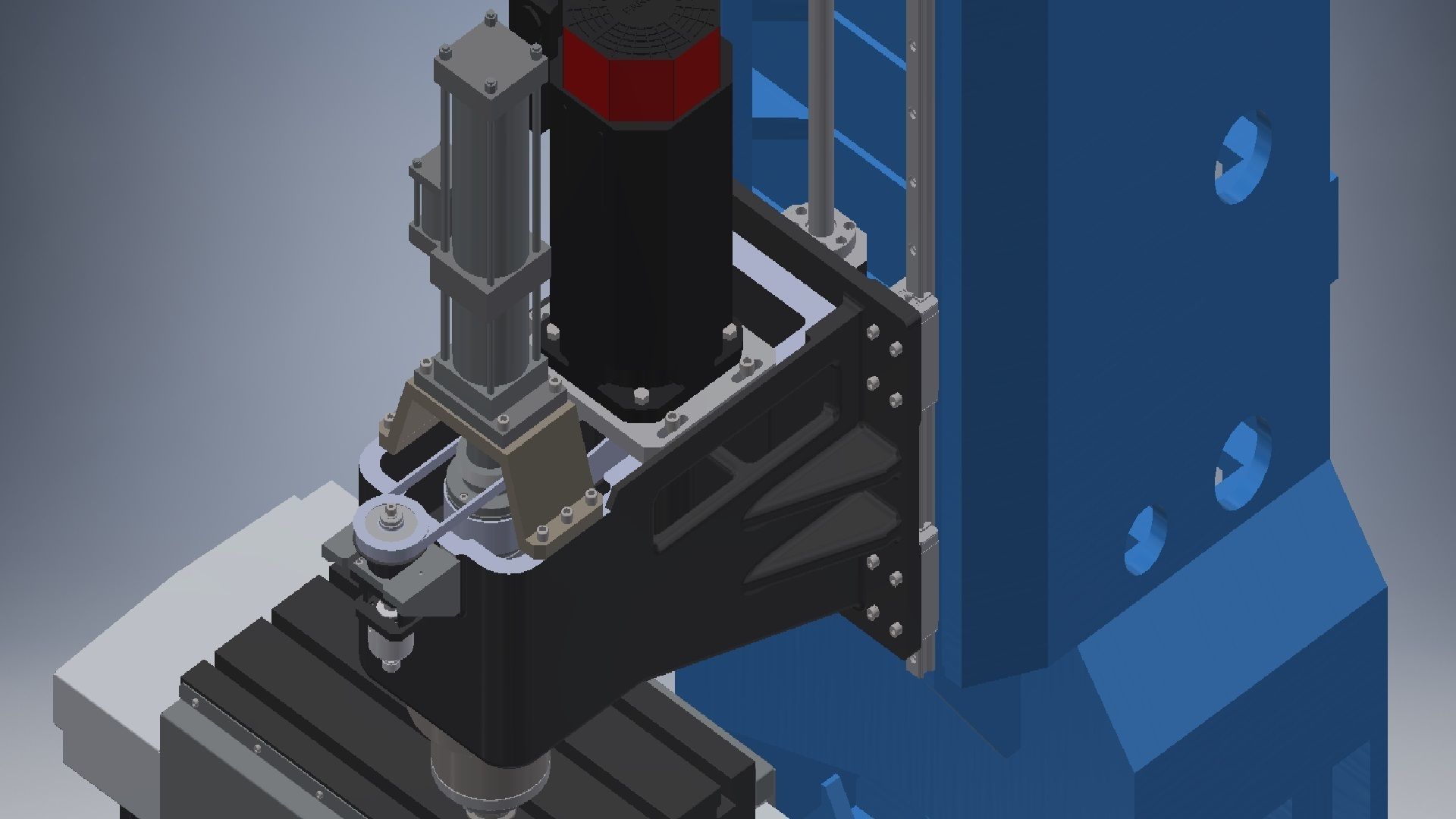

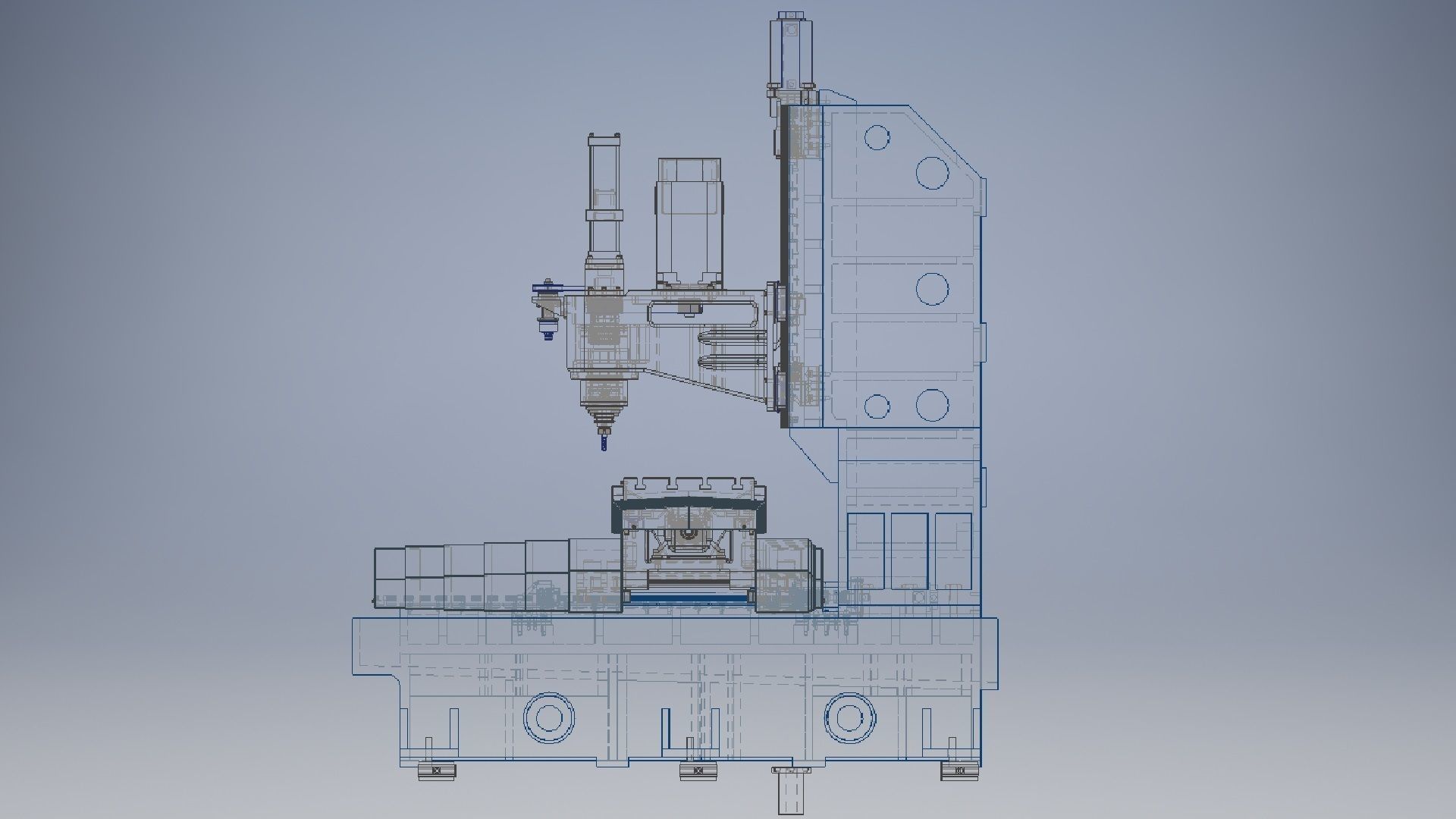

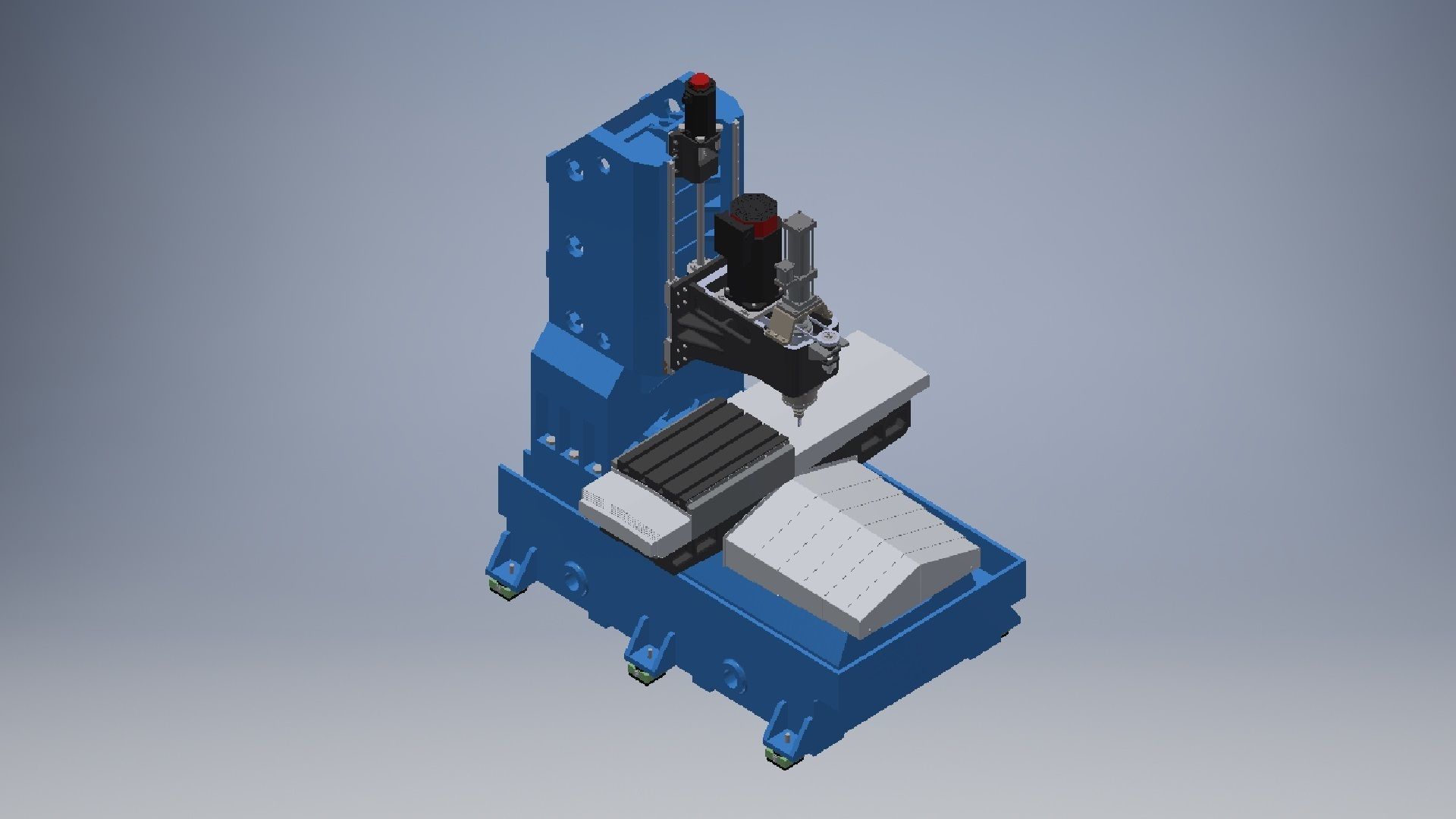

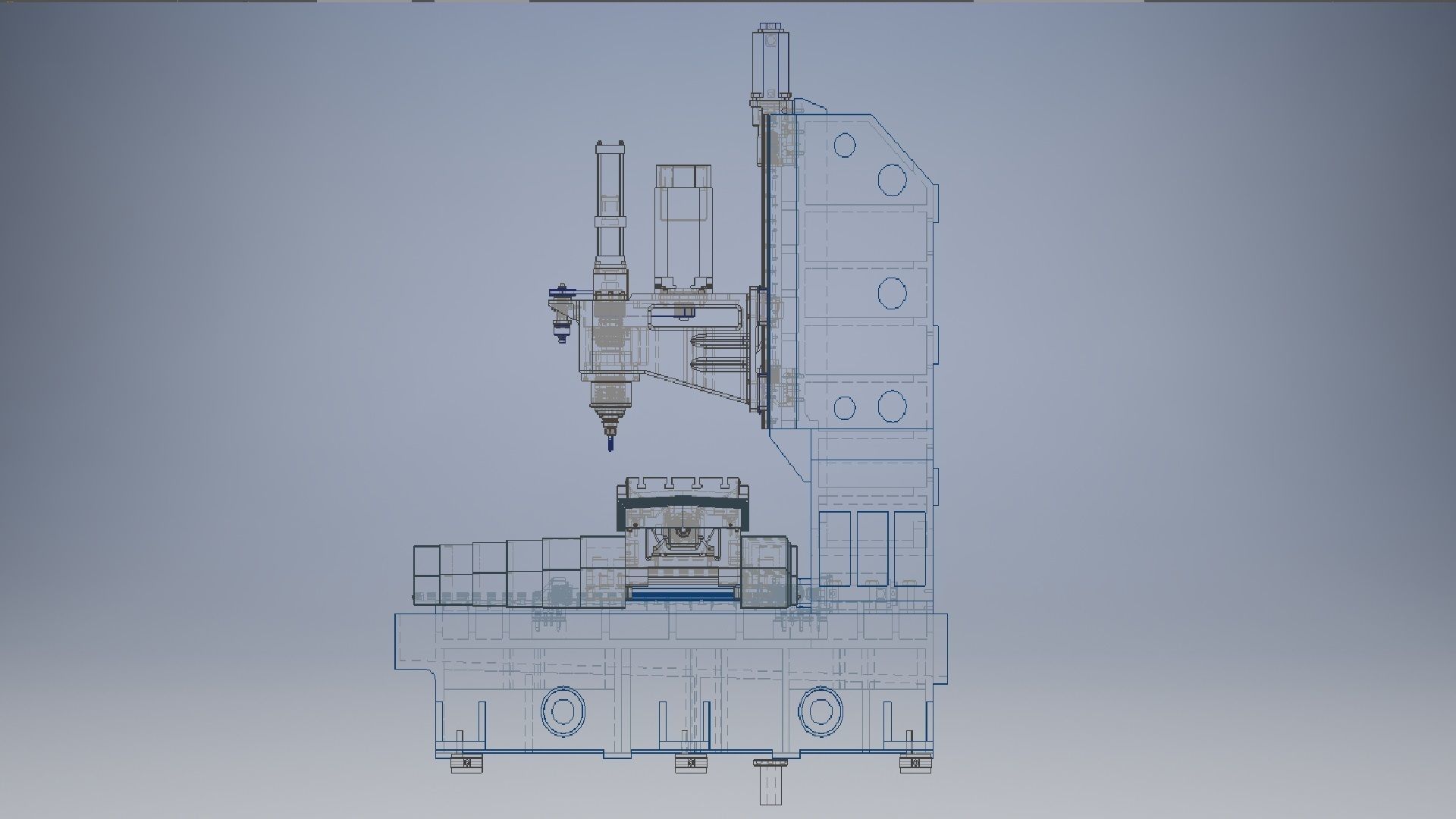

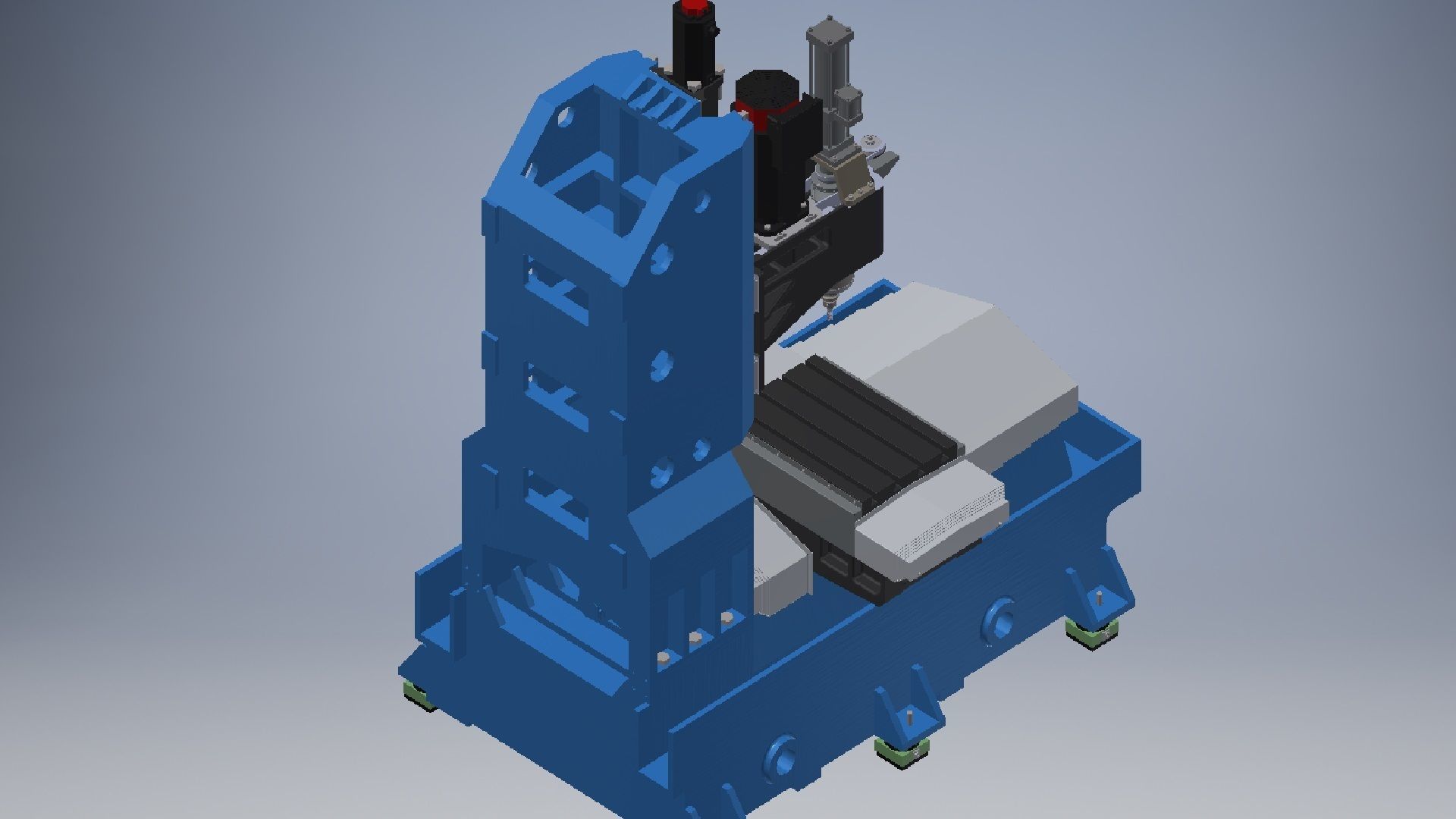

Vertical Drilling Milling Machine 3D model

When the vertical milling machine processes the workpiece, the movement of the milling cutter and the workpiece cooperate, through milling tool rotation, and the workpiece moves forward, backward, left and right on the worktable to process the metal workpiece. With different cutting tools and accessories, it can carry out various types of machining, which is widely used in metal cutting.

Cylindrical milling cutter milling plane, end milling cutter milling step, keyway milling cutter milling keyway, T-groove milling cutter milling T-groove, dovetail groove milling cutter milling dovetail, gear milling cutter milling gear, thread milling cutter milling thread, spiral surface, curved surface and cavity.

The vertical milling machine has three axis, XYZ, also known as the three-axis milling machine. The left and right movement of the workbench is the X axis, the front and back movement is the Y axis, and the up and down movement is the Z axis, also known as the knee type milling machine. The movement of the worktable can be realized by the hand wheel. The worker manually rotates the hand wheel and drives the worktable to move through the lead screw and nut, the tool feeder can be installed to realize automatic feeding. If you want to display the moving distance of the workbench externally through the display table, you can install a digital display ruler to realize the digital display of displacement.
