Oil And Gas Heat Exchanger Saddle Engineering Design 3D model

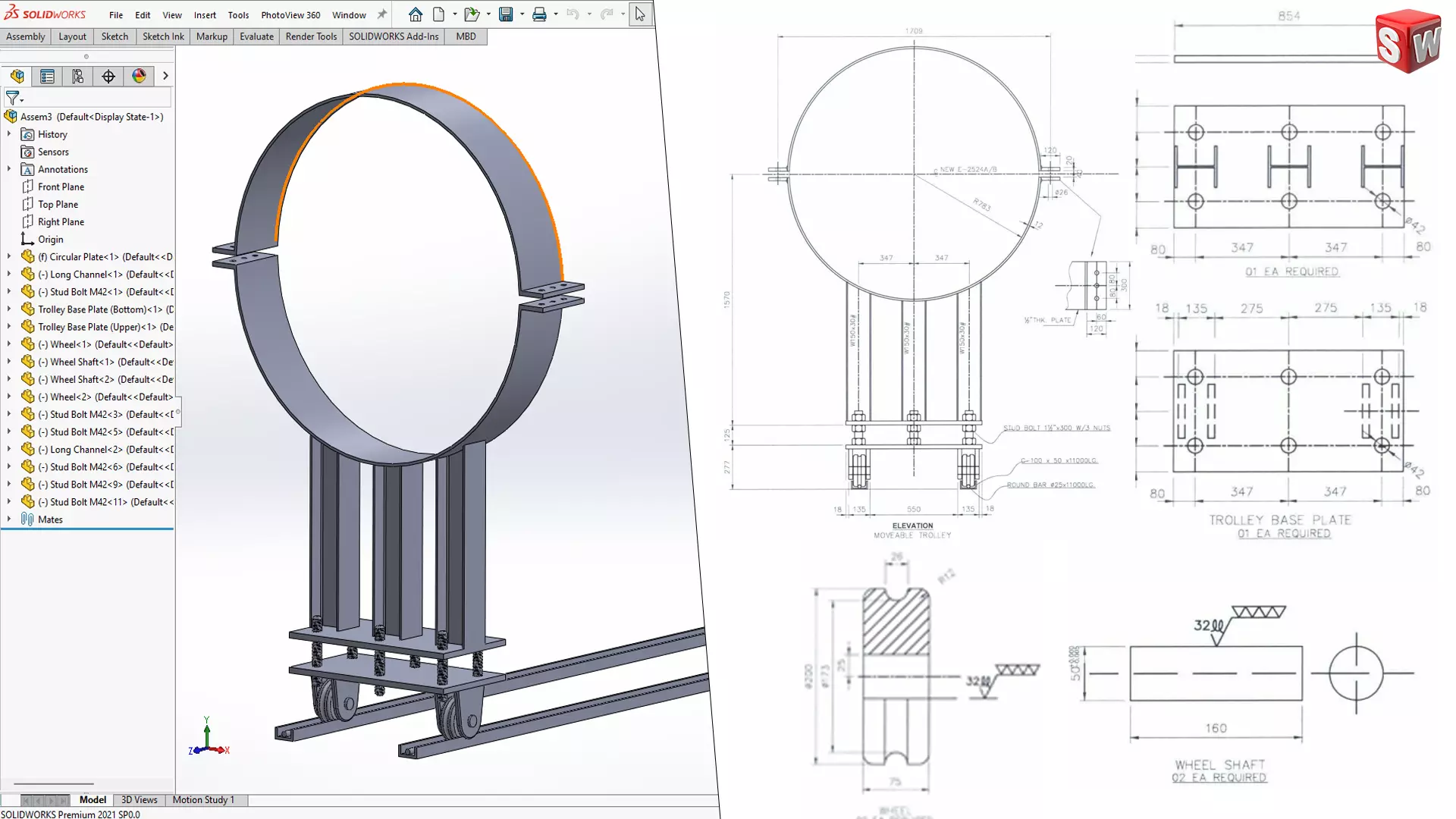

This 3D model of the Heat Exchanger Saddle has been created using SolidWorks latest version, a powerful 3D modeling software. Solidworks allows for precise and detailed modeling, making it an ideal tool for engineering designs like this one. The Heat Exchanger Saddle model was designed with accuracy to reflect real-world dimensions and specifications.

In the creation process, various SolidWorks tools and features were utilized, including advanced mesh modeling, modifiers for symmetry and smoothness, and precise measurements to ensure the model adheres to engineering standards. The design likely involved careful consideration of the structural elements needed for the saddle's support role in the heat exchanger system. Texturing, rendering, and possibly even simulation tools within Blender were employed to visualize the end product in a realistic way.

It is alos designed with Blender for learning purposes and industries that would like to use the model in safety tutorials, etc.

High-quality and realistic model

Blender native file, .mtl , .fbx and .obj files are included

#saddle #heatexchanger #oilandgas
