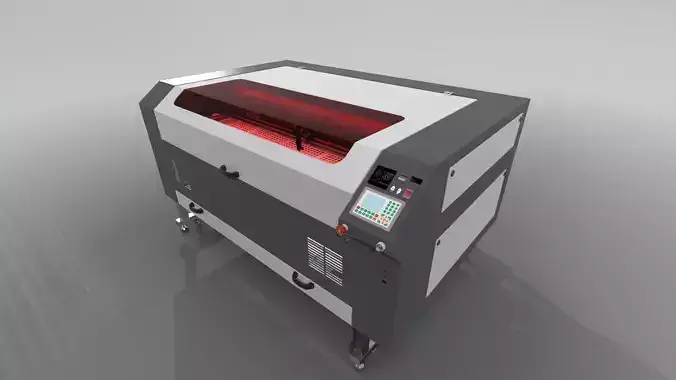

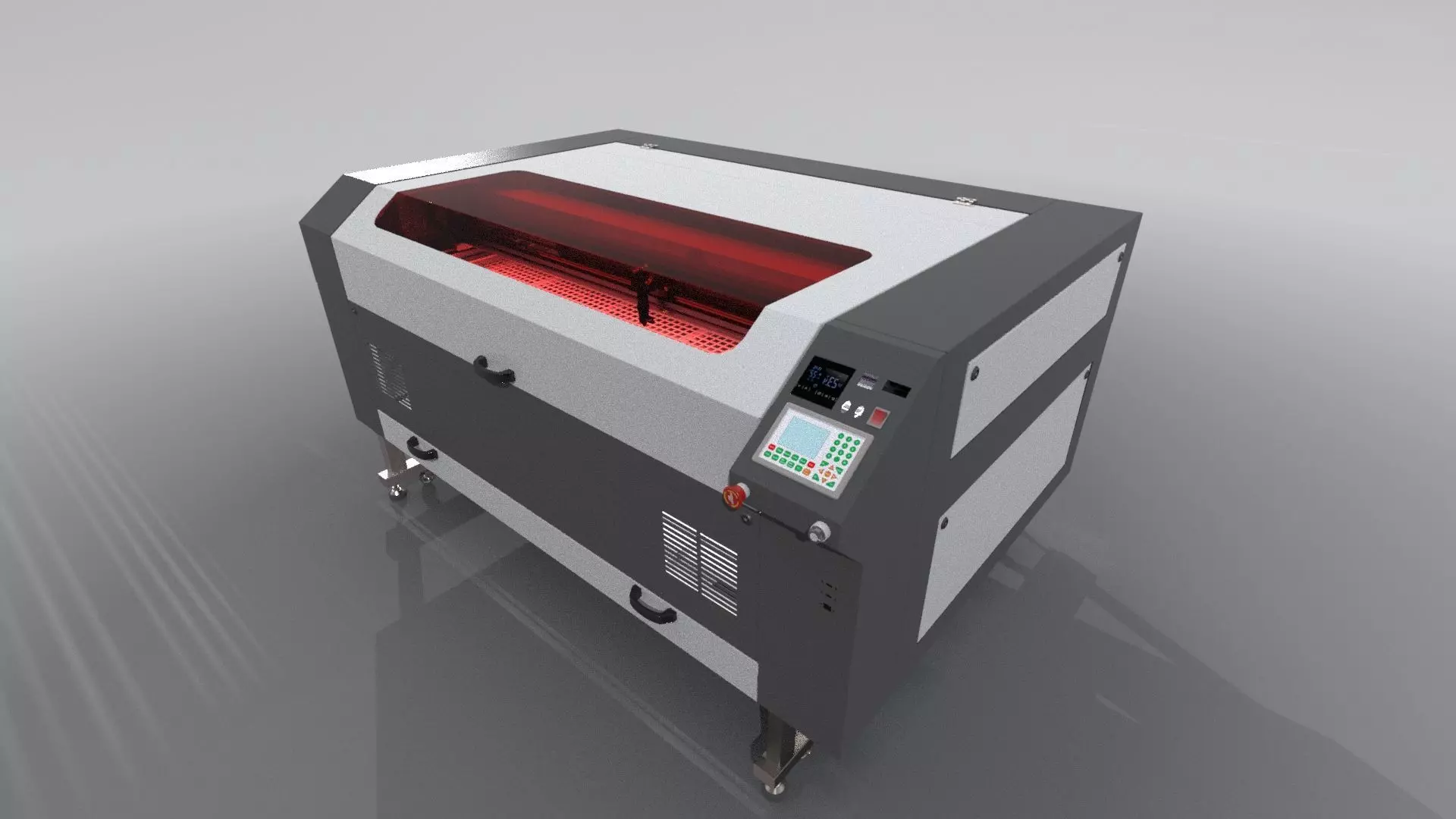

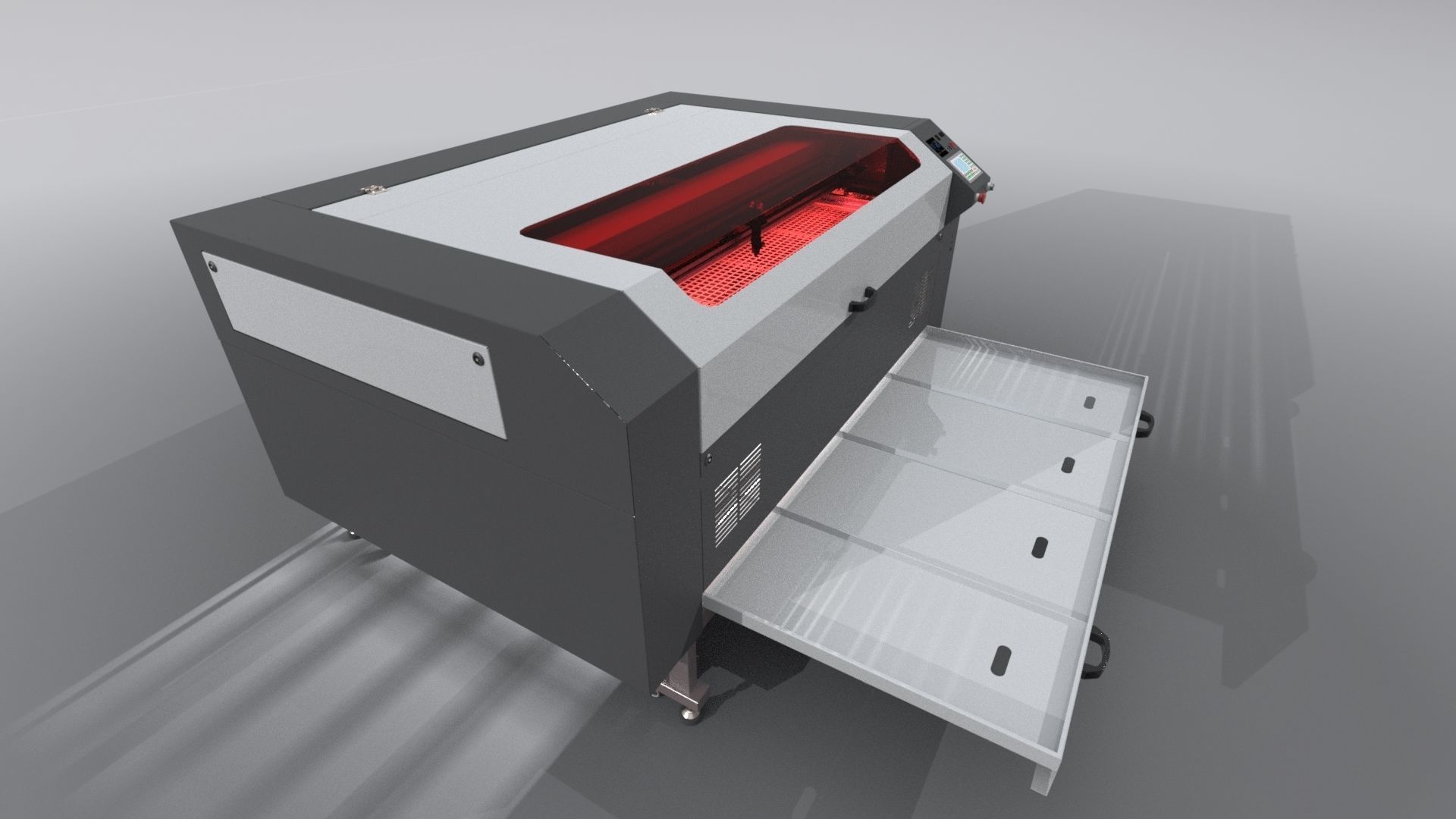

Laser machine CO2 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

Laser machine for cutting and engraving of non-metallic materials (wood, plywood, organic glass, leather, cloth, etc.).

  • Working area: 1600 x 1000 mm,
  • Dimensions: 2080 x 1435 x 1110 mm,
  • The work surface is movable to the Z axis - up to 250 mm,
  • The laser bulb is located on the X axis, ensuring high cutting quality throughout the field.

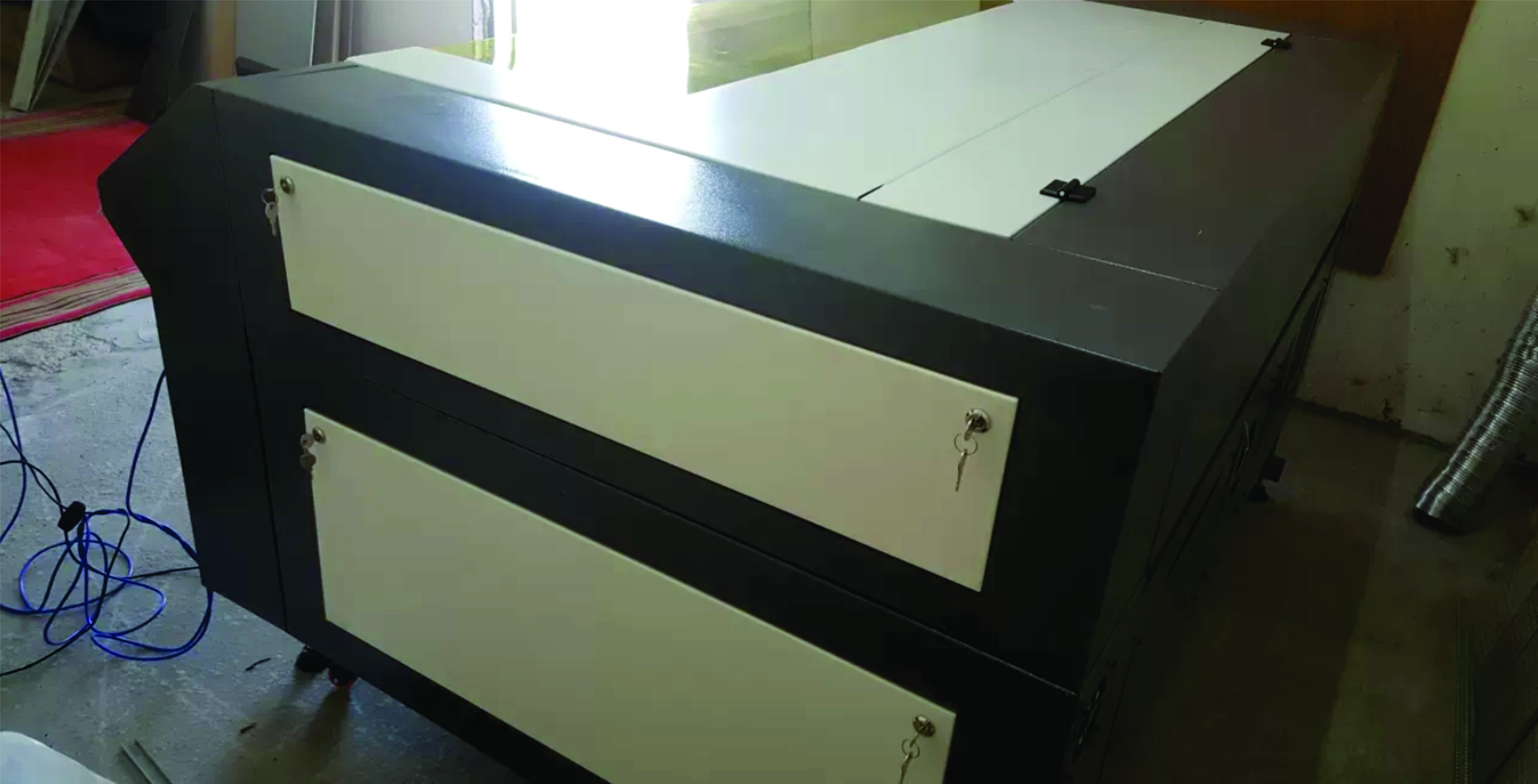

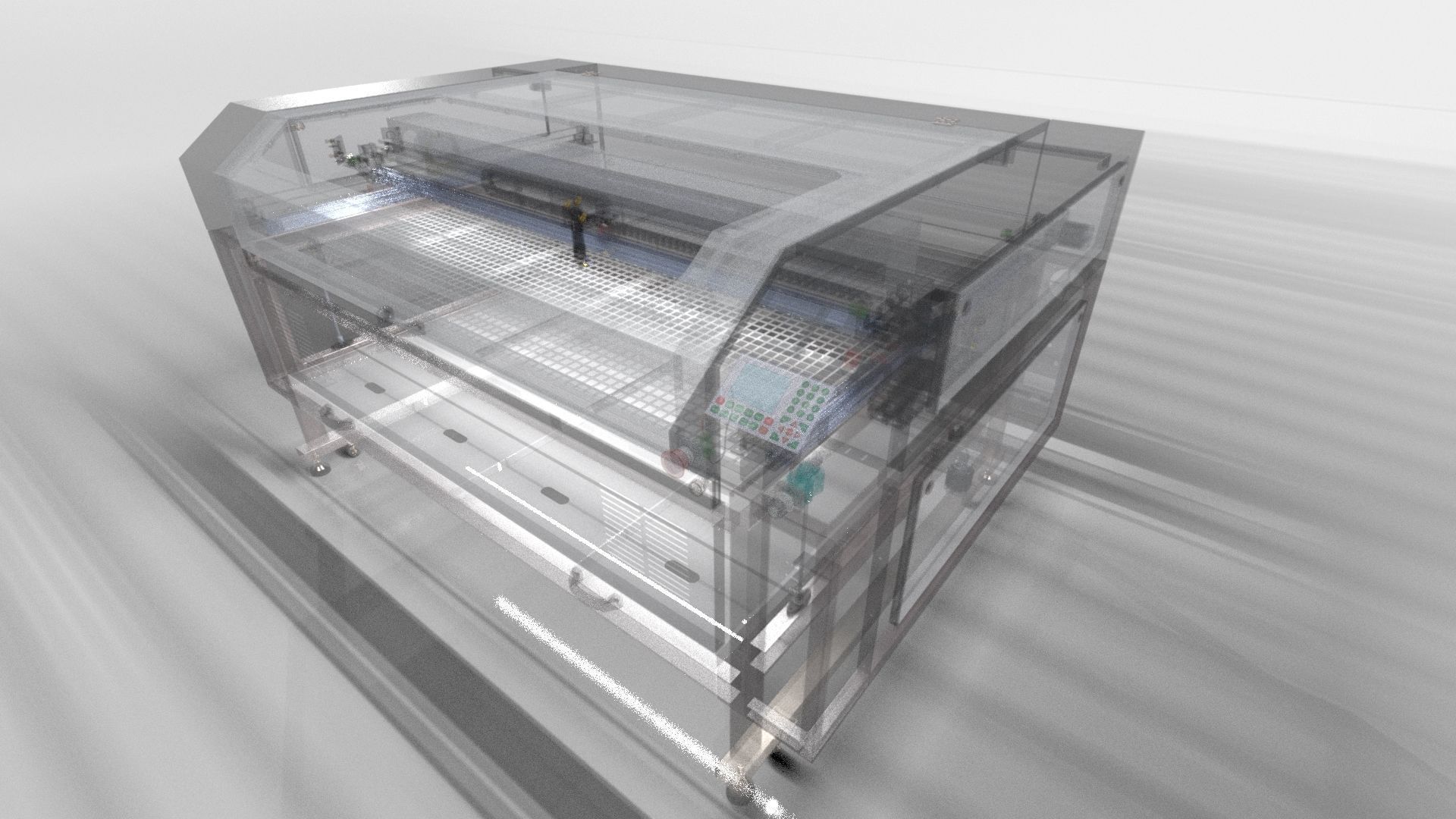

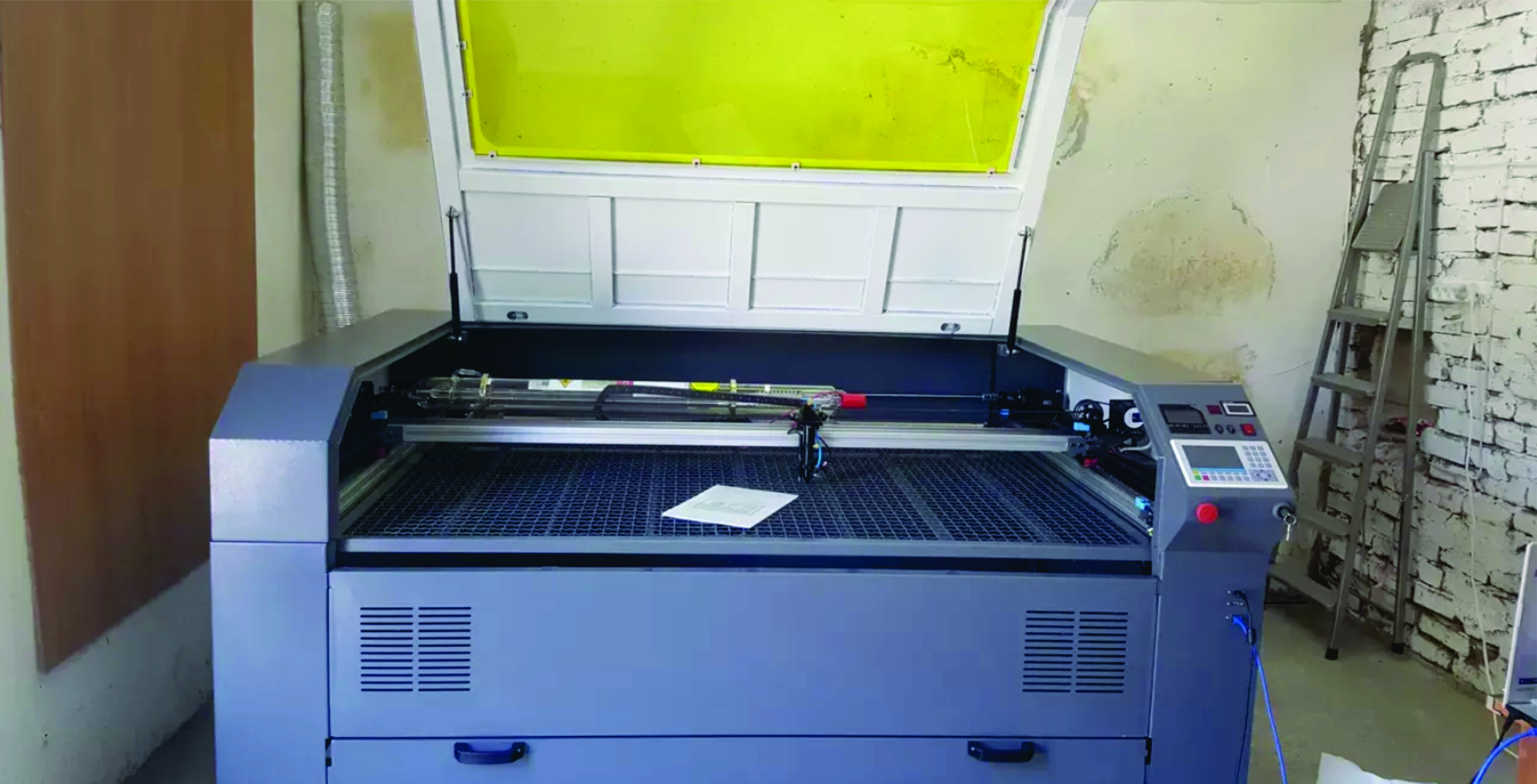

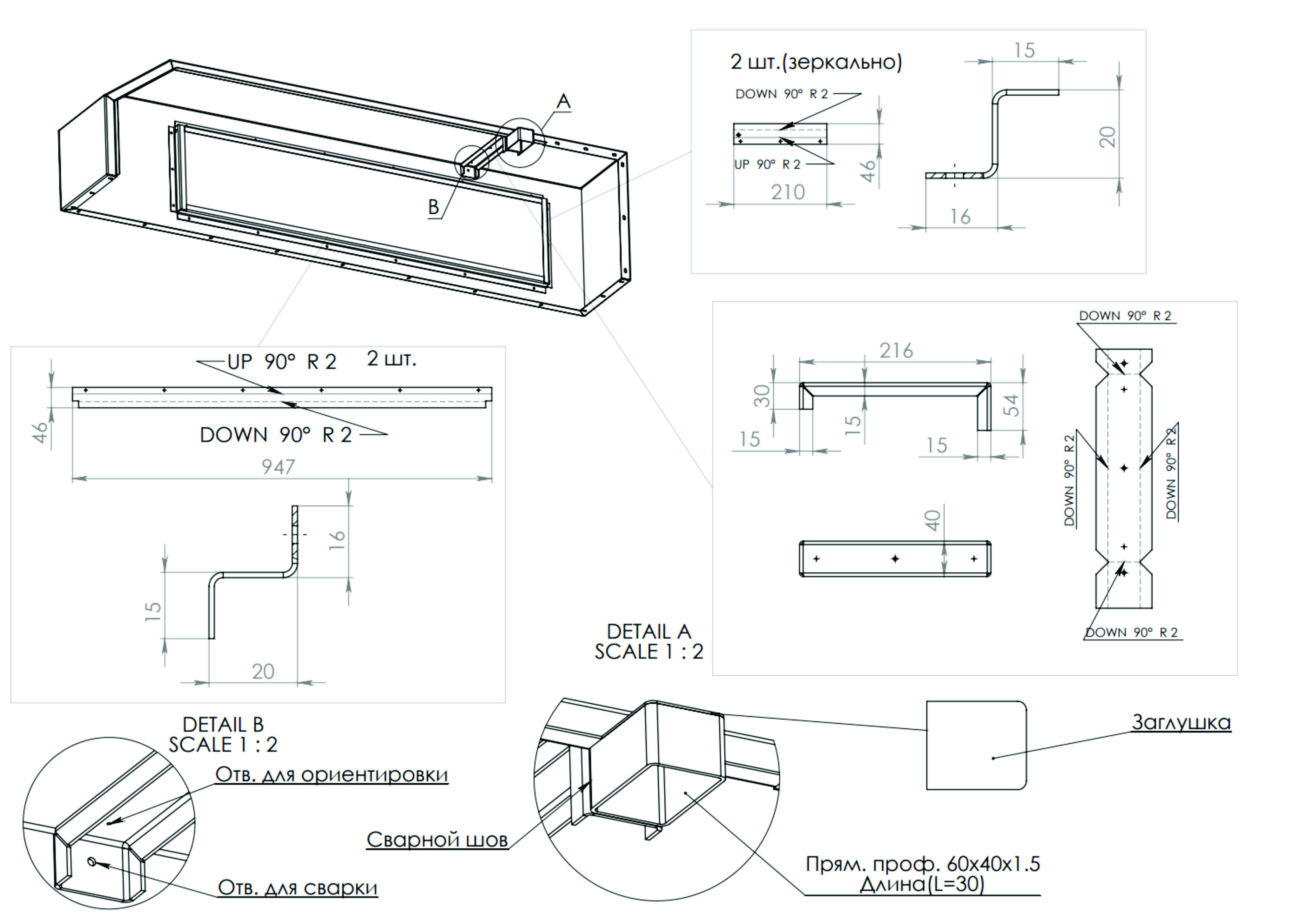

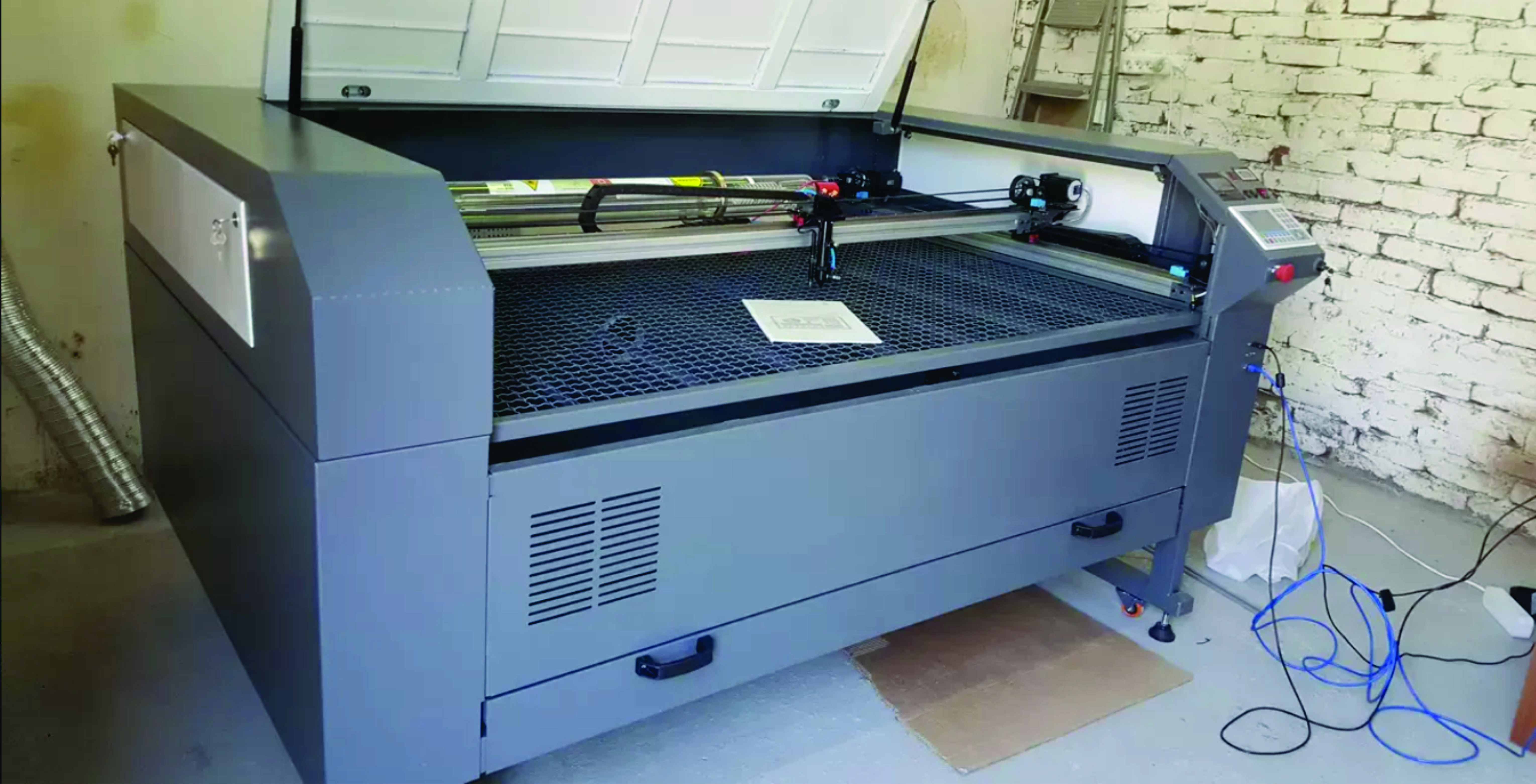

Modeled in Solidworks 2018.Sheathing and main parts are modeled using tool tab sheet metal.There is serial production which based on this model. One of it presented in preview images.Тhe package includes a 3D model, .dxf files of sheet components (for cutting with a cnc machine) and machine drawings (PDF).

Buy and use it!

Thank you!
