2.5 Tons L Type Welding Positioner

Introduction

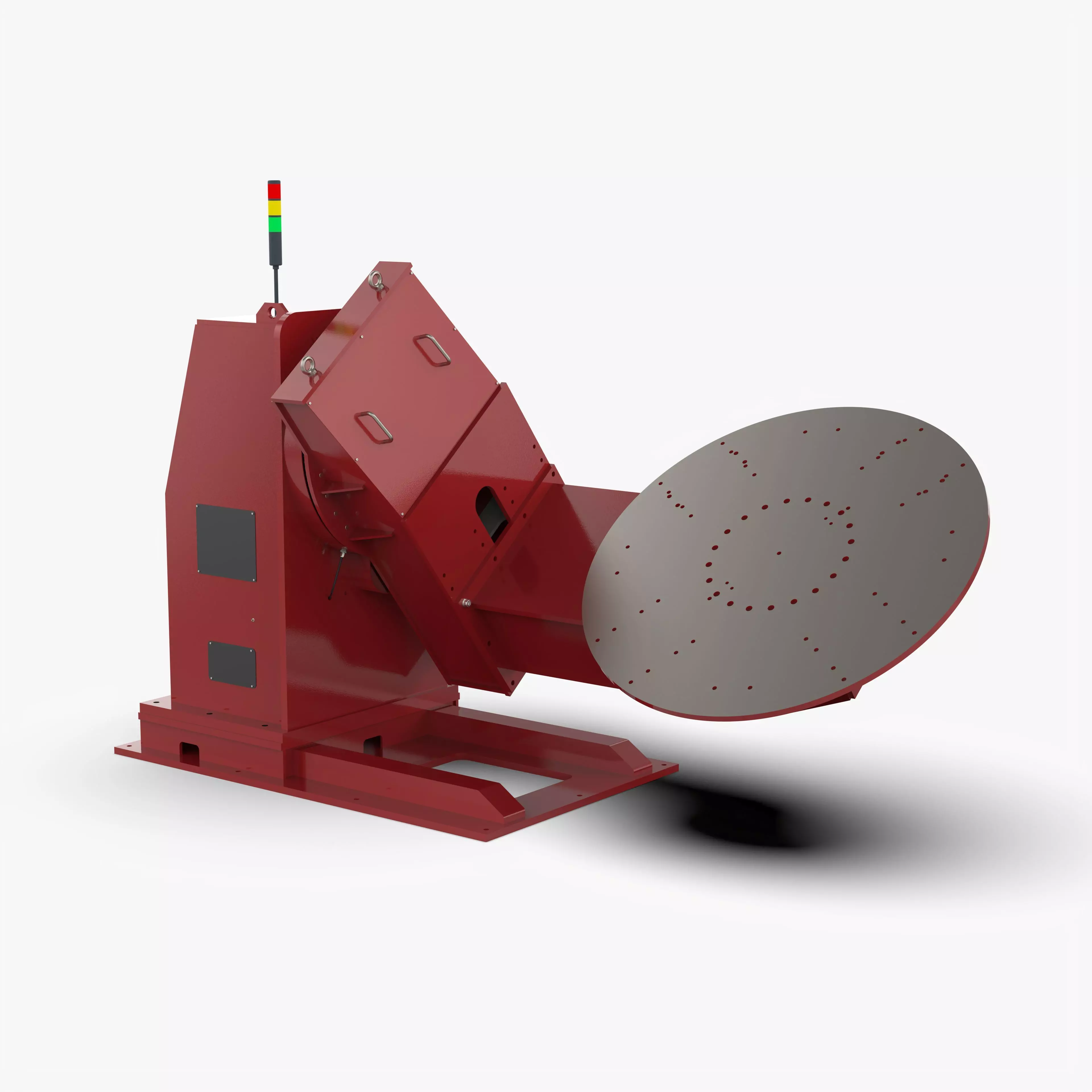

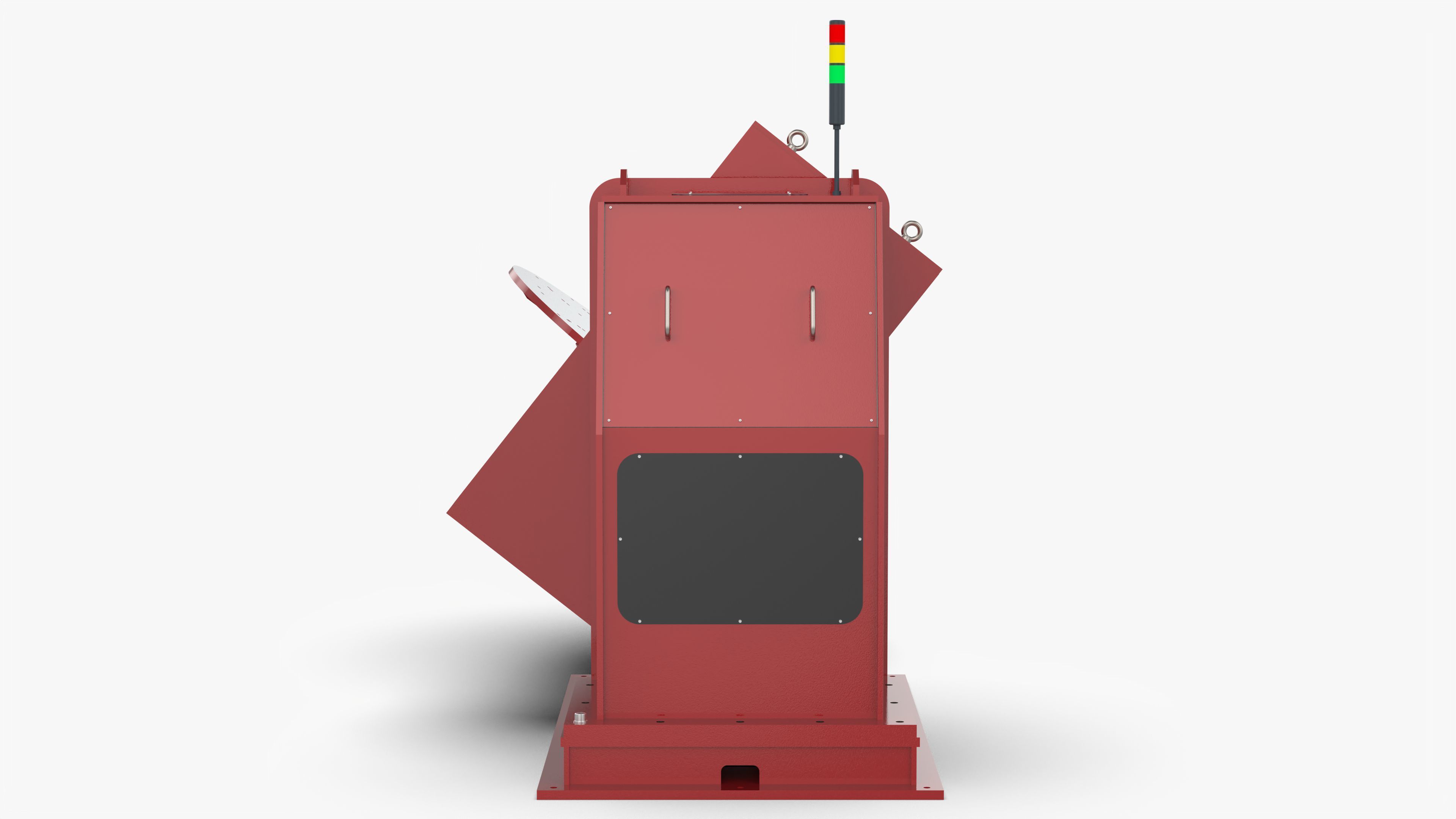

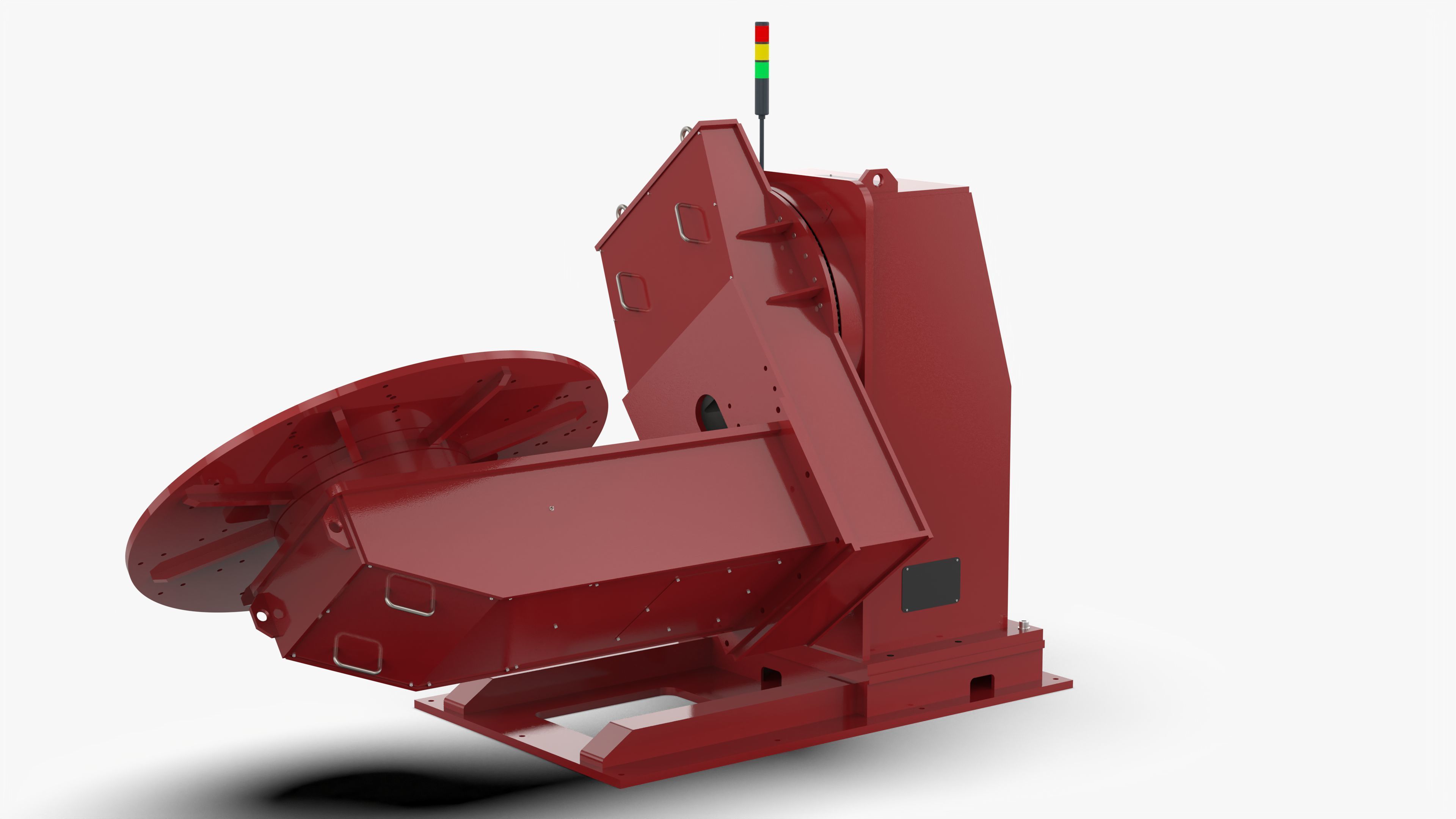

The welding positioner is a welding piece displacement machine that rotates and tilts the workpiece so that the weld on the workpiece is placed in a favorable position for welding. It is mainly used for flipping and welding of workpieces, and can be used in conjunction with welding robots. It can also be used for assembly, cutting, inspection, etc. The 2.5-ton L-type welding positioner can weld a workpiece with a maximum weight of 2.5 tons. The worktable of the positioner has a degree of freedom of overall flipping, and the turntable of the worktable also has a degree of freedom of rotation. The model contains internal detailed structures such as frame, motor, reducer, gear, etc. There are 131 parts models and 25 assembly models, the format is solidworks2012, and production can be produced according to the model.
