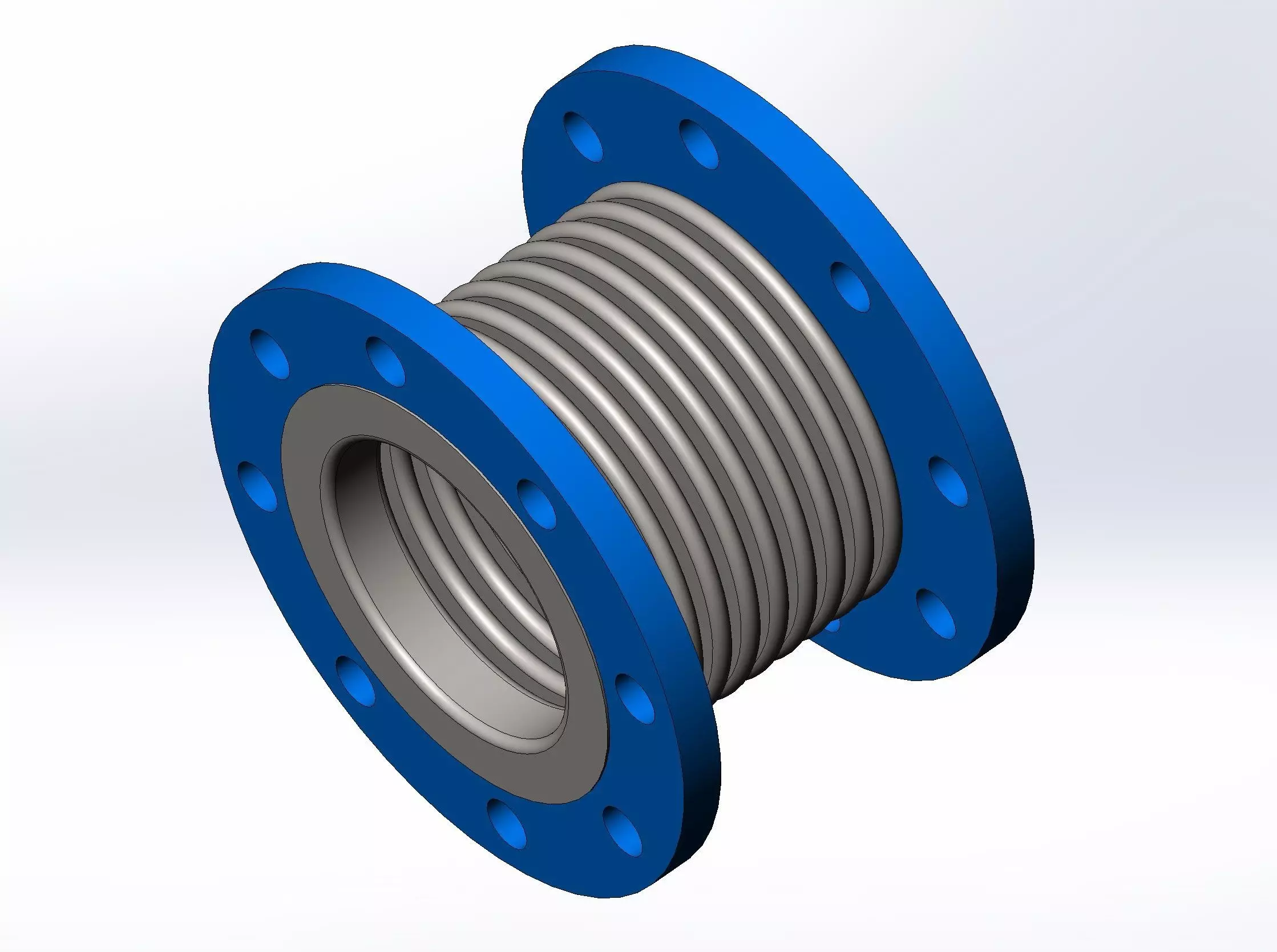

Kit CAD – Junta de Expansão Flangeada (2.1/2a 12)

Arquivos digitais em STEP (.stp) e SolidWorks (.SLDPRT).

Pacote contendo modelos de juntas de expansão flangeadas para sistemas de tubulação industrial, com variação de diâmetros nominais de 2.1/2até 12, desenvolvidas conforme aplicações industriais e boas práticas de engenharia.

Modelos projetados em CAD profissional, indicados para projetos de engenharia mecânica, tubulação industrial, detalhamento técnico e fabricação.

Conteúdo do kit:

Juntas de expansão flangeadas

Diâmetros nominais incluídos:2, 2.1/2, 3, 4, 5, 6, 8, 10 e 12"

Arquivos disponíveis nos seguintes formatos:9 arquivos em formato STEP (.stp)9 arquivos em formato SolidWorks (.SLDPRT)

Total de 18 arquivos digitais

Arquivos organizados em pastas por formato

Vantagens:

Modelos adequados para sistemas de tubulação industrial

Geometria precisa e padronizada

Compatíveis com softwares CAD, CAM e CAE

Arquivos nativos do SolidWorks, fáceis de editar e adaptar

Prontos para detalhamento, fabricação e integração em projetos

Indicado para:

Engenheiros mecânicos e projetistas de tubulação

Técnicos industriais e de manutenção

Estudantes de engenharia

Empresas de montagem e manutenção industrial

Produto 100% digital – acesso imediato após a compra.
