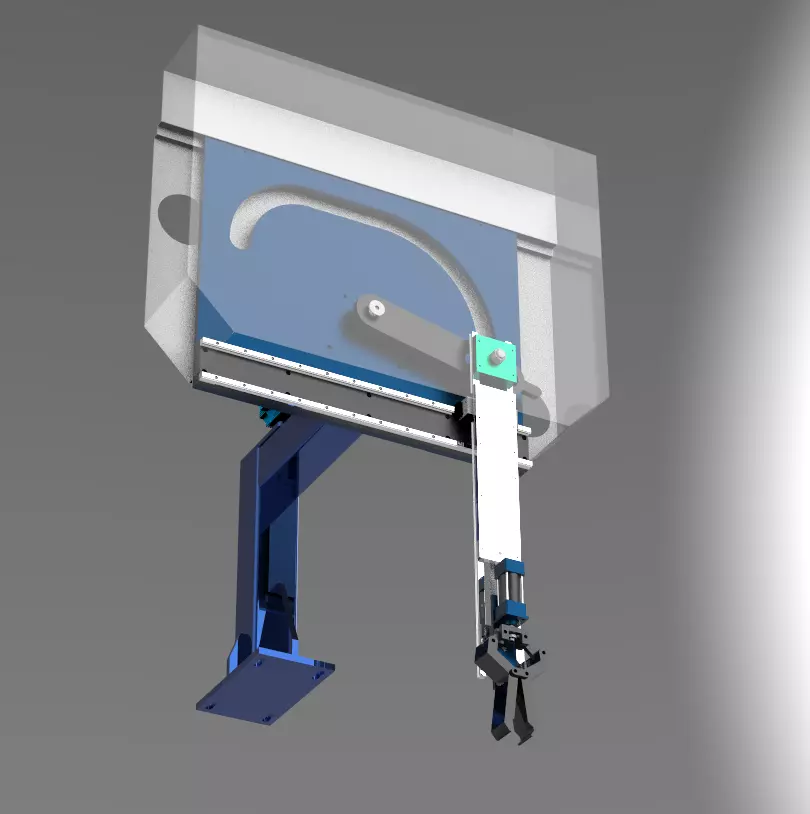

Upgrade your automation line with this highly efficient Servo Driven Swing Arm Transfer Mechanism. Designed to completely replace traditional 3-axis linear module systems, this mechanism offers a streamlined, robust solution for automated loading, unloading, and high-speed material transfer operations.

Technical Specifications (Based on Field-Tested Data):

--Vertical Lift (Z-Axis): Approx. 266 mm

--Horizontal Reach (Stroke): Approx. 540 mm (Full 180-degree swing coverage / double radius)

--Max Payload: 15 kg (Field-tested heavy-duty capacity; operates effortlessly and ensures long-term durability)

--Max Cycle Rate: Up to 60 cycles/min (High-speed continuous transfer)

--Drive System: 1.5kW Servo Motor with 1:5 Planetary Reducer

Key Engineering Advantages:

--Cost Effective: By replacing three separate linear modules with a single servo-driven cam mechanism, it drastically reduces hardware and maintenance costs.

--Faster Cycle Times: The continuous swing motion eliminates the stuttering start-stop delays typical of multi-axis linear movements.

--Exceptional Precision: Guided by a precisely calculated curved track, the pneumatic gripper delivers pinpoint accuracy at both ends of the stroke.

--Industrial Durability: Engineered for 15kg heavy payloads. Fewer independent moving parts mean less wear and tear, ensuring robust long-term industrial reliability.

Model Details:

--Native Format: SolidWorks (Fully structured, production-ready assembly).

--Includes: Detailed pneumatic gripper assembly (toggle linkage) and heavy-duty linear guide rail system.

--Target Audience: Perfect for mechanical engineers, automation integrators, and machine builders looking for proven, field-tested transfer concepts.
