Technical 3D Model for EPC Engineering DocumentationPlastic Filter Housing – Single 20 Inch PP Cartridge

This is a fully detailed technical 3D model representing an industrial single-cartridge plastic filter housing (20 inch PP cartridge type), developed specifically for EPC engineering documentation and industrial plant design workflows.

The model is created with a real-world engineering mindset, reflecting actual equipment used in industrial water treatment and process systems. Geometry, proportions, and interfaces are aligned with practical installation and maintenance considerations commonly found in operational plants.

It is suitable for integration into mineral water production lines, pharmaceutical water systems, food & beverage processing plants, and light chemical engineering facilities, where compact pre-filtration or polishing filtration units are required.

The assembly includes:

Accurate mechanical housing geometryCorrect inlet/outlet connection positionsRealistic cartridge enclosure proportionsSimplified yet engineering-consistent details for fast layout and documentation work

While optimized for clean visualization and performance, the model preserves engineering logic, making it suitable for both conceptual design and detailed layout stages.

Engineering Scope & Use CasesEPC tender and proposal drawingsP&ID and process flow diagram references3D plant layout and skid arrangementEquipment clearance and spatial coordinationDigital twin and visualization for client presentation

The model is intentionally designed to balance realism and efficiency — detailed enough for engineering communication, yet lightweight enough for large-scale plant assemblies.

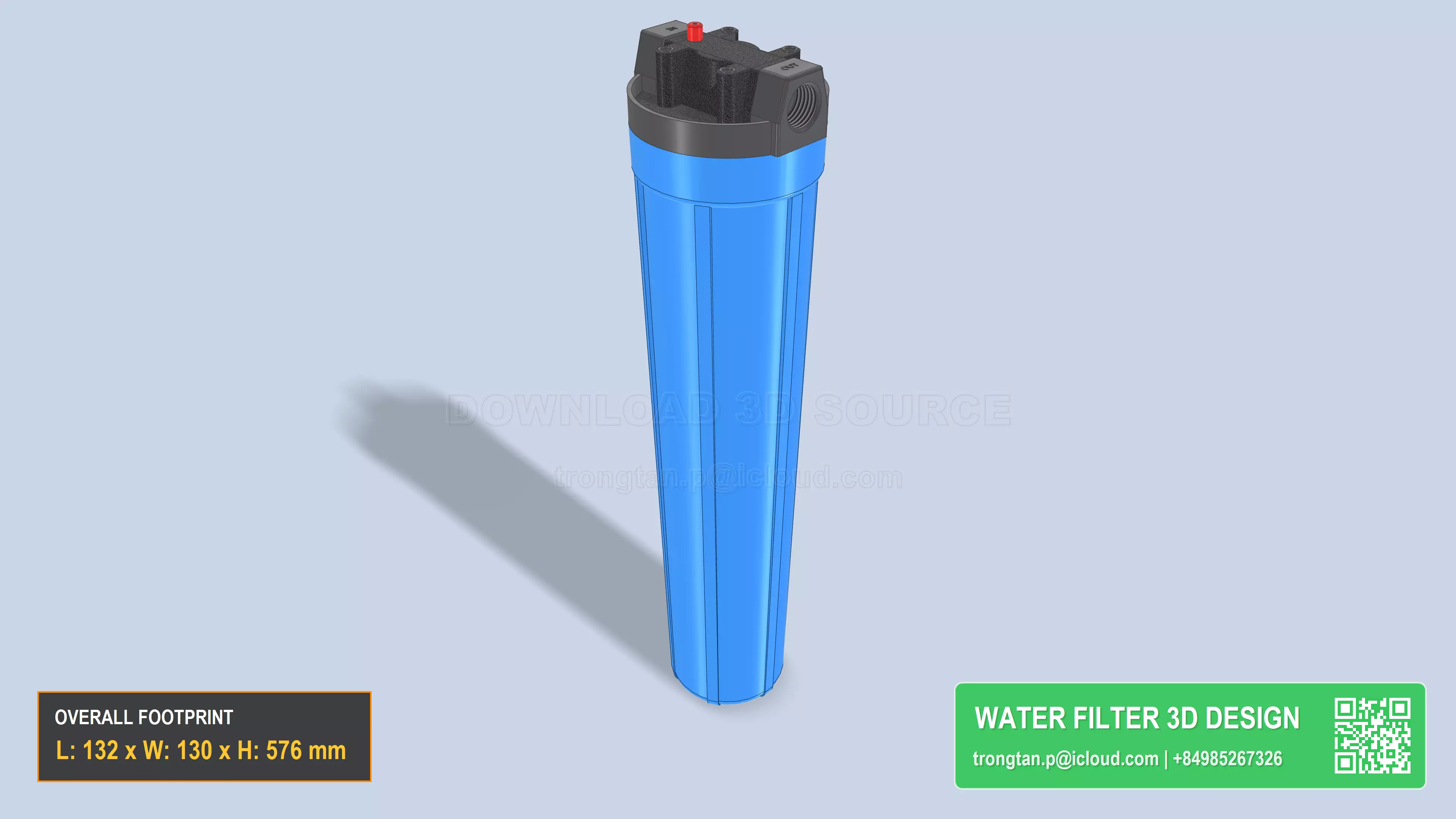

Specifications (Real-World Metrics)Equipment Type: Plastic Filter Housing – Single CartridgeCartridge Size: 20 Inch PPPhysical Footprint (L × W × H): 130 × 132 × 576 mmEngineering Complexity:3 individual mechanical componentsClean part separation for BOM and assembly referenceScale: 1:1 (Engineering Metric Standard)

All dimensions are based on realistic industrial references, ensuring compatibility with standard piping layouts and equipment spacing.

Formats & Technical MetadataSTEP AP214 – Maintains color information, ideal for professional CAD and EPC workflowsIGES – Legacy-compatible format for SolidWorks, AutoCAD, and older CAD environmentsSTL (High Resolution) – Suitable for 3D printing and detailed previewsOBJ / FBX – Optimized for rendering, animation, and real-time visualizationApplication ReadinessReady for immediate P&ID tagging and referenceCompatible with plant layout, skid design, and BIM-style coordinationIdeal for engineering documentation, client presentations, and digital asset libraries
