DESCRIPTION

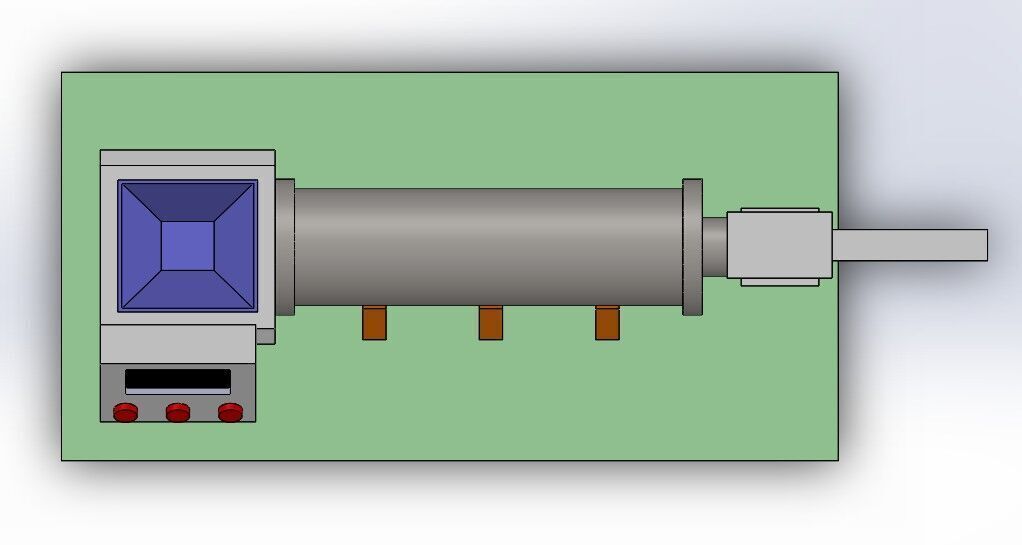

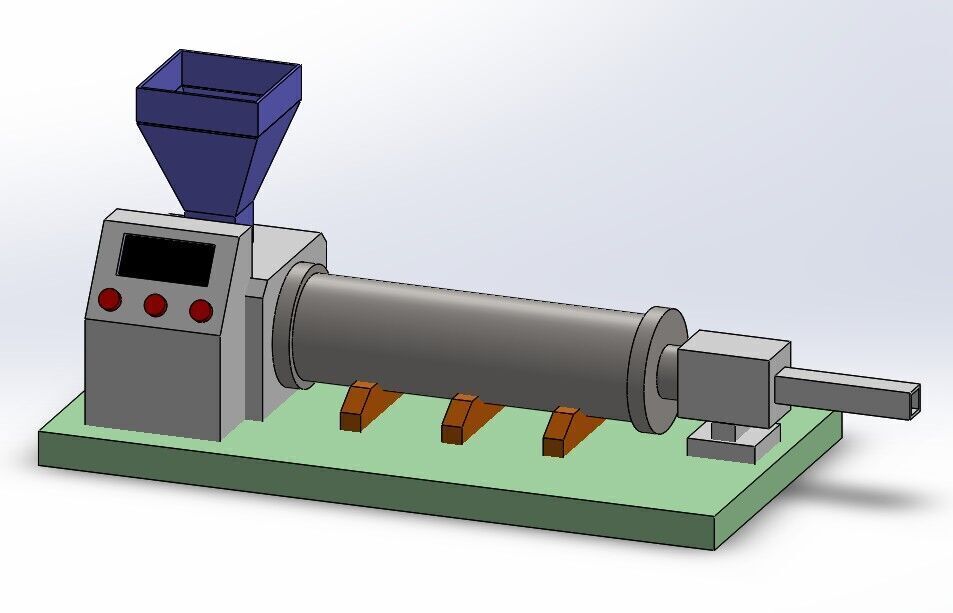

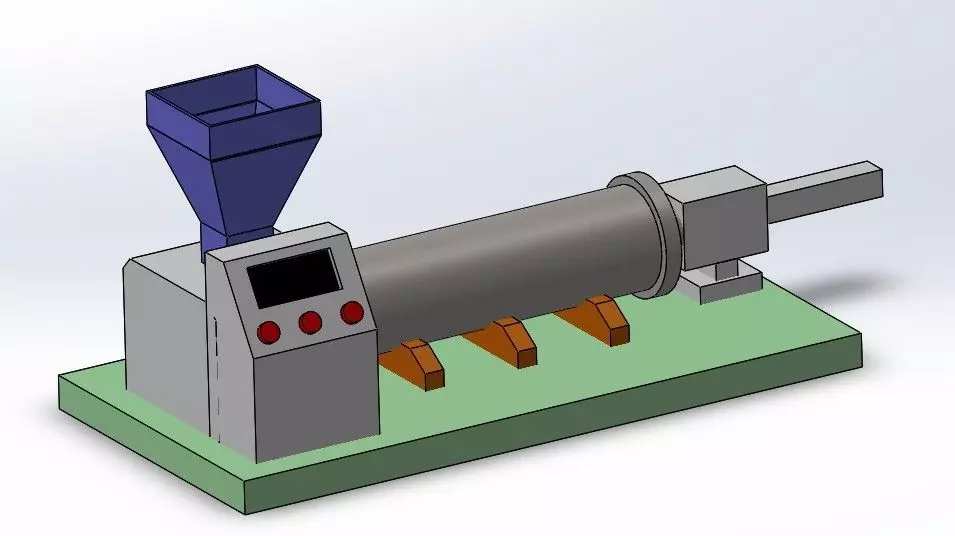

This is a highly detailed 3D model of an industrial extrusion machine, designed in SOLIDWORKS 2022 and exported in STEP format for universal compatibility. Perfect for educational, simulation, industrial design, and manufacturing visualization projects.

Model Features:

Base Structure: A strong foundation providing stability for all machine components.

Heater Block: Mounted on the base, this part ensures the barrel reaches optimal temperature for material processing.

Feeding Hopper: Designed for efficient material loading into the extrusion system.

Extrusion Barrel: The main chamber where materials are mixed, melted, and prepared for extrusion.

Extrusion Die: Located at the end of the barrel to shape the final extruded product.

Control Unit: Equipped with a display screen and functional buttons for operating and monitoring the machine.

This model is ideal for training simulations, factory visualizations, 3D educational content, manufacturing process demonstrations, and game environments featuring industrial machinery.

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

Industrial Extrusion Machine 3D Model STEP File 3D model
