DESCRIPTION

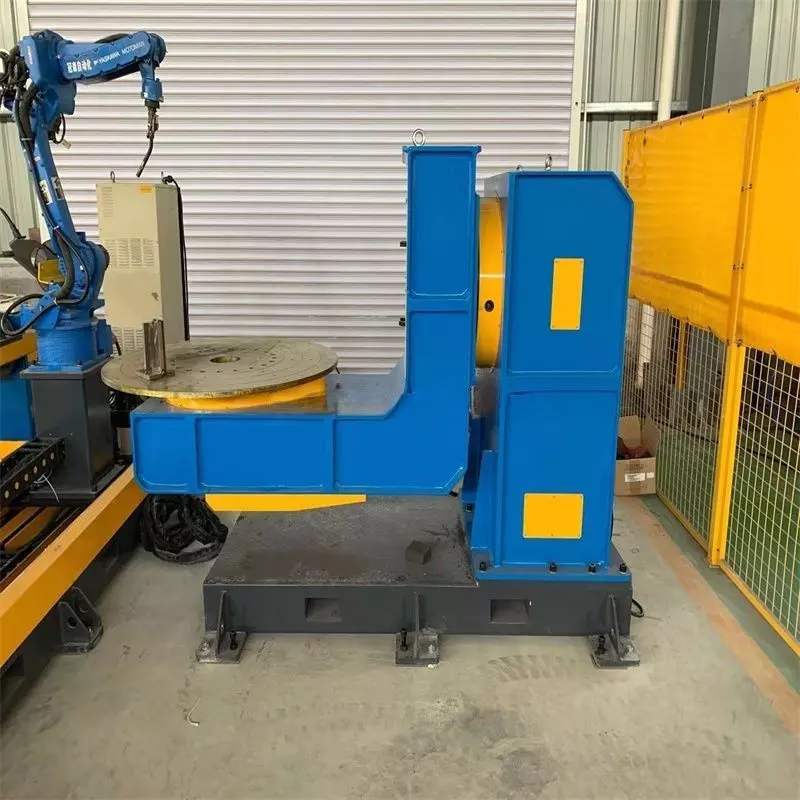

This high-precision 3D CAD model showcases an industrial arc-welding robot control system paired with a versatile 300 kg – 5 T L-type positioner, engineered to fully automate the welding of exhaust and tail pipes. Designed for manufacturers and fabricators, the model includes:• Parametric geometry for easy customization and integration• Detailed control-panel layout with all wiring and sensors• Realistic kinematics of the L-type positioner, supporting payloads from 300 kg up to 5 tonnes• Optimized tool-path simulations for seam-tracking on curved pipe surfaces• Exportable in STEP, IGES, and native CAD formats for seamless workflow integrationIdeal for improving throughput, consistency, and weld quality in automotive exhaust-system production lines.

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

Industrial 5T L-Type Positioner for Automatic Welding Robot 3D model

Royalty Free License (no AI)
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
Native file format
SLDPRT
Size: 33.6 MB
2018
Exchange formats
IGE
IGES<br />Version: 2018<br />File Size: 81.4 MB
X_T
Parasolid<br />Version: 2018<br />File Size: 15 MB
STL
Stereolithography<br />Version: 2018<br />File Size: 29.9 MB
OTHER
Other | 2 files<br />File Size: 51.2 MB
STP
STEP<br />Version: 2018<br />File Size: 44.3 MB
Provided by designer
Information and details shared directly by the model's designer.
3D Features
Animated
The model includes animations (movement or actions) that can be played in supported software or engines.
Rigged
The model has a skeleton or bone structure, making it ready for posing or animation.
Low-poly
PBR
Uses Physically Based Rendering materials, which give the model realistic lighting and surface properties.
Textures
The model includes image files (textures) that add color, patterns, or detail to its surfaces.
Materials
The model has material settings that define how surfaces look (color, shine, transparency, etc.).
UV Mapping
The model's surfaces are mapped to a 2D image, allowing textures to display correctly.
Plugins Used
Some external plugins were used to create the model. These may be required for full functionality.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is not 3D printable
The designer indicates this model is intended for digital use only (rendering, animation, or AR/VR) and not for 3D printing.
