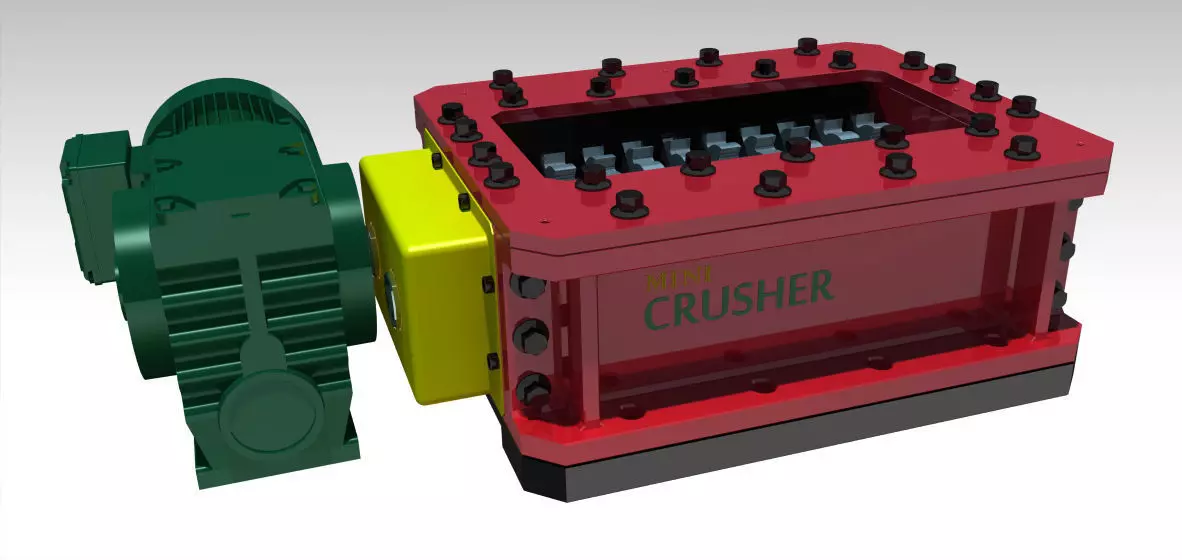

Crusher 3D model
DESCRIPTION

Mini Crusher MetalNew concept crusher that can be customized. Can increase width by adding blade. And also change the size of the blade thickness. The size of the frame and shaft follows the addition and thickness of the blade and spacer.

  • Small Size : (576/452 x 310 x 176) mm
  • In-out Materail : (304 x 150) mm
  • 2 Shafts with 20 Blades (thickness 15 mm)
  • Blade and shaft integrated with Tappered bearing
  • Shaft Dia motor : 30 mmComplete Drawing :
  • Assembly 3D-CAD (STEP/IGS/SOLIDWORKS) with 32 components
  • All Components 3D-CAD (STEP/IGS/SOLIDWORKS).. 32 MODELs
  • BluePrint components 2D (PDF).. 27 components
  • 2D (DWG).. 27 components
  • 2D (DXF).. 27 components
Related Tagsindustrialtoolequipmentindustryplasticmetalmachineindustrial machine

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

Crusher 3D model

$5.00
Royalty Free License
Created by
abdsalam
abdsalam
(0 reviews)
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
DWG
AutoCAD<br />File Size: 16.4 MB
STP
STEP | 2 files<br />File Size: 10.2 MB
DXF
DXF<br />File Size: 14.3 MB
SLDPRT
SolidWorks<br />Version: 2016<br />File Size: 34.9 MB
IGE
IGES | 2 files<br />File Size: 18.6 MB
PDF
PDF<br />File Size: 7.54 MB
Provided by designer
Information and details shared directly by the model's designer.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is not 3D printable
The designer indicates this model is intended for digital use only (rendering, animation, or AR/VR) and not for 3D printing.
Unwrapped UVs
Unknown
Publish date
2019-12-18
