DESCRIPTION

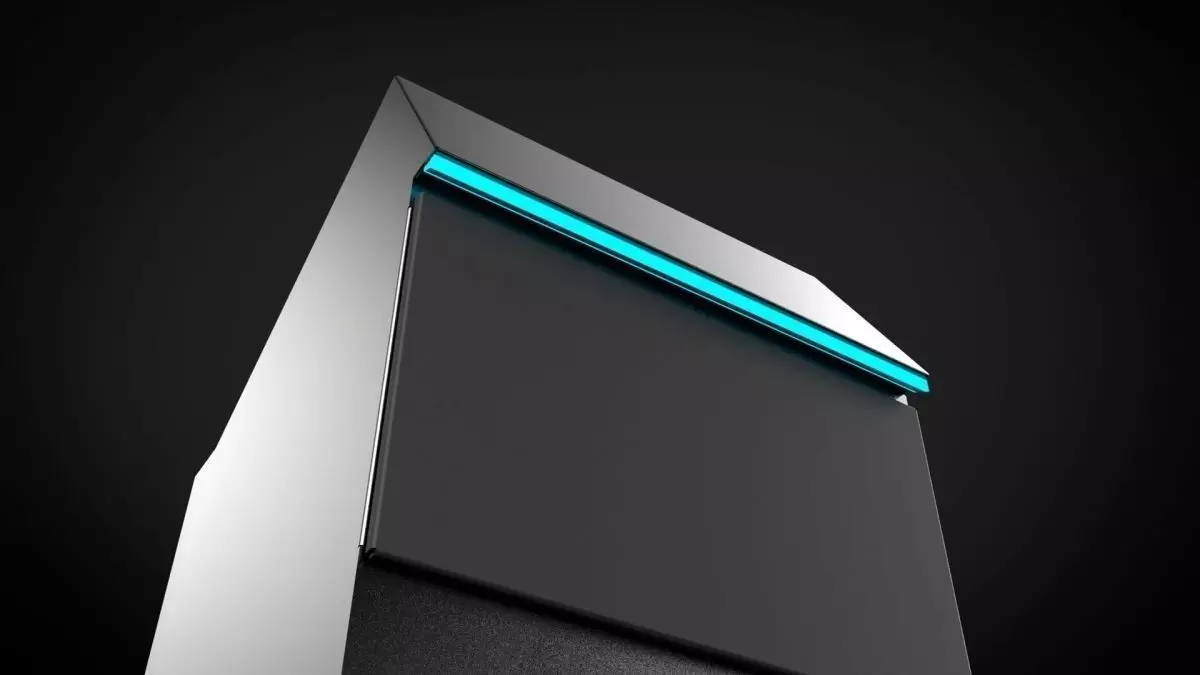

CNC Filtering Machine

This is my own design of CNC Filtering Machine which I desiged at my job. This machine was designed for CNC machines.

Fully editable assembly with all parts and elements ALL PARTS ARE PREPARED TO CONVERT with one click to SHEET METAL.

Then you can check out each part, elemet how it was designed and make your own sheet metal product. Learn then how to create drawing and try create your own assembly to improve your skills.

Very detailed 3D model ready for learning and for use at your applications.

This package has included : - fully editable assembly with CAD/CAM parts (STEP,SATA) - multiformat OBJ - all realistic geometry and refernces was used - all realistic dimensions - learn how to make realistic design

-For more questions please feel free send message
