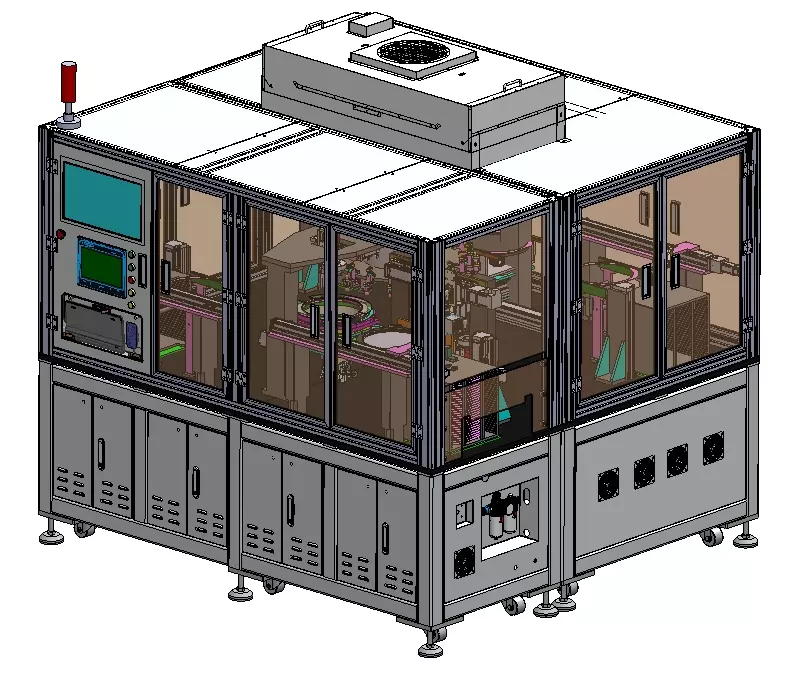

Chip AOI visual inspection machine 3D model

Chip AOI visual inspection machine

1. This testing equipment is FG testing single machine, designed L*W*H=2200mm*2000mm*2000mm (excluding FFU, three-color light)The pressure requirement is 0.4-0.6Mpa, and the input voltage is AC220V-3PH-50/60Hz.
2. The detection device is connected to the cutting process of the front section, reads the one-dimensional code of 1PCS steel plate and binds the two-dimensional code of 4PCS product, and then tests respectively after bindingIR surface (front) and AR surface (back), when the IR surface NG, IR-NG products will be retained on the steel plate, IR-OK productsThe next step of AR surface detection will be carried out. The AR surface detection OK is discharged into the OK steel ring, and the AR surface detection NG is discharged into the NG steel ring. The shooting method includesSquare and diamond patterns are available.
3. Clean the IR surface of the product once before taking the tablet, and clean the AR surface twice after taking the tablet. Gas requirements: nitrogen cleaning method: single piece cleaning;
4. This testing machine is TRAY off-line single machine production mode, easy to install and debug.Expected UPH: Maximum UPH 2760, abnormal incoming materials are excluded. Overkill≤2%, Underkill≤0.2%.
5. The whole cover of the equipment is made of sheet metal and square pass welding paint, and the shelf is composed of aluminum profiles and brown acrylic glass.
