DESCRIPTION

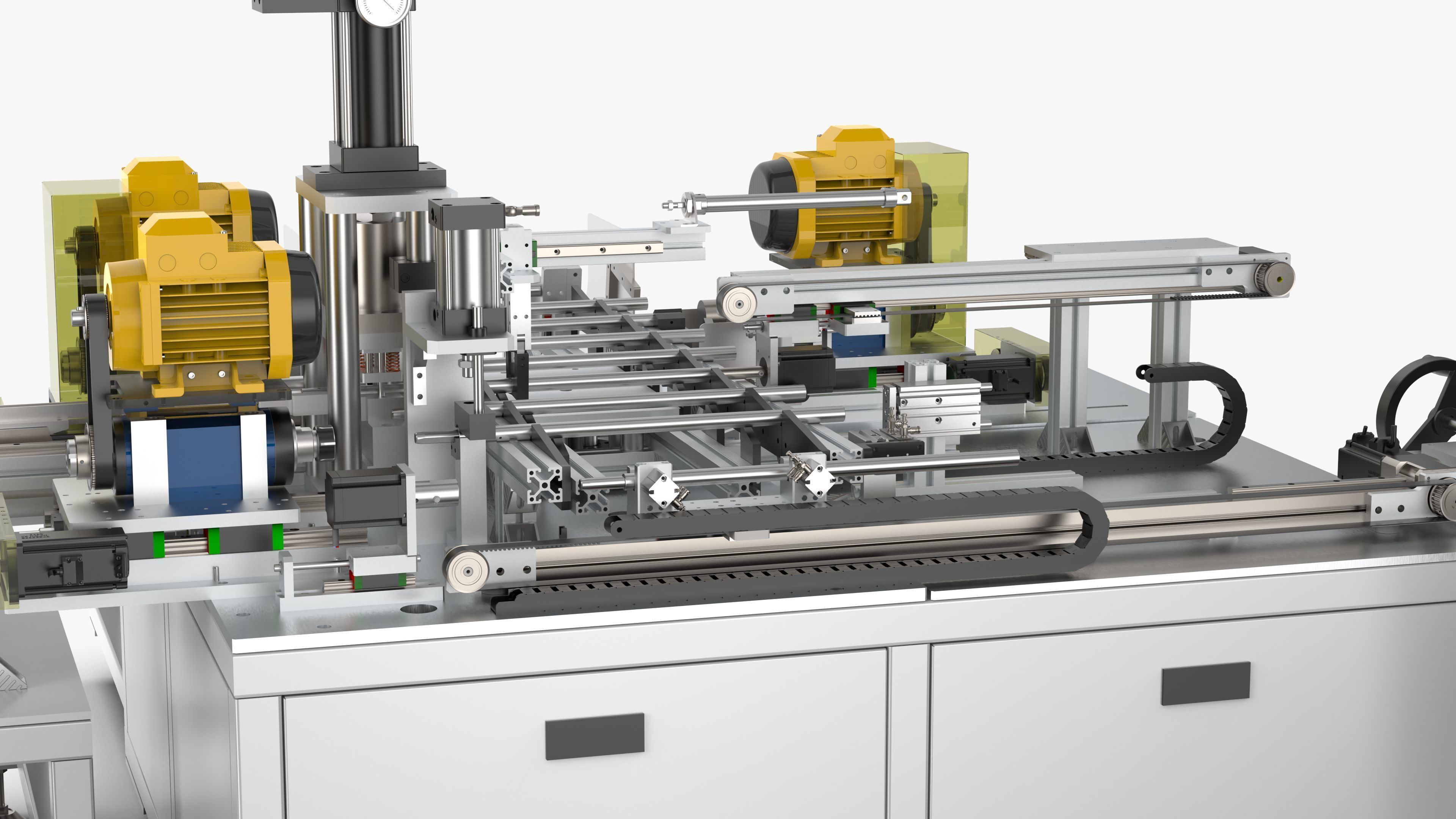

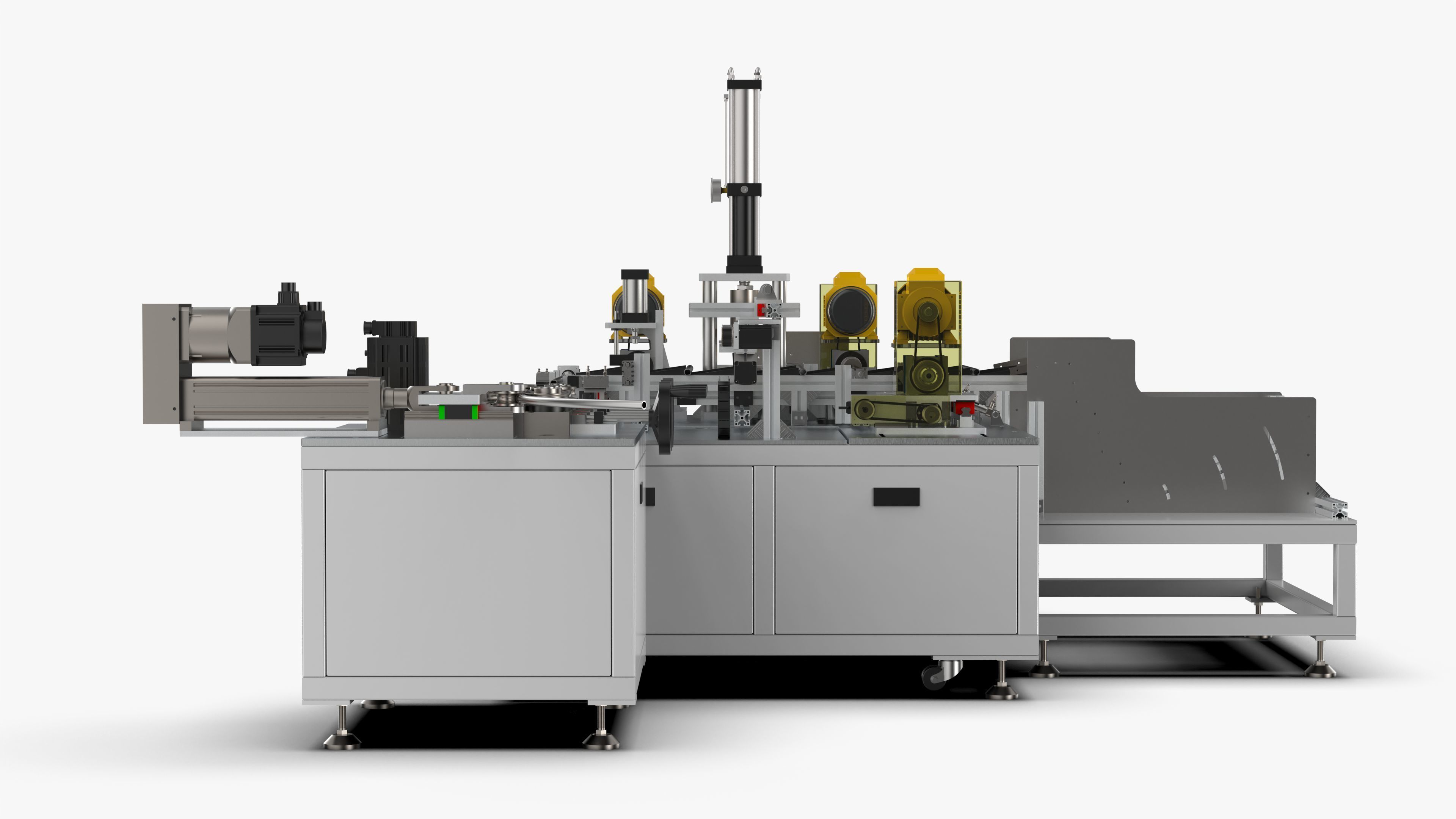

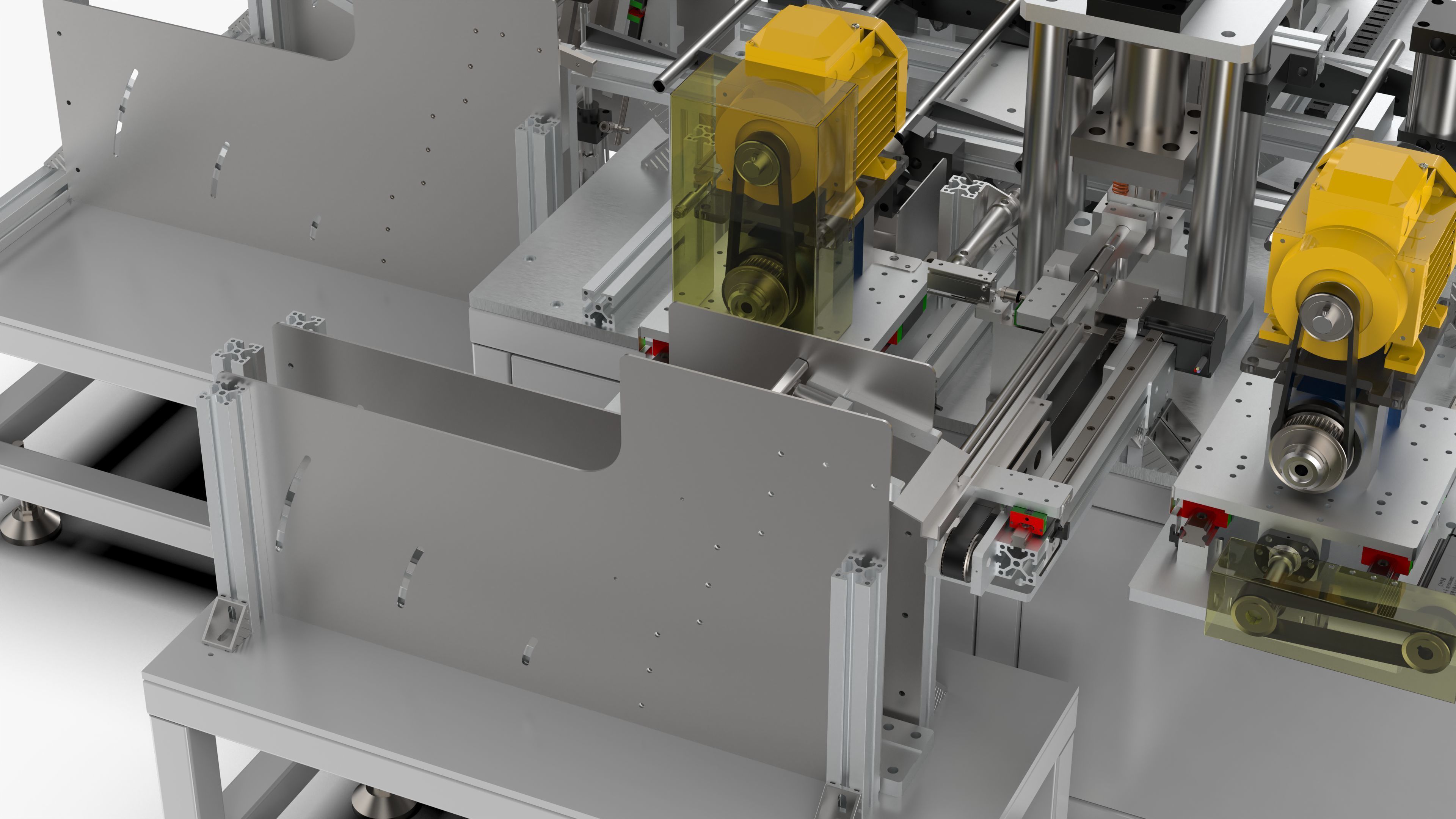

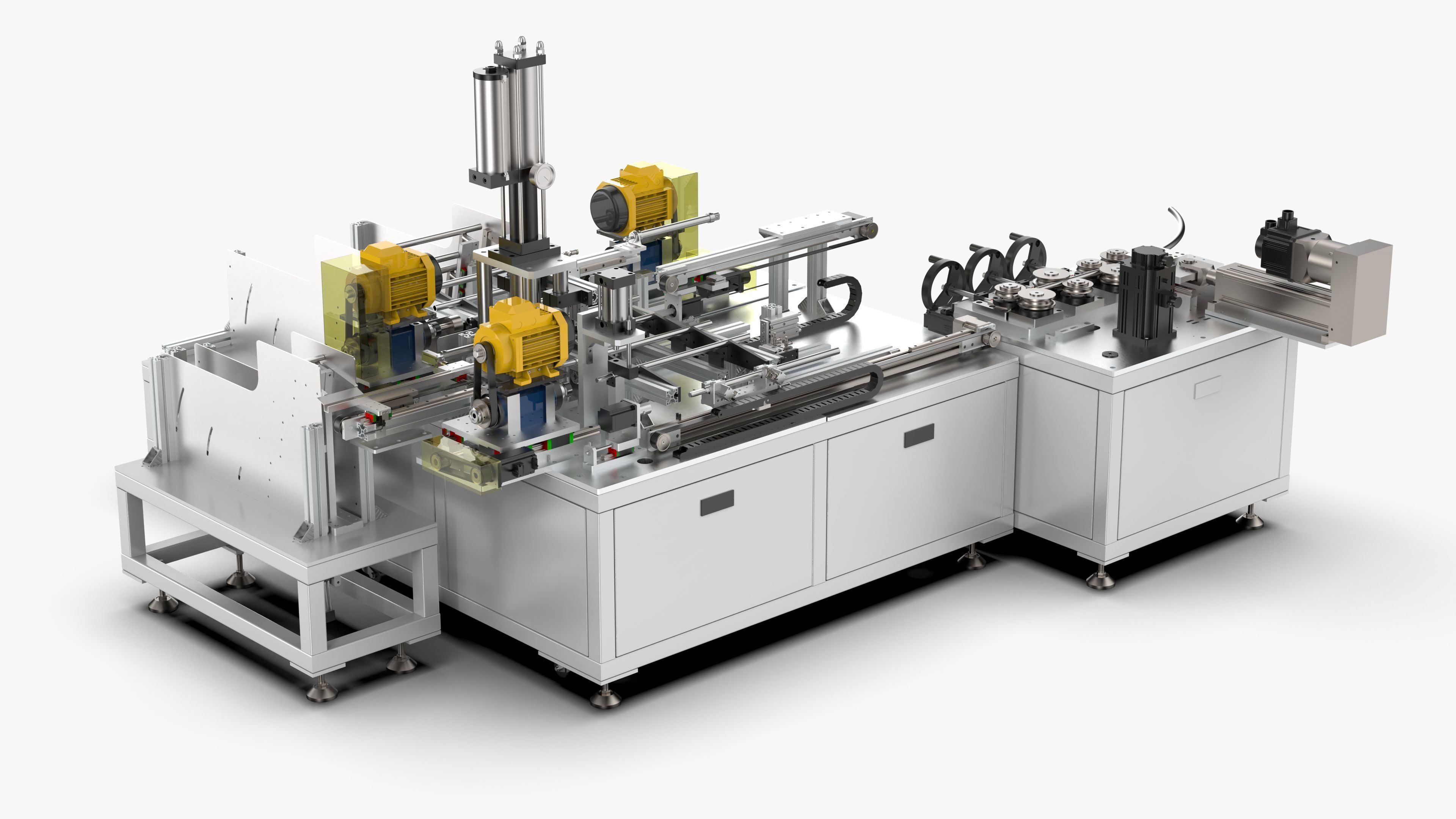

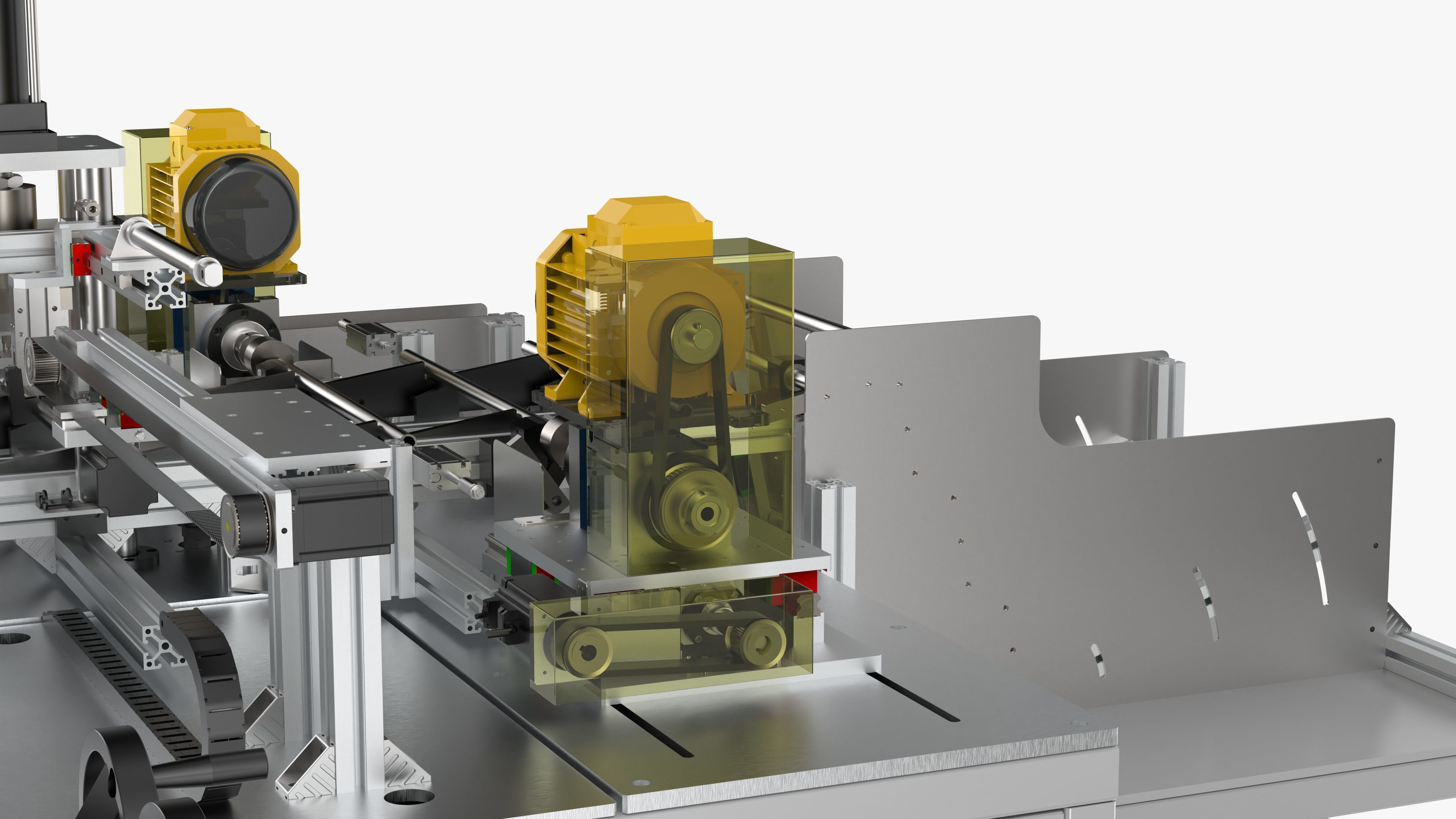

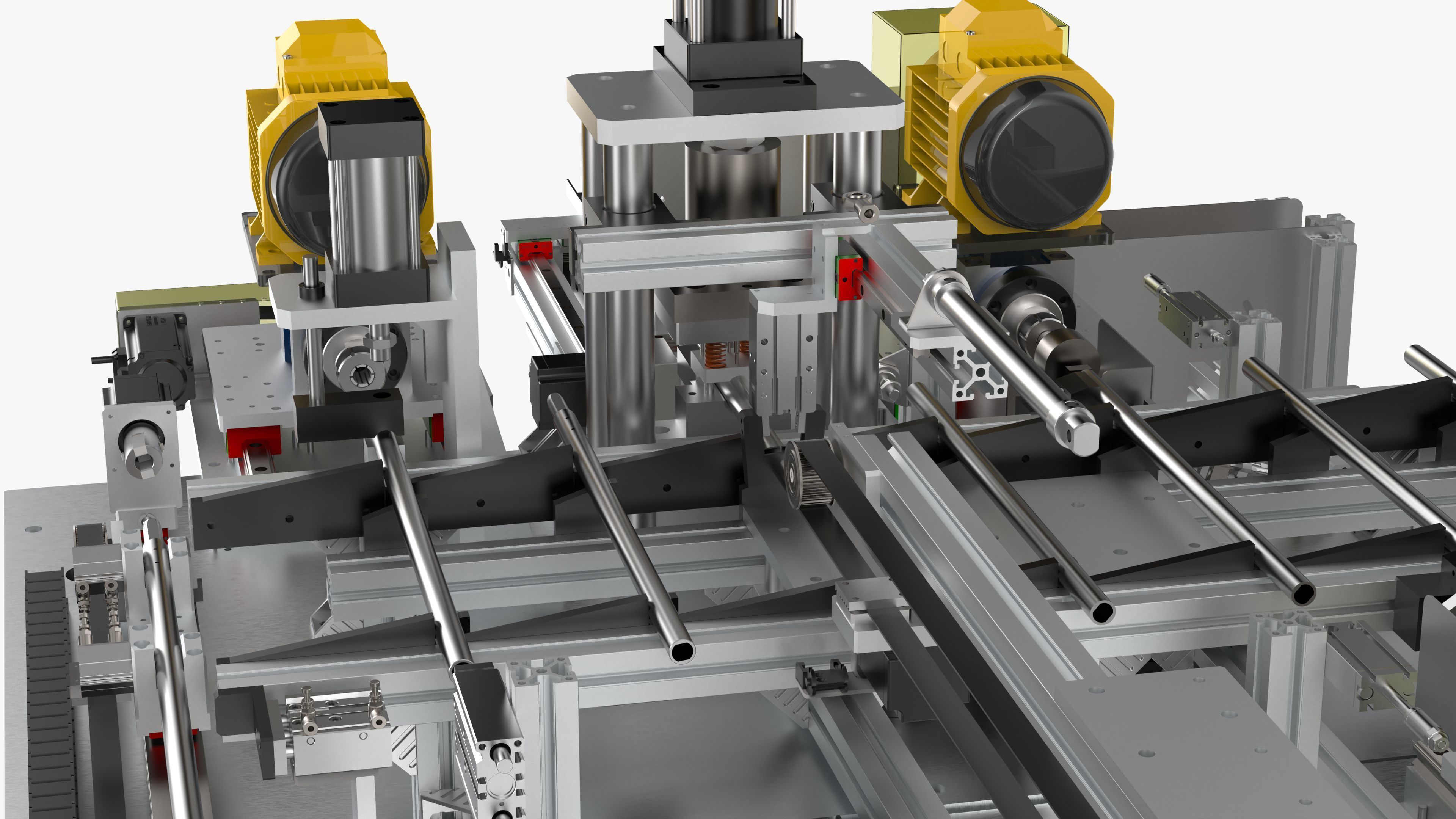

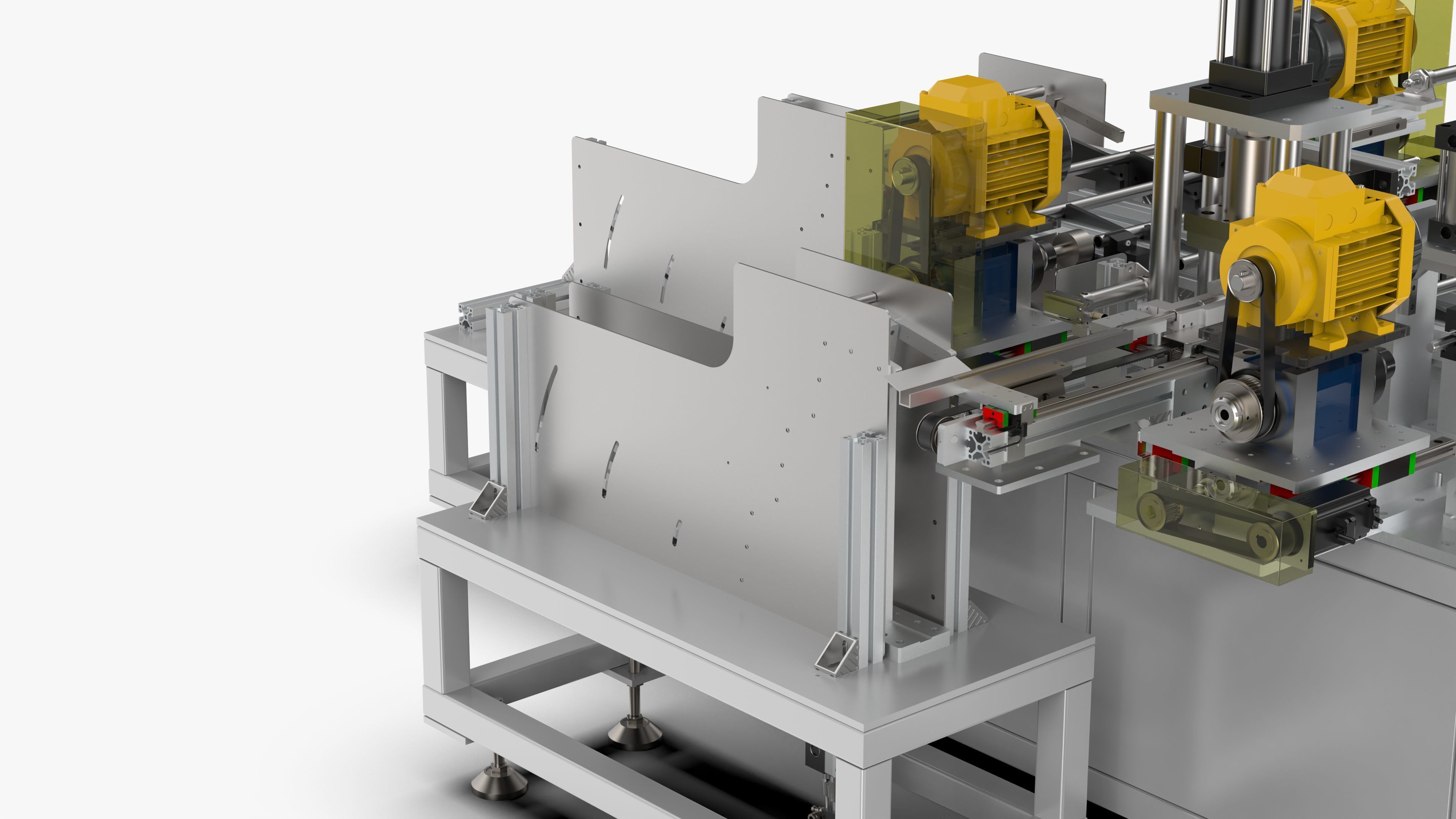

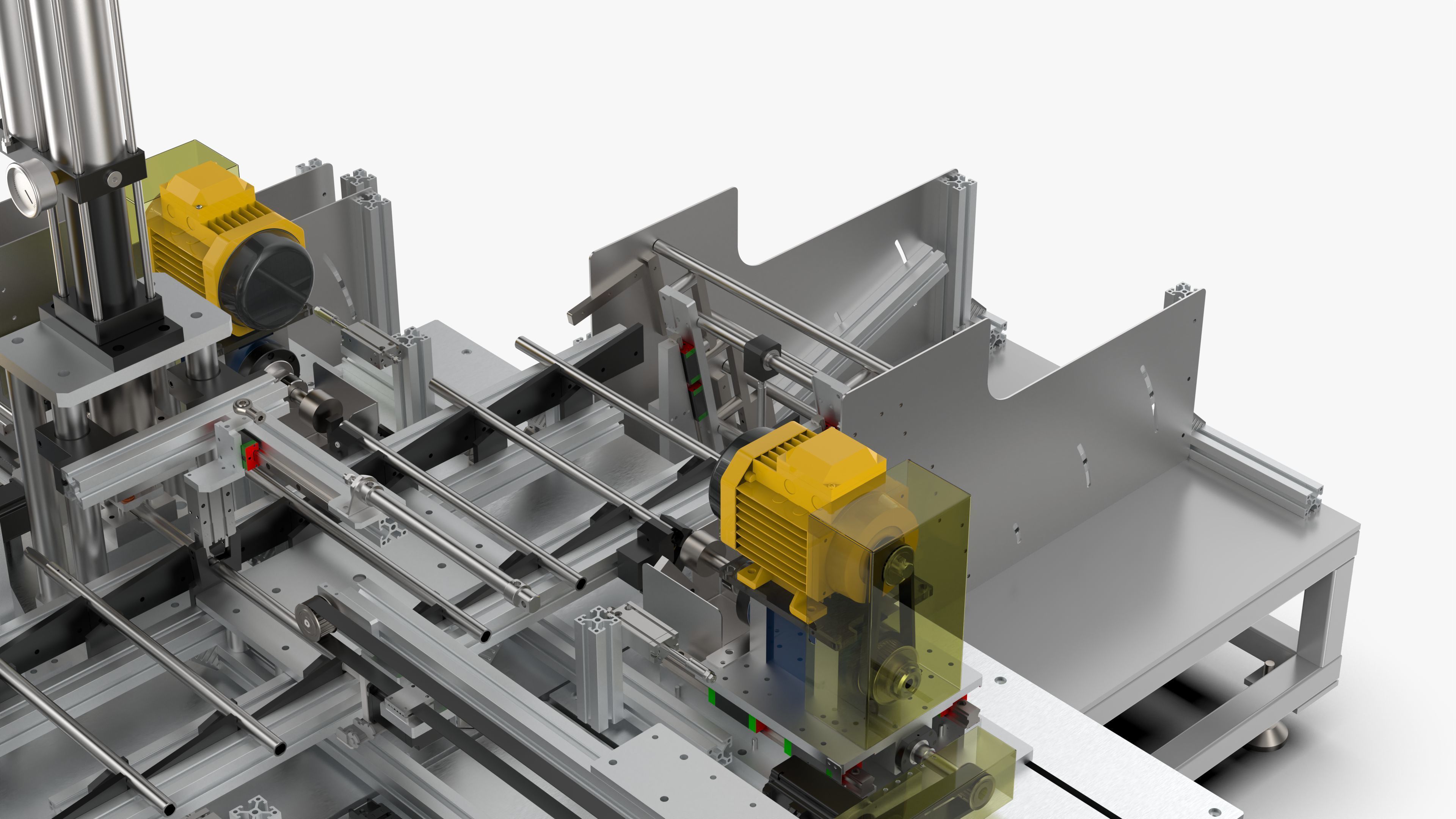

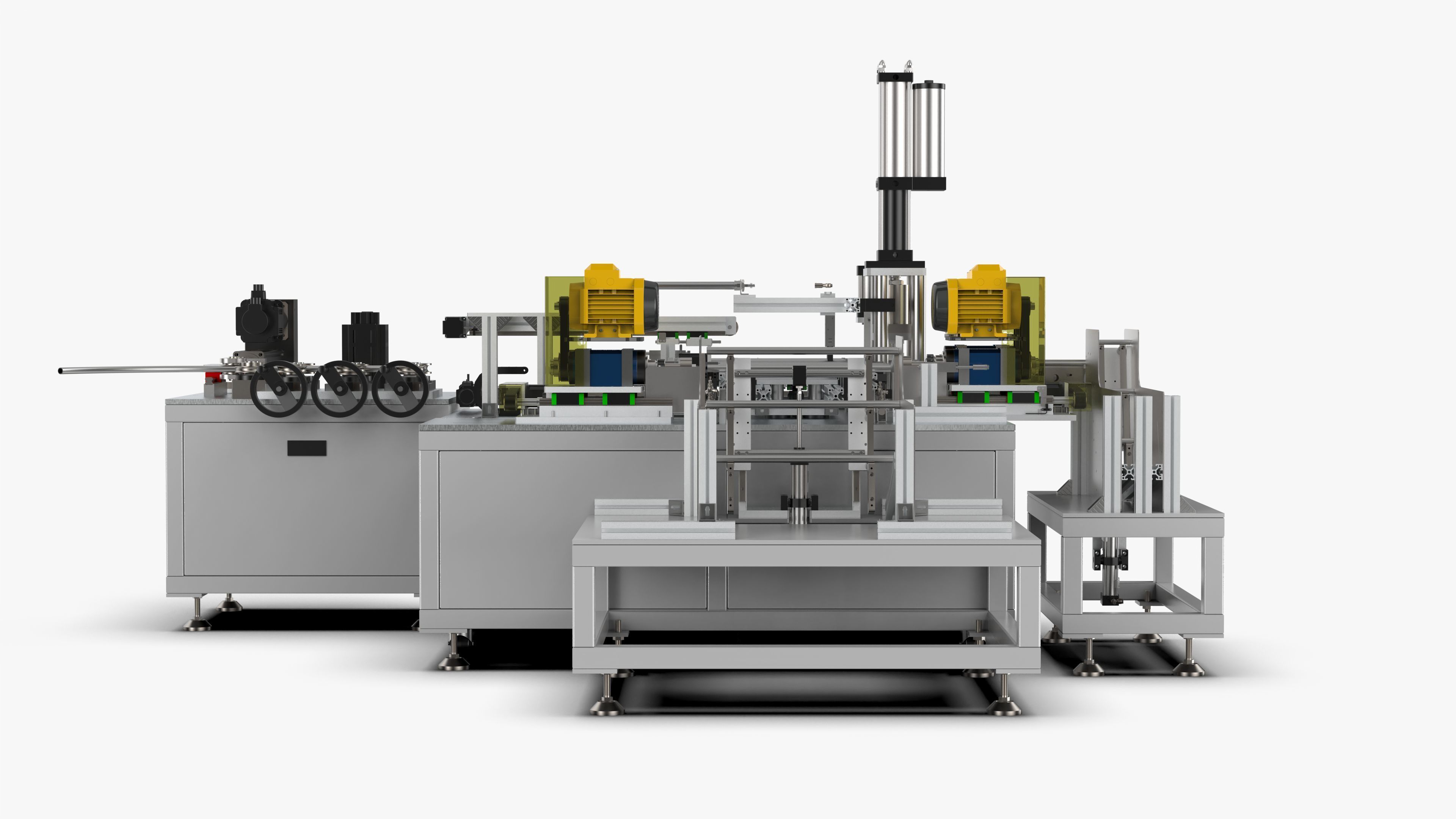

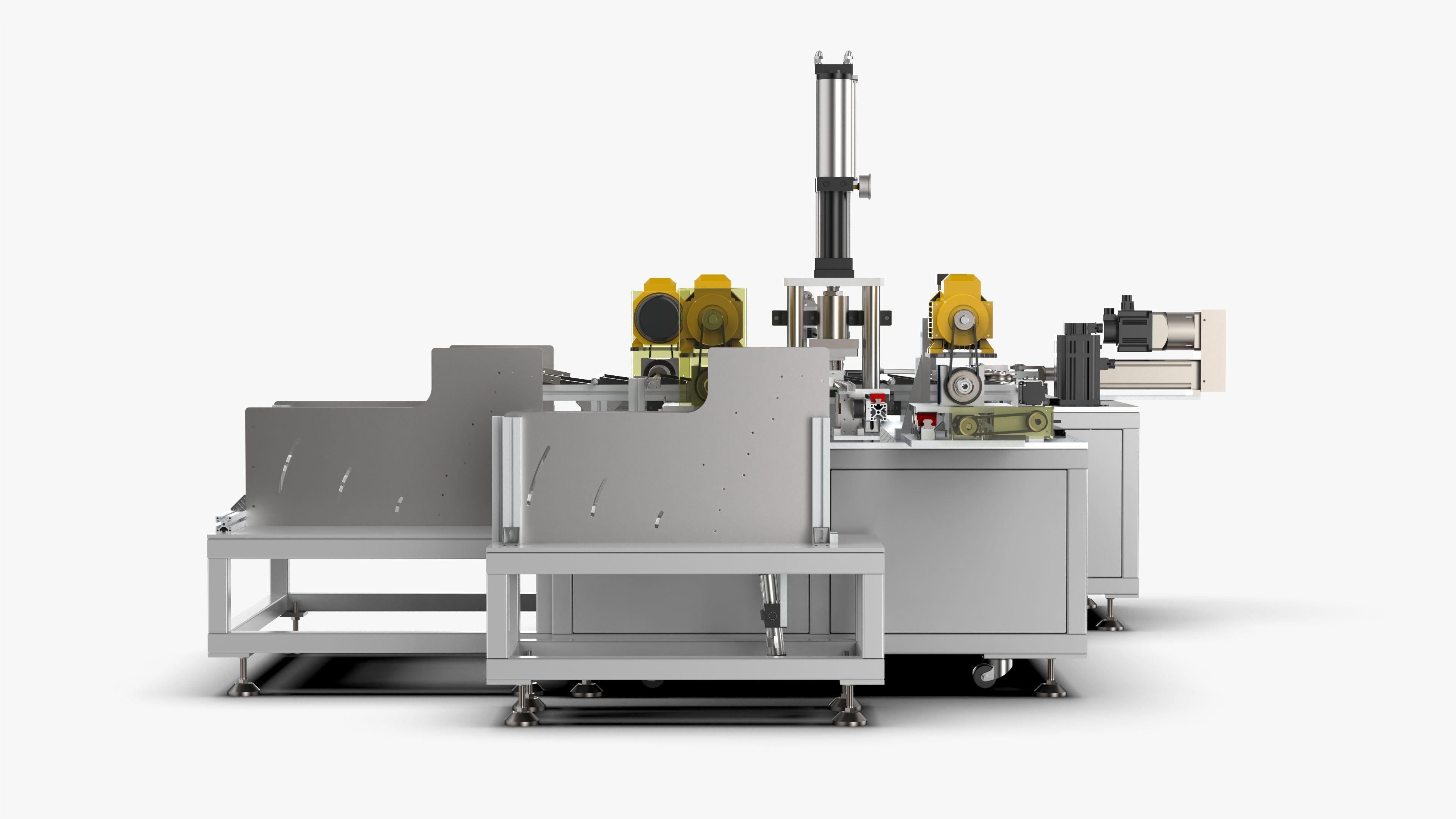

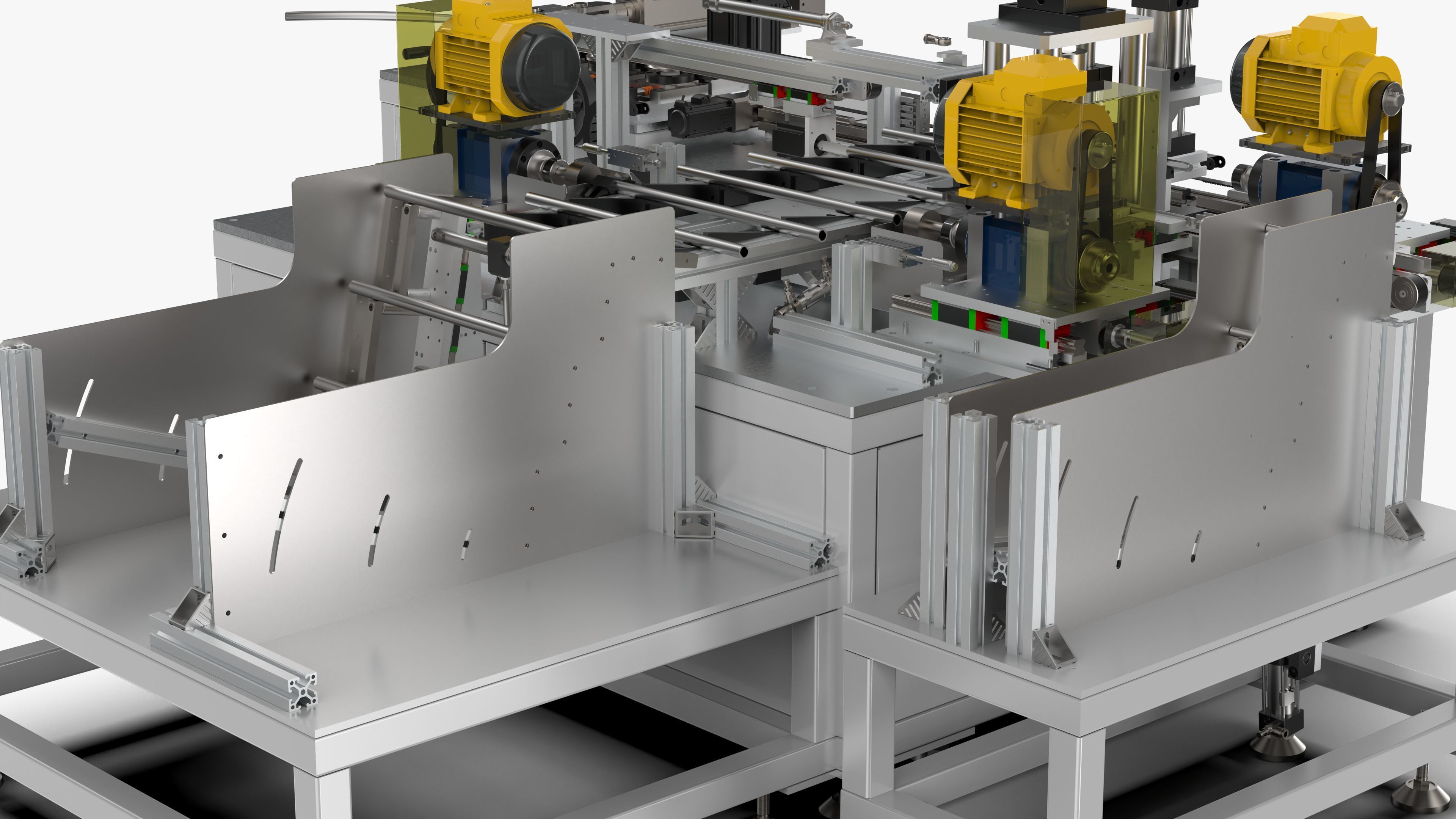

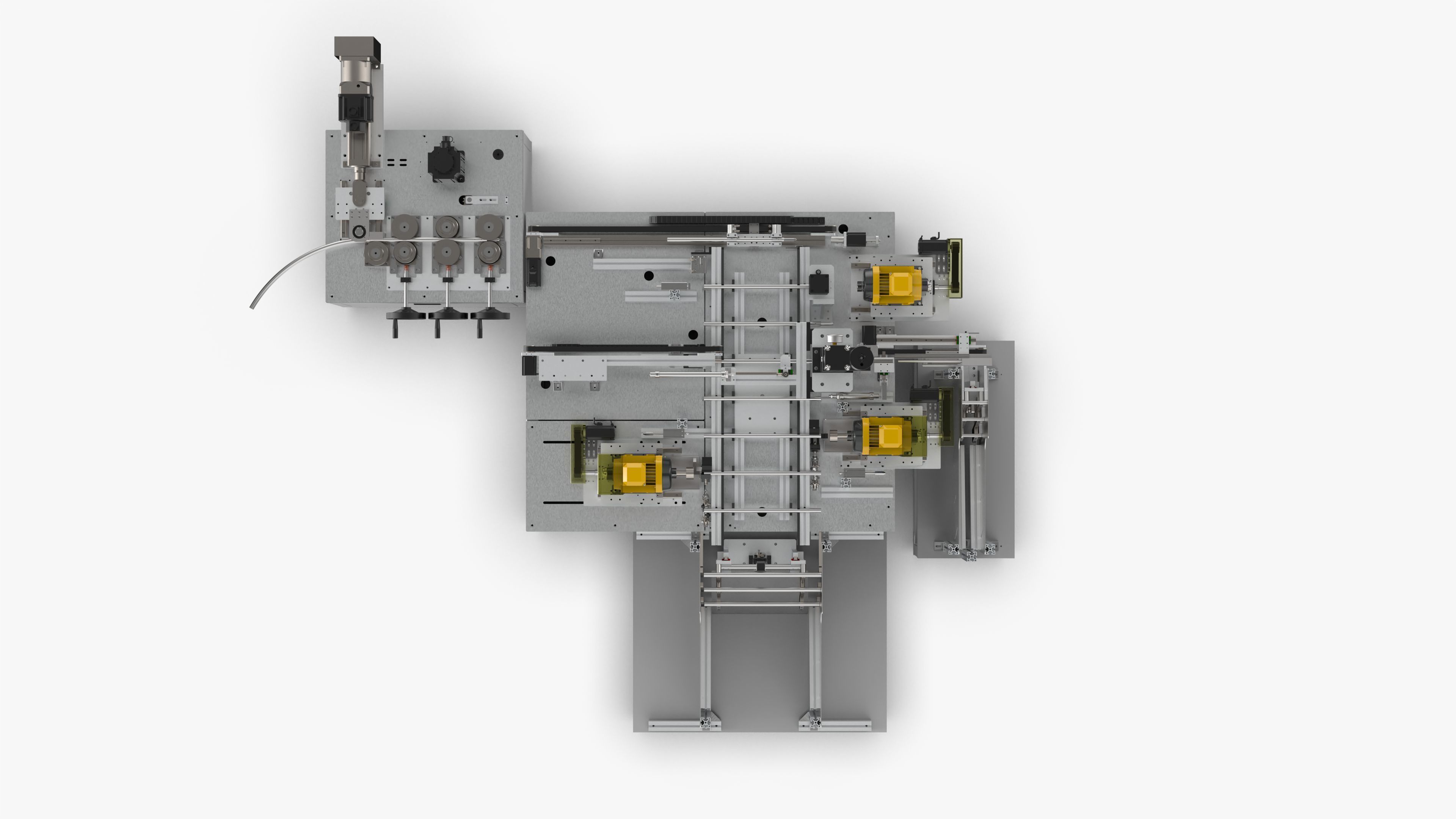

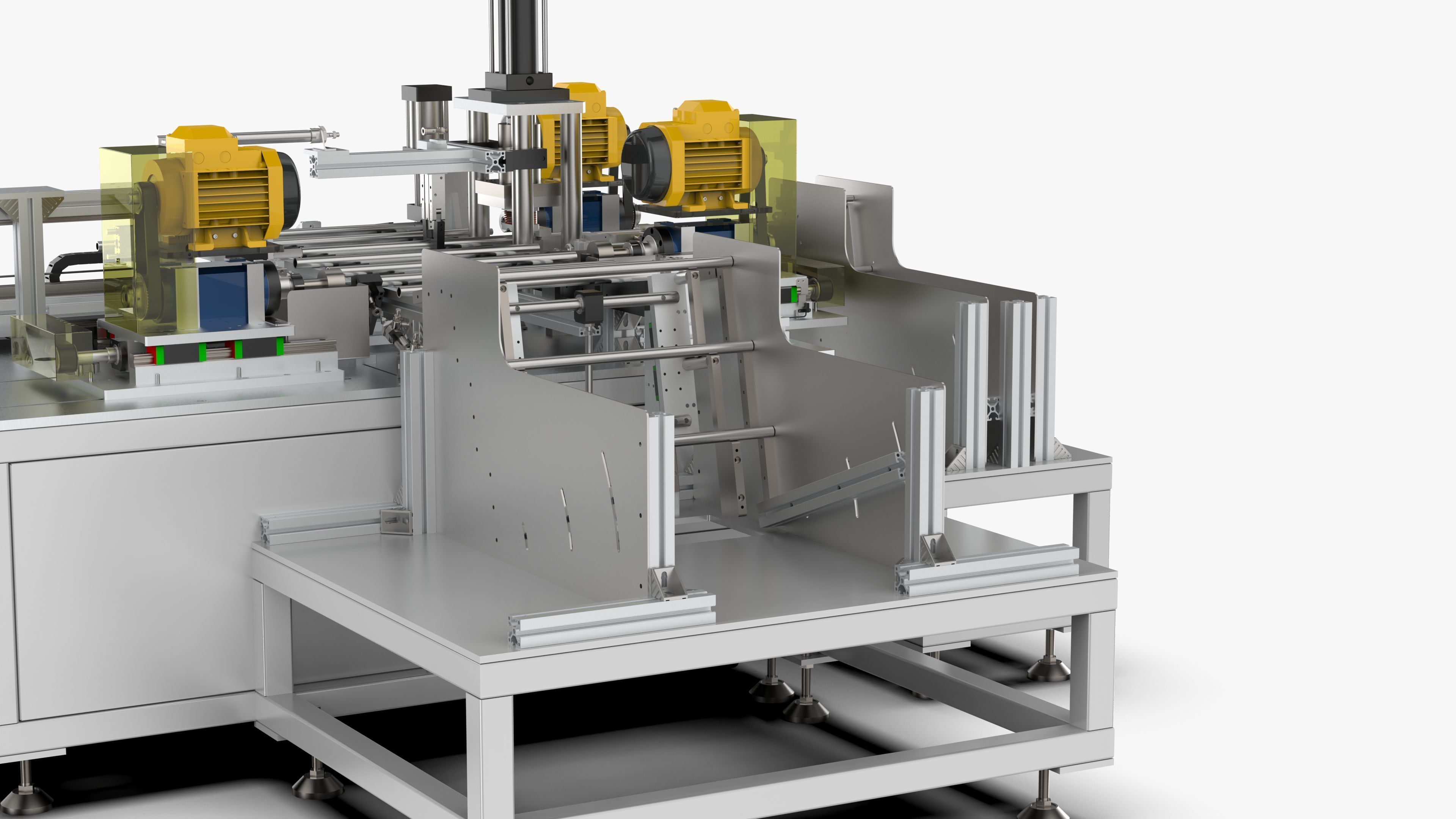

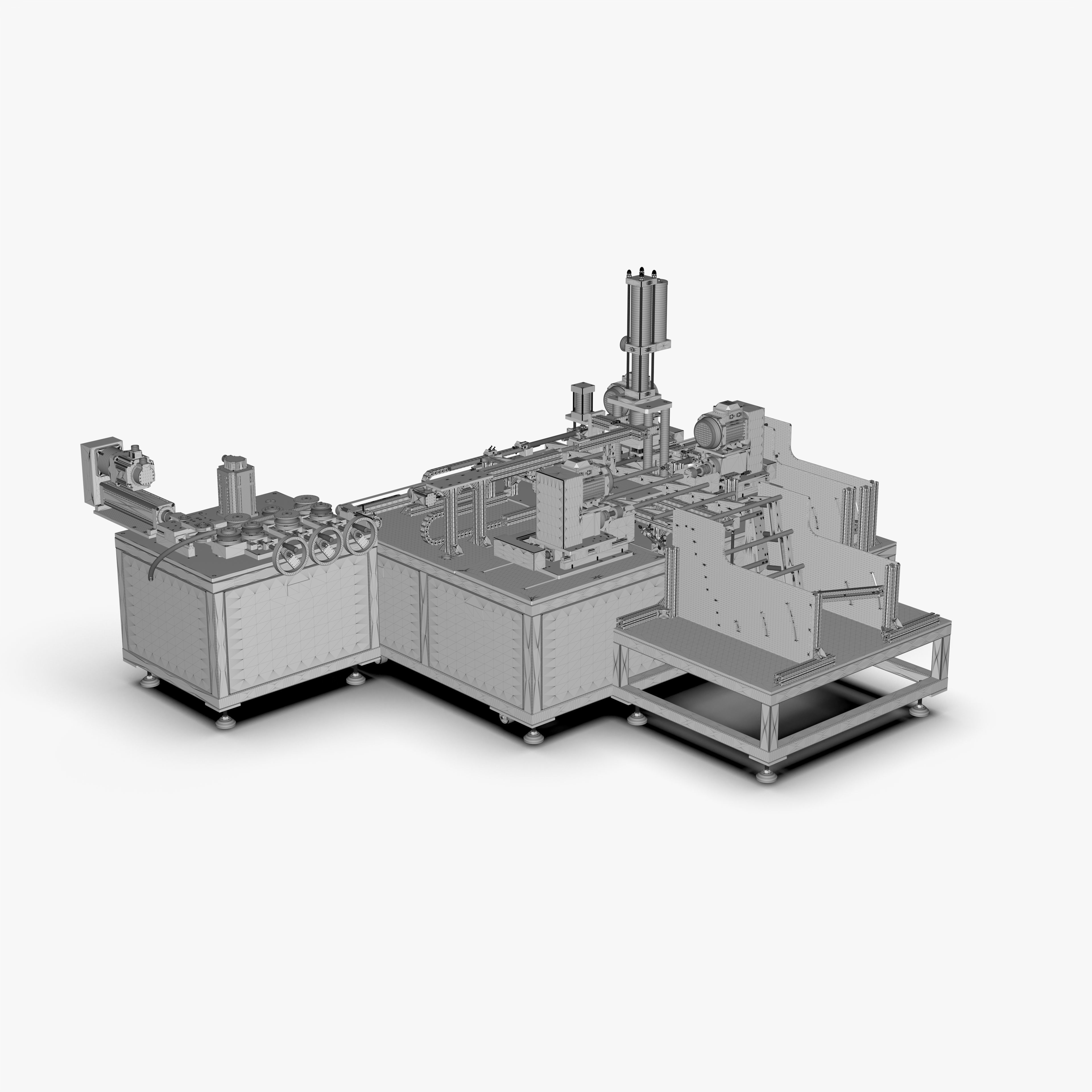

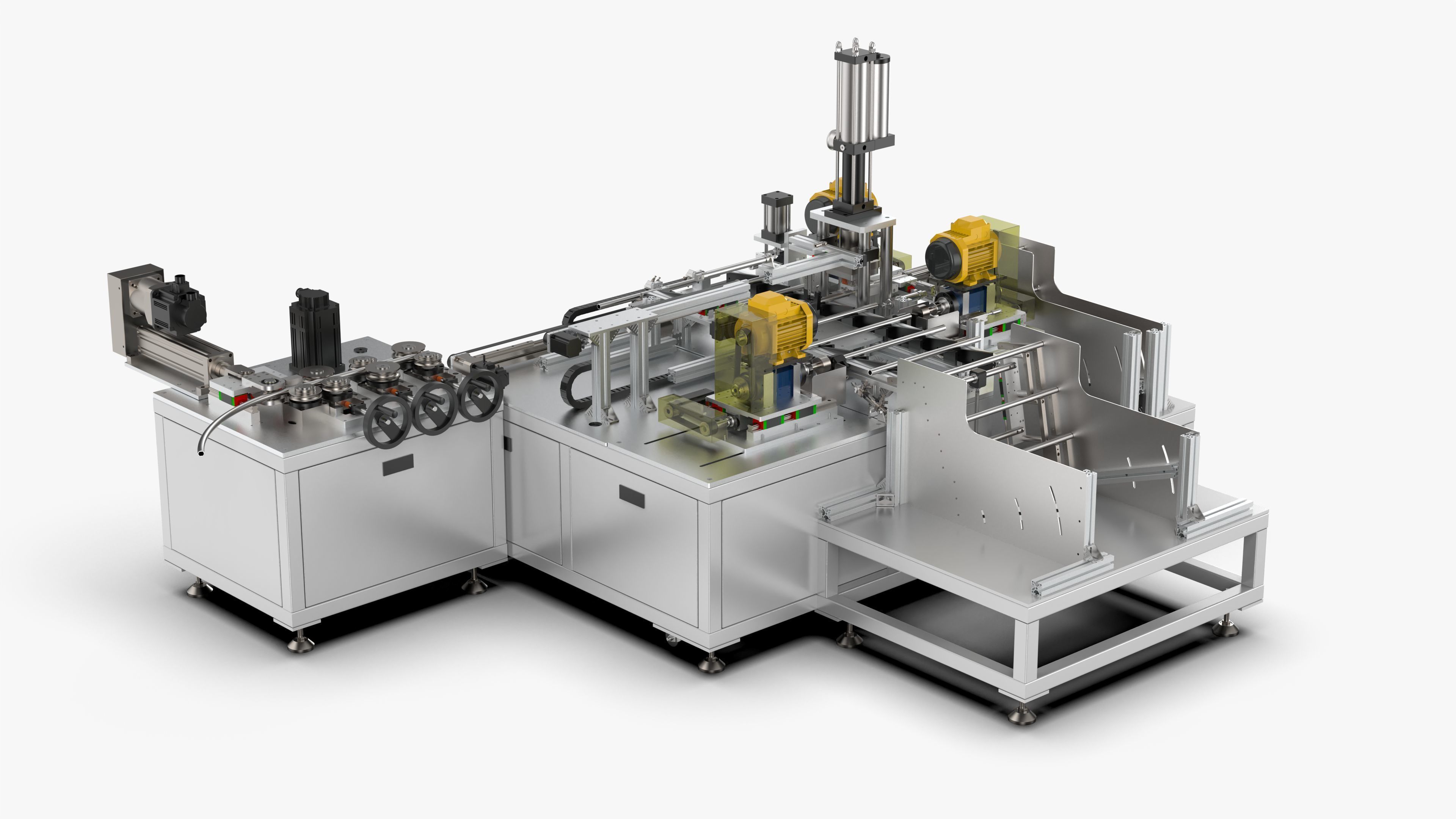

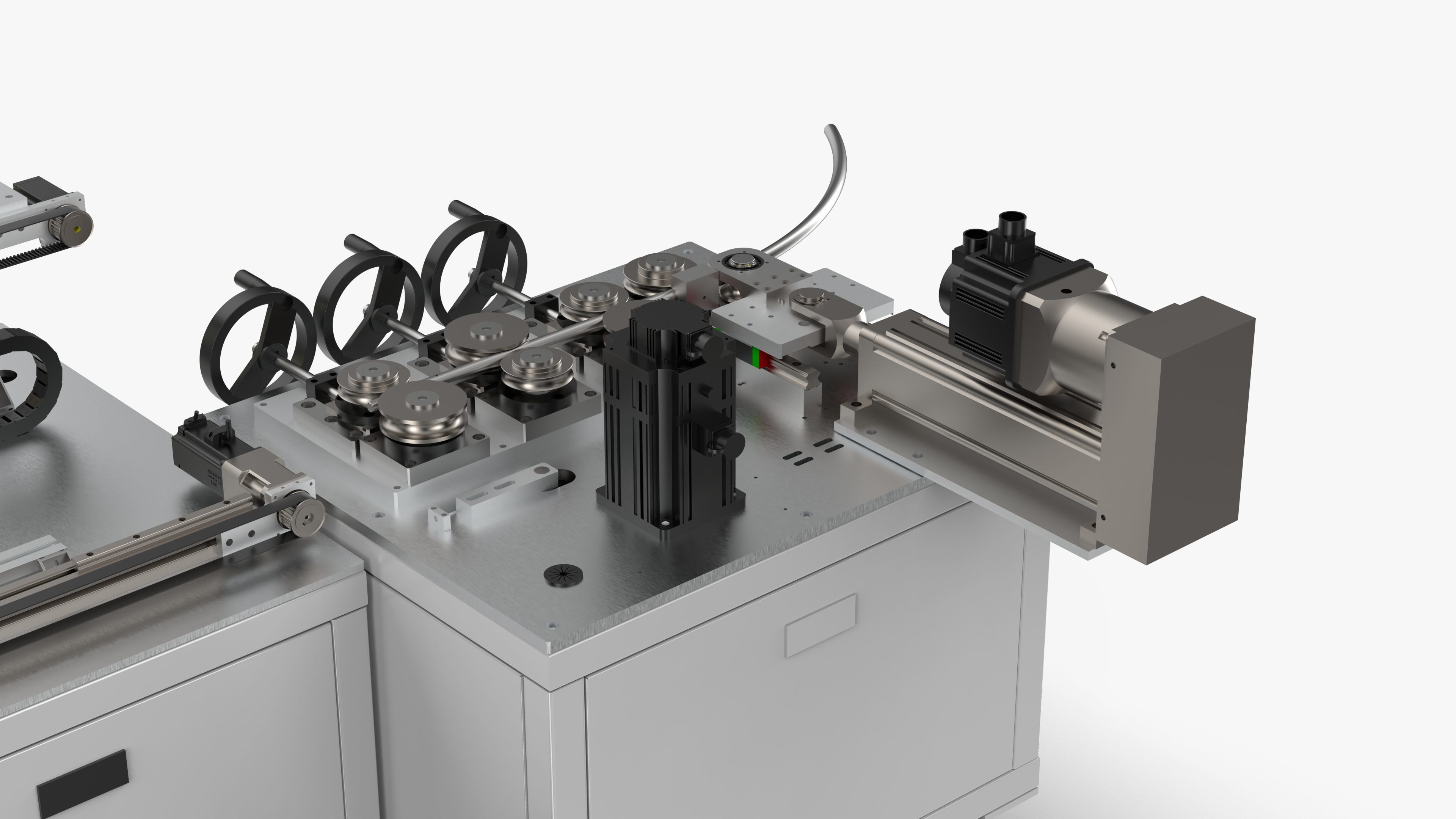

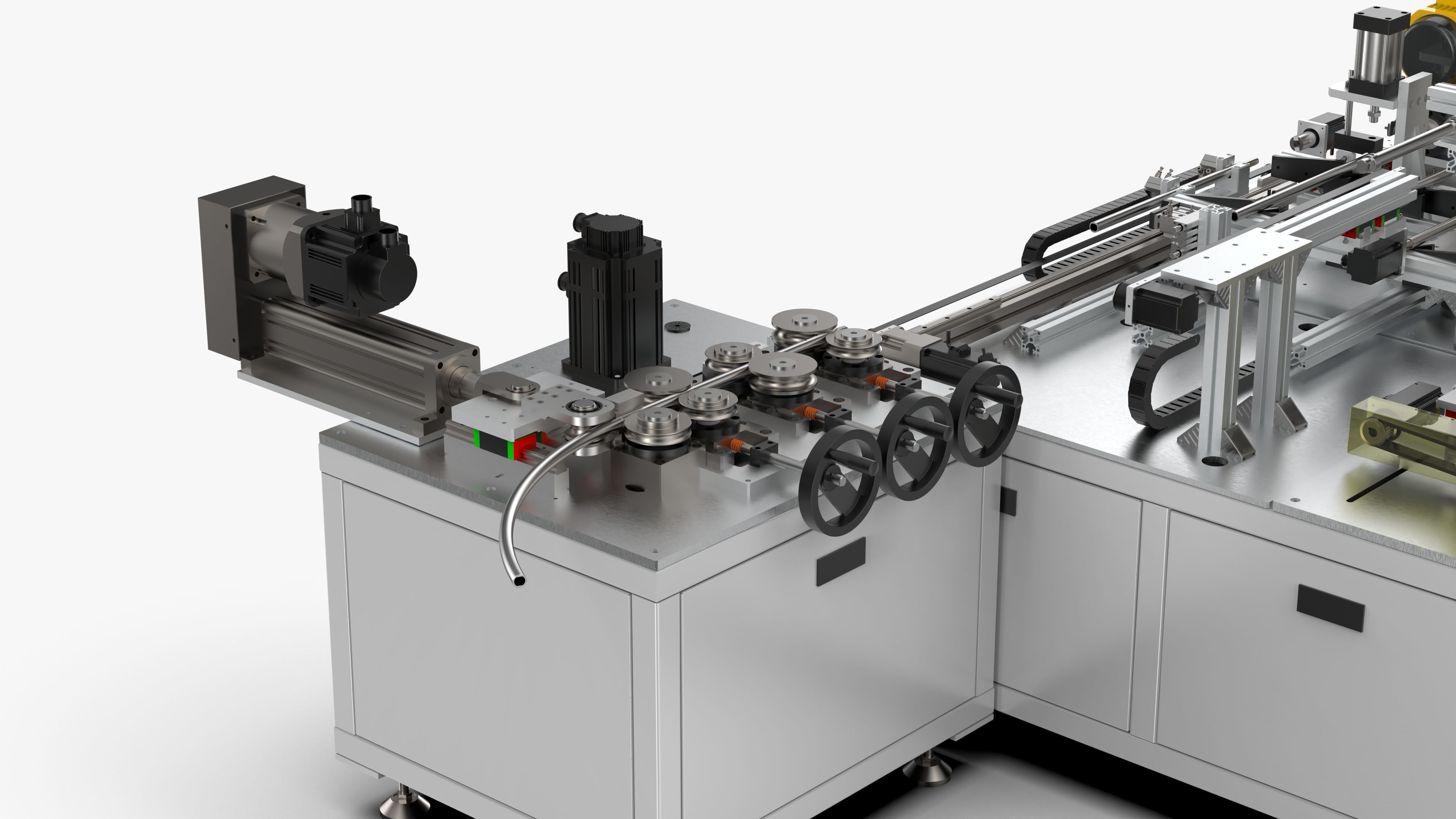

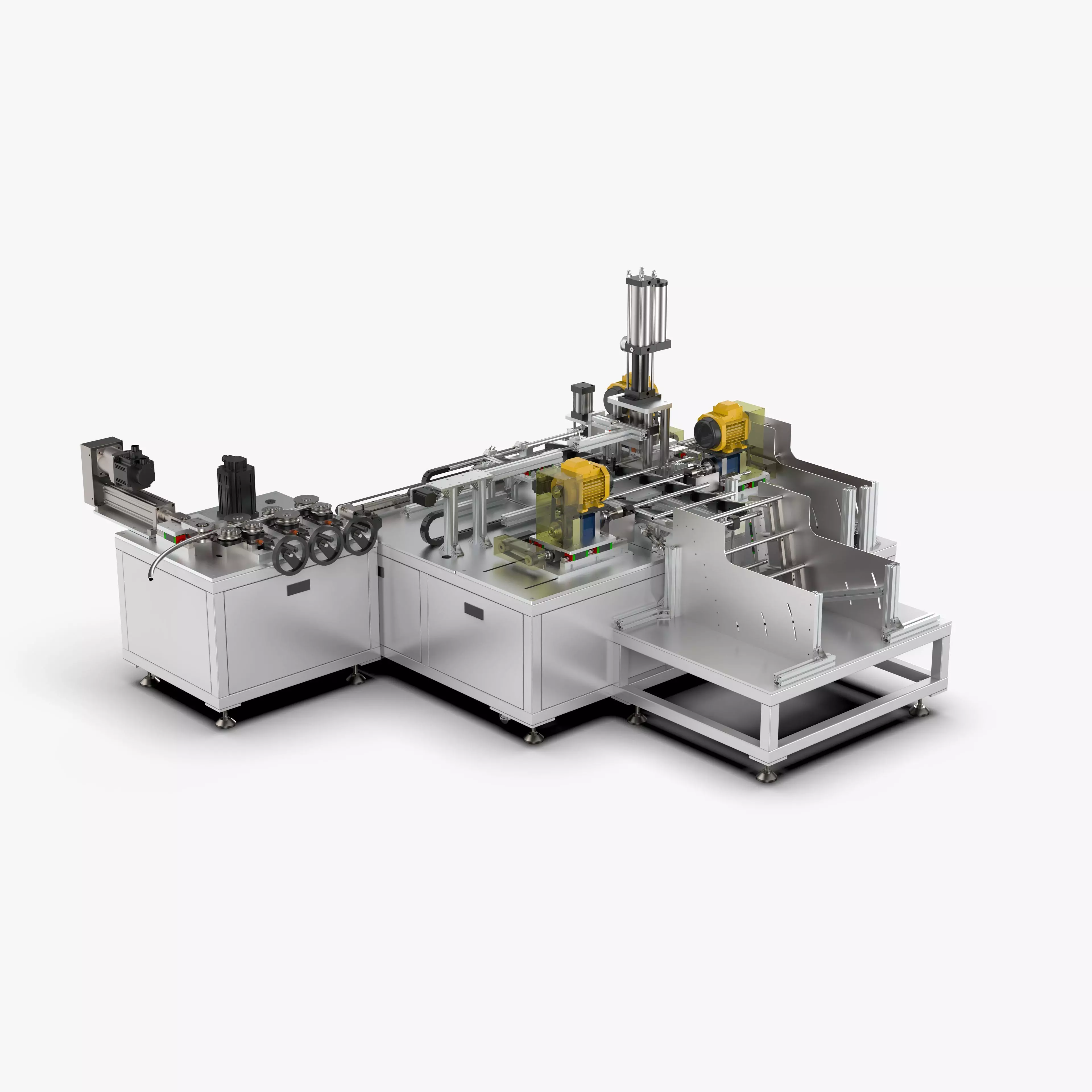

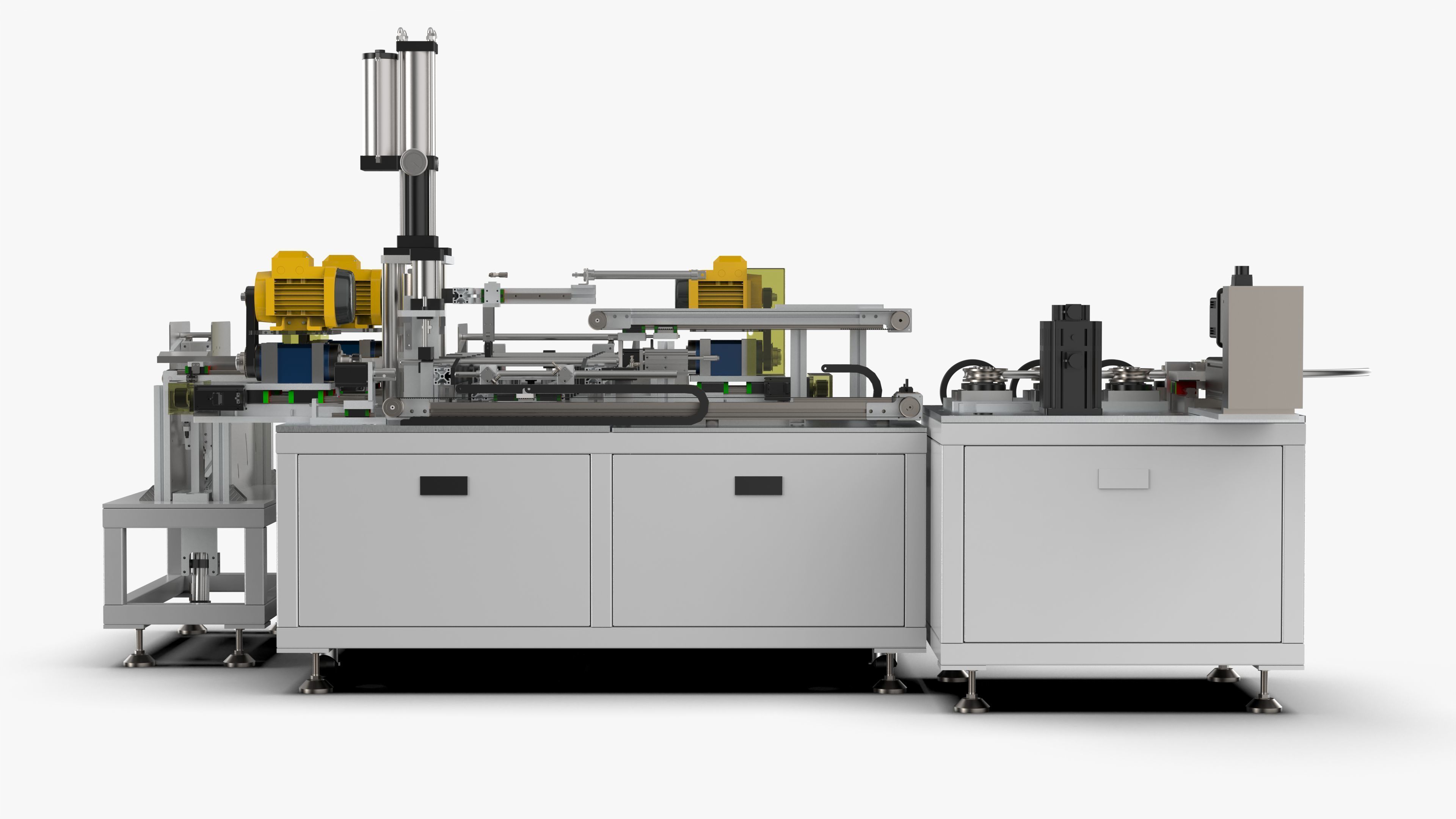

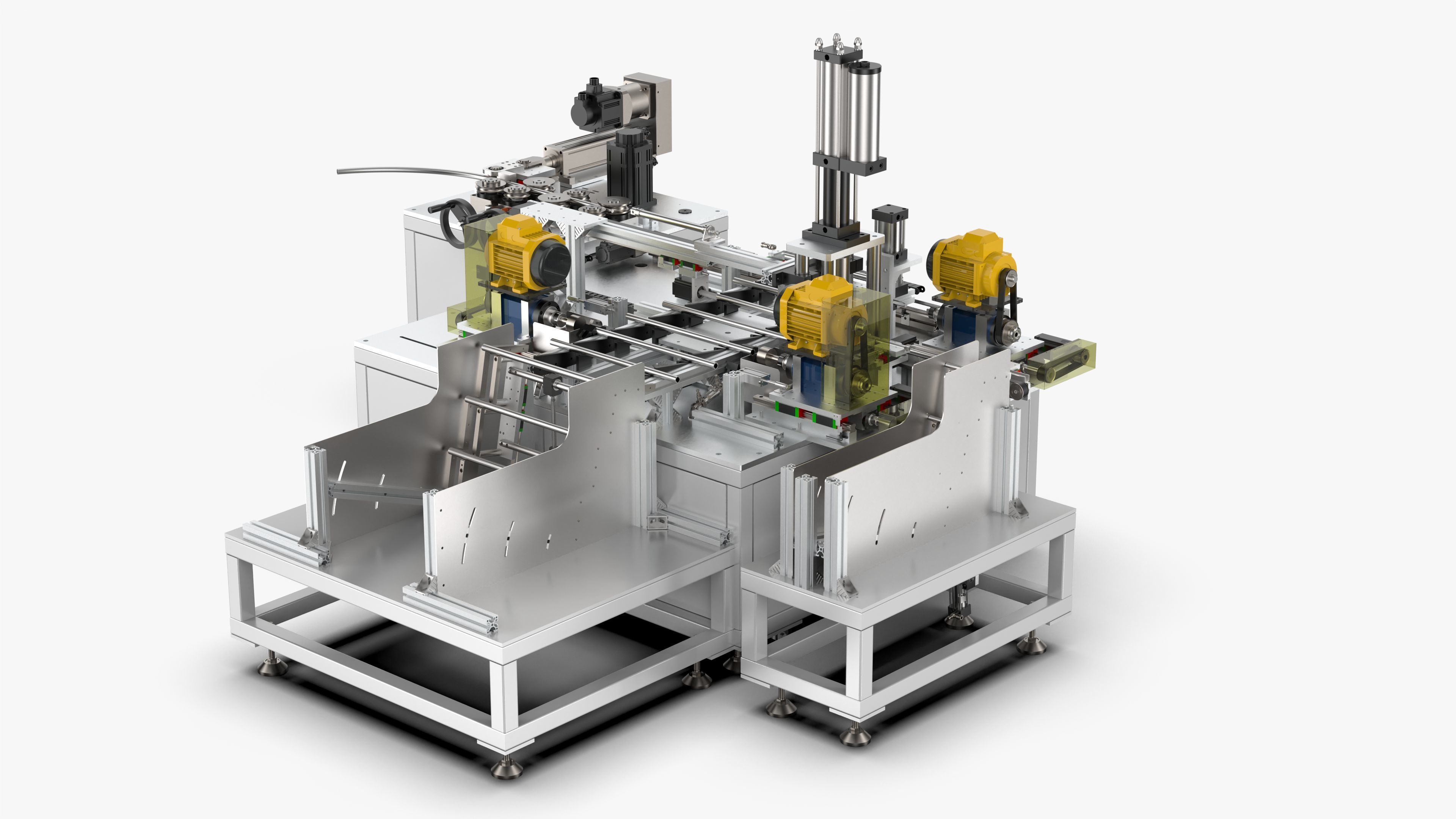

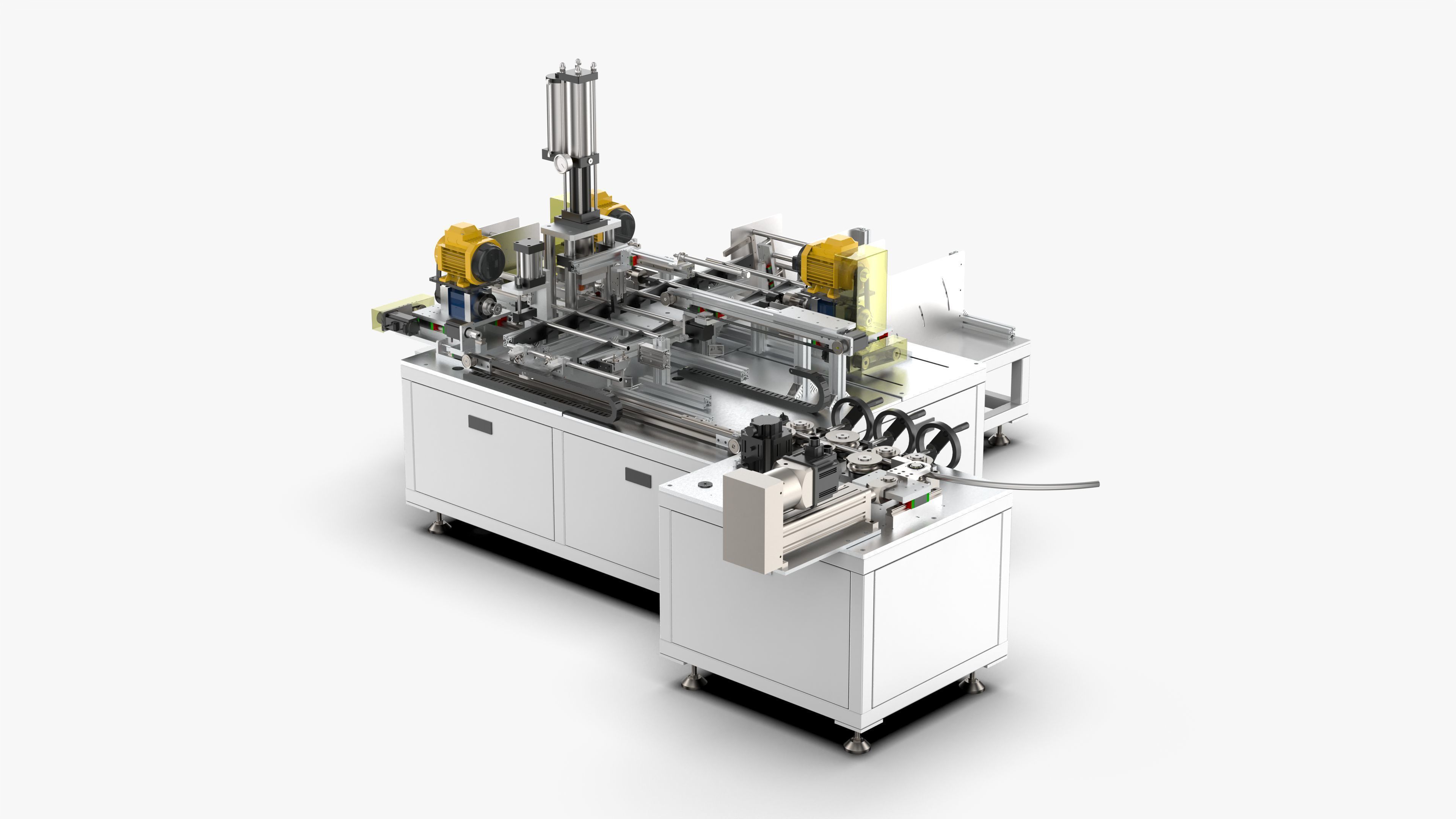

Automatic Tent Aluminum Seat Bending Machine

Introduction

This drawing file is the bending equipment for the aluminum part of the tent skeleton base, which includes 3D drawing files, 2D engineering drawings, BOM tables, programs, and IO points. The design of this machine adopts automatic feeding of product accessories, compatible with various lengths of aluminum tubes, feeding and chamfering from round tubes, automatic feeding of mandrels, assembly of pressure riveting, mandrel chamfering, automatic feeding of bent pipes, bending arcs It can be adjusted freely by the servo motor and is suitable for various arc processing.

File Formats

  • SolidWorks 2020 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 4,149,013
  • Vertice: 12,447,039
