DESCRIPTION

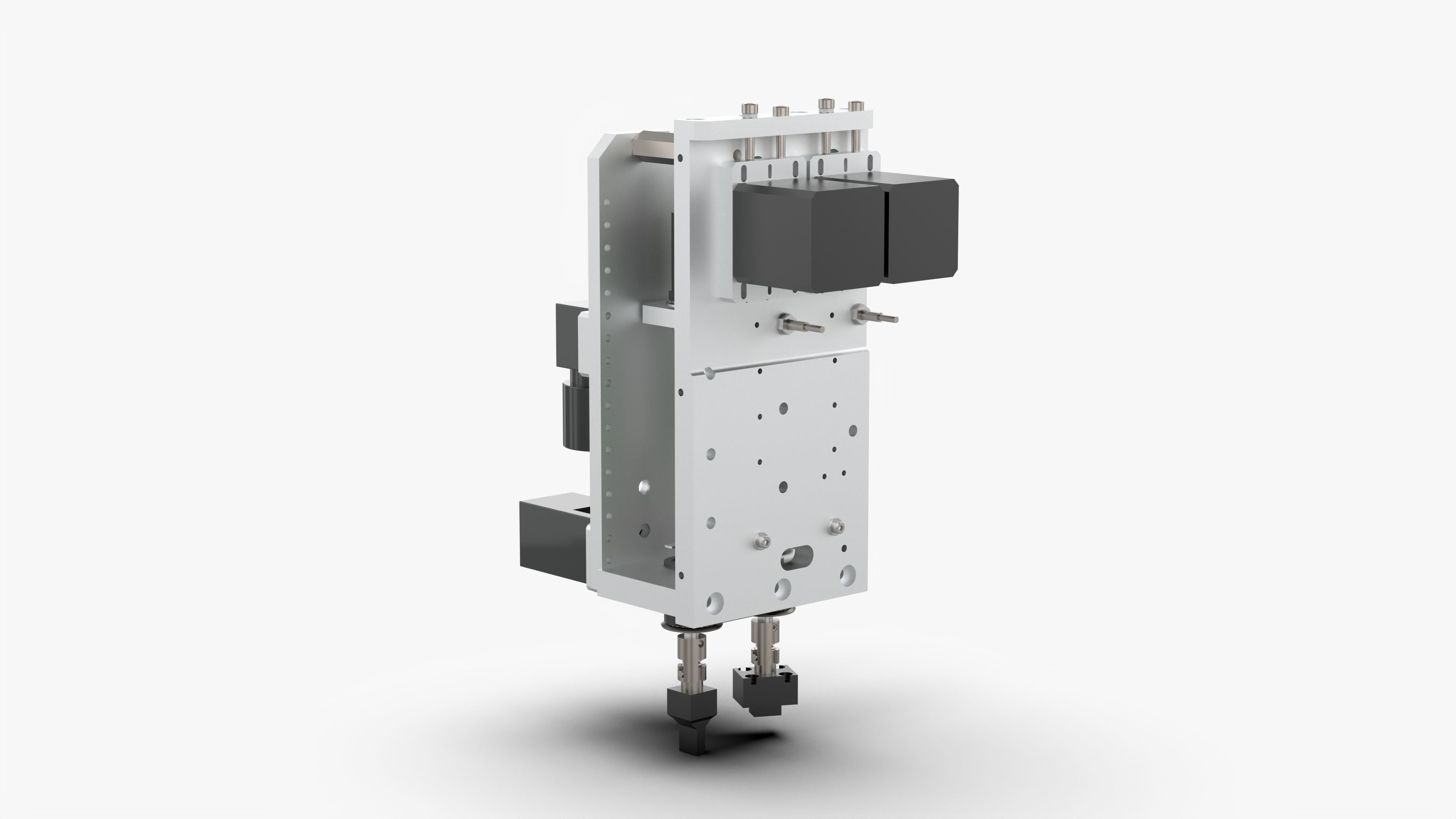

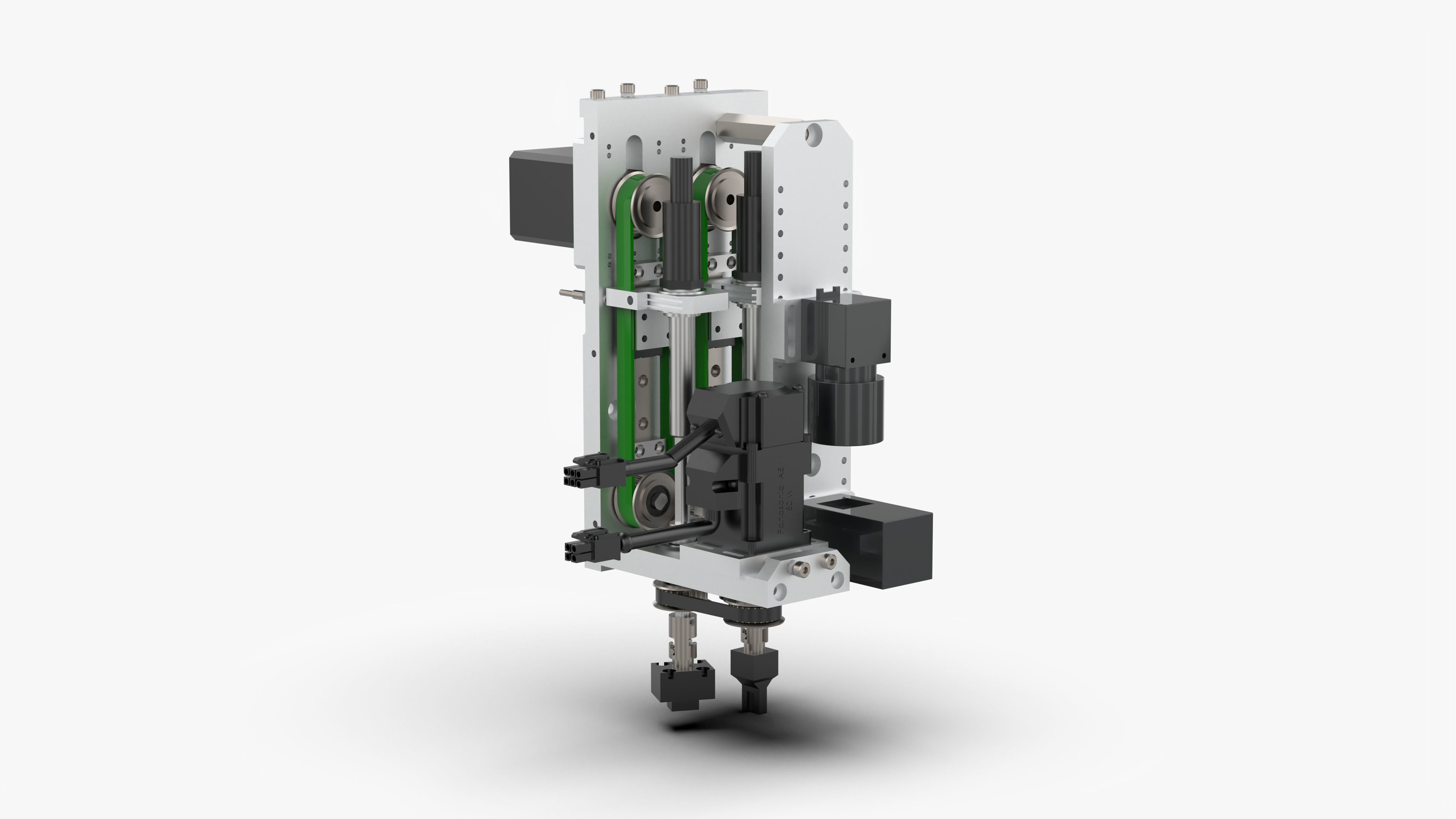

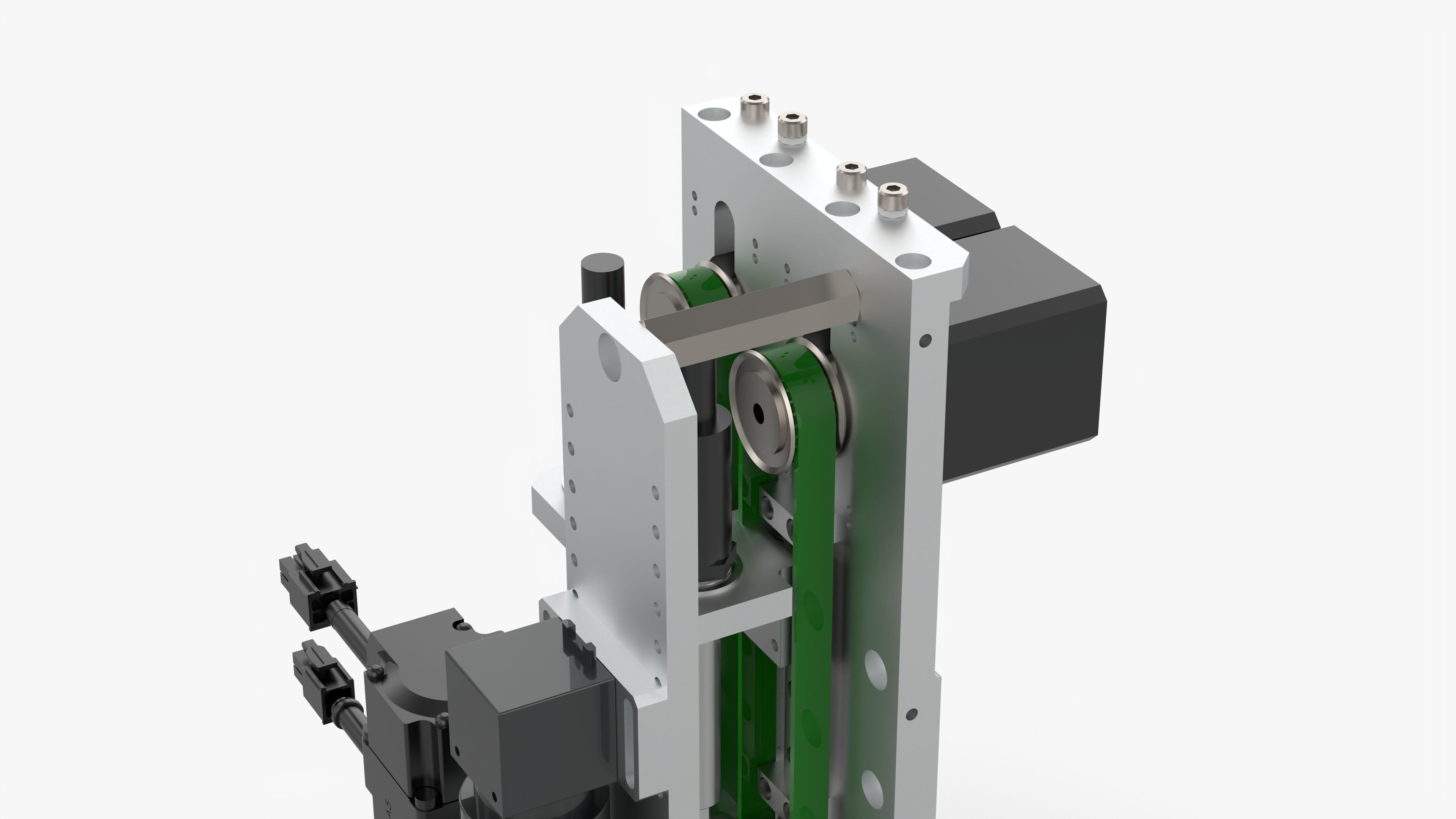

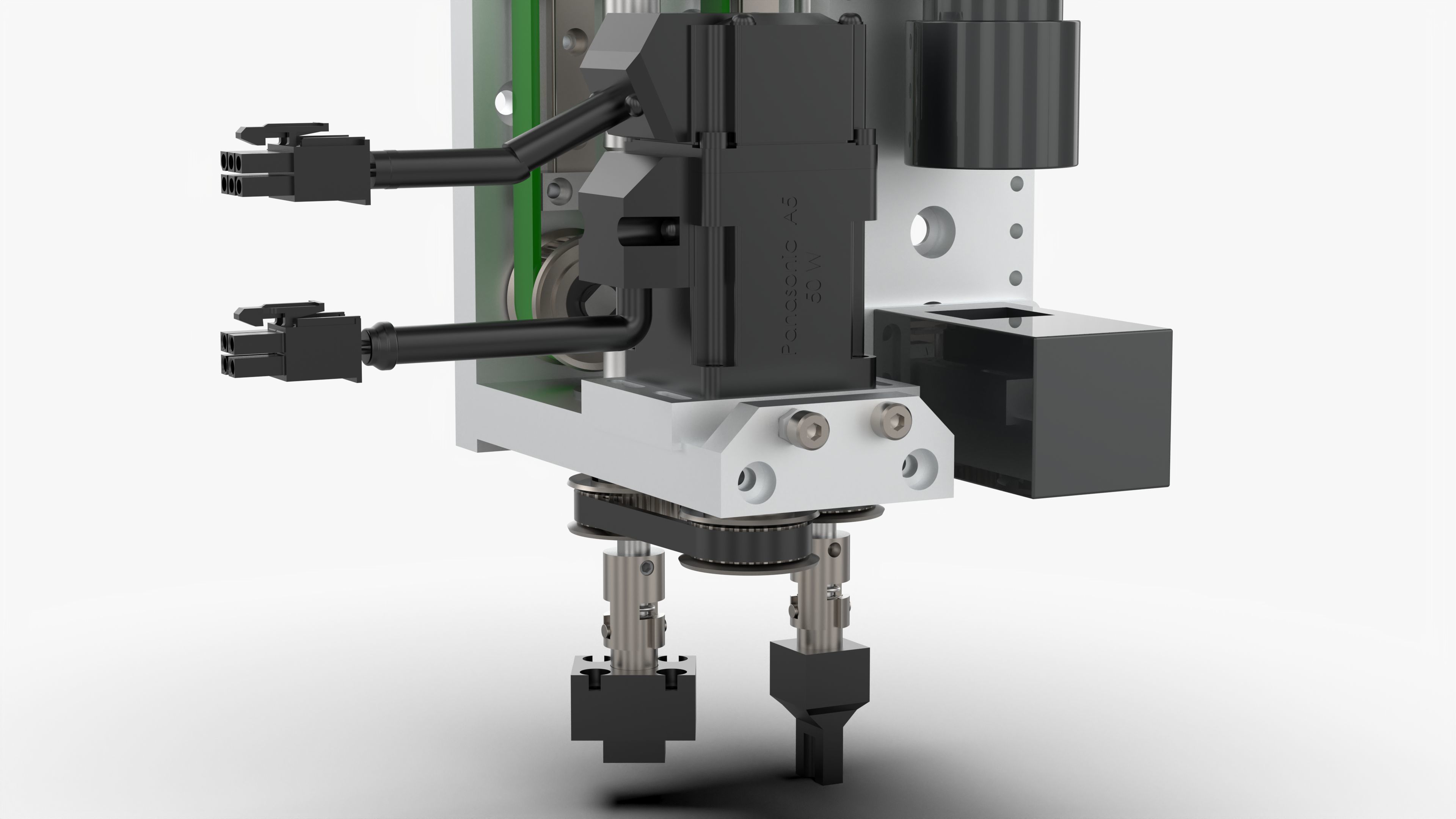

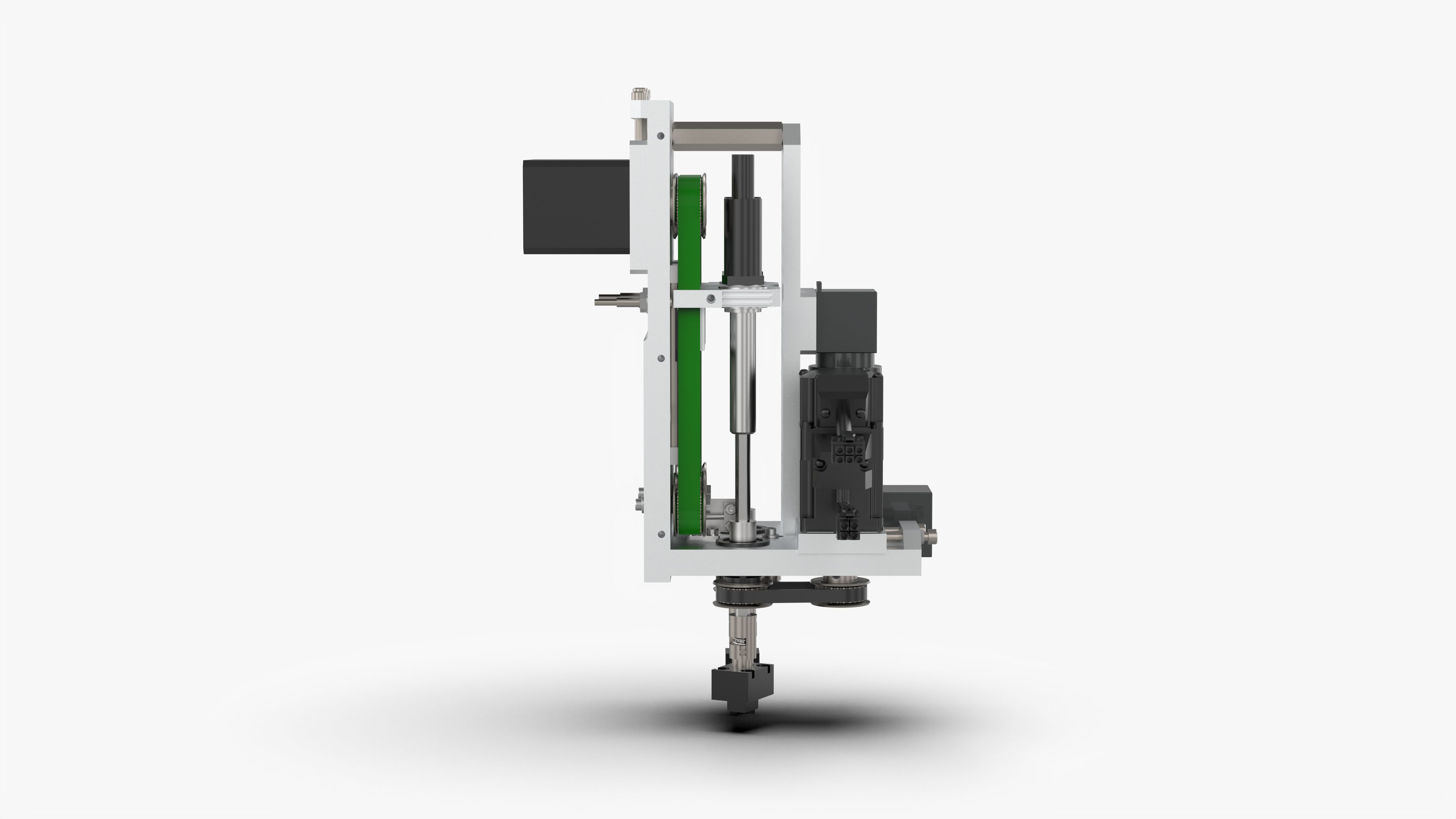

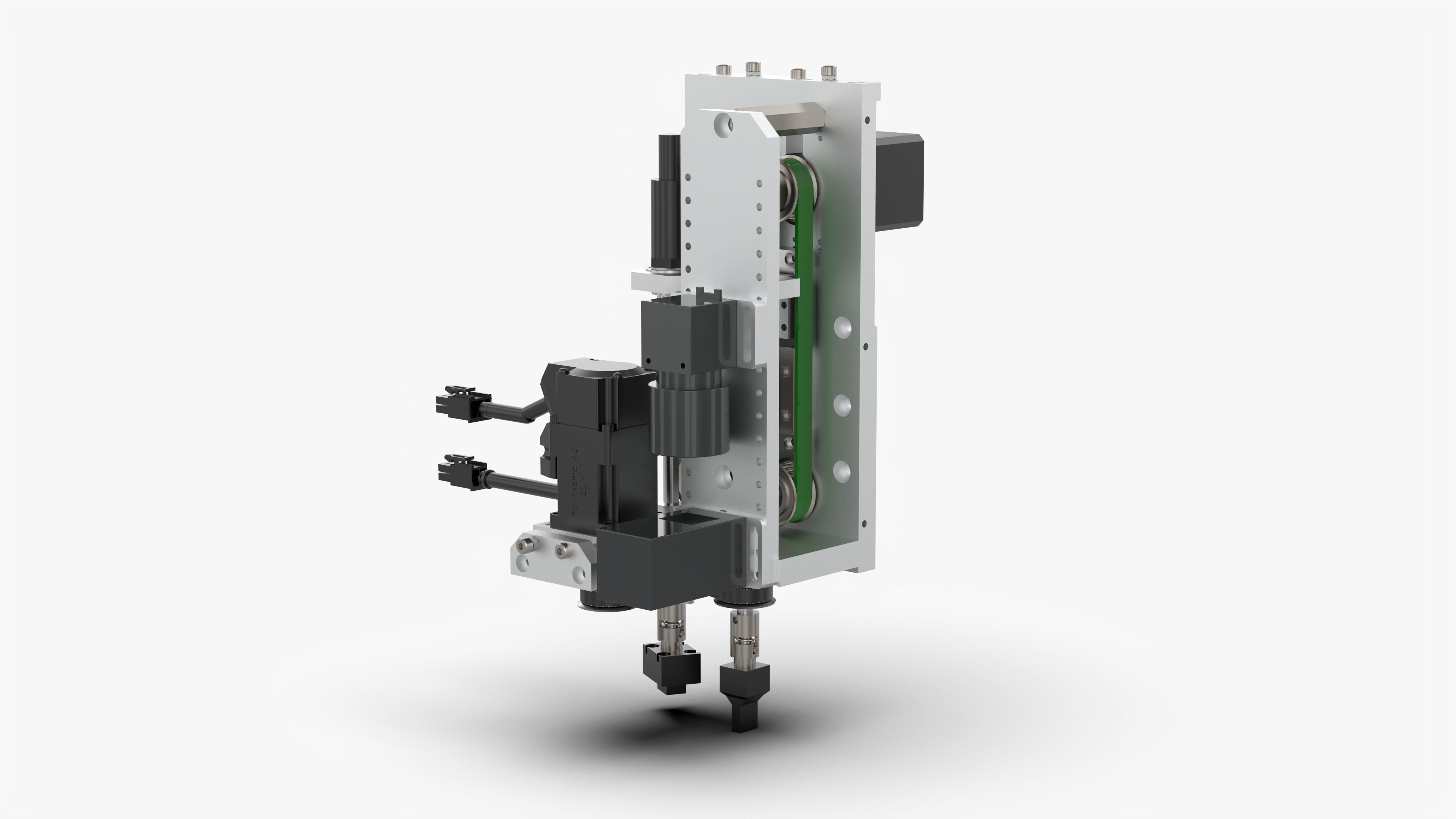

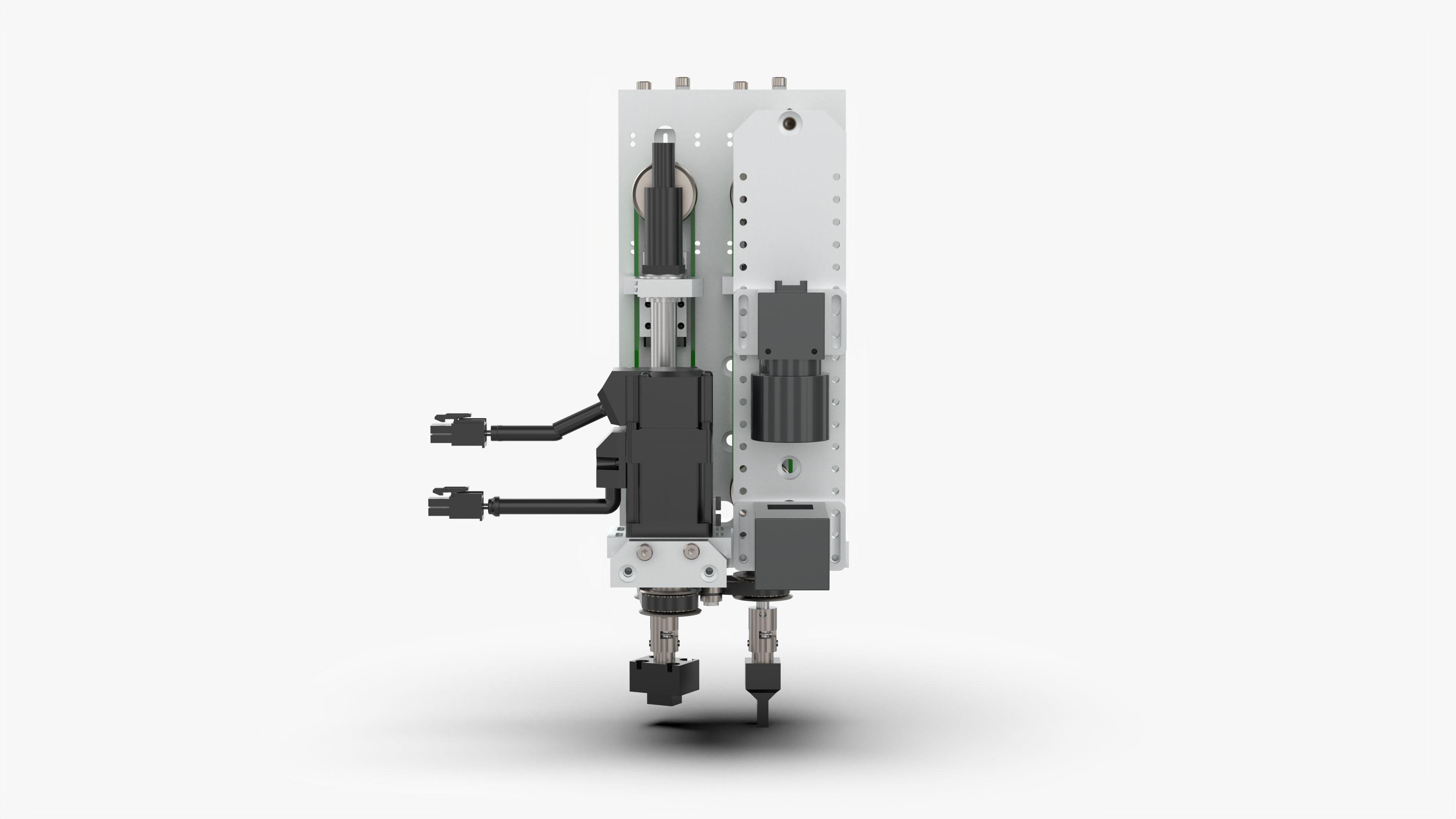

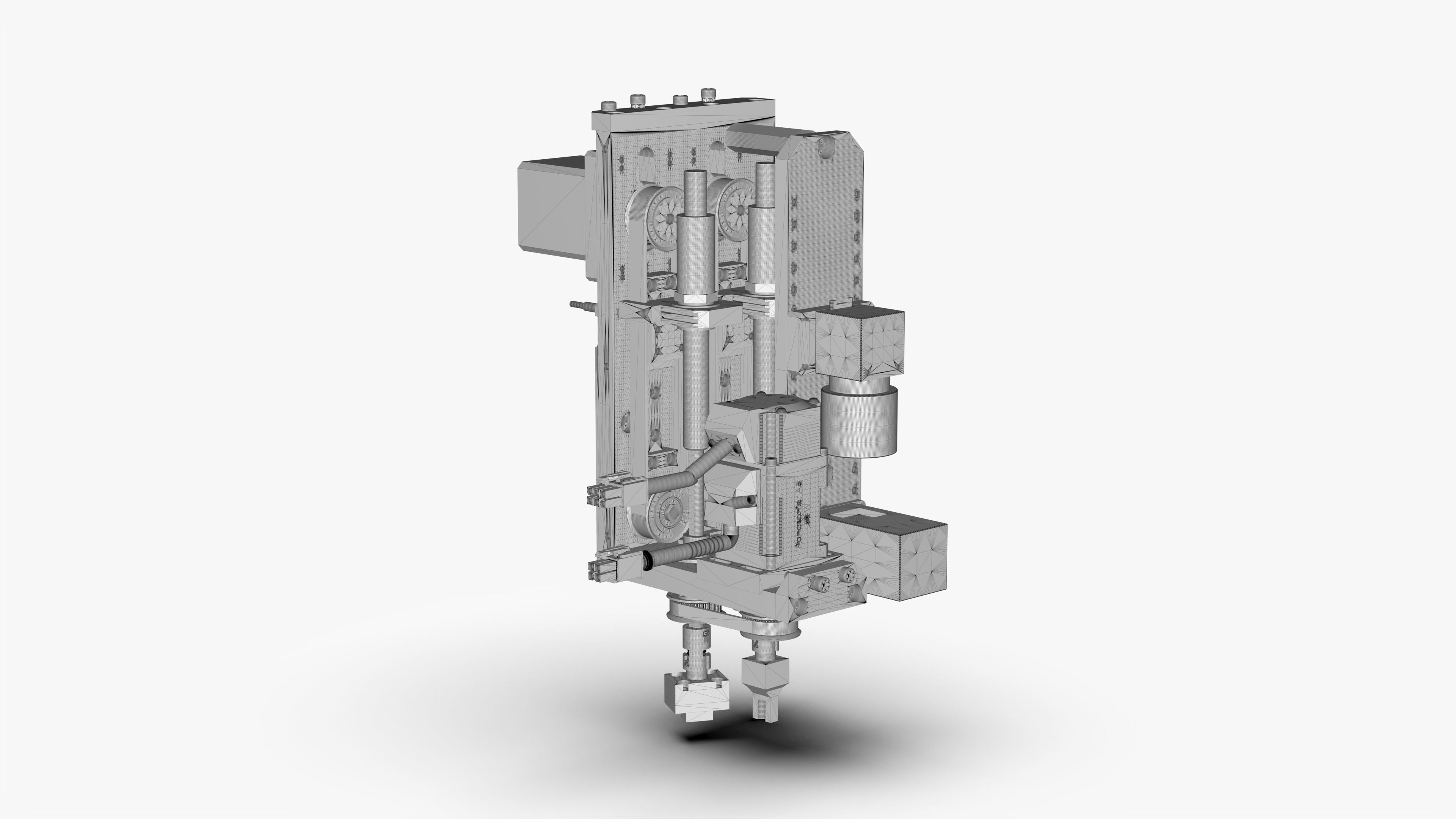

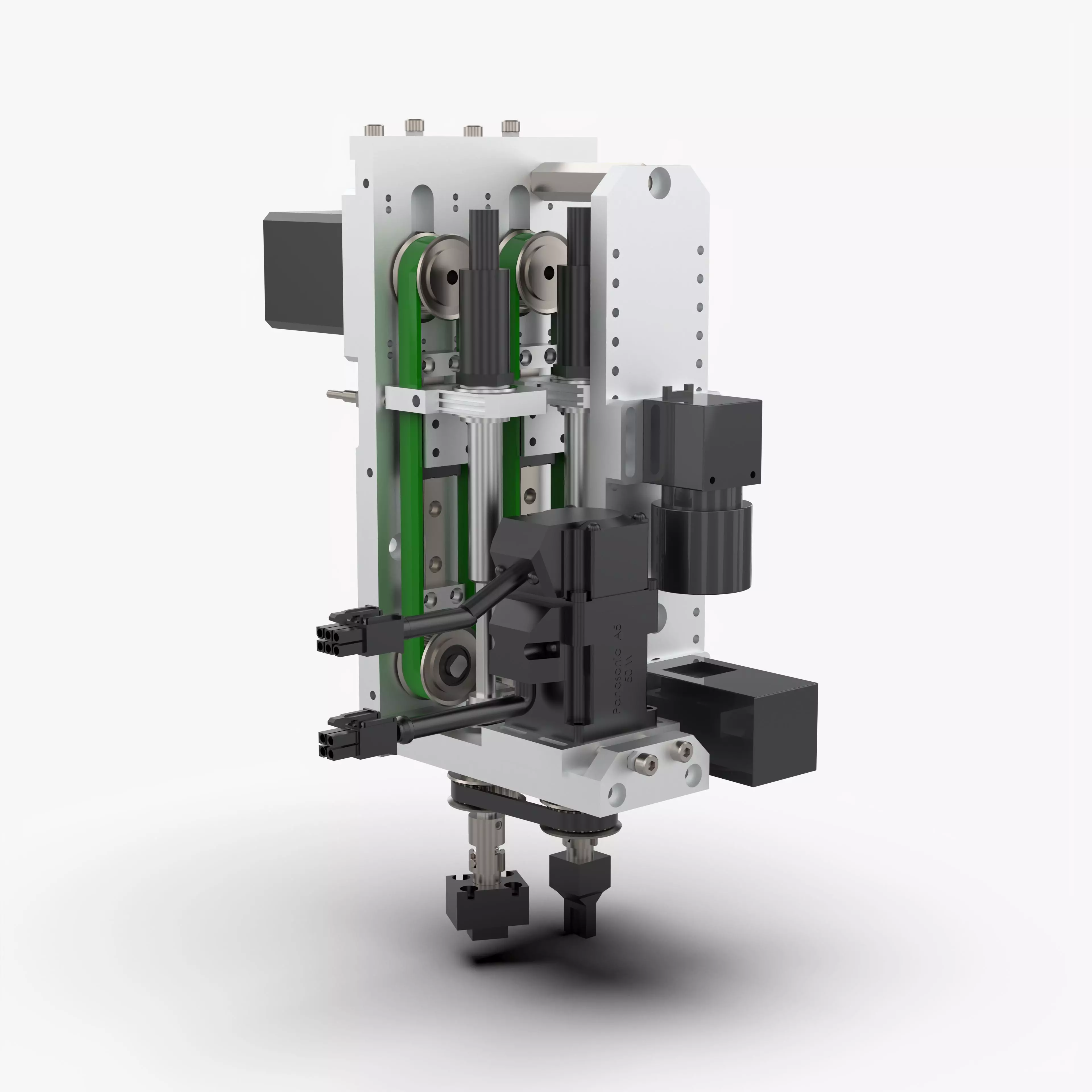

Automatic Swing Angle and Lifting Nozzle Machine

Introduction

A suction nozzle with automatic swing angle and automatic lifting, which is often used in the assembly and inspection of small materials in the 3c industry. This model contains many functions, such as automatic swing angle, automatic lifting, and it is equipped with CCD detection function. After finding the correct position, it can proceed to the next step. Classic structure, welcome to download.

File Formats

  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 1,957,262
  • Vertice: 5,871,786
