Digital Caliper 3D model

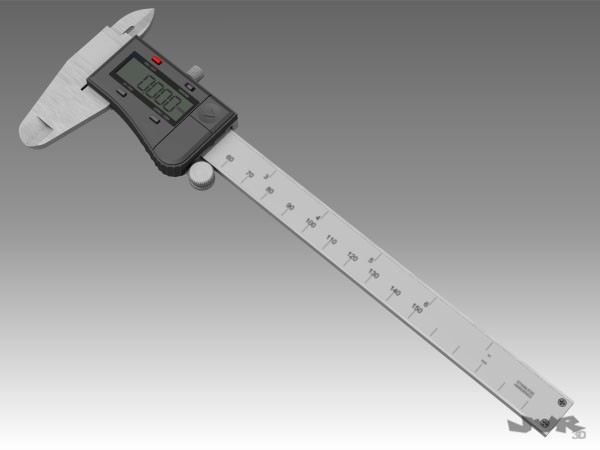

Detailed 3D model of digital caliper.

The model consists of two objects, the main body with the rule and the slider.

Three textures included:

- Brushed metal 1024 x 1024 px

- Centimeter and inch graphic scale 2048 x 2048 px

- Display 1024 x 1024 px

Digital display easy to configure thanks to the layered Photoshop file included.

PDF file with instructions is included.

Notes:

- 3DS format has duplicated vertex. In order to simplify the mesh they can be welded.

- 3DS, OBJ and FBX have no reflexion at materials. Information included in PDF file for setup.

Comments

Tell the author what you think of this product!

lyivan wrote
lyivan
thx
*All prices are exclusive of VAT.
$17.50
License:
Author:jvr3Djvr3D
Designer response: 100% in 1.8h
Available formats
  • Autodesk FBX 2006.11 (.fbx) 1.62 MB
  • PDF(.pdf) (4 files) -
  • 3D Studio - (.3ds) 891 KB
  • 3ds Max 9 (.max) 952 KB
  • OBJ - (.obj) 881 KB
  • Alias/WaveFront Material (.mtl) 881 KB
  • Stereolithography (.stl) (Contact for availability) -
More details
  • Publish date2011-12-08
  • Model ID#1539
  • Animated No
  • Rigged No
  • VR / AR / Low-poly No
  • PBR No
  • Geometry Polygon
  • Polygons 7,500
  • Vertices 4,000
  • Textures Yes
  • Materials Yes
  • UV Mapping No
  • Unwrapped UVs Unknown
  • Plugins used No
