PARAMETRIC REVIT FAMILY L-Corner Base Cabinet with Right Return 3D model

This fully parametric Revit family lets you create an adjustable L-corner base cabinet with right return, customisable shelf, two doors, and optional handle. Designed for kitchen, office, or storage spaces, it adapts easily to different dimensions and design needs.

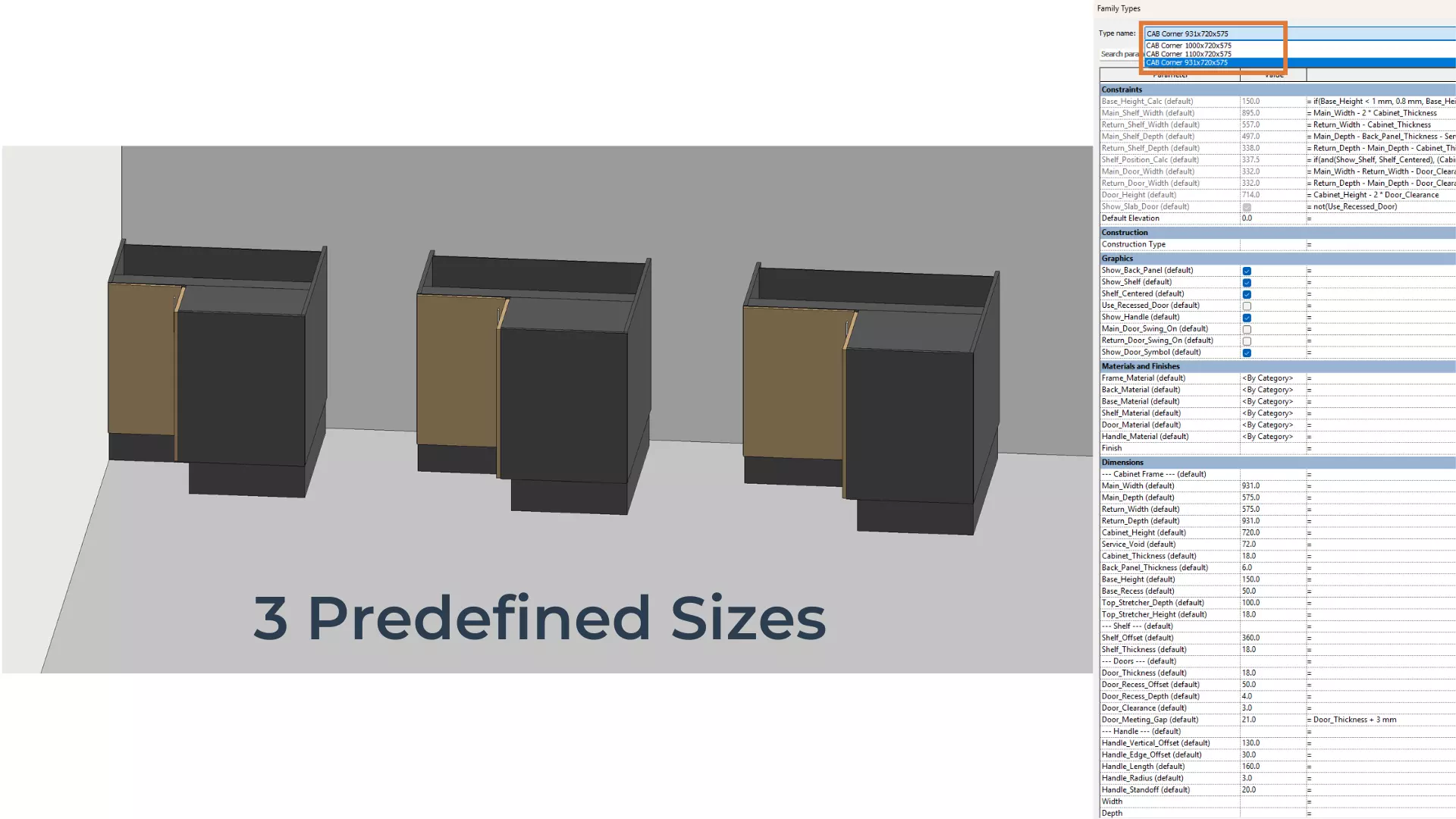

• Includes three predefined sizes compatible with standard kitchen dimensions for quick placement.

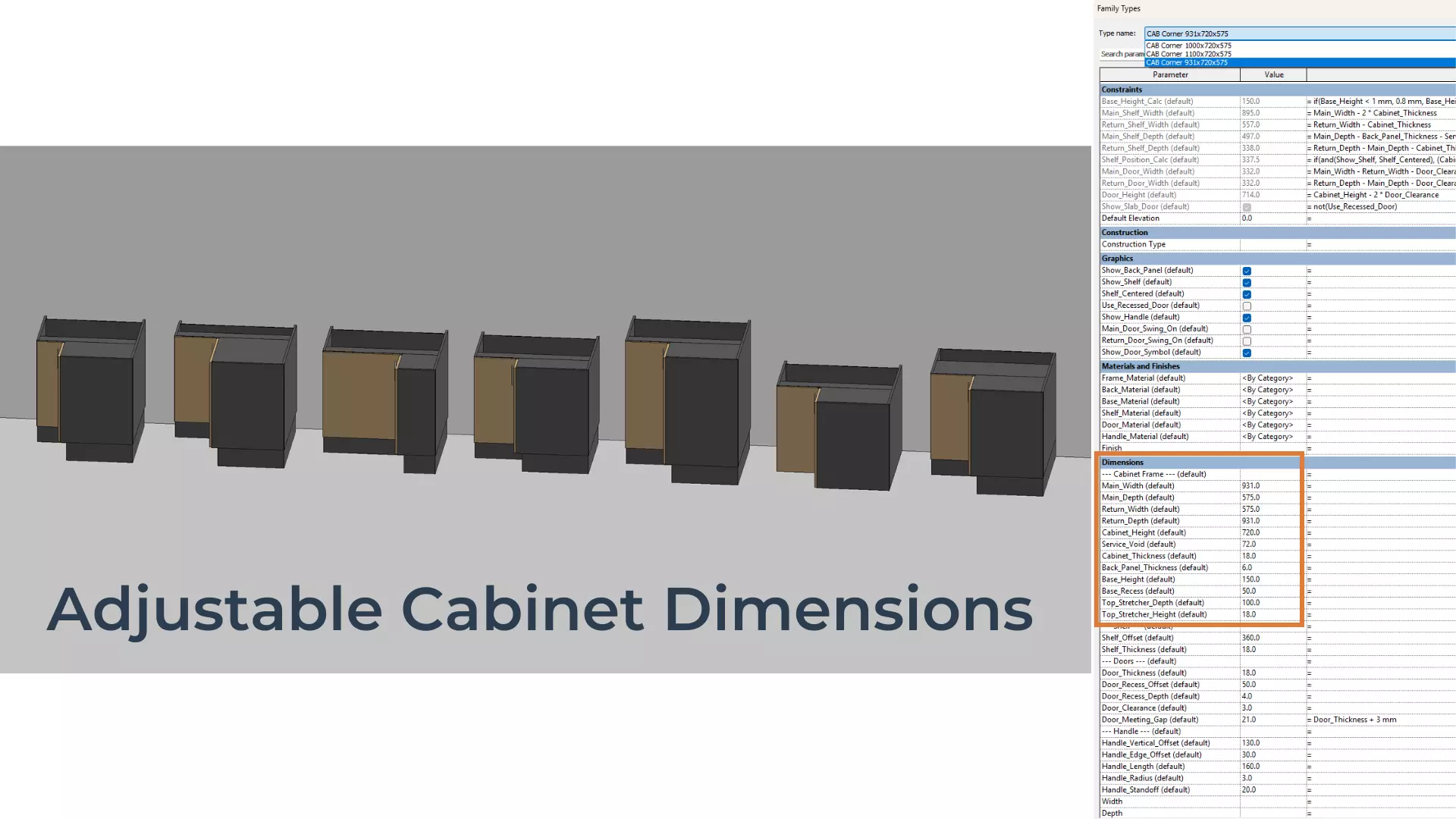

• Adjust cabinet dimensions: width and depth of the main and return sides, cabinet height, base recess / height, service void, and top stretcher height / depth to fit your layout.

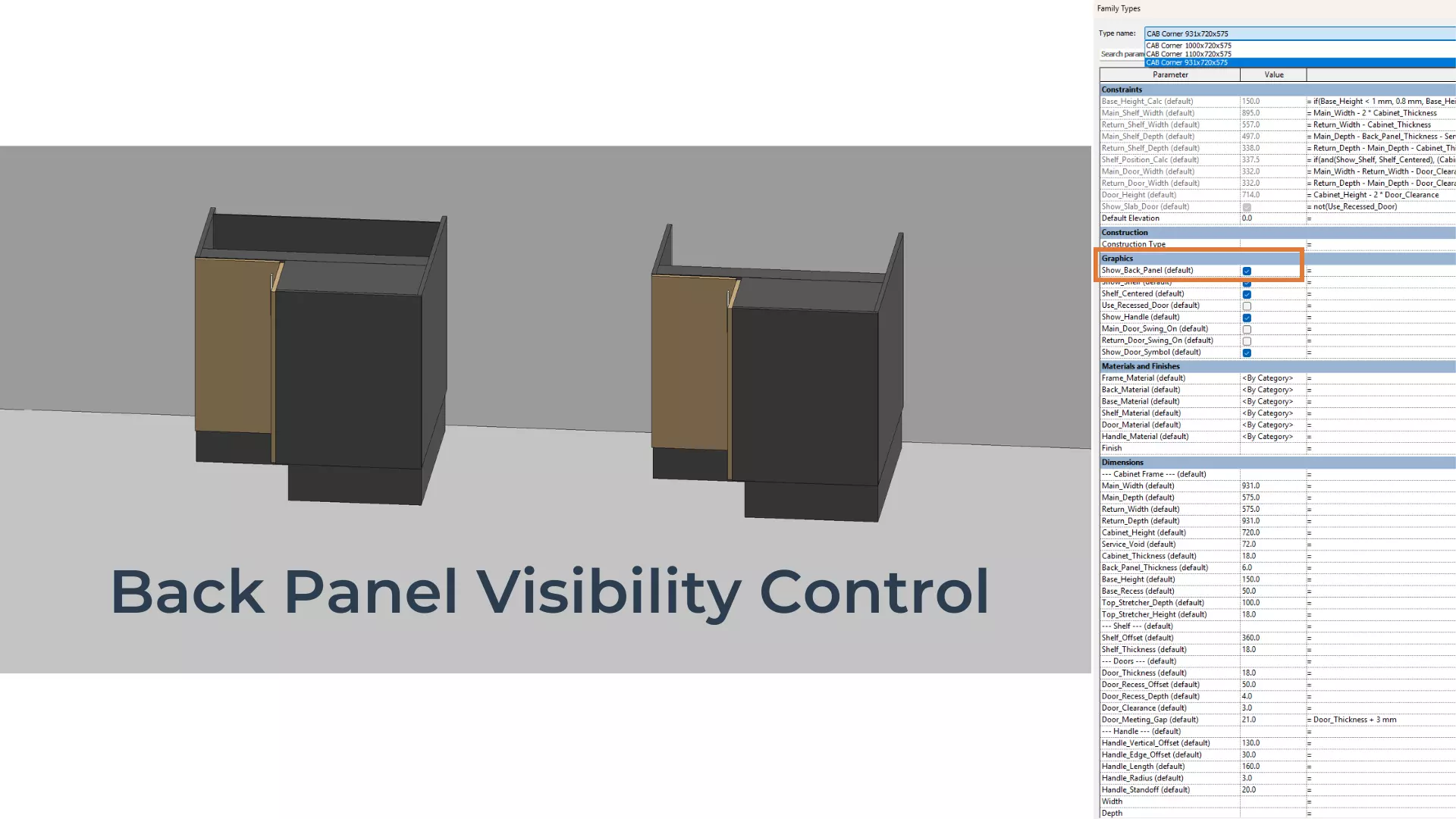

• Toggle the back panel on or off as needed.

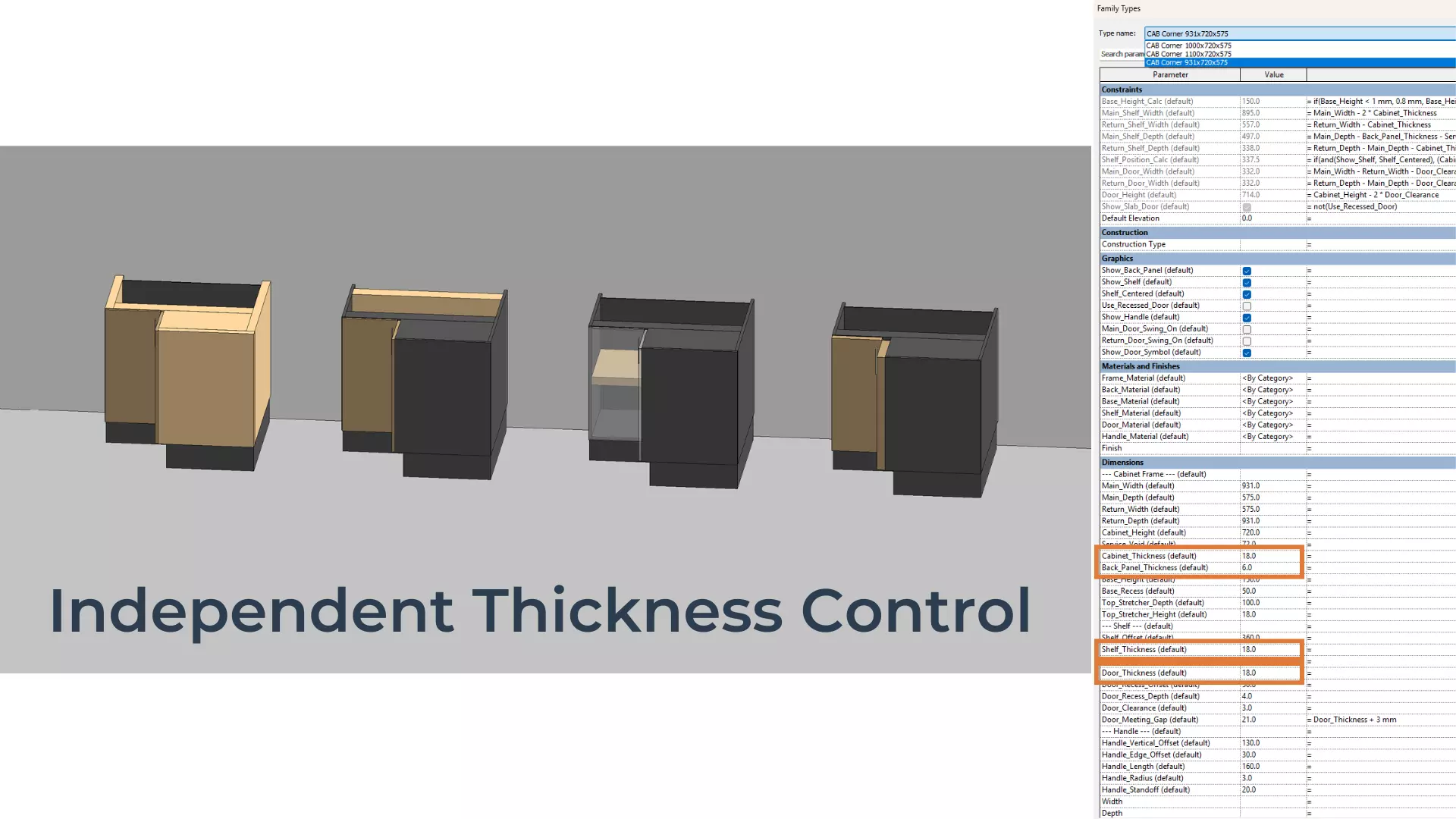

• Set individual thicknesses for frame, back panel, shelf, and door front to match brand requirements.

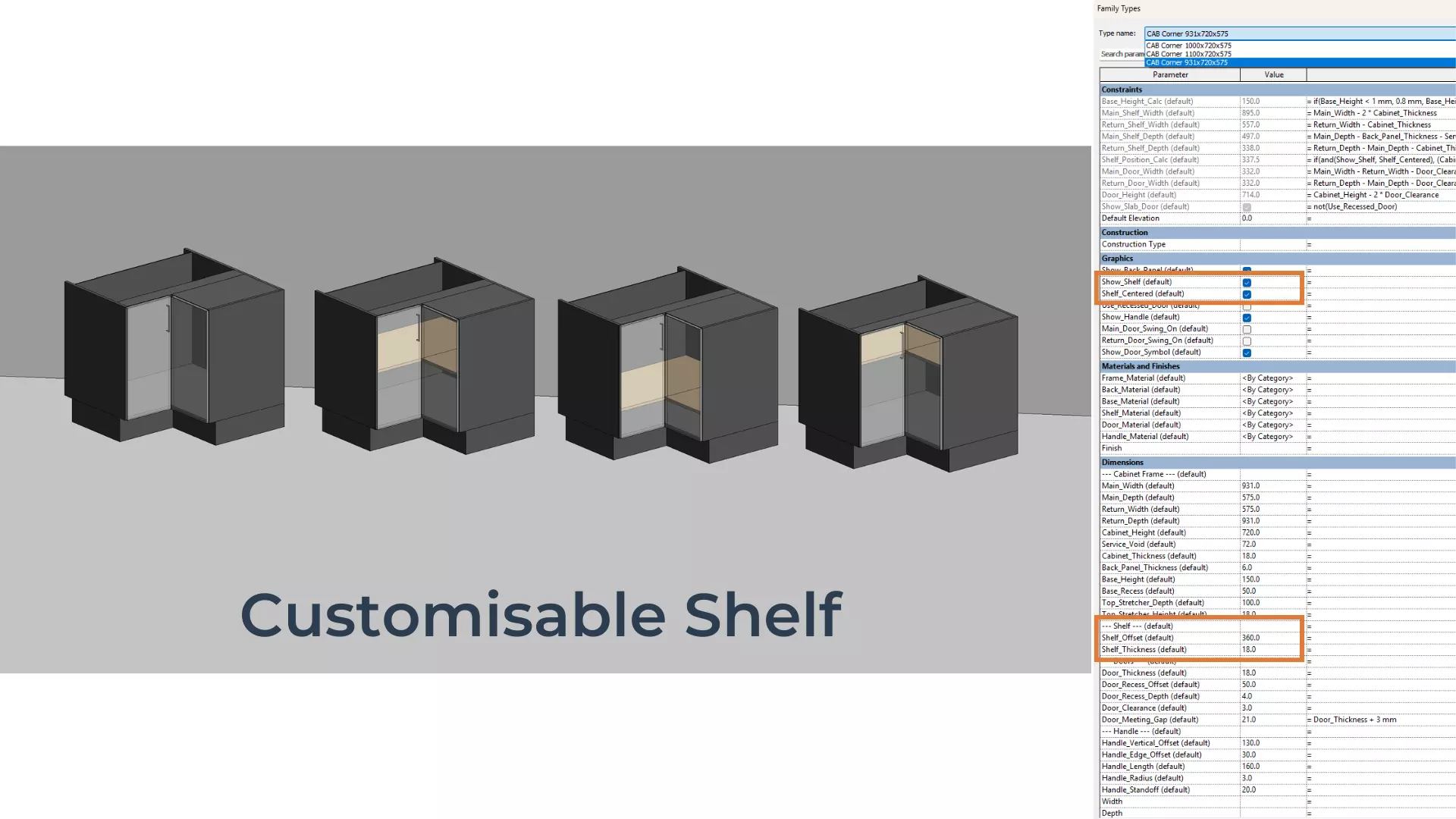

• Position the shelf manually, center it with one click, or toggle it off entirely.

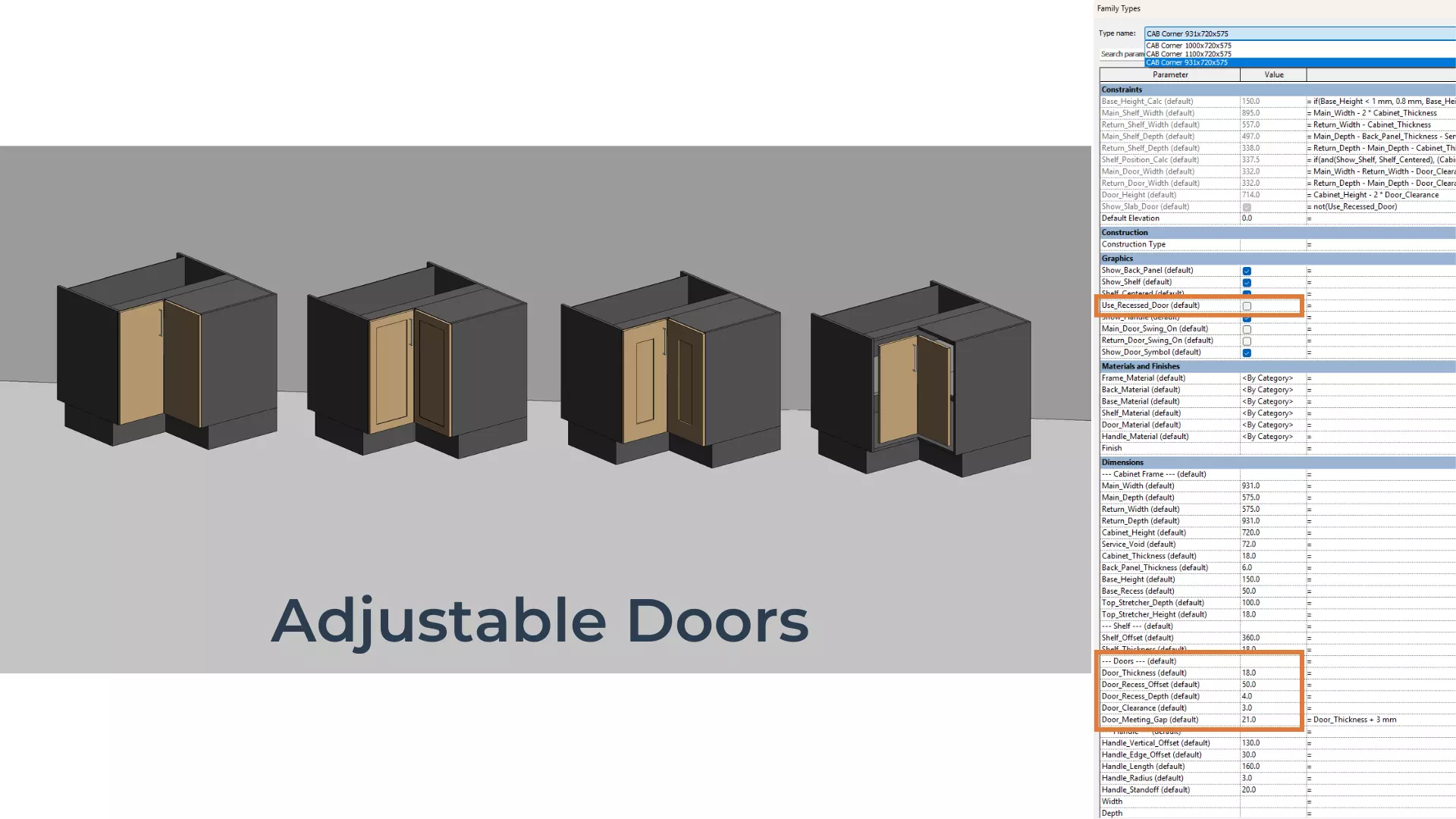

• Choose between recessed and slab door fronts. When enabled, the recessed style automatically replaces the slab style. Customise recess offset and depth as needed.
• Enable or disable the cabinet handle as needed.

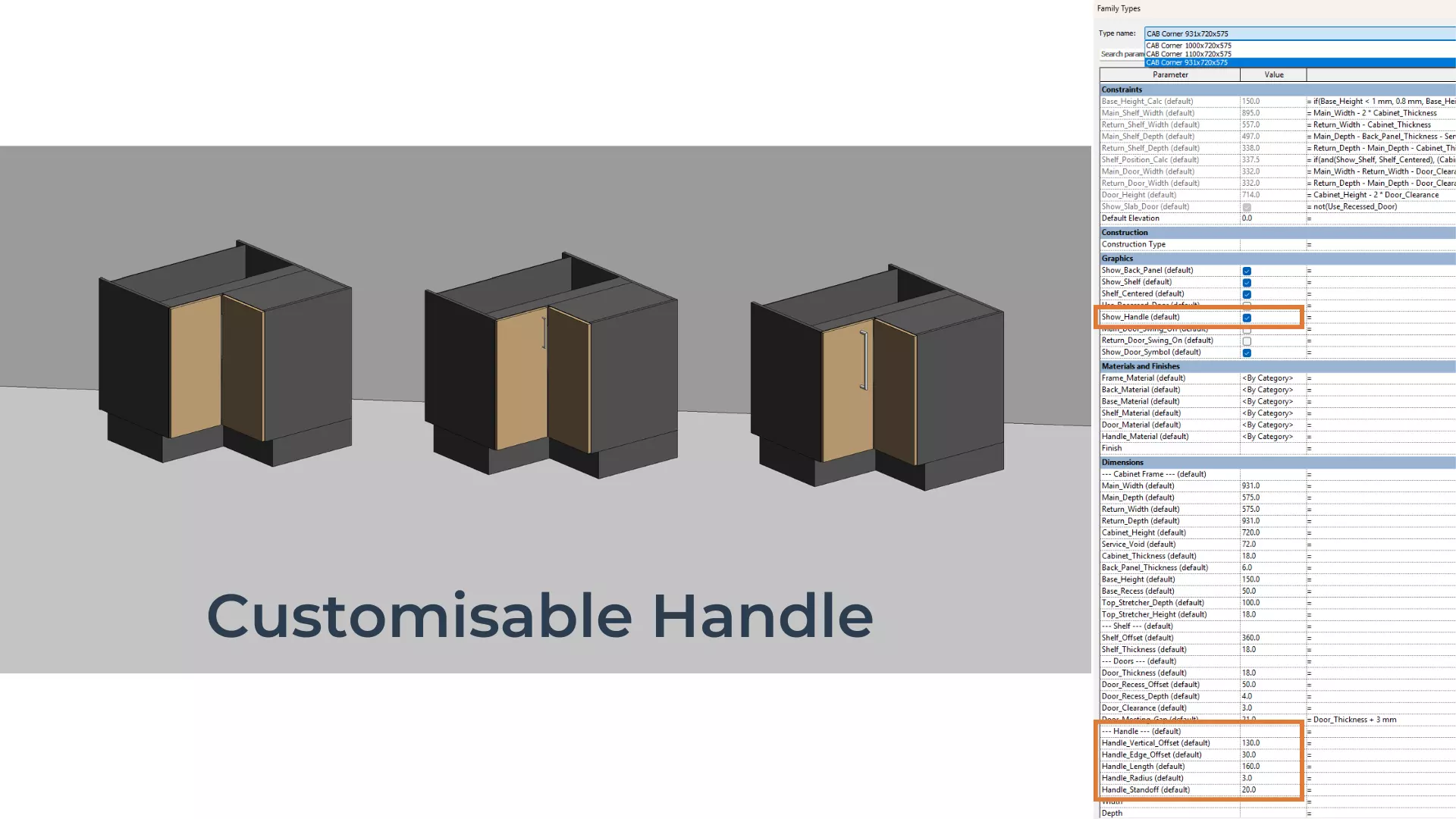

• Customise handle length, radius, standoff, edge offset, and vertical placement.

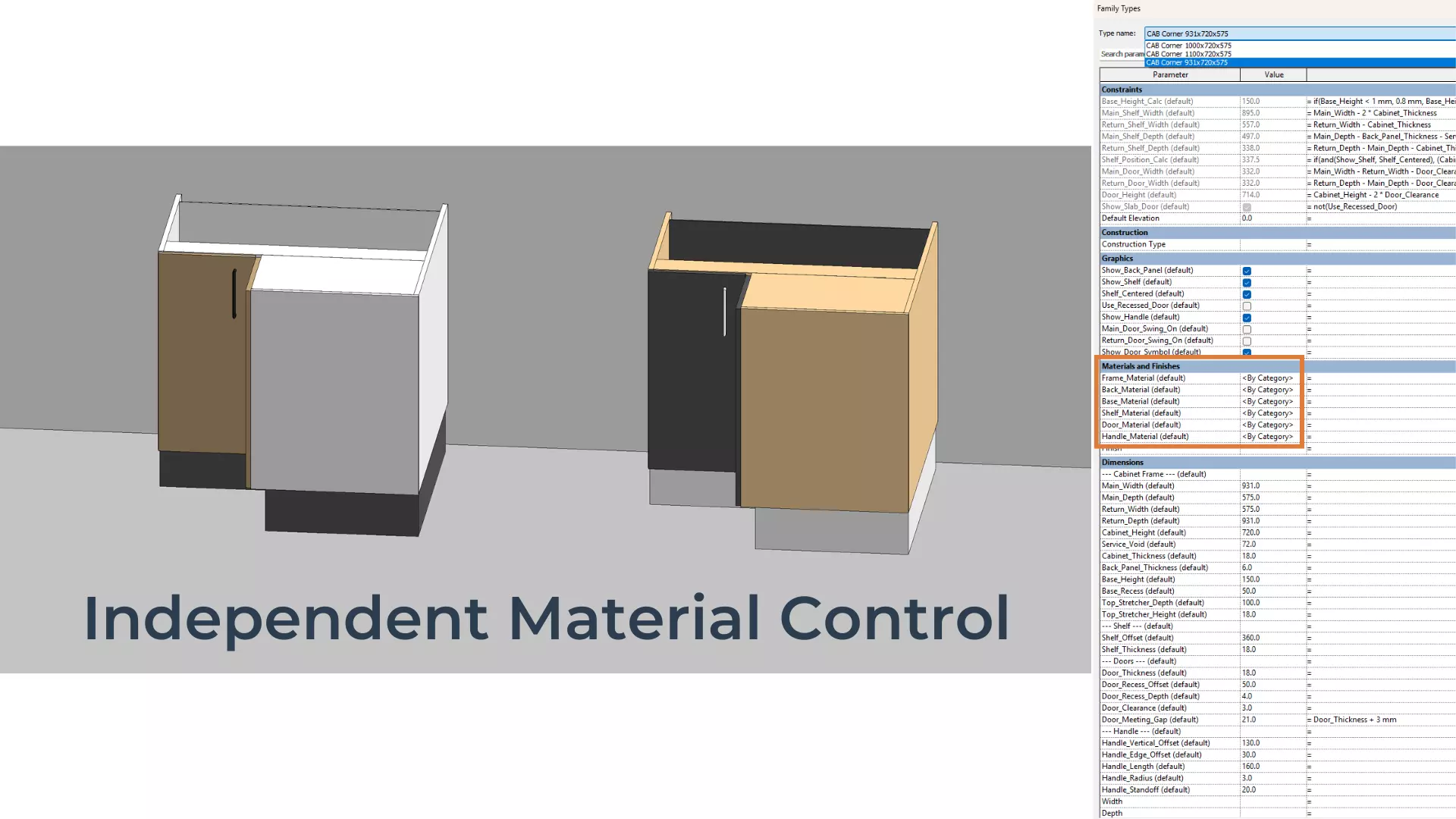

• Assign materials independently to the frame, back panel, base, shelf, door fronts, and handle.

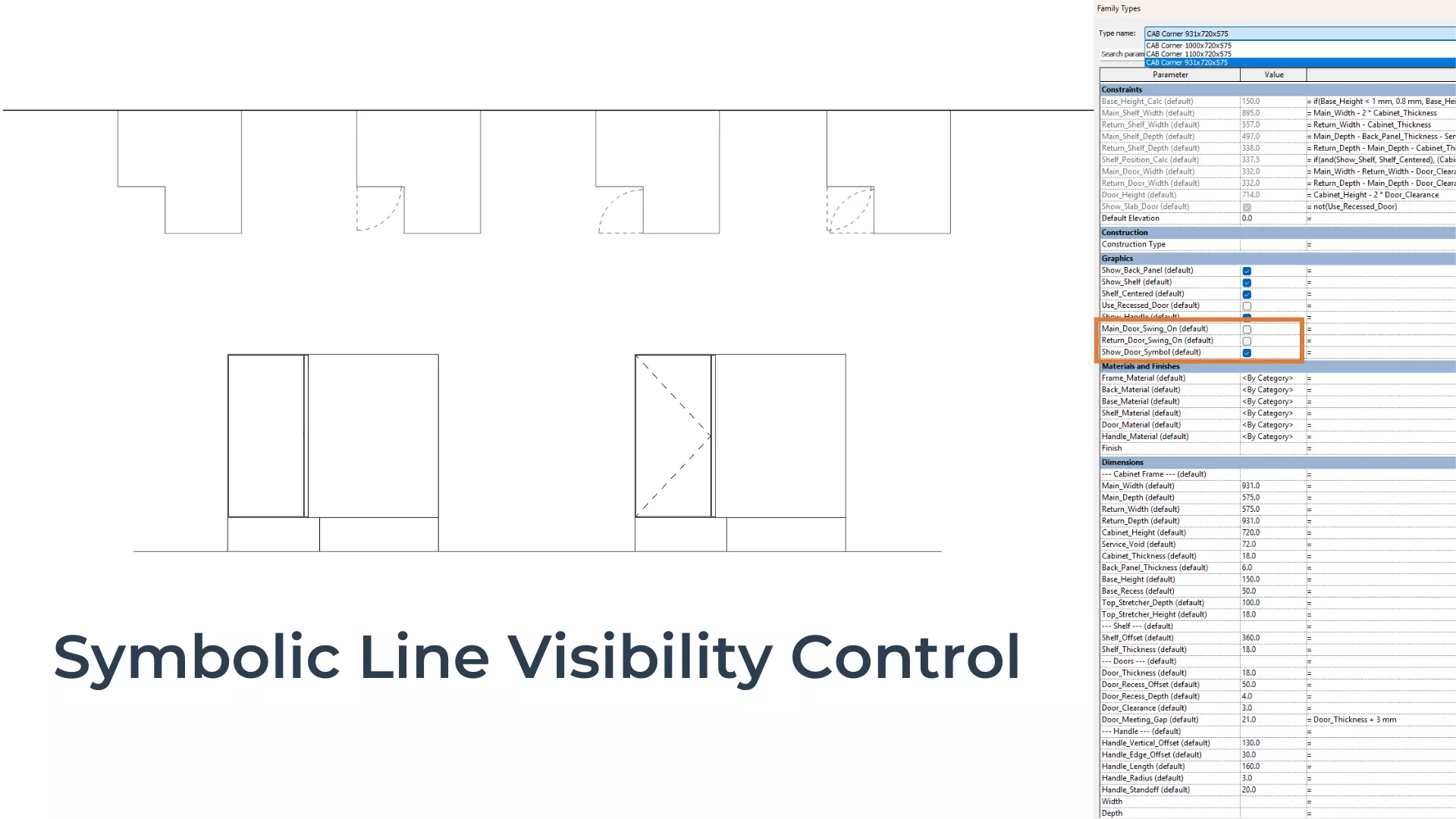

• Includes symbolic swing arcs and door side indicators for clear documentation in 2D views.
• Designed for efficiency – lightweight and easy to work with in real projects.

Why This Family?

• Built from scratch using Revit best practices
• Designed for professional BIM workflows
• No cleanup required – just load and use it in your project
• Easy to modify in the Family Editor – with clean reference planes, named parameters, and tooltips for quick adjustments
• Includes a clear, concise user guide for fast setup

Compatibility & Details:

• Formats: .RFA (Revit Family)
• Family File Size: 885 KB
• Adjustable Sizes: All key dimensions are fully editable
• Revit Version: Created in Revit 2023 (not backward-compatible)
• Intended Use: Residential & commercial interior design
