DESCRIPTION

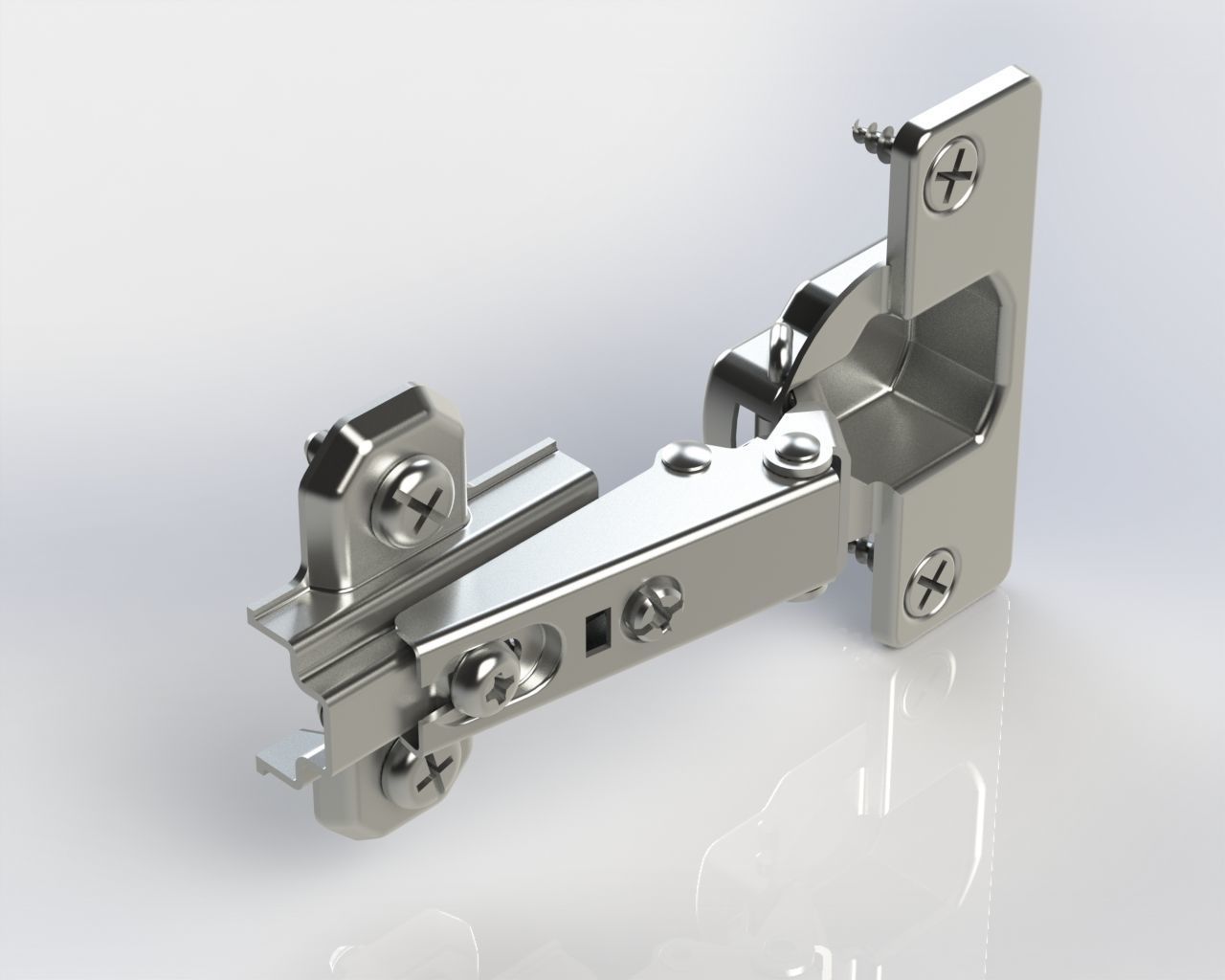

Full Overlay Hinge (overhead hitch) by Hettich

Photorealistic 3D model of a door hinge by Hettich for European Cabinet. European Cabinet Hinge created in SolidWorks 2018. The Solidworks part comes in 3 configurations: full open, fully closed, and free open. Plate drilling distance is 32mm.

Detailed assembly of the door hinge patch with D5 and D3 slats in the OPEN and CLOSED configuration.

Hidden Loop Slide-on 2333. Opening angle 95°. Hettich Art. 2333-T42 (1 078 660) (overhead hitch)

  • Concealed hinge for sliding mounting• For door thickness from 14 mm
  • Cup diameter 35 mm• With self-closing function
  • Built-in overlay adjustment + 0.5mm/ - 2.5mm
  • Built-in depth adjustment ± 2 mm
  • Height adjustment on the mounting plate ± 2 mm
  • Cup/console hinges nickel-plated steel
