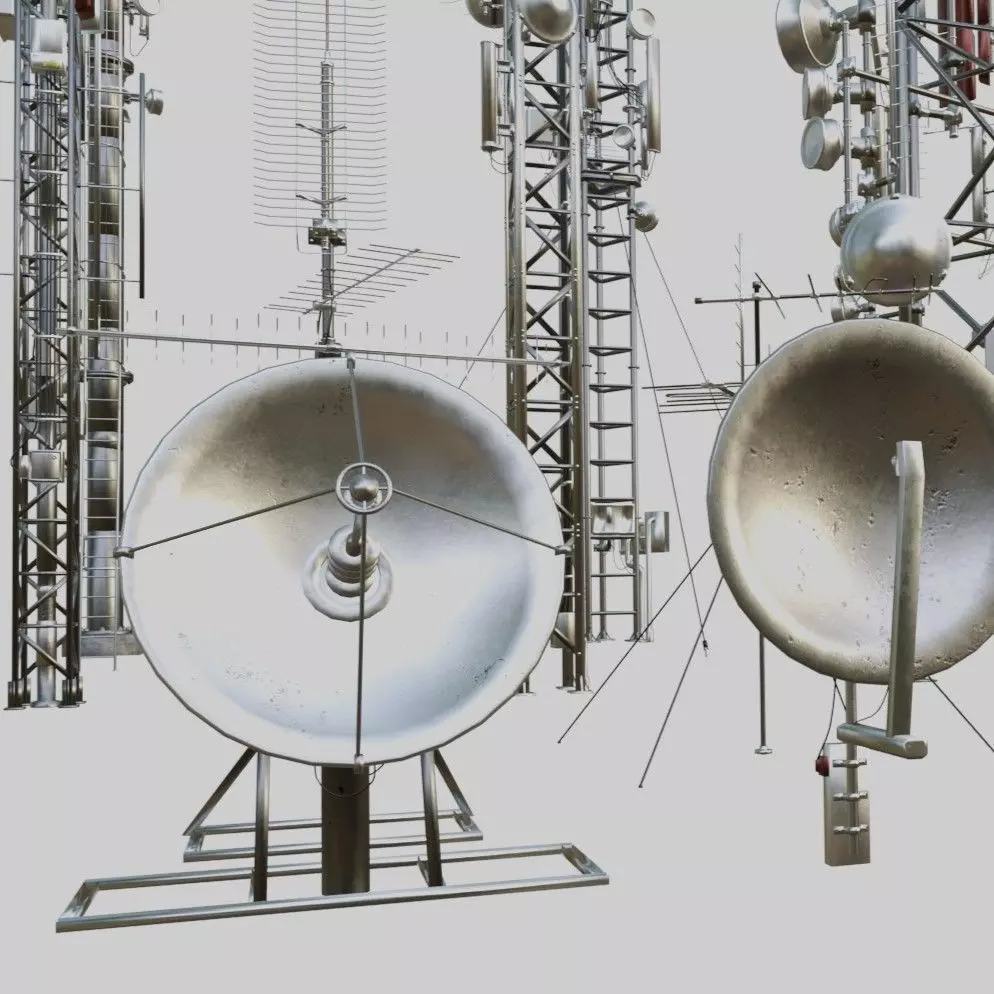

Small Antennas 3D model

Dipole Antennas:

A simple and widely used type of antenna, consisting of two conductive elements, usually in a straight line. They are used in various applications, including radios, televisions, and wireless communications.Monopole Antennas:

Similar to dipole antennas but with a single element and usually mounted above a ground plane. These are common in mobile devices, car radios, and other portable equipment.Loop Antennas:

Consisting of a loop or coil of wire, these antennas are used for receiving radio waves, particularly in AM radios. They are compact and can be designed in different shapes.Patch Antennas:

A type of antenna with a flat, rectangular design, typically used in GPS devices, mobile phones, and wireless networking equipment. They are known for their low profile and ease of integration into devices.Whip Antennas:

A flexible, rod-like antenna often seen on portable radios, walkie-talkies, and some vehicles. They are simple and provide good omnidirectional coverage.Yagi-Uda Antennas:

While Yagi antennas can be quite large, there are compact versions used for specific applications, such as in Wi-Fi and TV reception, where directional coverage is needed.Microstrip Antennas:

These are small, flat antennas that can be printed onto a circuit board, making them ideal for compact devices like mobile phones, RFID tags, and laptops.Helical Antennas:

These antennas have a helical shape and are used in applications requiring a specific polarization of the signal, such as in satellite communications and GPS devices.
