DESCRIPTION

This model is accurately modeled from the 2D drawings from Apple's Development resources. As Apple does not provide 3D models, people who develop accessories for these phone need accurate models to leverage.

Versions of this model also include surfaces that represent the keep out areas for projection phone hardware such as the cameras, mic, flash, and ALS proximity sensors. If you are designing a case, these keep out zones are critical. the solidworks file should also include a sketch for the Qi charge keep out area as well as the keep our areas for metal objects.

We have donwloaded numerous iPhone models and none of them are truly accurate to and engineering level. This one is.

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

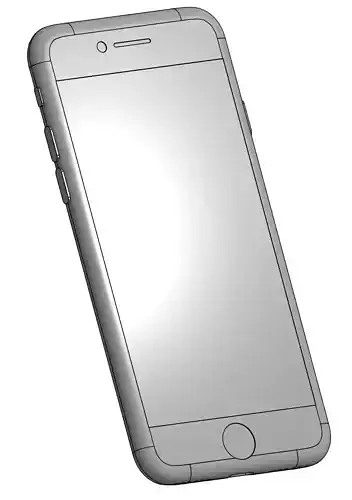

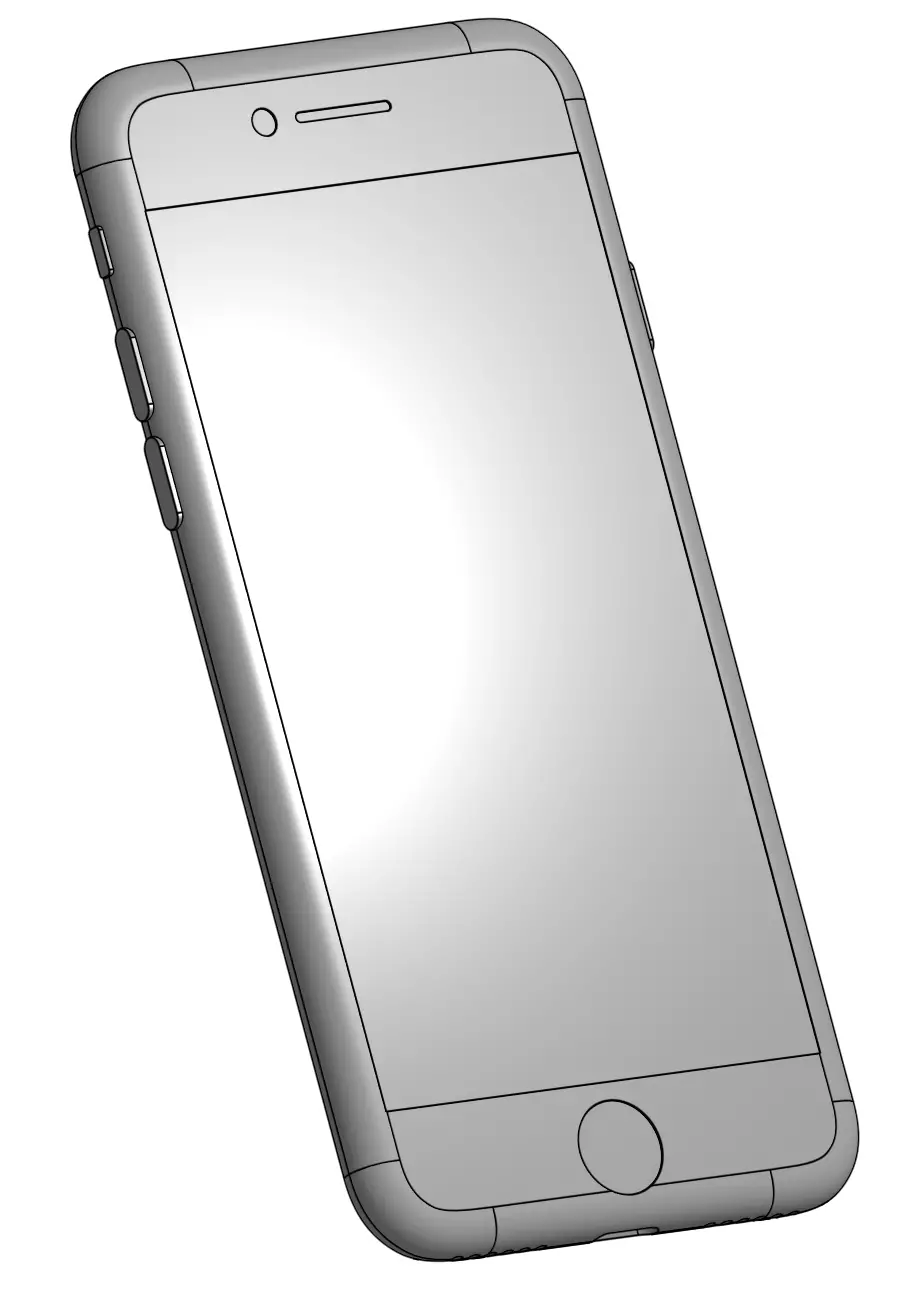

iPhone SE 2020 - mechanically accurate from Apple Dev Drawings 3D model

Royalty Free License
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
STL
Stereolithography | 2 files<br />File Size: 7.49 MB
3DM
Rhinoceros 3D | 2 files<br />File Size: 1.14 MB
IGE
IGES | 2 files<br />File Size: 2.54 MB
SLDPRT
SolidWorks | 2 files<br />File Size: 400 KB
