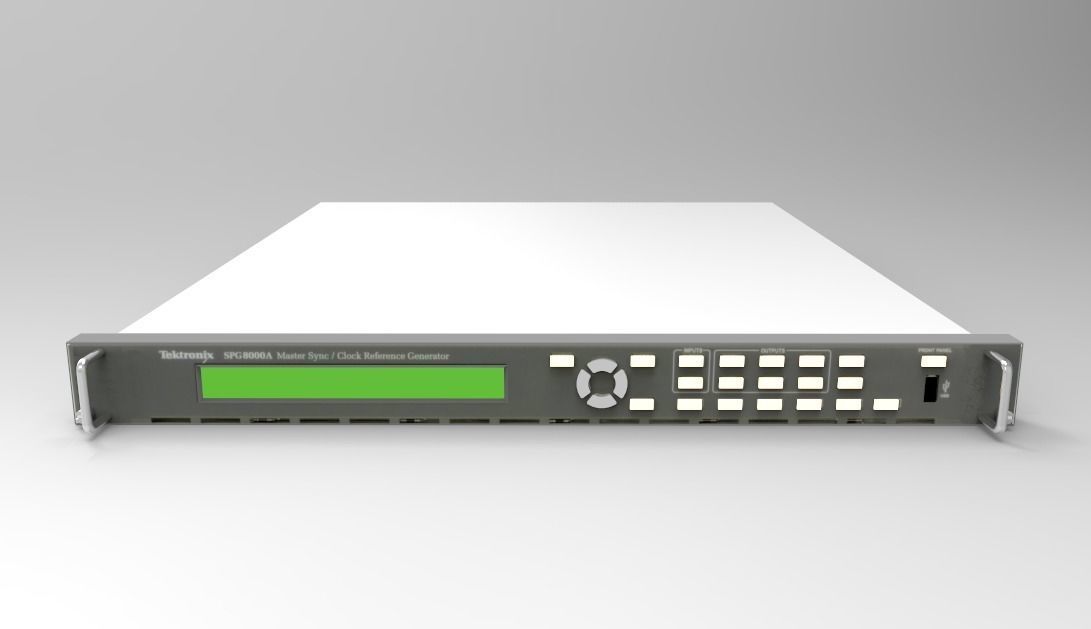

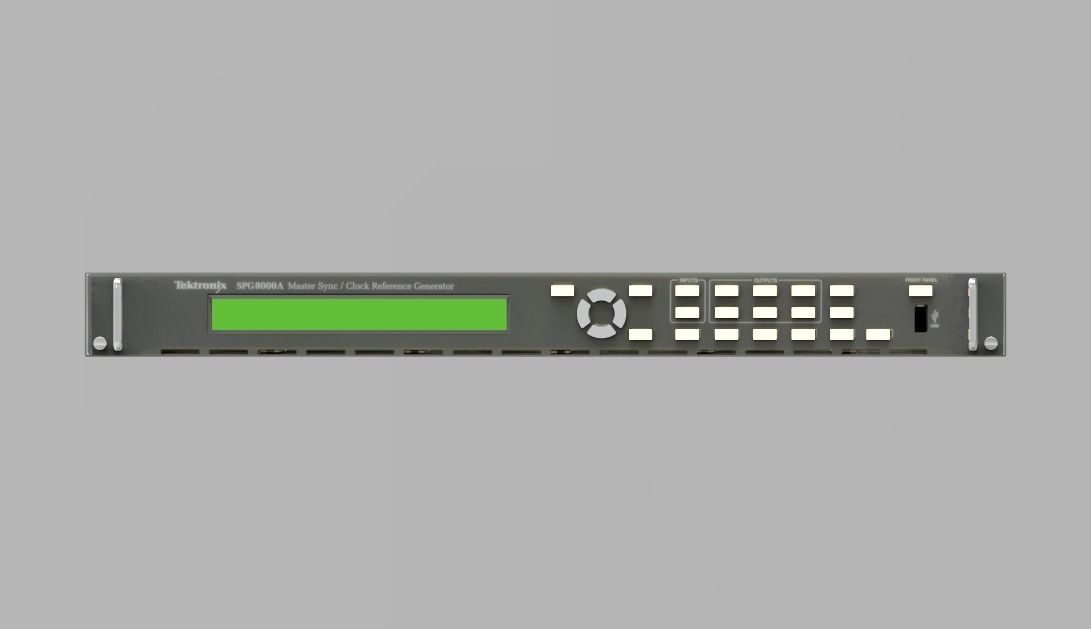

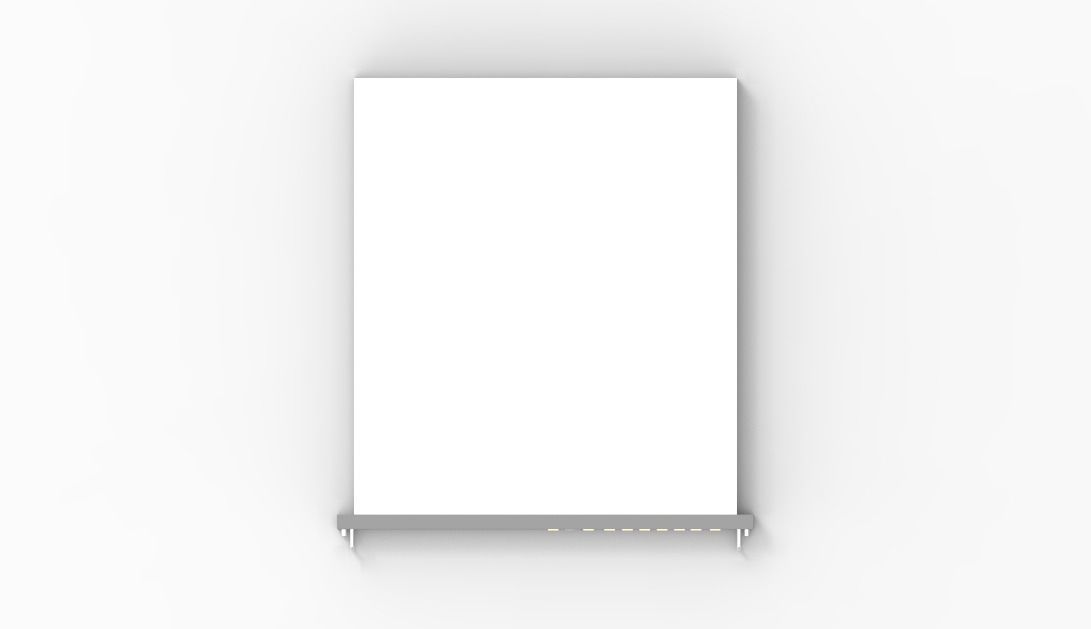

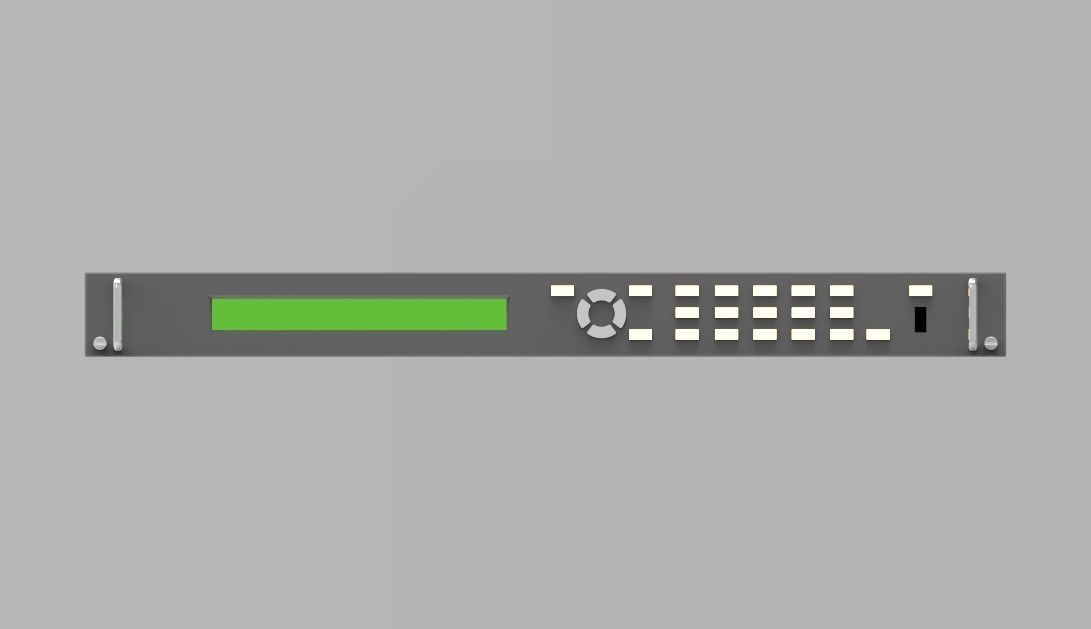

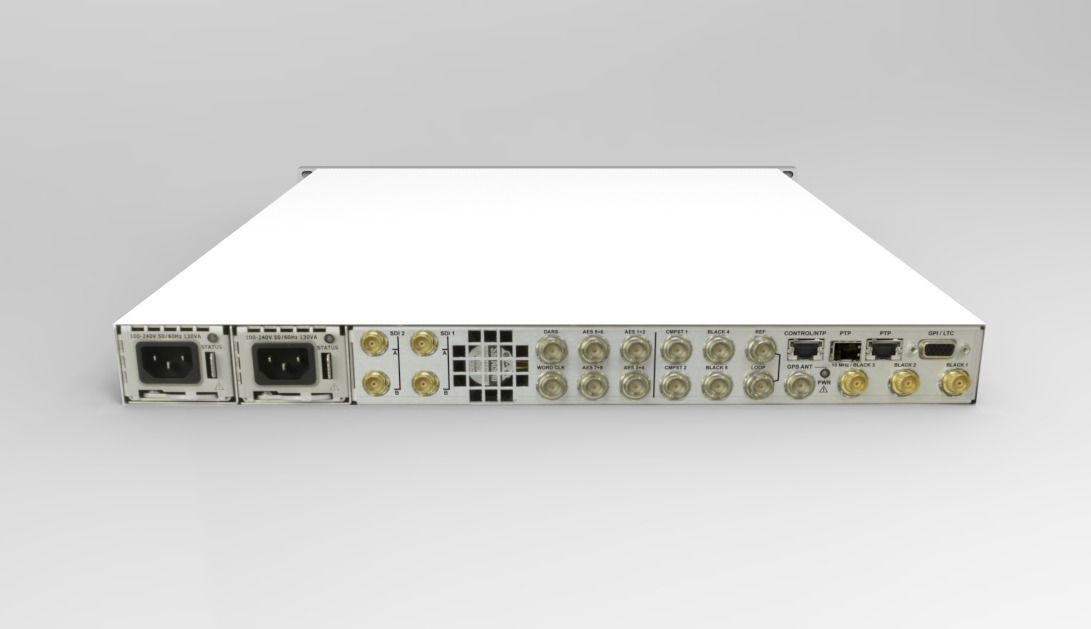

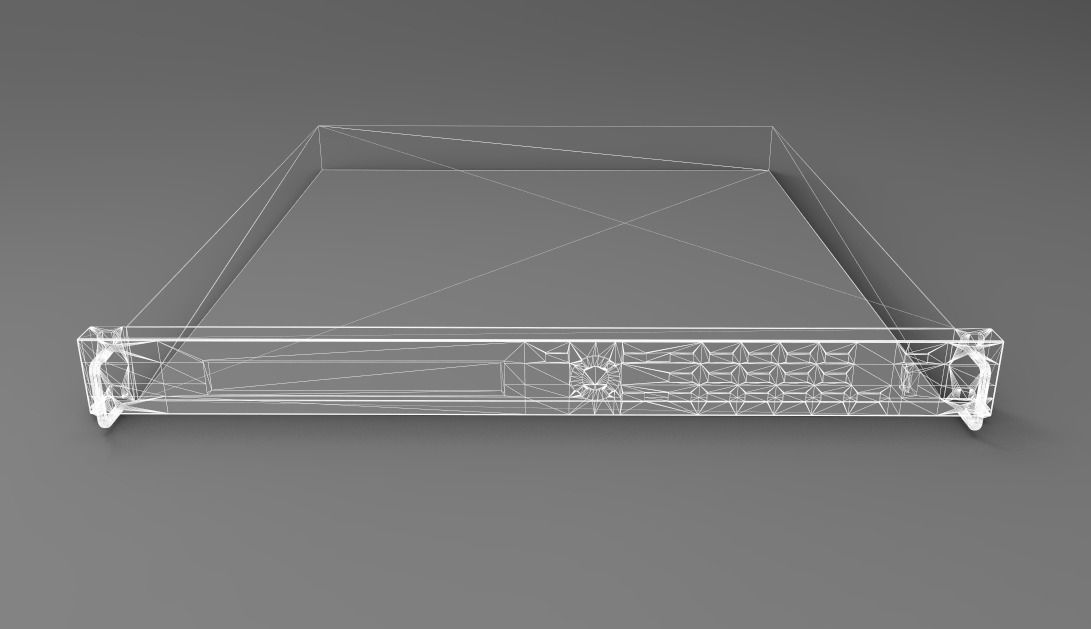

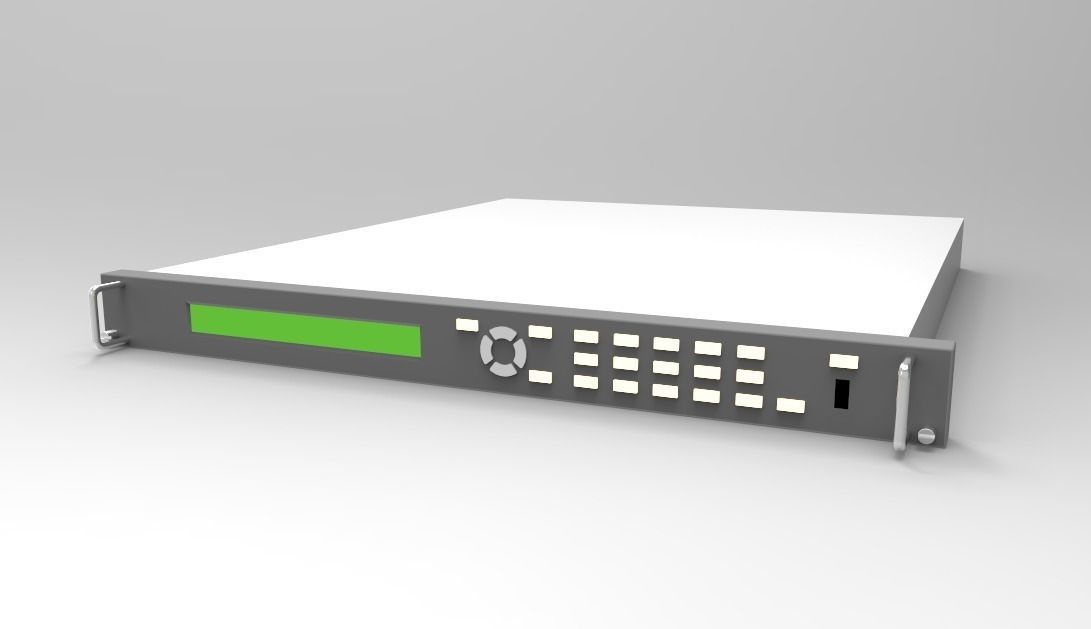

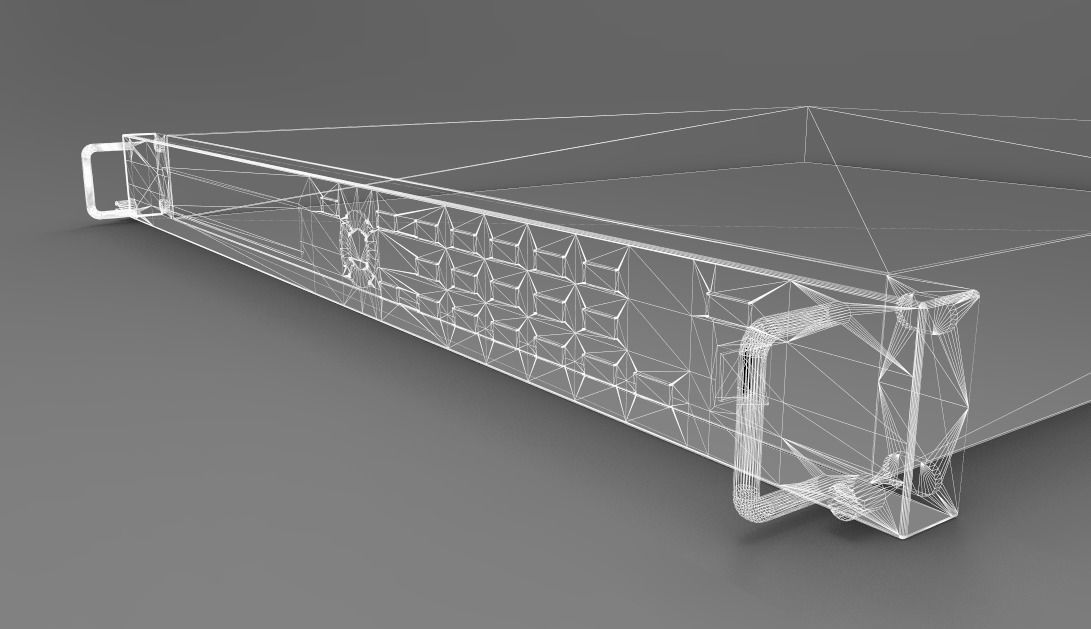

Signal Pulse Generator 3D model

1RU Rack Mountable (Front block only version) Low-Poly

This Block model is a basic representation of a Signal Pulse Generator used in 19 inch system racks.

All measurements are based on block standard sizing for systems integration design.
Height = 44.45 (1RU) x Width = 485 x Depth = 560mm

Ideal for 2d multi axis layouts and technical specification.

Last Updated 30/10/2017

$5.00
Offer your price
License:
Author:CAVICOMCAVICOM
Designer response: - % in - h
Available formats
  • Alias/WaveFront Material (.mtl) 64.3 KB
  • OBJ (.obj) 64.3 KB
  • Blender 2.78a (.blend) 957 KB
  • SolidWorks 2015 (.sldprt, .sldasm, .slddrw) 326 KB
  • 3D Studio (.3ds) (Contact for availability) -
  • Autodesk FBX (.fbx) (Contact for availability) -
  • Stereolithography (.stl) (Contact for availability) -
More details
  • Publish date2017-06-22
  • Model ID#735850
  • Animated No
  • Rigged No
  • VR / AR / Low-poly No
  • PBR No
  • Geometry Nurbs
  • Polygons 3,400
  • Vertices 1,700
  • Textures No
  • Materials No
  • UV Mapping No
  • Unwrapped UVs
  • Plugins used No
