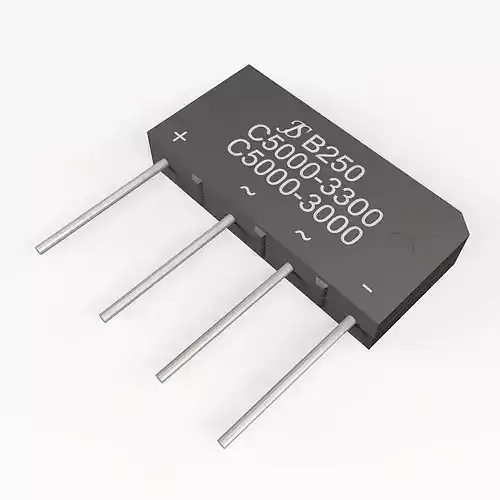

diode bridge Low-poly 3D model

Low poly diode bridge rectifier model, also known as the Graetz circuit. Built with Maya 7, clean topology, no N-gons. UV mapped, unwrapping done with no overlapping, rendered with V-ray (ver. 1.5) renderer in 3ds Max, render scene included. Basic blinn materials with Layered Textures node in Maya file. Maya 7 (.ma, .mb), OBJ (.obj with .mtl), 3ds Max 2009 (.max) and Autodesk FBX (.fbx) format included. FBX and OBJ are directly exported from Maya. Polygons: 440 quads/ 824 triangles Vertices: 422 Textures included in diode_bridge_textures.zip file: -2048×2048 pixels .jpg opacity (transparent) map for label -2048×2048 pixels .jpg diffuse (color) map - not used -2048×2048 pixels .psd working map - if you need to change label or make another texture (see thumbs).

    This product has no reviews yet
    diode bridge
    $10.00
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Send your price offer to the author if you want to buy it at lower price.
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 71% in 9.8h
    3D Modeling
    Low-poly Modeling
    Rendering
    UV mapping
    Hire me
    3D model formats
    • OBJ (.obj, .mtl) (2 files)-
    • Autodesk FBX (.fbx)30.5 KB
    • Autodesk 3ds Max 2009 (.max)79.6 KBVersion: 2009Renderer: V-Ray 1.5
    • Autodesk Maya 7 (.ma, .mb)52.4 KBVersion: 7Renderer: Default
    • Textures .jpg .psd3.54 MB
    • 3D Studio (.3ds) -
    • Stereolithography (.stl) -
    3D model details
    • Publish date2014-12-04
    • Model ID#94569
    • Animated
    • Rigged
    • VR / AR / Low-poly approved
    • PBR
    • Geometry Polygon mesh
    • Polygons 440
    • Vertices 422
    • Textures
    • Materials
    • UV Mapping
    • Unwrapped UVs Unknown
    • Plugins used
