Arduino Uno R3 DIP 3D model
Verification details of the FBX file
Files
FBX file format
Scene
Supported object types
Geometry
No N-gonsManifold geometryNo faceted geometry
Textures and Materials
Missing required texturesPower of 2 texture sizesNo embed texturesAssigned materialsTexture aspect ratio
UVs
UV unwrapped modelNo overlapped UVs per UV island
Naming
Allowed characters
Description

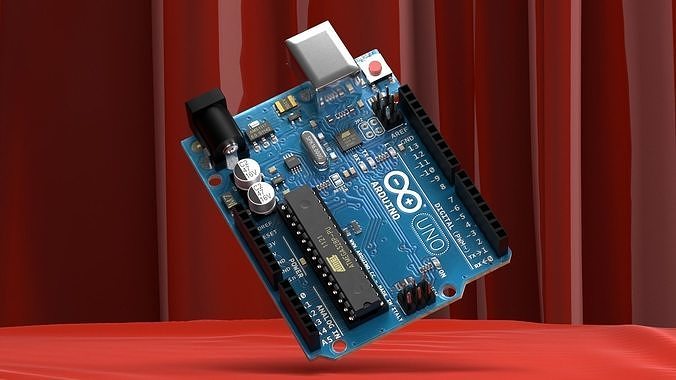

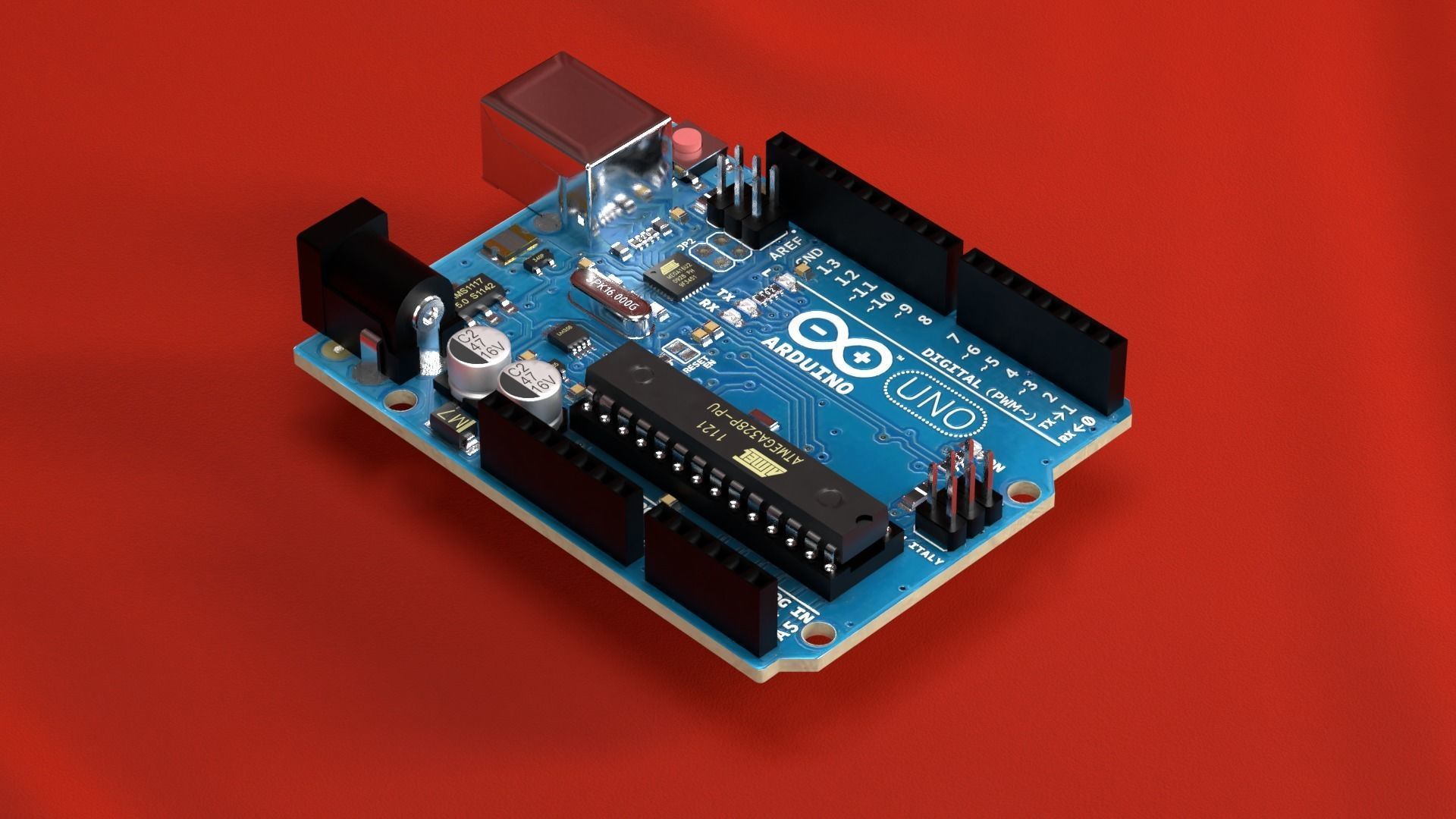

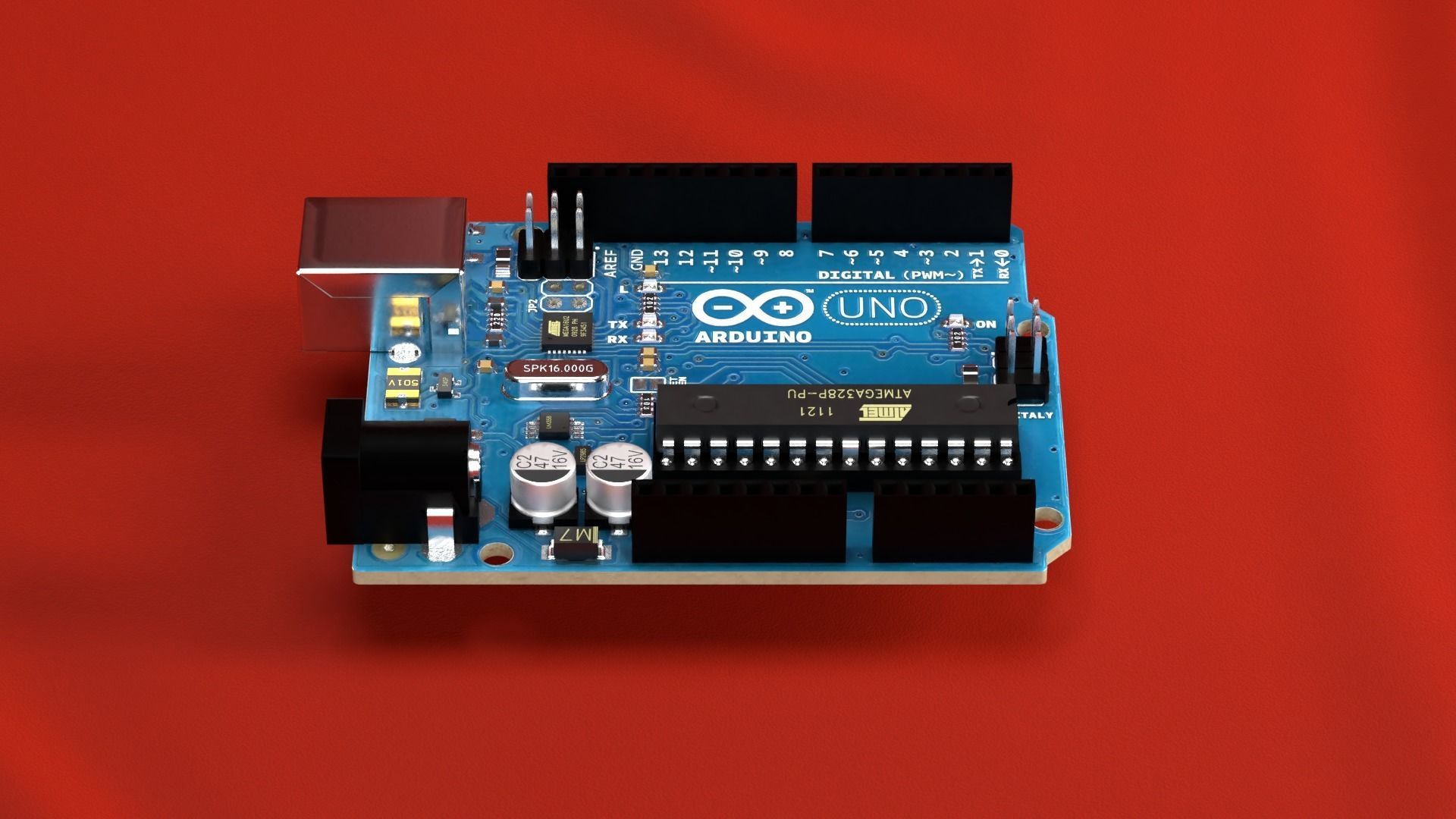

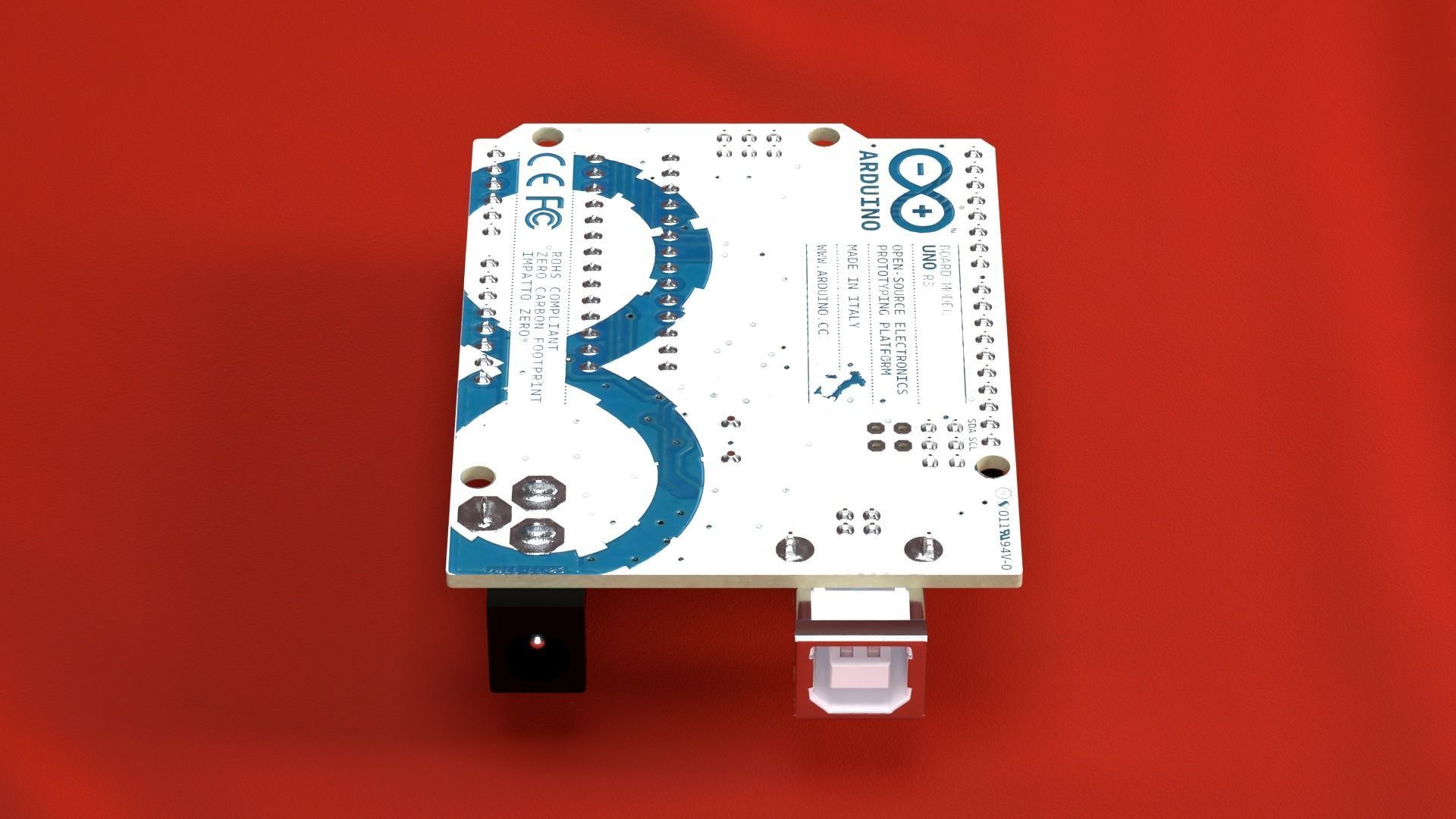

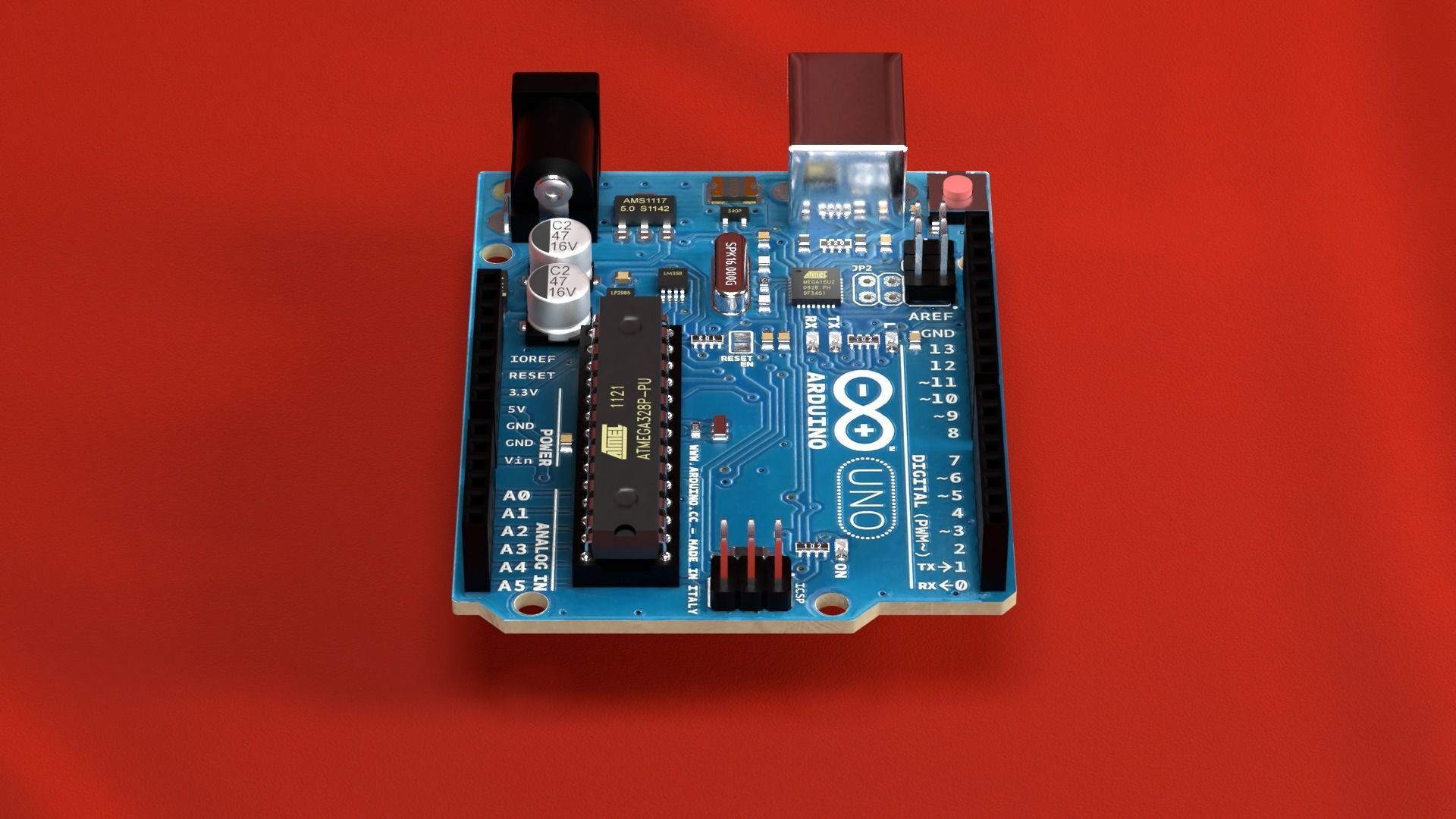

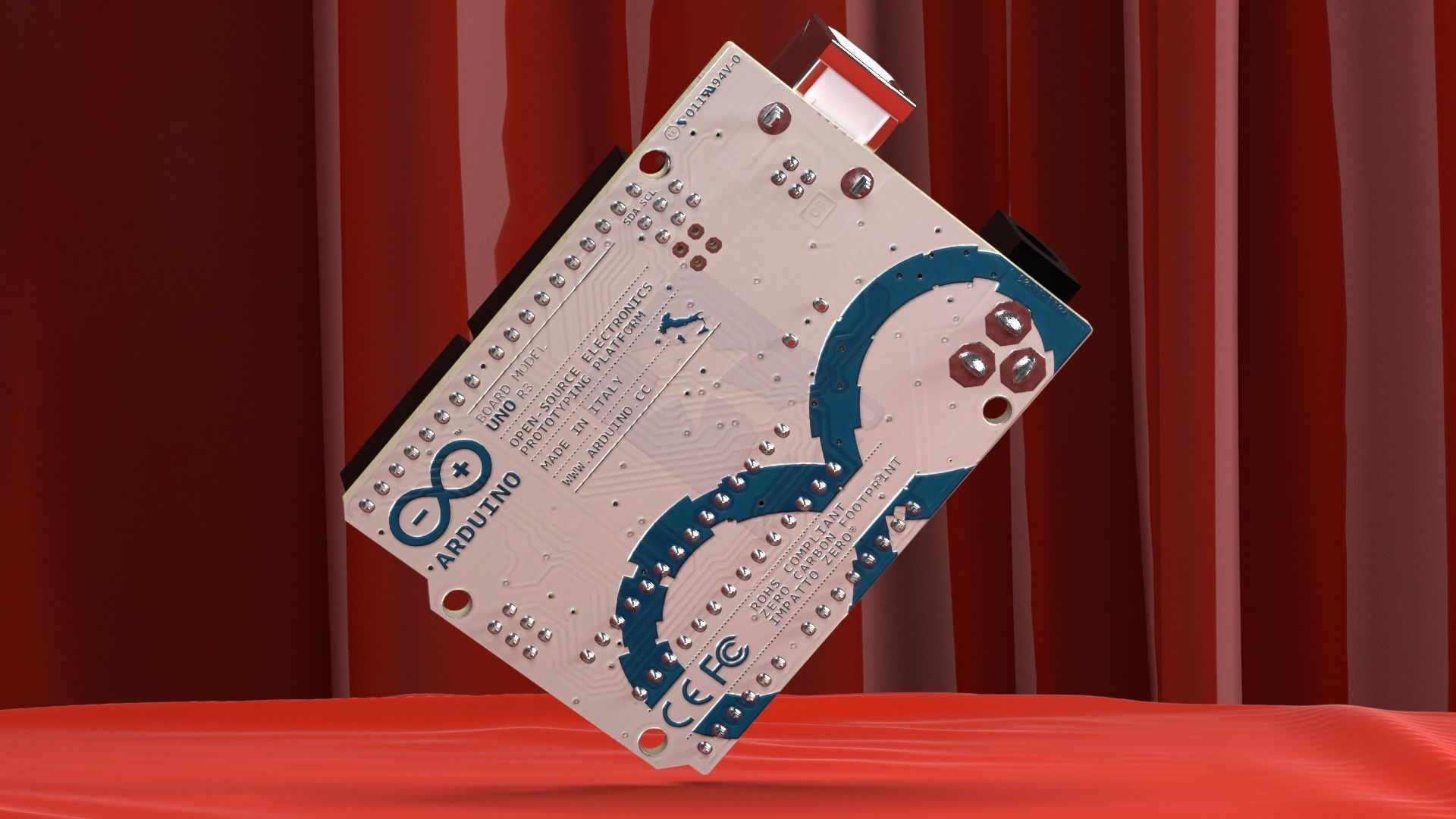

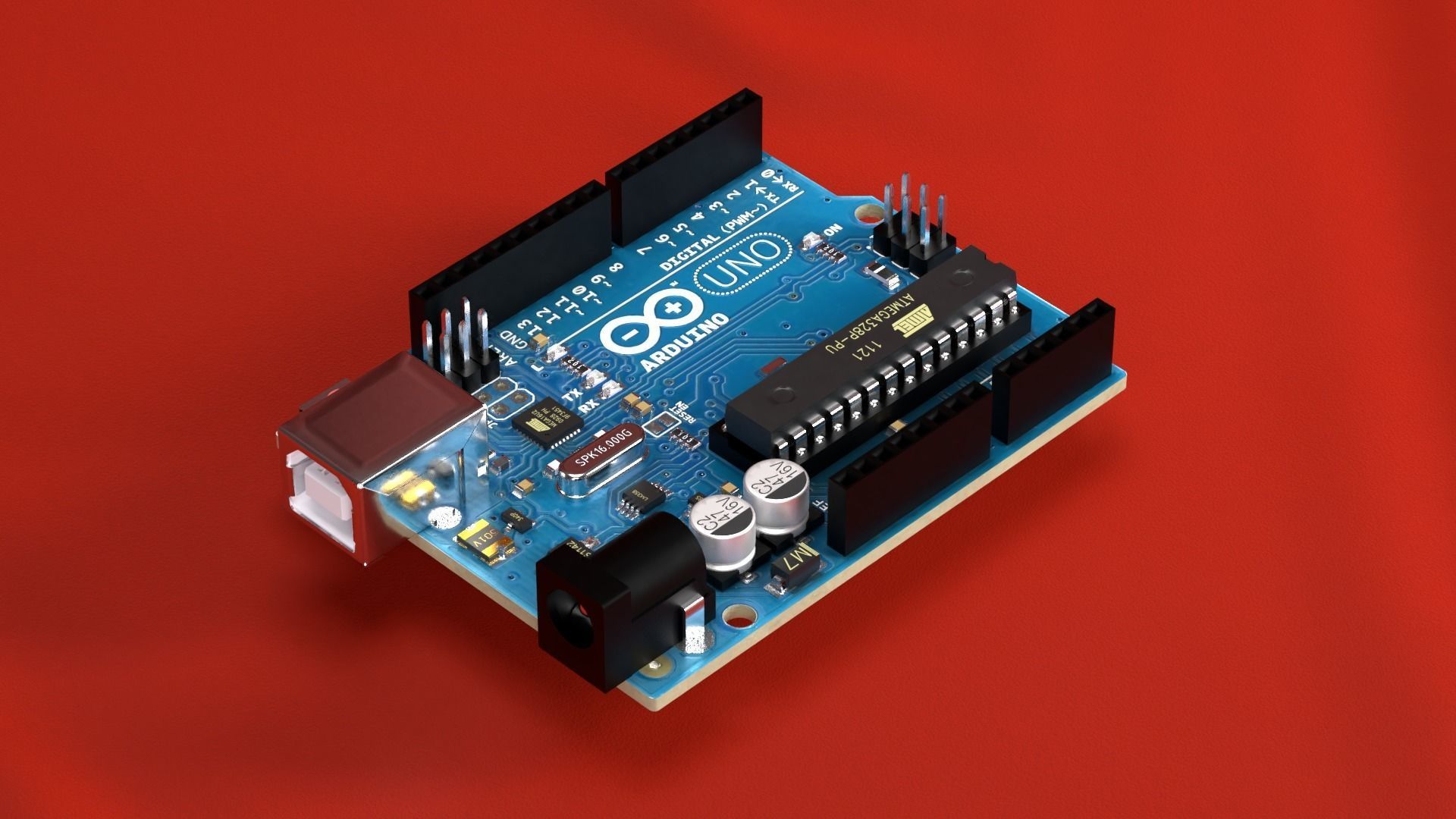

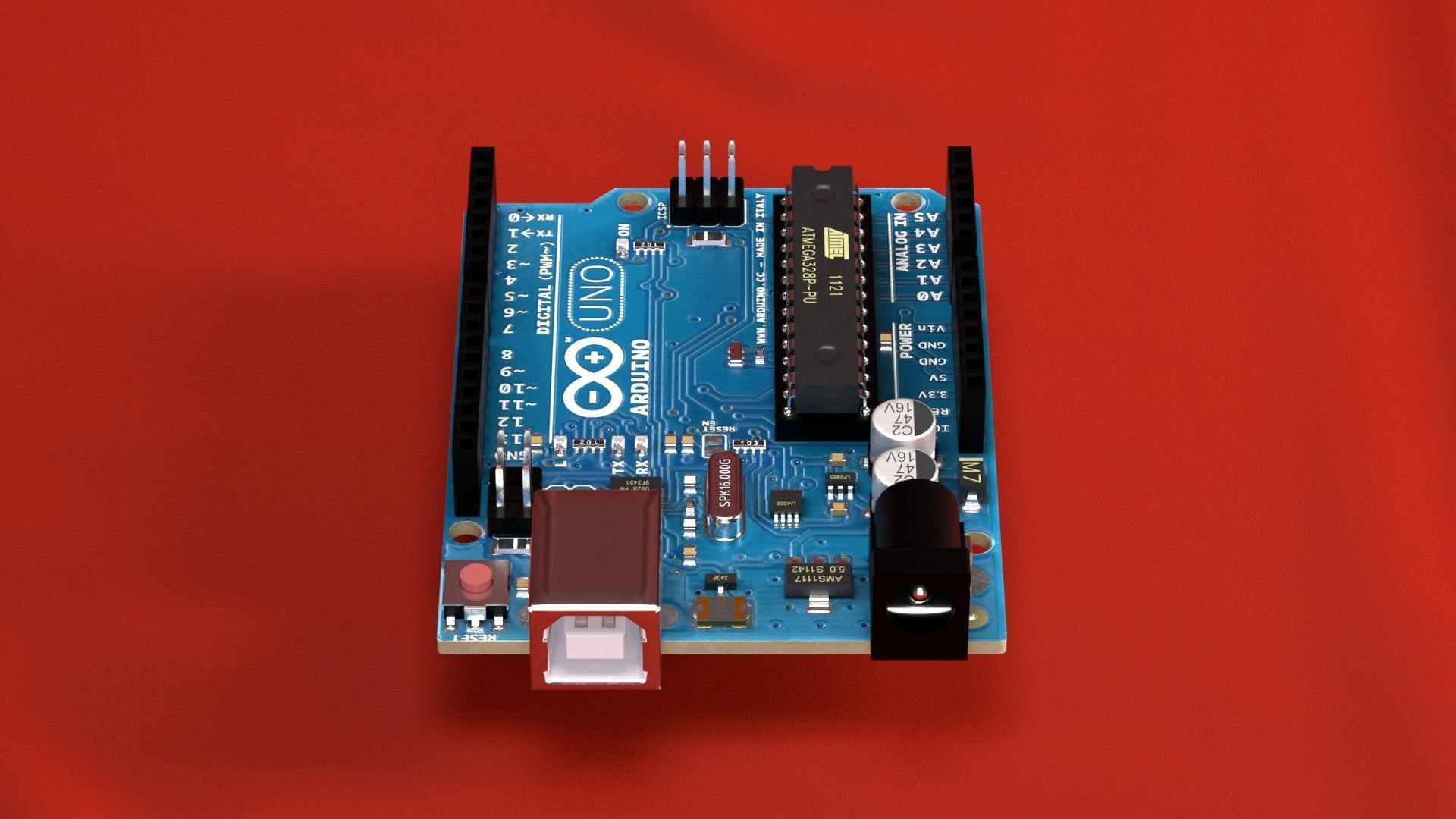

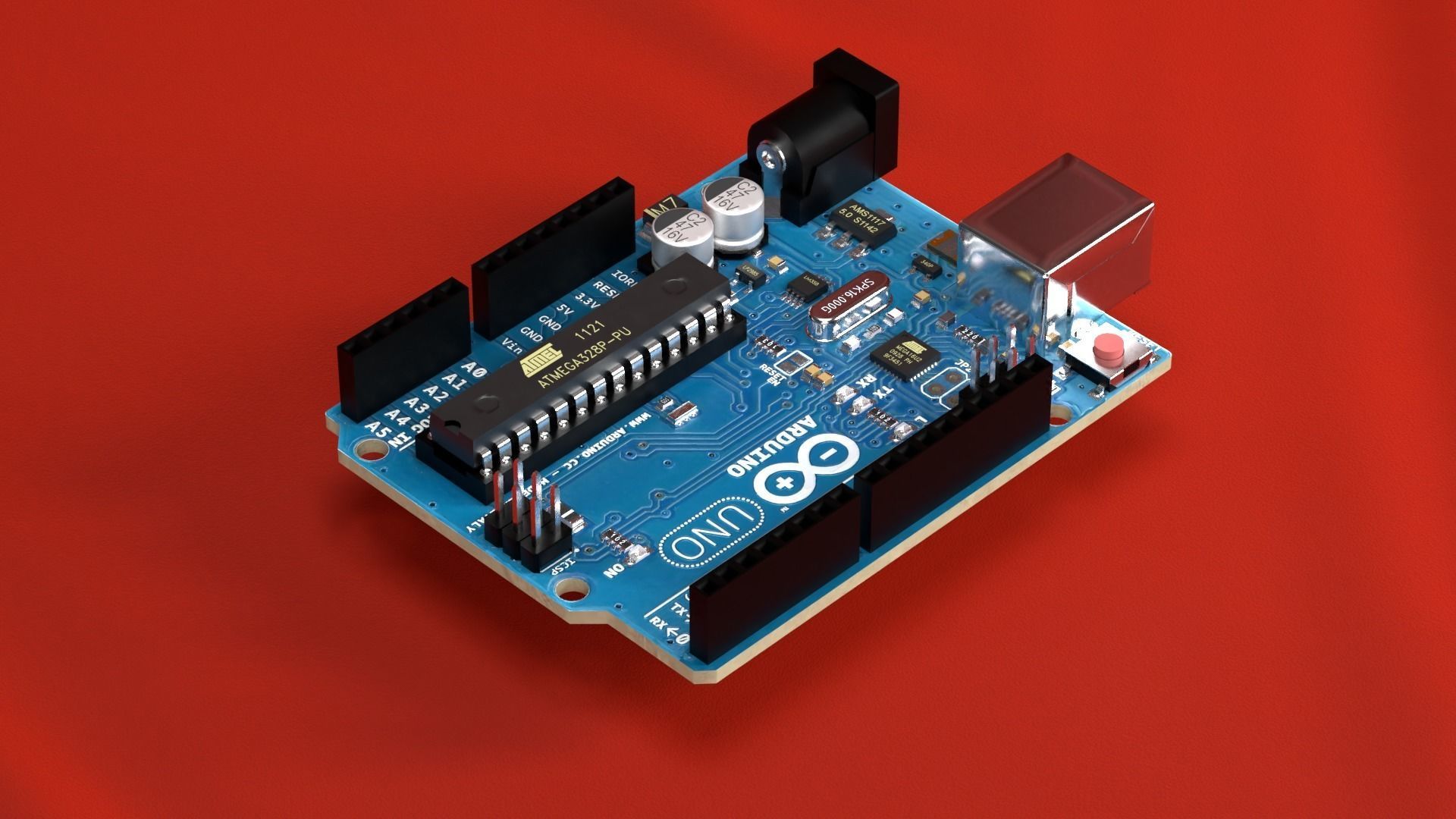

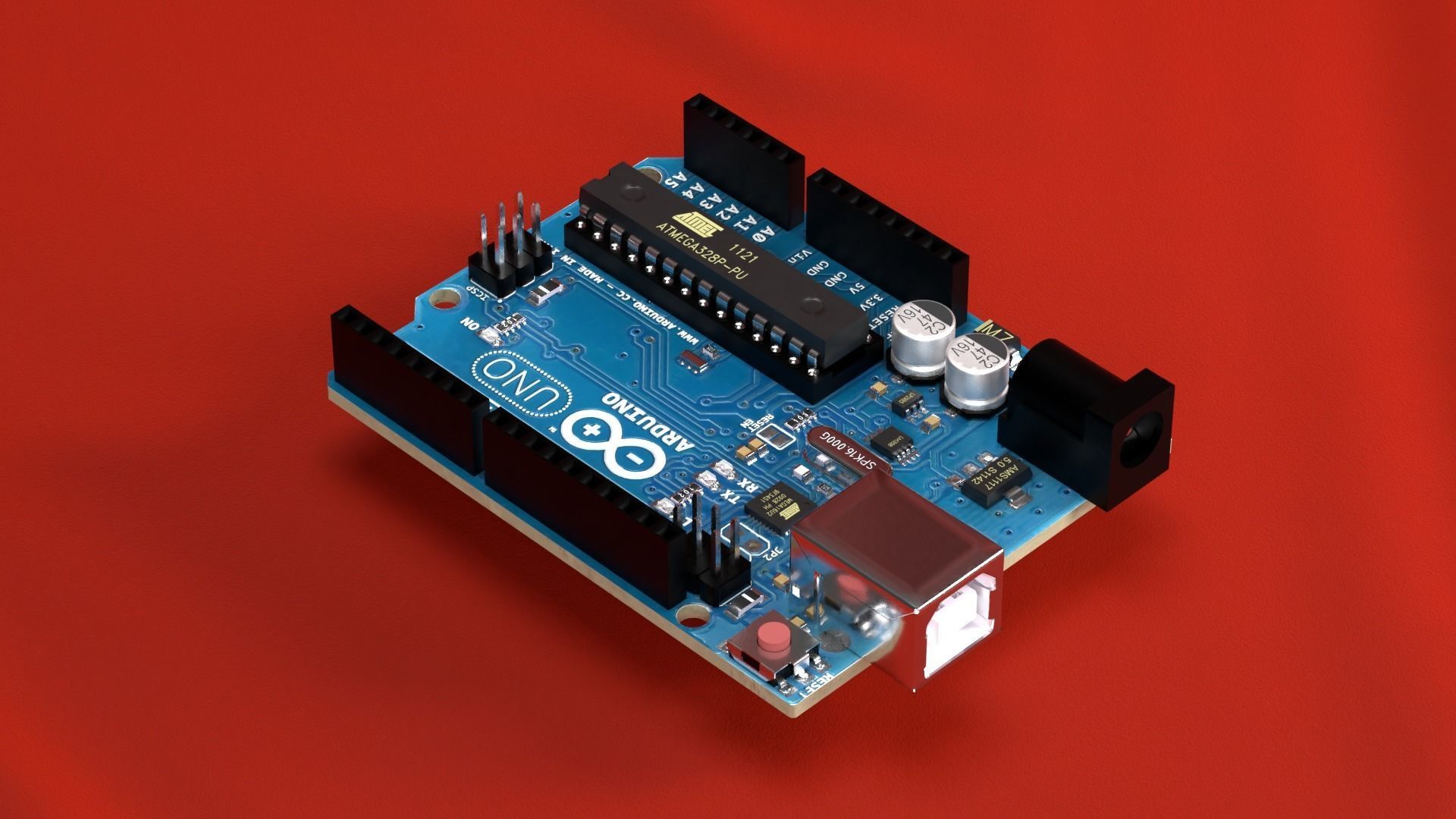

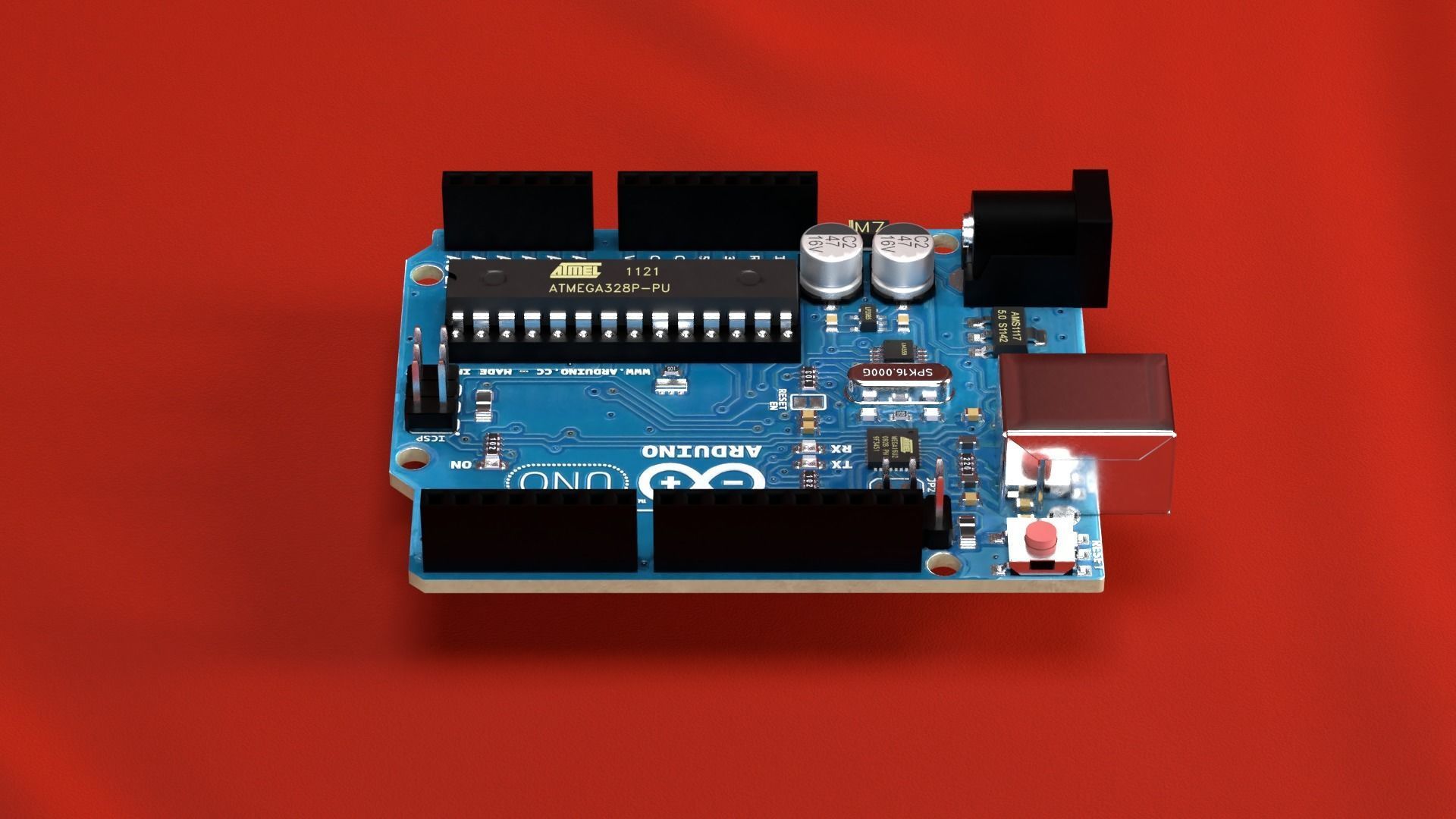

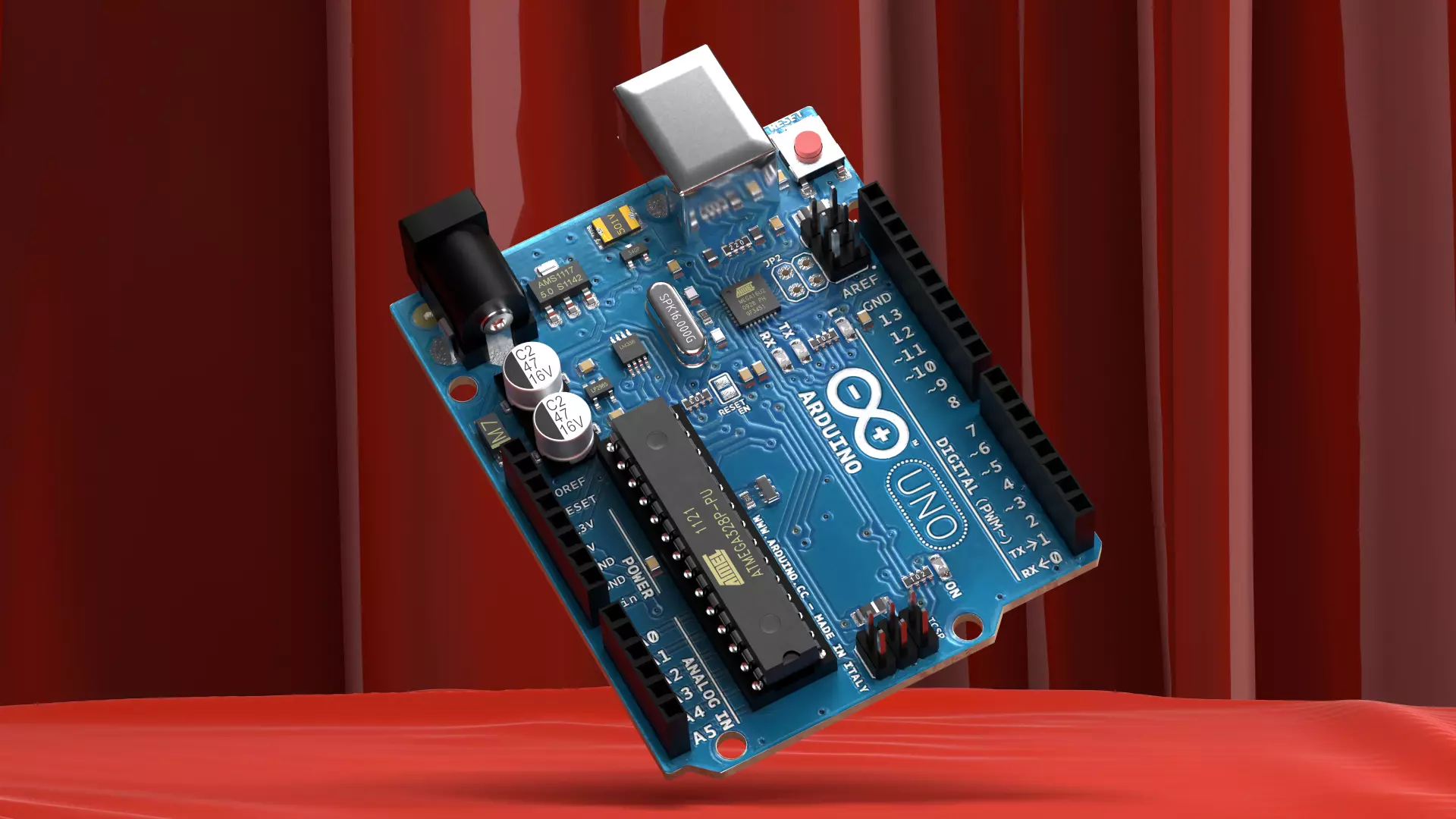

This is an Arduino Uno R3 DIP board.
- This model was modeled in Blender. Image were rendered by Blender , textured in Blender, Photoshop.
- It was built in real PCB Arduino Uno R3, so true to actual size.

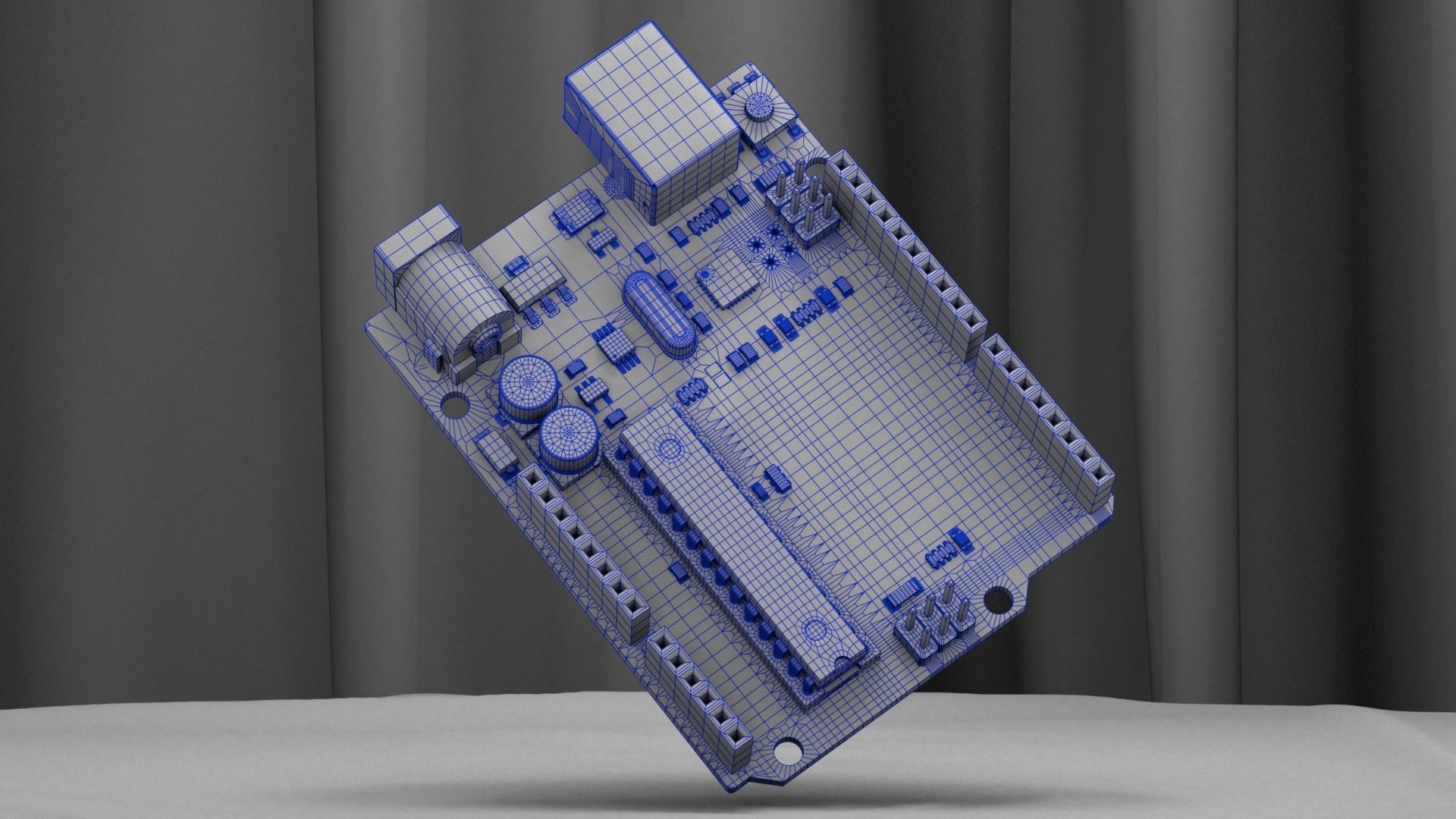

- Topology is clean.
- Model includes 14 textures in 4096x4096 .png format (diffuse, metallic, specular, roughness, normal, displacement, emission).
3Dam-Studio
Thanks
Arduino Uno R3 DIP
Royalty Free License
20% for Ukraine
Arduino Uno R3 DIP
Royalty Free License
20% for Ukraine
3D Model formats
Format limitations
- Blender (.blend) (2 files)99.6 MBVersion: undefinedRenderer: Cycles Version: undefinedRenderer: Cycles
- Collada (.dae)27.9 MB
- USDZ (.usdz)2.78 MB
- Stereolithography (.stl)4.44 MB
- Autodesk FBX (.fbx)6.56 MB
- glTF (.gltf, .glb) (2 files)110 MB
- OBJ (.obj, .mtl)3.52 MB
- Textures 50.1 MB
3D Model details
- Publish date2021-07-03
- Model ID#3123868
- Animated
- Rigged
- VR / AR / Low-poly
- PBR approved
- Geometry Polygon mesh
- Polygons 143,186
- Vertices 146,345
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Overlapping
- Plugins used
- Ready for 3D Printing
