PCI-e 16x Slot 3D model
Verification details of the FBX file
Files
FBX file format
Scene
Supported object types
Geometry
No N-gonsManifold geometryNo faceted geometry
Textures and Materials
Missing required texturesPower of 2 texture sizesNo embed texturesAssigned materialsTexture aspect ratio
UVs
UV unwrapped modelNo overlapped UVs per UV island
Naming
Allowed characters
Description

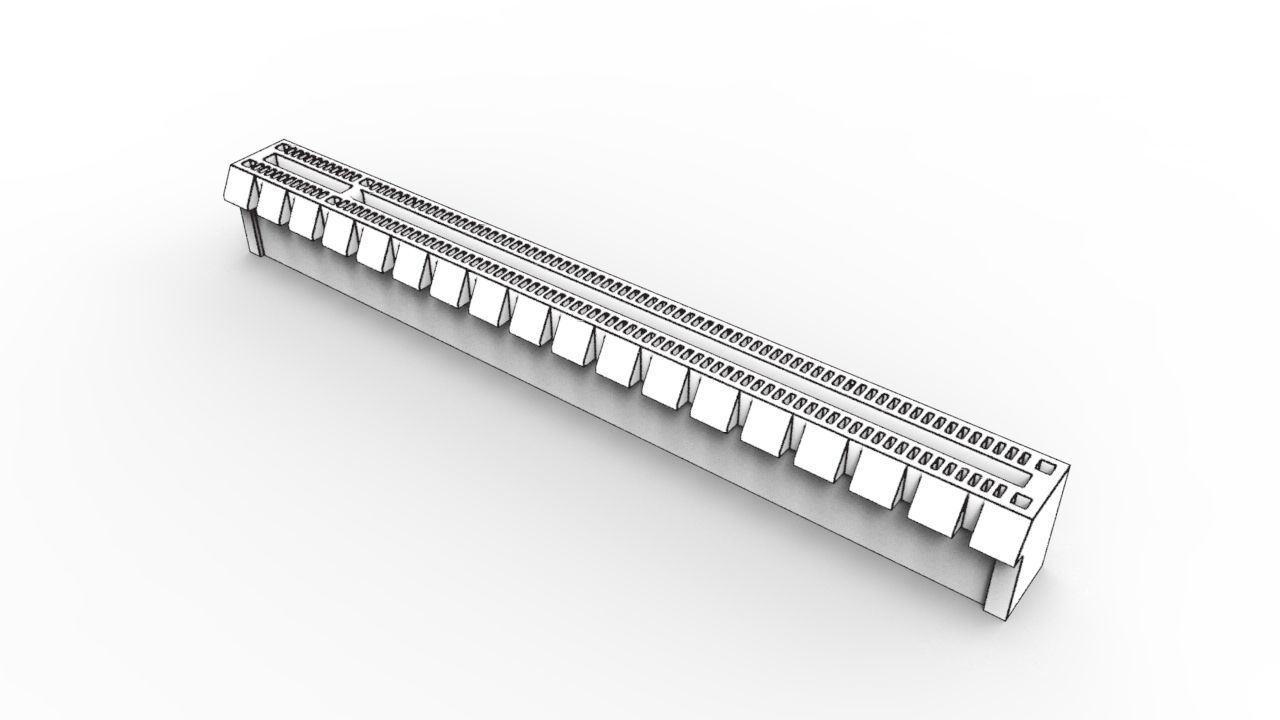

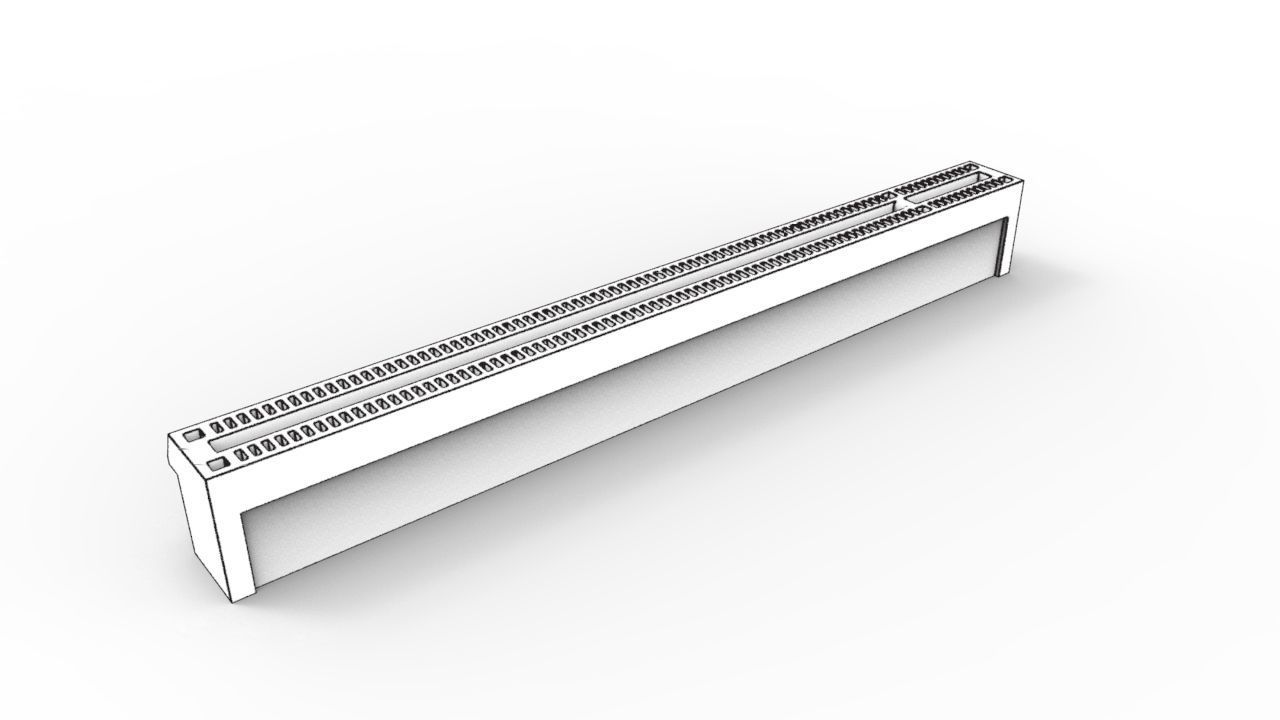

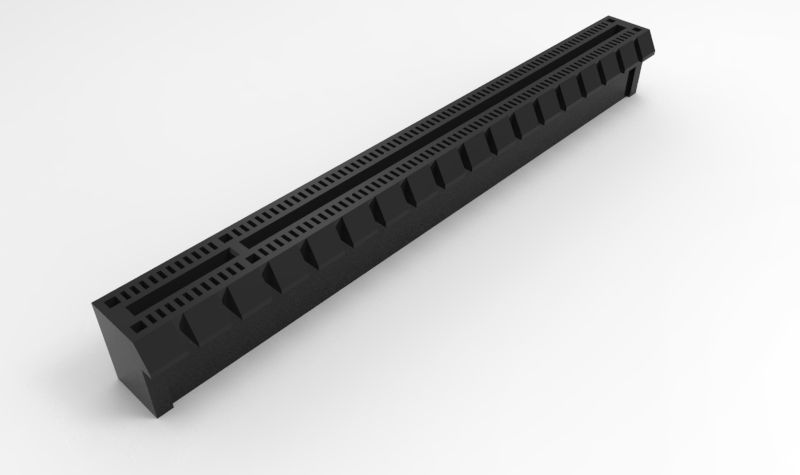

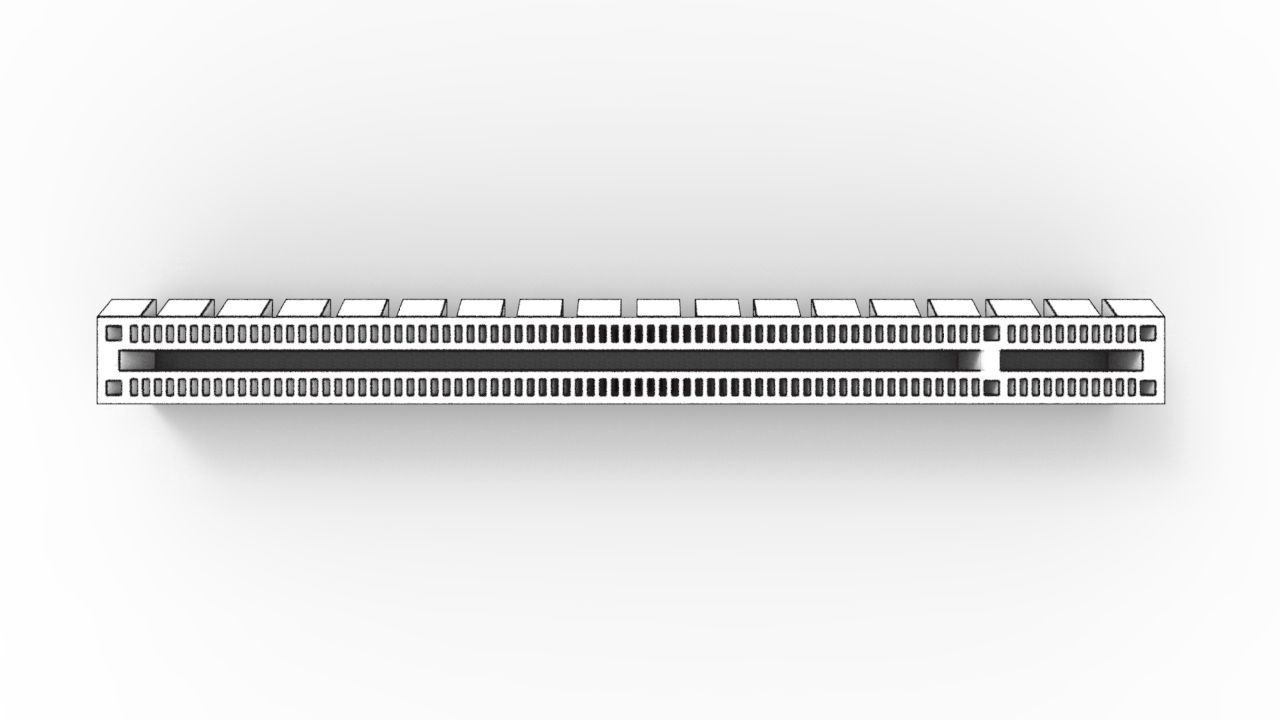

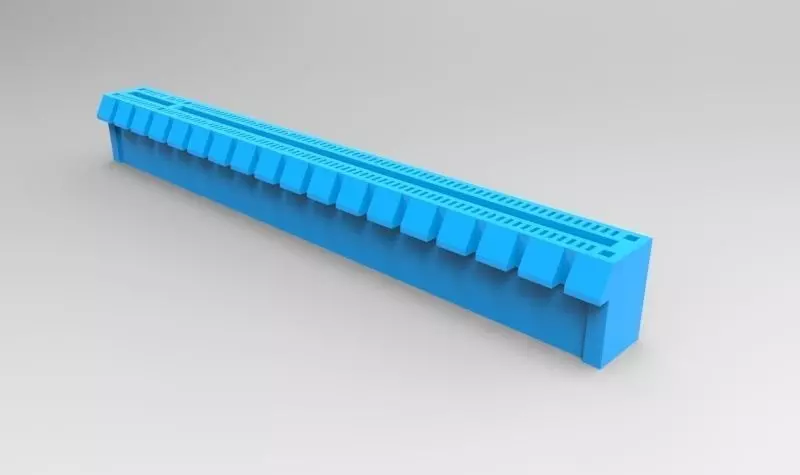

A model of a single PCI Express x16 PCB connector, without a locking tab. Suitable for use in PC motherboard designs. External model of the plastic slot only, no pins included. Modelled in SolidWorks and rendered using KeyShot.
Dimensions were measured from the real product.
