Network Diagram for Small Hosting Setup and Cloud Computing 3D model

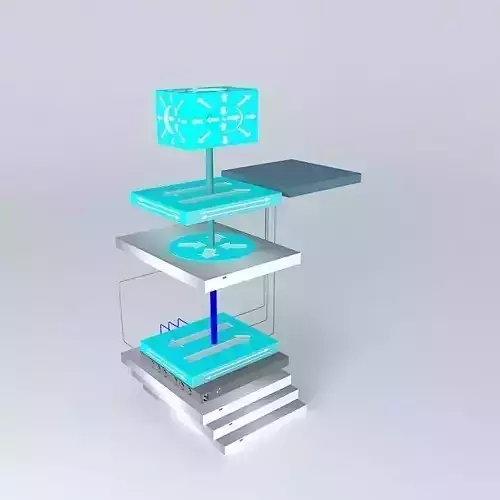

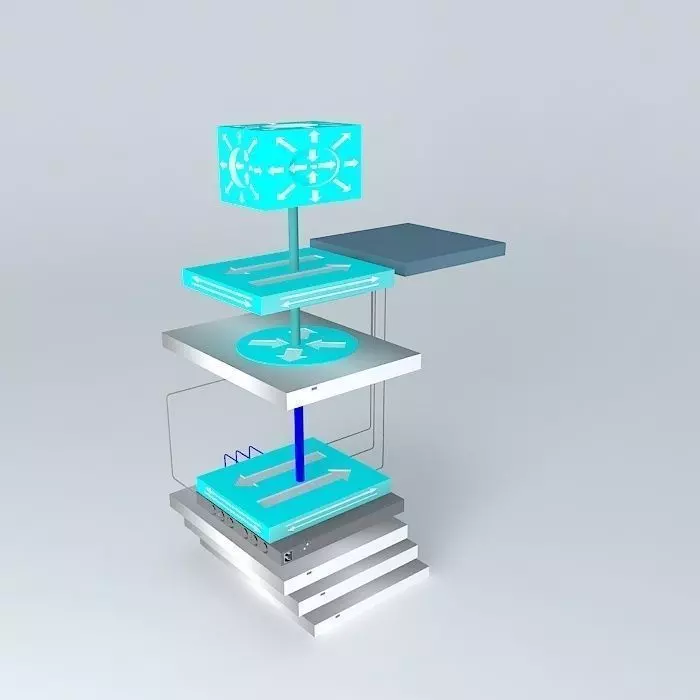

This 3D model was originally created with Sketchup 13 and then converted to all other 3D formats. Native format is .skp 3dsmax scene is 3ds Max 2016 version, rendered with Vray 3.00 Using Quagga as a router connecting to Data Center. Note we use a IPv4 /29 for the uplink with a layer 2 switch in between which the terminal server is connected to. A second IPv4/23 block is used on the Quagga router and bgp is done between the Quagga and the DataCenters Layer3 device. This setup would also work for IPv6.
