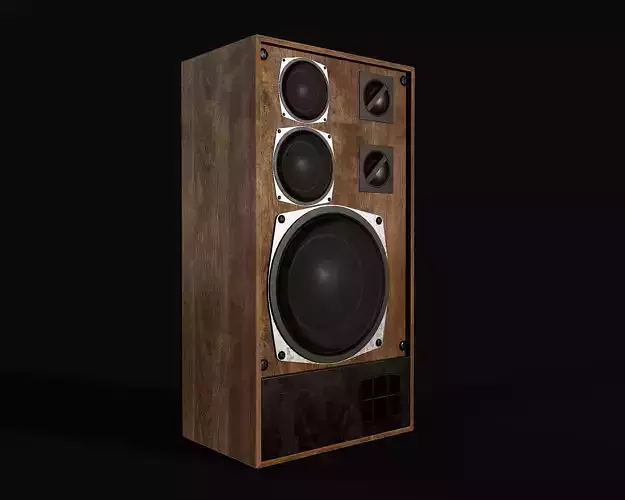

Radiotehnika S-90 Speaker 3D model

Mid-poly model of the Radiotehnika S-90 acoustic system, for use in interior visualizations and game design. The model is made in the PBR pipeline (metalic \ roughness). A set of textures for the Unity engine.

Purpose and scope: for high-quality reproduction of music and speech programs in stationary household conditions. The S-90 speaker system, developed in 1975, is the first domestic system that meets the requirements of international documents for Hi-Fi equipment. Later models of this speaker S-90B and S-90D have an extended range of reproducible frequencies. Introduction of indication of electrical overload of loudspeakers and new appearance. Recommended power of a high quality consumer amplifier is 20 - 90 W. 35 АС-212 S-90 and 35 АС-012 S-90 are similar to АС, the difference is in GOST.

Specifications: 3-way bass reflex floorstanding speaker Frequency Response Range: 25 (-15 dB) - 25000 Hz Frequency response in the range 100 - 8000 Hz: ± 4 dB Sensitivity: 88 dB / W / m (0.338 Pa / √W) Directivity at angles of 25 ± 5 ° in the horizontal plane and 7 ± 2.5 ° in the vertical plane, from the frequency response measured along the acoustic axis of the speaker: in the vertical plane: ± 8 ° horizontal: ± 6 ° Harmonic distortion of the speaker at a sound pressure level of 90 dB at frequencies: 250 - 1000 Hz: 2% 1000 - 2000 Hz: 1.5% 2000 - 6300 Hz: 1% Resistance: 4 ohm Minimum impedance value: 3.2 ohm Rated power: 35W Limit (nameplate) power: 90 W Short-term power: 600 W Dimensions (HxWxD): 710x360x285 mm
