Zip Fastener For Outerwear With 5cm Teeth Rows 3D model

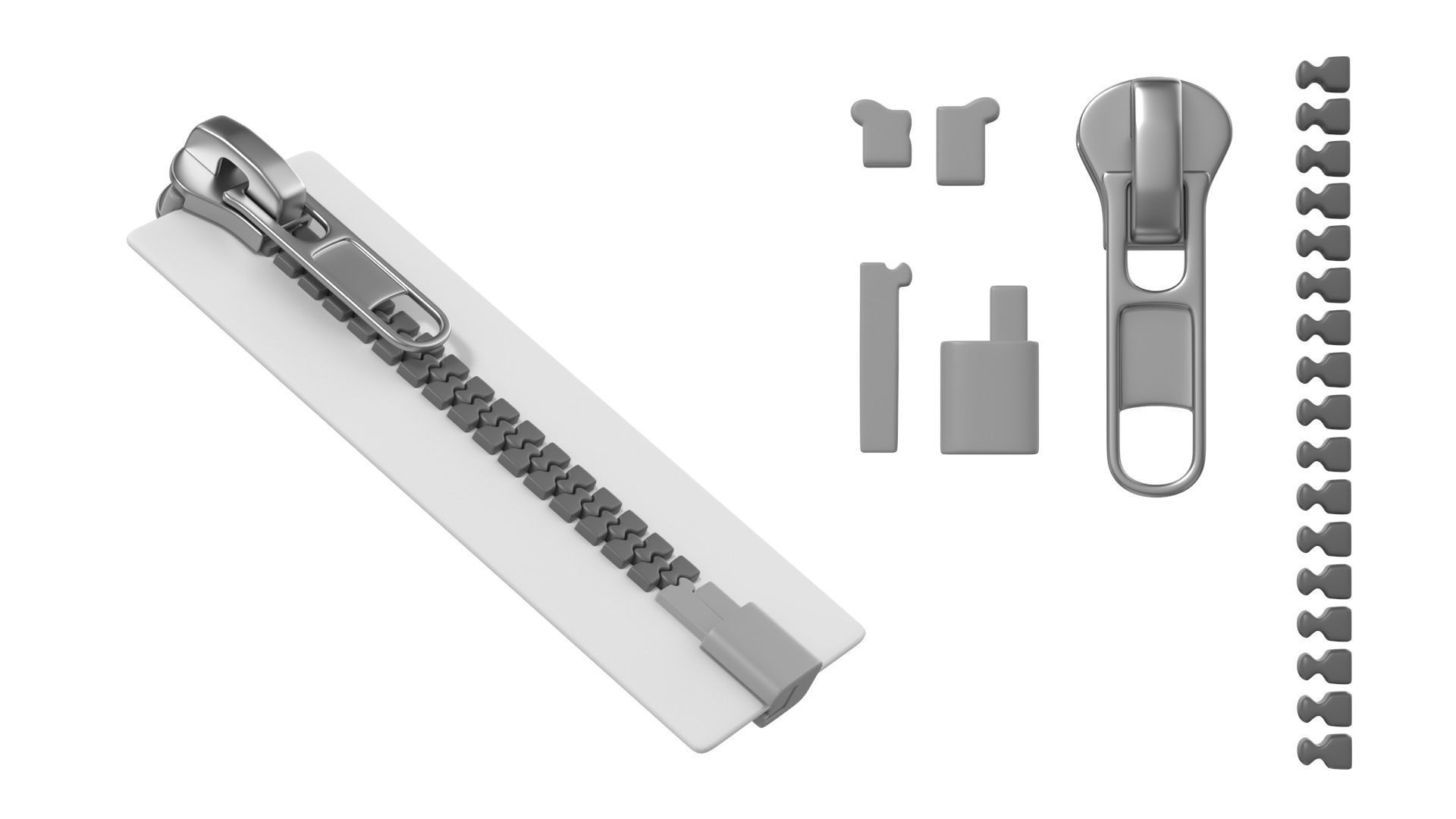

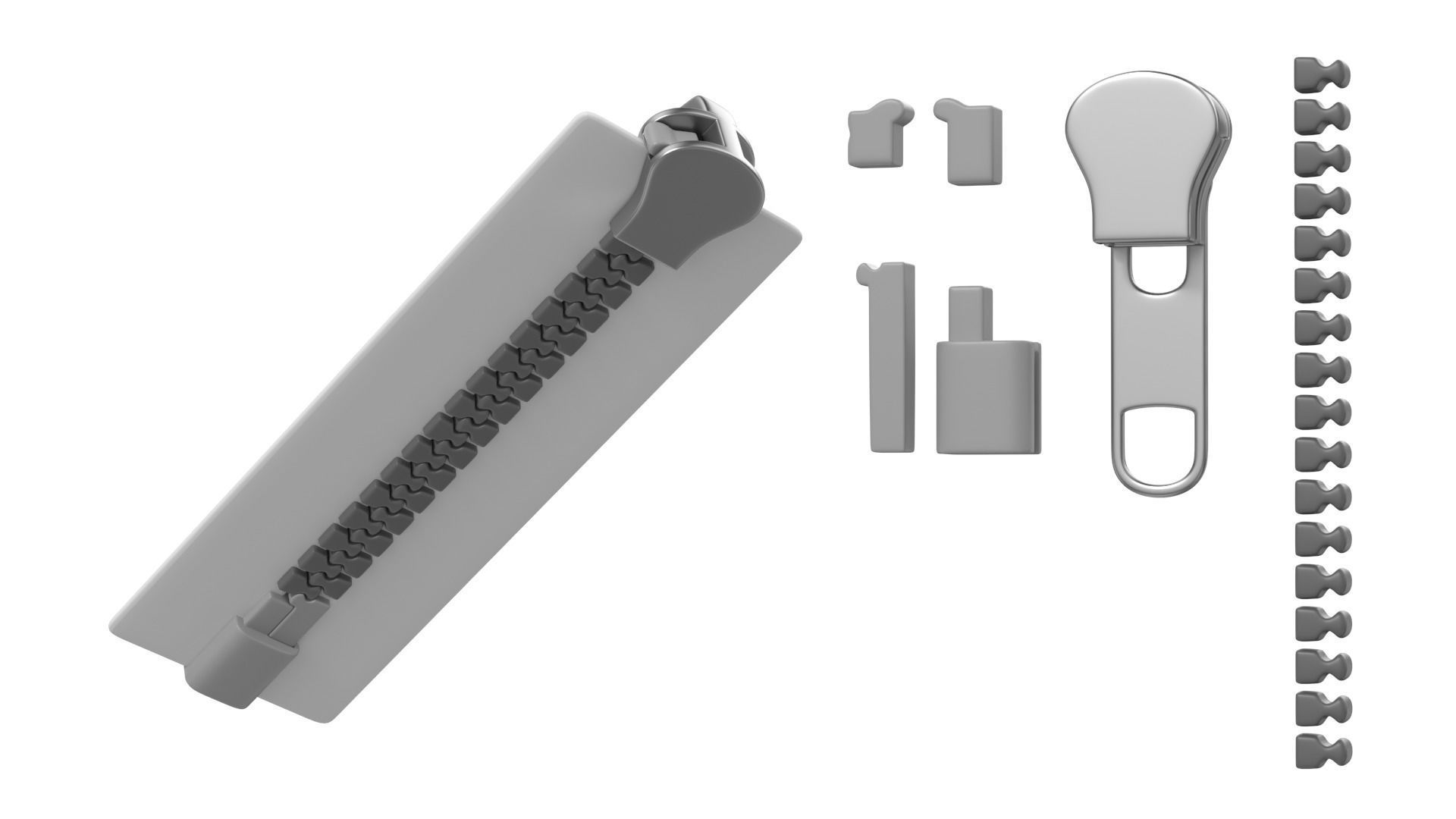

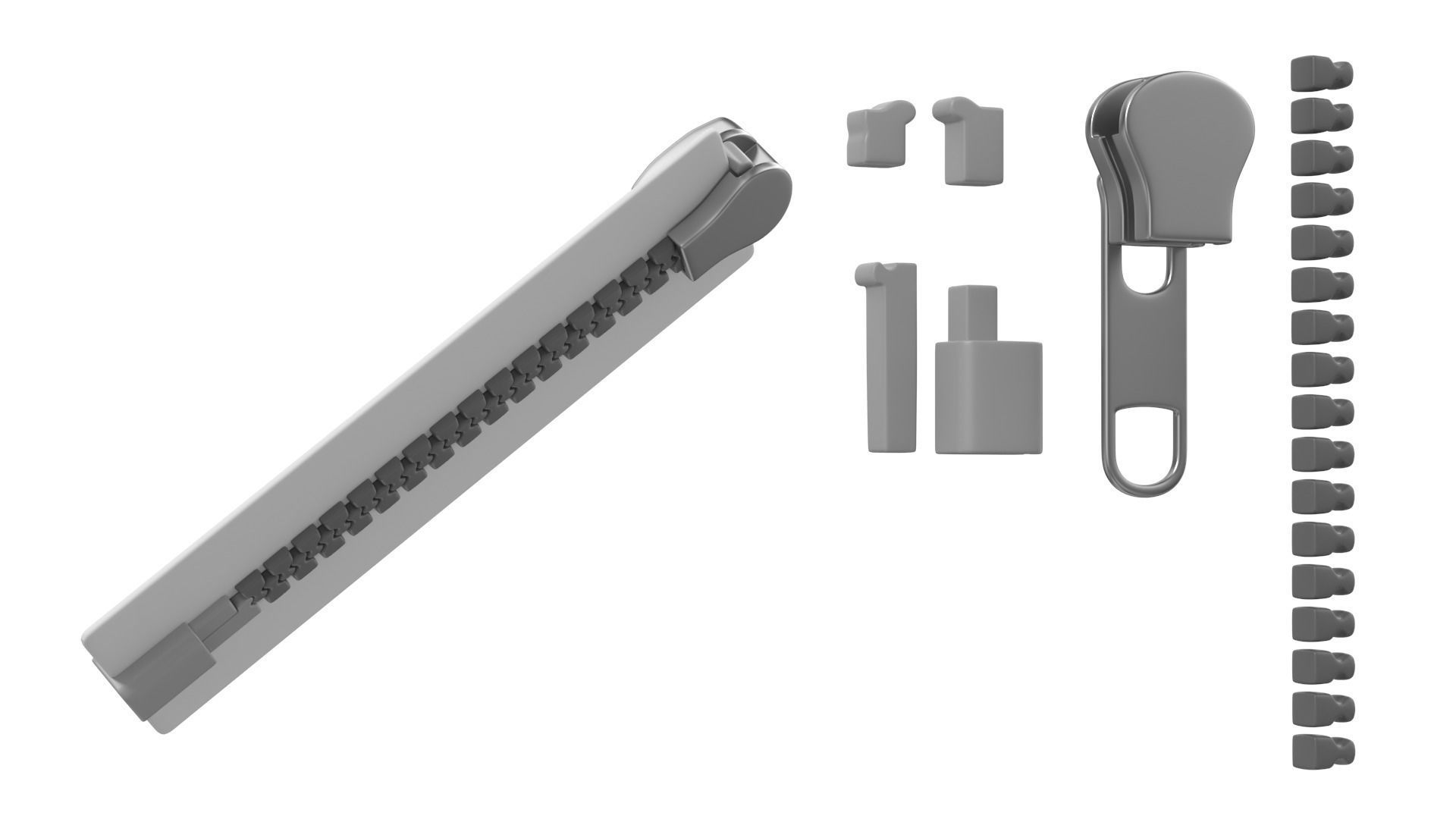

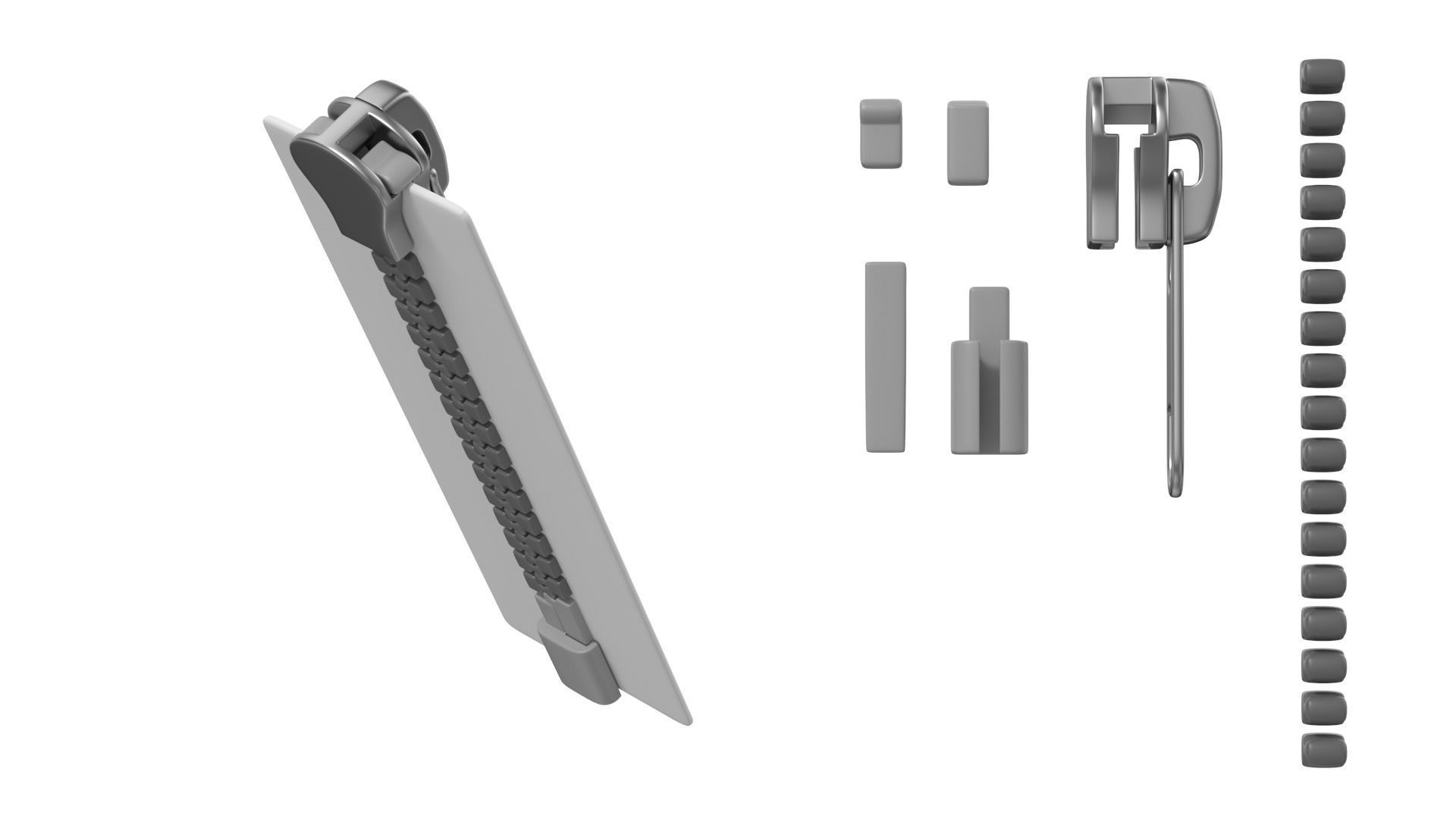

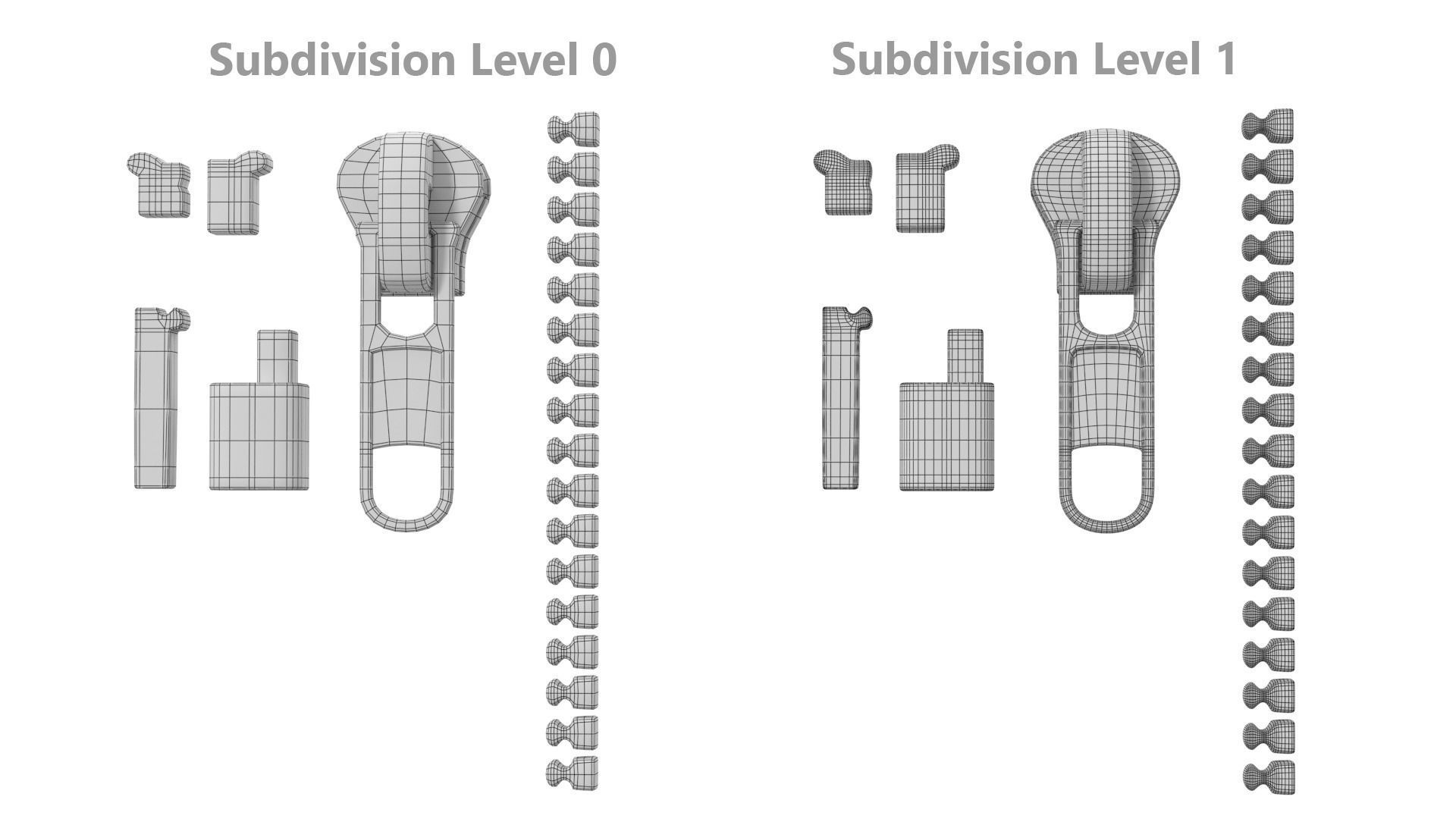

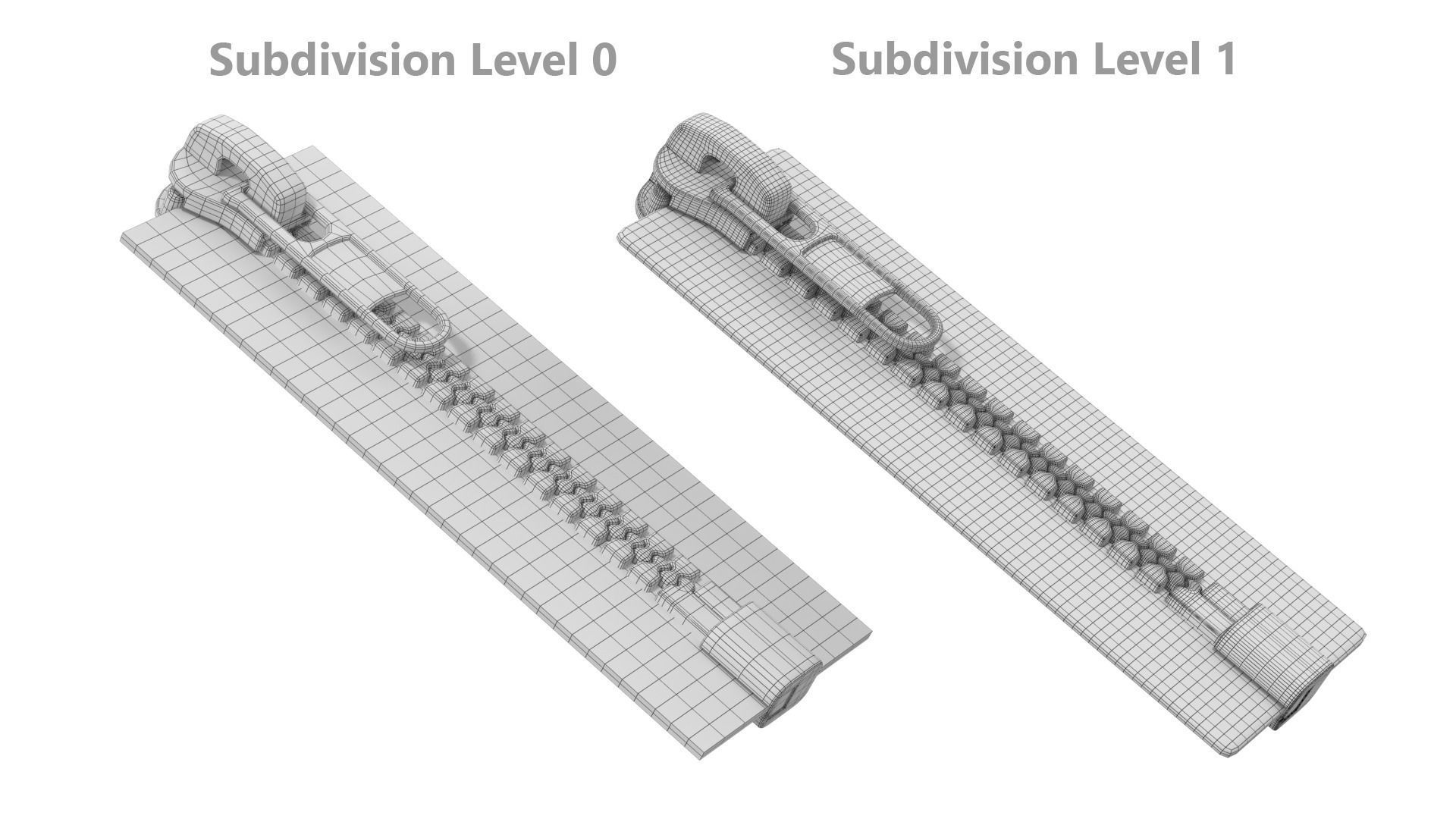

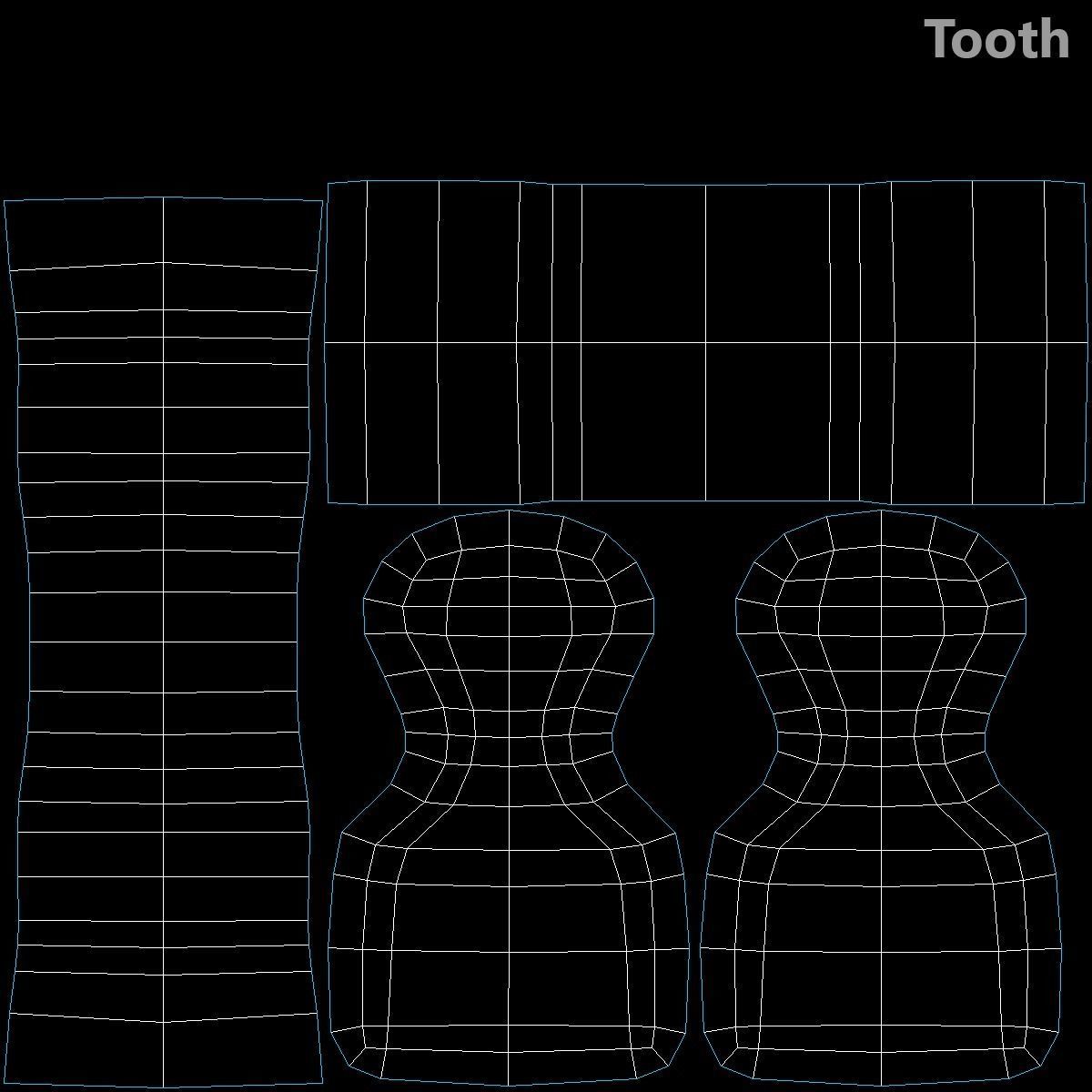

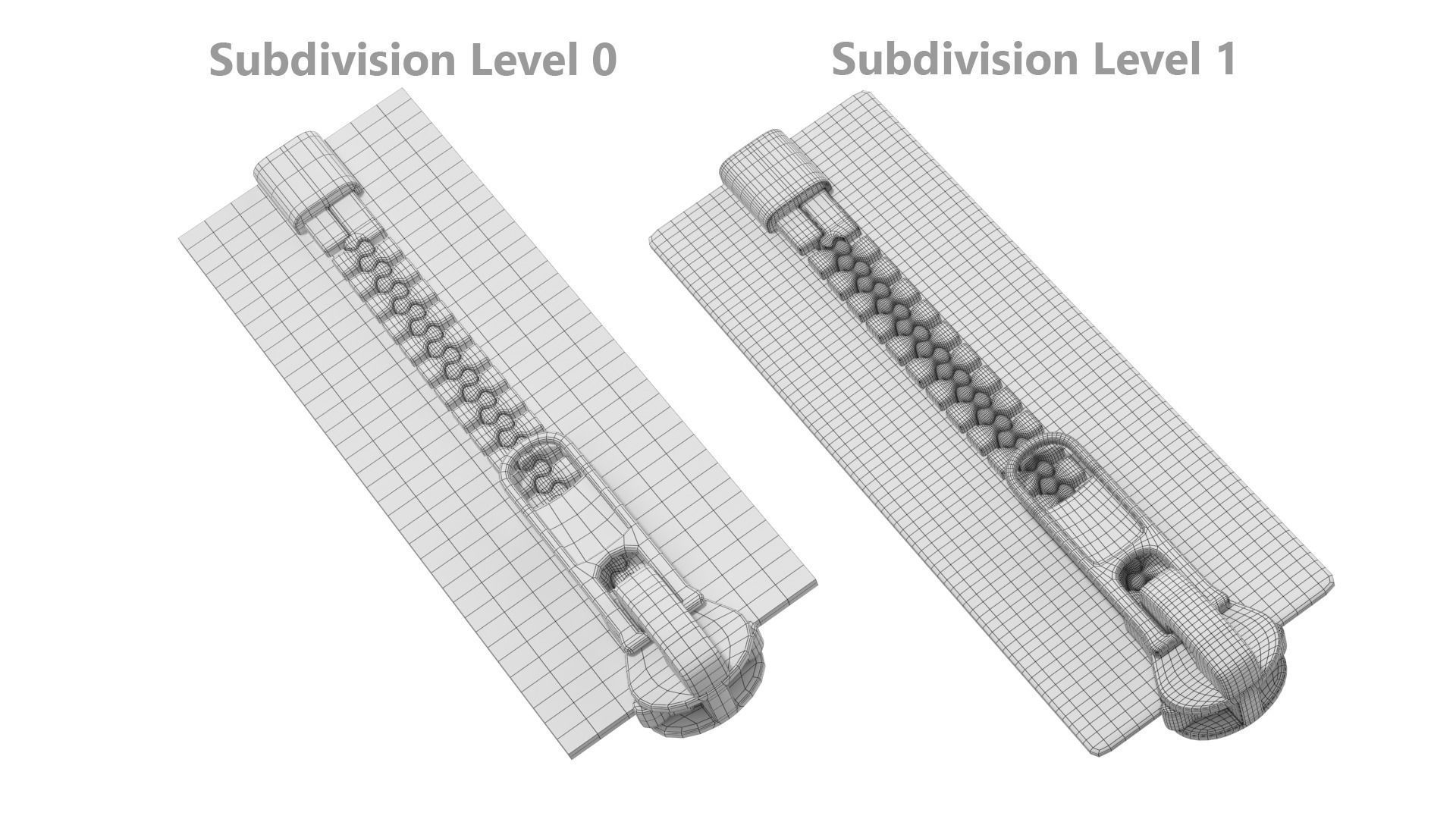

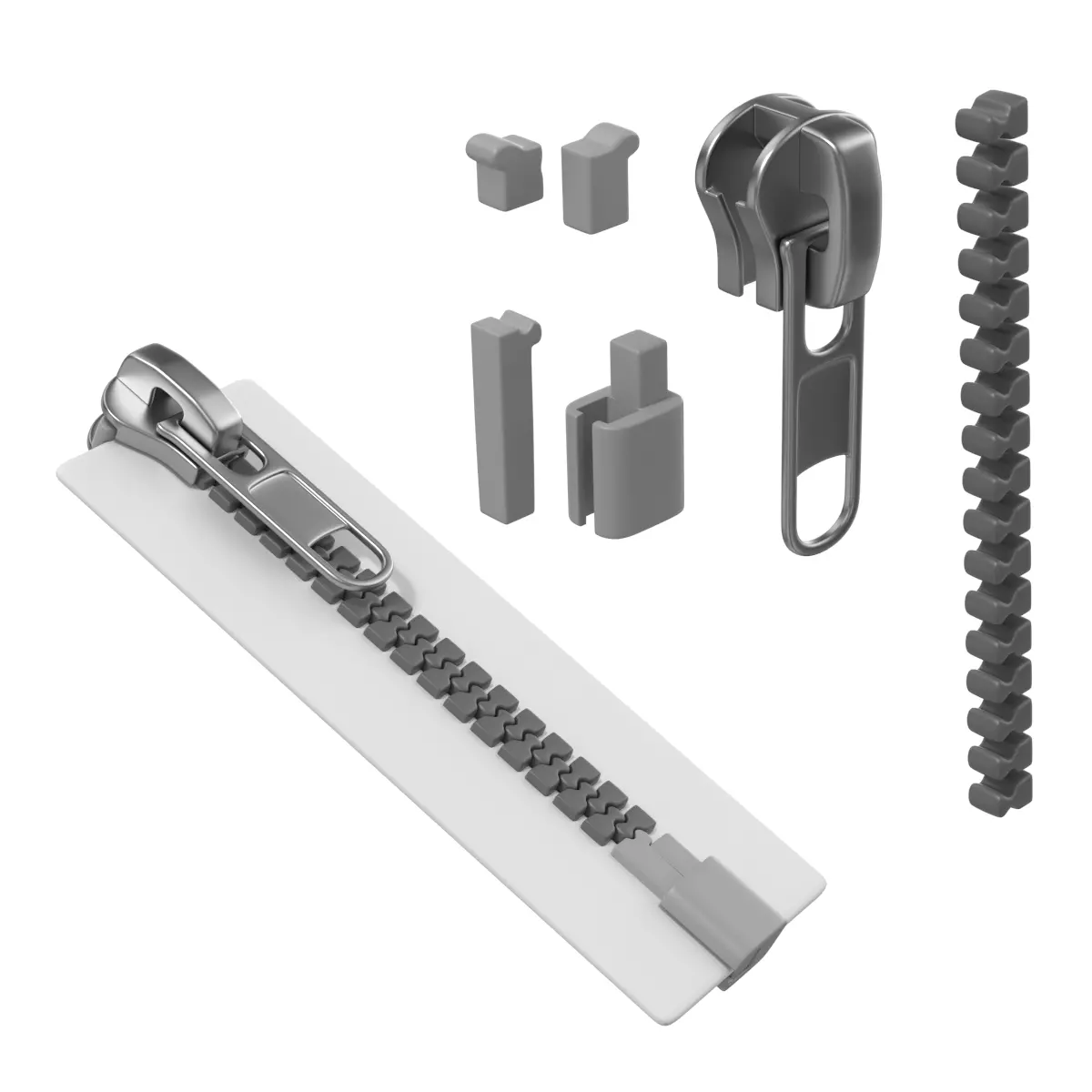

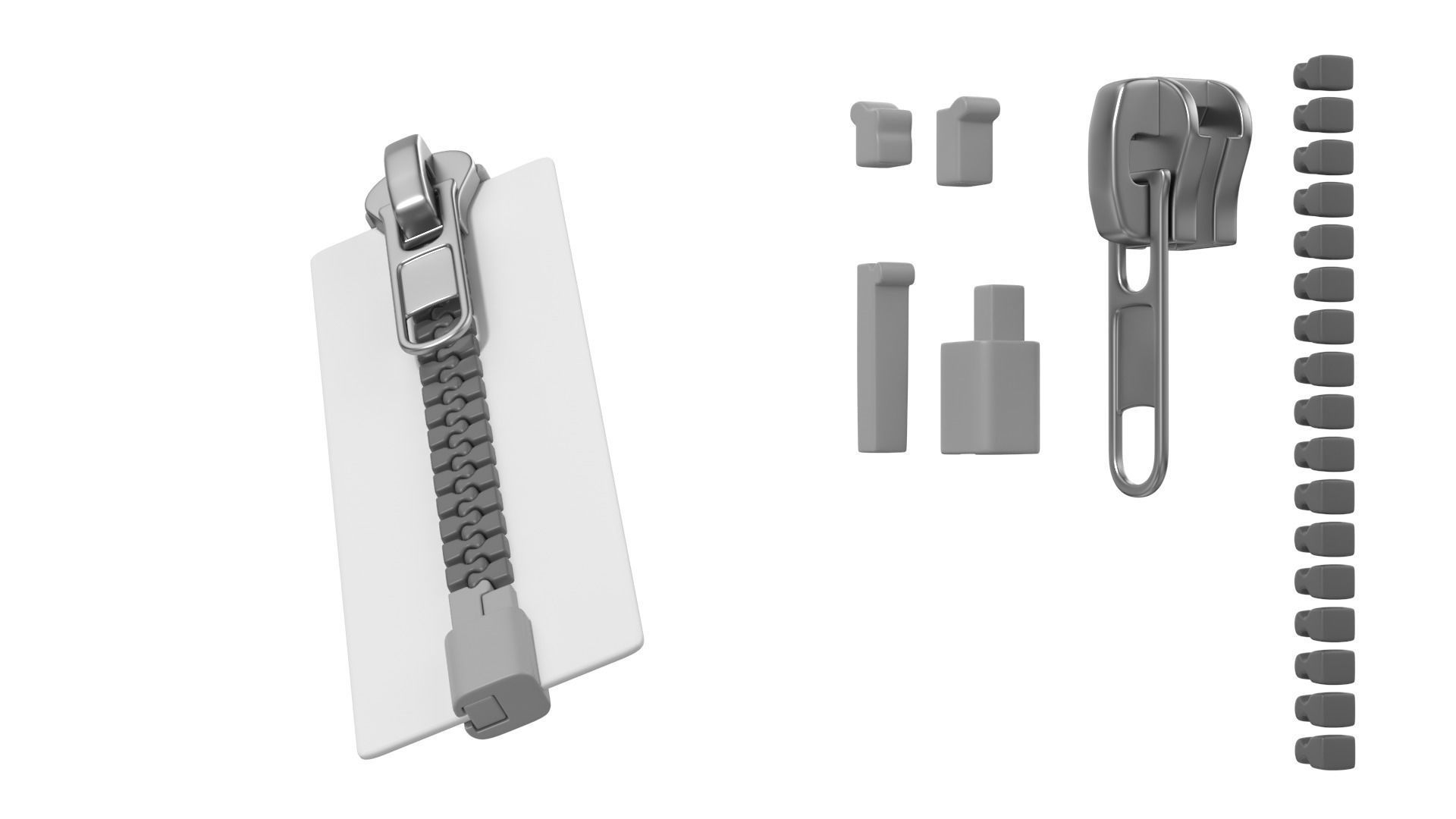

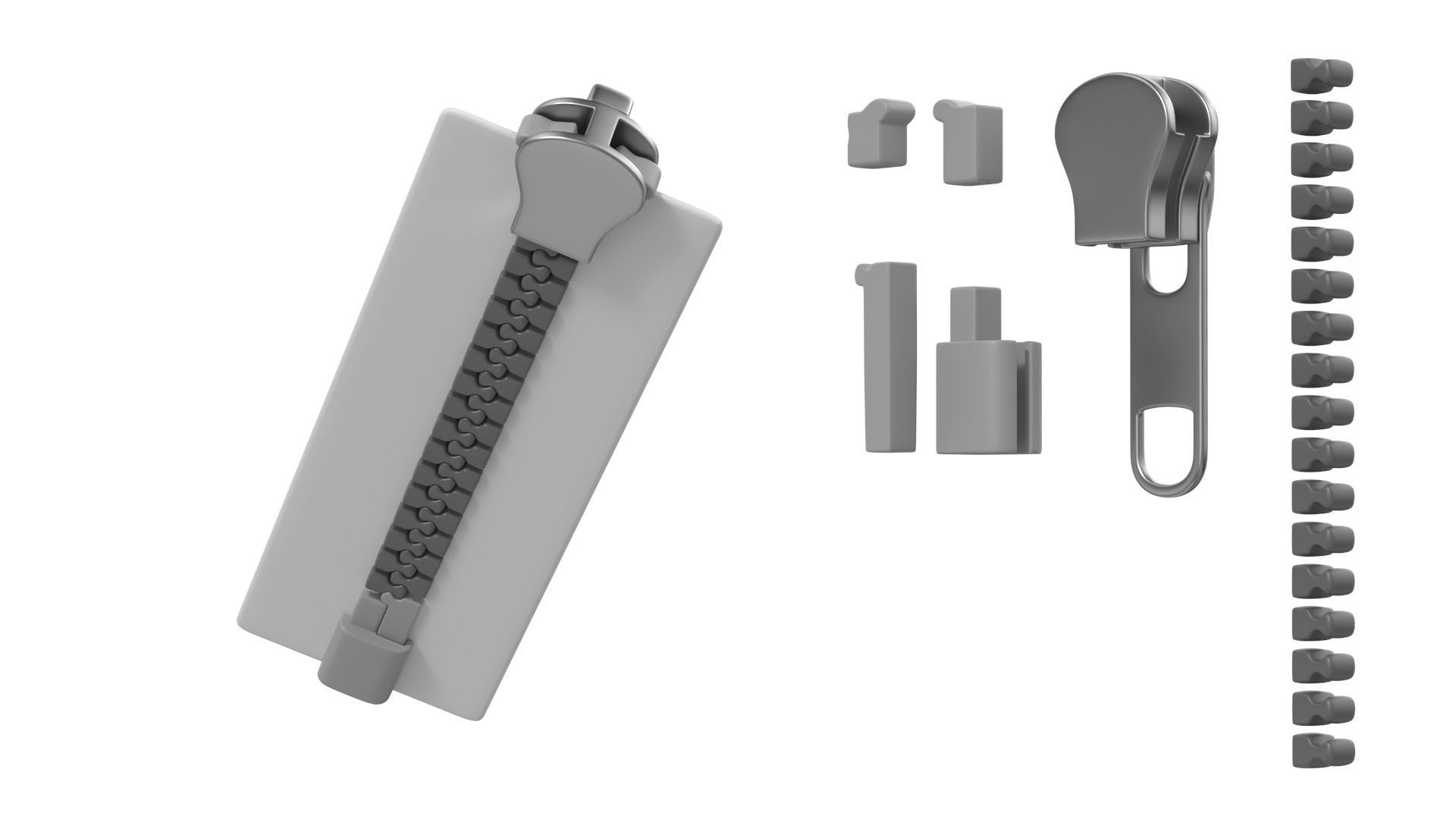

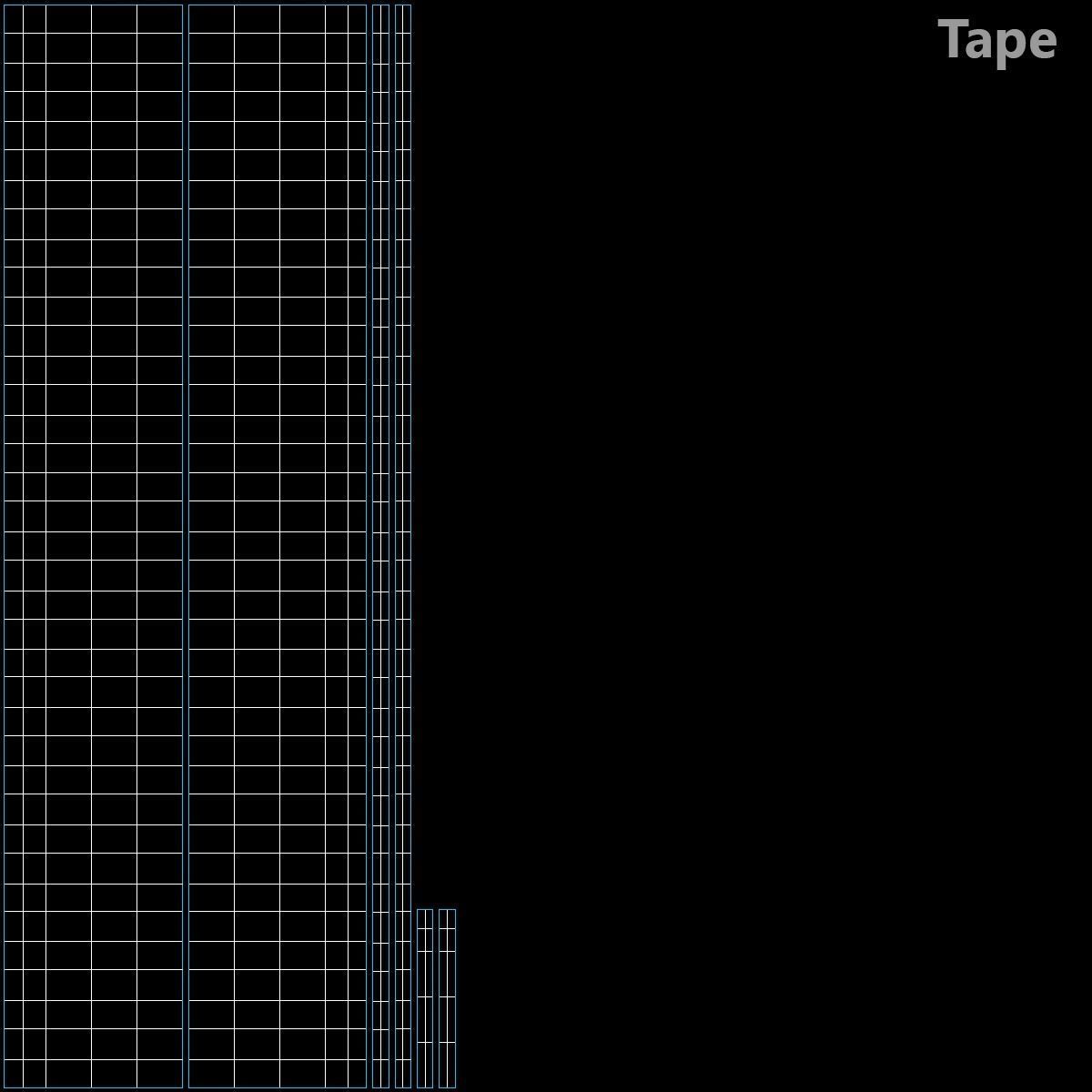

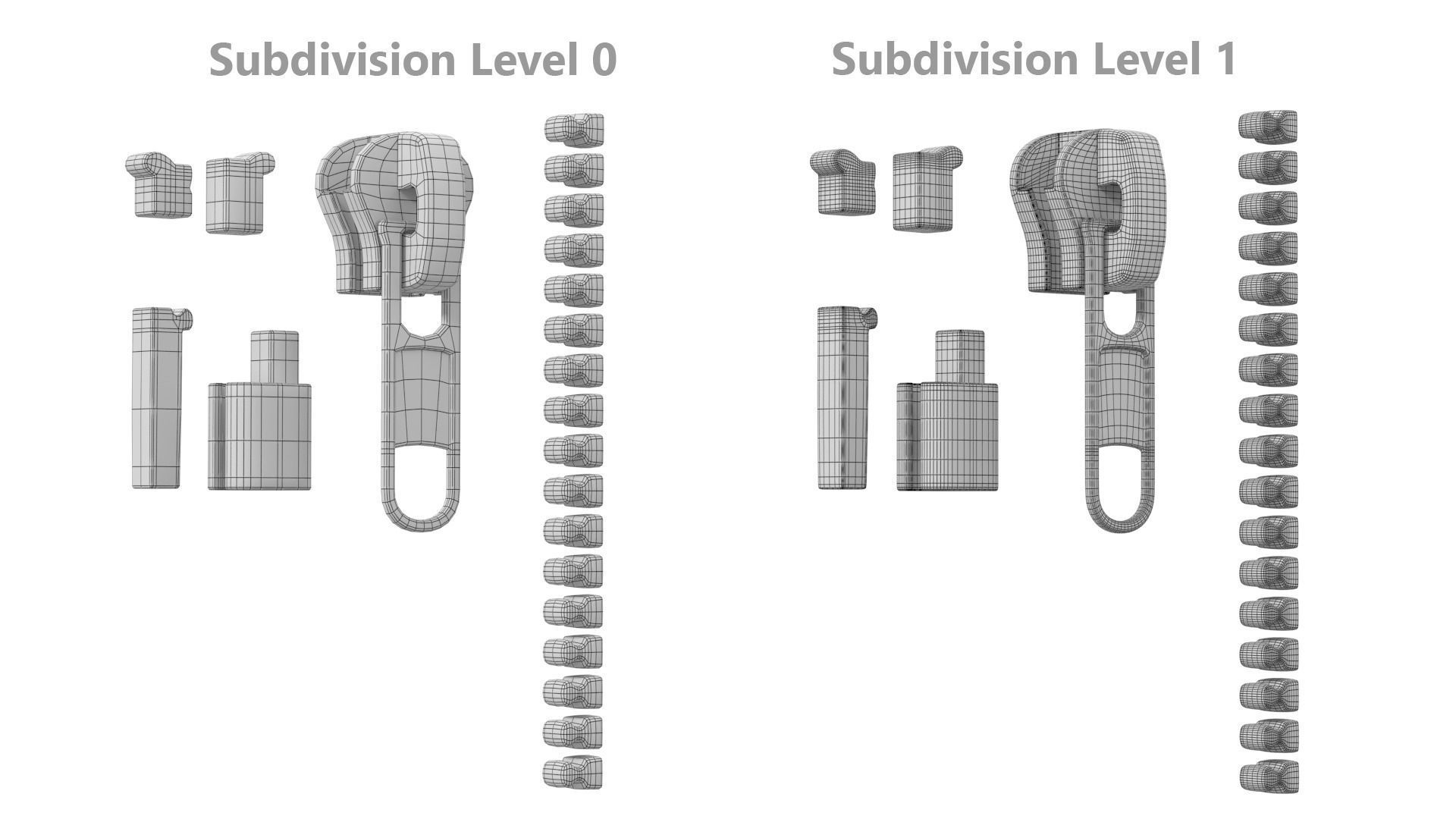

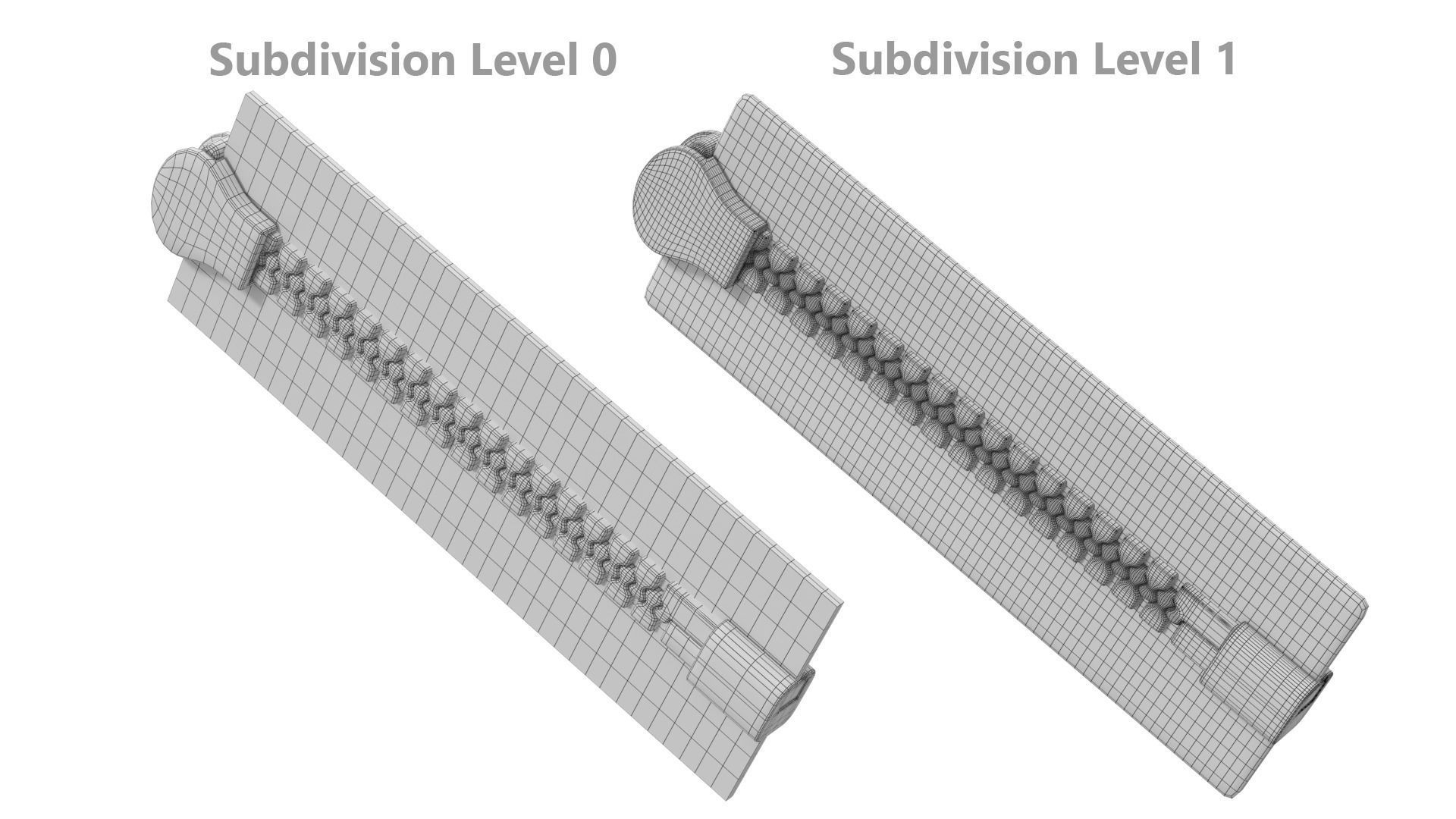

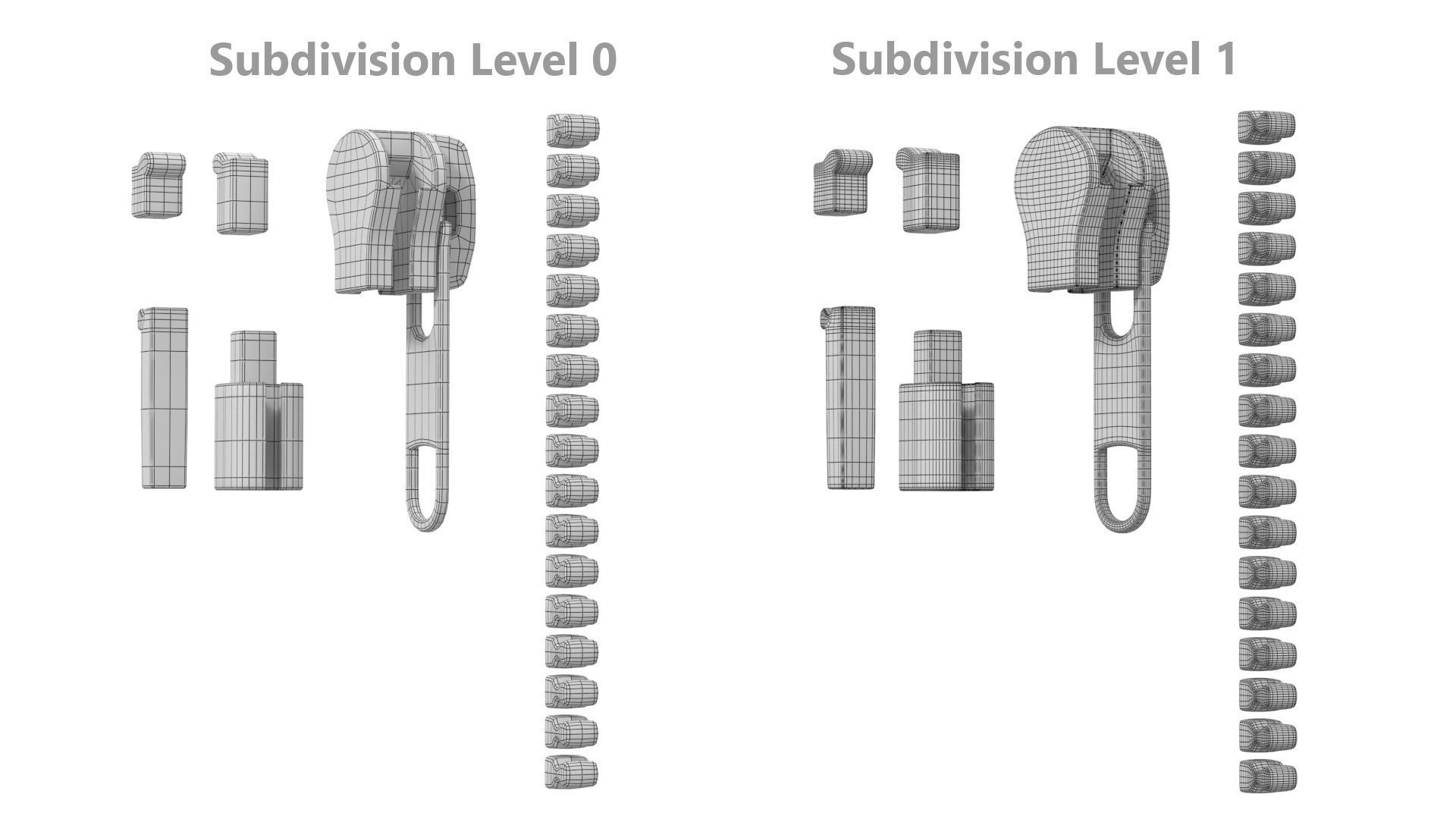

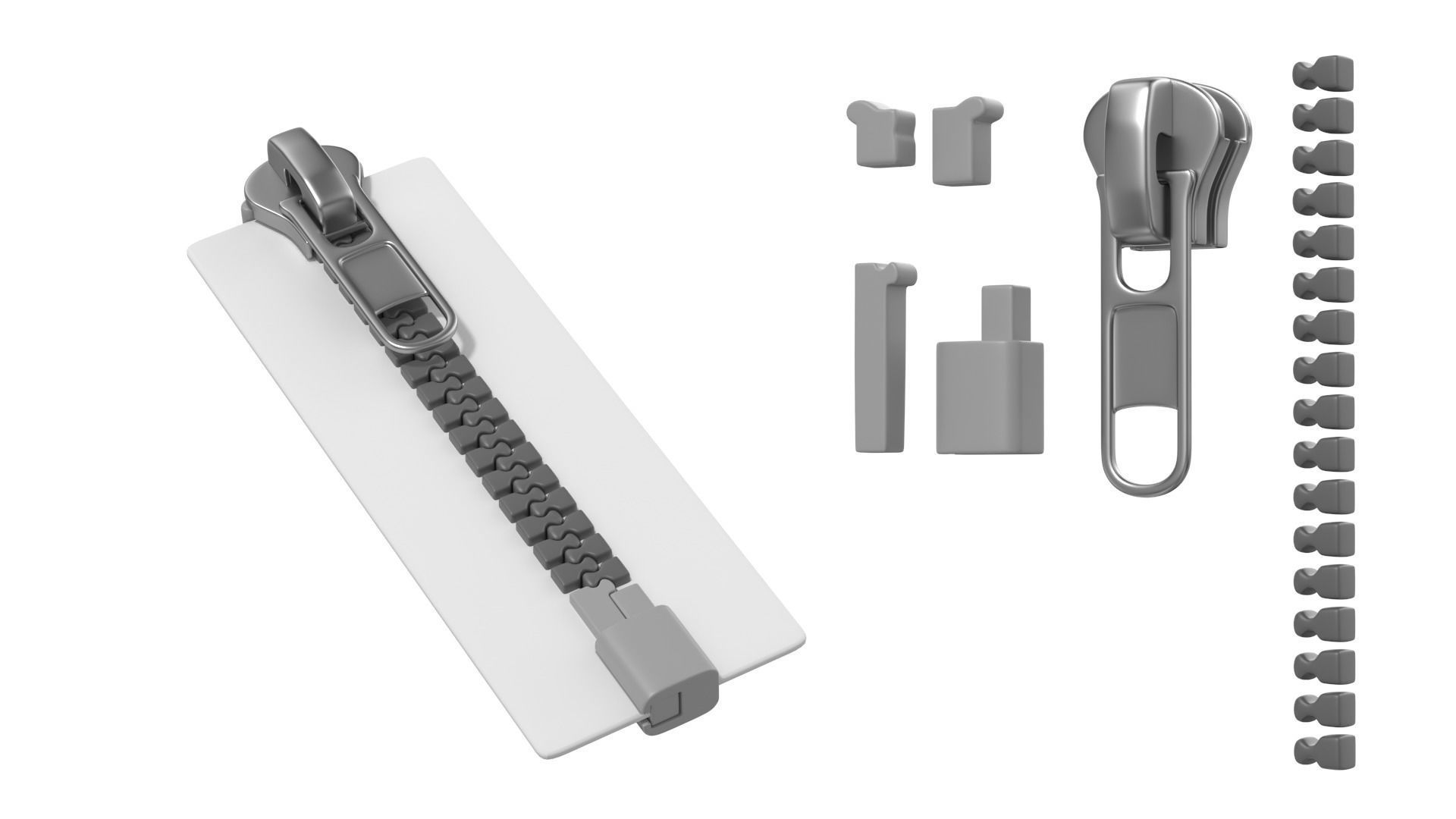

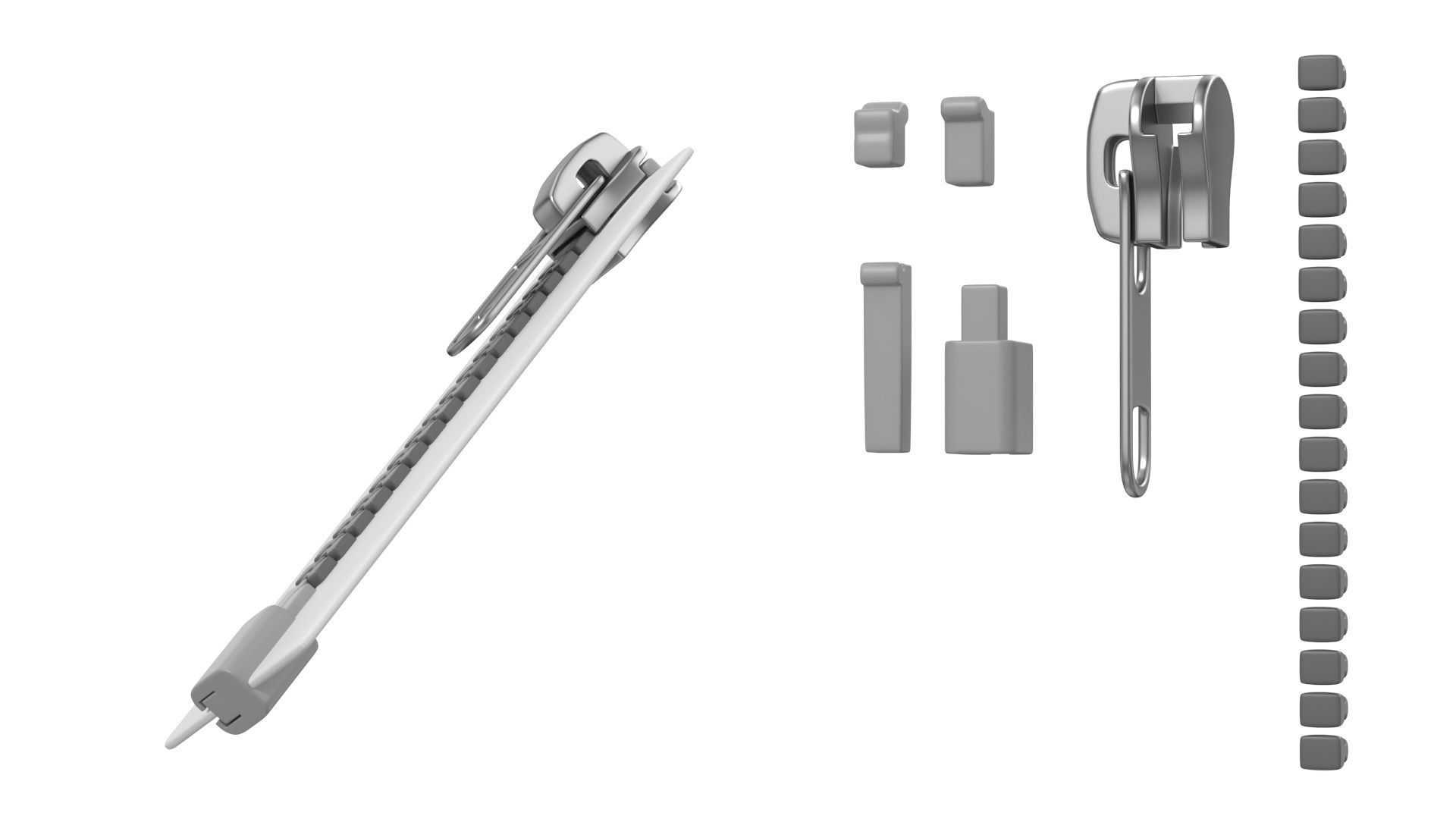

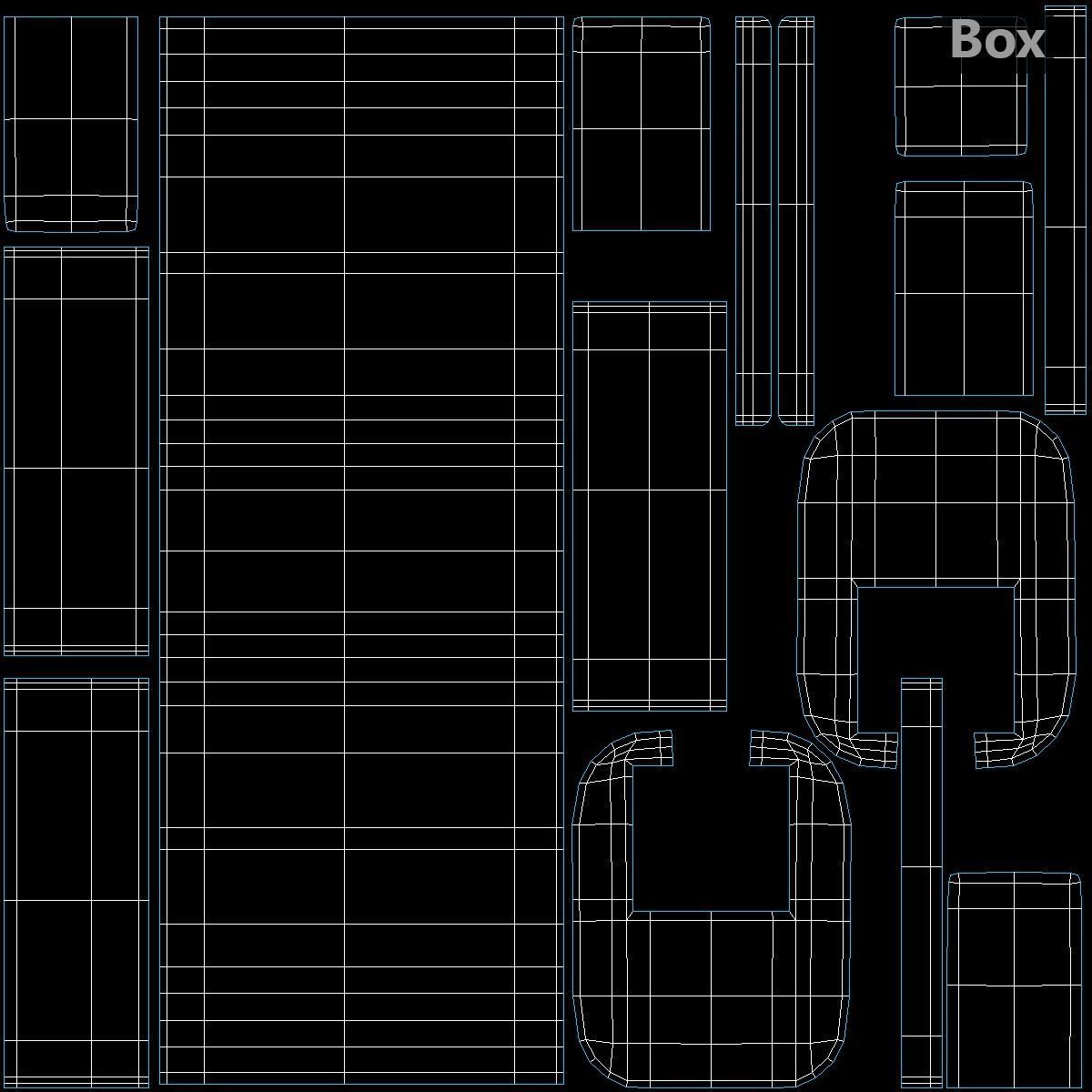

The 3D model of the zip fastener. This type of open-end zipper is typically used for sportswear, military and police uniforms, workwear, childrenswear, sleeping bags and various outerwear. The length of teeth rows is 5 centimeters. You can easily replicate it any number of times to create the zipper of the length needed. The model consists of 9 separate objects, wich make it easy to combine and adjust the components of the zipper in your project. The components included: slider, right teeth row, left teeth row, right tape, left tape, right top stop, left top stop, bottom box, bottom pin. The model presents solid mesh of regular quadrangular topology, having UVW unwrapping with smoothing groups, conformed to the UV shells. The zipper teeth share the same UV space (overlap). Other components have their own UV spaces being a separate objects.

Features:

• Low polygonal base mesh
• Accurate replication of zipper mechanism
• Regular topology based on quad polygons

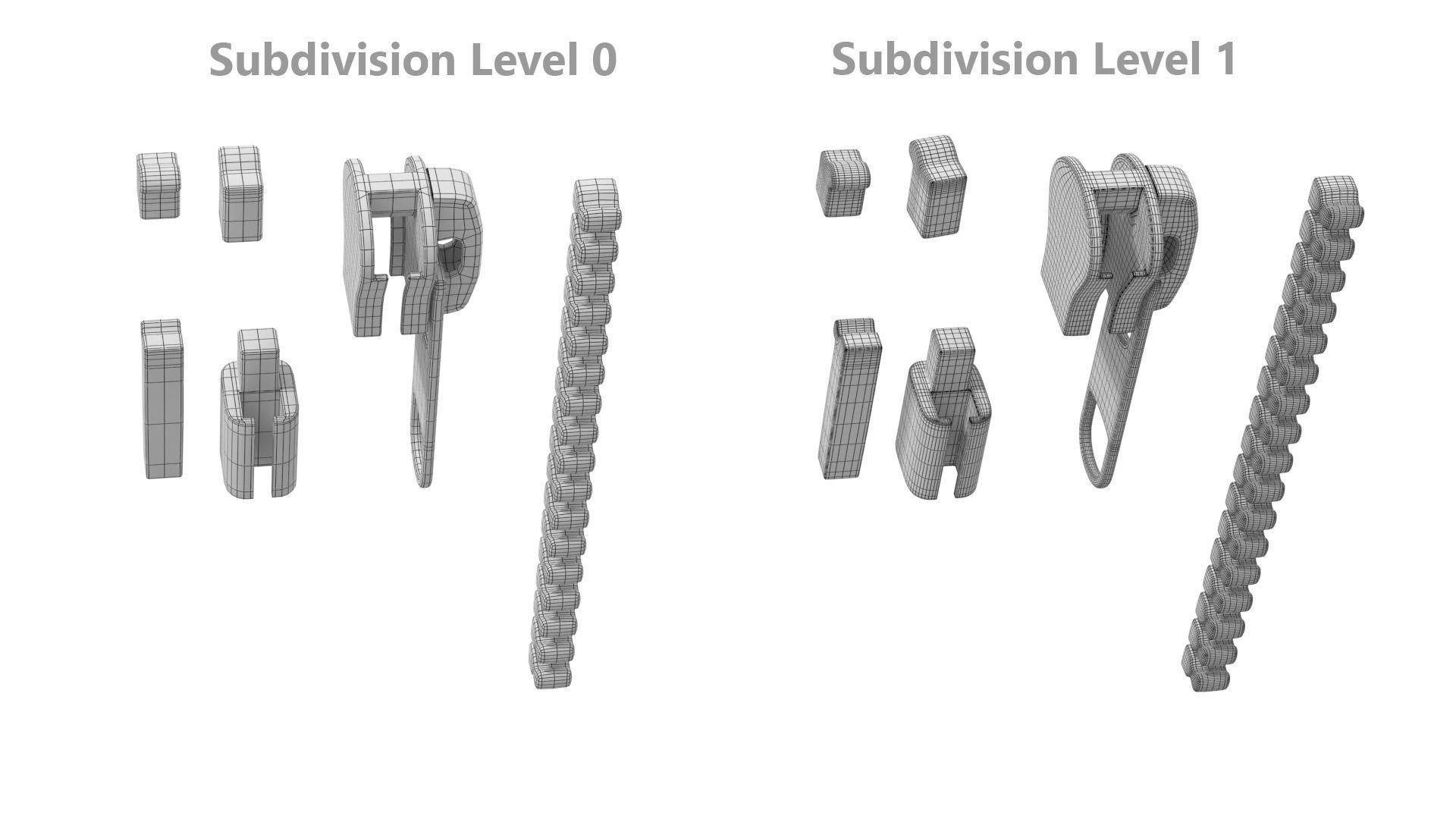

• Chamfers and support loops for accurate smoothing
• The real world scale, system units - centimeters
• Center of the model is at the World Origin (0,0)
• 9 separate objects
• 4 materials
• UV unwrapped

File formats:

• max - Autodesk 3ds Max 2010 (standard material)
• max - Autodesk 3ds Max 2011 (V-Ray material)
• ma - Autodesk Maya 2011
• c4d - Maxon Cinema 4D R13
• blend - Blender 2.80
• ztl - ZBrush 4R7
• dae - Collada
• fbx - Autodesk FBX ver. 2013.3
• obj - Wavefront Technologies
• stl - StereoLithography
• png - preview images
• pdf - User Guide

Polygon count (12873 vertices, 12760 quads in total, no tris and ngons):

• Bottom Box 647 vertices, 636 quads
• Bottom Pin 306 vertices, 304 quads
• Left Tape 540 vertices, 538 quads
• Right Tape 540 vertices, 538 quads
• Left Teeth Row 4114 vertices, 4080 quads
• Right Teeth Row 4114 vertices, 4080 quads
• Left Top Stop 256 vertices, 254 quads
• Right Top Stop 322 vertices, 320 quads
• Slider 2100 vertices, 2076 quads

Dimensions (W L H):

• Bottom Box 0,70cm 0,55cm 1,20cm
• Bottom Pin 0,38cm 0,29cm 1,36cm
• Left Tape 1,10cm 0,10cm 6,76cm
• Right Tape 1,10cm 0,10cm 6,76cm
• Left Teeth Row 0,38cm 0,30cm 5,06cm
• Right Teeth Row 0,38cm 0,30cm 5,06cm
• Left Top Stop 0,64cm 0,30cm 0,63cm
• Right Top Stop 0,56cm 0,30cm 0,49cm
• Slider 1,10cm 0,95cm 3,00cm
• TOTAL: 2,43cm 0,95cm 7,21cm

Properties:

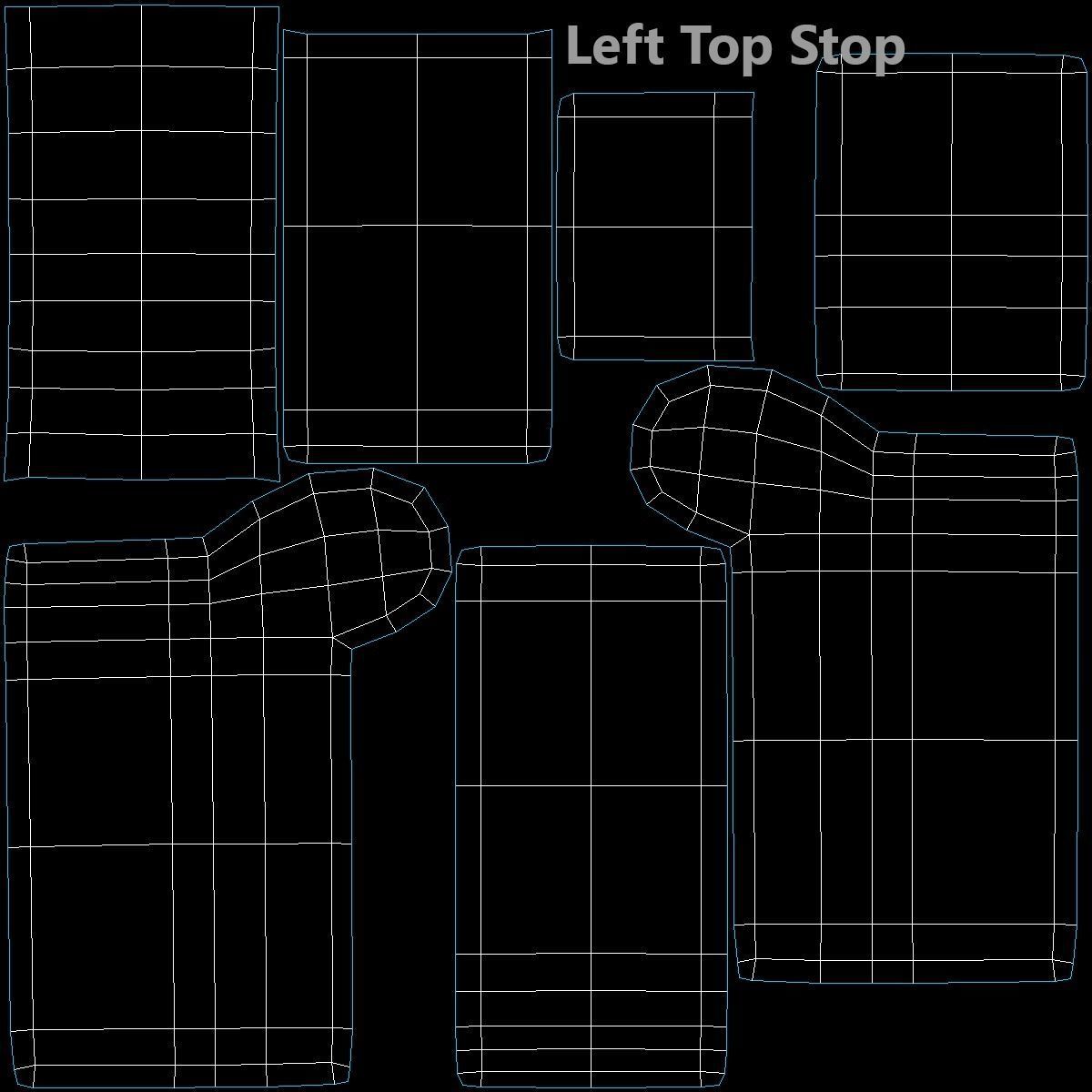

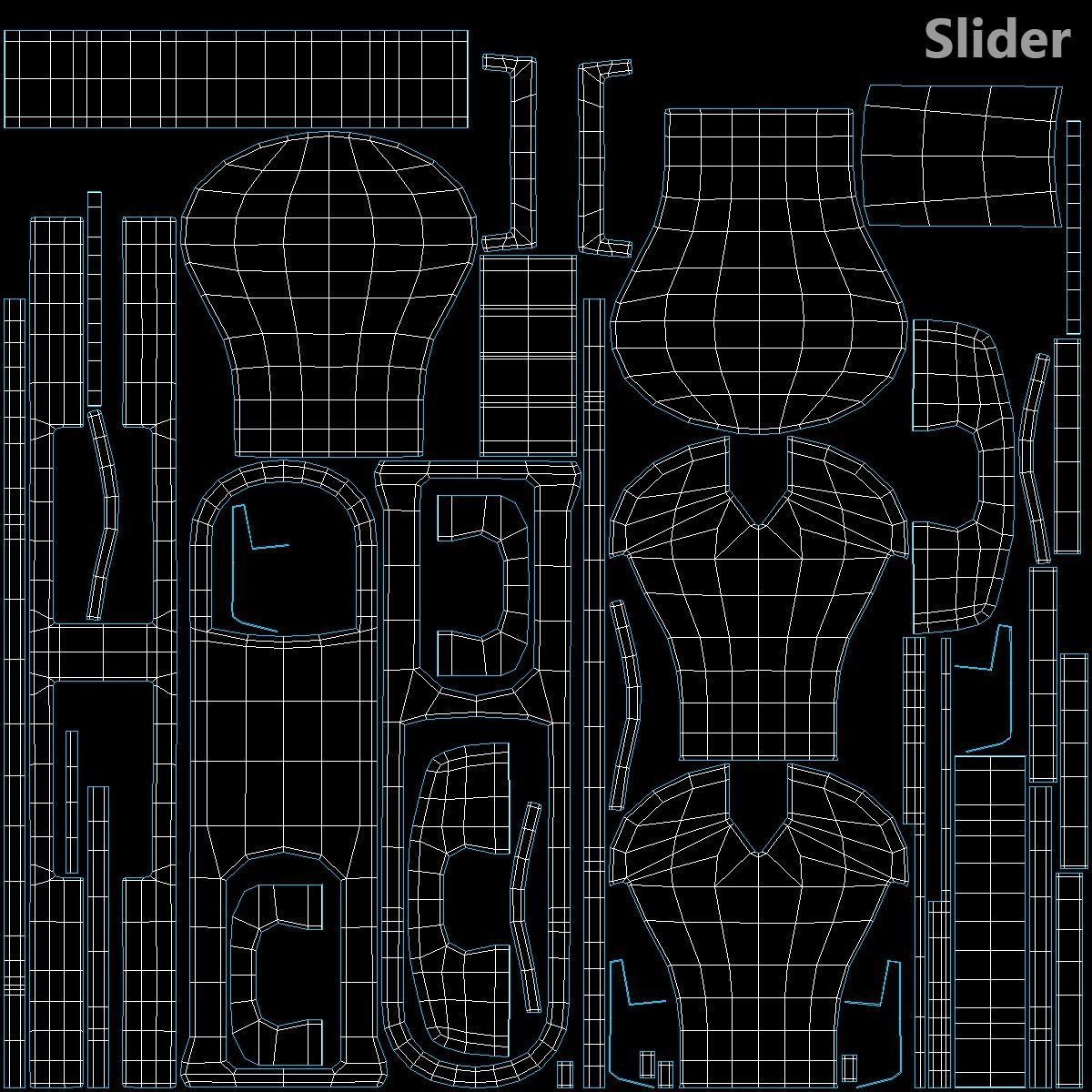

• Materials: YES, simple procedural
• UVW unwrap: YES, non-overlapping
• Textures: NO

Note: STL exchange format is provided for the compatibility with CAD-oriented 3D software. STL mesh has the same number of polygons as the original mesh, therefore its resolution may be insufficient for quality 3D printing.
