T Shaped Column 3D model
thumbnail
play iconthumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

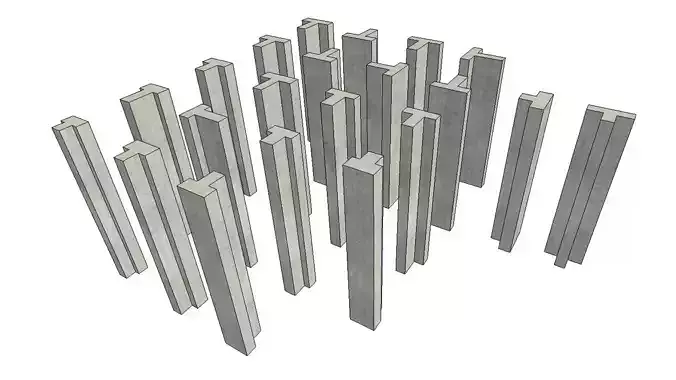

This is a fully parametric revit family for a concrete T-Shaped Column. All dimensions of the concrete column can be changed by the user. It can be rotated and flipped on both axes to match the design of any project.

Both sides, flange and web, can be changed. Column can either have similar widths on both sides or different ones. By rotating and flipping on an axis, and changing the column dimensions, it can be adjusted to match any design.

This revit family file belongs in the structural column revit category and can be inserted into any project.

ATTRIBUTES:

  • Revit Version : 2022
  • Family Type : Structural Column
  • File Extension : .rfa

PARAMETERS:

  • Flange Length
  • Flange Width
  • Web Length
  • Web Width
  • Material Parameter

FAMILY TYPES:

  • T750x750/250x250mm
  • T600x600/300x300mm
  • T750x750/300x300mm
  • T600x600/250x250mm
  • T900x900/300x300mm
  • T900x900/250x250mm
  • T600x600/300x250mm
  • T600x600x/250x300mm
  • T750x750/300x250mm
  • T750x750/250x300mm
  • T900x900/300x250mm
  • T900x900/250x300mm
  • T1000x1000/250x250mm
  • T1000x1000/300x300mm
  • T1000x1000/300x250mm
  • T1000x1000/250x300mm
  • T900x600/300x300mm
  • T600x900/250x250mm
  • T900x600/250x250mm
  • T600x900/300x300mm
  • T500x500/250x250mm

User can create an unlimited number of column variations.

Related Tagsrevitfamilyparametrict shapedcolumnstructuralstructurearchitectural
architecture
building
model
3d
reinforced cocnrete
