L Shaped Office Desk 3D model

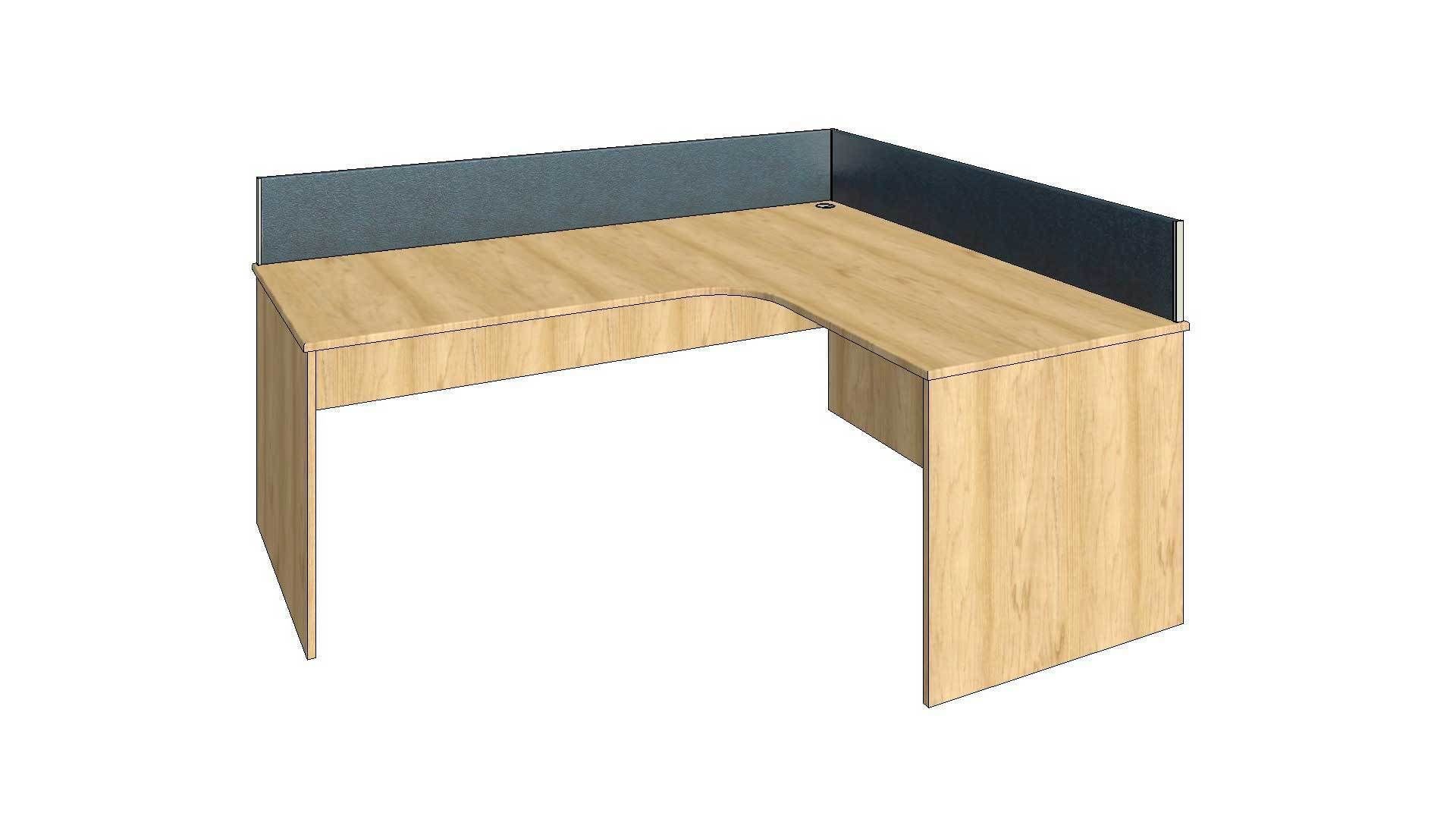

This is a fully parametric Revit Family Model for an L Shaped Office Desk. All parameters of the desk are fully controlled by the user, width, depth, height, side length and depth as well as the screen partitions height with options to turn them off and on as desired.

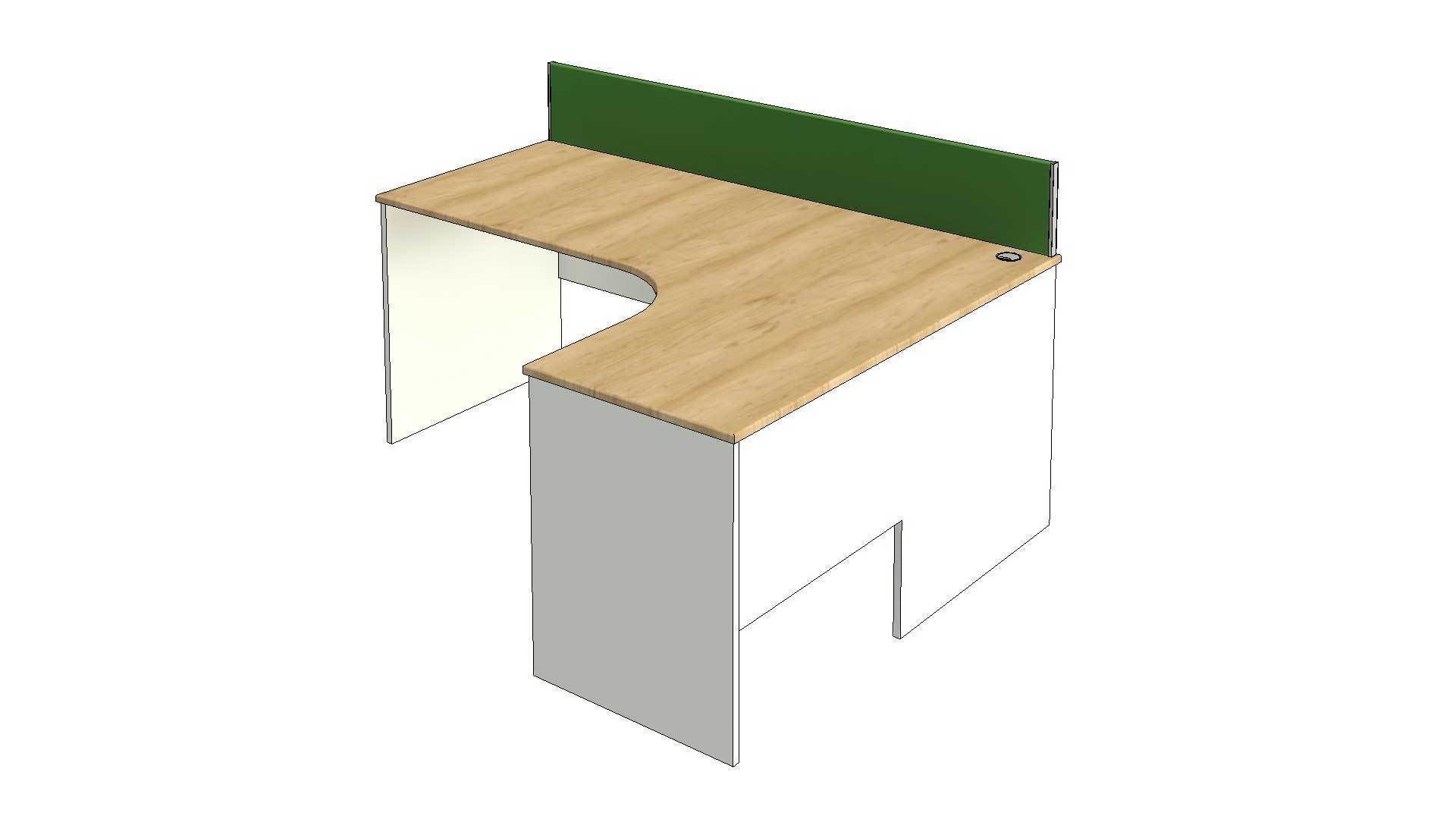

All dimensions of the desk are fully controlled alongside with all the materials used. Screen partitions can be turned on and off either for the front screen and/or for the side screen.

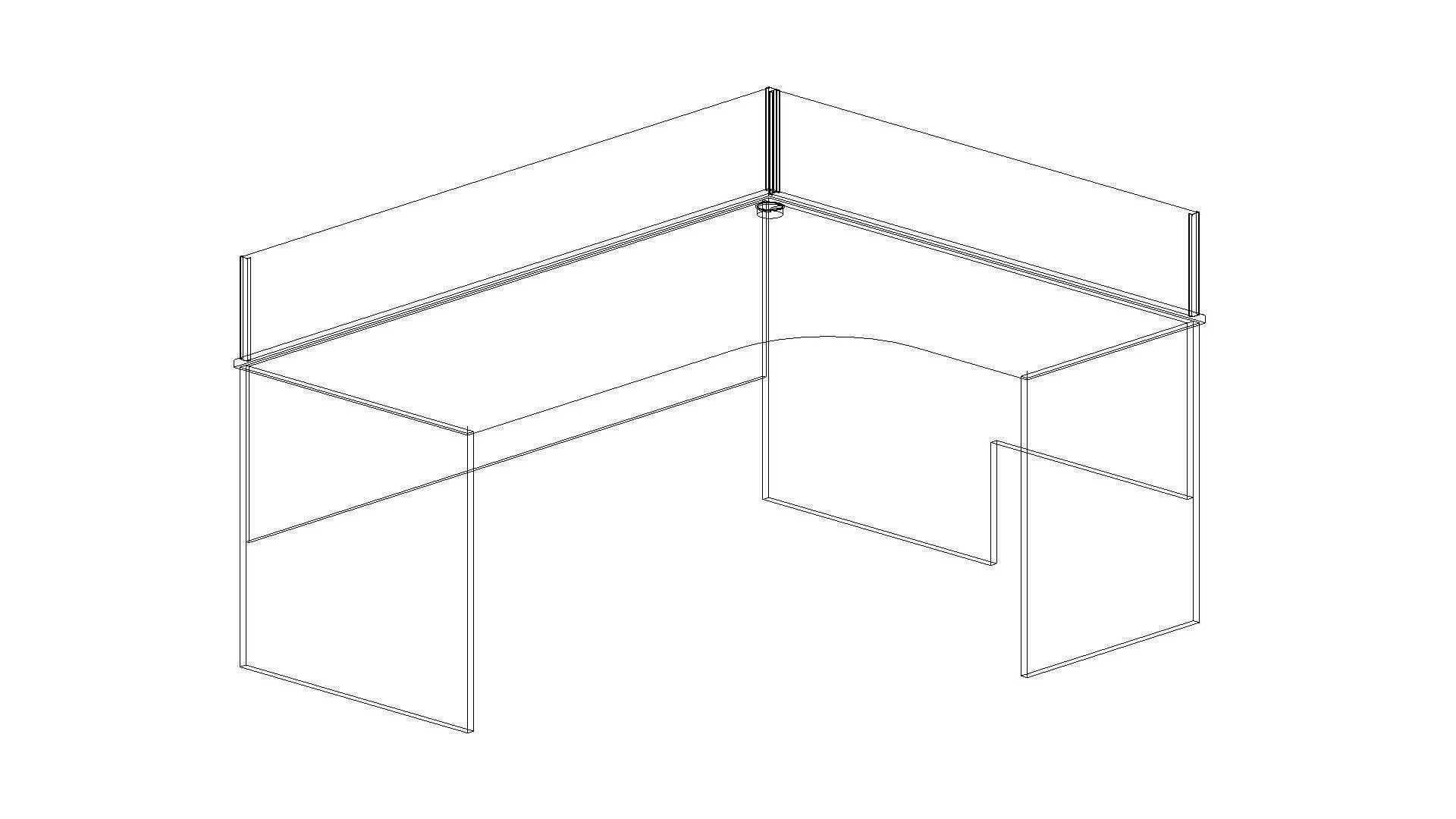

The also features a wire hole with a cap which is fixed at the corner of the desk. The whole is not parametric.

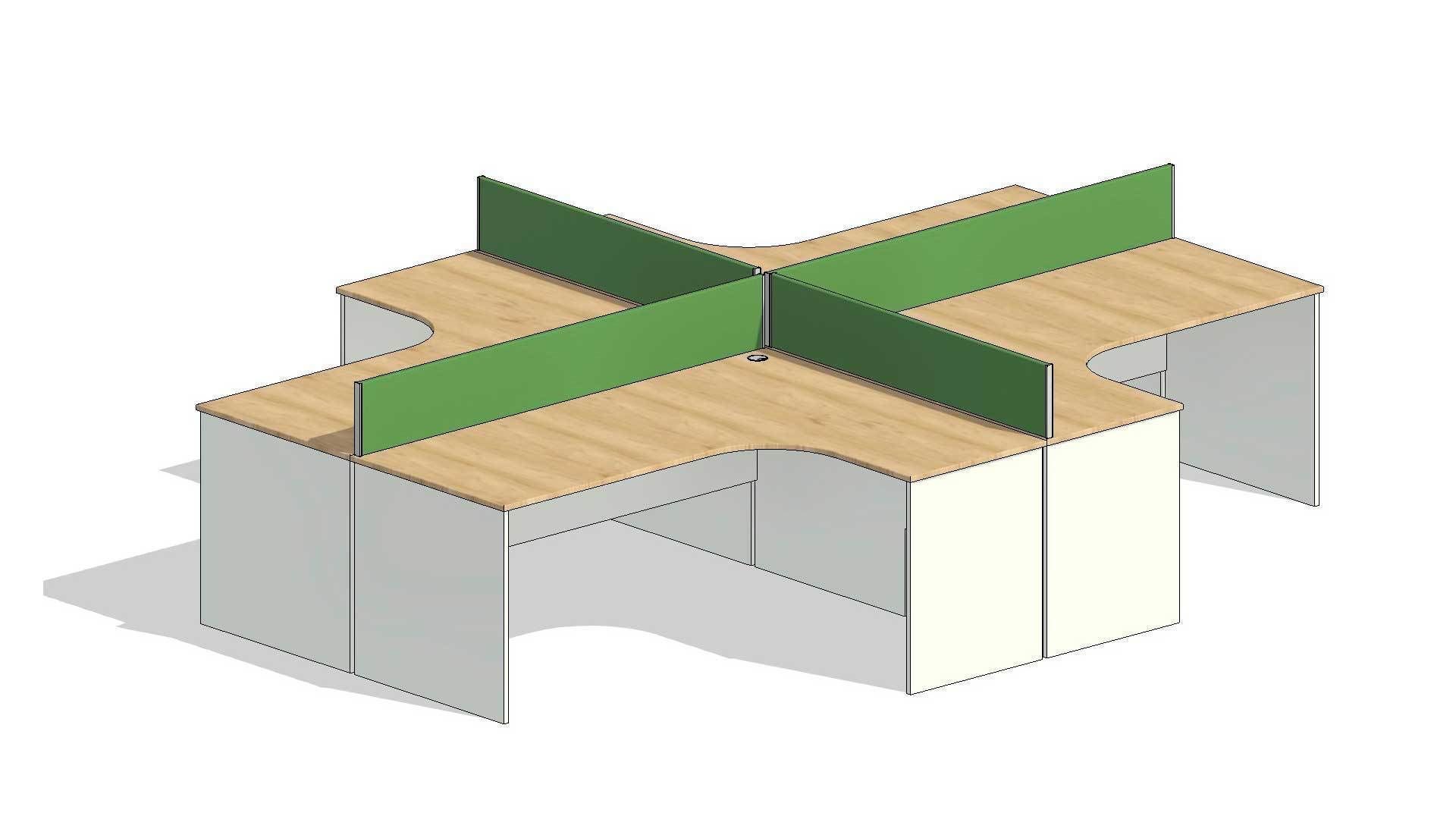

Family can be flipped on both axes in order for correct desk placement inside every office space in Revit Model.

ATTRIBUTES:

• Revit Version : 2022
• Family Type : Generic Model
• File Extension : .rfa

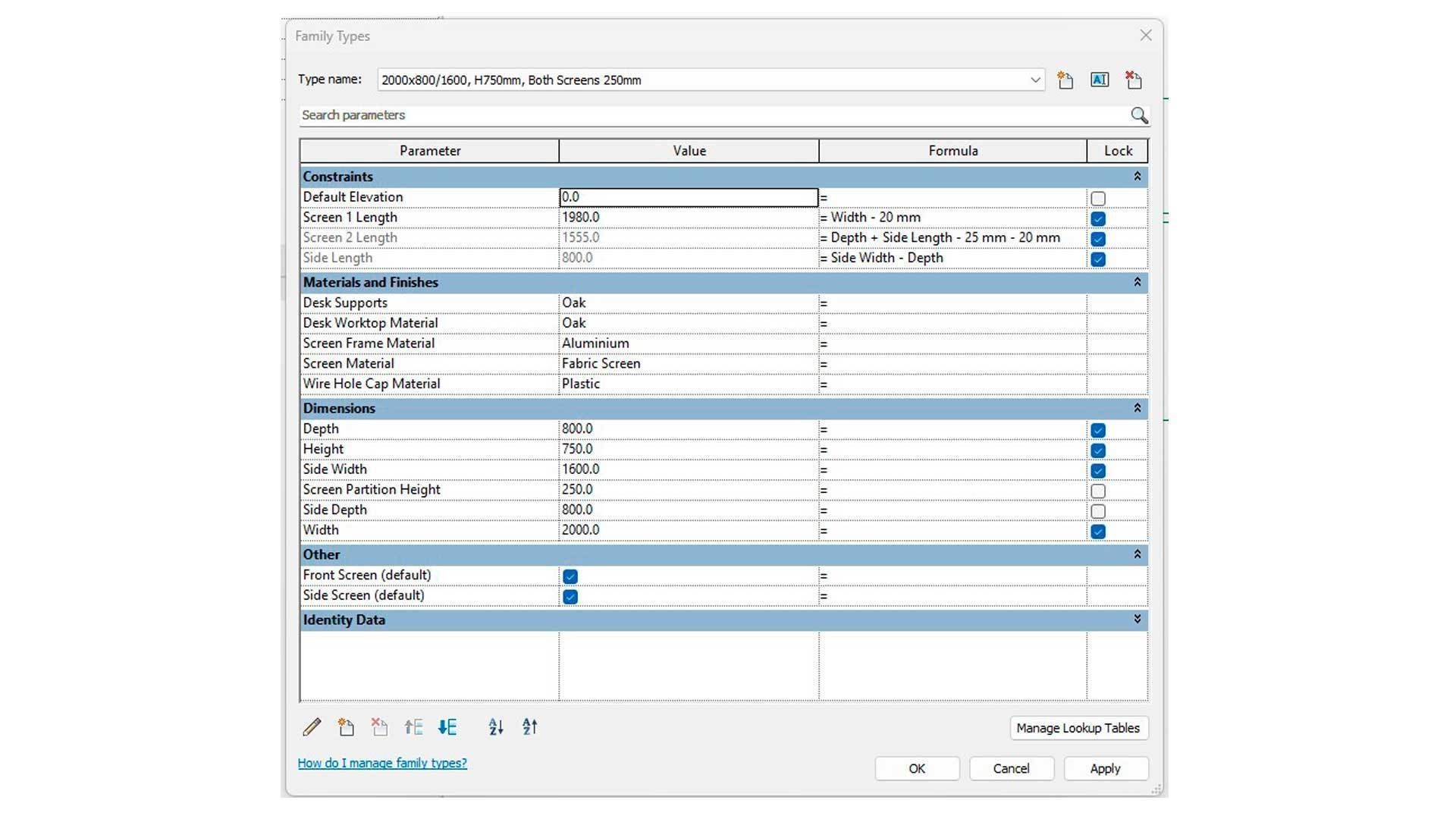

PARAMETERS :

• Desk Width
• Desk Depth
• Desk Height
• Side Width
• Side Depth
• Screen Partitions ON/OFF option separately for front and side screens
• All Materials ( desk worktop, desk supports, screen material and screen frame, wire hotel cap material.

FAMILY TYPES:

• 2000×800/1600, H750mm, Both Screens 250mm
• 1800×750/1800, H750mm, No Screens
• 1800×700/1800, H750mm, Front Screen 300mm
• 1800×750/1400×600, H750mm, No Screens

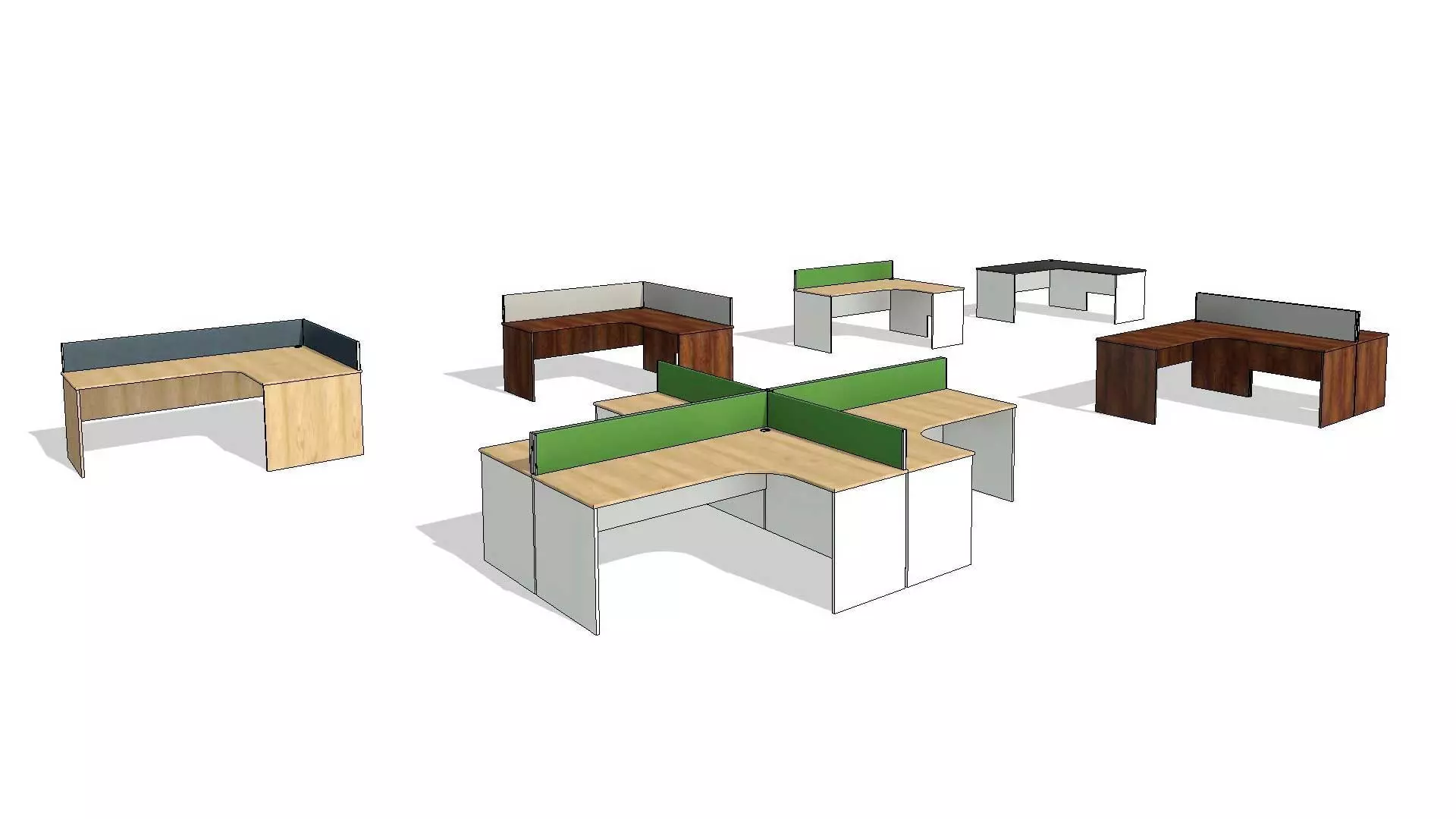

User can create unlimited number of realistic family type variations to match the needs of every project.
