Shower Glass Sliding Door 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

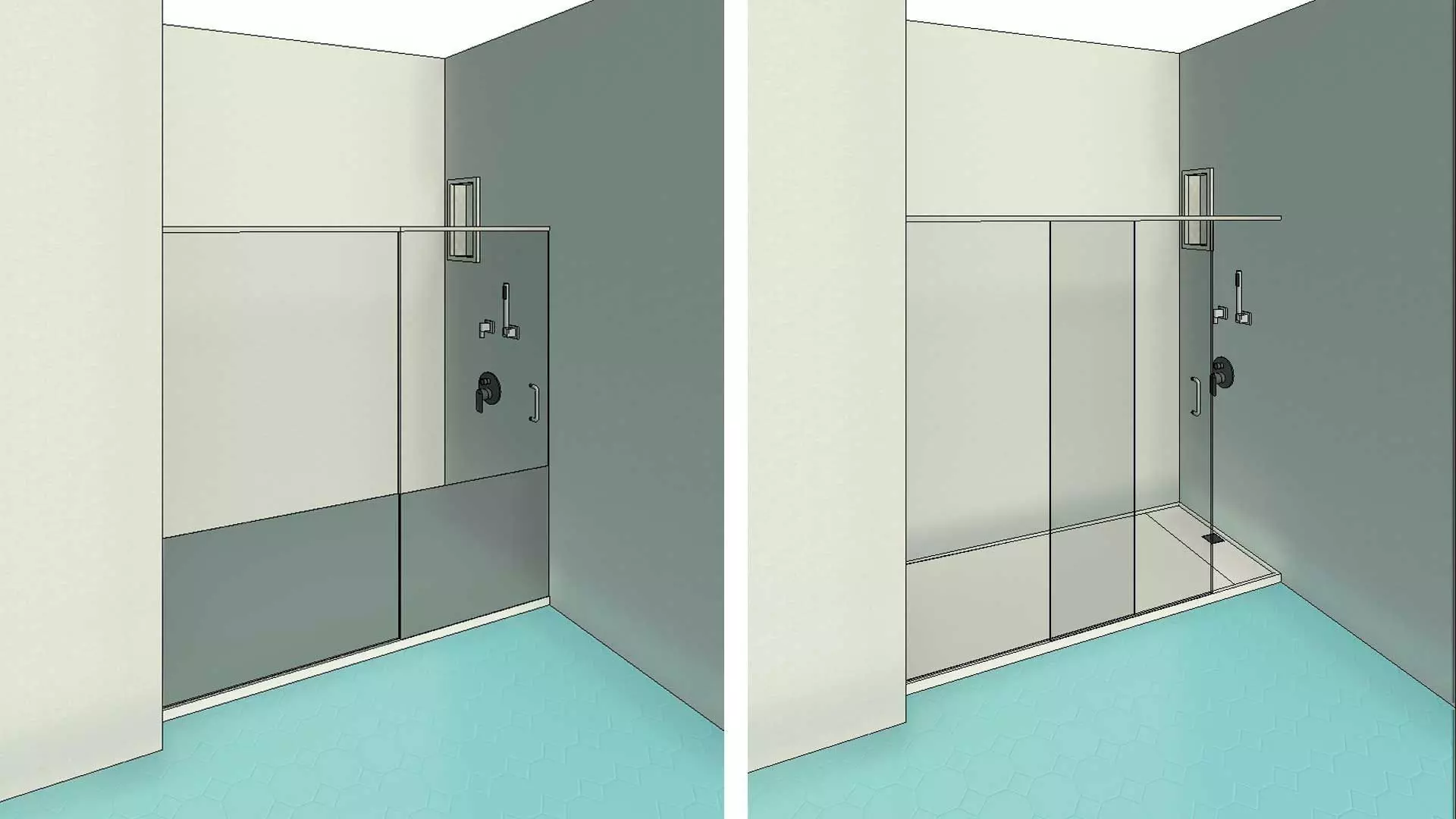

Fully Parametric Shower Glass Sliding Door revit family. This is a fixture generic model, that can be placed almost everywhere with an elevation from level parameter to adjust the installation position onto the shower tray or on the floor. Door can be flipped on both axes to match any design criteria and it is fully parametric. Almost all features of this family model can be adjusted by the user.

ATTRIBUTES:

  • Revit Version : 2022
  • Family Type : Generic Model
  • File Extension : .rfa

PARAMETERS:

  • Overall Width
  • Sliding Door Panel Width
  • Height
  • Top Guide Rail Height
  • Handle Option ON/OFF
  • Handle bar elevation
  • Handle bar length
  • Glass Thickness
  • Glass Frosting Option ON/OFF
  • Glass Frosting Height
  • Door open % graphical representation parameter
  • Elevation from level
  • All materials are parametric

FAMILY TYPES :

  • W1800xH1700mm, Frosted 800mm, Handle, Door 800mm
  • W1800xH1700mm, No Frosted, No Handle, Door 800mm
  • W1600xH1700mm, Frosted 900mm, Handle, Door 750mm
  • W1200xH1600mm, No Frosted, Handle, Door 600mmUser can create as many family types needed to match any design criteria
Related Tagsshowerglassslidingdoorsliding doorrevitfamilyparametric
model
bimfixtureinterio
architecture
architectural
generic model
frosted glass
