Sample Assembly for New Framed Solar Panel 3D model

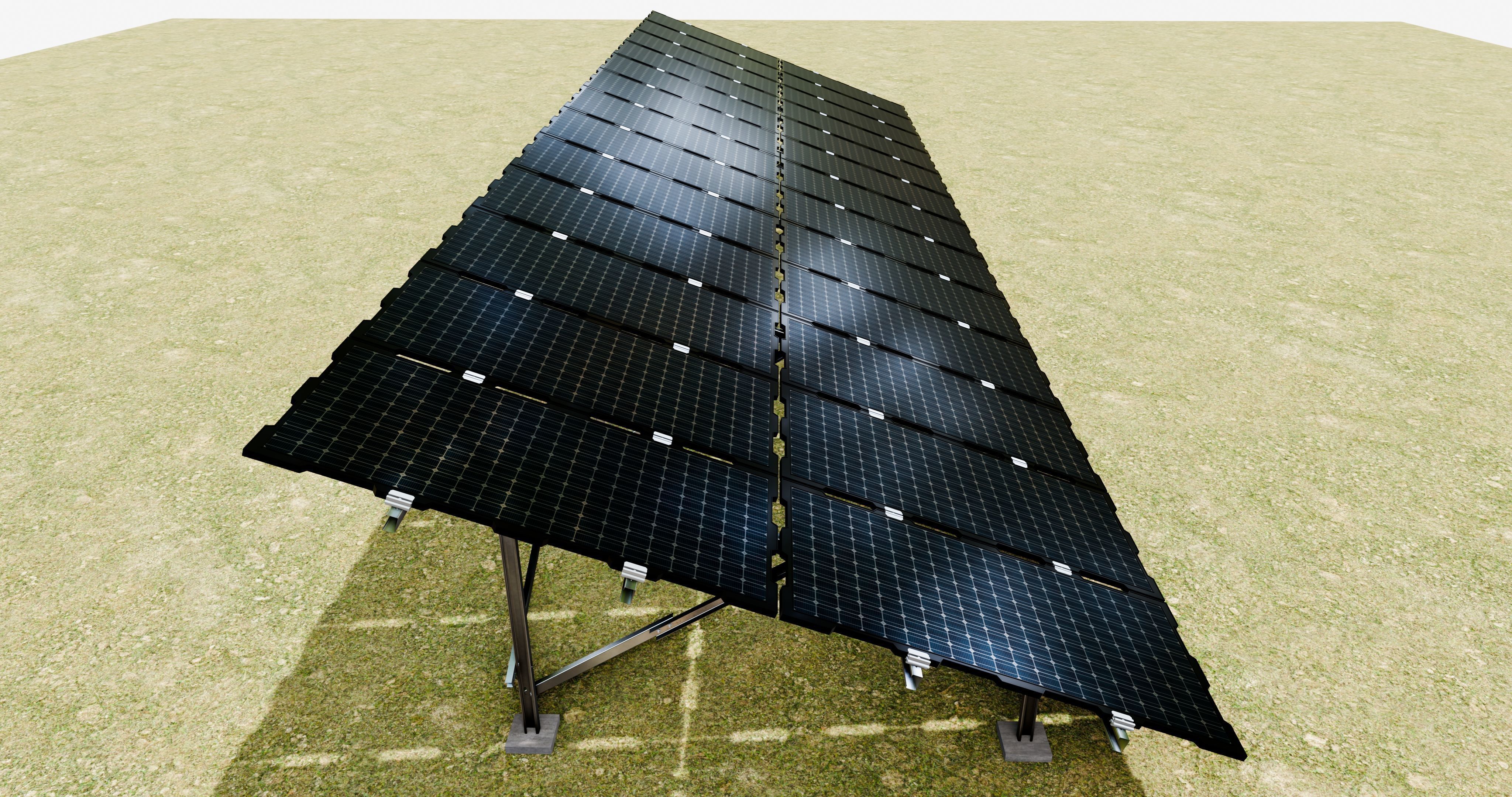

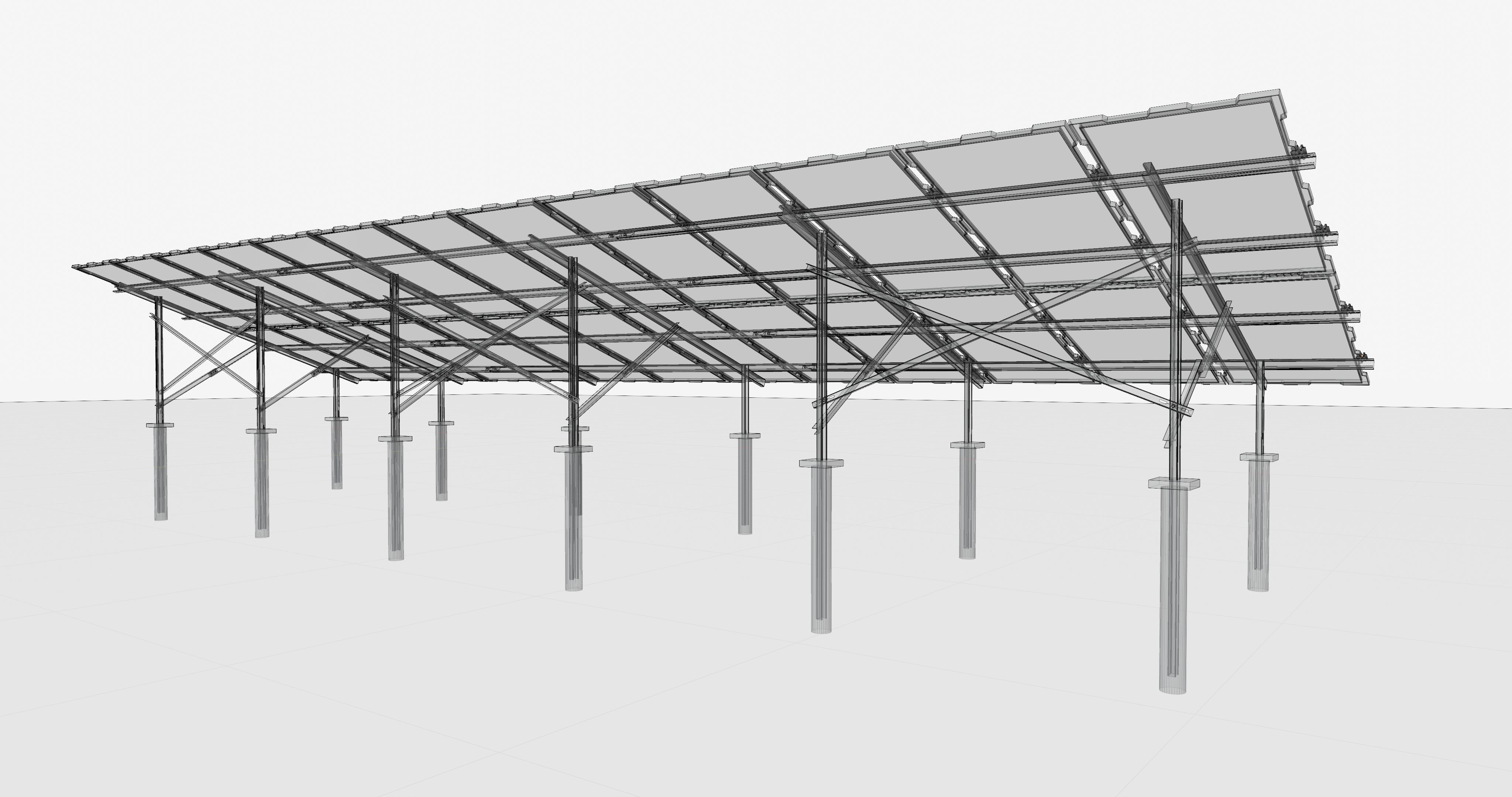

Sample Assembly for New Framed Solar Panel

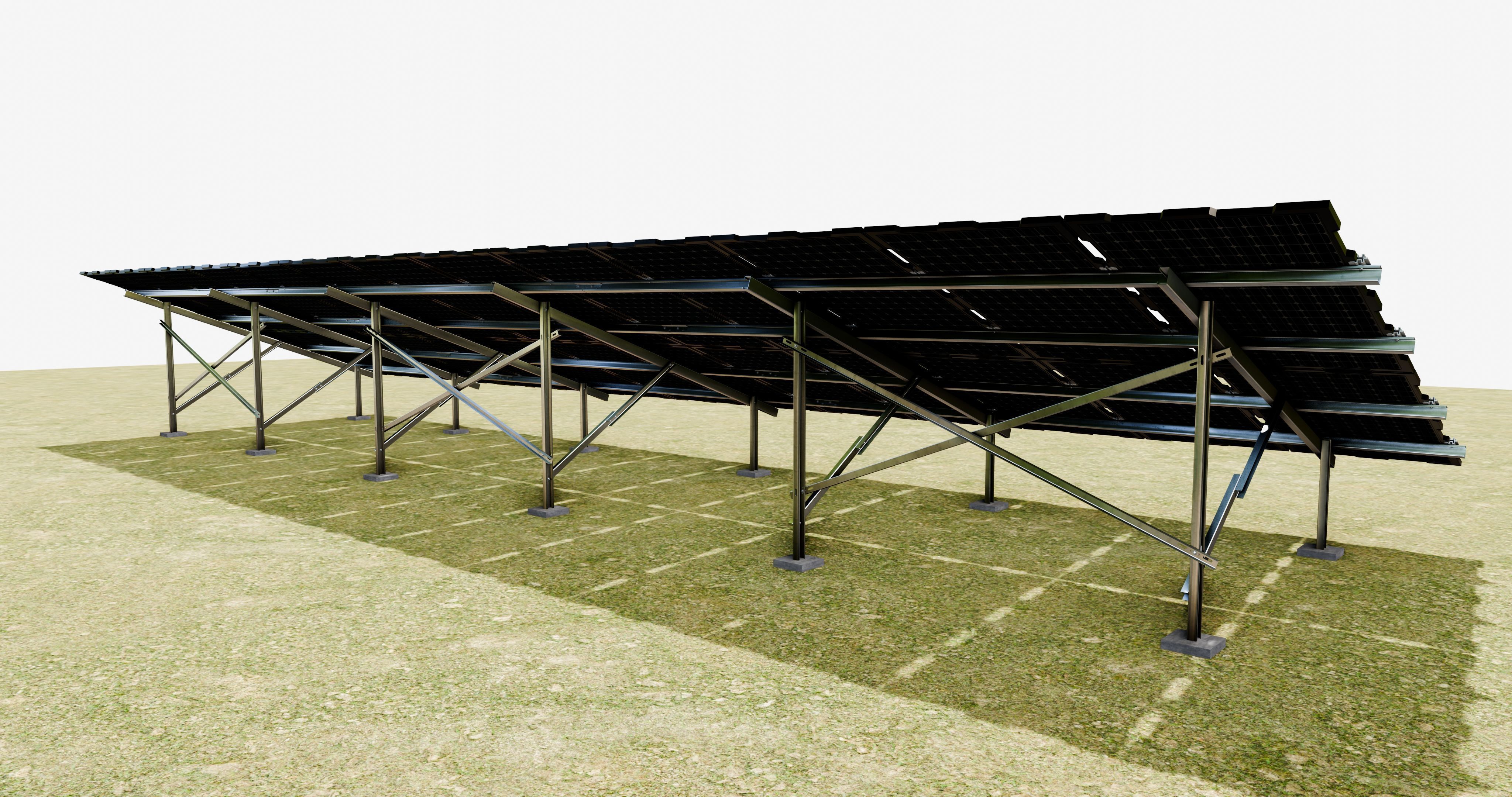

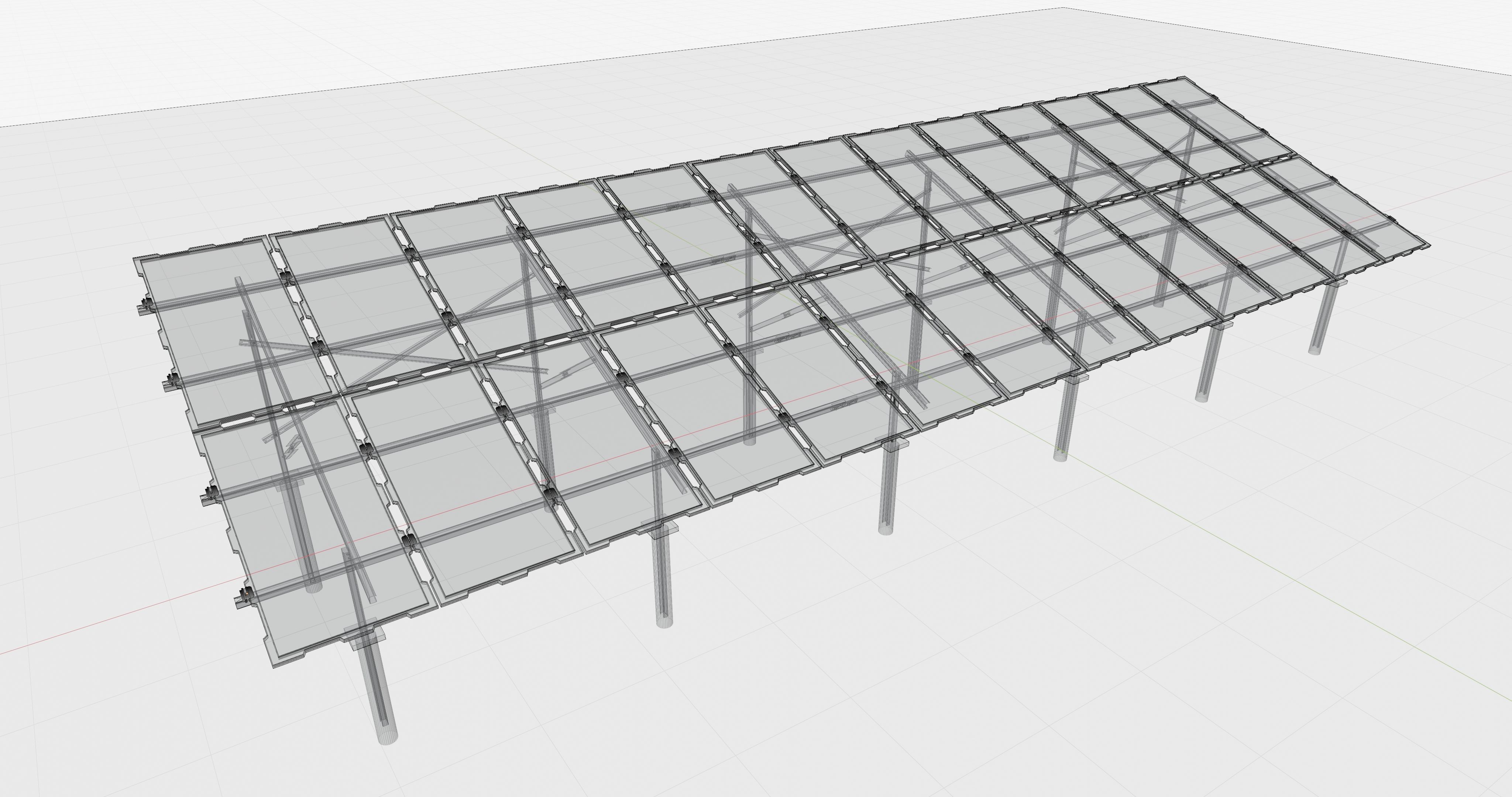

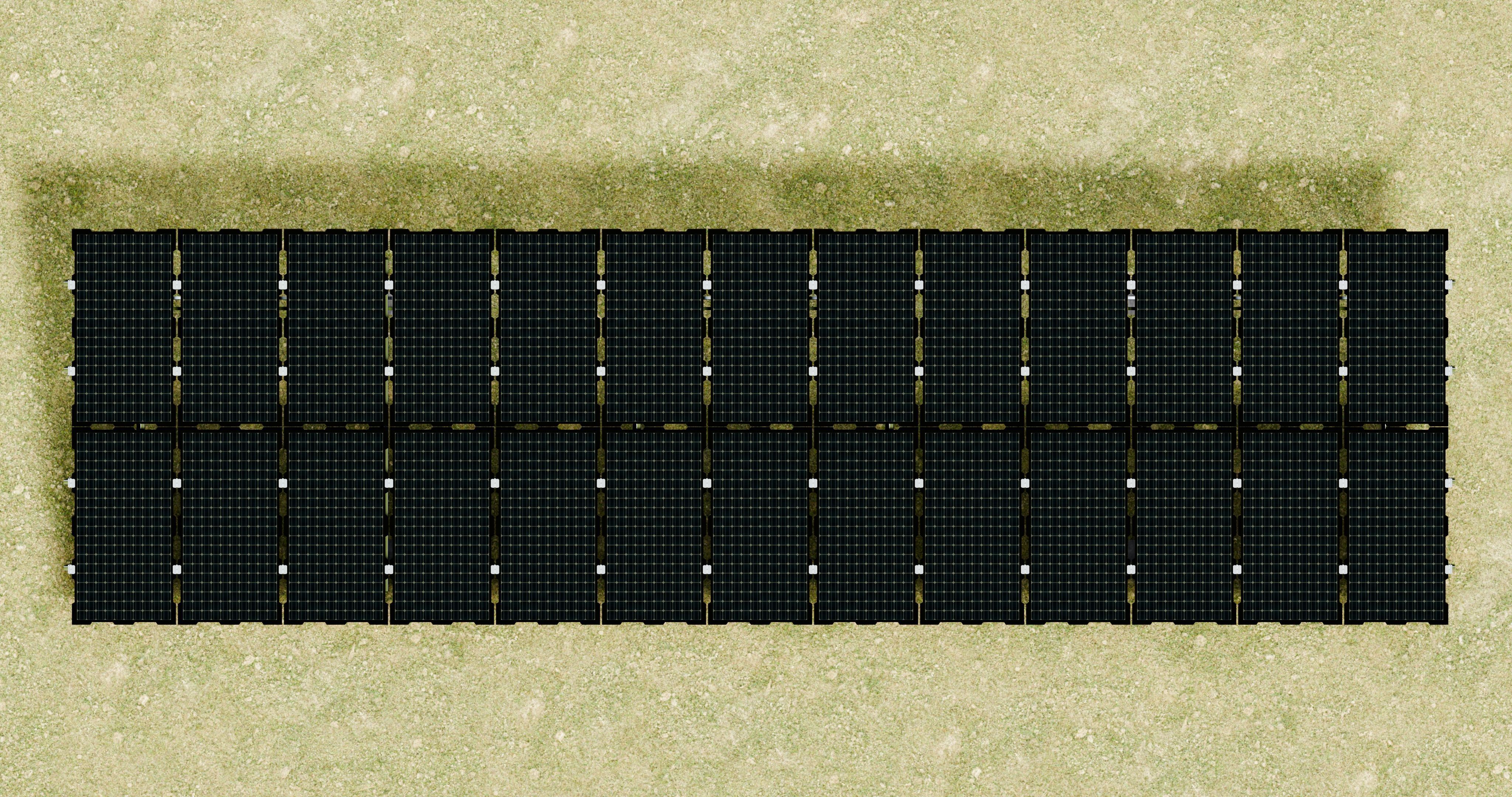

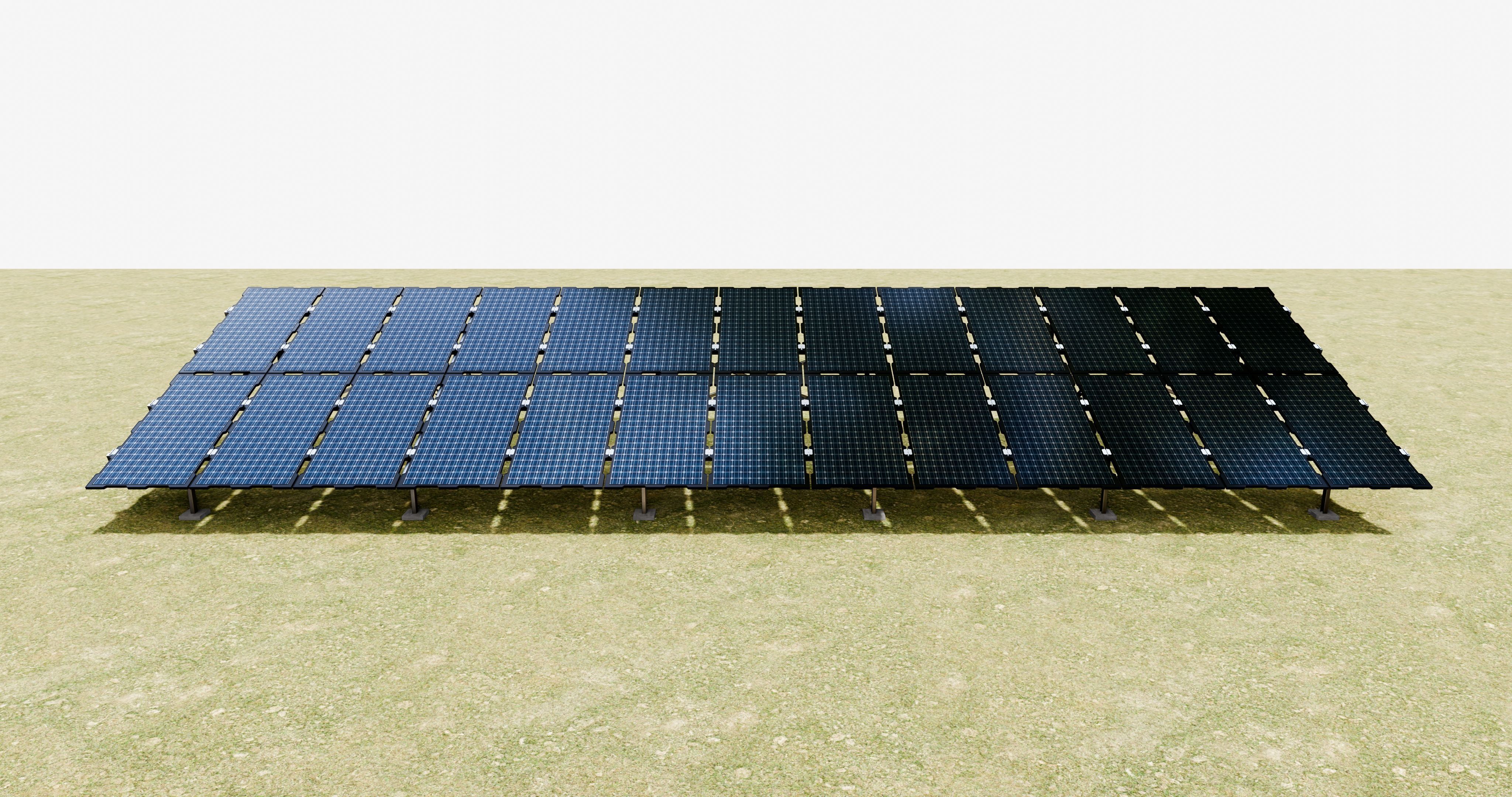

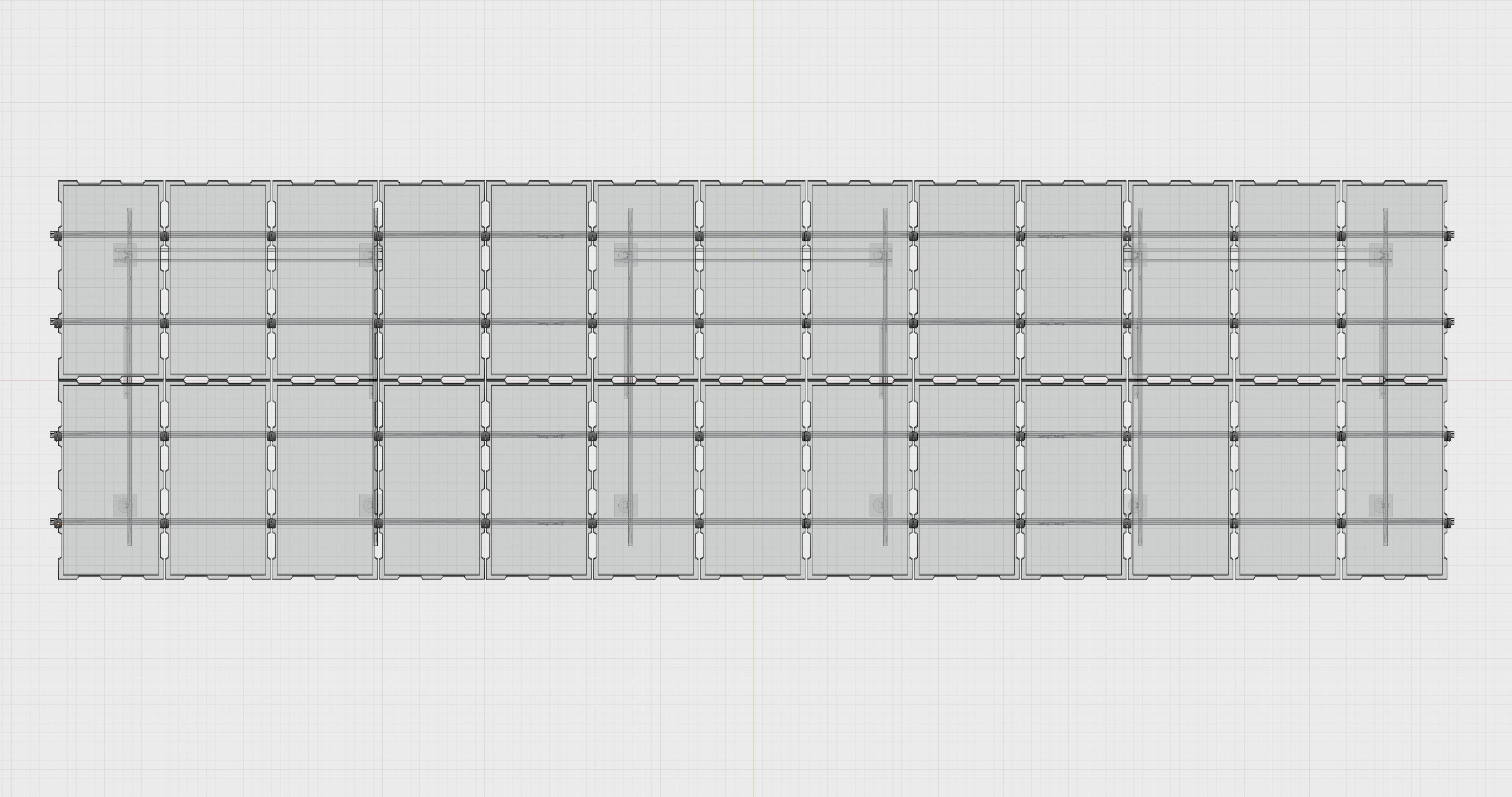

2x13 Vertical Solar Glass Panel Layout

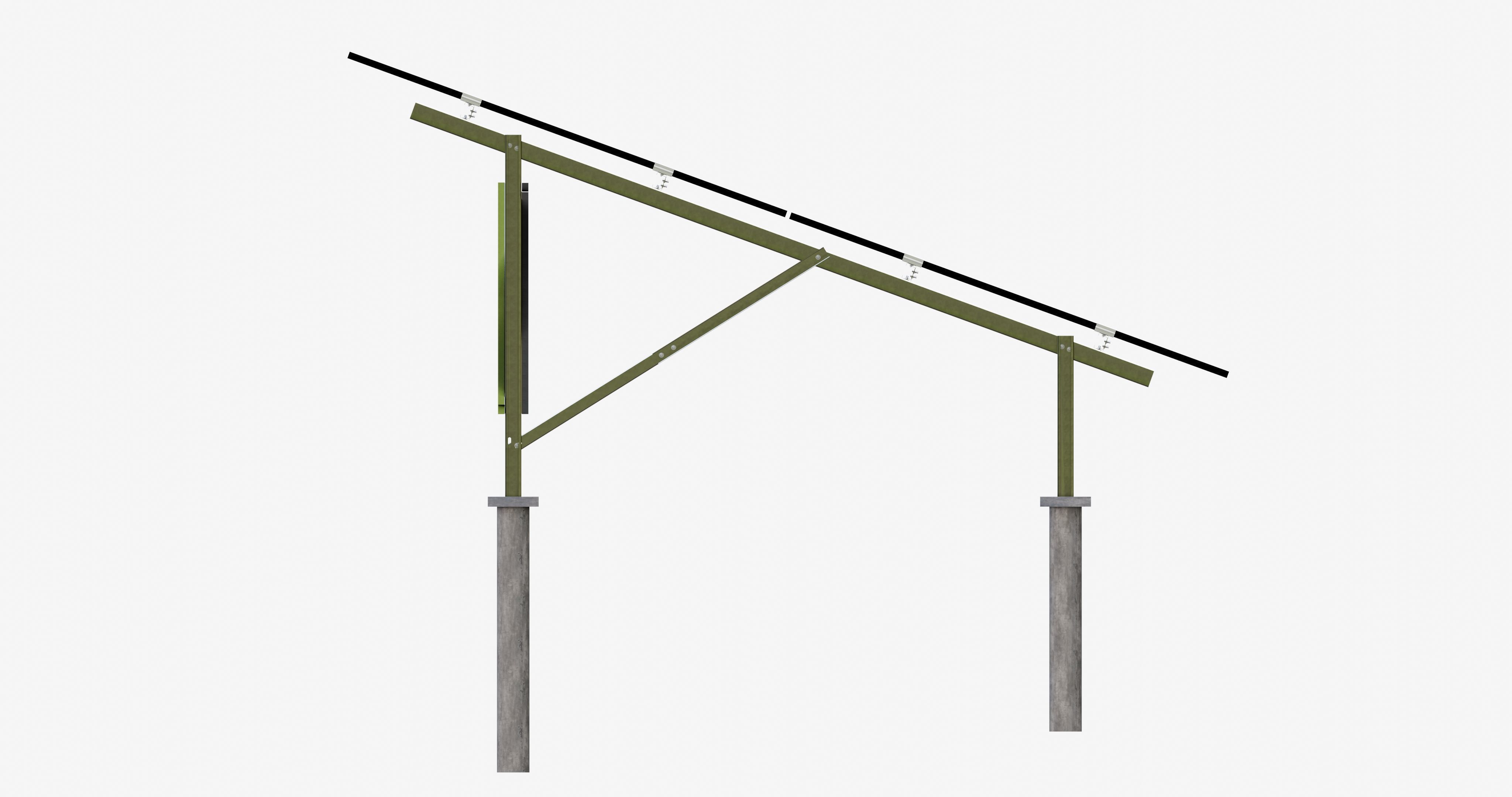

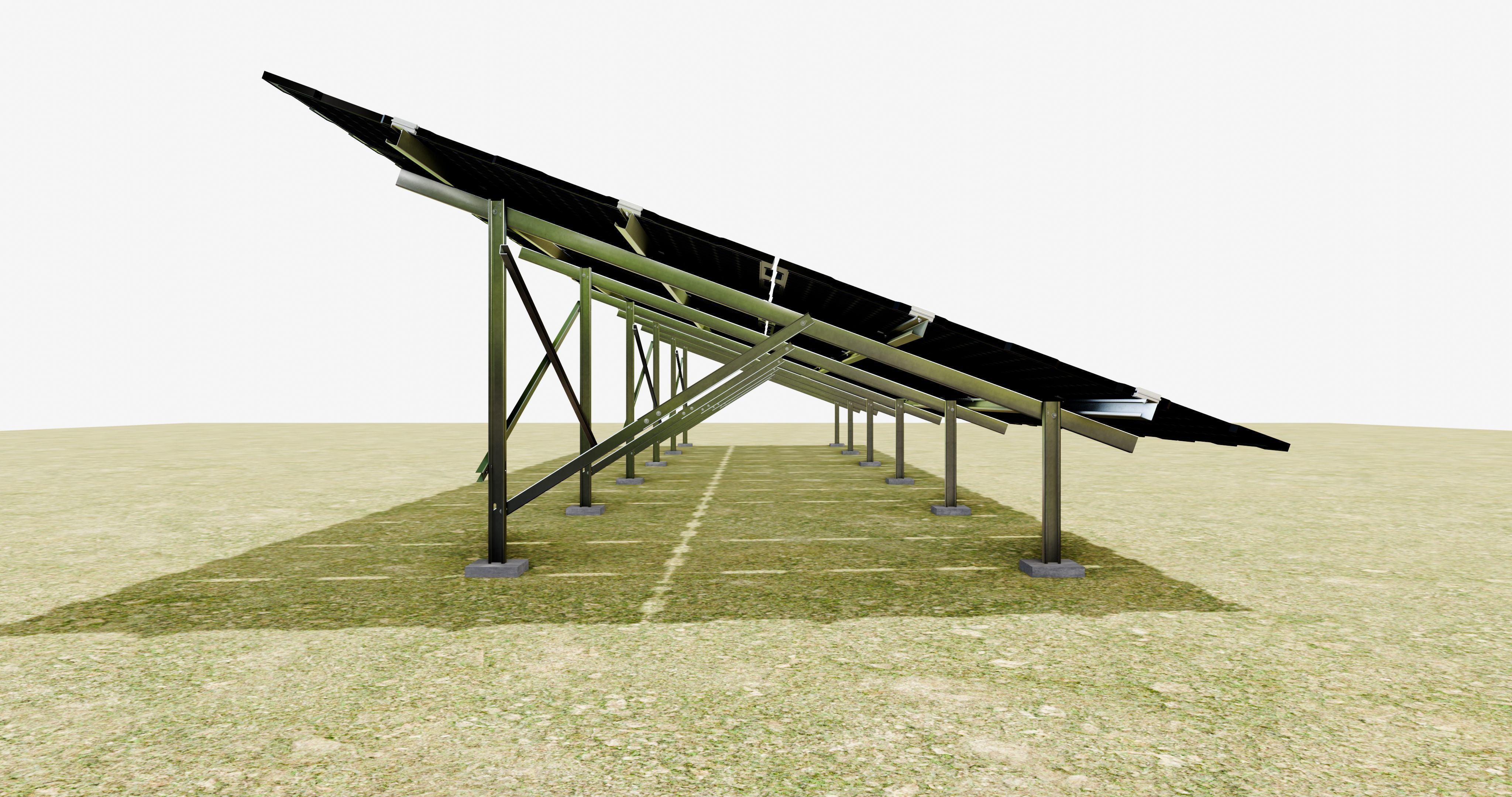

Ground Connection Type; With Concrete Friction Pile
Panel Dimensions : 2278 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 14,3 kWp power in 1 hour

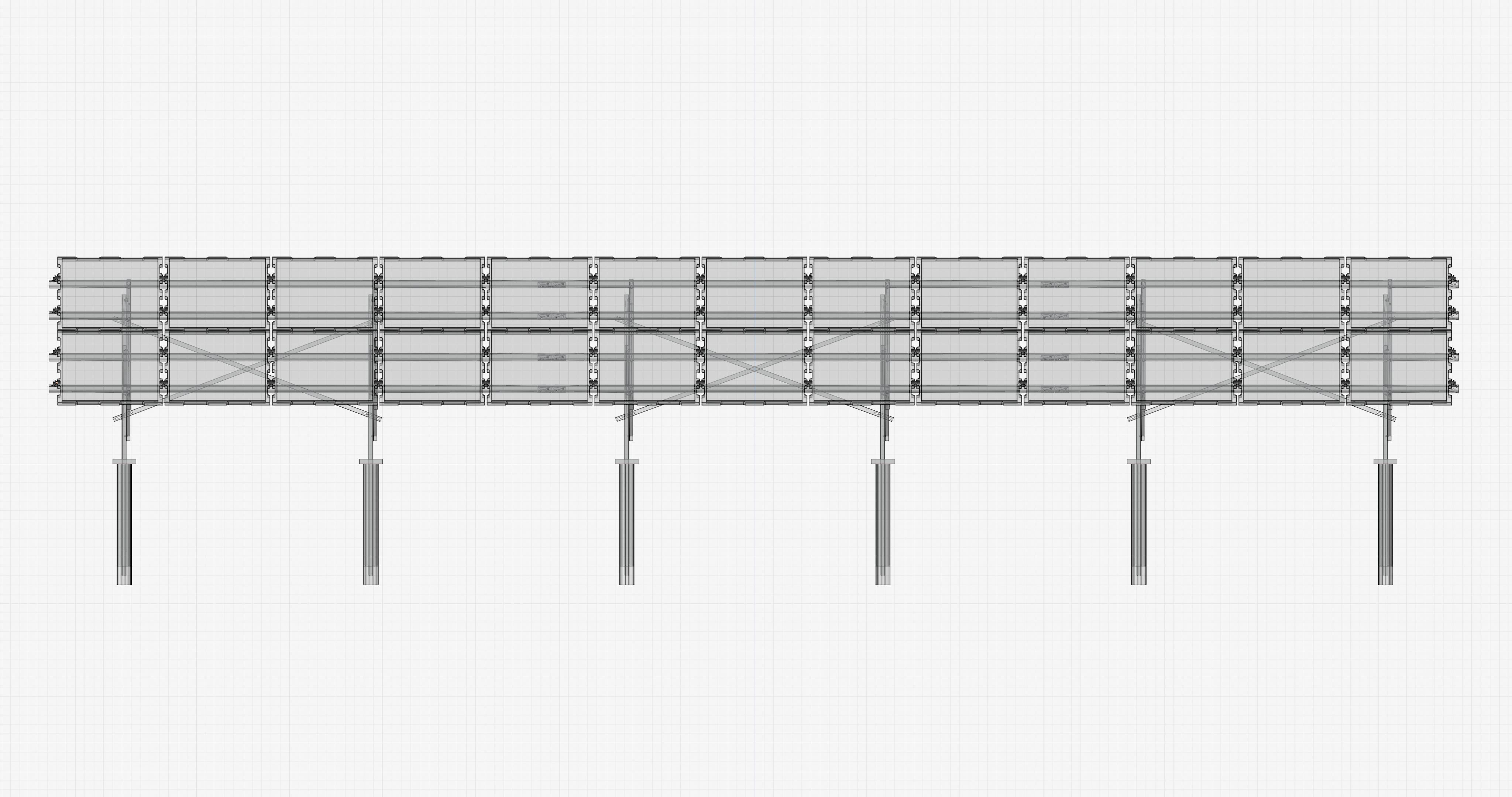

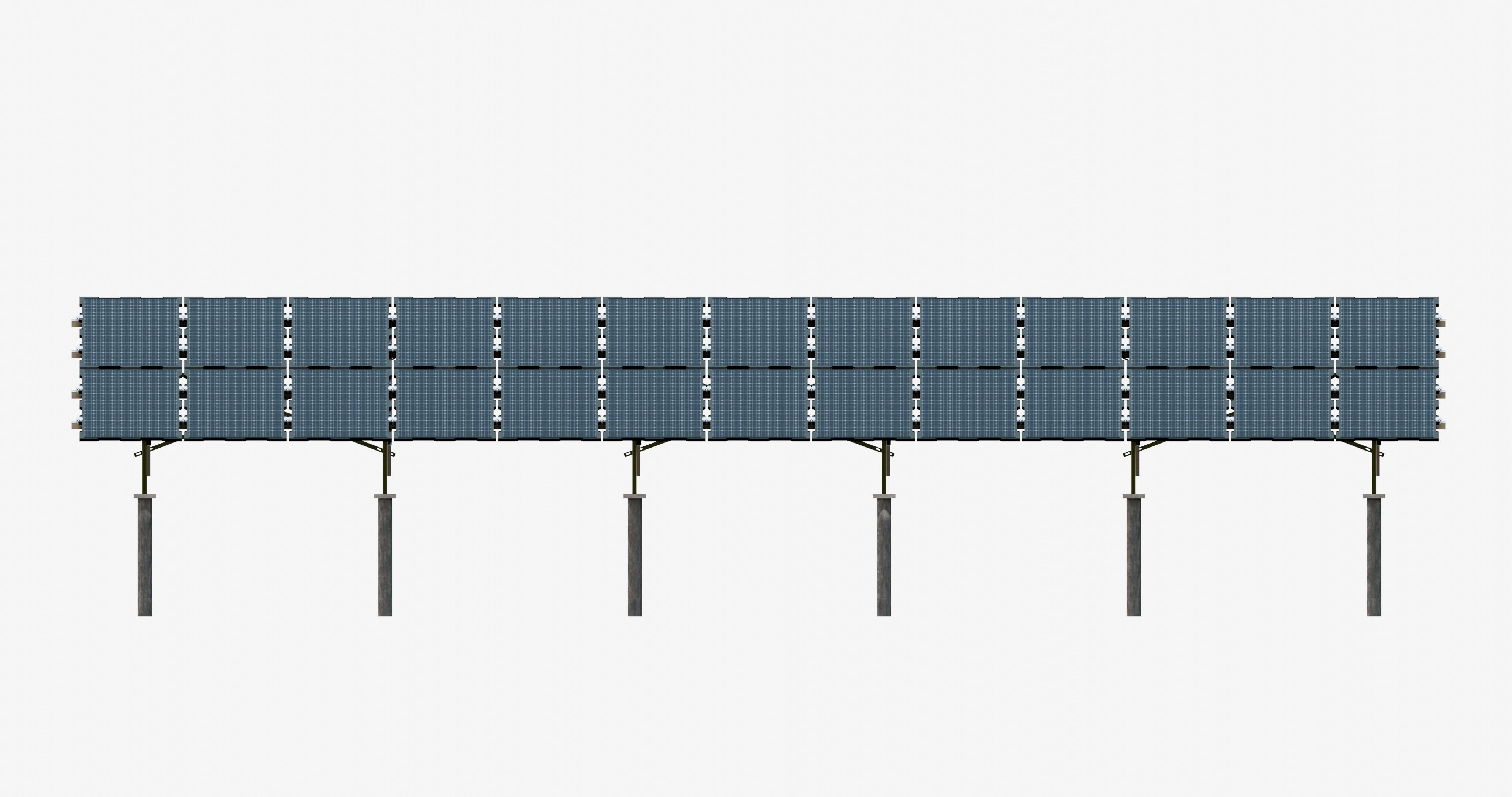

The system consists of 6 axles and the distance between each axle is 2650 mm.
Horizantal angle of panel 20°
The closest distance of the panels to the floor 600 mm.
New Frame Solar Panel
1- 550 Watt 2278x1134x35mm New Frame Solar Panel
2- 630 Watt 2465x1134x35mm New Frame Solar Panel
3- 320 Watt 1950x990x35mm New Frame Solar Panel
4- 160 Watt 1480x670x35mm New Frame Solar Panel
Bifacial Solar Panel
Modern New Design Frame

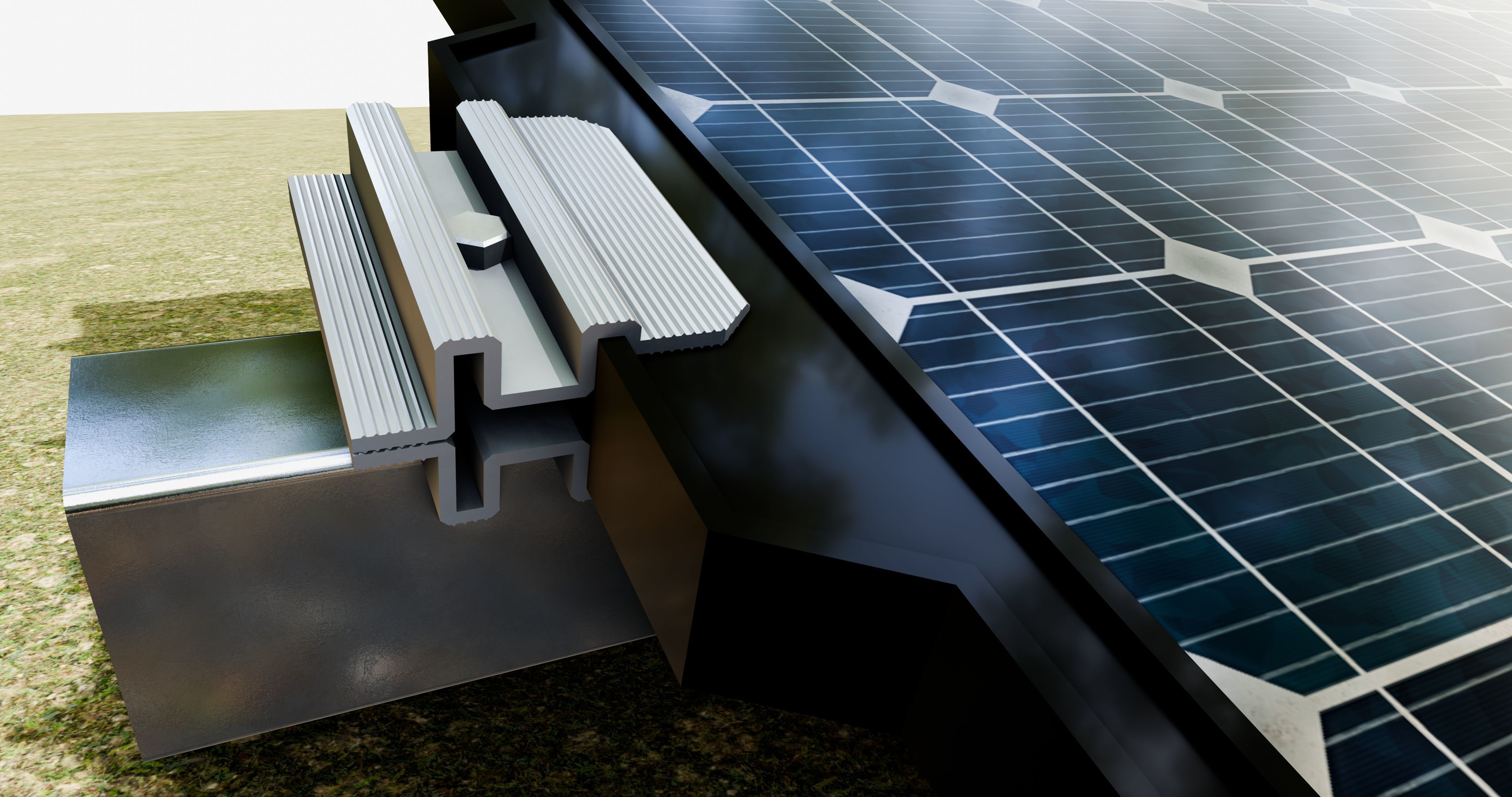

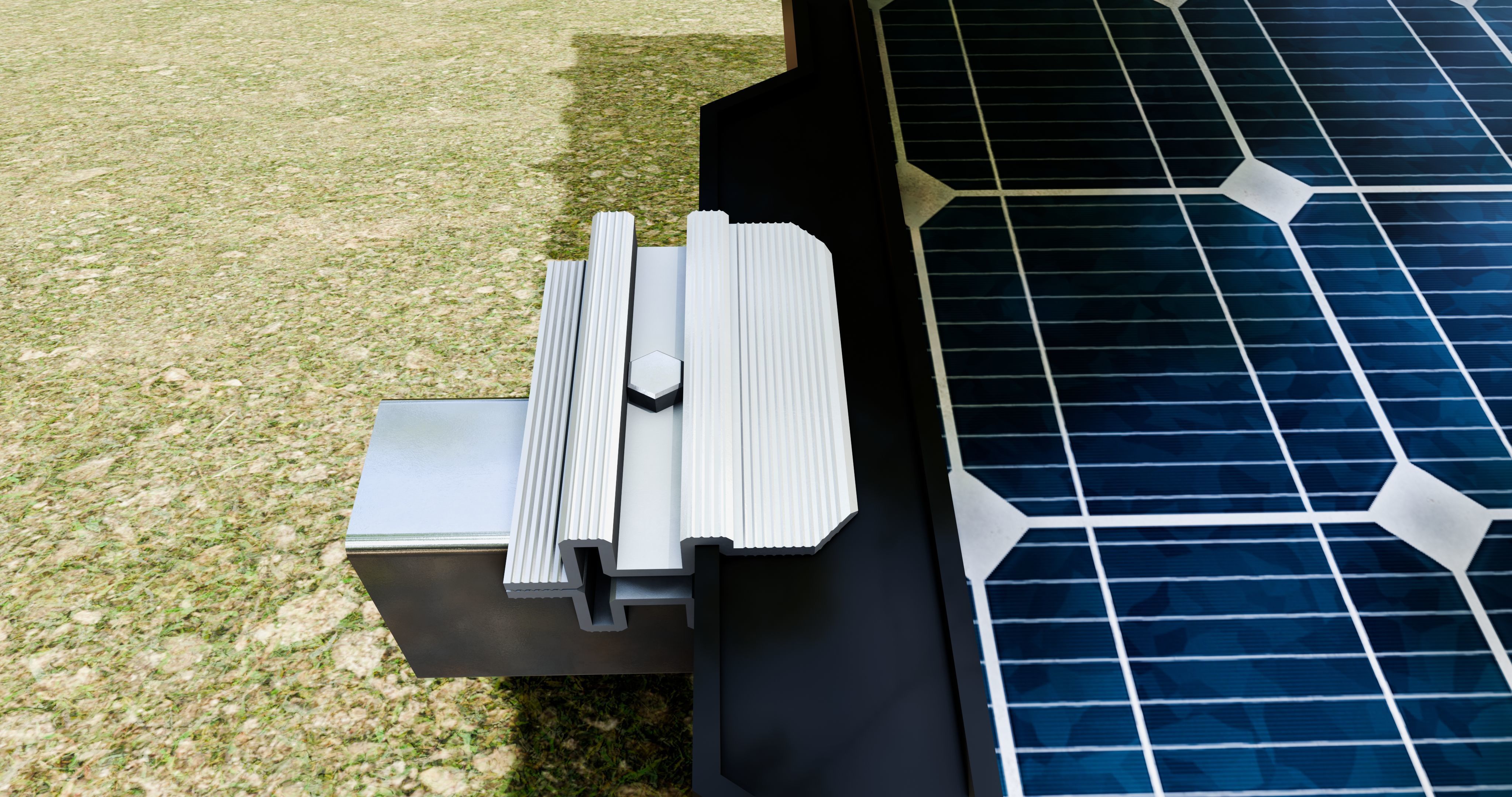

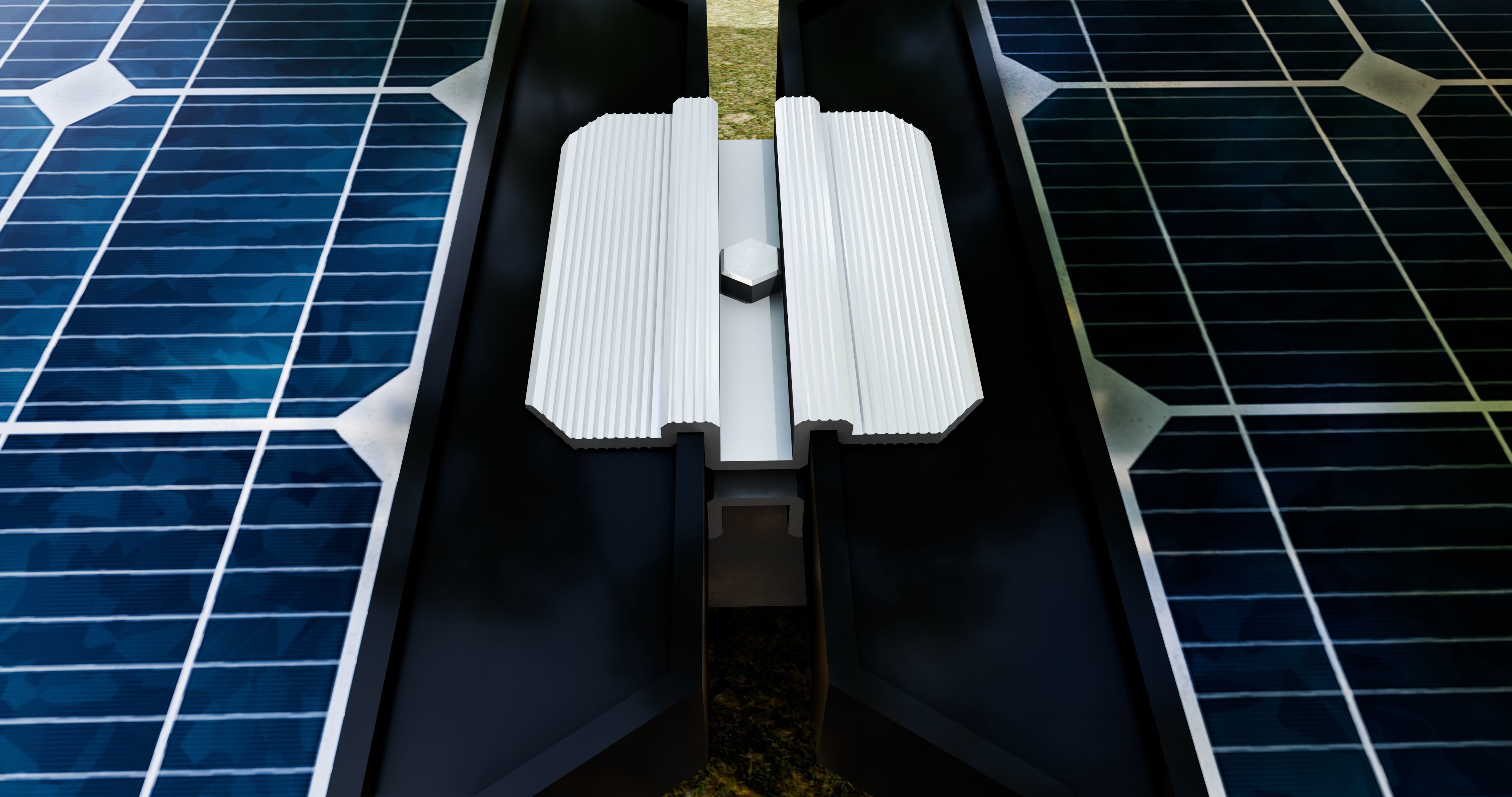

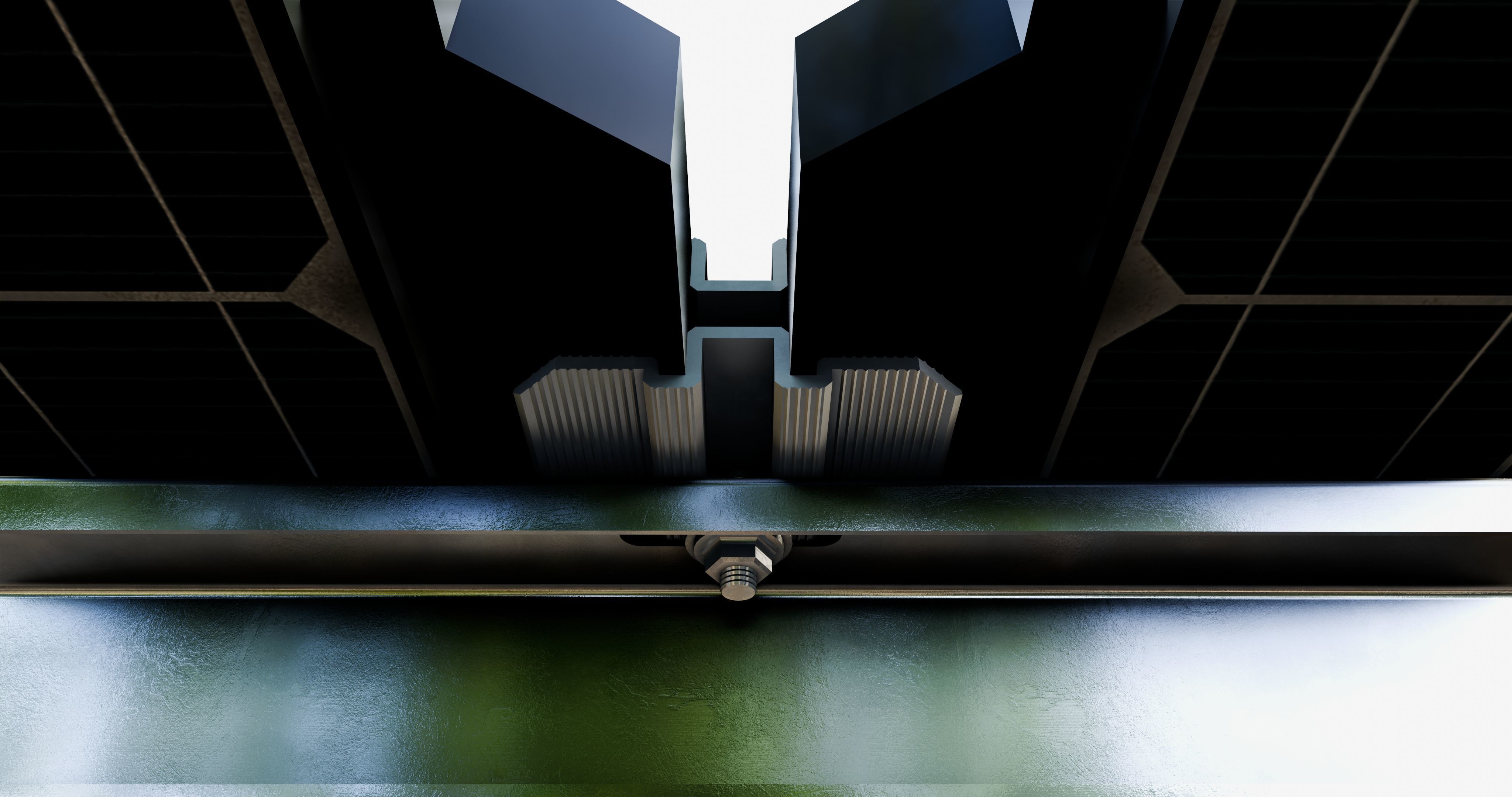

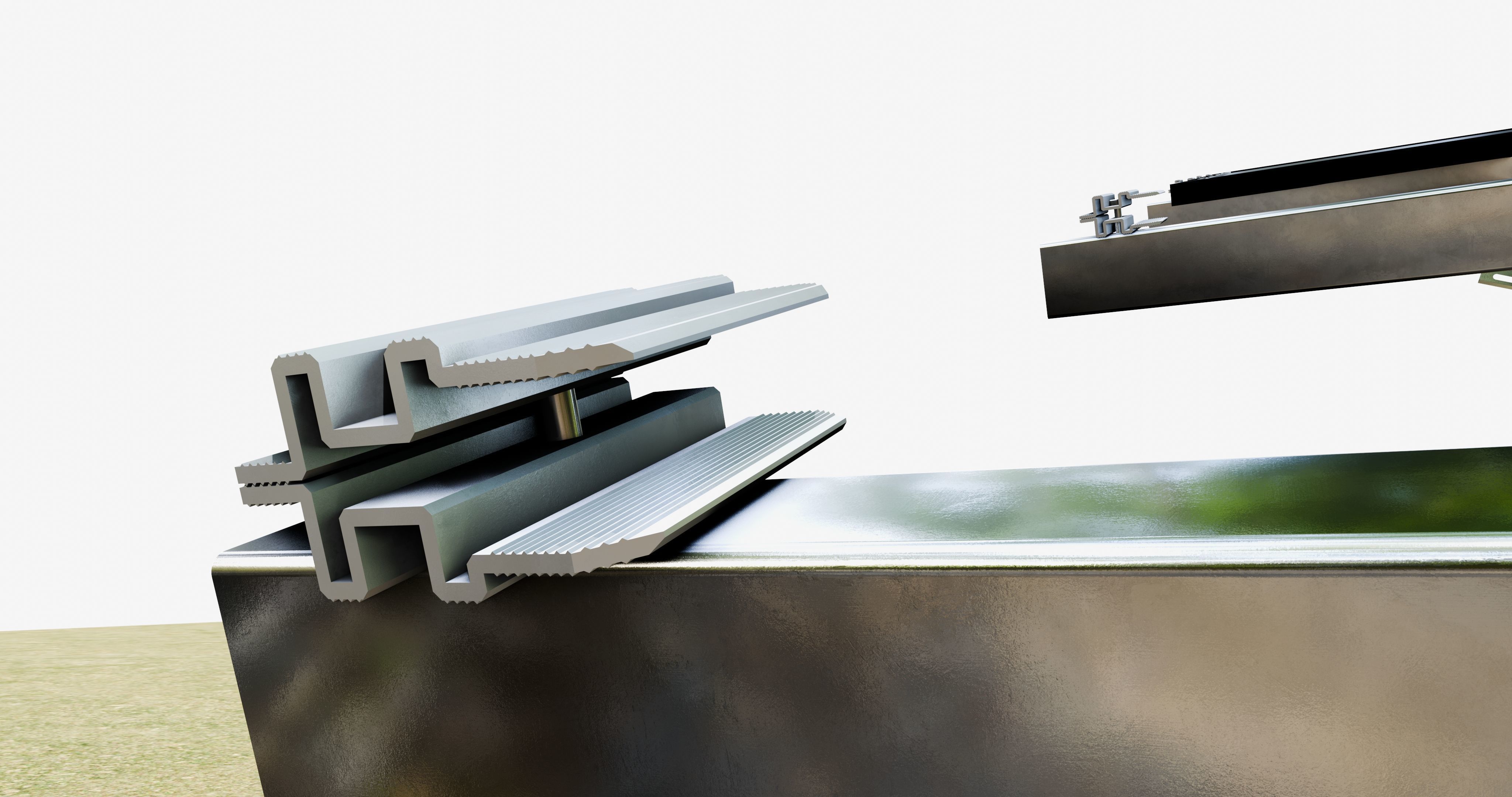

Middle and End Clamp Compatible With the New Frame Design

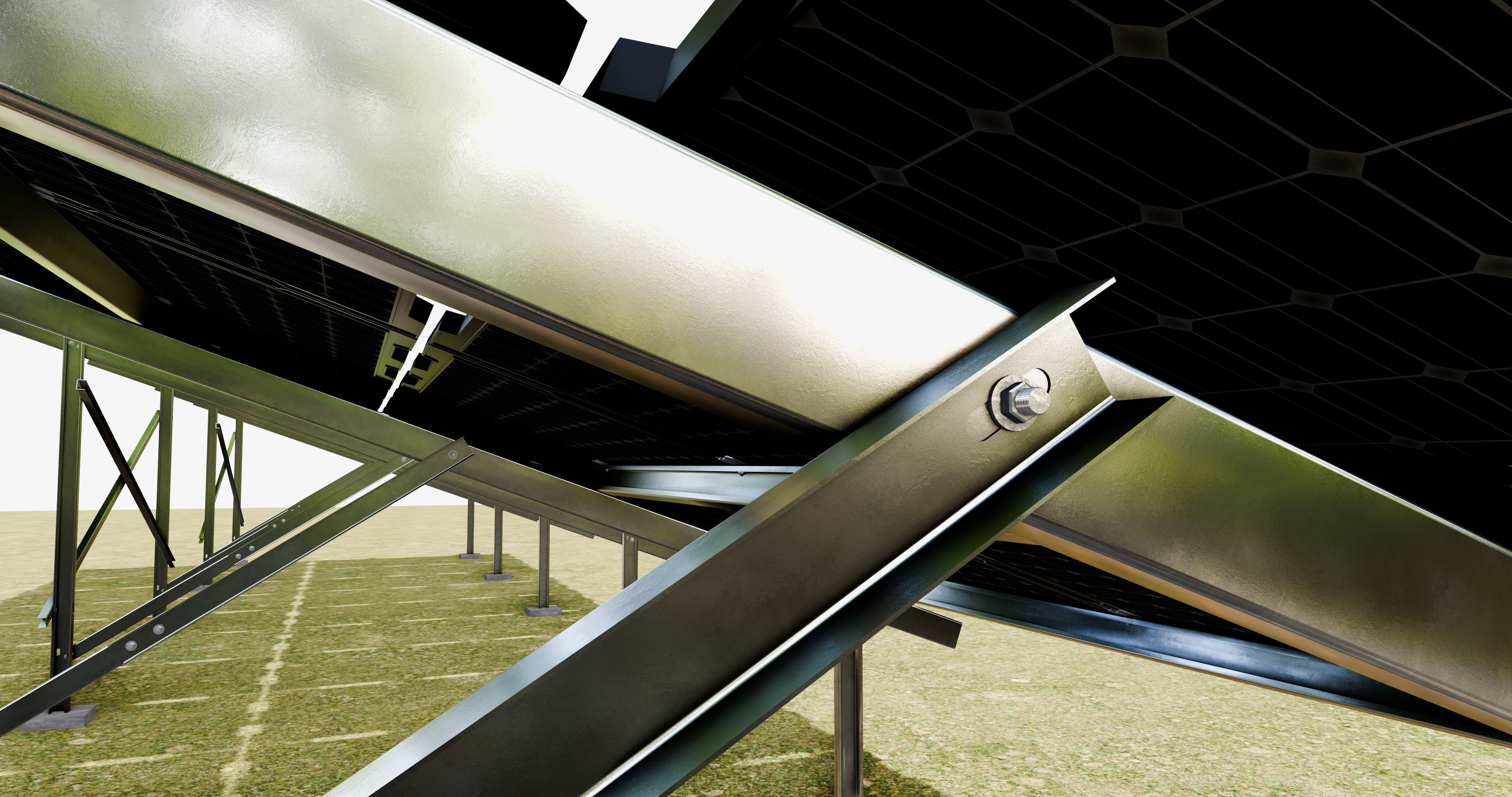

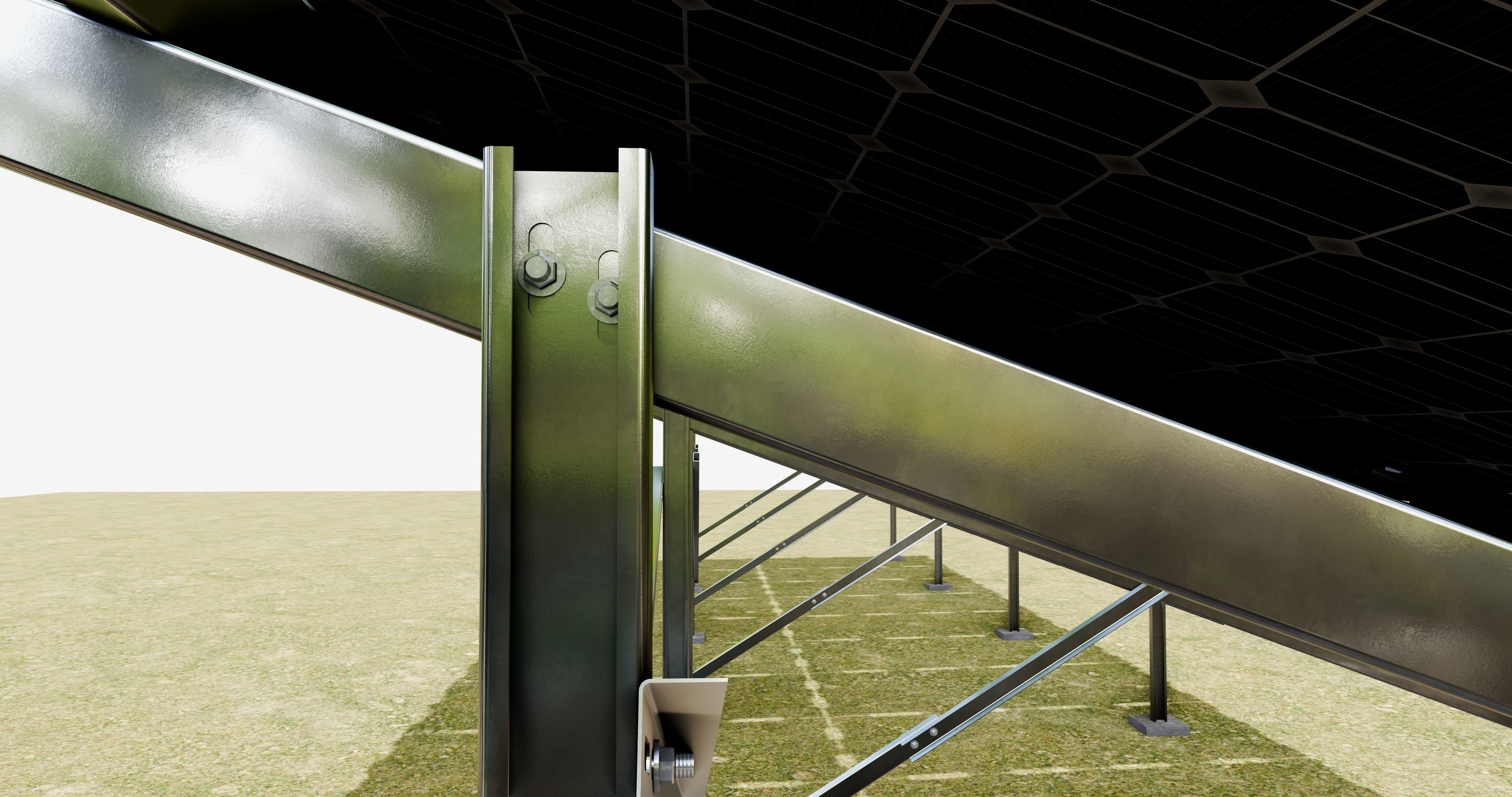

Hexagon Head Bolt, Large Diameter Washer and Flanged Nut Design
Hexagon head bolt; ideal for the bottom tightening method
**Assembly Example Made With 550W Panel

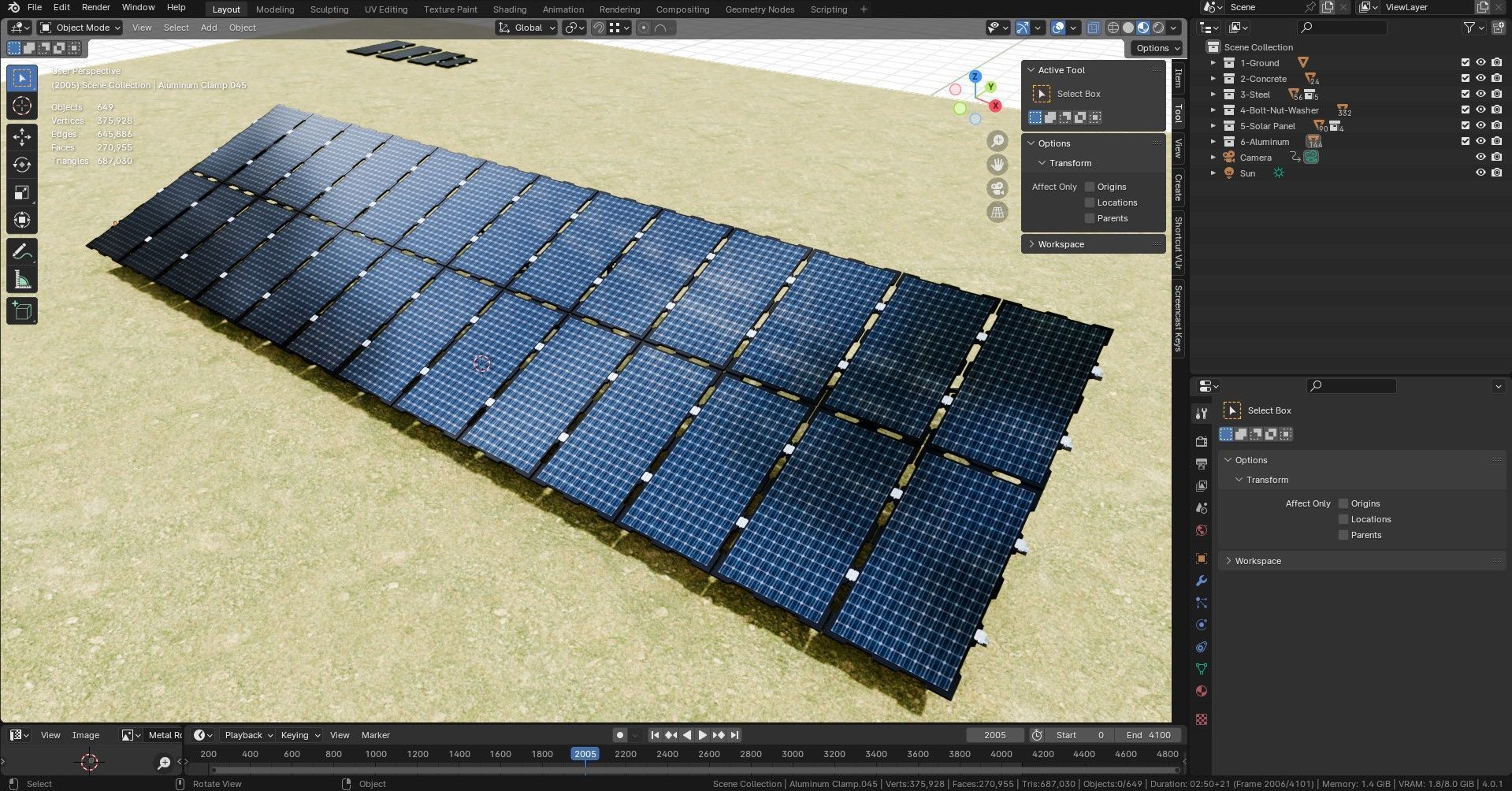

Prepared With BLENDER Version 4.0.1
Polygons : 270955
Vertices : 375928
Objects : 649
3D Model formats
Format limitations
- Blender 4.0.1 (.blend)38 MBVersion: 4.0.1Renderer: Eevee 4.0.1
- Other 124 MB
- OBJ (.obj, .mtl) (2 files)48.9 MB
- Autodesk FBX (.fbx)46.3 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 270,955
- Vertices 375,928
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2024-08-31
- Model ID#5499084
