DESCRIPTION

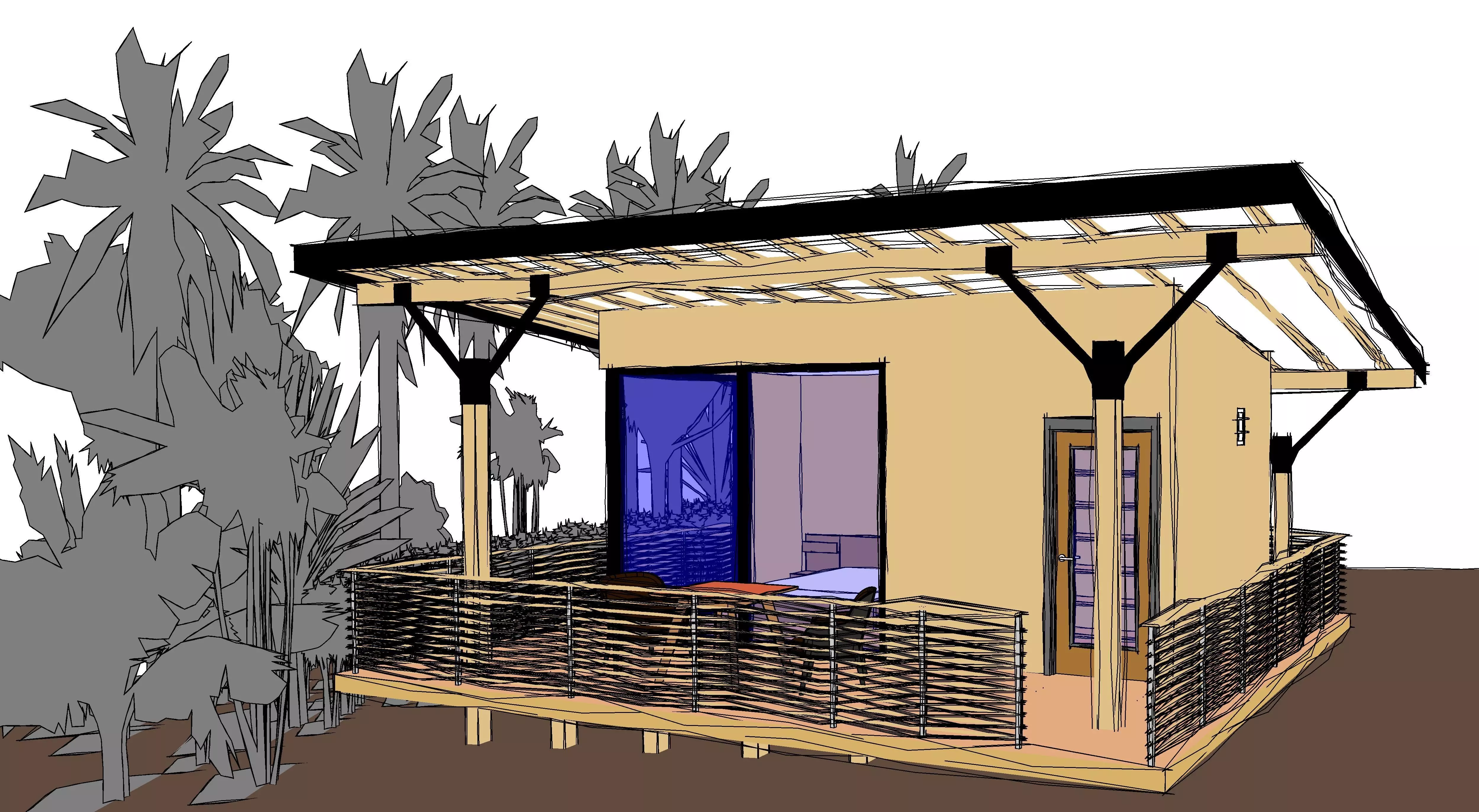

Architectural Plans for Eco-Friendly Wooden House – Academic Project (PDF)This package includes complete technical plans in PDF for a 26.2 m² modular wooden house, designed with a sustainable and tourist-focused approach. Perfect for architects, students, 3D modelers, or wood-construction enthusiasts.

  • File Contents:Detailed plans:

Floor plan (1:100 scale) with dimensions and annotations.

Roof plan (Trapezoidal polycarbonate sheeting, 12% slope).

Piling plan (Elevated structure on wooden piles).

Cross-sections A-A and B-B (1:50 scale) with Wood Frame wall details, thermal insulation (fiberglass), and vapor barriers.

Area breakdown (13 m² covered + 13.2 m² semi-covered).

  • Sustainable Features:North-facing orientation for optimal natural light and thermal efficiency.

Rainwater harvesting system (750L tank).

Eco-friendly materials: CCA-treated pine wood, double-glazed windows (DVH), and polycarbonate roofing.

  • Technical Details:Structure: Wooden piles (6x6), laminated beams, guayubira decking.

Formats: Vector PDF (editable) and raster (print-ready).

Scales: 1:50 (sections), 1:100 (floor plans), 1:200 (area breakdown).

Software compatibility: AutoCAD, Revit, SketchUp, Rhino.

  • Recommended Uses:3D modeling for architectural renders.

Base for modular construction or eco-tourism projects.

Educational material for architecture/engineering students.
