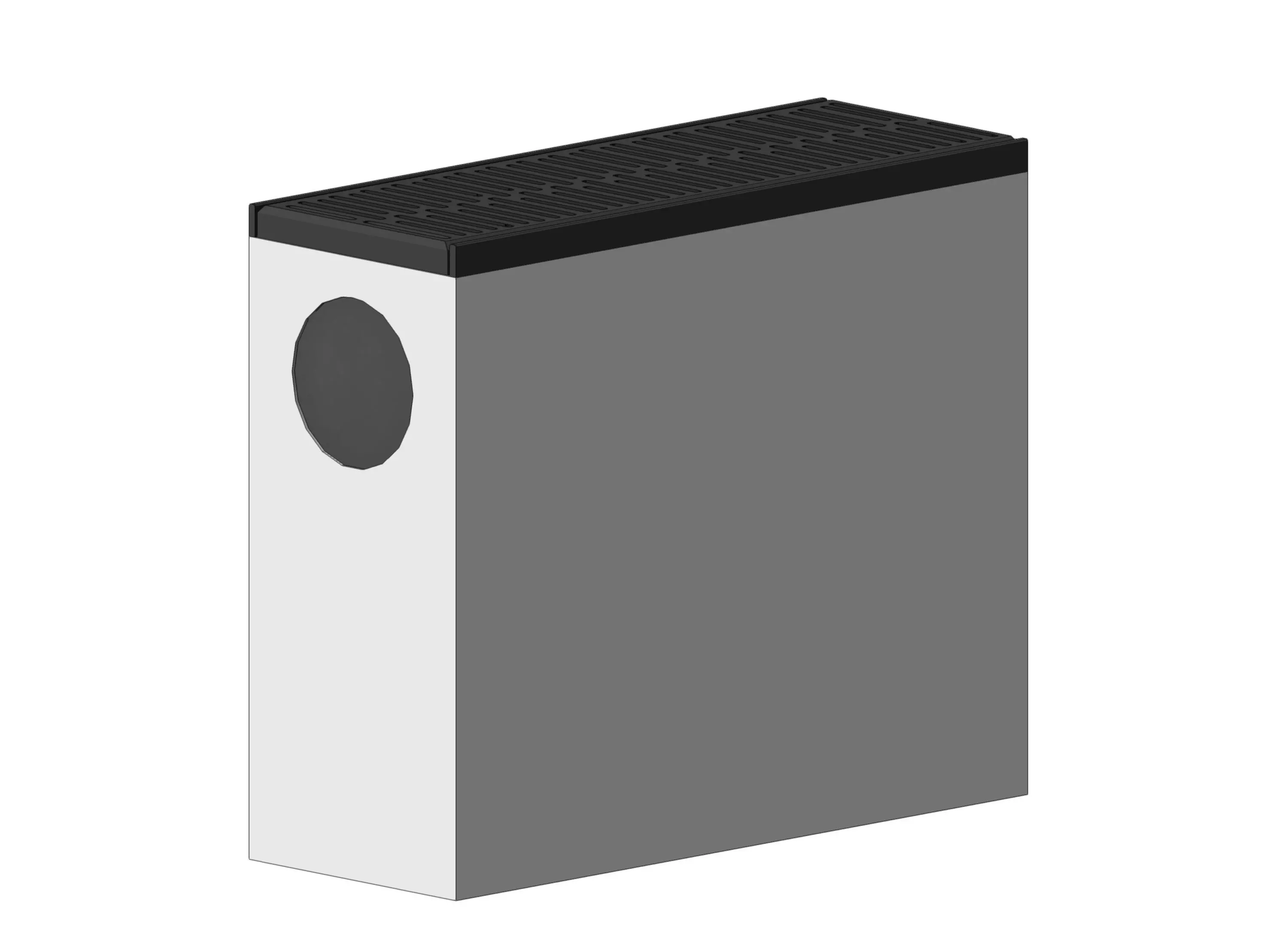

Concrete drain catch basin module with slotted grate and side pipe connection.

This realistic drainage element represents a concrete catch basin used in modern trench drain systems. Catch basins are designed to collect stormwater from drainage channels and direct it into underground pipe systems while allowing sediment and debris to settle at the bottom of the chamber.

The model features a rectangular concrete chamber with a slotted metal grate cover and a side pipe outlet. This type of drainage structure is commonly used in parking areas, roads, sidewalks, industrial zones, and urban infrastructure.

The asset is designed as part of a modular trench drain system and can be combined with other drainage elements such as straight channels, corners, junctions, and outlets.

Features:• Realistic concrete catch basin• Slotted metal grate cover• Side pipe outlet connection• Modular drainage system component• Clean topology and optimized geometry

Formats included:FBXOBJ

Applications:Architecture visualizationUrban infrastructure scenesParking lot drainage systemsRoad and street environmentsCivil engineering presentations
