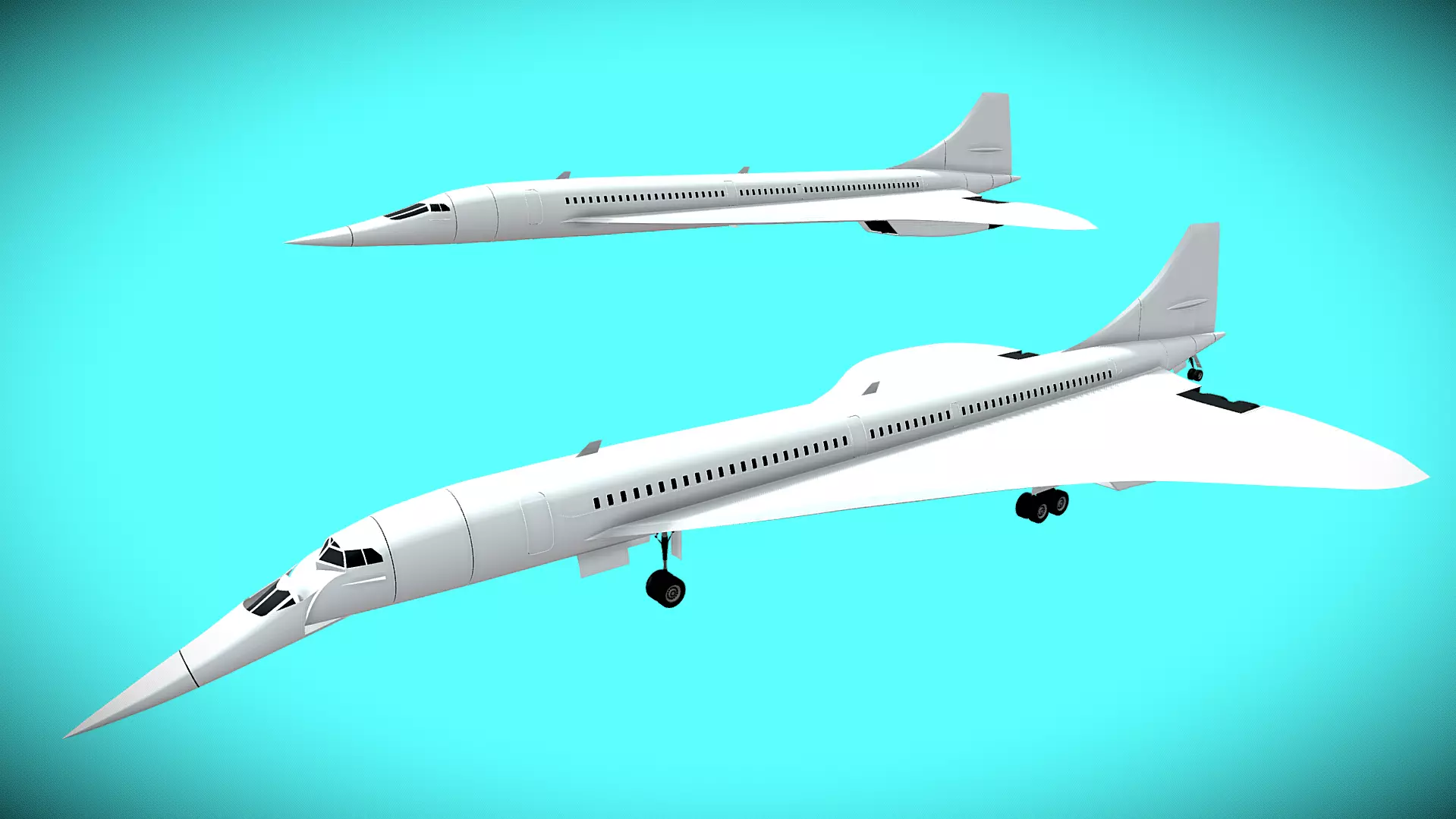

- every part is able to be animated , the wheels with there covers , the tail, the flaps and the nose.
made with reall dimentions using a cad block.
Dimentions and Angles to Gear up and Down:
Big front wheel cover 1 / Big front wheel cover 2 / Small front wheel cover 1 / Small front wheel cover 2 : 90° in the X axis
Big front wheel cover 3 : 90° in the Y axis
Front wheel axle with the wheels on it : 95° in the Y axis
Left wheels Cover 2 / Right wheels Cover 2 : 115° in the X axis
Right wheels Cover 1 / Left wheels Cover 1: 102° in the X axis
Right wheel axle with its wheels / Left wheel axle with its wheels : 102° in the X axis and move it in the Y axis by 0.05
Back wheel cover 2 / Back wheel cover 3 : 90° in the X axis and 10° in the Z axis and 5° in the Y axis (in some cases 5° in Z axis and 10° in Y axis)
Back wheel cover 1 / Back wheel axle and its wheels : 125° in the Y axis
Dimentions and Angles to Nose up and Down:first move the Nose Glass before rotating any thing :0.055 in the Z axis and 0.105 in the X axis then select both the nose glass and the nose then rotate them in the Y axis 15°
