Mi-8MT Mi-17MT Right Triangular Panels Board Russian Low-poly 3D model

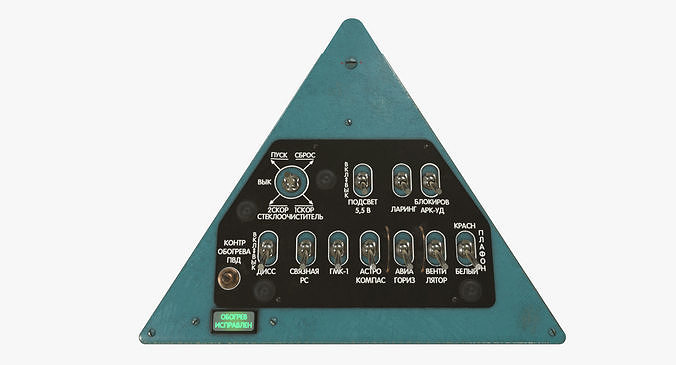

Realistic 3d model of Right Triangular Panels Board of Helicopter Mi-8MT / Mi-17MT

Game ready - perfectly fits for Unity and Unreal Low poly Real world scale Units used: cm

• The model is animated. All pivots are in the right positions.
• The model has trialngular and quadrangular polygons only (11.2% tris and 88.8% quads)
• The model has logical hierarhy
• The model has 100% Scale, placed in 0,0,0 coordinates and doesn't have rotations
• The model has 16 separate objects (Draw Calls)
• The model is available with prints in English language (https://www.cgtrader.com/3d-models/aircraft/helicopter/mi-8mt-mi-17mt-right-triangular-panels-board-english-5a5f2243-b307-4669-a89d-9bf6134992f9)
• The model has dimensions 24 x 19 x 4 cm (9.5 x 7.5 x 1.6 inches)

• The model contains 7 405 polys 13 977 tris 7 777 verts

• All parts placed in one layer and joined in one group

• All parts have one material and can be easily merged, if you don't need animation.

• All parts are fully UV unwraped. No multi-materials or color fills.

• All parts and materials have logical names and ready for coding. (no names such as Object001 or Default - 01)

• Some identical parts have the same UV coordinates (overlapped). It saves textel resolution and does not influence on Ambient occlusion map (no black spots)

• PBR textures are available for Specular-Glossiness and Metalness-Roughness workflows

Main 2048x1024:

• Diffuse
• Specular

• Glossiness

• Base color

• Metallic

• Roughness

• Normal

• Ambient Occlusion

• Emission

Originally created with 3ds Max 2015. No 3rd party plugins required.

Software used:

• 3ds Max 2015 for modeling
• UV Layout for unwrapping
• Photoshop and Substance Painter for texturing
• Marmoset Toolbag and V-Ray for rendering

• Light rig/HDRI
• Rulers plane
• Photoshop and Substance Painter source files
