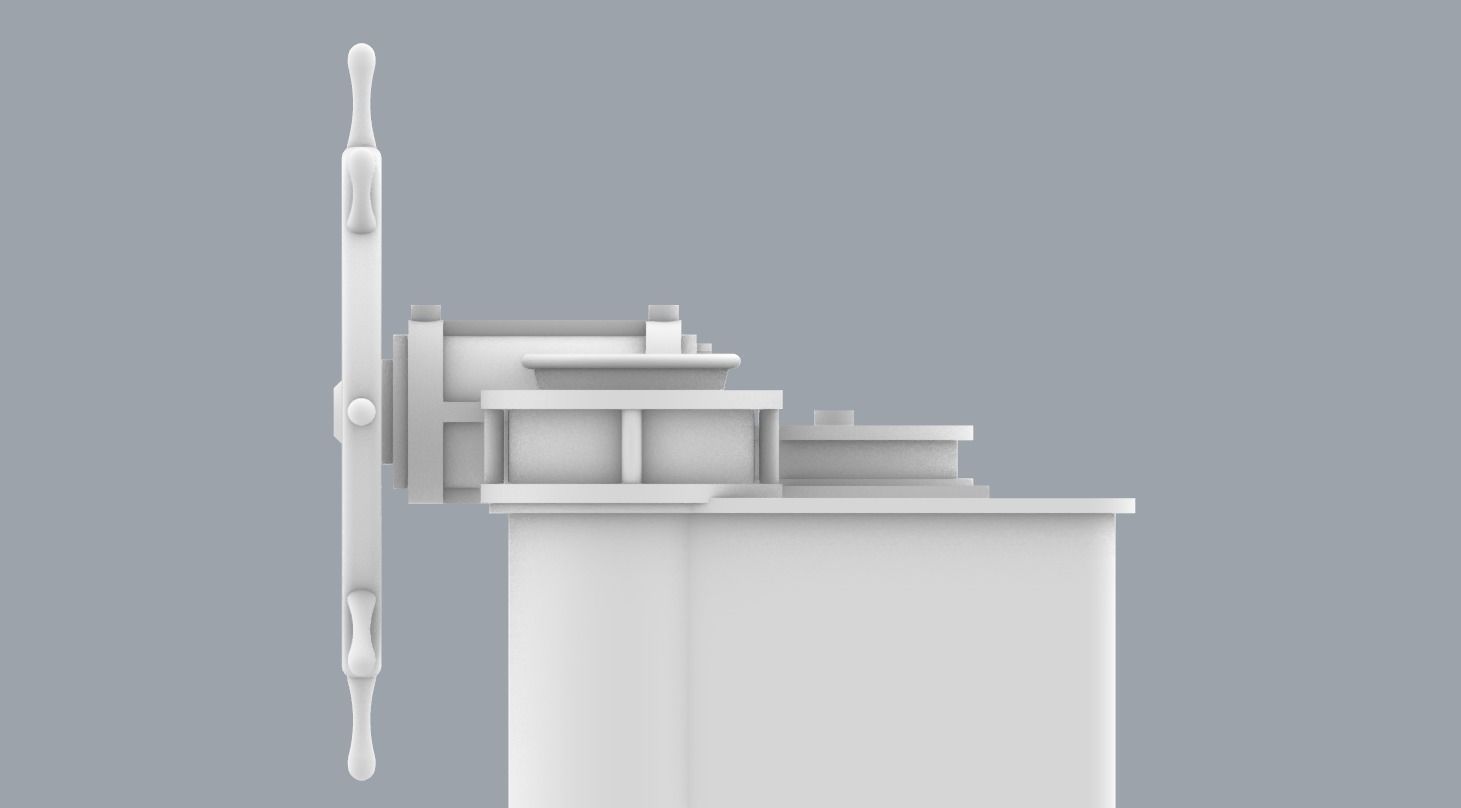

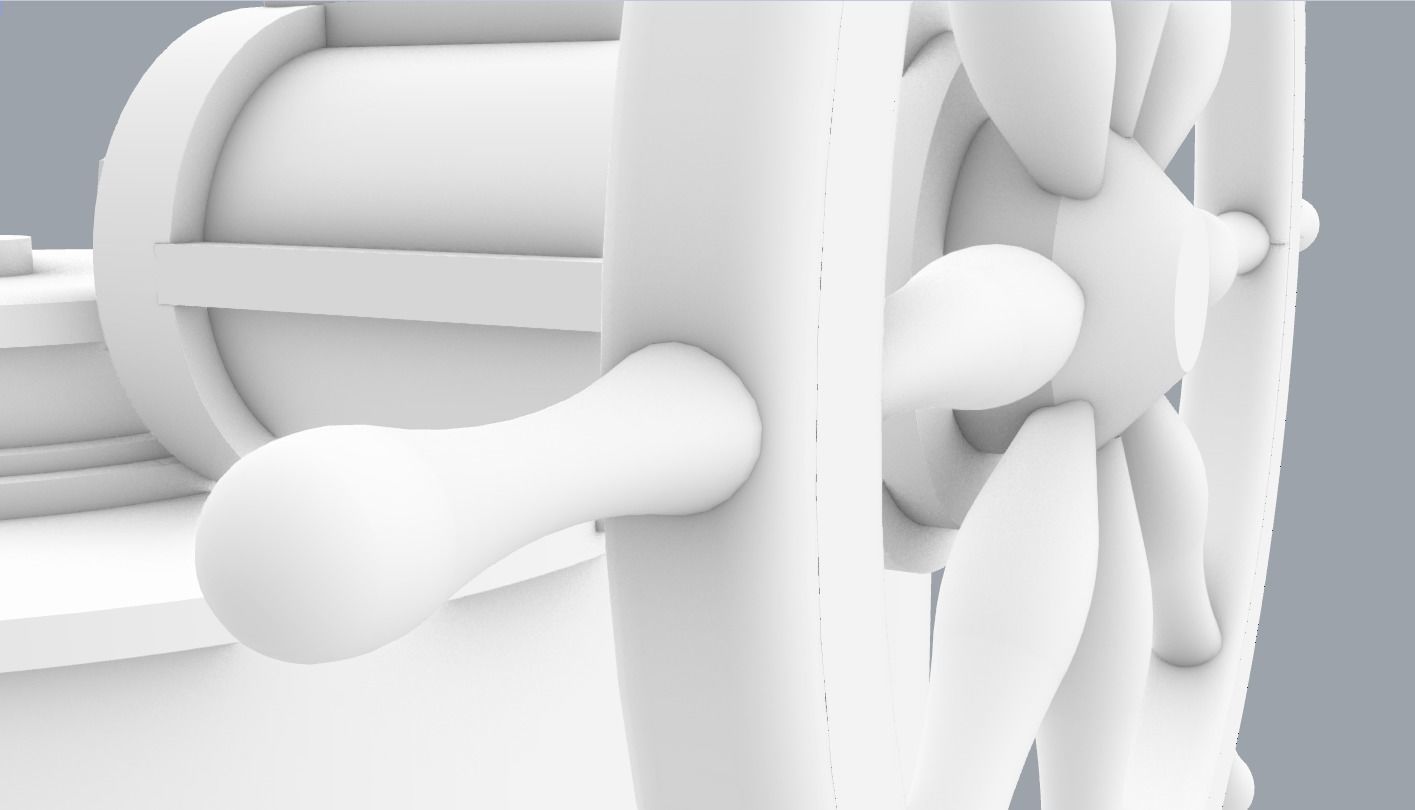

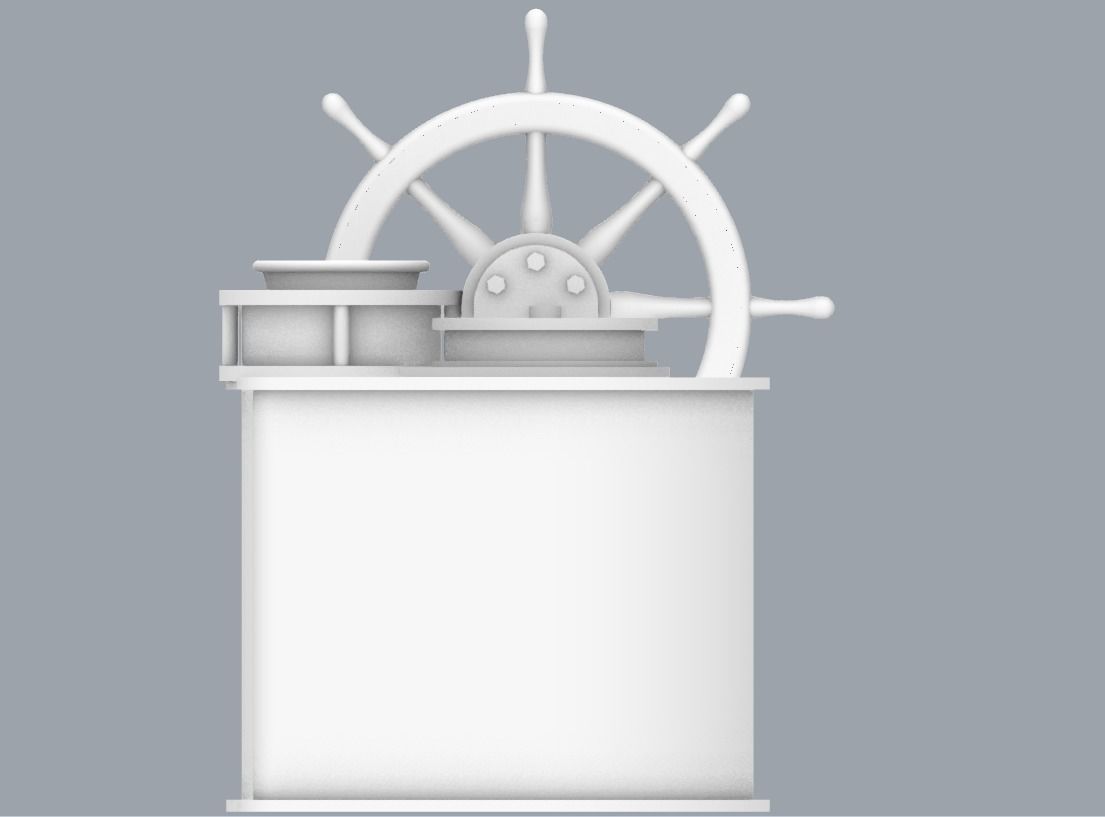

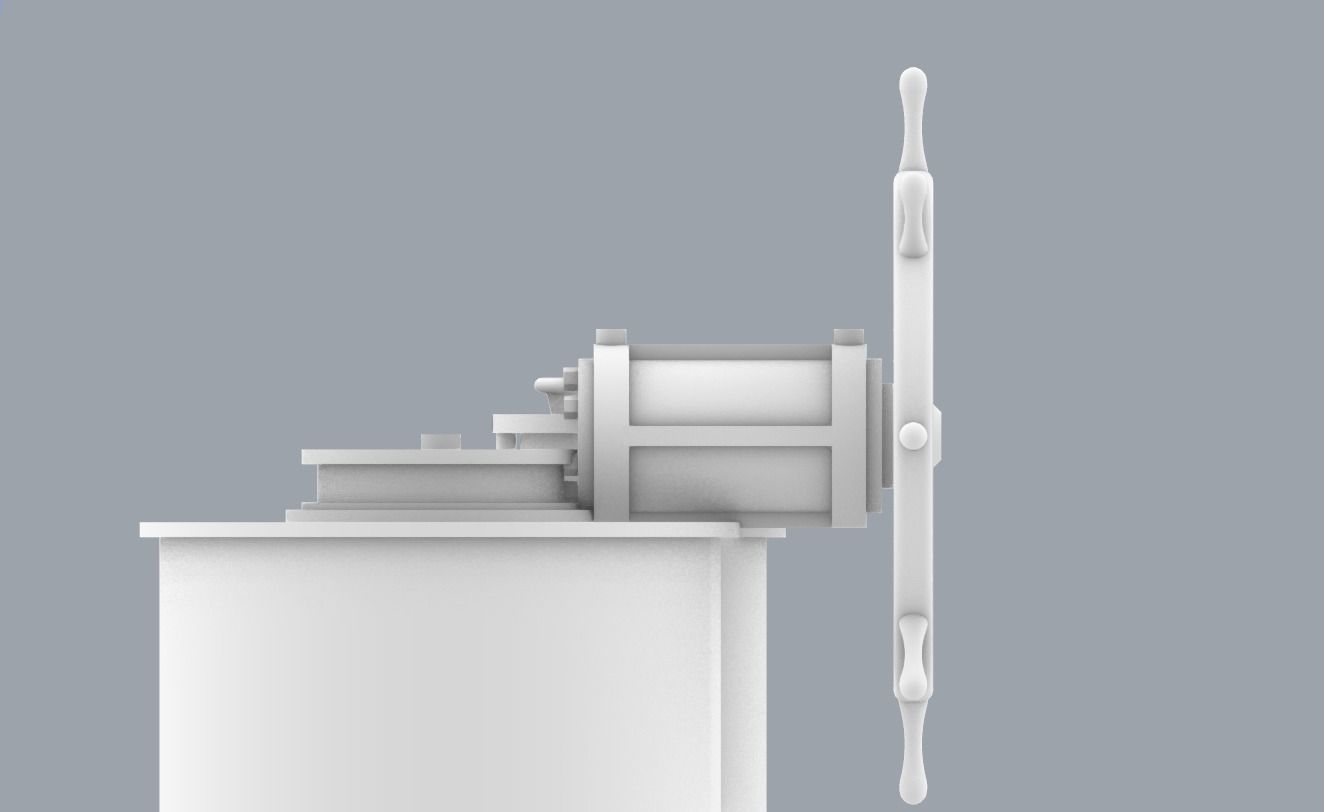

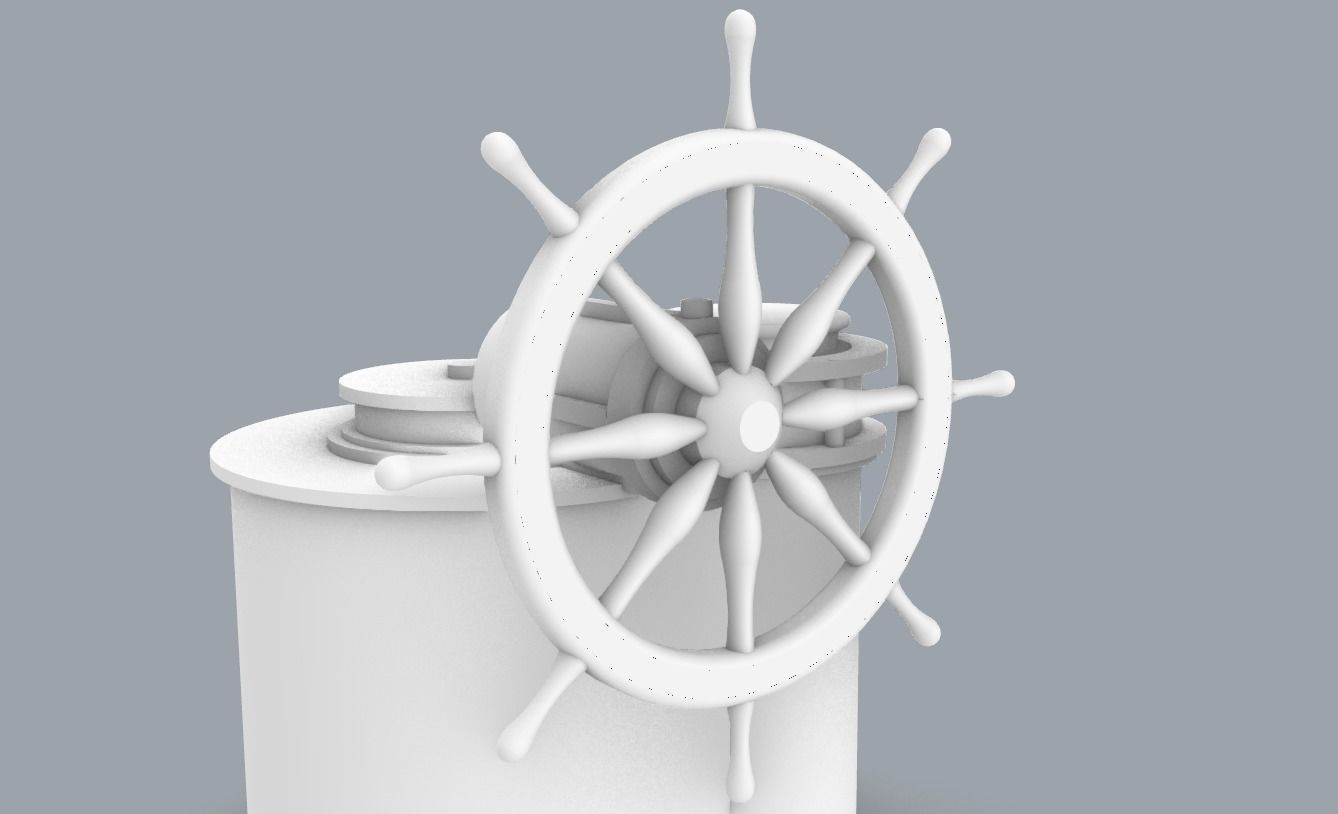

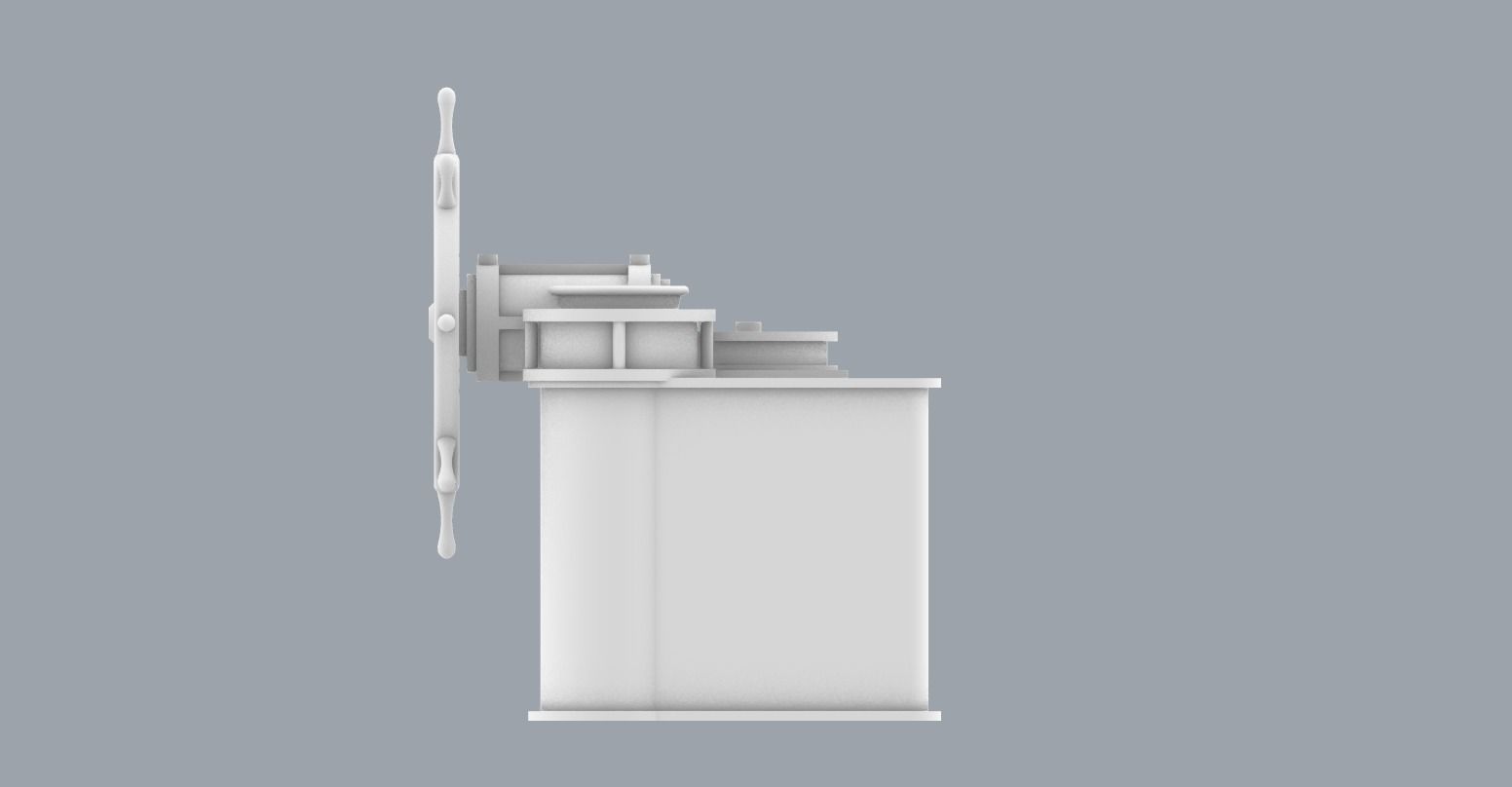

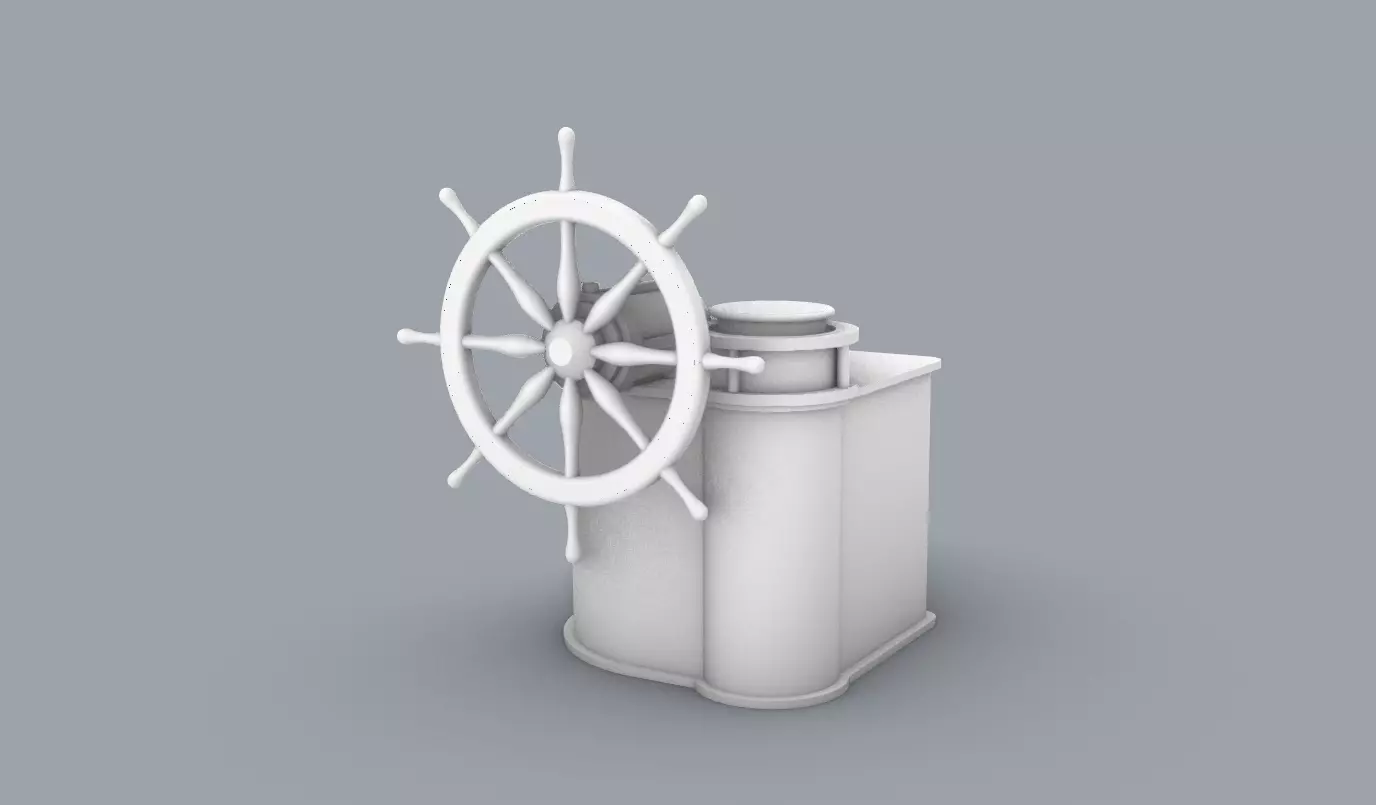

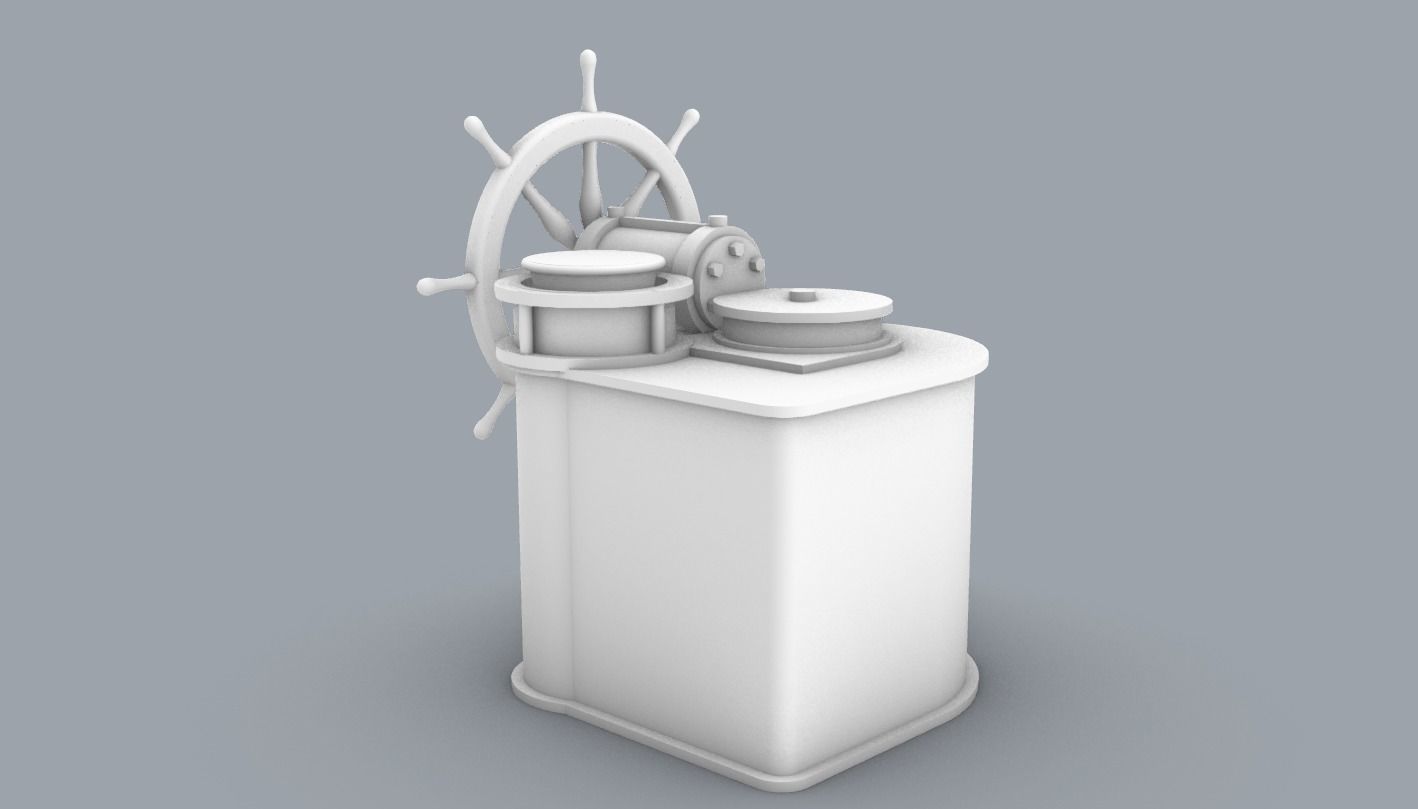

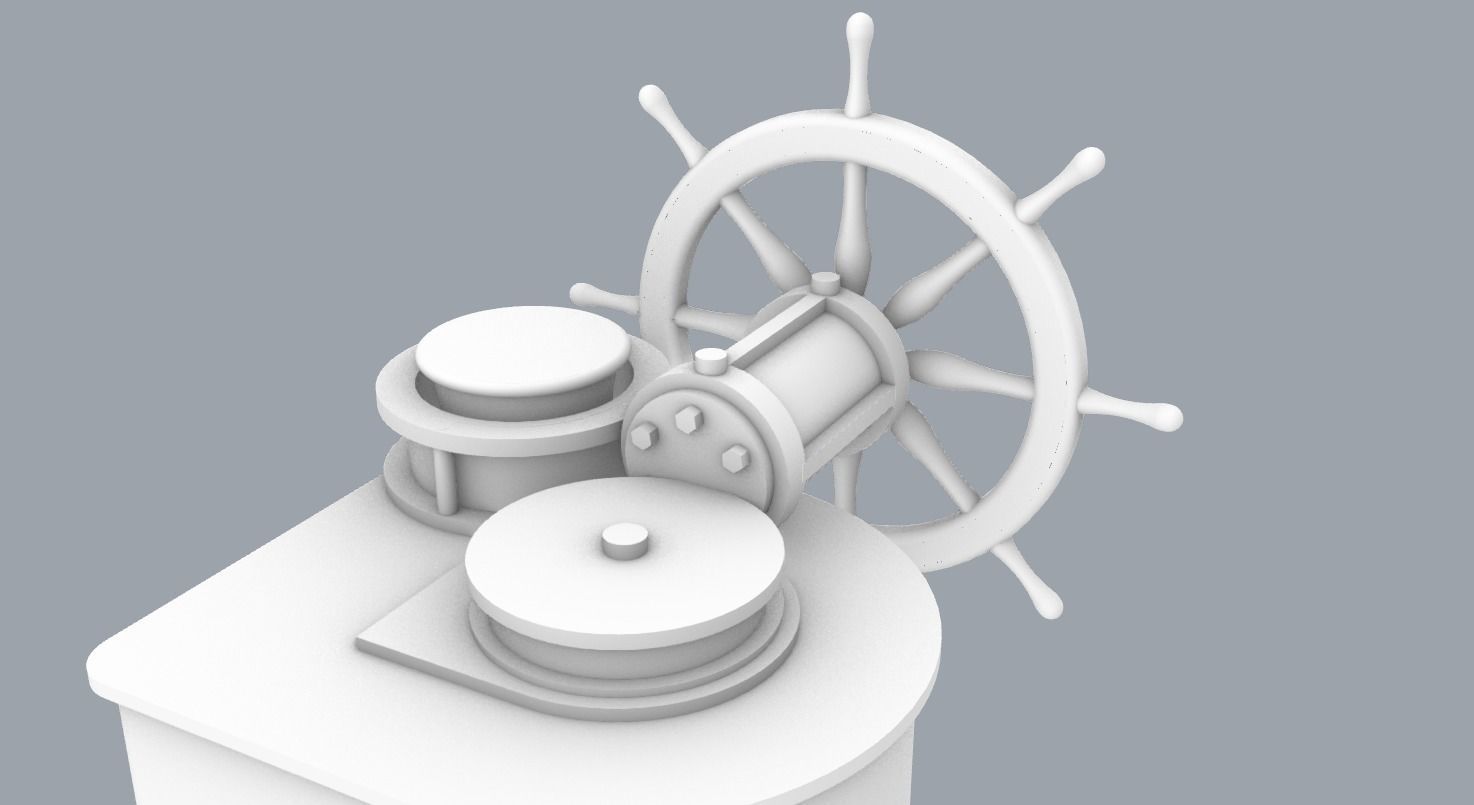

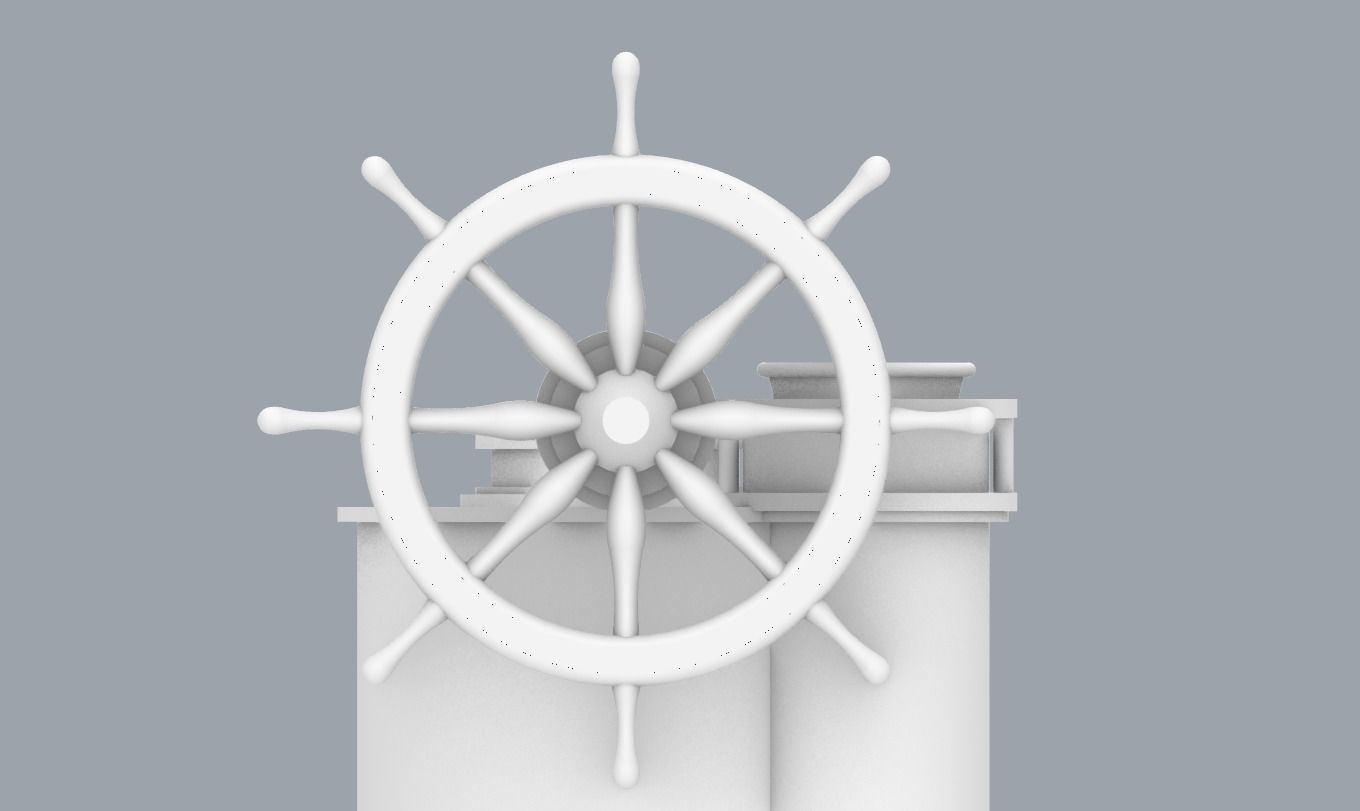

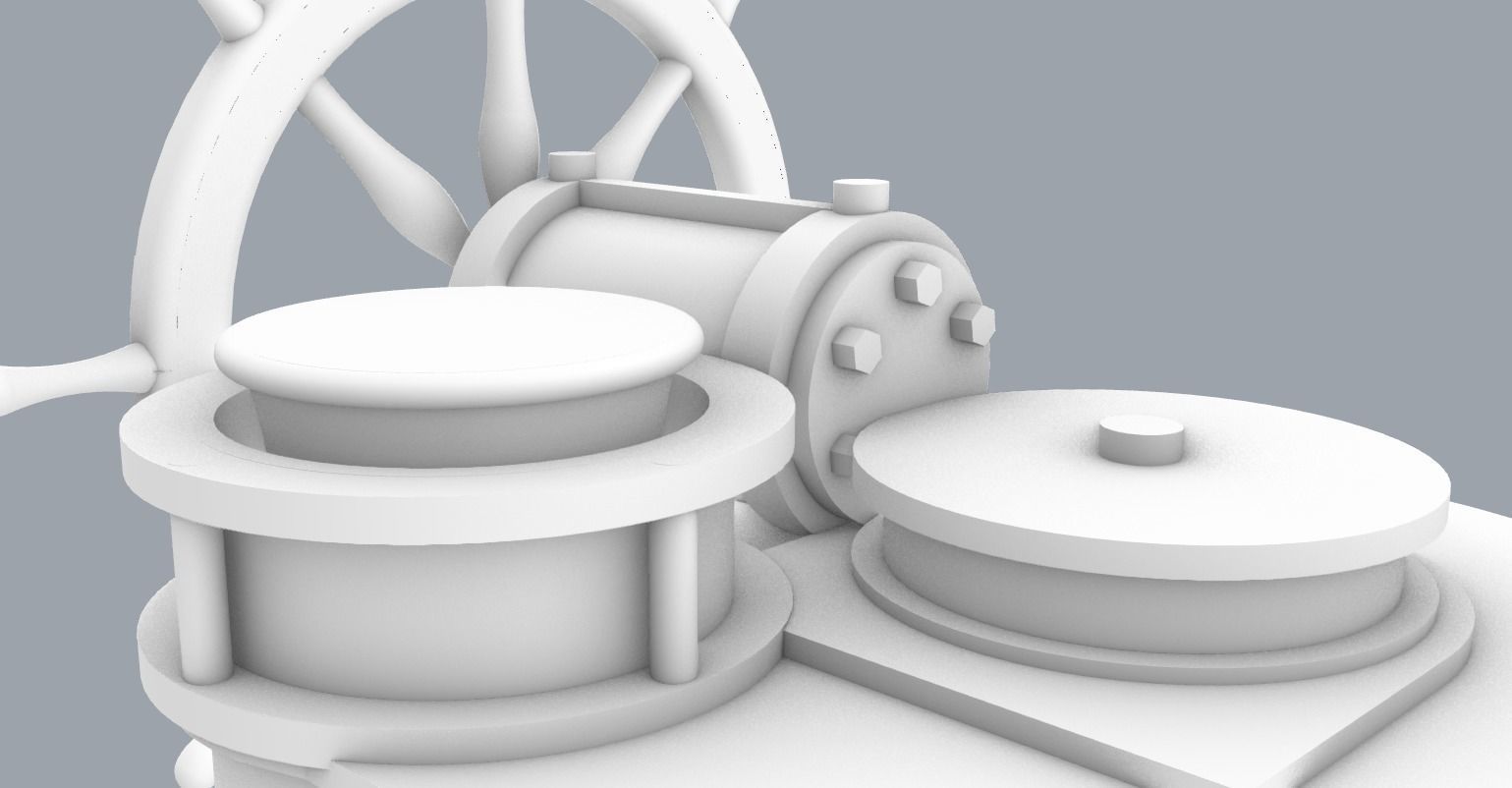

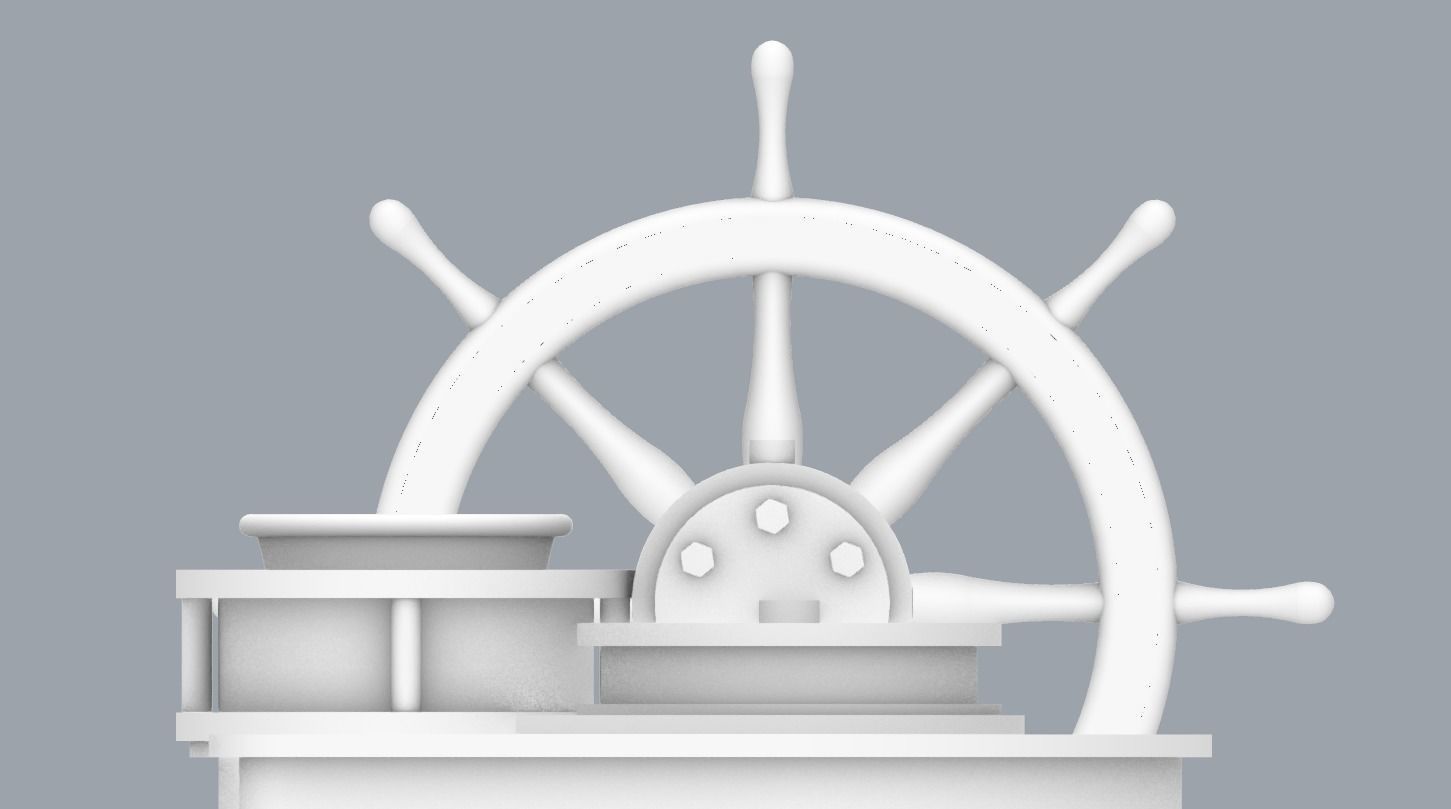

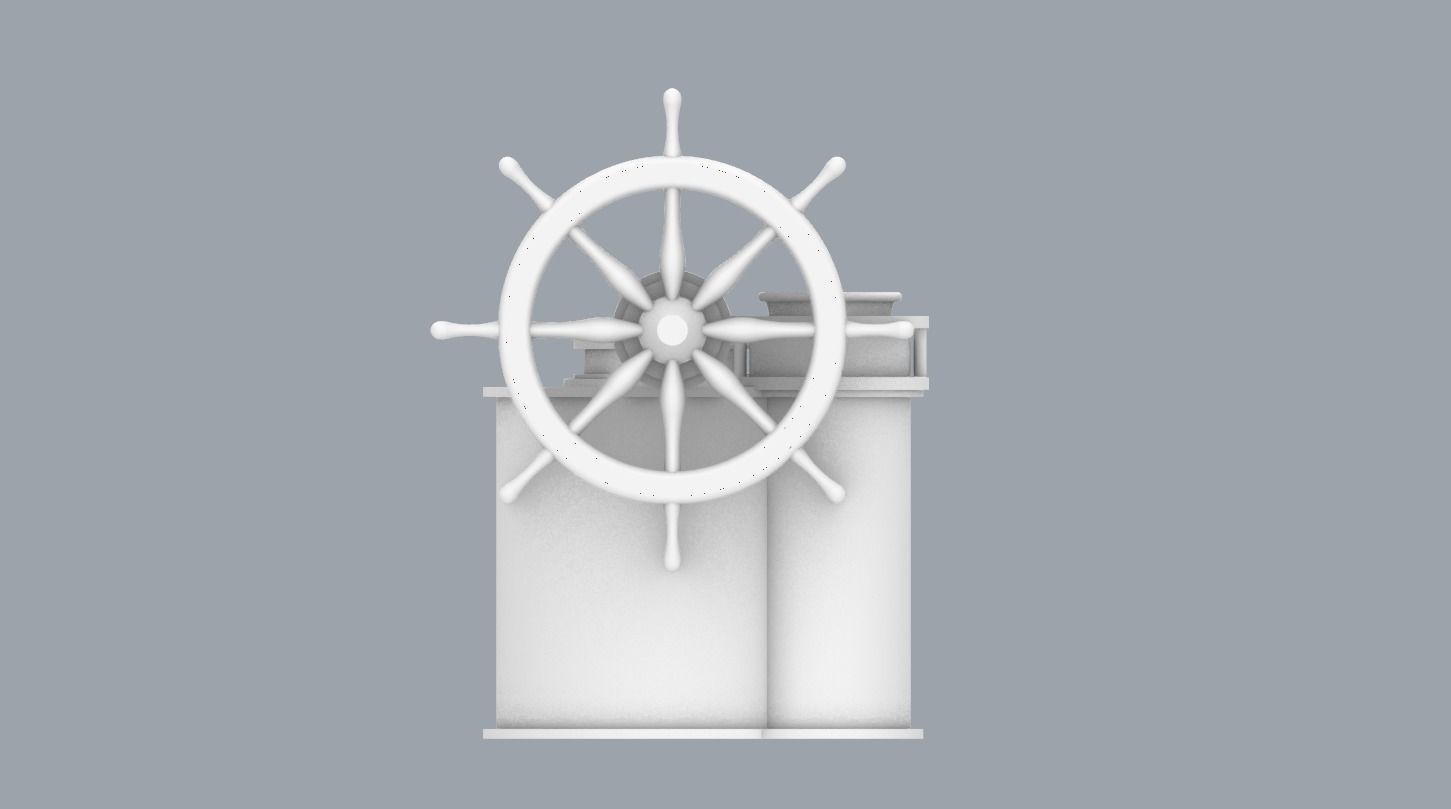

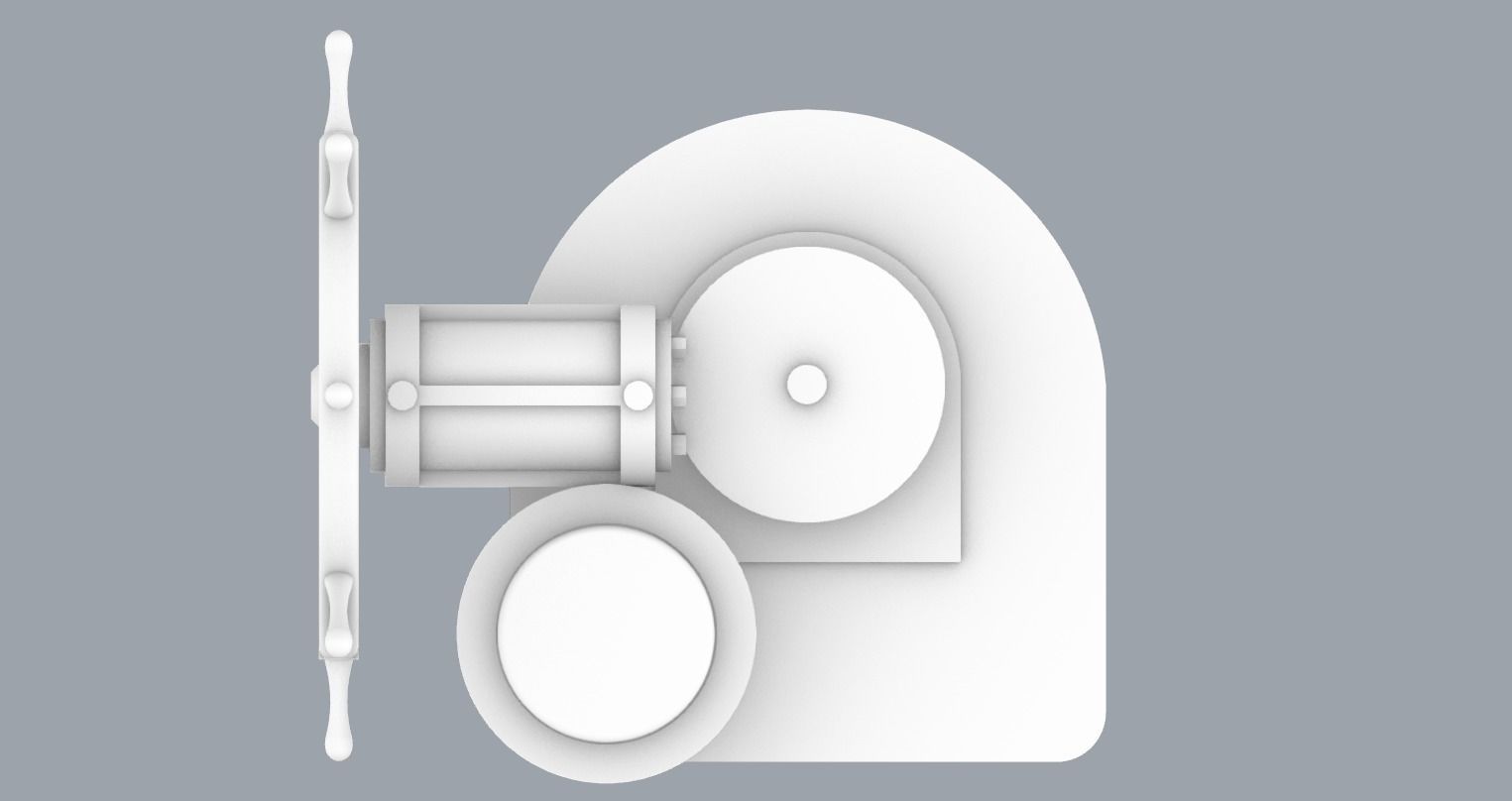

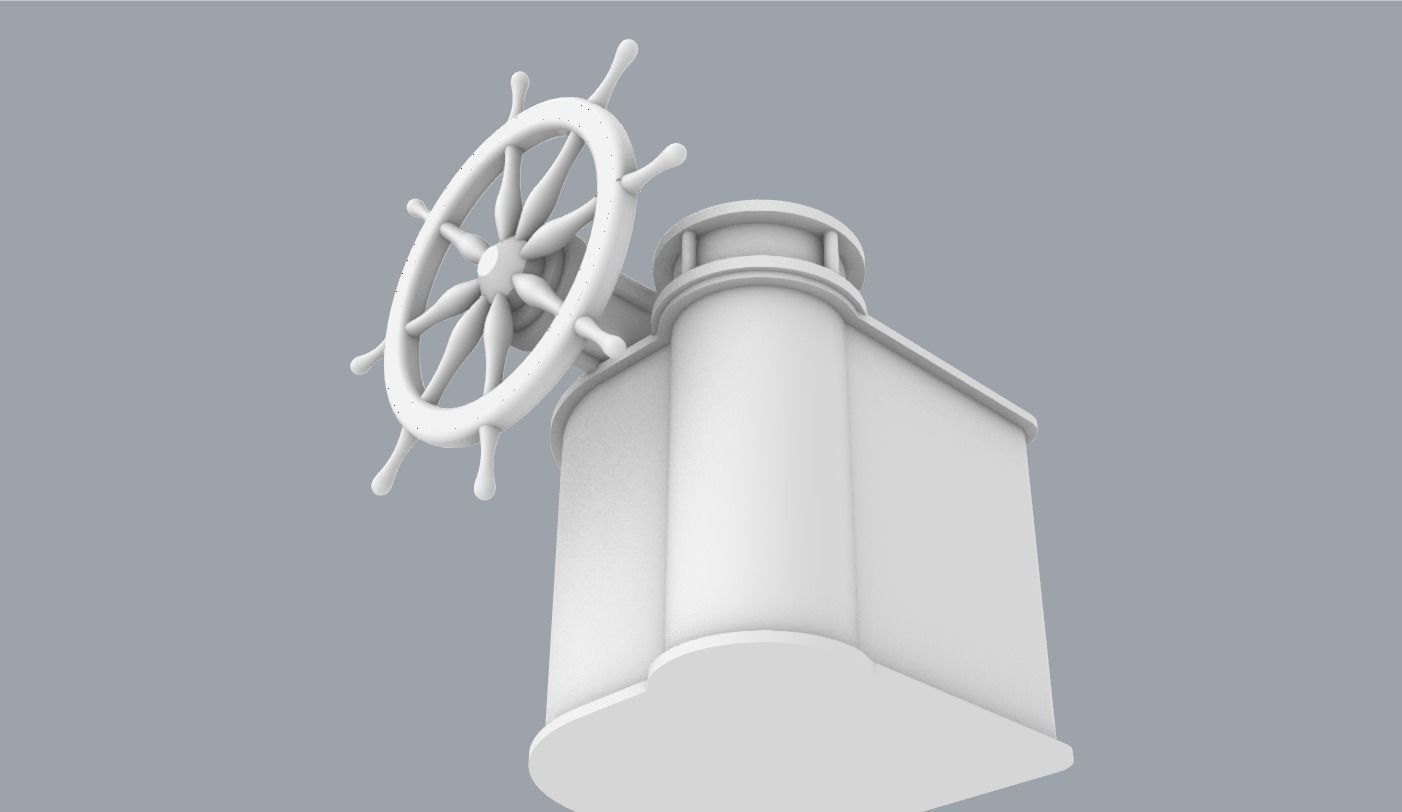

3D Model of Ships Helm with Wheel included, made for 3D Model of Old ship.
Model is ready to be used in 3D Printing, Design, CNC..
Notes:
All models are preprinted in order to get highest quality possible.
Model is simplified for printing.
Dimensions
Length: 16.11mm
Width: 15.27mm
Height: 19.92mm
Includes OBJ and STL file.
About
A ship's wheel or boat's wheel is a device used aboard a water vessel to steer that vessel and control its course. Together with the rest of the steering mechanism, it forms part of the helm.[clarification needed] It is connected to a mechanical, electric servo, or hydraulic system which alters the horizontal angle of the vessel's rudder relative to its hull. In some modern ships the wheel is replaced with a simple toggle that remotely controls an electro-mechanical or electro-hydraulic drive for the rudder, with a rudder position indicator presenting feedback to the helmsman.Until the invention of the ship's wheel, the helmsman relied on a tiller—a horizontal bar fitted directly to the top of the rudder post—or a whipstaff—a vertical stick acting on the arm of the ship's tiller. Near the start of the 18th century, a large number of vessels appeared using the ship's wheel design, but historians are unclear when the approach was first used.The steering gear of earlier ships' wheels sometimes consisted of a double wheel where each wheel was connected to the other with a wooden spindle that ran through a barrel or drum. The spindle was held up by two pedestals that rested on a wooden platform, often no more than a grate. A tiller rope or tiller chain (sometimes called a steering rope or steering chain) ran around the barrel in five or six loops and then down through two tiller rope/ chain slots at the top of the platform before connecting to two sheaves just below deck (one on either side of the ship's wheel) and thence out to a pair of pulleys before coming back together at the tiller and connecting to the ship's rudder. Movement of the wheels (which were connected and moved in unison) caused the tiller rope to wind in one of two directions and angled the tiller left or right. In a typical and intuitive arrangement, a forward-facing helmsman turning the wheel counterclockwise would cause the tiller to angle to starboard and therefore the rudder to swing to port causing the vessel to also turn to port (see animation).[2]: p.152 Having two wheels connected by an axle allowed two people to take the helm in severe weather when one person alone might not have had enough strength to control the ship's movements.
